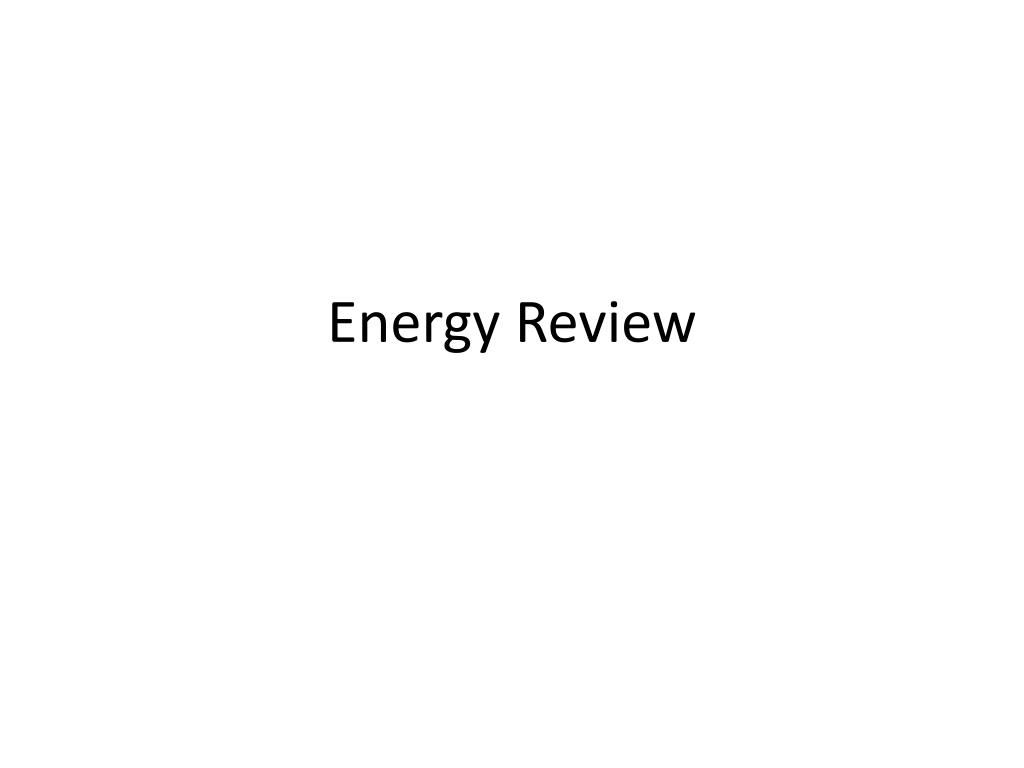

Energy Review

Loading in 2 Seconds...

play fullscreen
1 / 11

Energy Review - PowerPoint PPT Presentation


  • 79 Views
  • Uploaded on

Energy Review. Things to know. How is heat transferred? Exo and endo Specific heat Heat Specific Heat of lead lab Hess’s law Stoich with enthalpy. How is heat transferred?. Remember heat always goes from hot to cold. Temperature – Thermal energy -. Motion of particles - friction.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Energy Review' - rufus


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
things to know
Things to know

How is heat transferred?

Exo and endo

Specific heat

Heat

Specific Heat of lead lab

Hess’s law

Stoich with enthalpy

how is heat transferred
How is heat transferred?

Remember heat always goes from hot to cold.

Temperature –

Thermal energy -

Motion of particles - friction

Size does affect the amount of thermal energy

exo and endo

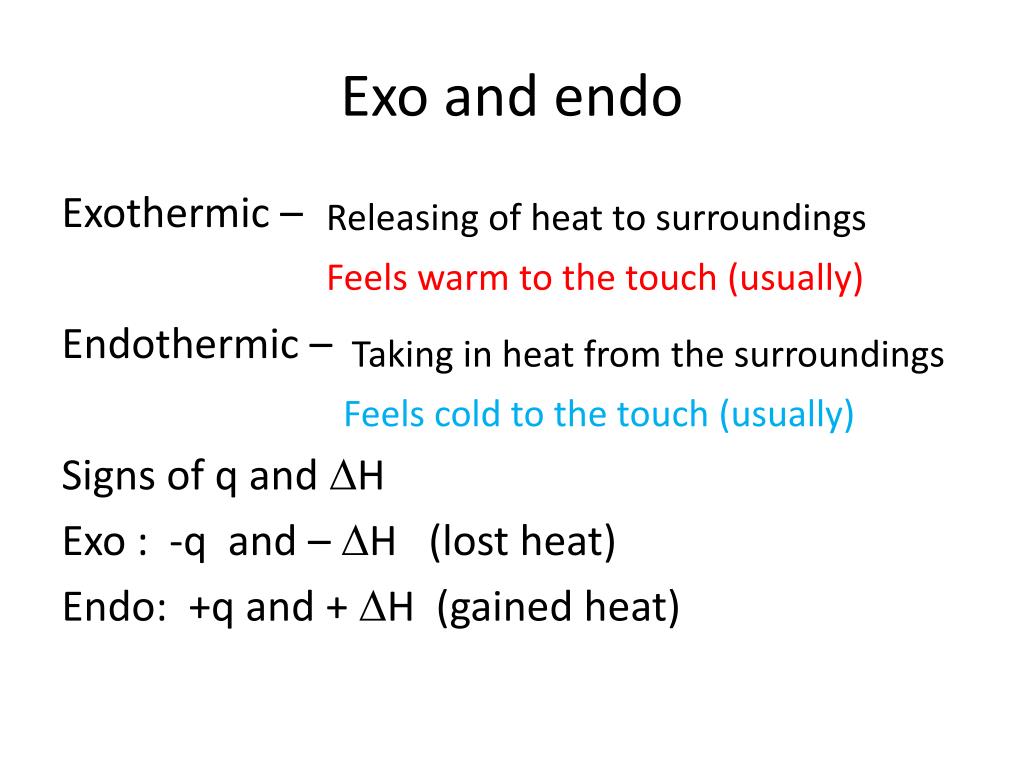

Exo and endo

Exothermic –

Endothermic –

Signs of q and DH

Exo : -q and – DH (lost heat)

Endo: +q and + DH (gained heat)

Releasing of heat to surroundings

Feels warm to the touch (usually)

Taking in heat from the surroundings

Feels cold to the touch (usually)

specific heat

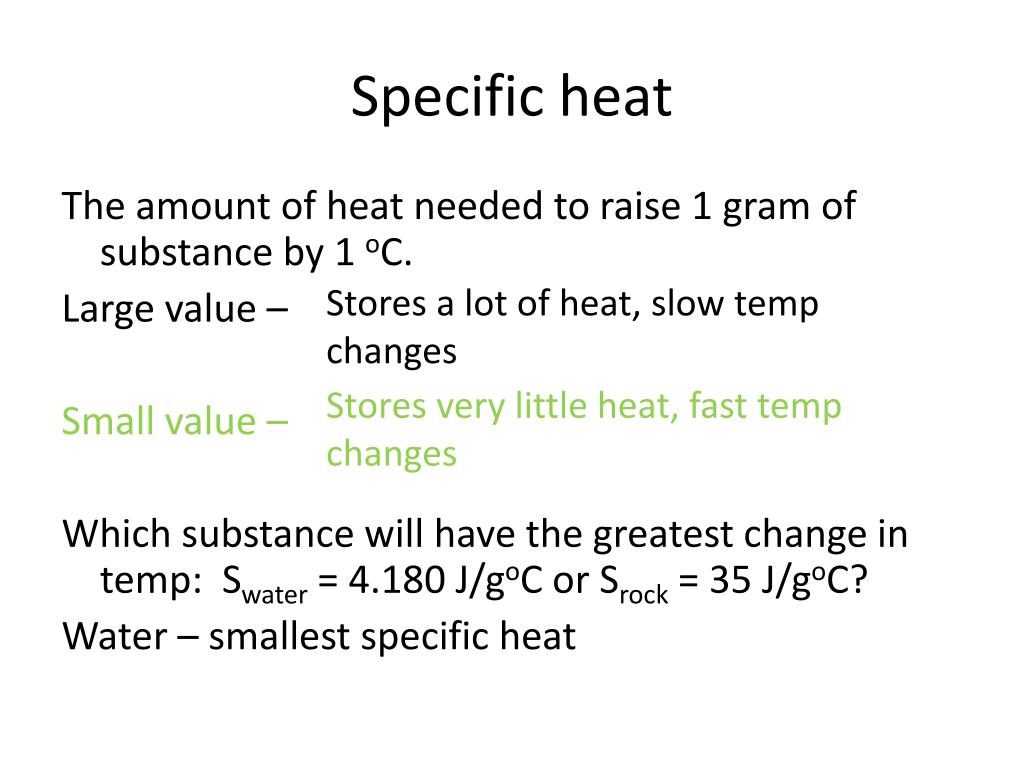

Specific heat

The amount of heat needed to raise 1 gram of substance by 1 oC.

Large value –

Small value –

Which substance will have the greatest change in temp: Swater = 4.180 J/goC or Srock = 35 J/goC?

Water – smallest specific heat

Stores a lot of heat, slow temp changes

Stores very little heat, fast temp changes

heat problems q ms d t
Heat problems q = msDT

Calculate heat needed to raise 25.0 g of lead by 30.0 oC. S lead = 0.13 J/goC

q = ?

m = 25.0 g

s = 0.13 J/goC

DT = 30.0 oC

q = msDT

q = (25.0 g)(0.13 J/goC)(30.0 oC)

q = + 97.5 J

Endothermic: positive q and raised the temp

slide7
Calculate the specific heat(J/goC) of a 100.0 g object that loses 12.0 kJ of heat as it cools from 98.2 oC to 22.3 oC.

q = msDT

q =

m =

s =

DT = Tf – Ti

-12 kJ

algebra

100.0 g

S = q

mDT

? J/goC

22.3oC – 98.2oC = -75.9oC

S = 1.58 J/goC

heat gained heat lost

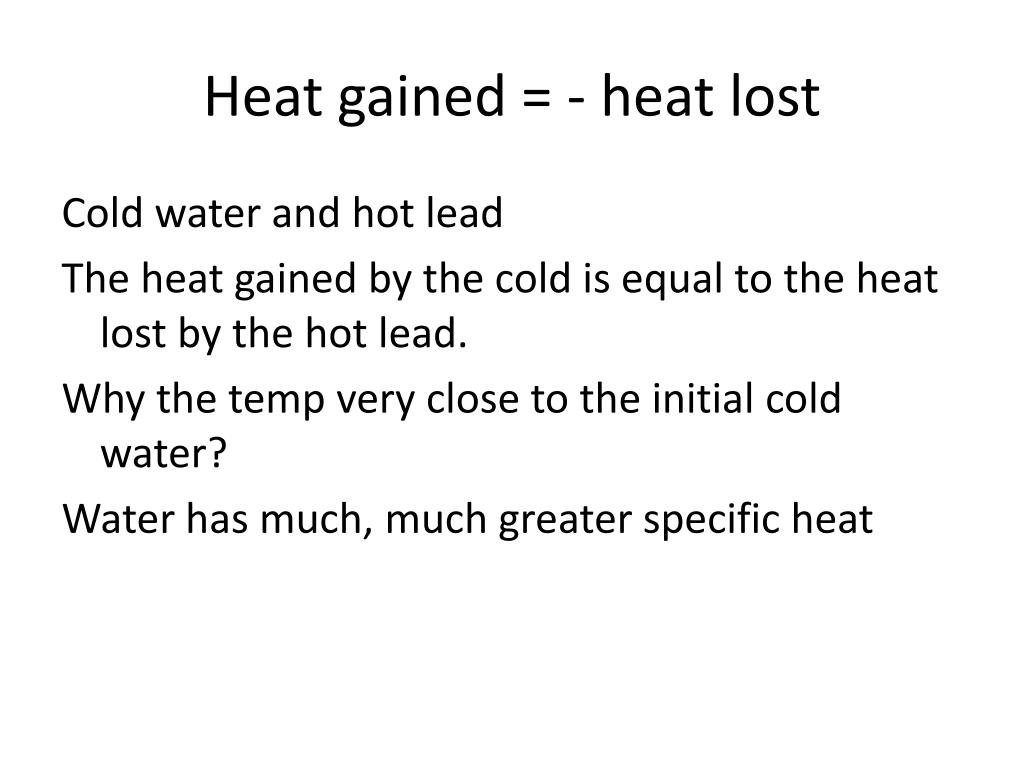

Heat gained = - heat lost

Cold water and hot lead

The heat gained by the cold is equal to the heat lost by the hot lead.

Why the temp very close to the initial cold water?

Water has much, much greater specific heat

hess s law
Hess’s law

Enthalpy change(heat change) of a series of steps in chemical process is equal the enthalpy change of the overall reaction.

(2 step process)

A + B  C DH = +40 kJ

C  D DH = - 25 kJ

A + B  D DH = +15 kJ

Overall (1 step process)

A + B  D DH = +15 kJ

calculate d h for no g o g no 2 g
Calculate DH for NO(g) + O(g)  NO2(g)

½

3/2 O2 (g)  O3(g) DH = - 213.5 kJ

Step 1) (2 O3(g)  3 O2(g) DH = -427 kJ)

Step 2) (O2(g)  2 O(g) DH = +495 kJ)

O (g)  ½ O2 (g) DH = - 247.5 kJ

Step 3) NO(g) + O3(g)  NO2(g) + O2(g) DH = -199 kJ

NO(g) + O(g)  NO2(g) DH = -660 kJ

Are all 3 chemicals from the overall equation on the correct side of the arrow?

Need to flip step 2 to get O on correct side and times by ½

Times step 1 by ½ and flip to get rid of O3 (g)

Now add up the reactions

½

NO

stoich with enthalpy
Stoich with enthalpy

2H2(g) + O2(g)  2H2O(l) DH = -482 kJ/mol

  • If 4.00 mols of H2 was used calculate DH.
  • If 15.0 g of O2 was used calculate DH.

= -968 kJ

= -227 kJ
