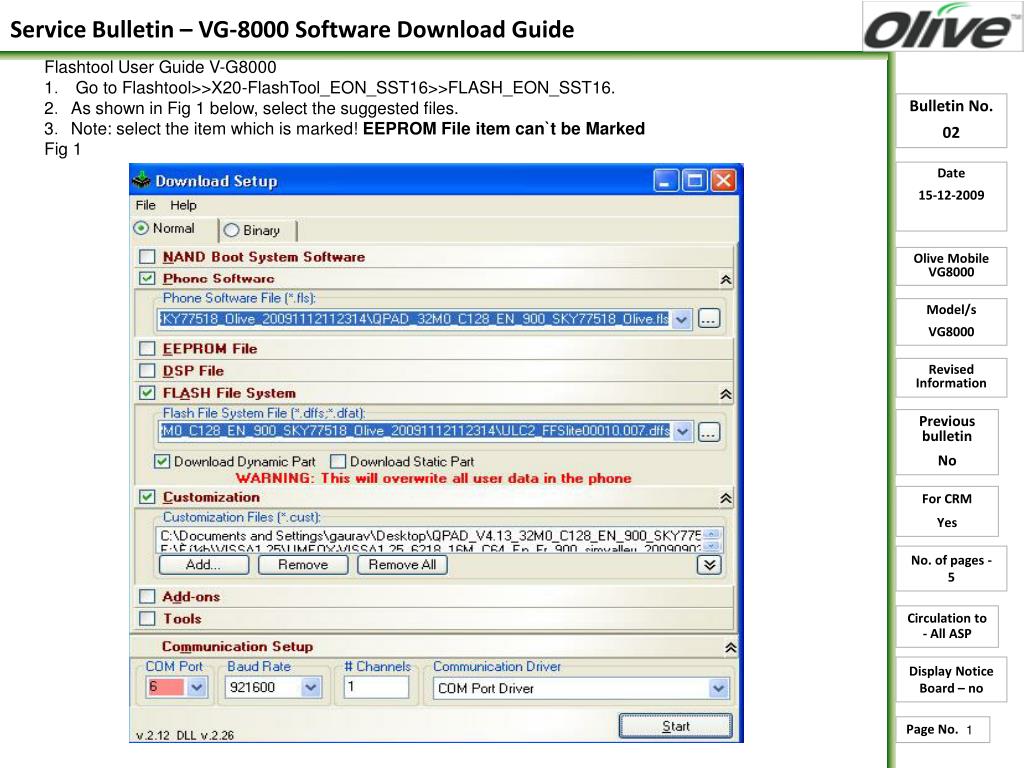

  1. Flashtool User Guide V-G8000 1． Go to Flashtool>>X20-FlashTool_EON_SST16>>FLASH_EON_SST16. 2．As shown in Fig 1 below, select the suggested files. 3．Note: select the item which is marked! EEPROM File item can`t be Marked Fig 1 1

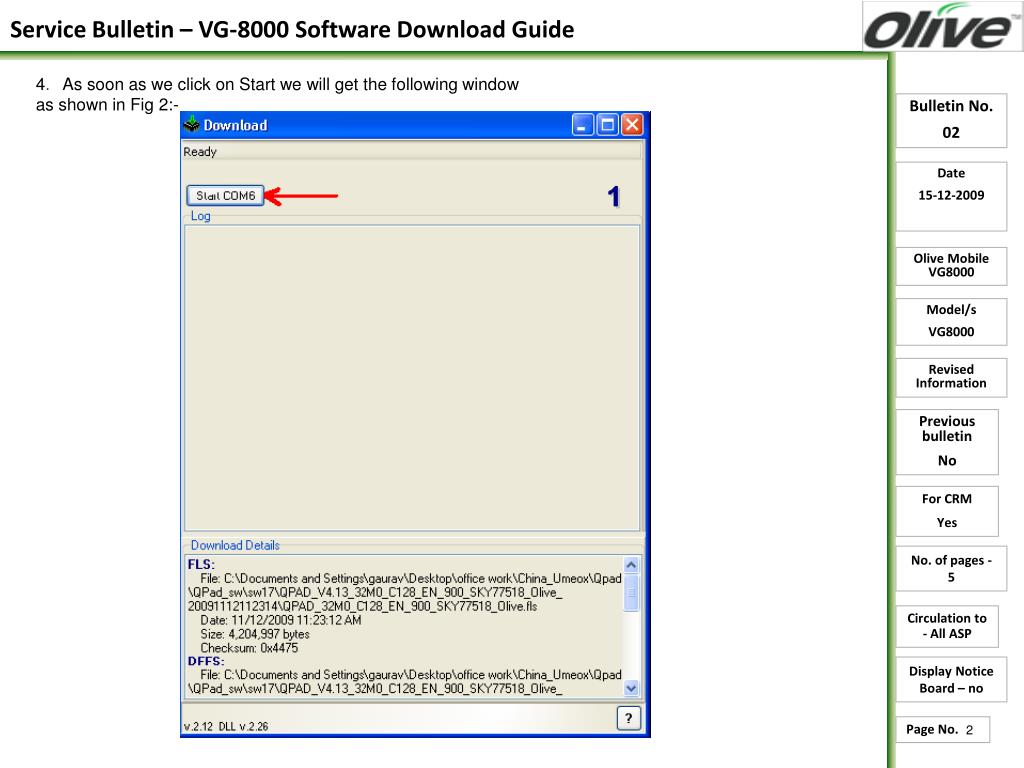

  2. 4．As soon as we click on Start we will get the following window as shown in Fig 2:- 2

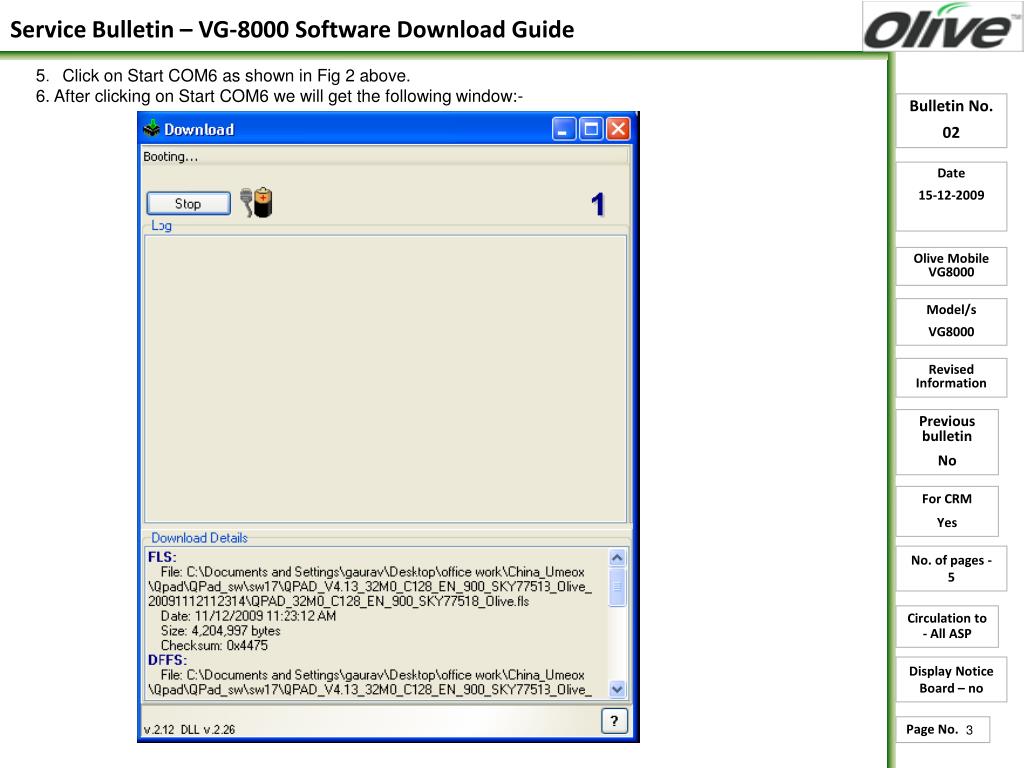

  3. 5．Click on Start COM6 as shown in Fig 2 above. 6. After clicking on Start COM6 we will get the following window:- 3

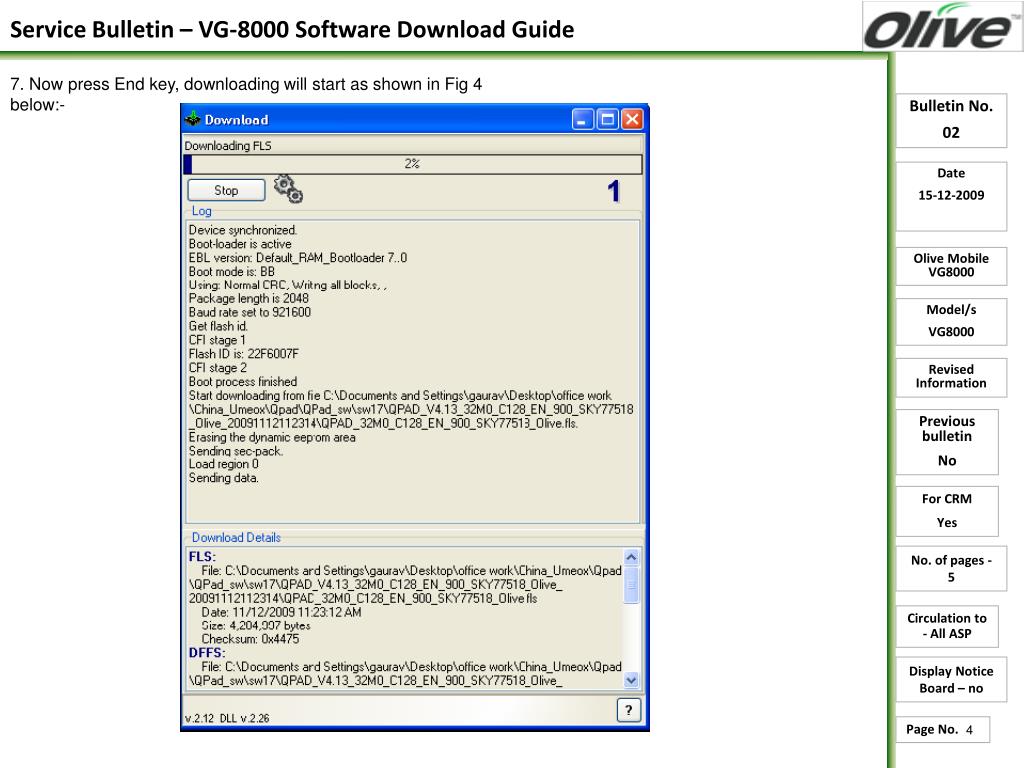

  4. 7. Now press End key, downloading will start as shown in Fig 4 below:- 4

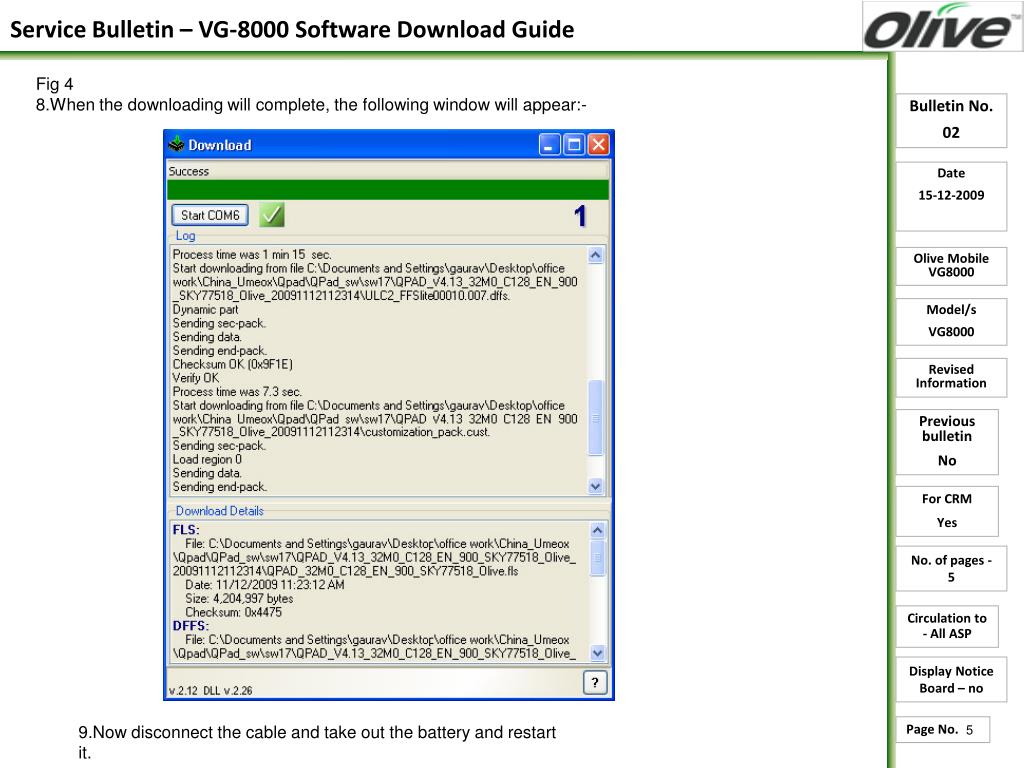

  5. Fig 4 8.When the downloading will complete, the following window will appear:- 9.Now disconnect the cable and take out the battery and restart it. 5
