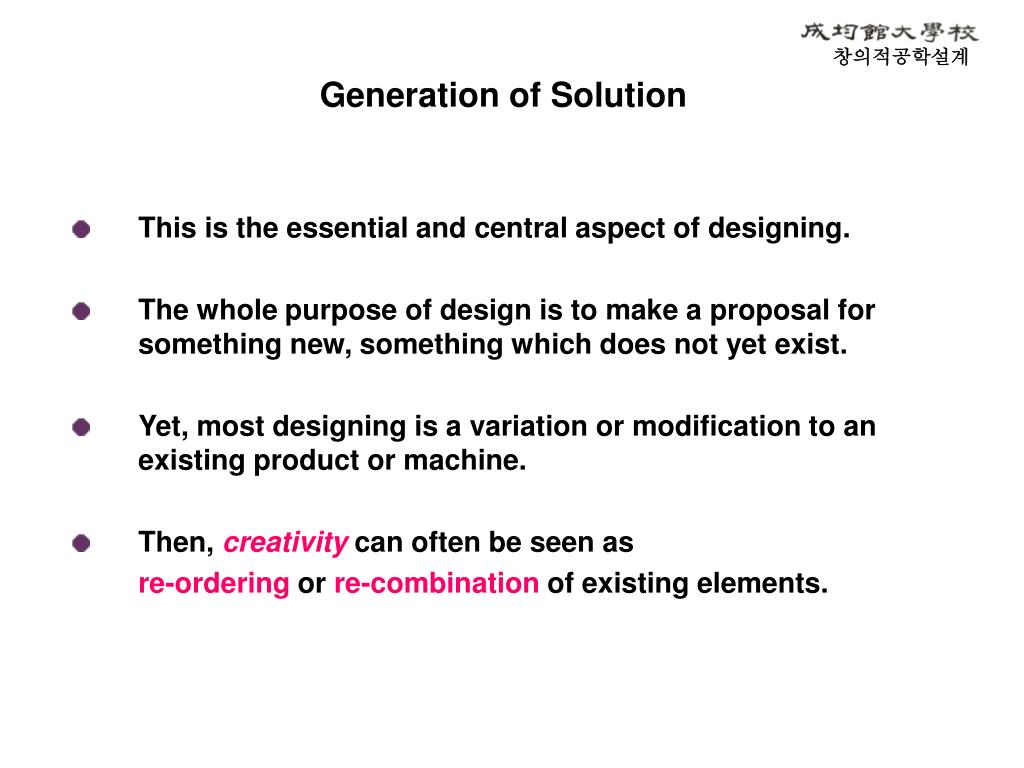

This is the essential and central aspect of designing. The whole purpose of design is to make a proposal for something new, something which does not yet exist. Yet, most designing is a variation or modification to an existing product or machine. Then, creativity can often be seen as
