  1. Use Multiple Tablespaces

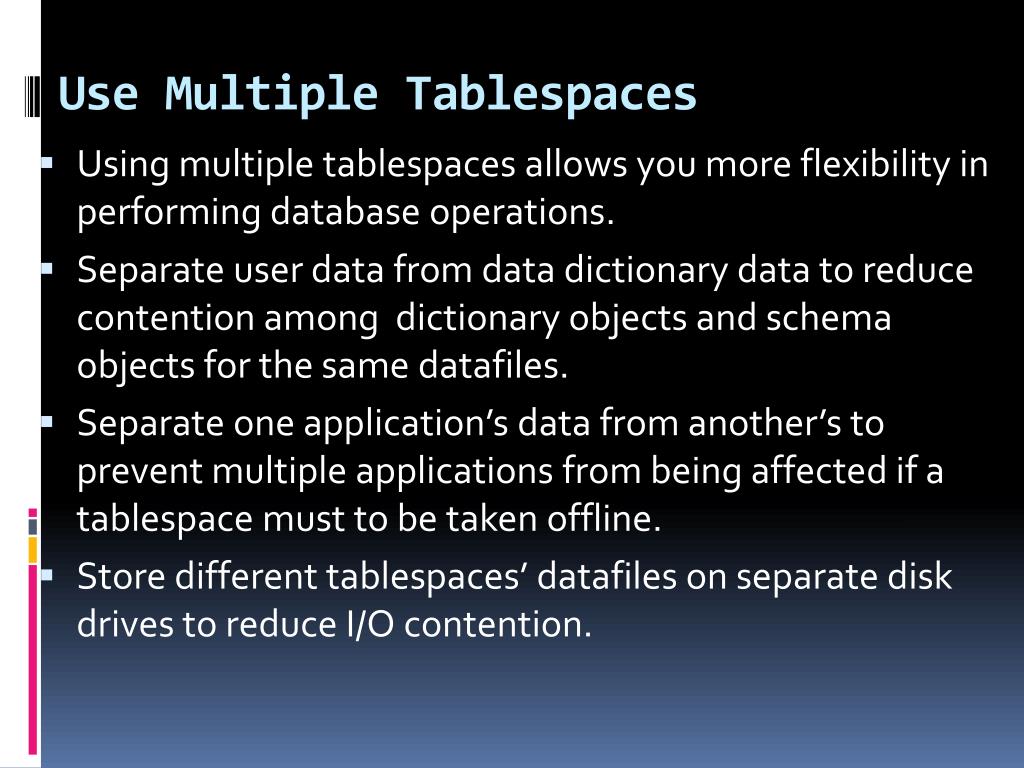

  2. Use MultipleTablespaces • Using multiple tablespaces allows you more flexibility in performing database operations. • Separate user data from data dictionary data to reduce contention among dictionary objects and schema objects for the same datafiles. • Separate one application’s data from another’s to prevent multiple applications from being affected if a tablespace must to be taken offline. • Store different tablespaces’ datafiles on separate disk drives to reduce I/O contention.

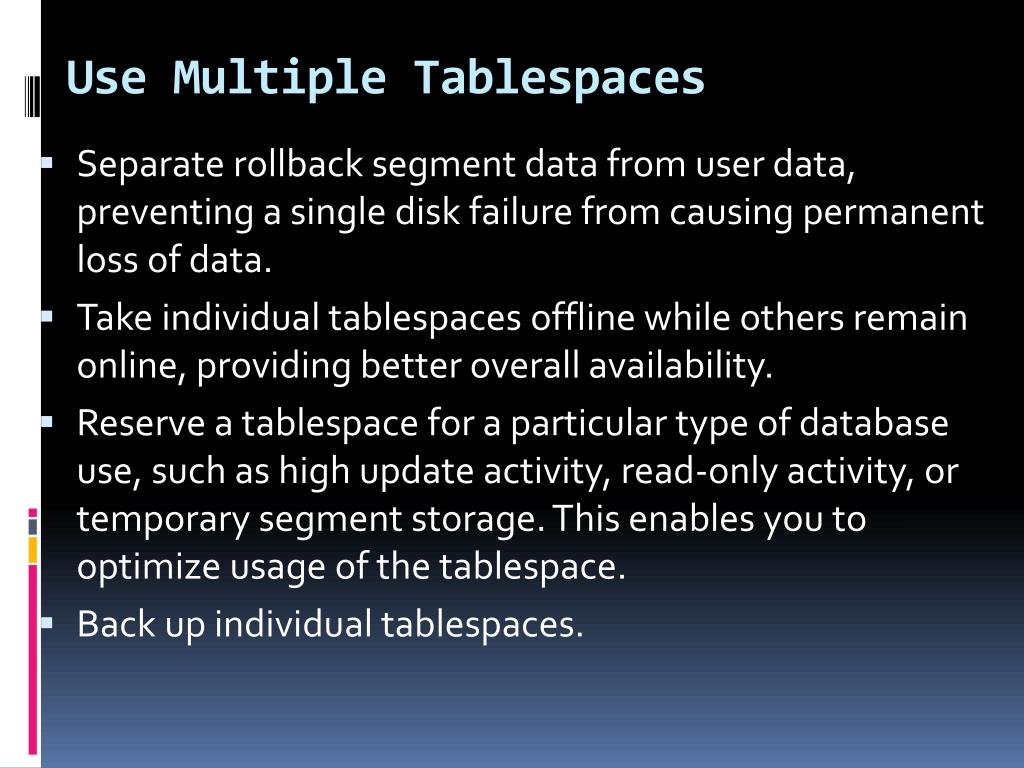

  3. Use MultipleTablespaces • Separate rollback segment data from user data, preventing a single disk failure from causing permanent loss of data. • Take individual tablespaces offline while others remain online, providing better overall availability. • Reserve a tablespace for a particular type of database use, such as high update activity, read-only activity, or temporary segment storage. This enables you to optimize usage of the tablespace. • Back up individual tablespaces.

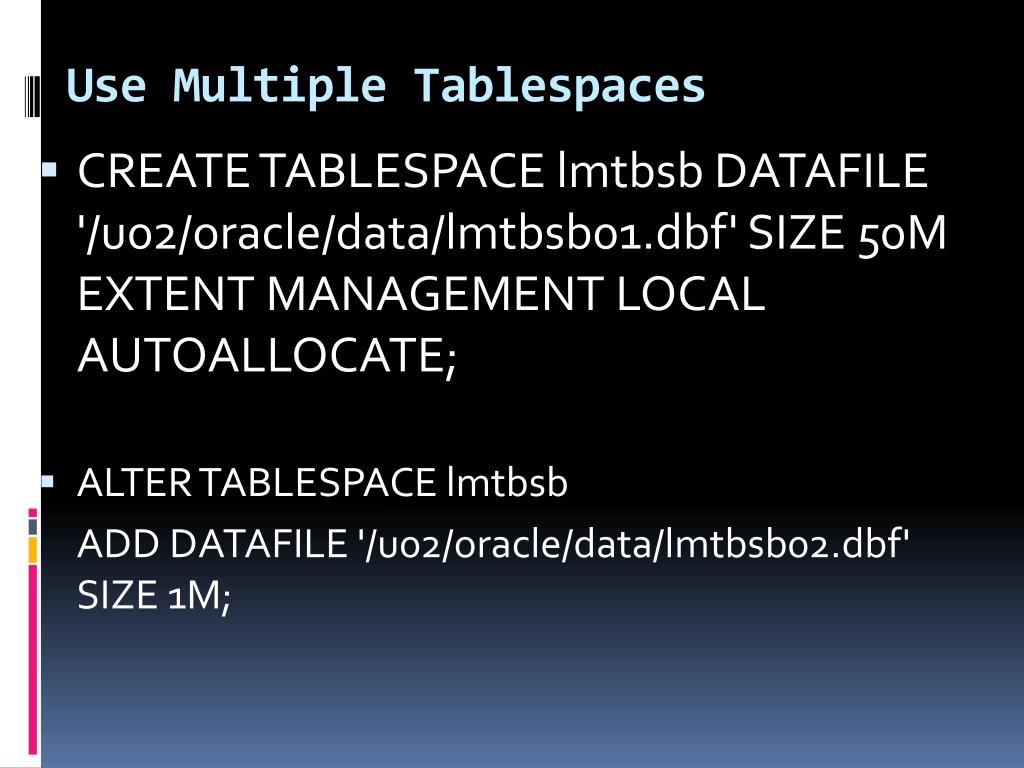

  4. Use MultipleTablespaces • CREATE TABLESPACE lmtbsb DATAFILE '/u02/oracle/data/lmtbsb01.dbf' SIZE 50M EXTENT MANAGEMENT LOCAL AUTOALLOCATE; • ALTER TABLESPACE lmtbsb ADD DATAFILE '/u02/oracle/data/lmtbsb02.dbf' SIZE 1M;

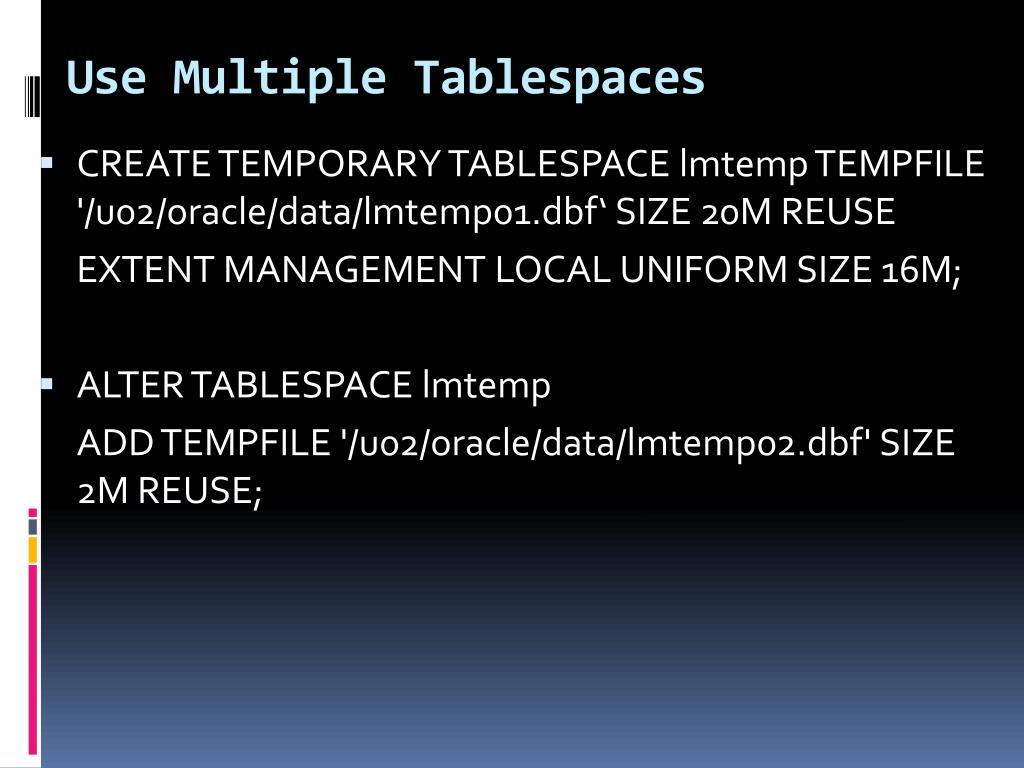

  5. Use MultipleTablespaces • CREATE TEMPORARY TABLESPACE lmtemp TEMPFILE '/u02/oracle/data/lmtemp01.dbf‘ SIZE 20M REUSE EXTENT MANAGEMENT LOCAL UNIFORM SIZE 16M; • ALTER TABLESPACE lmtemp ADD TEMPFILE '/u02/oracle/data/lmtemp02.dbf' SIZE 2M REUSE;

  6. Use MultipleTablespaces • ALTER DATABASE TEMPFILE '/u02/oracle/data/lmtemp02.dbf' OFFLINE; • ALTER DATABASE TEMPFILE '/u02/oracle/data/lmtemp02.dbf' ONLINE; • ALTER DATABASE TEMPFILE '/u02/oracle/data/lmtemp02.dbf' RESIZE 4M; • ALTER DATABASE TEMPFILE '/u02/oracle/data/lmtemp02.dbf' DROP INCLUDING DATAFILES;

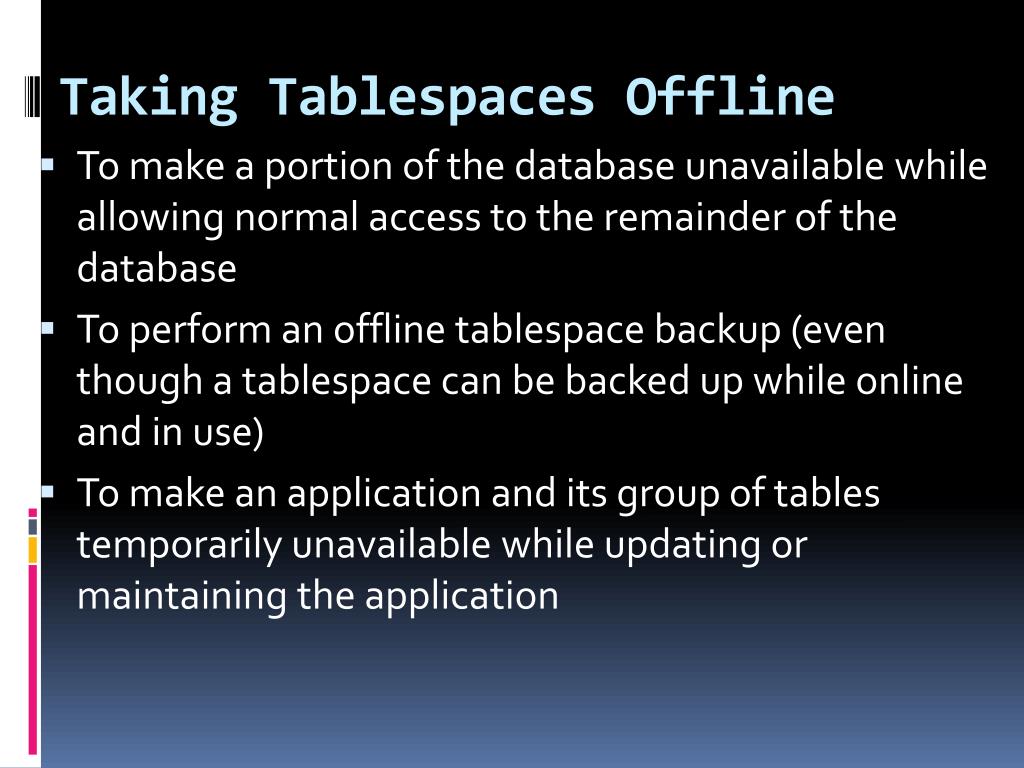

  7. TakingTablespaces Offline • To make a portion of the database unavailable while allowing normal access to the remainder of the database • To perform an offline tablespace backup (even though a tablespace can be backed up while online and in use) • To make an application and its group of tables temporarily unavailable while updating or maintaining the application

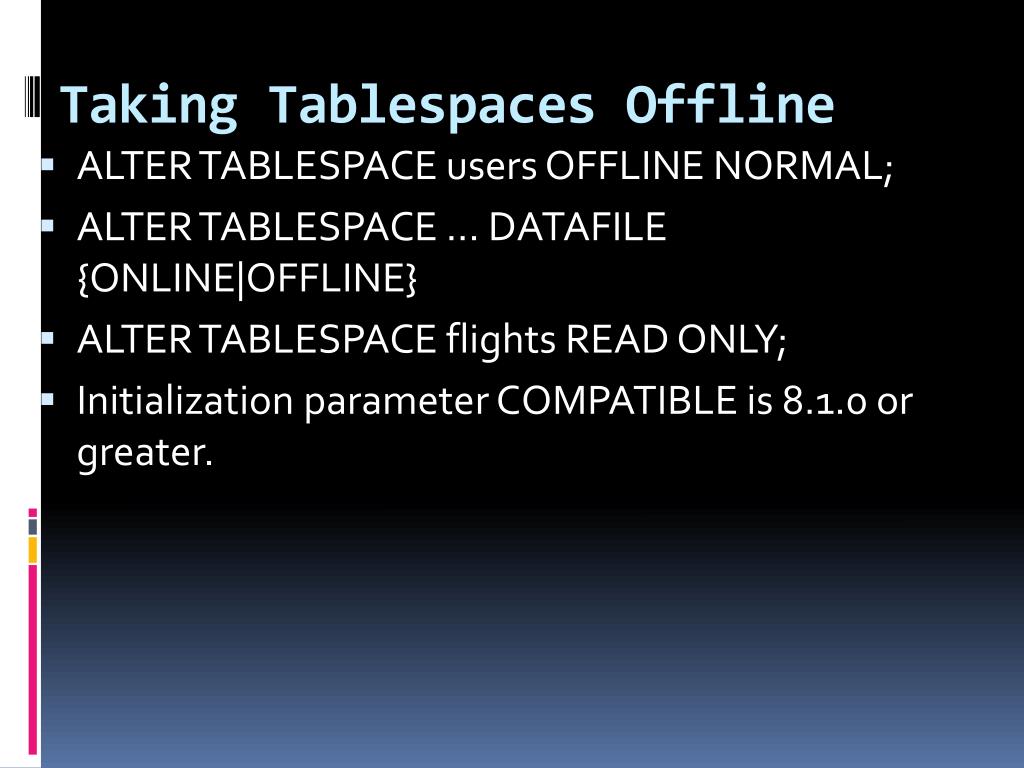

  8. TakingTablespaces Offline • ALTER TABLESPACE users OFFLINE NORMAL; • ALTER TABLESPACE ... DATAFILE {ONLINE|OFFLINE} • ALTER TABLESPACE flights READ ONLY; • Initialization parameter COMPATIBLE is 8.1.0 or greater.

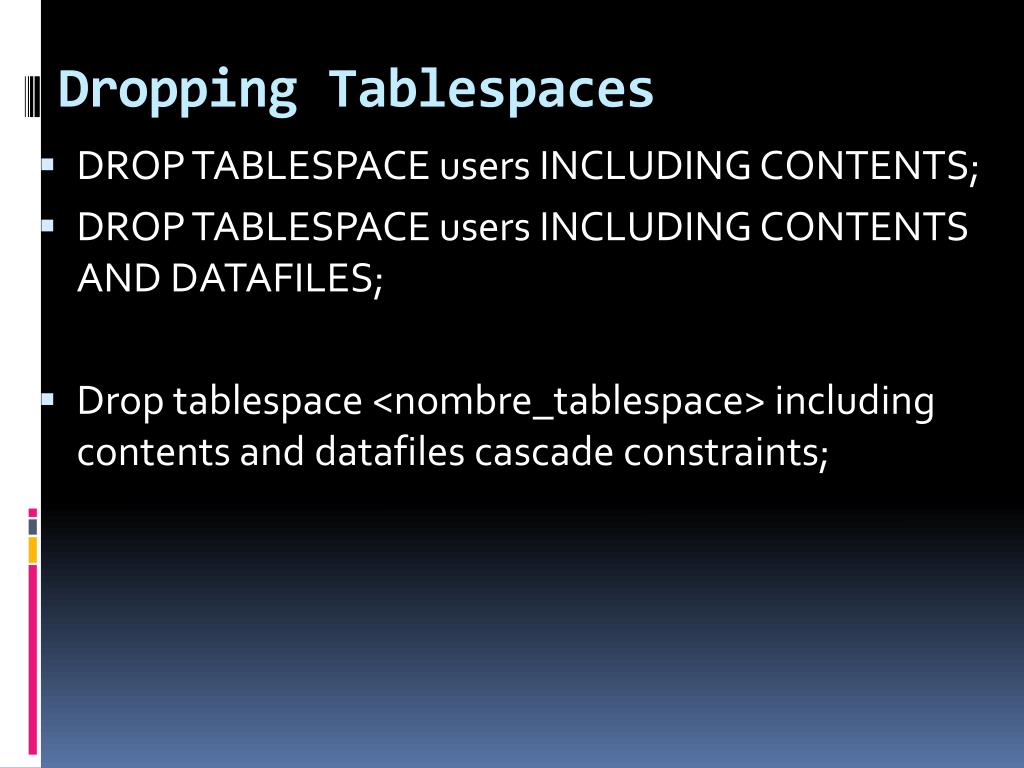

  9. DroppingTablespaces • DROP TABLESPACE users INCLUDING CONTENTS; • DROP TABLESPACE users INCLUDING CONTENTS AND DATAFILES; • Drop tablespace <nombre_tablespace> including contents and datafiles cascade constraints;

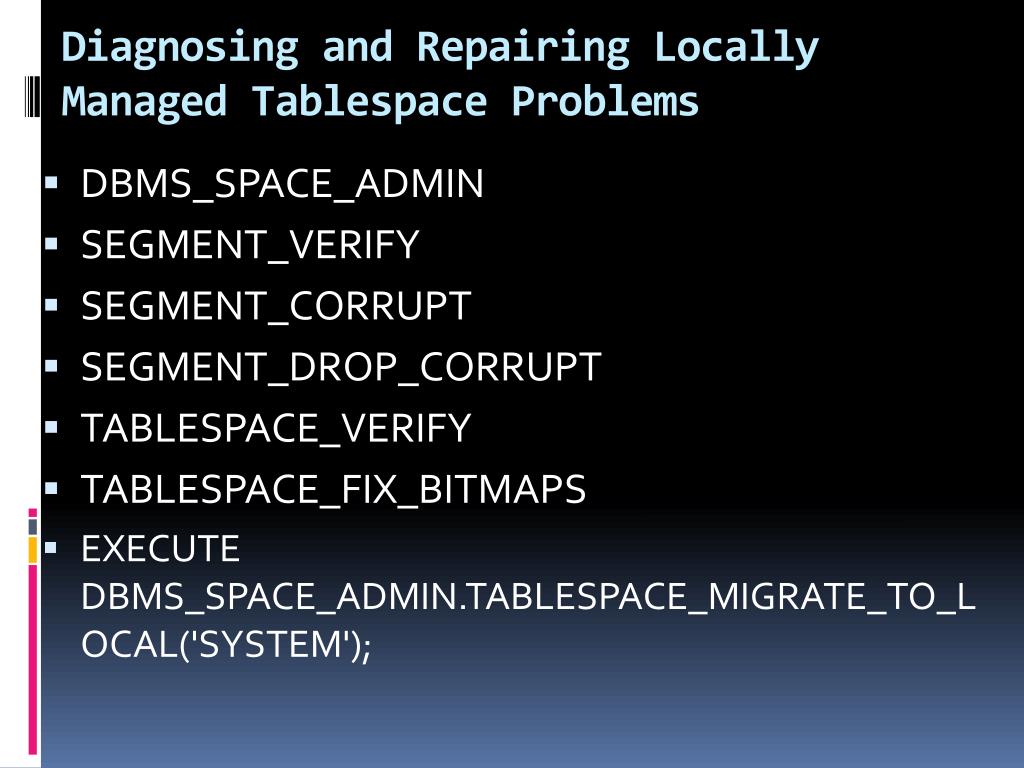

  10. Diagnosing and RepairingLocallyManagedTablespaceProblems • DBMS_SPACE_ADMIN • SEGMENT_VERIFY • SEGMENT_CORRUPT • SEGMENT_DROP_CORRUPT • TABLESPACE_VERIFY • TABLESPACE_FIX_BITMAPS • EXECUTE DBMS_SPACE_ADMIN.TABLESPACE_MIGRATE_TO_LOCAL('SYSTEM');

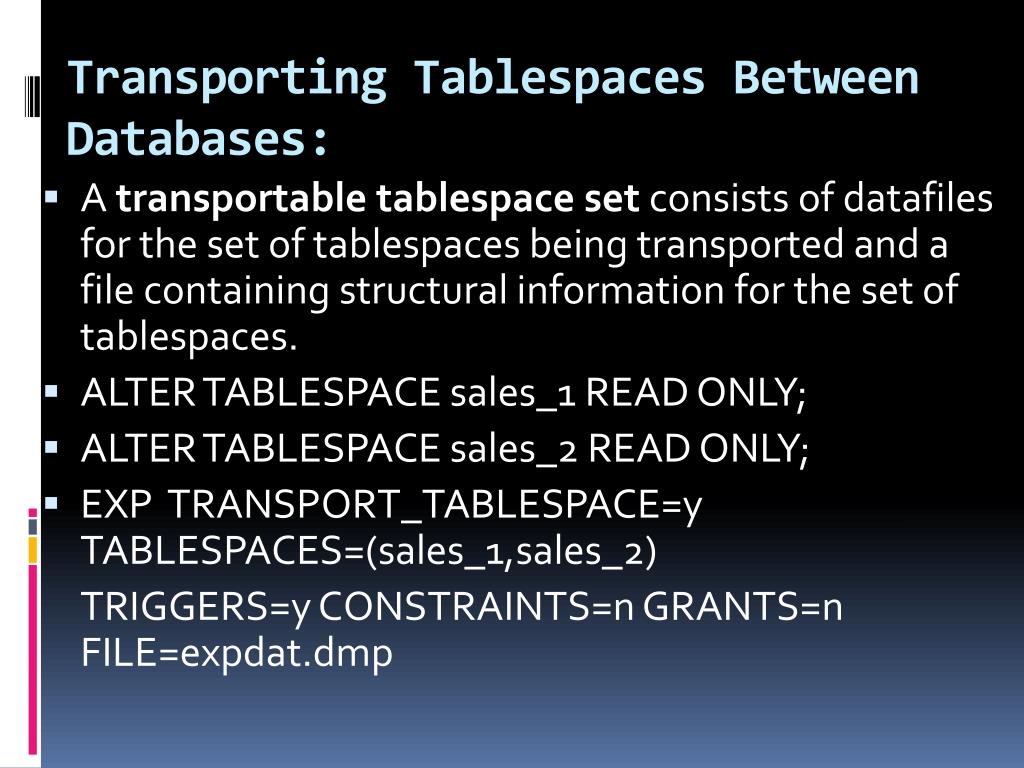

  11. TransportingTablespacesBetweenDatabases: • A transportable tablespace set consists of datafiles for the set of tablespaces being transported and a file containing structural information for the set of tablespaces. • ALTER TABLESPACE sales_1 READ ONLY; • ALTER TABLESPACE sales_2 READ ONLY; • EXP TRANSPORT_TABLESPACE=y TABLESPACES=(sales_1,sales_2) TRIGGERS=y CONSTRAINTS=n GRANTS=n FILE=expdat.dmp

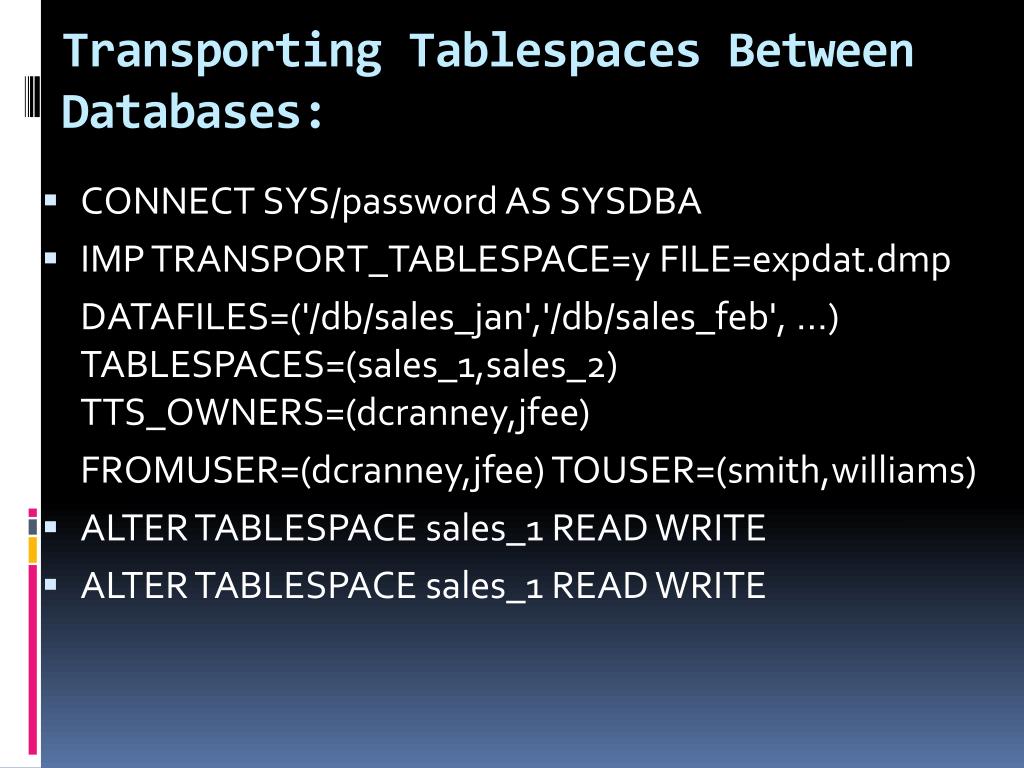

  12. Transporting Tablespaces Between Databases: • CONNECT SYS/password AS SYSDBA • IMP TRANSPORT_TABLESPACE=y FILE=expdat.dmp DATAFILES=('/db/sales_jan','/db/sales_feb', ...) TABLESPACES=(sales_1,sales_2) TTS_OWNERS=(dcranney,jfee) FROMUSER=(dcranney,jfee) TOUSER=(smith,williams) • ALTER TABLESPACE sales_1 READ WRITE • ALTER TABLESPACE sales_1 READ WRITE

  13. ViewingTablespaceInformation

  14. Mover Tabla de un TBS a otro • Alter table DEPT movetablespaceTEST; • SELECT object_type ,COUNT(*) FROM dba_objects WHERE owner=‘X' GROUP BY object_type;

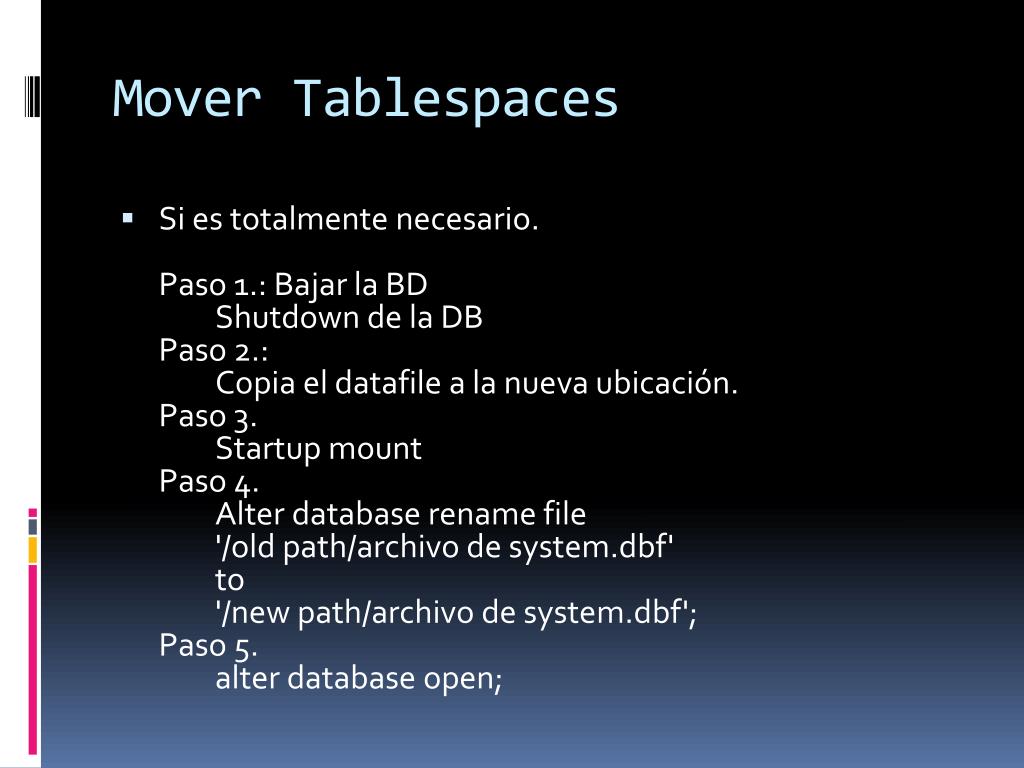

  15. Mover Tablespaces • Si es totalmente necesario.Paso 1.: Bajar la BD Shutdown de la DBPaso 2.: Copia el datafile a la nueva ubicación.Paso 3. Startup mountPaso 4. Alter database rename file '/old path/archivo de system.dbf' to '/new path/archivo de system.dbf';Paso 5. alter database open;

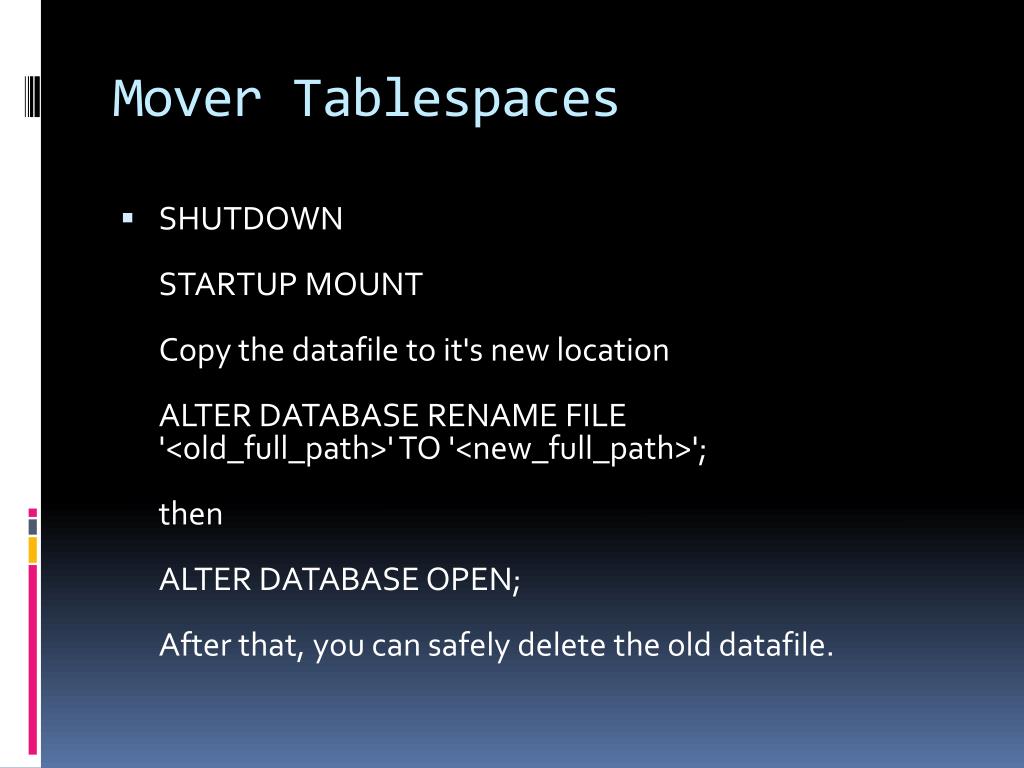

  16. Mover Tablespaces • SHUTDOWNSTARTUP MOUNTCopy the datafile to it's new locationALTER DATABASE RENAME FILE '<old_full_path>' TO '<new_full_path>';thenALTER DATABASE OPEN;After that, you can safely delete the old datafile.

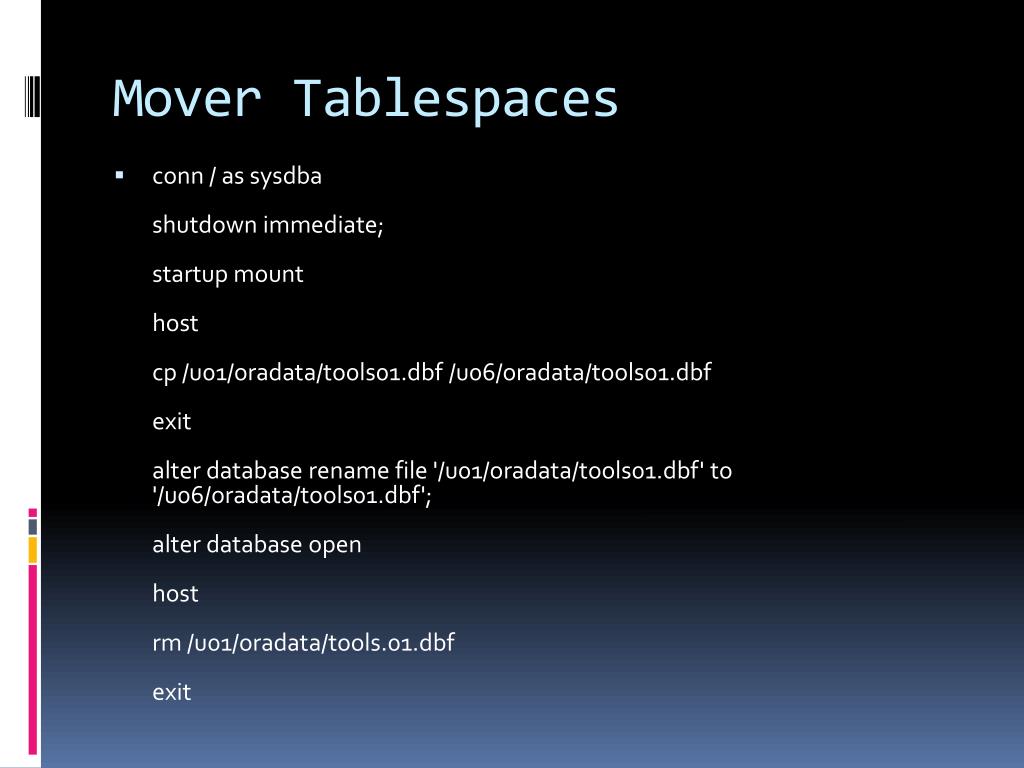

  17. Mover Tablespaces • conn / as sysdbashutdown immediate;startup mounthostcp /u01/oradata/tools01.dbf /u06/oradata/tools01.dbfexitalter database rename file '/u01/oradata/tools01.dbf' to '/u06/oradata/tools01.dbf';alter database openhostrm /u01/oradata/tools.01.dbfexit

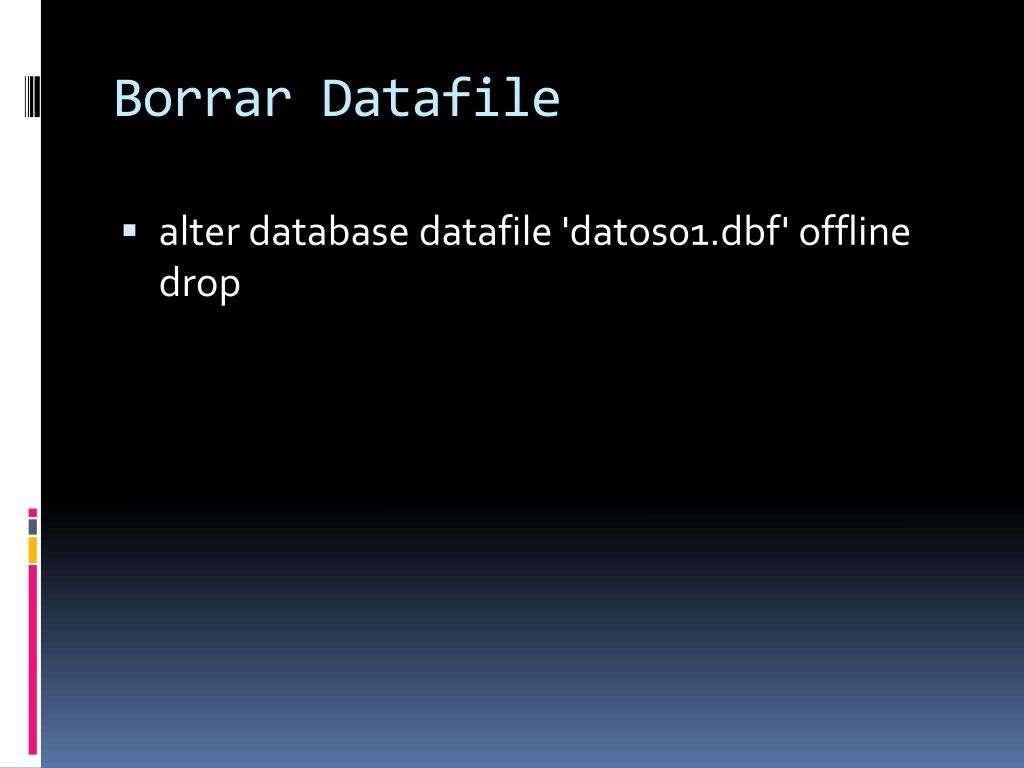

  18. Borrar Datafile • alter database datafile 'datos01.dbf' offline drop

  19. Resumen

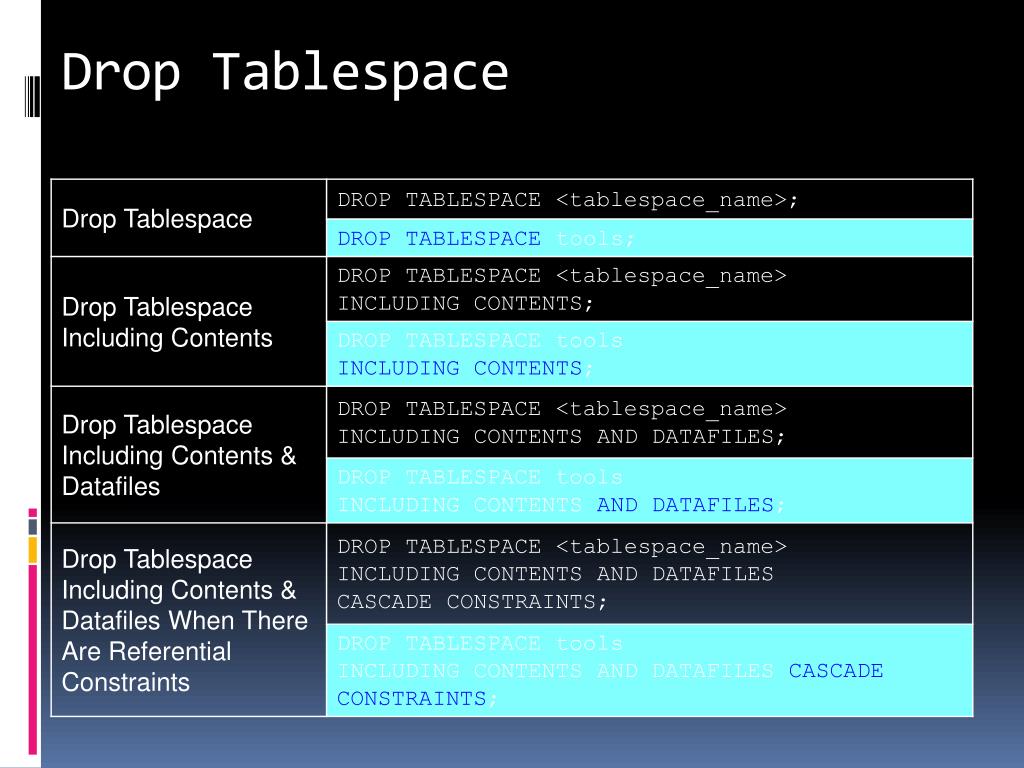

  20. Drop Tablespace

  21. Datafile • Resize An Existing Datafile • ALTER DATABASE DATAFILE '<data_file_name>' RESIZE <n> K|M;
