  1. Heat Transfer

  2. Heat Transfer • Heat always moves from a warmer place to a cooler place. • Hot objects in a cooler room will cool to room temperature. • Cold objects in a warmer room will heat up to room temperature.

  3. Question If a cup of coffee and an ice cube were left on the table in this room what would happen to them? Why? Answer The cup of coffee will cool until it reaches room temperature. The ice will melt and then the liquid will cool to room temperature.

  4. HEAT TRANSFER METHODS • Conduction • Convection • Radiation

  5. CONDUCTION • Heat travels along a substance from molecule to molecule (between two materials that touch each other) • Good conductors (silver, copper, gold) • Poor conductors ( glass, paper, Styrofoam)

  6. Conduction When you heat a metal strip at one end, the heat travels to the other end. As you heat the metal, the particles vibrate, these vibrations make the adjacent particles vibrate, and so on and so on, the vibrations are passed along the metal and so is the heat. We call this?

  7. Metals are different The outer e_______ for metal atoms drift, and are free to move. lectrons When the metal is heated, this ‘Sea of electrons’ gain k_____ energy and transfer it throughout the metal. inetic Insulators, such as w___ and p____, do not have this ‘Sea of electrons’ which is why they do not conduct heat as well as metals. ood lastic

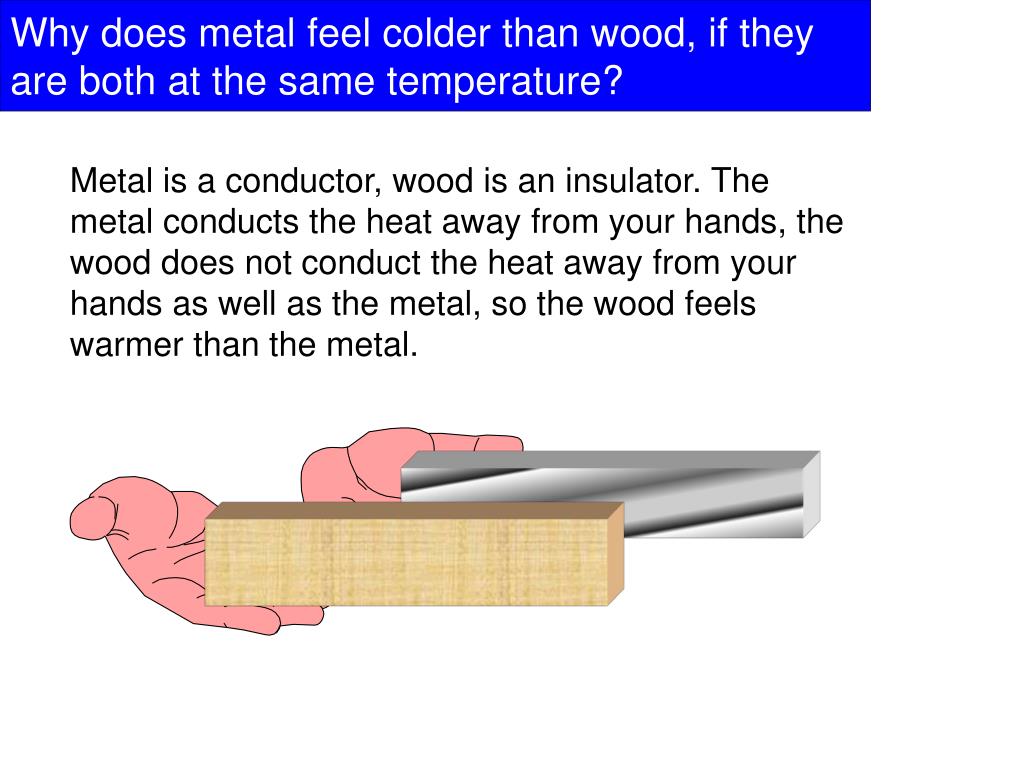

  8. Why does metal feel colder than wood, if they are both at the same temperature? Metal is a conductor, wood is an insulator. The metal conducts the heat away from your hands, the wood does not conduct the heat away from your hands as well as the metal, so the wood feels warmer than the metal.

  9. CONDUCTIONEXAMPLES • water heating on an electric stove • hot sand touching your feet • touching a stove and being burned • ice cooling down your hand • boiling water by thrusting a red-hot piece of iron into it

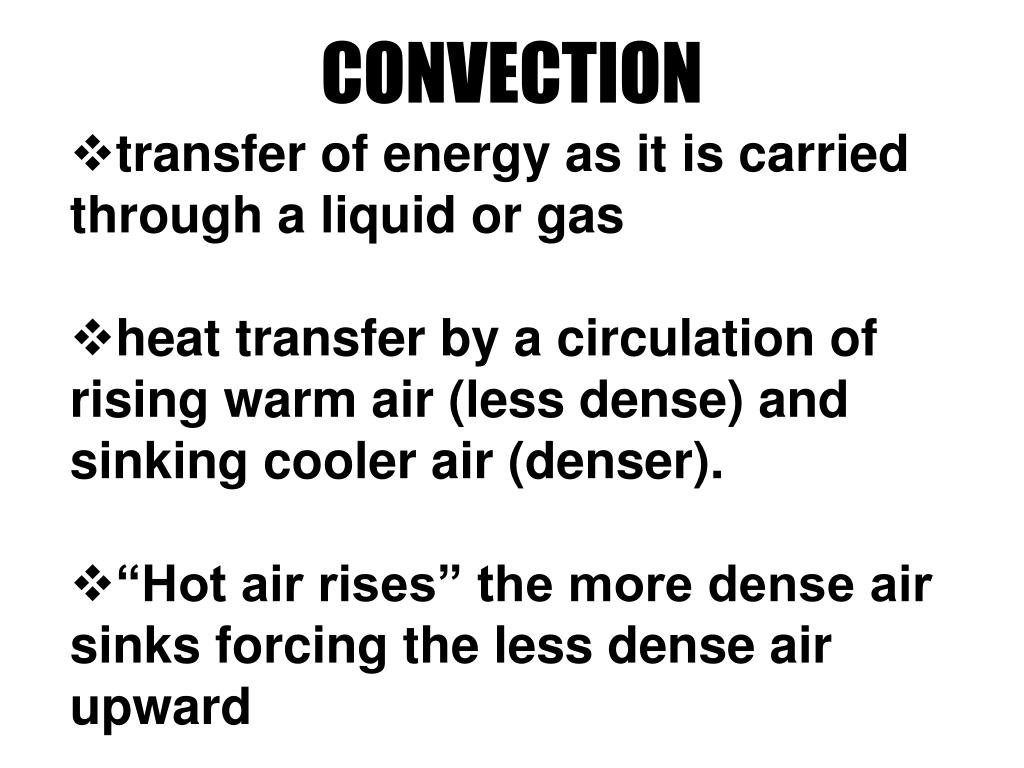

  10. CONVECTION • transfer of energy as it is carried through a liquid or gas • heat transfer by a circulation of rising warm air (less dense) and sinking cooler air (denser). • “Hot air rises” the more dense air sinks forcing the less dense air upward

  11. Heating fluids What happens to the particles in a liquid or a gas when you heat them? The particles spread out and become less dense. What is a fluid? A liquid or gas.

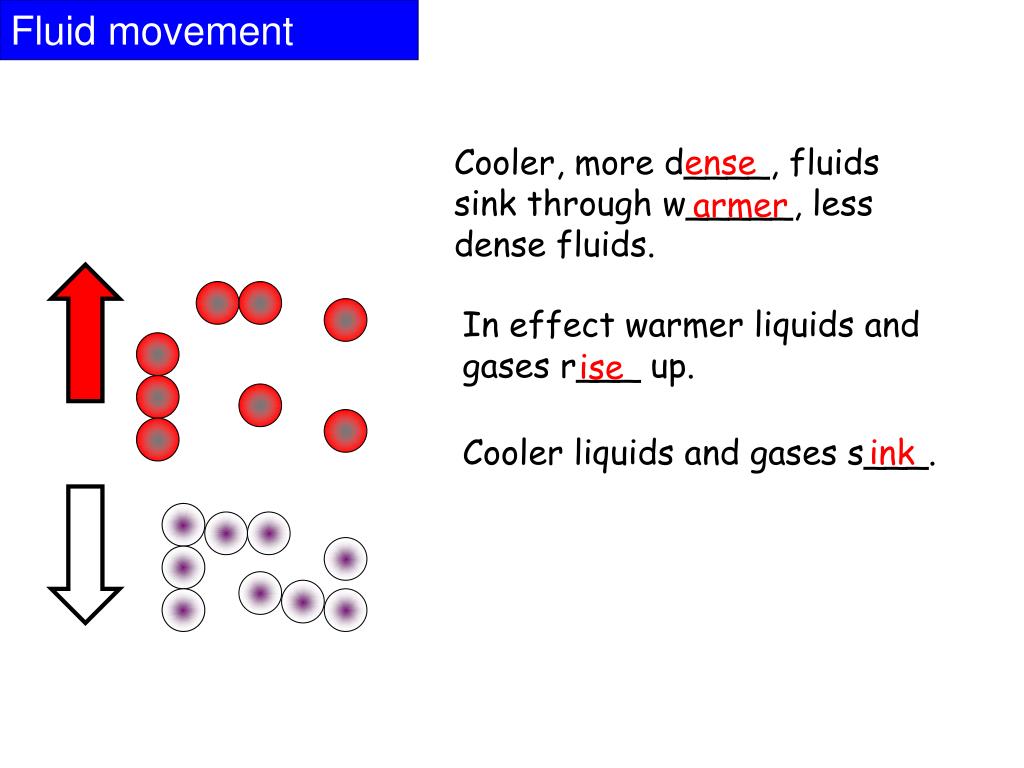

  12. Fluid movement Cooler, more d____, fluids sink through w_____, less dense fluids. ense armer In effect warmer liquids and gases r___ up. ise Cooler liquids and gases s___. ink

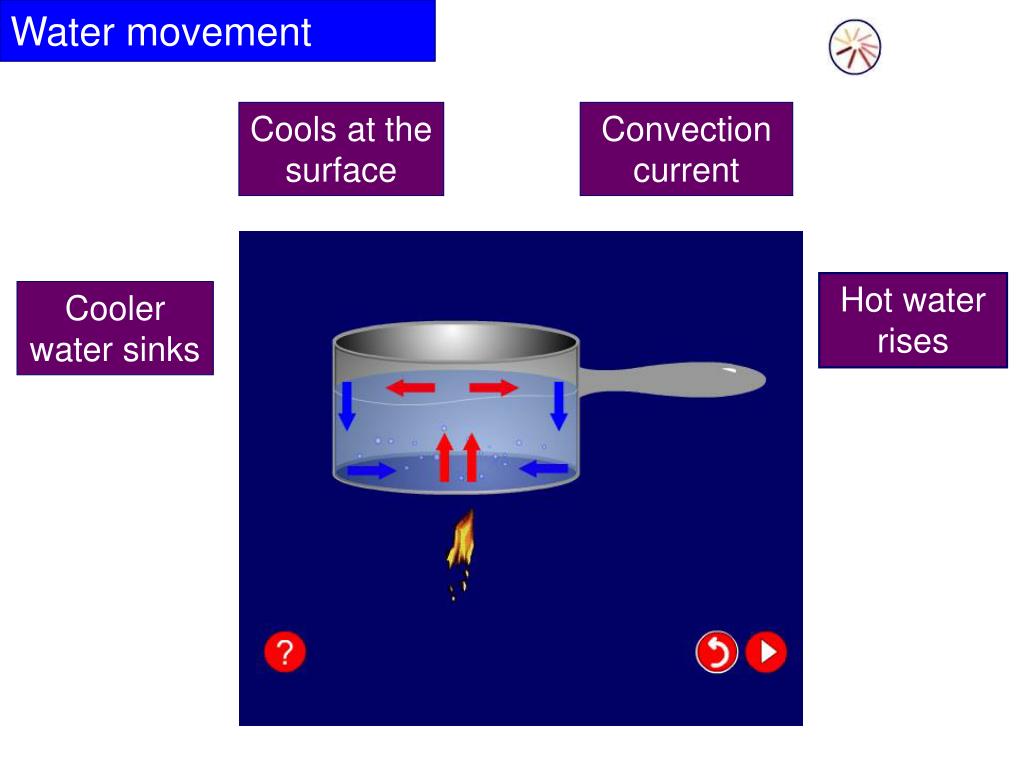

  13. Water movement Cools at the surface Convection current Hot water rises Cooler water sinks

  14. Why is it windy at the seaside?

  15. Cold air sinks Where is the freezer compartment put in a fridge? Freezer compartment It is warmer at the bottom, so this warmer air rises and a convection current is set up. It is put at the top, because cool air sinks, so it cools the food on the way down.

  16. CONVECTION EXAMPLES • macaroni rising and falling in a pot of heated water • heat rising from a chimney • an old-fashioned radiator (creates a convection cell in a room by emitting warm air at the top and drawing in cool air at the bottom)

  17. RADIATION • Carries energy away from the hot object and causes it to cool down • The movement of heat in a wave-like motion through an empty space

  18. The third method of heat transfer How does heat energy get from the Sun to the Earth? There are no particles between the Sun and the Earth so it CANNOT travel by conduction or by convection. RADIATION ?

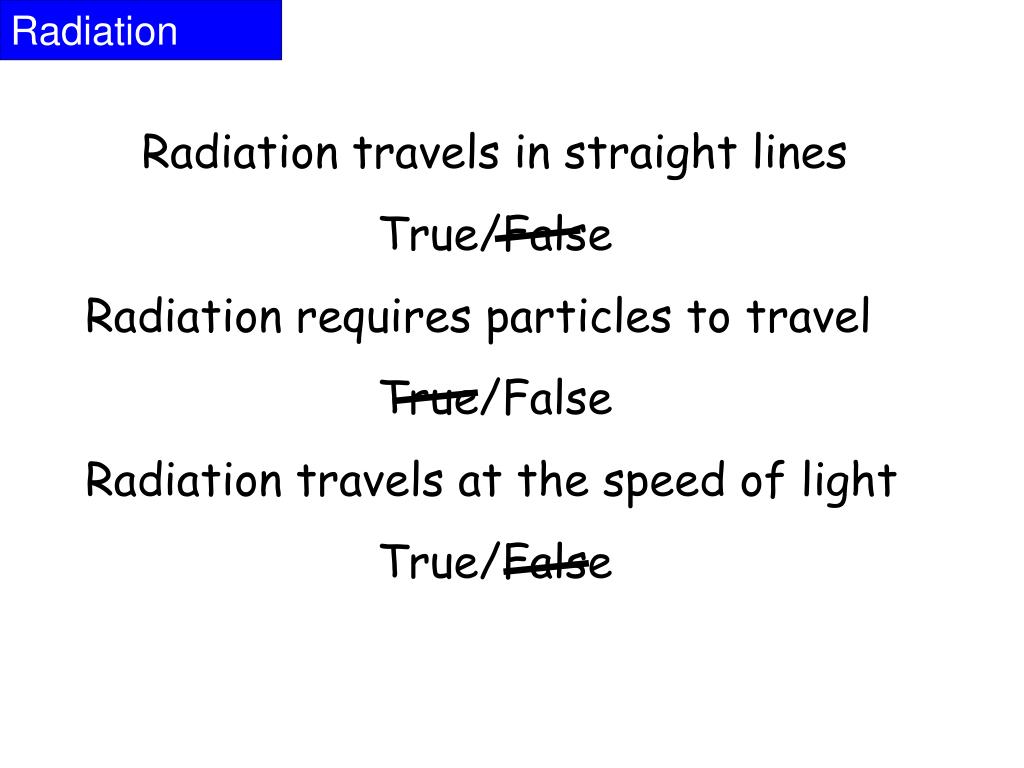

  19. Radiation Radiation travels in straight lines True/False Radiation requires particles to travel True/False Radiation travels at the speed of light True/False

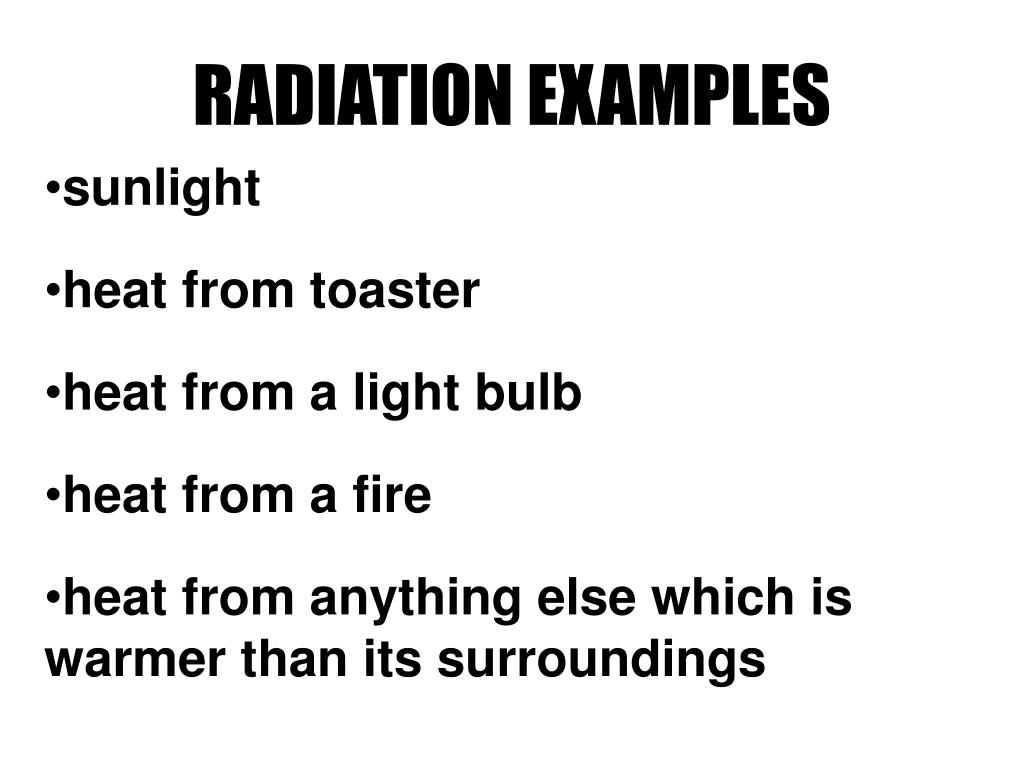

  20. RADIATION EXAMPLES • sunlight • heat from toaster • heat from a light bulb • heat from a fire • heat from anything else which is warmer than its surroundings

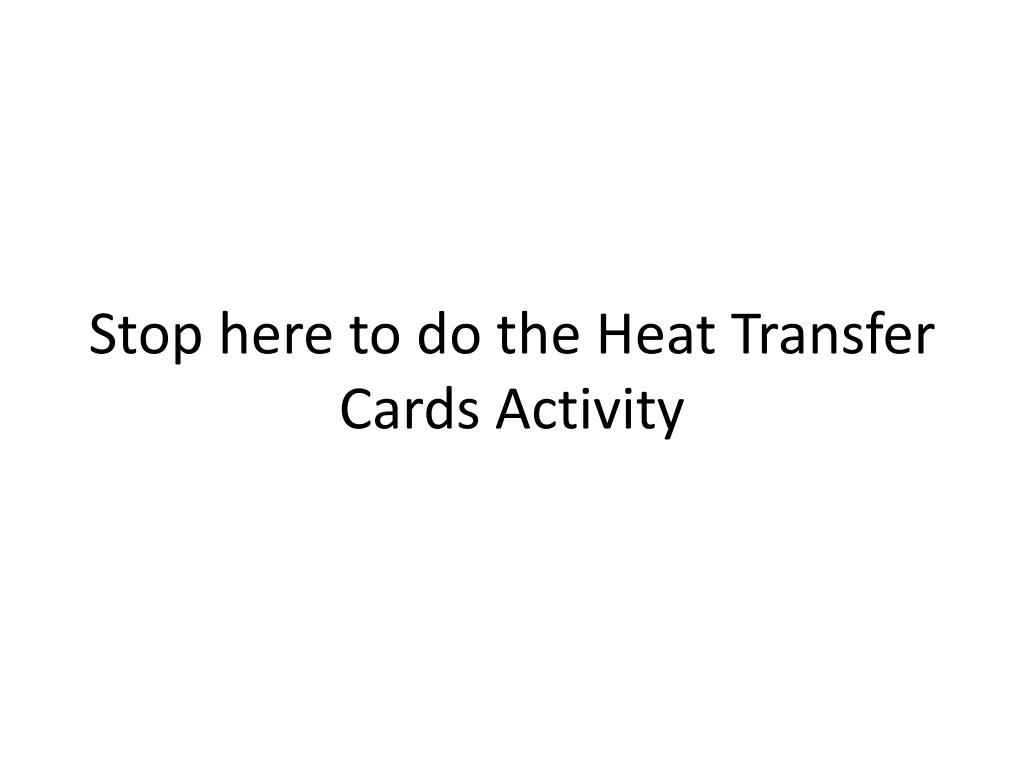

  21. Stop here to do the Heat Transfer Cards Activity

  22. hot water rises and cold water sinks CONVECTION

  23. stir frying vegetables CONDUCTION

  24. a spoon in a cup of hot soup becomes warmer CONDUCTION

  25. grilling hamburgers over a charcoal flame RADIATION

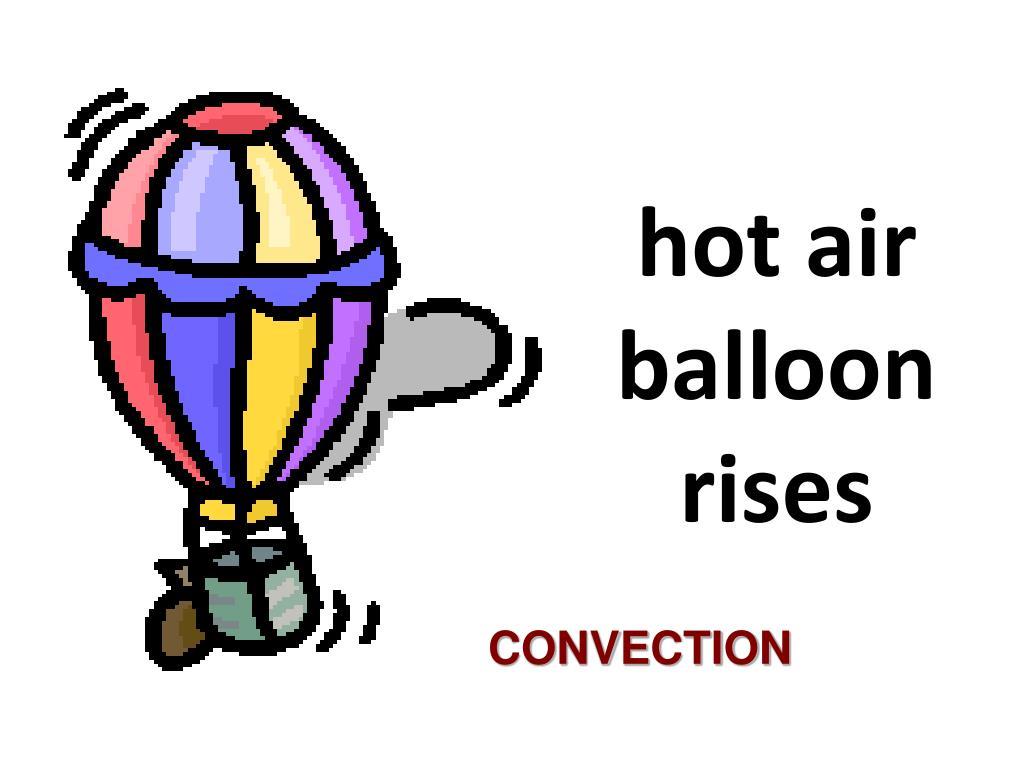

  26. hot air balloon rises CONVECTION

  27. you feel the heat from a campfire RADIATION

  28. a raw egg begins to fry as it hits a heated frying pan CONDUCTION

  29. Heated air rises, cools, then falls.  Air near heater is replaced by cooler air, and the cycle repeats. CONVECTION

  30. boiling potatoes CONDUCTION

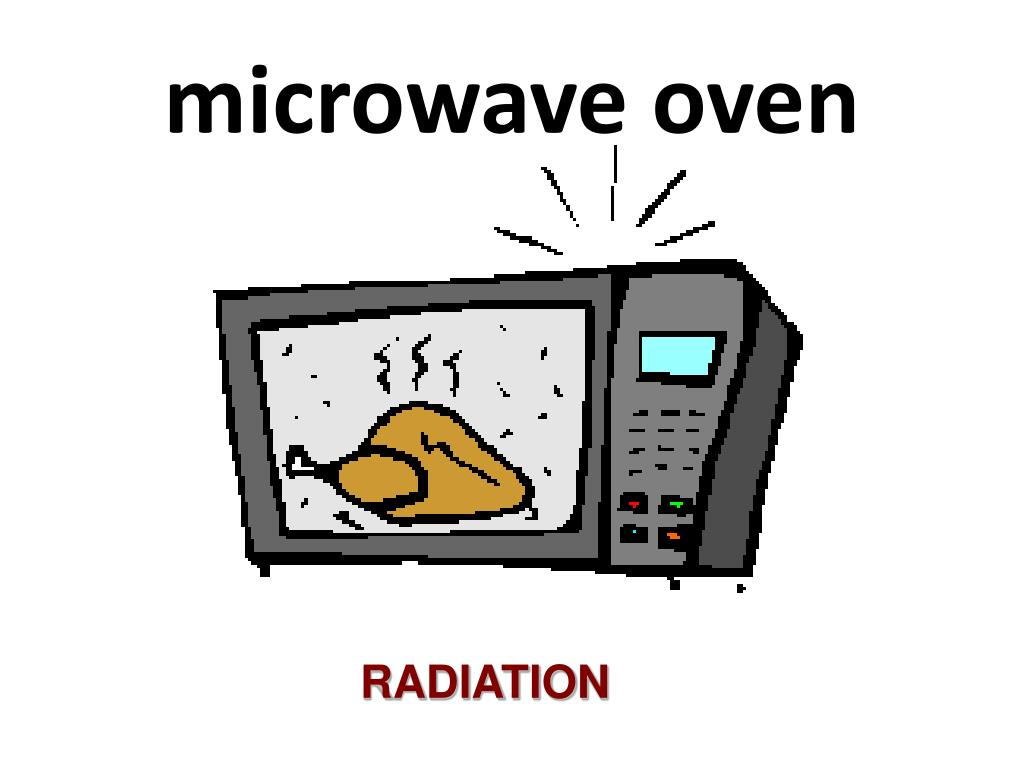

  31. microwave oven RADIATION

  32. Propane Heater RADIATION

  33. basement is cooler than the attic CONVECTION

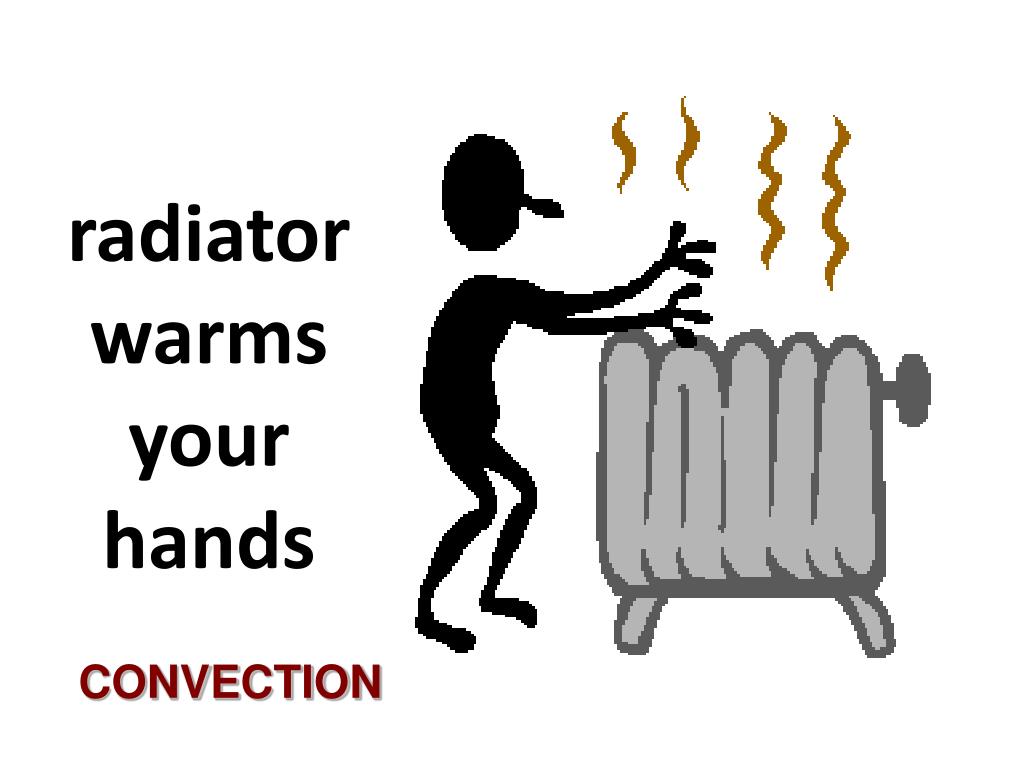

  34. radiator warms your hands CONVECTION

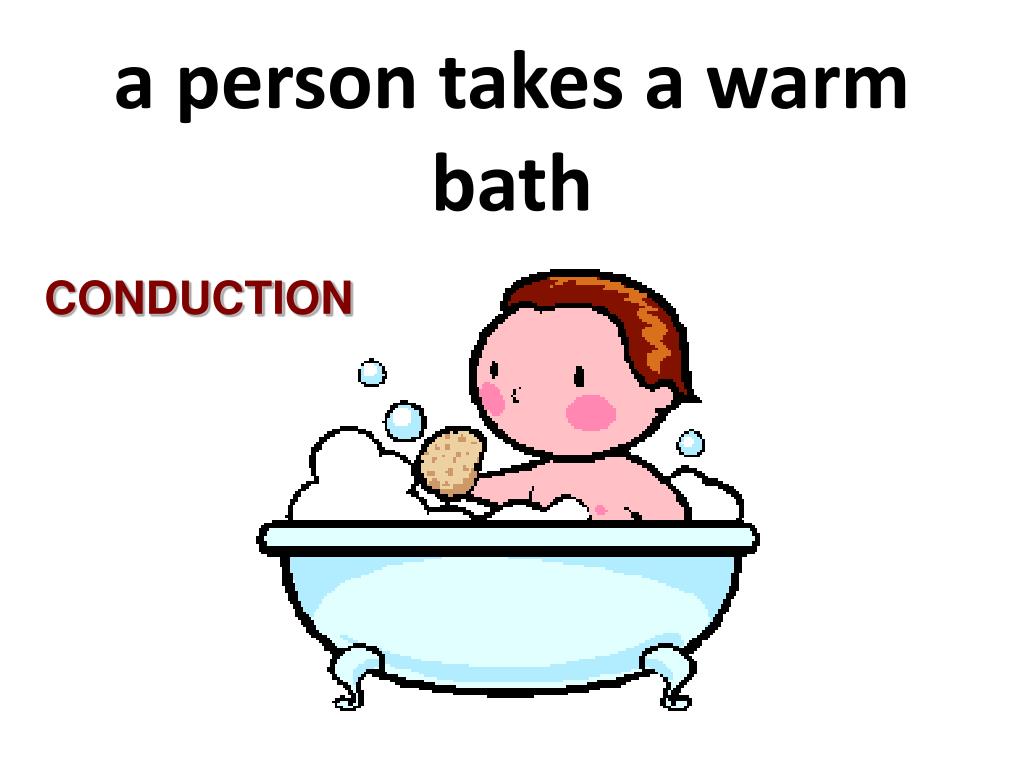

  35. a person takes a warm bath CONDUCTION

  36. heat from a light bulb RADIATION

  37. hot pan is cooled by running it under cold water CONDUCTION

  38. you get sunburned RADIATION

  39. warm water at the surface of the swimming pool CONVECTION

  40. ironing a shirt CONDUCTION

  41. wind currents CONVECTION

  42. ANSWER KEY (kids may be able to justify other types of heat transfer) • hot water rises and cold water sinks - Convection • stir frying vegetables - Conduction • a spoon in a cup of hot soup becomes warmer - Conduction • grilling hamburgers over a charcoal flame - Radiation • hot air balloon rises - Convection • you feel the heat from a campfire - Radiation • a raw egg begins to fry as it hits a heated frying pan - Conduction • Heated air rises, cools, then falls.  Air near heater is replaced by cooler air, and the cycle repeats. - Convection • boiling potatoes in water –Conduction (water to potato) • microwave oven - Radiation • propane heater - Radiation • basement is cooler than attic - Convection • radiator warms your hands - Convection • a person takes a warm bath - Conduction • heat from a light bulb - Radiation • hot pan is cooled by running it under cold water - Conduction • you get sunburned - Radiation • warm water at the surface of the swimming pool - Convection • Ironing a shirt - Conduction • wind currents - Convection
