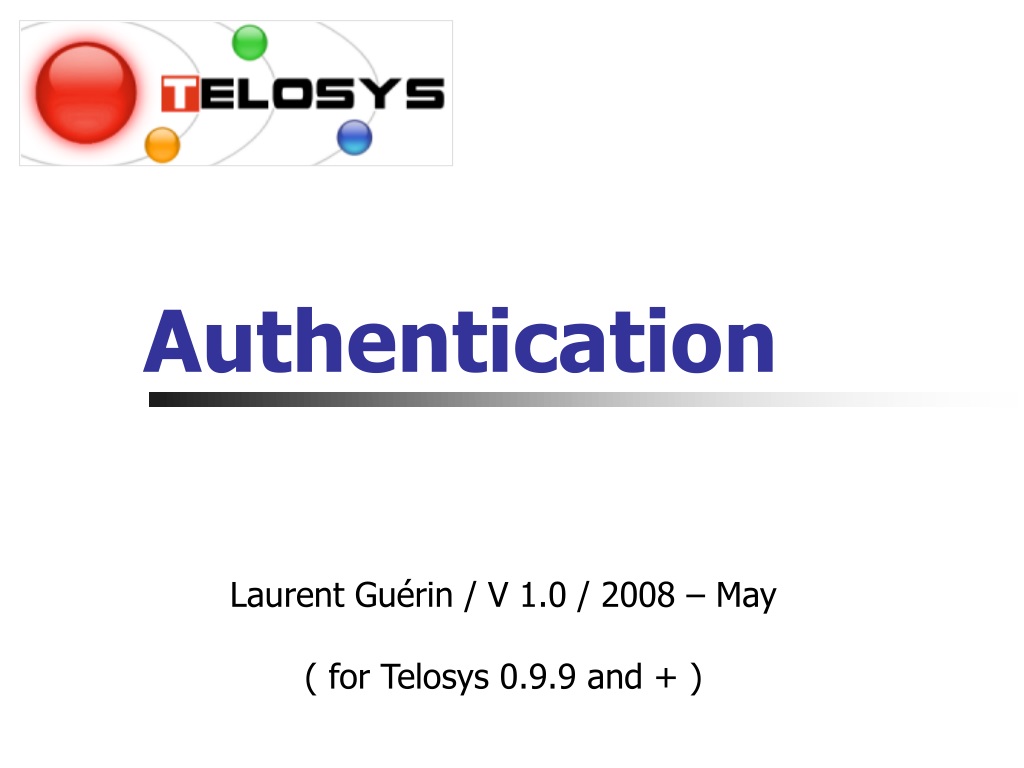

  1. Authentication Laurent Guérin / V 1.0 / 2008 – May( for Telosys 0.9.9 and + )

  2. Telosys authentication • The 2 ways … • Standard JavaEE Web Container authentication :Let the server authenticate the userThe authentication mechanism could be shared between different applications • Specific authentication dedicated to an application :Each application can implement its own authentication system based on the Telosys authentication filter Telosys Authentication ( Laurent Guérin / ver 1.0 )

  3. Standard JavaEEauthentication

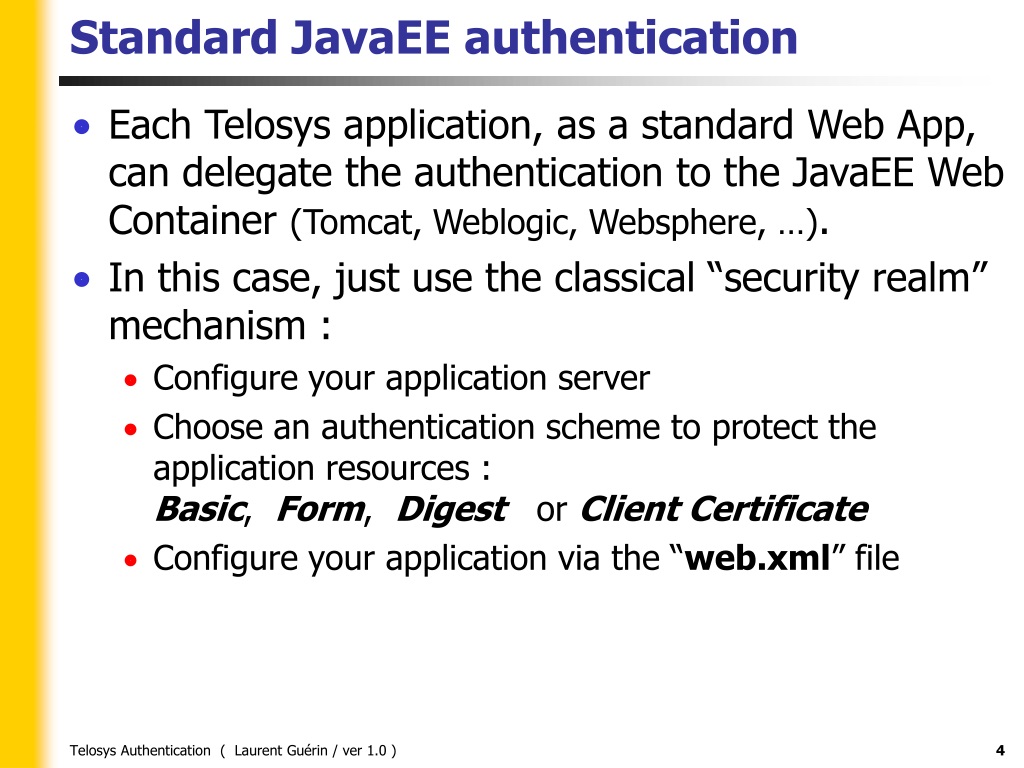

  4. Standard JavaEE authentication • Each Telosys application, as a standard Web App, can delegate the authentication to the JavaEE Web Container (Tomcat, Weblogic, Websphere, …). • In this case, just use the classical “security realm” mechanism : • Configure your application server • Choose an authentication scheme to protect the application resources :Basic, Form, Digest or Client Certificate • Configure your application via the “web.xml” file Telosys Authentication ( Laurent Guérin / ver 1.0 )

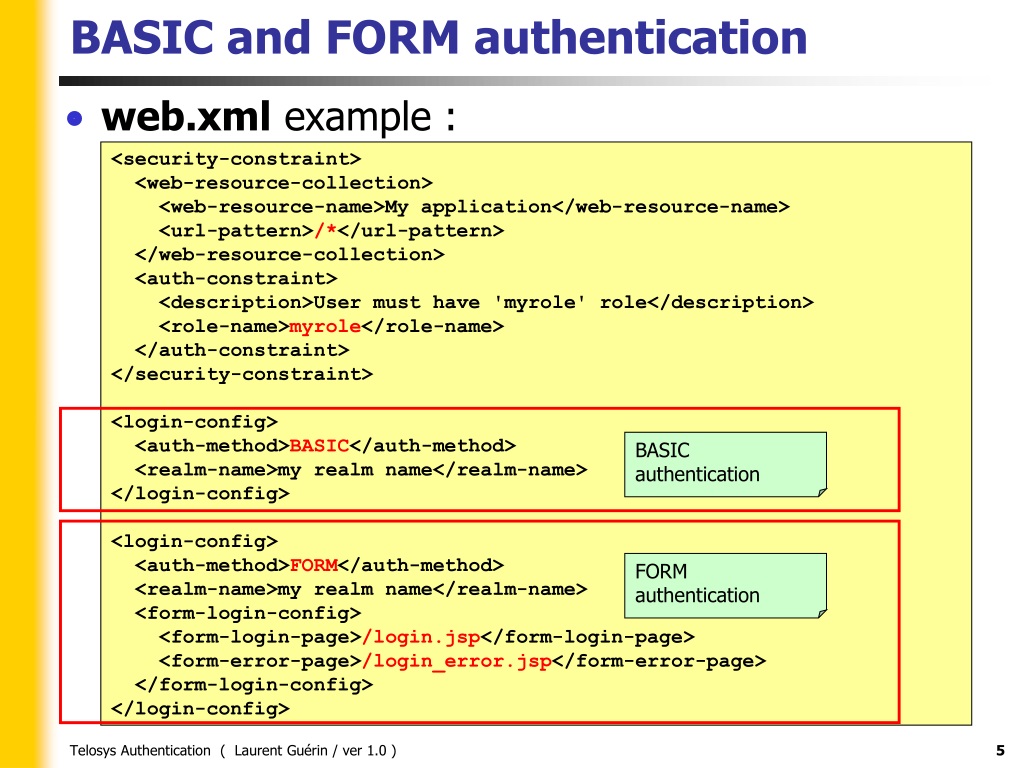

  5. BASIC and FORM authentication • web.xml example : <security-constraint> <web-resource-collection> <web-resource-name>My application</web-resource-name> <url-pattern>/*</url-pattern> </web-resource-collection> <auth-constraint> <description>User must have 'myrole' role</description> <role-name>myrole</role-name> </auth-constraint> </security-constraint> <login-config> <auth-method>BASIC</auth-method> <realm-name>my realm name</realm-name> </login-config> <login-config> <auth-method>FORM</auth-method> <realm-name>my realm name</realm-name> <form-login-config> <form-login-page>/login.jsp</form-login-page> <form-error-page>/login_error.jsp</form-error-page> </form-login-config> </login-config> BASIC authentication FORM authentication Telosys Authentication ( Laurent Guérin / ver 1.0 )

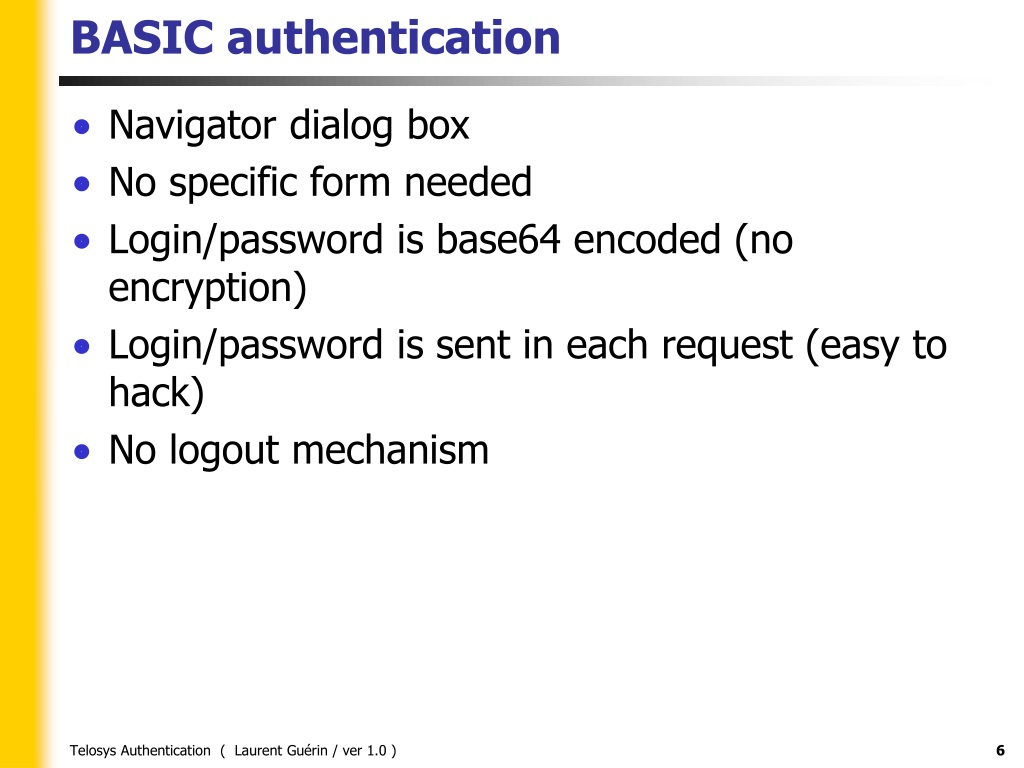

  6. BASIC authentication • Navigator dialog box • No specific form needed • Login/password is base64 encoded (no encryption) • Login/password is sent in each request (easy to hack) • No logout mechanism Telosys Authentication ( Laurent Guérin / ver 1.0 )

  7. FORM authentication • Authentication FORM example (can be used in “.jsp” or “.html” ) : <form method="POST" action="j_security_check" > <table align="center"> <tr> <td>Login :</td> <td><input type="text" maxlength="20" width="180" name="j_username"/> </td> </tr> <tr> <td>Password :</td> <td><input type="password" maxlength="20" width="180" name="j_password"/> </td> </tr> <tr> <td><input type="submit" value="Submit" ></td> <td><input type="reset" value="Reset" ></td> </tr> </table> </form> Telosys Authentication ( Laurent Guérin / ver 1.0 )

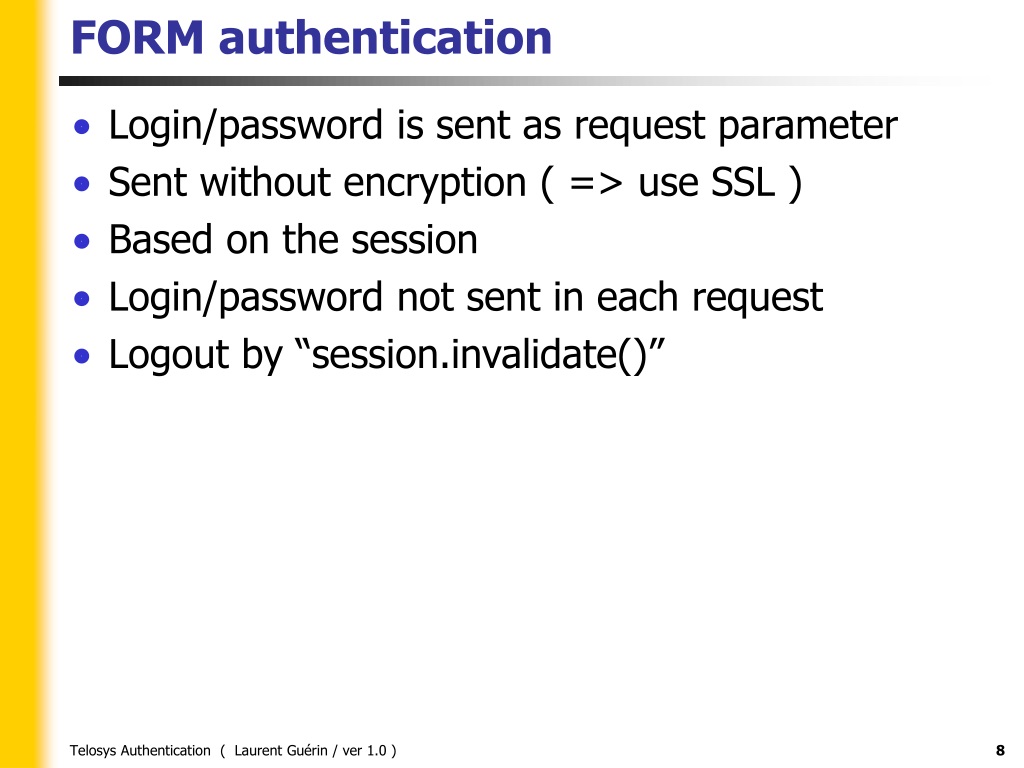

  8. FORM authentication • Login/password is sent as request parameter • Sent without encryption ( => use SSL ) • Based on the session • Login/password not sent in each request • Logout by “session.invalidate()” Telosys Authentication ( Laurent Guérin / ver 1.0 )

  9. Telosysauthentication

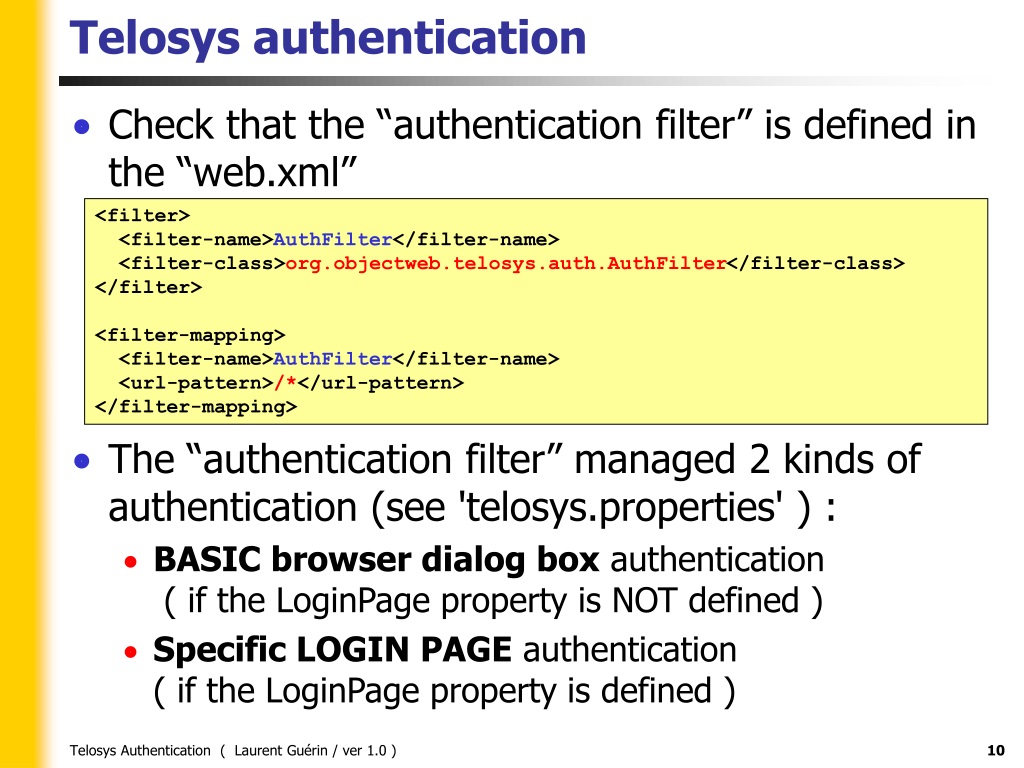

  10. Telosys authentication • Check that the “authentication filter” is defined in the “web.xml” • The “authentication filter” managed 2 kinds of authentication (see 'telosys.properties' ) : • BASIC browser dialog box authentication ( if the LoginPage property is NOT defined ) • Specific LOGIN PAGE authentication ( if the LoginPage property is defined ) <filter> <filter-name>AuthFilter</filter-name> <filter-class>org.objectweb.telosys.auth.AuthFilter</filter-class> </filter> <filter-mapping> <filter-name>AuthFilter</filter-name> <url-pattern>/*</url-pattern> </filter-mapping> Telosys Authentication ( Laurent Guérin / ver 1.0 )

  11. Telosys.properties • Common properties LoginMaxTries=5 FirstPage=/welcome.jsp AuthenticationRequired=false LoginErrorPage=/login_error.jsp NoAuthPage1=/page_aaa.jsp NoAuthPage2=/other_page ... NoAuthPageN=xxxxx The maximum number of tries ( default : 3 ) The default first page where to go after a successful user authentication if true : an authentication is required to open a "Telosys ScreenSession" The page to use when the authentication fail ( after n tries ) List of page accessible without authentication ( No Authentication for those pages ) number from 1 to N Telosys Authentication ( Laurent Guérin / ver 1.0 )

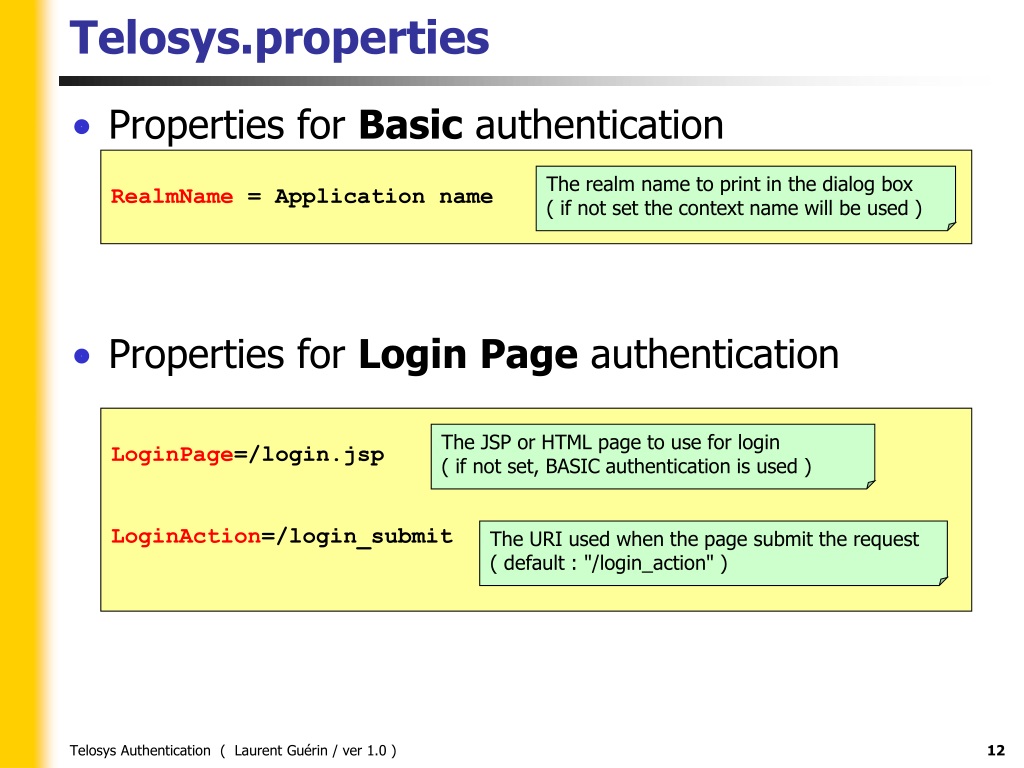

  12. Telosys.properties • Properties for Basic authentication • Properties for Login Page authentication RealmName = Application name The realm name to print in the dialog box ( if not set the context name will be used ) LoginPage=/login.jsp LoginAction=/login_submit The JSP or HTML page to use for login ( if not set, BASIC authentication is used ) The URI used when the page submit the request ( default : "/login_action" ) Telosys Authentication ( Laurent Guérin / ver 1.0 )

  13. Login JSP • "form" example : • Parameters names : • user_login • user_password <form method="POST" action="<%= request.getContextPath() %>/login_action" > <table align="center"> <tr> <td>Login :</td> <td><input type="text" name="user_login"/></td> </tr> <tr> <td>Password :</td> <td><input type="password" name="user_password"/></td> </tr> <tr> <td><input type="submit" value="Submit" ></td> <td><input type="reset" value="Reset" ></td> </tr> </table> </form> Telosys Authentication ( Laurent Guérin / ver 1.0 )

  14. Implements your own authentication • Create a Java class that implements the “IUserValidator” interface. • Create a Java class the implements the“IAppUser” interface. • Update the “IExternalMainFactory” implementation : the getUserValidator method must return your implementation of “IUserValidator” • Implementations examples are provided in the StarterKit : • User.java • UserValidator.java • MainFactory.java Telosys Authentication ( Laurent Guérin / ver 1.0 )

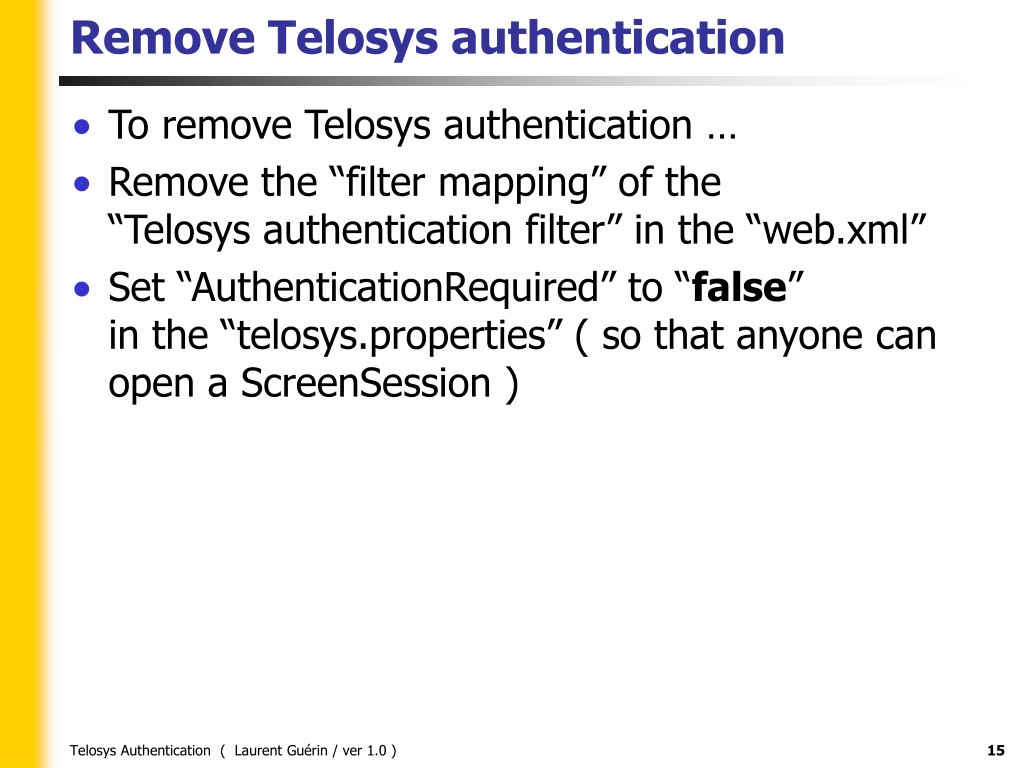

  15. Remove Telosys authentication • To remove Telosys authentication … • Remove the “filter mapping” of the“Telosys authentication filter” in the “web.xml” • Set “AuthenticationRequired” to “false” in the “telosys.properties” ( so that anyone can open a ScreenSession ) Telosys Authentication ( Laurent Guérin / ver 1.0 )

  16. Current user & logout

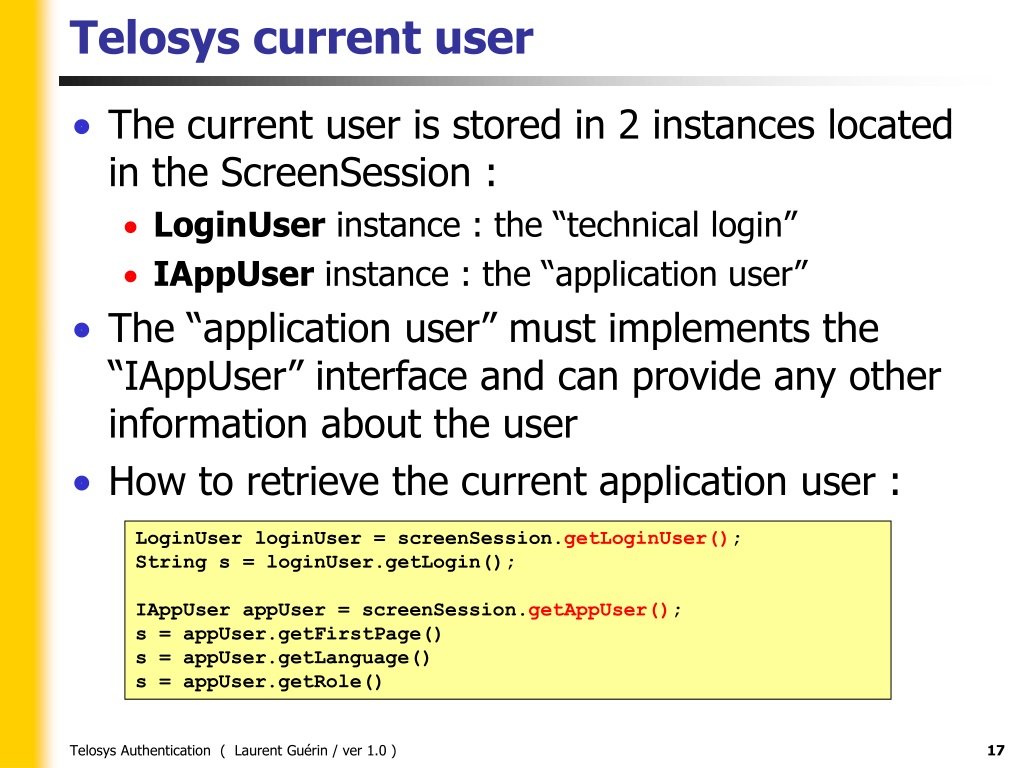

  17. Telosys current user • The current user is stored in 2 instances located in the ScreenSession : • LoginUser instance : the “technical login” • IAppUser instance : the “application user” • The “application user” must implements the “IAppUser” interface and can provide any other information about the user • How to retrieve the current application user : LoginUser loginUser = screenSession.getLoginUser(); String s = loginUser.getLogin(); IAppUser appUser = screenSession.getAppUser(); s = appUser.getFirstPage() s = appUser.getLanguage() s = appUser.getRole() Telosys Authentication ( Laurent Guérin / ver 1.0 )

  18. How to logout • The simplest way to logout, is to create a simple Service to close the current session • Example : public class Logout extends StandardScreenService { public View execute(ScreenSession screenSession, ServiceRequest serviceRequest, ServiceResponse serviceResponse) throws TelosysException { HttpSession httpSession = screenSession.getHttpSession(); screenSession.close(); httpSession.invalidate(); return null ; // for AJAX call } } Telosys Authentication ( Laurent Guérin / ver 1.0 )

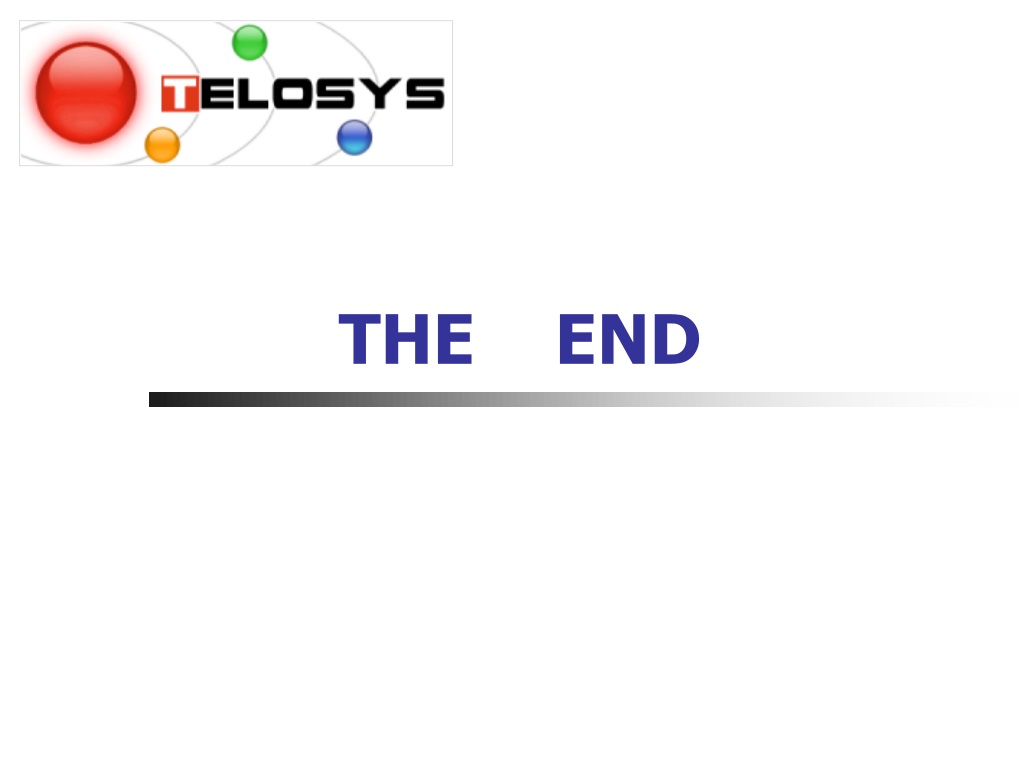

  19. THE END
