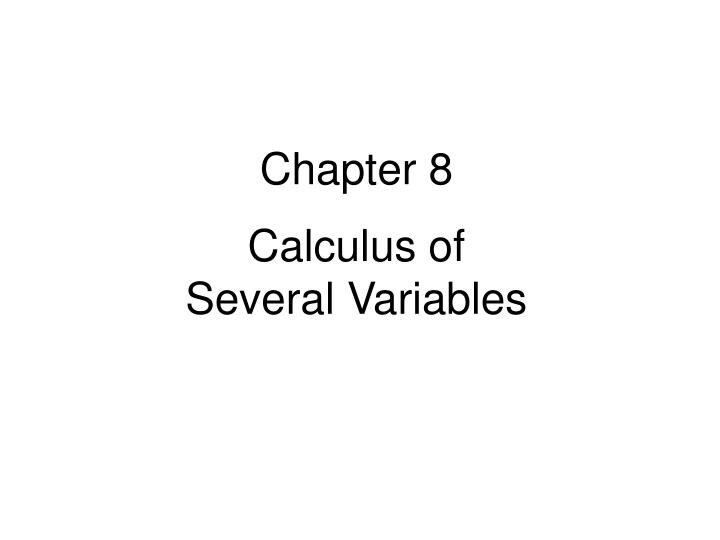

  1. Chapter 8Calculus of Several Variables

  2. 8.1 Functions of Several Independent Variables

  3. Function of Several Variables • The notion for functions of two or more variables is similar to that used for functions of a single variable. • and are functions of two variables. • is a function of three variables.

  4. Example • For f(x,y) = 2x2 –y2, you can evaluate f(2,3) as follows. • For f(x, y, z) = ex (y + z), you can evaluate f(0, -1, 4) as follows.

  5. The Three Dimensional Coordinate System(三維直角坐標系)

  6. Graph of function of two variables • The graph of f (x, y), called a surface, is a collection of all points (x, y, z) such that z =f (x, y). • f (x, y)=2x2+y2+8x-6y+20

  7. Cobb-Douglass生產函數 • 在1928年，Cobb和Douglass建立一簡單的數學模型，來描述美國在1899年初到1922年間總體的生產模式。令 P為某一年的總年產量， K及 L分別表示該年的投資總額及所有勞動力，他們發現 P與 L、K的關係為

  8. Cobb-Douglass生產函數 • 一般而言，分析一個工廠的生產量 P時，也可運用Cobb-Douglass的概念來描述。設有 K單位的資金及L單位的勞動力，則生產量P(L, K)與 K、L的關係式則為 其中 a, b和c為常數。我們稱此等式為古柏道格拉斯生產函數(Cobb-Douglass production function)。

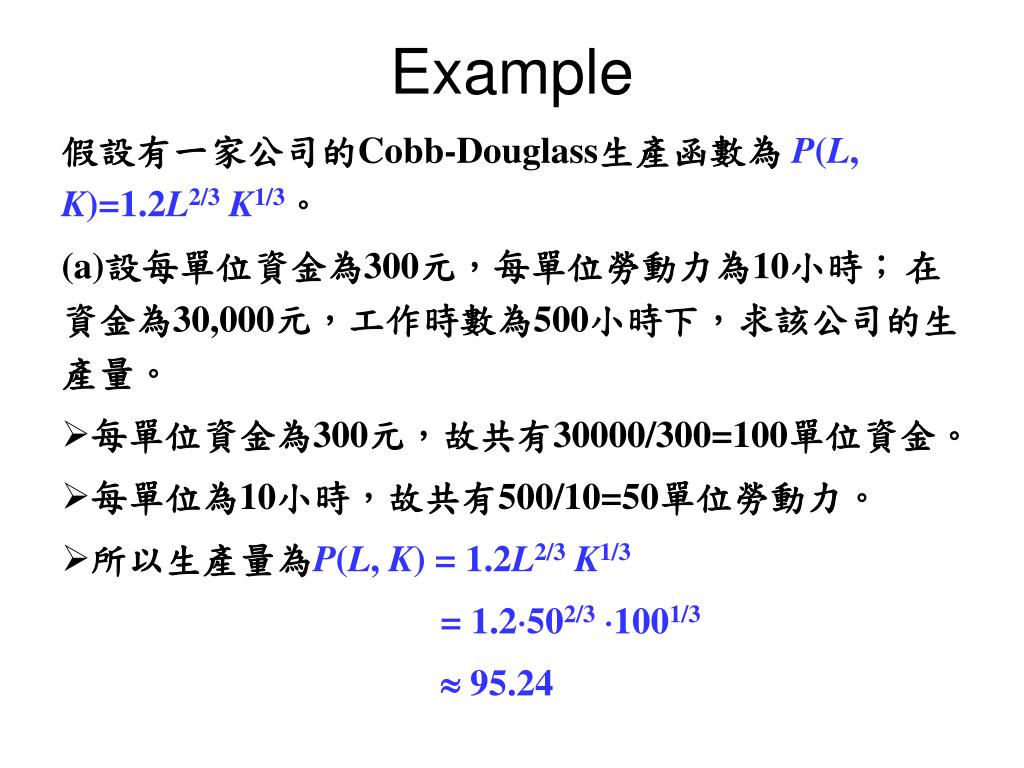

  9. Example 假設有一家公司的Cobb-Douglass生產函數為 P(L, K)=1.2L2/3K1/3。 (a)設每單位資金為300元，每單位勞動力為10小時； 在資金為30,000元，工作時數為500小時下，求該公司的生產量。 • 每單位資金為300元，故共有30000/300=100單位資金。 • 每單位為10小時，故共有500/10=50單位勞動力。 • 所以生產量為P(L, K)=1.2L2/3K1/3 =1.2502/31001/3  95.24

  10. Example 假設有一家公司的Cobb-Douglass生產函數為 P(L, K)=1.2L2/3K1/3。 (b)試問資金及勞動力單位數都加倍時，公司的生產 量是否也加倍？ • 資金及勞動力單位都加倍時，即 K變為2K、L變為2L • P(2L,2 K)=1.2(2L) 2/3(2K)1/3 =1.2(2) 2/3L2/3(2)1/3K1/3 = 2  1.2 L2/3K1/3 • 所以在資金及工作時數都加倍時，其生產量也是加倍的。

  11. 定義域 • 如同單變數函數，二變數函數若未指明定義域，則內定其定義域(domain)即為使函數值有意義的xy-平面上的點(x,y)所成的集合。 • 即使得f (x,y)有意義 ( 或存在 ) 的所有有序數對(x,y)所成的集合。

  12. Example • f (x, y)=2x2+y2+8x-6y+20的定義域為整個xy-平面 2=={(x,y)|x,y} • f (x, y)=x+y - 5的定義域為xy-平面的上半平面,即為{(x,y)|x , y0}

  13. Exercise 8.1 • 11,12,13,14,25,28,74,75

  14. 8.2 Level Curves, Contour Maps, and Cross-Sectional Analysis

  15. 等高線(level curve) • 相同高度的曲線，就是所謂等高線(level curve)，它是指在 xy平面上，方程式滿足f(x, y) = C的所有點(x, y)所成之集合，其中 C為一個常數。

  16. Example • 左圖3表示函數f(x, y) = x2 + y2的圖形。而右圖是C分別以1、2、3、4代入f(x, y) = C 所得到不同高度的曲線。

  17. 8.3 Partial Derivatives and Second-Order Partial Derivatives

  18. Partial Derivatives of a Function of Two Variables • If z = f( x, y), then the first partial derivatives(偏微分) of f with respect to x and y are the functions and , defined as follows.

  19. The partial derivatives of a function of two variables are determined by temporarily considering one variable to be fixed. Hold y constant and differentiate with respect to x. Hold x constant and differentiate with respect to y.

  20. Notation for First Partial Derivatives • The first partial derivatives of z=f( x, y) are denoted by • The values of the first partial derivatives at the point (a, b) are denoted by and

  21. Example • Find the first partial derivatives of f (x, y)= exyln(x+y). • Solution:

  22. 偏導數的幾何意義 • 對x的偏導數fx(x, y0)為曲面z=f(x, y)在平面y=y0的(切線)斜率。(或slope in x-direction). • 對y的偏導數fy(x0, y)為曲面z=f(x,y)在平面x=x0的(切線)斜率。(或slope in y-direction).

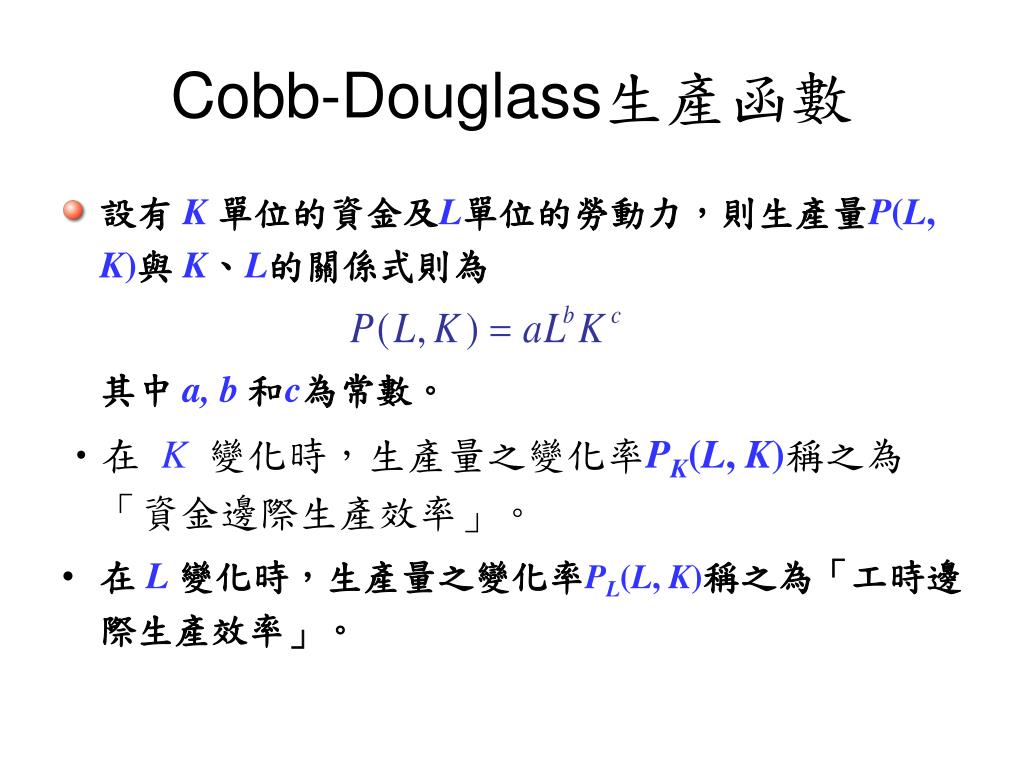

  23. Cobb-Douglass生產函數 • 設有 K單位的資金及L單位的勞動力，則生產量P(L, K)與 K、L的關係式則為 其中 a, b和c為常數。 • 在 K變化時，生產量之變化率PK(L, K)稱之為「資金邊際生產效率」。 • 在 L變化時，生產量之變化率PL(L, K)稱之為「工時邊際生產效率」。

  24. Example • 假設Cobb-Douglass生產函數是 P(L, K)=20L1/4K3/4。 求當K = 16單位、L = 81單位時的資金邊際生產效率與工時邊際生產效率。 • 解: • 資金邊際生產效率PK(81,16)=20(81)1/4 (16)3/4

  25. Second-order Partial Derivatives

  26. Example • Find the second partial derivatives of and determine the value of fxy(-1,2). • Solution:

  27. Exercise 8.3 • 9,19,22,28,31,37,43,47,57,60

  28. 8.4 Maxima and Minima

  29. Extrema of Functions of Two Variables • Let f be a function defined on a region containing (a, b). • f(a, b) is a relative maximum of f if there is a cricular region R centered at (a, b) such that f(x, y)f(a, b) for all (x, y) in R. • f(a, b) is a relative minimum of f if there is a cricular region R centered at (a, b) such that f(x, y)f(a, b) for all (x, y) in R.

  30. Critical point • A point (x0, y0) is a critical point of f if fx(x0, y0) or fy(x0, y0) is undifined of if fx(x0, y0)=0 and fy(x0, y0)=0. • A point (x0, y0) is a saddle point of f if (x0, y0) is a critial point and f(x0, y0) is not a relative extremum.

  31. Example • Find the critical points for f(x,y)= 2x2 + y2 + 8x - 6y + 20. • Solution: • fx(x, y) = 4x+ 8and fy(x, y) = 2y- 6 • Solvefx(x, y) = 0and fy(x, y) = 0 • We have x = -2and y = 3 • So point (-2,3) is the only critical point of f.

  32. Second-Derivative Test • If f has continuous first and second partial derivatives in an open region and there exists a point (a,b) in the region such that then fx(a,b)=0 and fy(a,b)=0, then the quantity D = fxx(a,b)fyy(a,b)-[fxy(a,b)]2can be used as shown. • f(a,b) is a relative minimum if D > 0 and fxx(a,b)>0. • f(a,b) is a relative maximum if D > 0 and fxx(a,b)<0. • (a,b,f(a,b)) is a saddle point if D < 0 . • The test gives no information if D = 0.

  33. Example • Find the relative extreme of f(x,y)= 2x2 + y2 + 8x - 6y + 20. • Solution: • fx(x, y) = 4x+ 8and fy(x, y) = 2y- 6 • Solvefx(x, y) = 0and fy(x, y) = 0 • We have x = -2and y = 3 • So point (-2,3) is the only critical point of f. • D = fxx(-2,3)fyy(-2,3)-[fxy(-2,3)]2 = 42-[0]2 = 8 > 0and fxx(-2,3)=4>0. • We have the relative minimum f(-2,3) = 3.

  34. Example • Find the relative extreme and saddle points of f(x,y)= xy – 1/4x4 – 1/4y4 . • Solution: • fx(x, y) = y – x3and fy(x, y) = x – y3 • fxx(x, y) = -3x2, fxy(x, y) = 1,fyy(x, y) = -3y2. • Solvefx(x, y) = 0and fy(x, y) = 0 • We have critical point (0,0),(1,1),and (-1,-1). • D(0,0)= 00-[1]2 = -1 < 0. • D(1,1)= (-3)(-3)-[1]2 = 8 > 0and fxx(1,1)=-3<0. • D(-1,-1)= (-3)(-3)-[1]2 = 8 > 0and fxx(-1,-1)=-3<0. • We have the relative maximum f(1,1) = 1/2 and f(-1,-1) = 1/2. • And (0,0)is a saddle point.

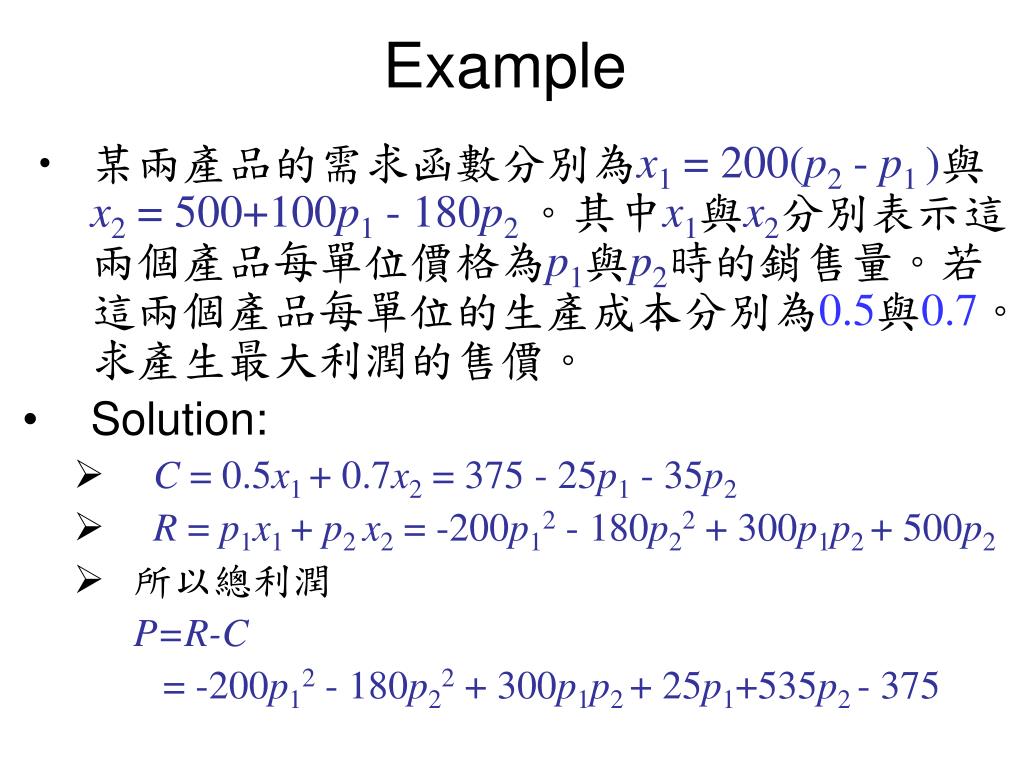

  35. Example • 某兩產品的需求函數分別為x1 = 200(p2 - p1)與x2 = 500+100p1 - 180p2。其中x1與x2分別表示這兩個產品每單位價格為p1與p2時的銷售量。若這兩個產品每單位的生產成本分別為0.5與0.7。求產生最大利潤的售價。 • Solution: • C = 0.5x1+ 0.7x2 = 375 - 25p1 - 35p2 • R = p1x1+ p2x2 = -200p12 - 180p22 + 300p1p2+ 500p2 • 所以總利潤 P=R-C = -200p12 - 180p22 + 300p1p2+ 25p1+535p2 - 375

  36. Example P= -200p12 - 180p22 + 300p1p2+ 25p1+535p2 - 375 • Solve • We have p1=3.14 and p2=4.10 • D = (-400)(-360)-[300]2 = 54000 > 0and • 所以在p1=3.14與p2=4.10時有最大利潤P(3.14,4.10)=761.48

  37. Exercise 8.4 • 7,11,17,20,25,26,33,34,35

  38. 8.5 Lagrange Multipliers

  39. Lagrange Multipliers • If f(x,y) has a maximum or minimum subject to the constraint g(x,y)=0, then it will occur at one of the critical points of the function F defined by F(x,y,)= f(x,y)- g(x,y). • The value  is called a Lagrange Multiplier.

  40. How to Use the Method of Lagrange • Write the situation in the form • Define • Determine the partial derivatives • Solve the system of equations • The maximum (or minimum) of f (x, y) is among the values in step 4. Simply evaluate z = f (x, y) at each.

  41. Example • Find the maximum of A=xy subject to the constraint 6x+4y- 24 = 0. • Solution: • Let f(x, y) = xyand g(x, y) = 6x+4y-24 • Then F( x, y, ) = f(x,y) - g(x,y). = xy - (6x+4y- 24 ) • Solve Fx(x, y, ) = y - 6 = 0, Fy(x, y, ) = x - 4 = 0, F(x, y ) = -6x -4y+ 24 = 0, • We have x = 2, y = 3. • So the maximum is A = xy= (2)(3) = 6.

  42. Example • Find the minimum of f(x,y) = x2 + y2 subject to the constraint 3x+ 2y- 13 = 0. • Solution: • F( x,y,) =x2+y2 - (3x+2y- 13) • Solve Fx(x, y, ) = 2x - 3 = 0, Fy(x, y, ) = 2y - 2 = 0, F(x, y, ) = -3x-2y + 13= 0, • We have x = 3, y = 2. • So the minimum is f(3, 2) = 13.

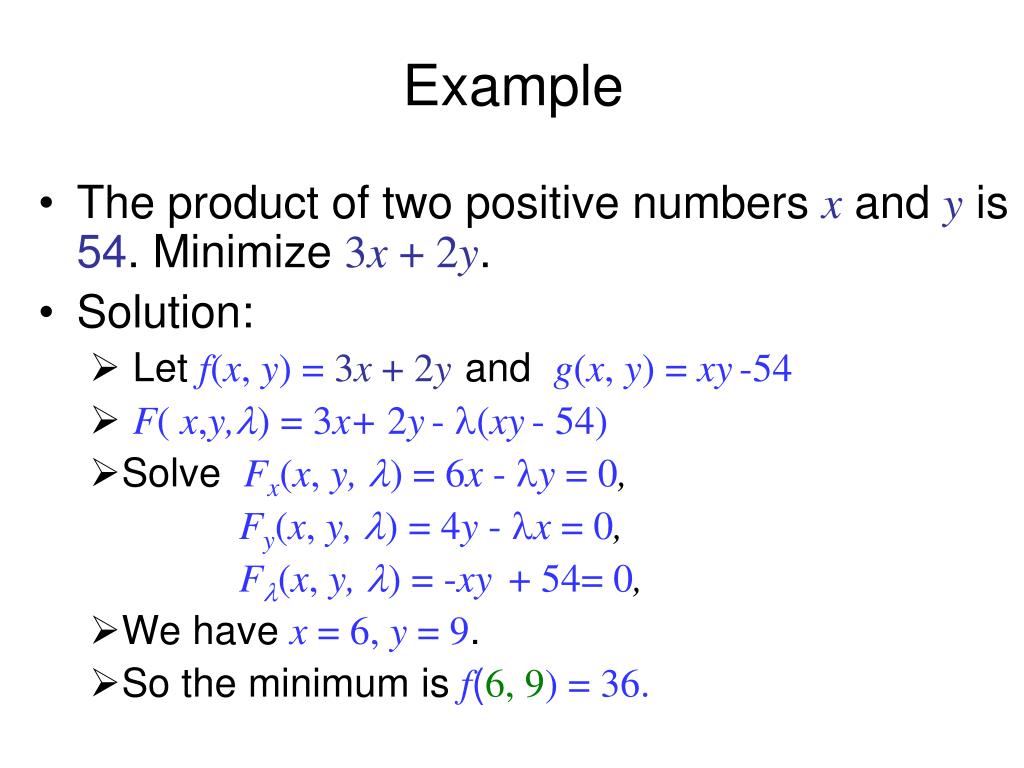

  43. Example • The product of two positive numbers x and y is 54. Minimize 3x + 2y. • Solution: • Let f(x, y) = 3x + 2yand g(x, y) = xy-54 • F( x,y,) = 3x+ 2y- (xy- 54) • Solve Fx(x, y, ) = 6x - y = 0, Fy(x, y, ) = 4y - x = 0, F(x, y, ) = -xy + 54= 0, • We have x = 6, y = 9. • So the minimum is f(6, 9) = 36.

  44. Example • 某產品的生產函數為f(x,y)= 100x3/4y1/4。其中x與表示勞動力單位、y表示資本單位。勞動力與資本的每單位成本分別為150元與250元。若勞動力與資本的總預算為50000元。求最大的生產水準。 • Solution: • 150x +250y= 50000 • The constraintg(x, y) = 150x +250y- 50000 • Then F( x, y, ) = f(x,y)- g(x,y). = 100x3/4y1/4 - (150x+250y- 50000)

  45. Example • F( x, y, ) = 100x3/4y1/4 - (150x+250y- 50000) • Solve Fx(x, y,) = 75x-1/4y1/4 - 150 = 0, Fy(x, y,) = 25x3/4y-3/4 - 250 = 0, F(x, y, ) = 150x+250y- 50000 = 0, • We have x = 250, y = 50. • 所以最大的生產水準為 f(250,50)= 100(250)3/4(50)1/4  16719.

  46. marginal productivity of money • 在前述例子我們可得在x = 250, y = 50時  0.334 • 在經濟學上，我們稱此Lagrange Multiplier為marginal productivity of money(金錢的邊際生產力)。此意味著每增減一單位的金錢會產生單位的生產力變化。

  47. Example • 在前一個例子中，若勞動力與資本的總預算增為為70000元。求最大的生產水準。 • Solution: • 150x +250y= 50000 • 此時大的生產水準為 16719 + (70000-50000) 16719 +(0.334)(20000) = 23399

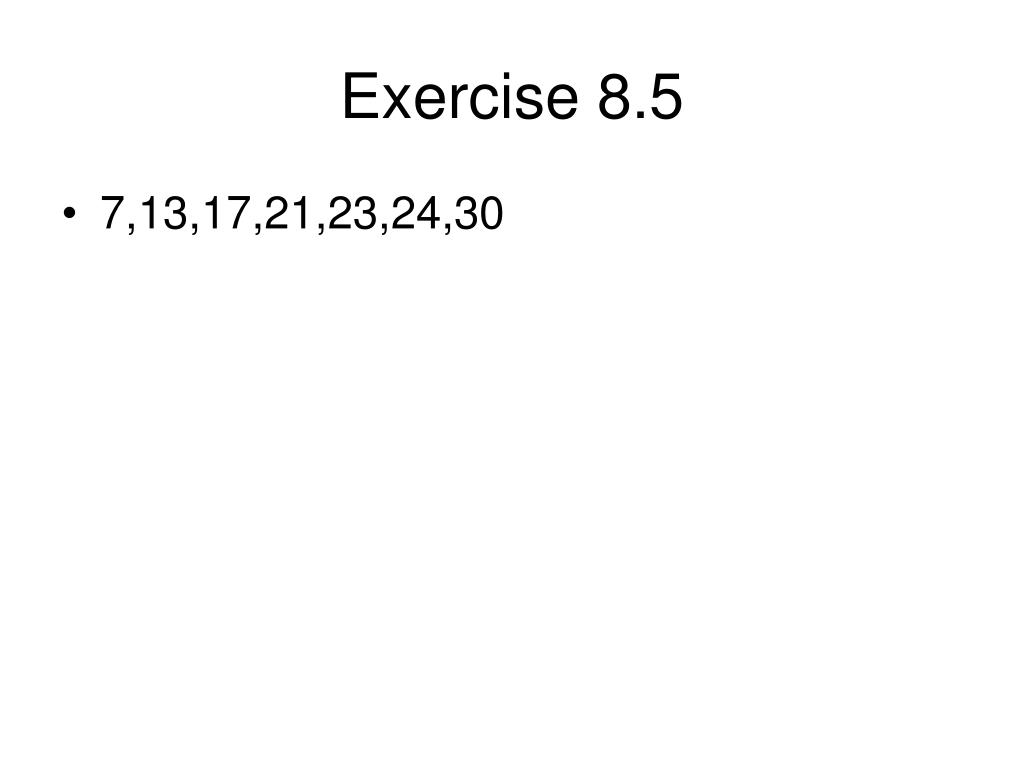

  48. Exercise 8.5 • 7,13,17,21,23,24,30

  49. 8.6 Double Integrals

  50. If you are given the partial derivative • Then by holding y constant, you can integrate with respect to x to obtain • This procedure is called partial integration with respect to x. • Note that the “constant of integration” C(y) is assumed to be a function y, because y is fixed during integration with respect to x.
