  1. Beads are good for you and for genotyping Fan et al. 2005. Biotechniques 39, 583 (Illumina) Chen et al. 2000. Genome Res 10, 549 (Luminex)

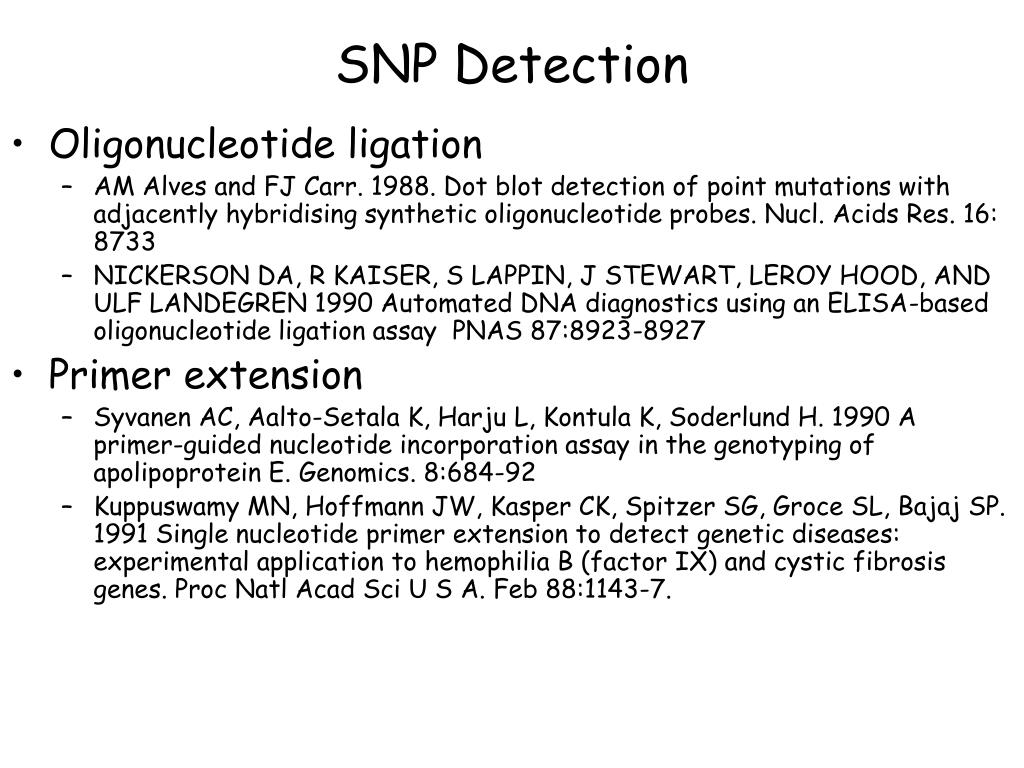

  2. SNP Detection • Oligonucleotide ligation • AM Alves and FJ Carr. 1988. Dot blot detection of point mutations with adjacently hybridising synthetic oligonucleotide probes. Nucl. Acids Res. 16: 8733 • NICKERSON DA, R KAISER, S LAPPIN, J STEWART, LEROY HOOD, AND ULF LANDEGREN 1990 Automated DNA diagnostics using an ELISA-based oligonucleotide ligation assay PNAS 87:8923-8927  • Primer extension • Syvanen AC, Aalto-Setala K, Harju L, Kontula K, Soderlund H. 1990 A primer-guided nucleotide incorporation assay in the genotyping of apolipoprotein E. Genomics. 8:684-92 • Kuppuswamy MN, Hoffmann JW, Kasper CK, Spitzer SG, Groce SL, Bajaj SP. 1991 Single nucleotide primer extension to detect genetic diseases: experimental application to hemophilia B (factor IX) and cystic fibrosis genes. Proc Natl Acad Sci U S A. Feb 88:1143-7.

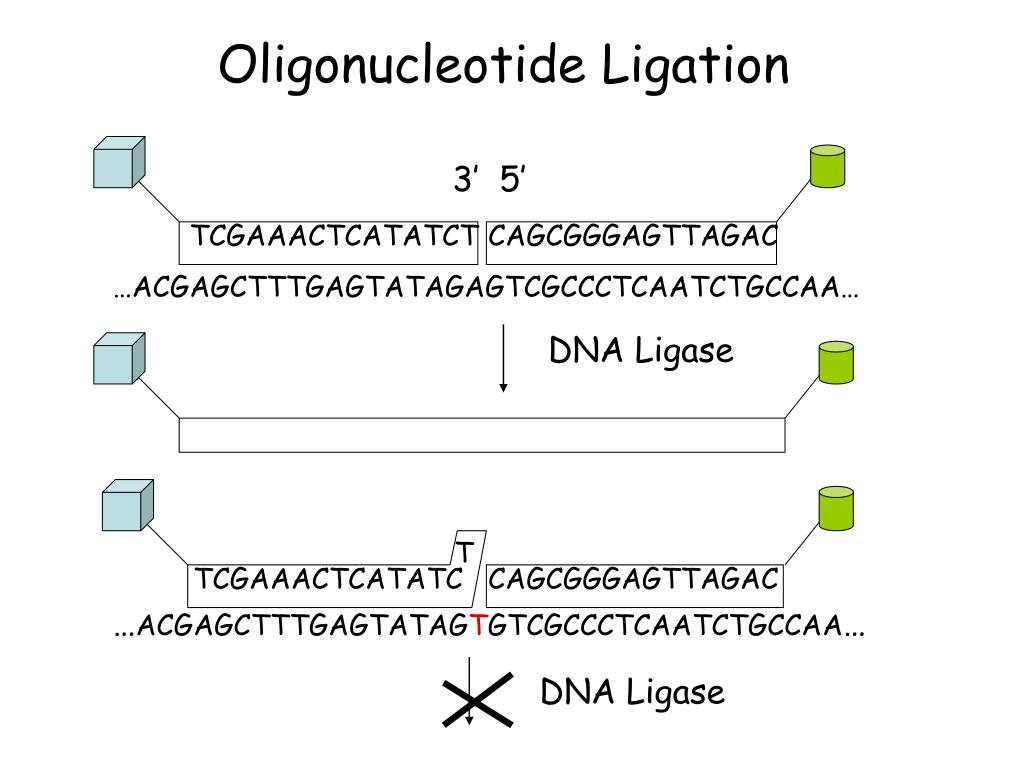

  3. DNA Ligase T TCGAAACTCATATC CAGCGGGAGTTAGAC …ACGAGCTTTGAGTATAGTGTCGCCCTCAATCTGCCAA… DNA Ligase Oligonucleotide Ligation 3’ 5’ TCGAAACTCATATCT CAGCGGGAGTTAGAC …ACGAGCTTTGAGTATAGAGTCGCCCTCAATCTGCCAA…

  4. Oligonucleotide Ligation Assay (OLA) amplify target by PCR ligate oligos detect ligation product

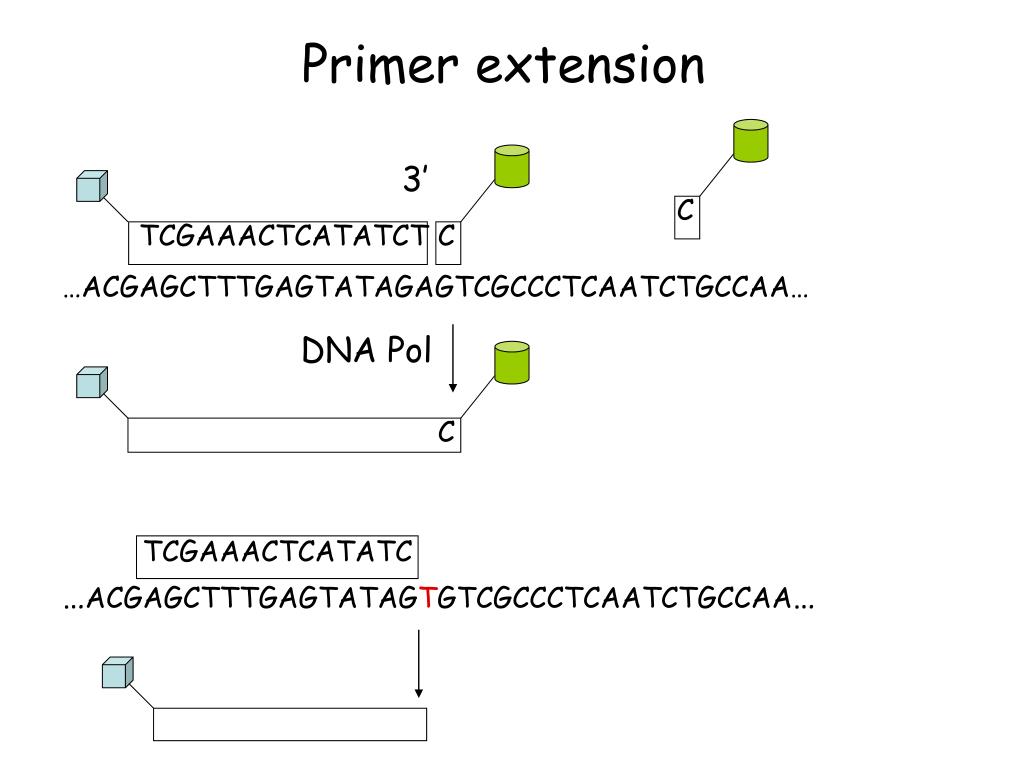

  5. Primer extension 3’ C TCGAAACTCATATCT C …ACGAGCTTTGAGTATAGAGTCGCCCTCAATCTGCCAA… DNA Pol C TCGAAACTCATATC …ACGAGCTTTGAGTATAGTGTCGCCCTCAATCTGCCAA…

  6. SNP1 C SNP2 C C SNP3 C SNP4 One tube = one reaction = one assay?

  7. Bead types rosary beads “test tube” bead = 5 uM 1 cM

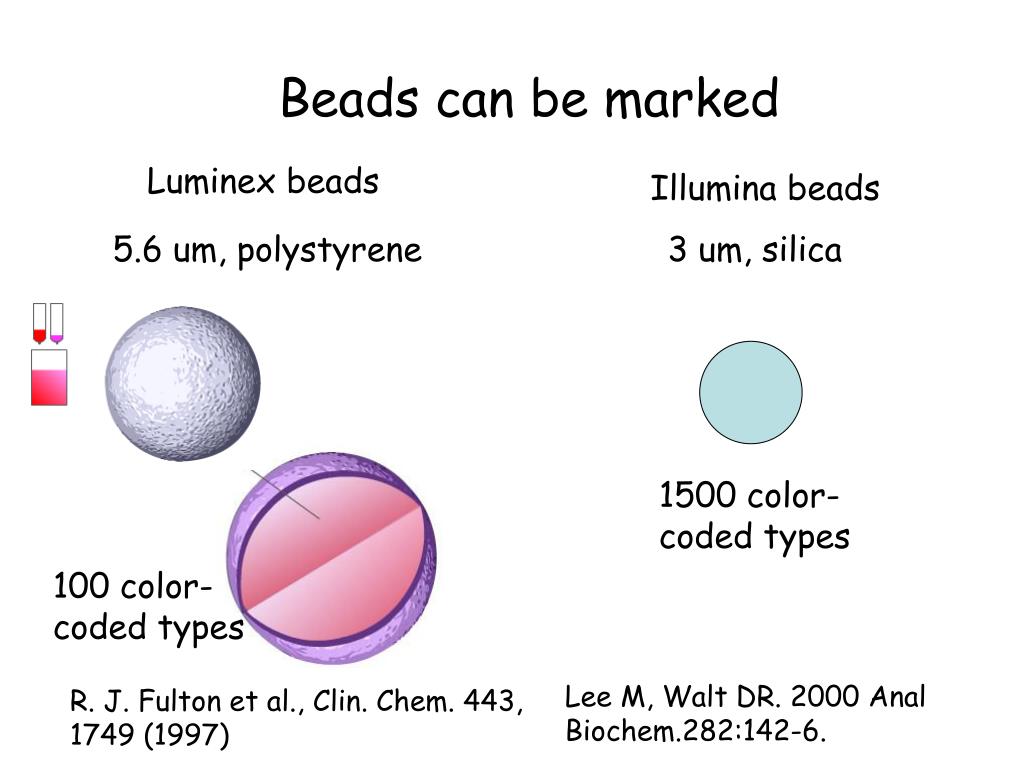

  8. Beads can be marked Luminex beads Illumina beads 5.6 um, polystyrene 3 um, silica 1500 color-coded types 100 color-coded types Lee M, Walt DR. 2000 Anal Biochem.282:142-6. R. J. Fulton et al., Clin. Chem. 443, 1749 (1997)

  9. Beads can be derivatized Each bead type can be coated with one specific probe type: e.g. oligonucleotide =aggctcgatc

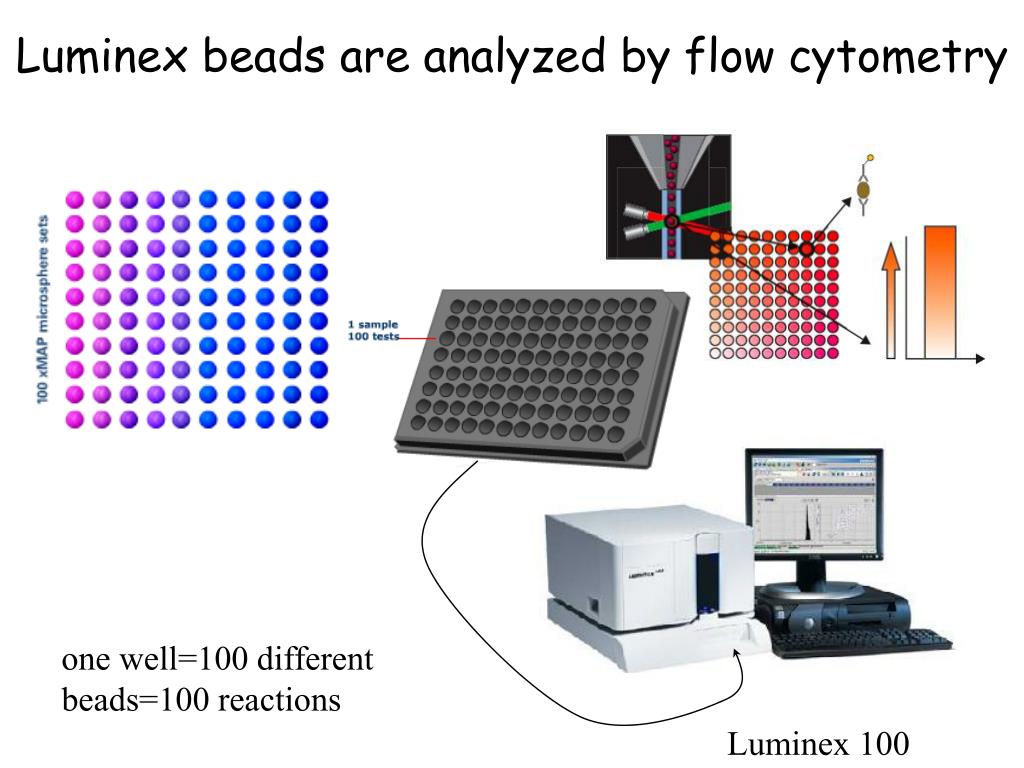

  10. Luminex beads are analyzed by flow cytometry one well=100 different beads=100 reactions Luminex 100

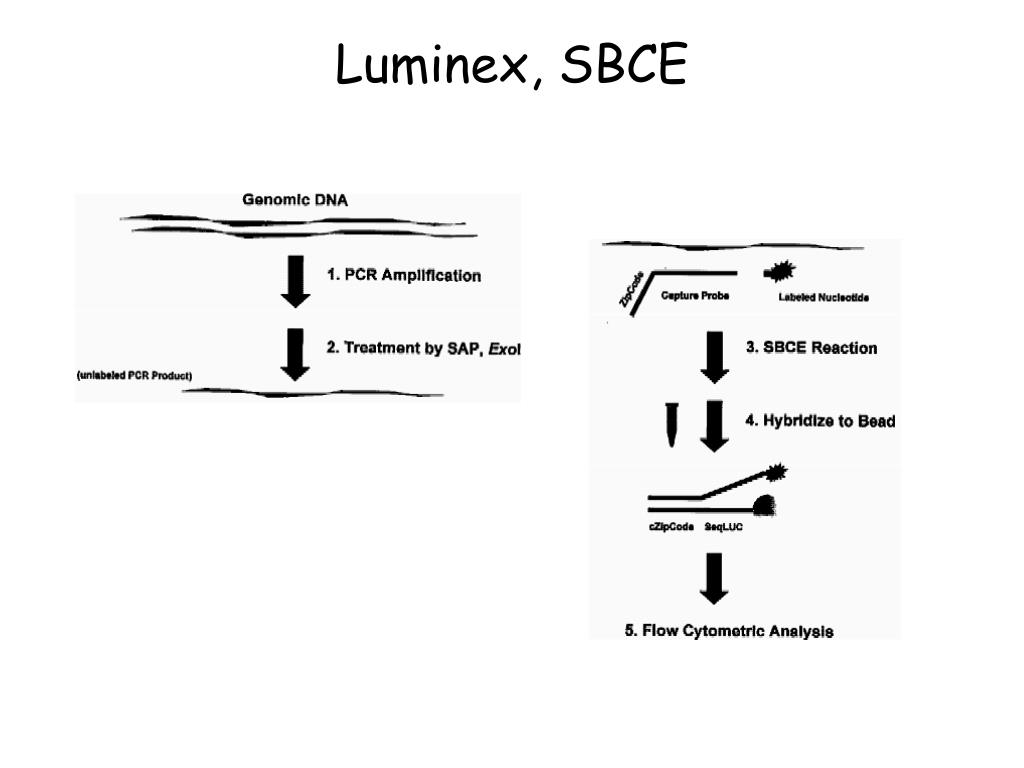

  11. Luminex, SBCE

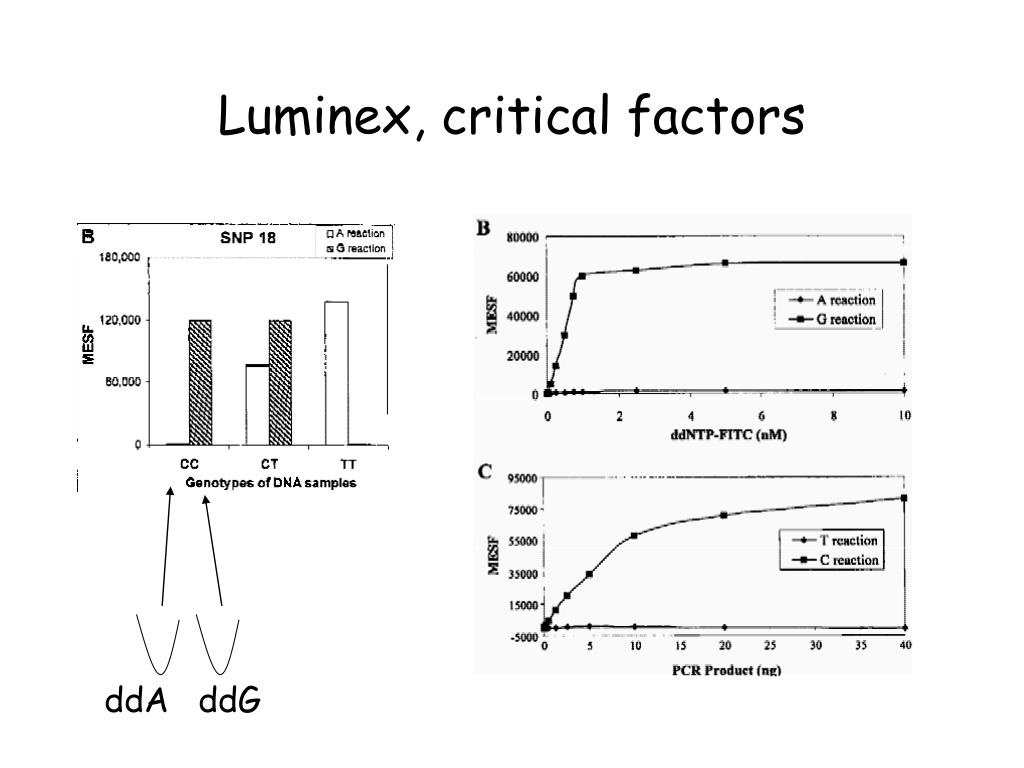

  12. Luminex, critical factors ddA ddG

  13. Illumina beads are analyzed through fiberoptics-ducted fluorescence excitation 96-well plate -> 0.5M beads 1 bundle of 50k fibers -> 50k beads 1 fiber > 1 bead

  14. Illumina genotyping: Golden gate

  15. Illumina genotypes

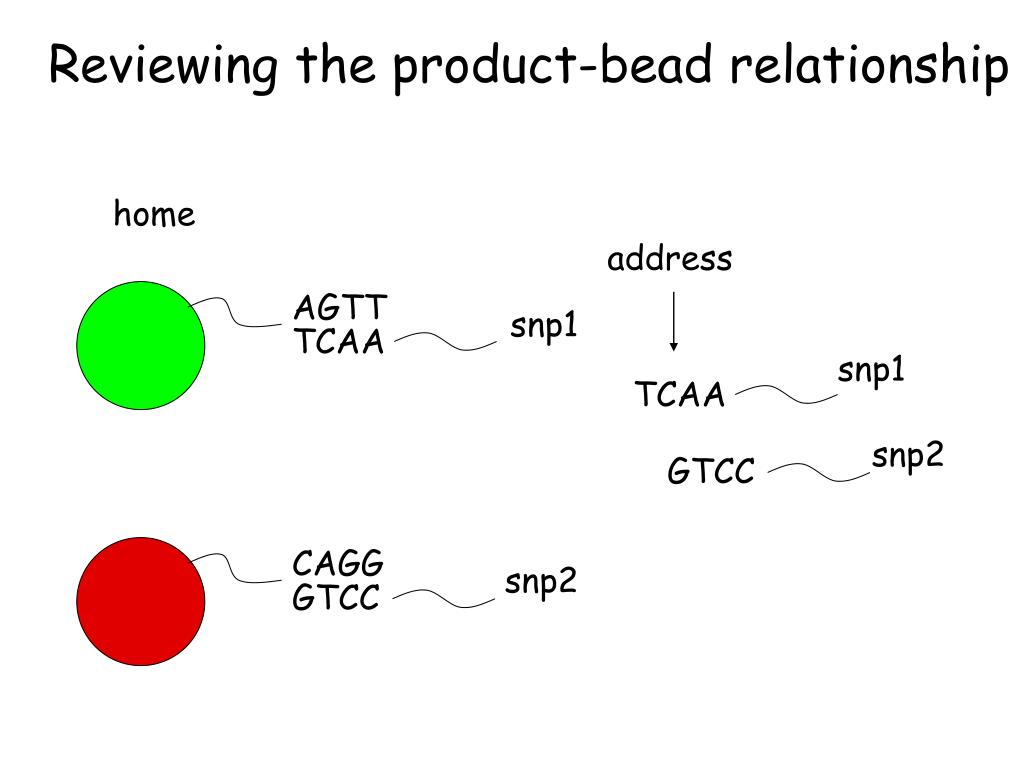

  16. address TCAA TCAA GTCC GTCC Reviewing the product-bead relationship home AGTT snp1 snp1 snp2 CAGG snp2

  17. Multiplexing I: basic options • 100 sphere types • run 100 rx in 100 tubes • pool them and load them as a single well • not impressive, we do something like that now with fluorescent primers and the ABI 3100

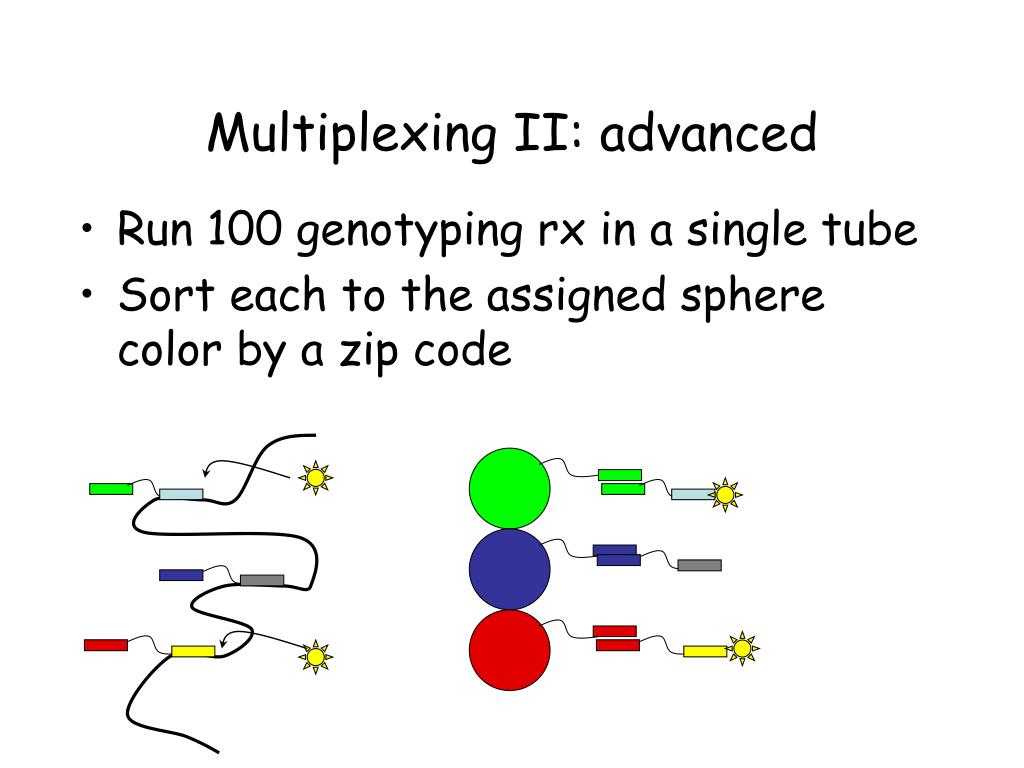

  18. Multiplexing II: advanced • Run 100 genotyping rx in a single tube • Sort each to the assigned sphere color by a zip code

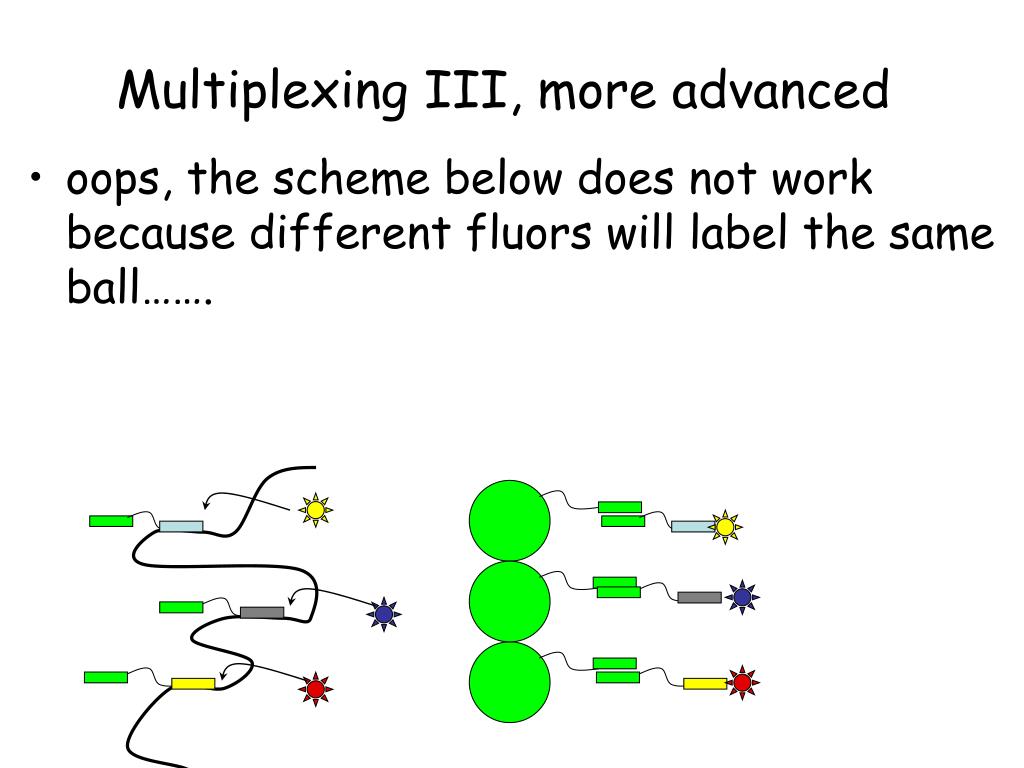

  19. Multiplexing III, more advanced • oops, the scheme below does not work because different fluors will label the same ball…….

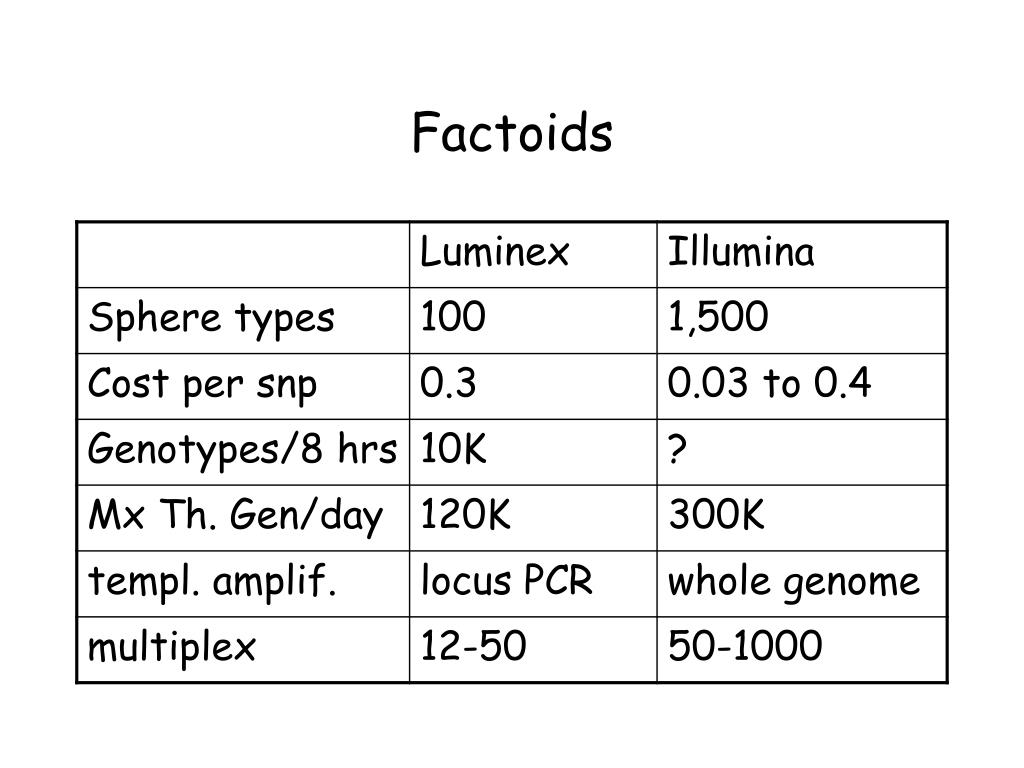

  20. Factoids
