  1. Adbuctive Markov Logic for Plan Recognition ParagSingla & Raymond J. Mooney Dept. of Computer Science University of Texas, Austin

  2. Motivation [ Blaylock & Allen 2005] Road Blocked!

  3. Motivation [ Blaylock & Allen 2005] Road Blocked! Heavy Snow; Hazardous Driving

  4. Motivation [ Blaylock & Allen 2005] Road Blocked! Heavy Snow; Hazardous Driving Accident; Crew is Clearing the Wreck

  5. Abduction • Given: • Background knowledge • A set of observations • To Find: • Best set of explanations given the background knowledge and the observations

  6. Previous Approaches • Purely logic based approaches [Pople 1973] • Perform backward “logical” reasoning • Can not handle uncertainty • Purely probabilistic approaches [Pearl 1988] • Can not handle structured representations • Recent Approaches • Bayesian Abductive Logic Programs (BALP) [Raghavan & Mooney, 2010]

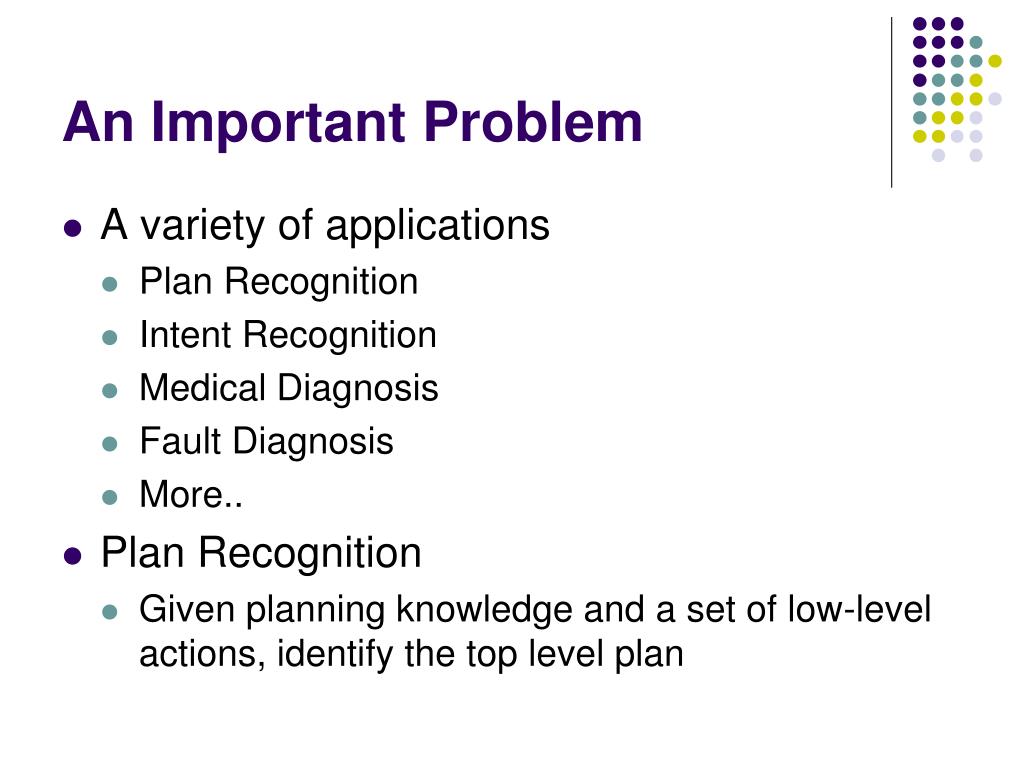

  7. An Important Problem • A variety of applications • Plan Recognition • Intent Recognition • Medical Diagnosis • Fault Diagnosis • More.. • Plan Recognition • Given planning knowledge and a set of low-level actions, identify the top level plan

  8. Outline • Motivation • Background • Markov Logic for Abduction • Experiments • Conclusion & Future Work

  9. Markov Logic [Richardson & Domingos 06] • A logical KB is a set of hard constraintson the set of possible worlds • Let’s make them soft constraints:When a world violates a formula,It becomes less probable, not impossible • Give each formula a weight(Higher weight  Stronger constraint)

  10. Definition • A Markov Logic Network (MLN) is a set of pairs (F, w) where • F is a formula in first-order logic • w is a real number

  11. Definition • A Markov Logic Network (MLN) is a set of pairs (F, w) where • F is a formula in first-order logic • w is a real number heavy_snow(loc)  drive_hazard(loc)  block_road(loc) accident(loc)  clear_wreck(crew, loc)  block_road(loc)

  12. Definition • A Markov Logic Network (MLN) is a set of pairs (F, w) where • F is a formula in first-order logic • w is a real number 1.5 heavy_snow(loc)  drive_hazard(loc)  block_road(loc) 2.0 accident(loc)  clear_wreck(crew, loc)  block_road(loc)

  13. Outline • Motivation • Background • Markov Logic for Abduction • Experiments • Conclusion & Future Work

  14. Abduction using Markov logic • Express the theory in Markov logic • Sound combination of first-order logic rules • Use existing machinery for learning and inference • Problem • Markov logic is deductive in nature • Does not support adbuction as is!

  15. Abduction using Markov logic • Given heavy_snow(loc)  drive_hazard(loc)  block_road(loc) accident(loc)  clear_wreck(crew, loc)  block_road(loc) Observation: block_road(plaza)

  16. Abduction using Markov logic • Given heavy_snow(loc)  drive_hazard(loc)  block_road(loc) accident(loc)  clear_wreck(crew, loc)  block_road(loc) Observation: block_road(plaza) • Rules are true independent of antecedents • Need to go from effect to cause • Idea of hidden cause • Reverse implication over hidden causes

  17. Introducing Hidden Cause heavy_snow(loc)  drive_hazard(loc)  block_road(loc) rb_C1(loc) Hidden Cause heavy_snow(loc)  drive_hazard(loc)  rb_C1(loc)

  18. Introducing Hidden Cause heavy_snow(loc)  drive_hazard(loc)  block_road(loc) rb_C1(loc) Hidden Cause heavy_snow(loc)  drive_hazard(loc)  rb_C1(loc) rb_C1(loc)  block_road(loc)

  19. Introducing Hidden Cause heavy_snow(loc)  drive_hazard(loc)  block_road(loc) Hidden Cause rb_C1(loc) heavy_snow(loc)  drive_hazard(loc)  rb_C1(loc) rb_C1(loc)  block_road(loc) accident(loc)  clear_wreck(crew, loc)  block_road(loc) rb_C2(loc, crew) accident(loc)  clear_wreck(crew, loc)  rb_C2(crew, loc) rb_C2(crew, loc)  block_road(loc)

  20. Introducing Reverse Implication Explanation 1:heavy_snow(loc)  clear_wreck(loc)  rb_C1(loc) Explanation 2: accident(loc)  clear_wreck(crew, loc)  rb_C2(crew, loc) Multiple causes combined via reverse implication block_road(loc)  rb_C1(loc) v ( crew rb_C2(crew, loc))

  21. Introducing Reverse Implication Explanation 1:heavy_snow(loc)  clear_wreck(loc)  rb_C1(loc) Explanation 2: accident(loc)  clear_wreck(crew, loc)  rb_C2(crew, loc) Multiple causes combined via reverse implication Existential quantification block_road(loc)  rb_C1(loc) v ( crew rb_C2(crew, loc))

  22. Low-Prior on Hidden Causes Explanation 1:heavy_snow(loc)  clear_wreck(loc)  rb_C1(loc) Explanation 2: accident(loc)  clear_wreck(crew, loc)  rb_C2(crew, loc) Existential quantification Multiple causes combined via reverse implication block_road(loc)  rb_C1(loc) v ( crew rb_C2(crew, loc)) -w1 rb_C1(loc) -w2 rb_C2(loc, crew)

  23. Avoiding the Blow-up accident (Plaza) heavy_snow (Plaza) drive_hazard (Plaza) clear_wreck (Tcrew, Plaza) rb_C1 (Plaza) rb_C2 (Tcrew, Plaza) Hidden Cause Model Max clique size = 3 block_road (Tcrew, Plaza)

  24. Avoiding the Blow-up accident (Plaza) heavy_snow (Plaza) drive_hazard (Plaza) clear_wreck (Tcrew, Plaza) rb_C1 (Plaza) rb_C2 (Tcrew, Plaza) Hidden Cause Model Max clique size = 3 block_road (Tcrew, Plaza) drive_hazard (Plaza) accident (Plaza) Pair-wise Constraints [Kate & Mooney 2009] Max clique size = 5 clear_wreck (Tcrew, Plaza) heavy_snow (Plaza) block_road (Tcrew, Plaza)

  25. Constructing Abductive MLN Given n explanations for Q:

  26. Constructing Abductive MLN Given n explanations for Q: Introduce a hidden cause Ci for each explanation.

  27. Constructing Abductive MLN Given n explanations for Q: Introduce a hidden cause Ci for each explanation. Introduce the following sets of rules:

  28. Constructing Abductive MLN Given n explanations for Q: Introduce a hidden cause Ci for each explanation. Introduce the following sets of rules: Equivalence between clause body and hidden cause. soft clause

  29. Constructing Abductive MLN Given n explanations for Q: Introduce a hidden cause Ci for each explanation. Introduce the following sets of rules: Equivalence between clause body and hidden cause. soft clause Implicating the effect. hard clause

  30. Constructing Abductive MLN Given n explanations for Q: Introduce a hidden cause Ci for each explanation. Introduce the following sets of rules: Equivalence between clause body and hidden cause. soft clause Implicating the effect. hard clause Reverse Implication. hard clause

  31. Constructing Abductive MLN Given n explanations for Q: Introduce a hidden cause Ci for each explanation. Introduce the following sets of rules: Equivalence between clause body and hidden cause. soft clause Implicating the effect. hard clause Reverse Implication. hard clause Low Prior on hidden causes. soft clause

  32. Adbuctive Model Construction • Grounding out the full network may be costly • Many irrelevant nodes/clauses are created • Complicates learning/inference • Can focus the grounding • Knowledge Based Model Construction (KBMC) • (Logical) backward chaining to get proof trees • Stickel [1988] • Use only the nodes appearing in the proof trees

  33. Abductive Model Construction Observation: block_road(Plaza)

  34. Abductive Model Construction Observation: block_road(Plaza) block_road (Plaza)

  35. Abductive Model Construction Observation: block_road(Plaza) heavy_snow (Plaza) drive_hazard (Plaza) block_road (Plaza)

  36. Abductive Model Construction Observation: block_road(Plaza) heavy_snow (Plaza) drive_hazard (Plaza) block_road (Plaza) Constants: Mall heavy_snow (Mall) drive_hazard (Mall) block_road (Mall)

  37. Abductive Model Construction Observation: block_road(Plaza) heavy_snow (Plaza) drive_hazard (Plaza) block_road (Plaza) Constants: Mall, City_Square heavy_snow (Mall) drive_hazard (Mall) heavy_snow (City_Square) drive_hazard (City_Square) block_road (Mall) block_road (City_Square)

  38. Abductive Model Construction Observation: block_road(Plaza) heavy_snow (Plaza) drive_hazard (Plaza) block_road (Plaza) Constants: …, Mall, City_Square, ... heavy_snow (Mall) drive_hazard (Mall) heavy_snow (City_Square) drive_hazard (City_Square) block_road (Mall) block_road (City_Square)

  39. Abductive Model Construction Observation: block_road(Plaza) heavy_snow (Plaza) drive_hazard (Plaza) Not a part of abductive proof trees! block_road (Plaza) Constants: …, Mall, City_Square, ... heavy_snow (Mall) drive_hazard (Mall) heavy_snow (City_Square) drive_hazard (City_Square) block_road (Mall) block_road (City_Square)

  40. Outline • Motivation • Background • Markov Logic for Abduction • Experiments • Conclusion & Future Work

  41. Story Understanding • Recognizing plans from narrative text [Charniak and Goldman 1991; Ng and Mooney 92] • 25 training examples, 25 test examples • KB originally constructed for the ACCEL system [Ng and Mooney 92]

  42. Monroe and Linux [Blaylock and Allen 2005] • Monroe – generated using hierarchical planner • High level plan in emergency response domain • 10 plans, 1000 examples [10 fold cross validation] • KB derived using planning knowledge • Linux – users operating in linux environment • High level linux command to execute • 19 plans, 457 examples [4 fold cross validation] • Hand coded KB • MC-SAT for inference, Voted Perceptron for learning

  43. Models Compared

  44. Results (Monroe & Linux) Percentage Accuracy for Schema Matching

  45. Results (Modified Monroe) Percentage Accuracy for Partial Predictions. Varying Observability

  46. Timing Results (Modified Monroe) Average Inference Time in Seconds

  47. Outline • Motivation • Background • Markov Logic for Abduction • Experiments • Conclusion & Future Work

  48. Conclusion • Plan Recognition – an abductive reasoning problem • A comprehensive solution based on Markov logic theory • Key contributions • Reverse implications through hidden causes • Abductive model construction • Beats other approaches on plan recognition datasets

  49. Future Work • Experimenting with other domains/tasks • Online learning in presence of partial observability • Learning abductive rules from data
