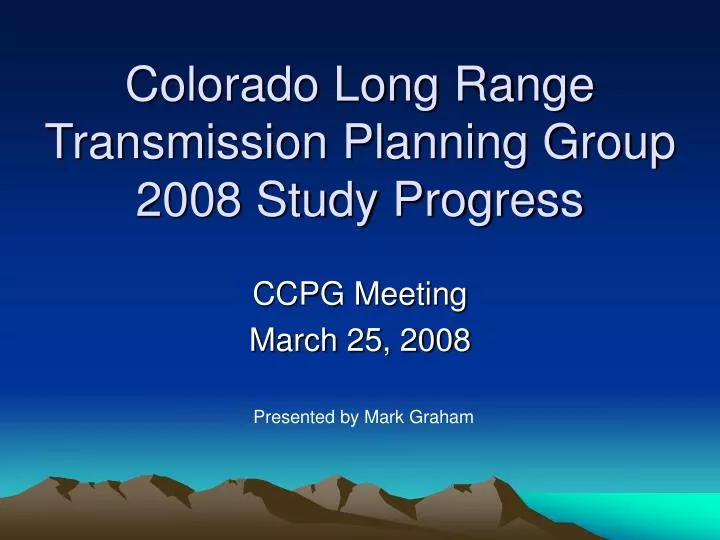

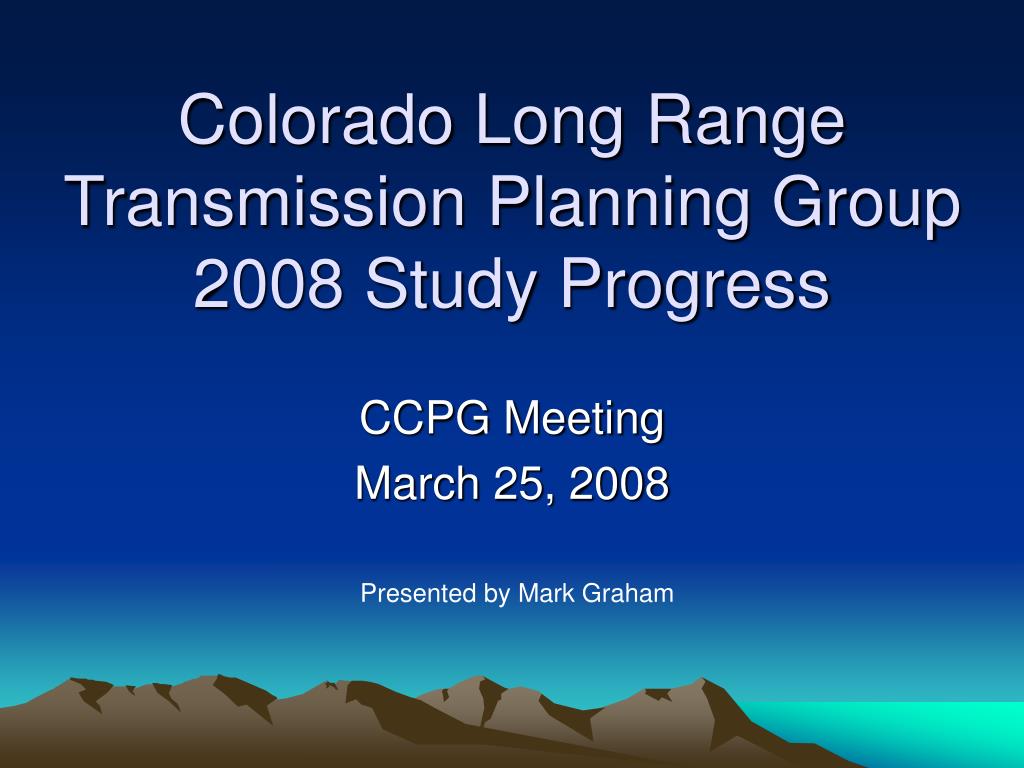

  1. Colorado Long Range Transmission Planning Group2008 Study Progress CCPG Meeting March 25, 2008 Presented by Mark Graham

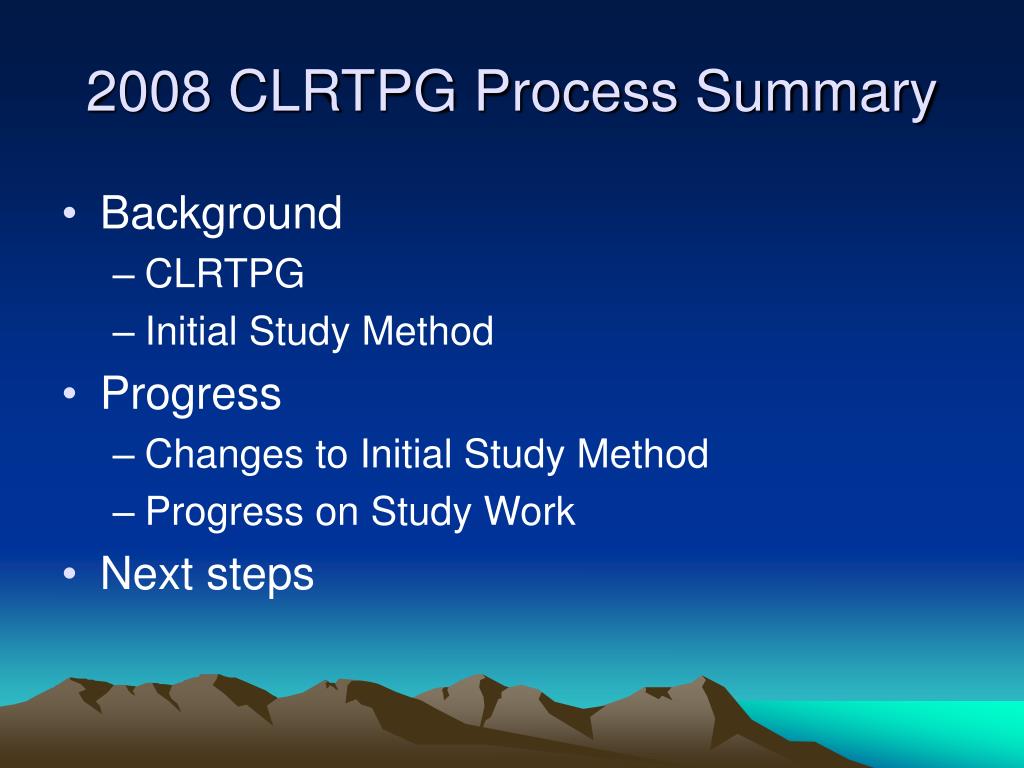

  2. 2008 CLRTPG Process Summary • Background • CLRTPG • Initial Study Method • Progress • Changes to Initial Study Method • Progress on Study Work • Next steps

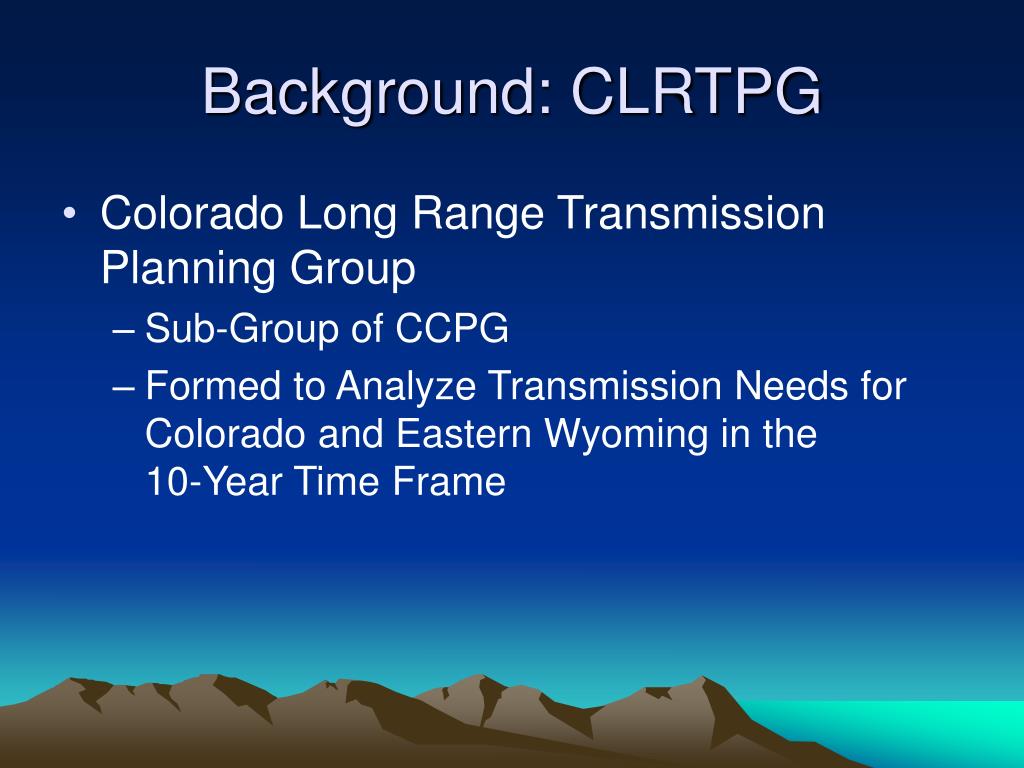

  3. Background: CLRTPG • Colorado Long Range Transmission Planning Group • Sub-Group of CCPG • Formed to Analyze Transmission Needs for Colorado and Eastern Wyoming in the 10-Year Time Frame

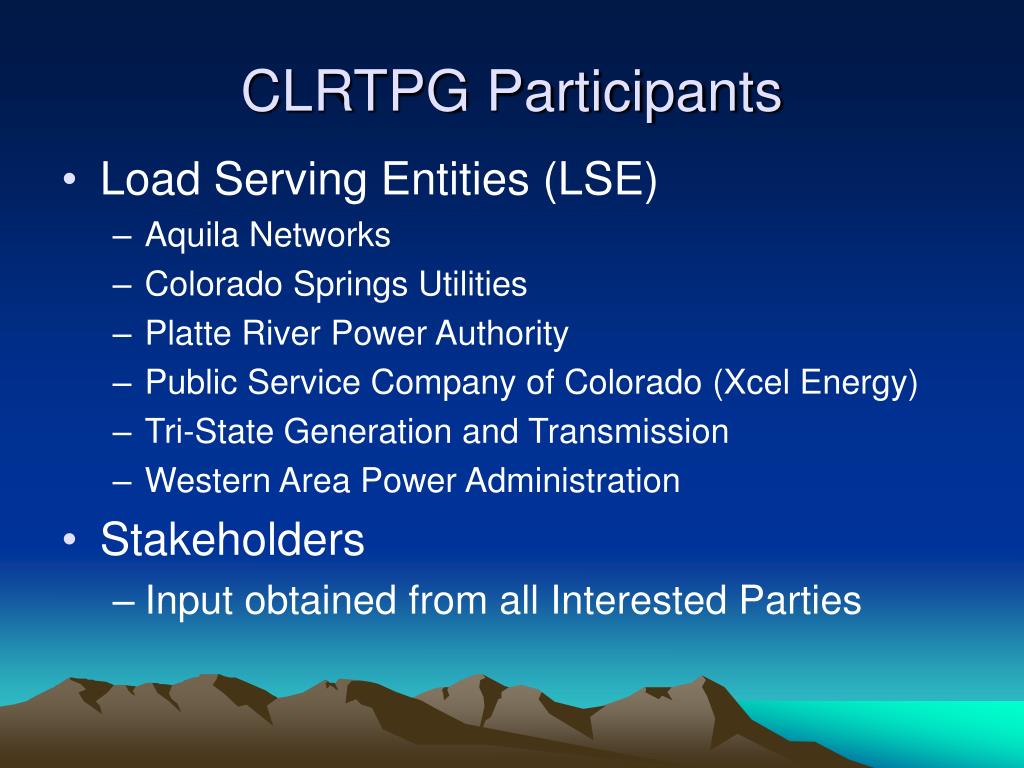

  4. CLRTPG Participants • Load Serving Entities (LSE) • Aquila Networks • Colorado Springs Utilities • Platte River Power Authority • Public Service Company of Colorado (Xcel Energy) • Tri-State Generation and Transmission • Western Area Power Administration • Stakeholders • Input obtained from all Interested Parties

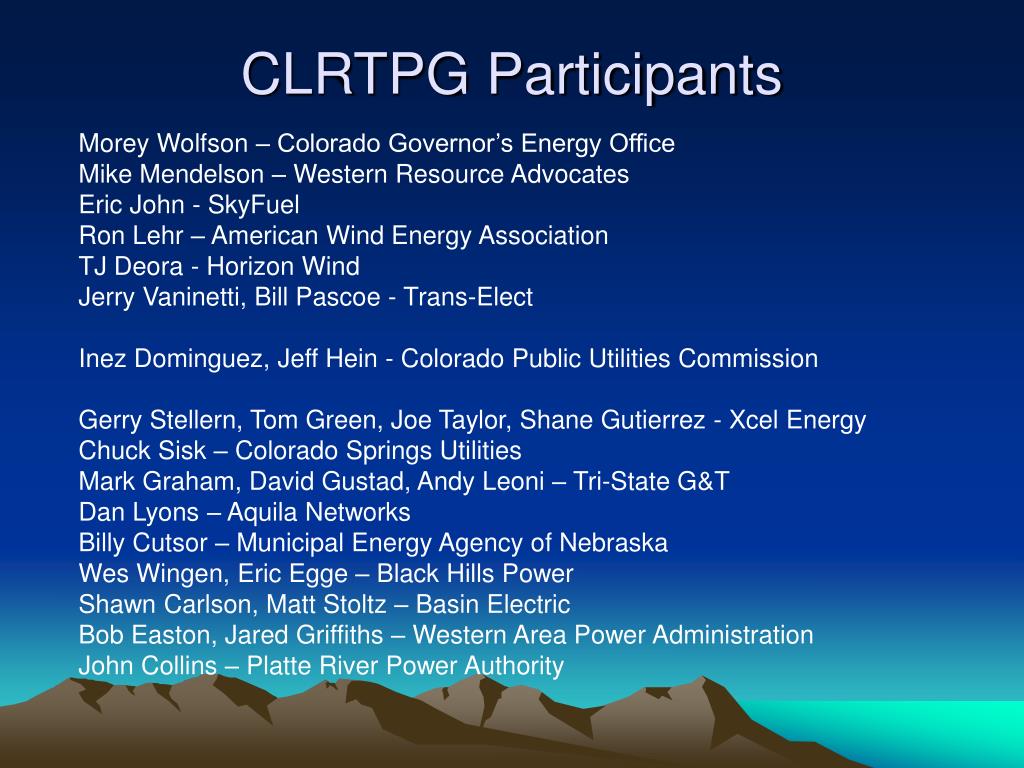

  5. CLRTPG Participants Morey Wolfson – Colorado Governor’s Energy Office Mike Mendelson – Western Resource Advocates Eric John - SkyFuel Ron Lehr – American Wind Energy Association TJ Deora - Horizon Wind Jerry Vaninetti, Bill Pascoe - Trans-Elect Inez Dominguez, Jeff Hein - Colorado Public Utilities Commission Gerry Stellern, Tom Green, Joe Taylor, Shane Gutierrez - Xcel Energy Chuck Sisk – Colorado Springs Utilities Mark Graham, David Gustad, Andy Leoni – Tri-State G&T Dan Lyons – Aquila Networks Billy Cutsor – Municipal Energy Agency of Nebraska Wes Wingen, Eric Egge – Black Hills Power Shawn Carlson, Matt Stoltz – Basin Electric Bob Easton, Jared Griffiths – Western Area Power Administration John Collins – Platte River Power Authority

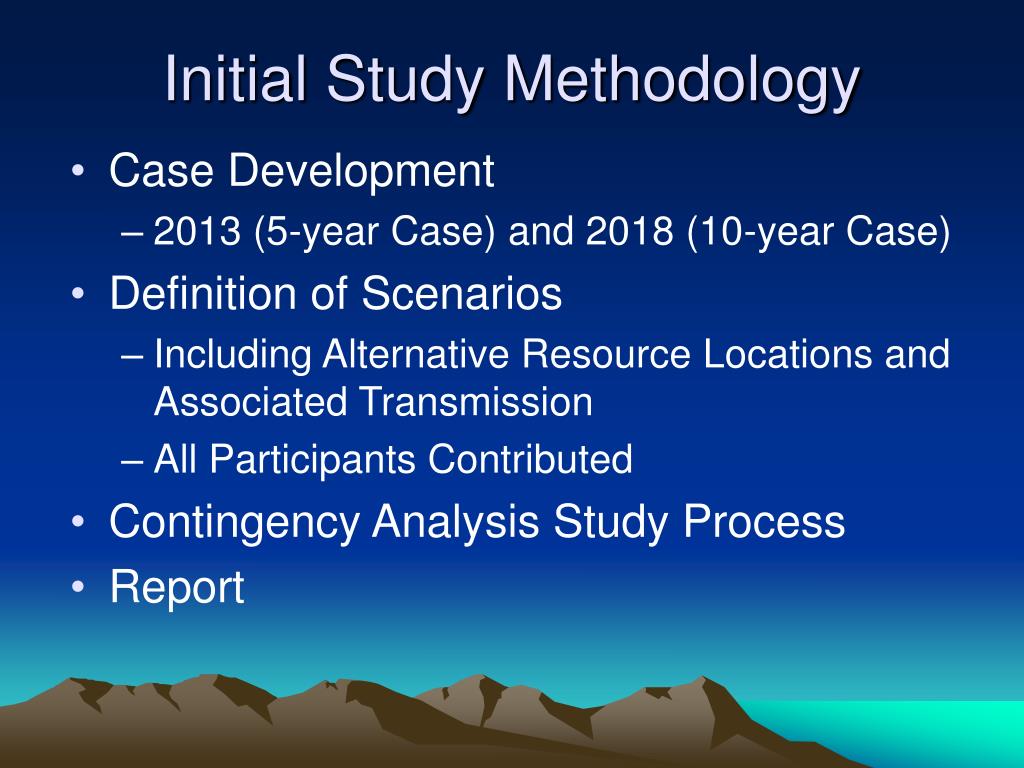

  6. Initial Study Methodology • Case Development • 2013 (5-year Case) and 2018 (10-year Case) • Definition of Scenarios • Including Alternative Resource Locations and Associated Transmission • All Participants Contributed • Contingency Analysis Study Process • Report

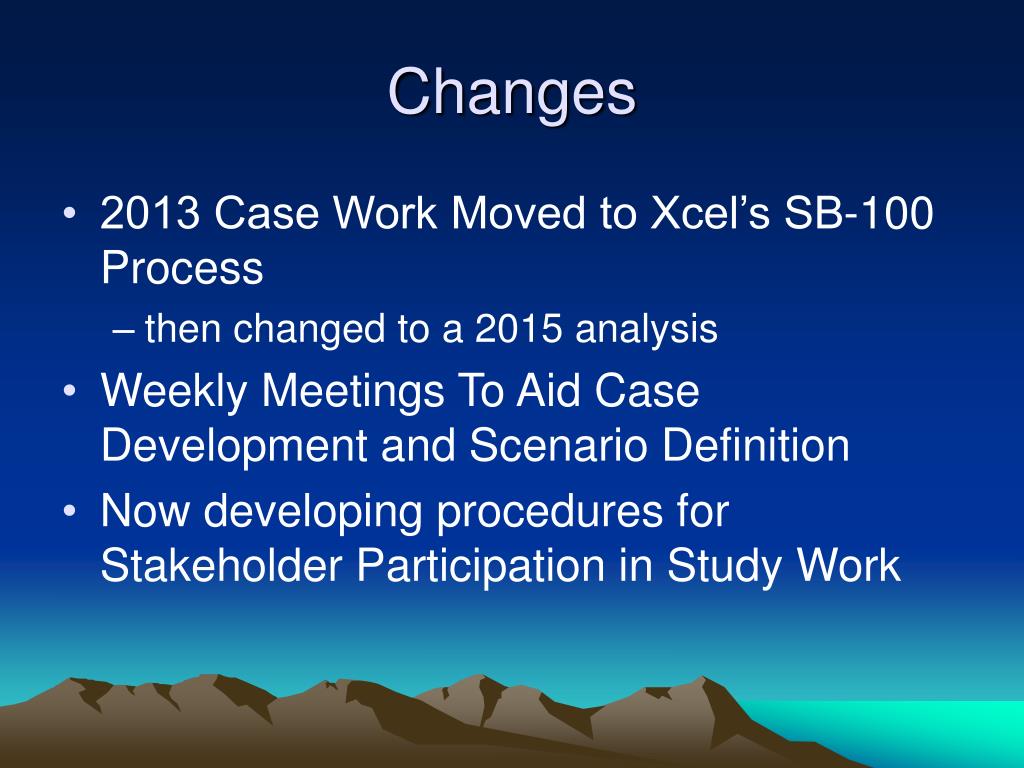

  7. Changes • 2013 Case Work Moved to Xcel’s SB-100 Process • then changed to a 2015 analysis • Weekly Meetings To Aid Case Development and Scenario Definition • Now developing procedures for Stakeholder Participation in Study Work

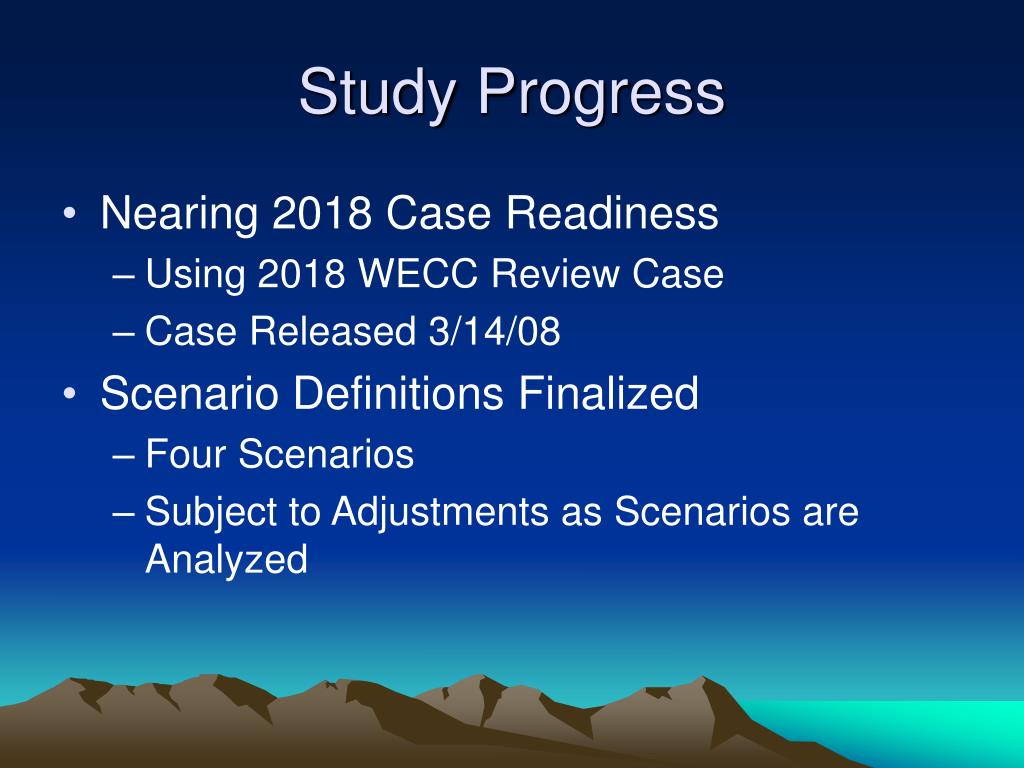

  8. Study Progress • Nearing 2018 Case Readiness • Using 2018 WECC Review Case • Case Released 3/14/08 • Scenario Definitions Finalized • Four Scenarios • Subject to Adjustments as Scenarios are Analyzed

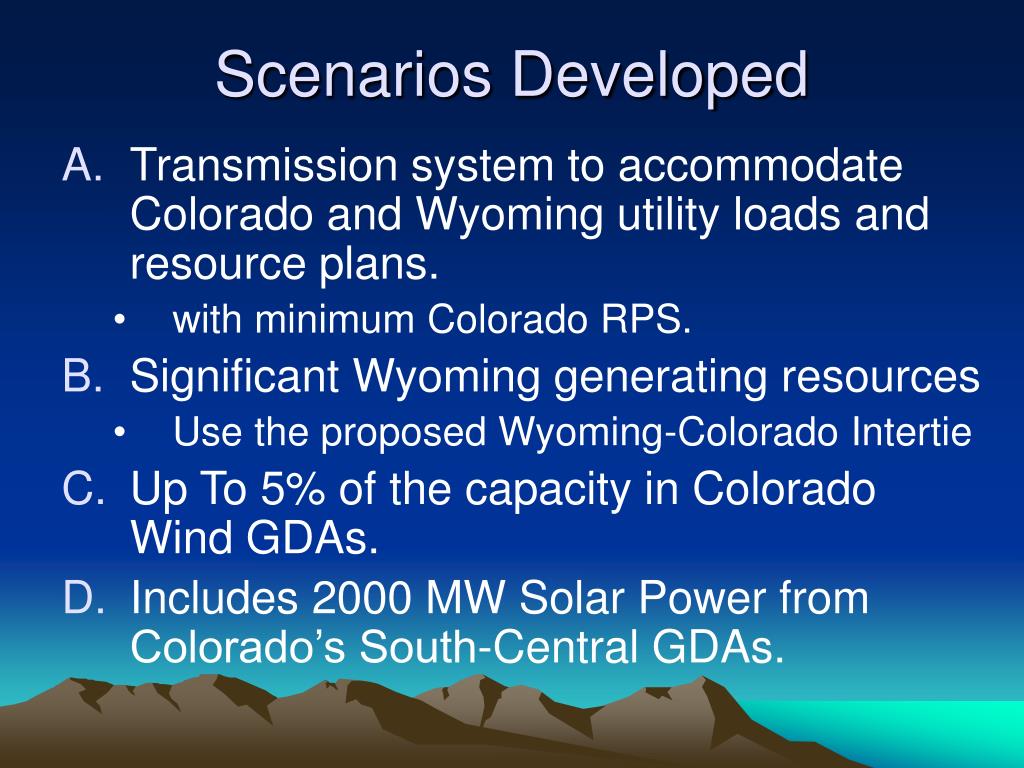

  9. Scenarios Developed • Transmission system to accommodate Colorado and Wyoming utility loads and resource plans. • with minimum Colorado RPS. • Significant Wyoming generating resources • Use the proposed Wyoming-Colorado Intertie • Up To 5% of the capacity in Colorado Wind GDAs. • Includes 2000 MW Solar Power from Colorado’s South-Central GDAs.

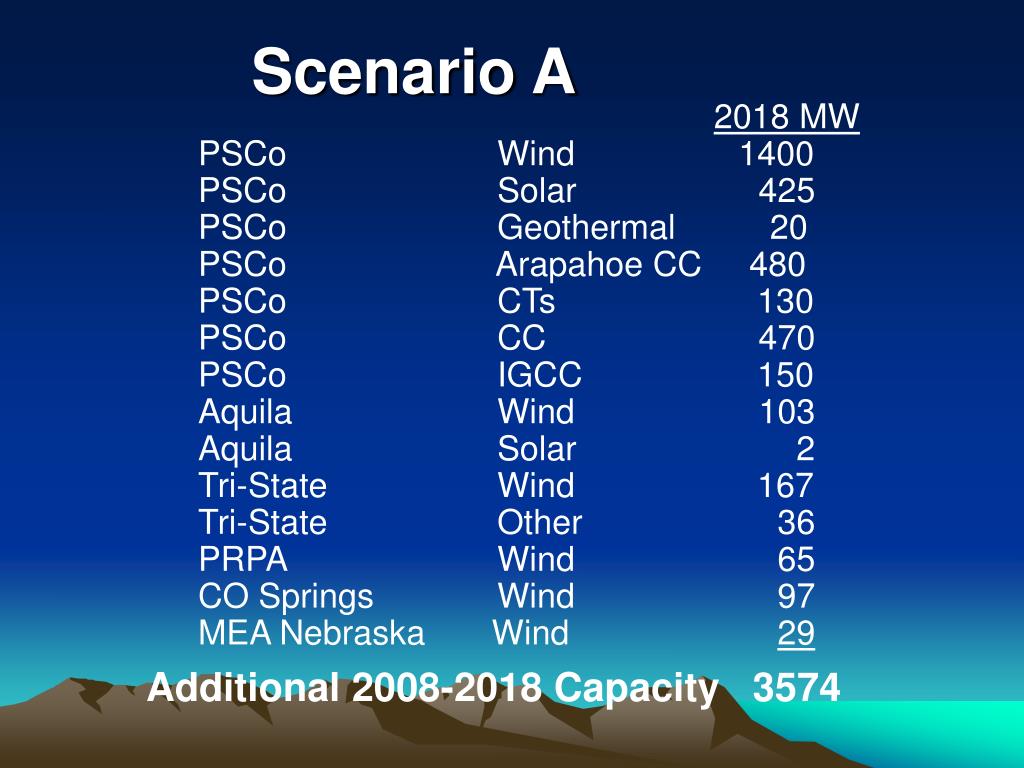

  10. Scenario A 2018 MW PSCo Wind 1400 PSCo Solar 425 PSCo Geothermal 20 PSCo Arapahoe CC 480 PSCo CTs 130 PSCo CC 470 PSCo IGCC 150 Aquila Wind 103 Aquila Solar 2 Tri-State Wind 167 Tri-State Other 36 PRPA Wind 65 CO Springs Wind 97 MEA Nebraska Wind 29 Additional 2008-2018 Capacity 3574

  11. Scenario A with High Renewable Injections 55 MW 910 MW 750 MW Baseload 715 MW Solar 87 MW 770 MW

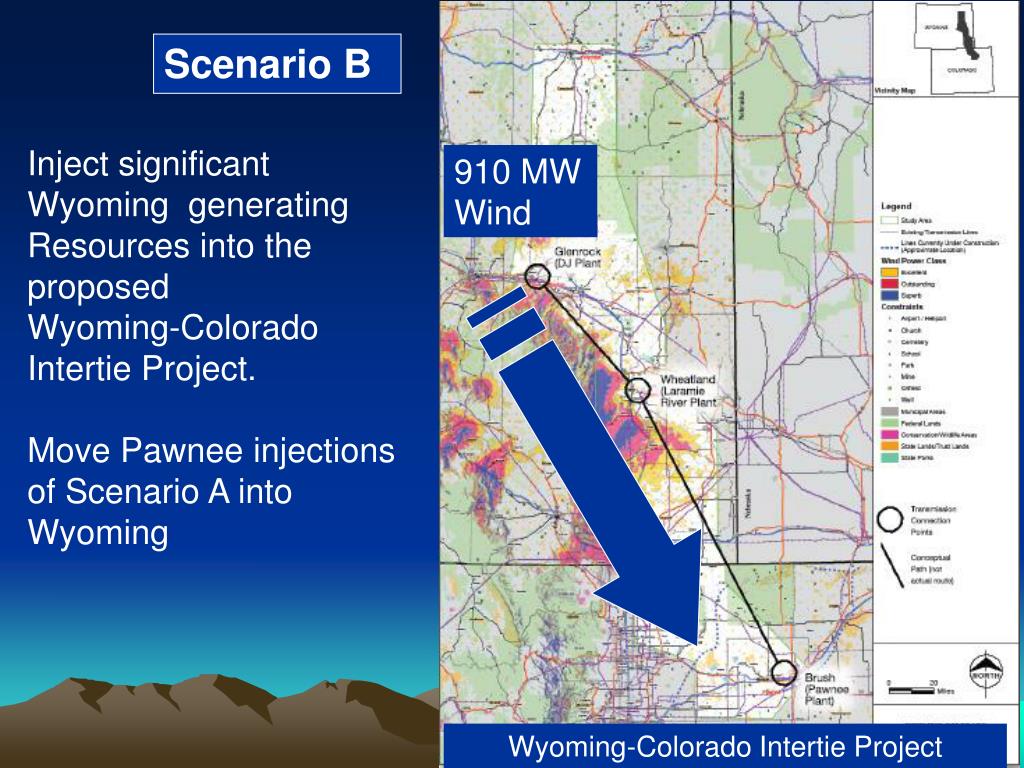

  12. Scenario B 910 MW Wind Inject significant Wyoming generating Resources into the proposed Wyoming-Colorado Intertie Project. Move Pawnee injections of Scenario A into Wyoming Wyoming-Colorado Intertie Project

  13. Scenario C Inject Up To 5% of Wind GDA capacity

  14. Scenario D Inject 1,000 MW from the San Luis Valley GDA and 1,000 MW from the GDA south of Pueblo.

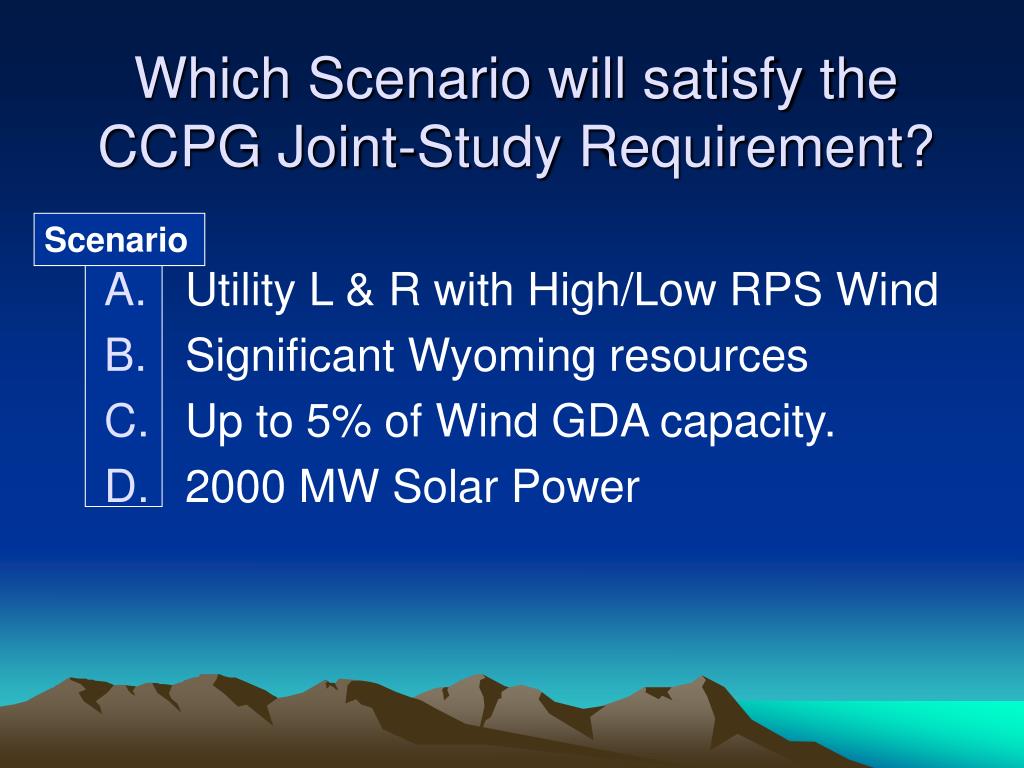

  15. Which Scenario will satisfy the CCPG Joint-Study Requirement? • Utility L & R with High/Low RPS Wind • Significant Wyoming resources • Up to 5% of Wind GDA capacity. • 2000 MW Solar Power Scenario

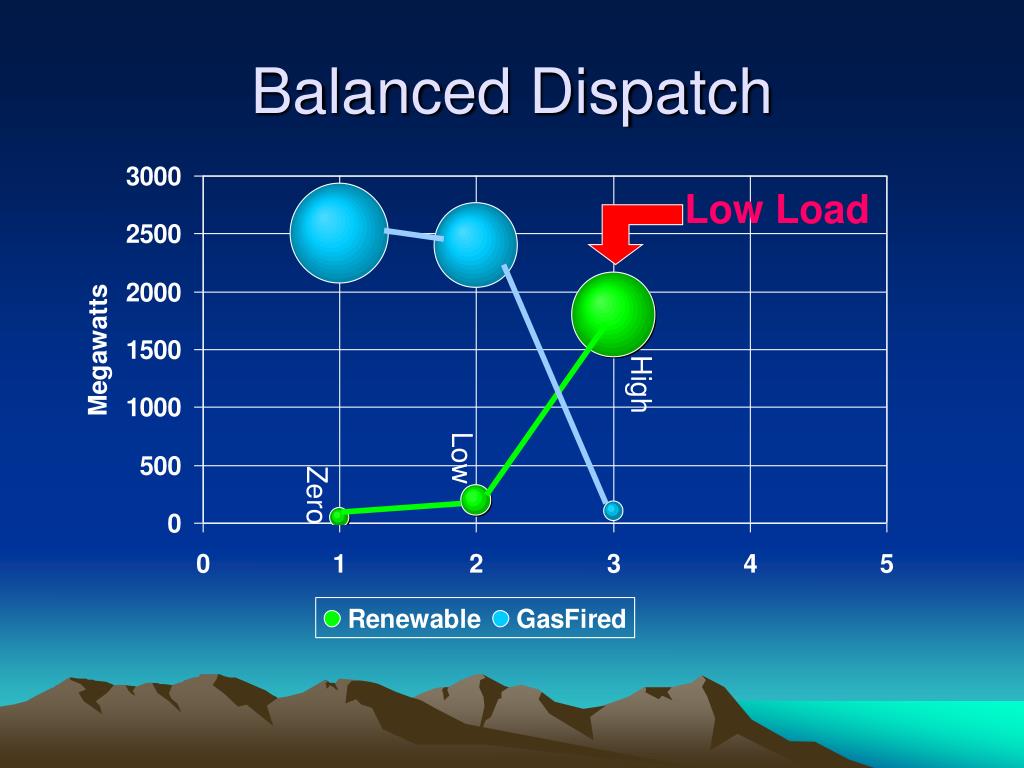

  16. Balanced Dispatch High Low Zero

  17. Balanced Dispatch Low Load High Low Zero

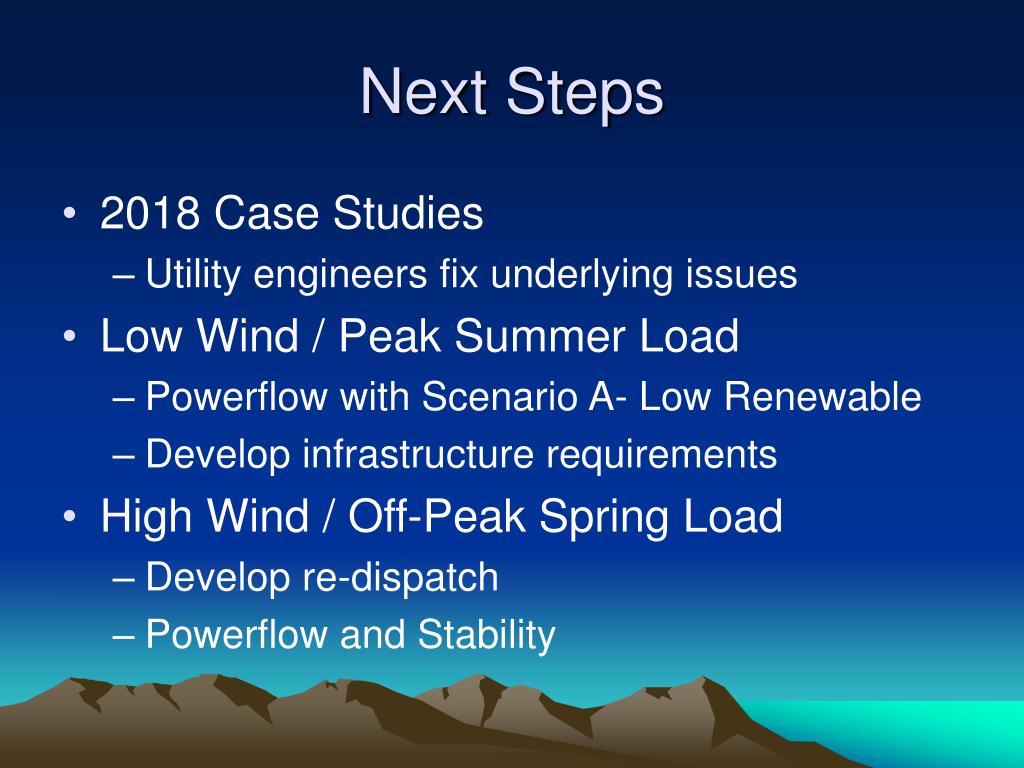

  18. Next Steps • 2018 Case Studies • Utility engineers fix underlying issues • Low Wind / Peak Summer Load • Powerflow with Scenario A- Low Renewable • Develop infrastructure requirements • High Wind / Off-Peak Spring Load • Develop re-dispatch • Powerflow and Stability

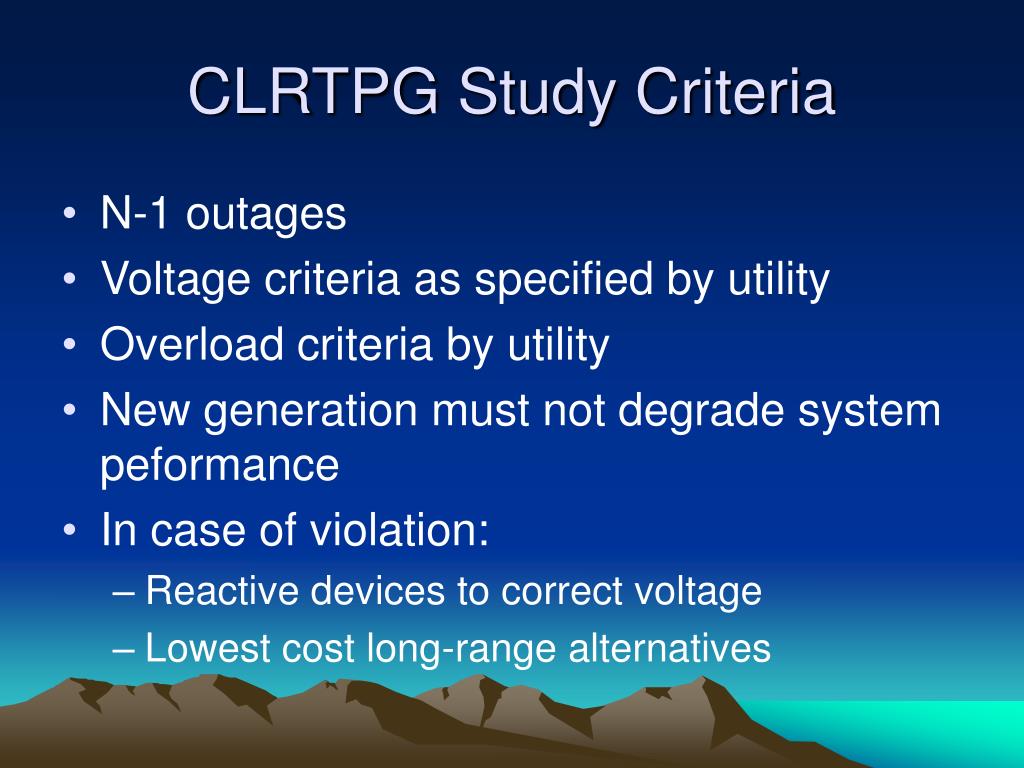

  19. CLRTPG Study Criteria • N-1 outages • Voltage criteria as specified by utility • Overload criteria by utility • New generation must not degrade system peformance • In case of violation: • Reactive devices to correct voltage • Lowest cost long-range alternatives

  20. Data Confidentiality • Confidential Transmission Information • Transmission Capability of non-posted paths • Available Transmission Capability • Modify meetings to address concerns

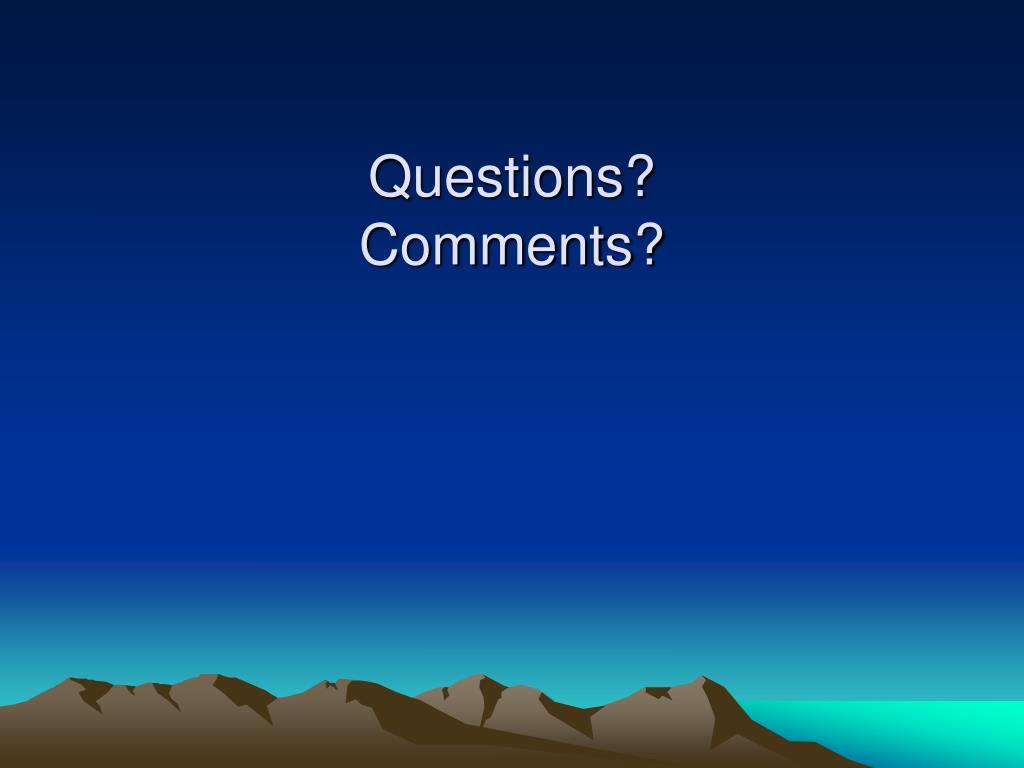

  21. Questions?Comments?
