Vertical-Autoclave 50 L

Fison Vertical Autoclave is a top-loading 50 L unit with a timer from 0 to 99 minutes and a temperature range of 105 to 134 u00b0C. It features a hand-wheel quick door design and includes 2 stainless steel baskets and an indicator light with a durable 304 grade stainless steel chamber.

rosieortiz
Download Presentation

Vertical-Autoclave 50 L

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

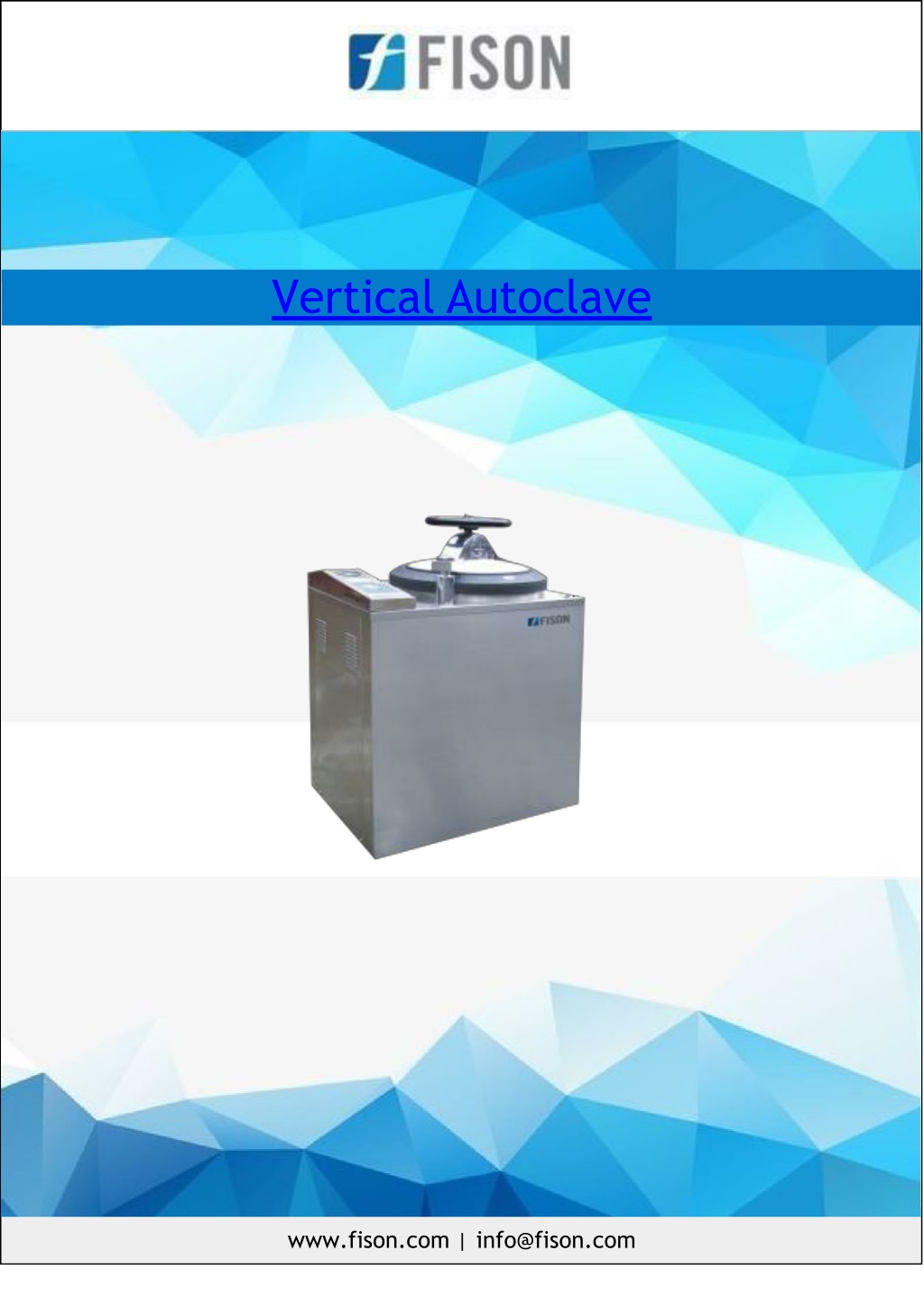

  1. Vertical Autoclave www.fison.com | info@fison.com

  2. Description : Vertical Autoclave is a top loader sterility autoclave with a 50 L capacity, 134°C sterilization temperature and 0.22 MPa hydraulic pressure. It has hand wheel type quick door open structure design. Equipped with two stainless steel baskets and indicator light to indicate working status of the sterilization process. The chamber is constructed of long lasting 304 grade stainless steel with superior corrosion resistance property and PT/TT testing connector. It is CE certified vertical autoclave. Features: Automatically controlled microcomputer digital display system Automatic route for water inlet, pulse vacuum, heating, sterilizing, draining, exhausting and vacuum drying Fixed program: Appliance, medical dressing, rubbers and fluid which can be set as needed Hand wheel type door opening structure 304 stainless steel body with corrosion resistance Submersed heating with high heating efficiency Dynamically shows the temperature, pressure time, vacuum rate and full cycle Multiple pulse vacuum drying after sterilization ensures proper sterilization Equipped with bacteria filter avoids chances of second contamination Steam water inner circulation system without steam discharge to environment Beep alarm for shutting off after sterilization Specifications: Capacity 50 L

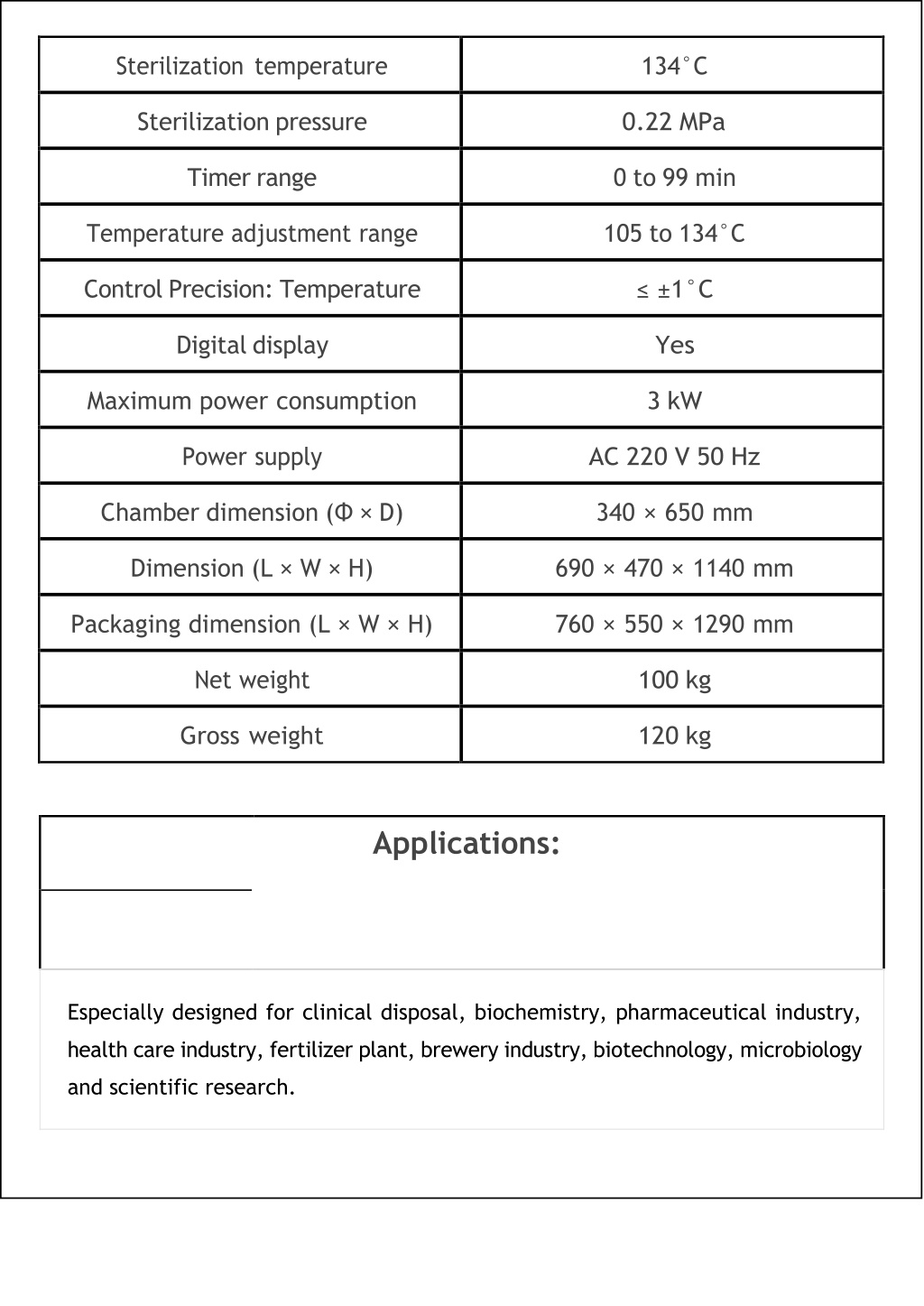

  3. Sterilization temperature 134°C Sterilization pressure 0.22 MPa Timer range 0 to 99 min Temperature adjustment range 105 to 134°C Control Precision: Temperature ≤ ±1°C Digital display Yes Maximum power consumption 3 kW Power supply AC 220 V 50 Hz Chamber dimension (Φ × D) 340 × 650 mm Dimension (L × W × H) 690 × 470 × 1140 mm Packaging dimension (L × W × H) 760 × 550 × 1290 mm Net weight 100 kg Gross weight 120 kg Applications: Especially designed for clinical disposal, biochemistry, pharmaceutical industry, health care industry, fertilizer plant, brewery industry, biotechnology, microbiology and scientific research.

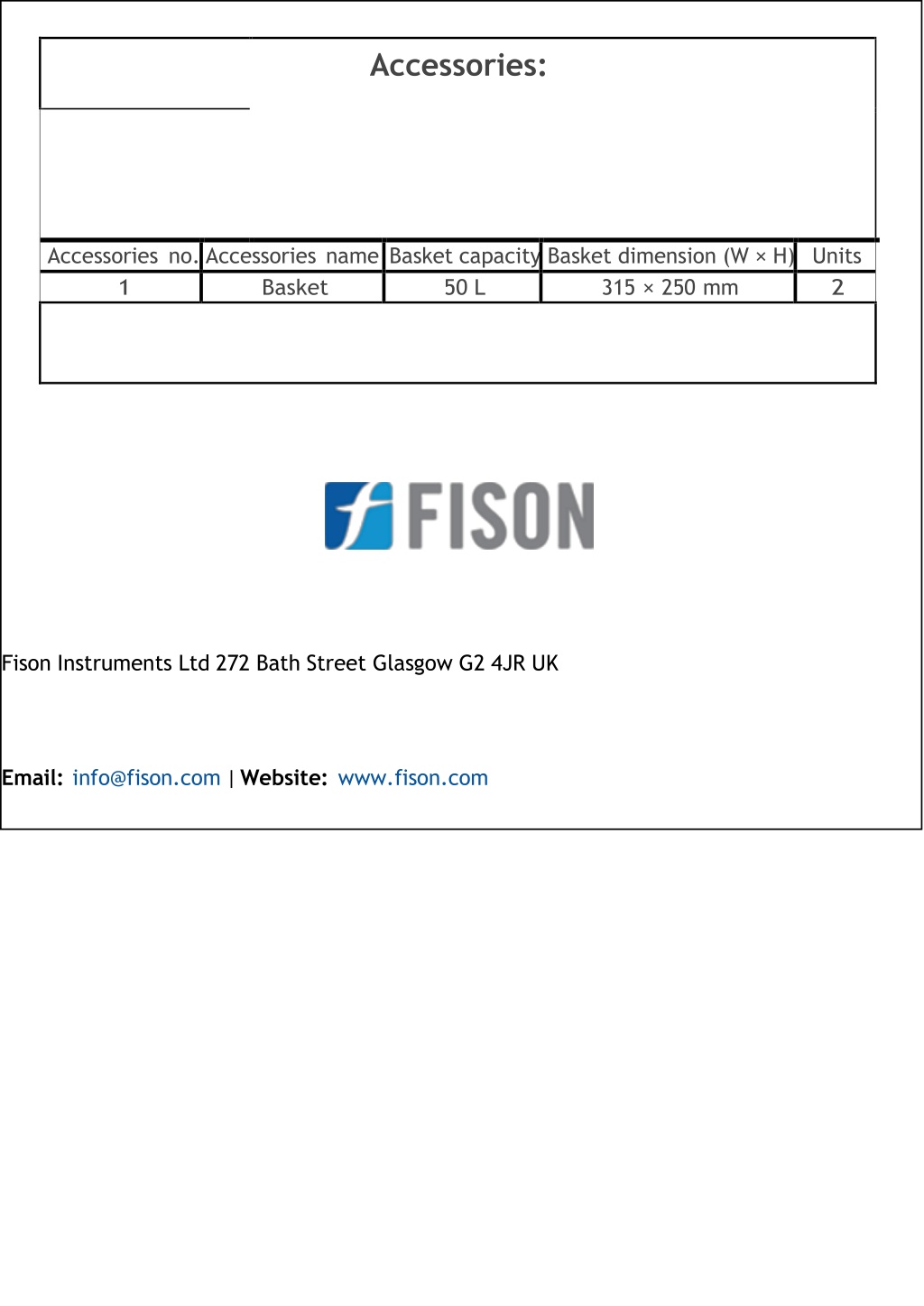

  4. Accessories: Accessories no. Accessories name Basket capacity Basket dimension (W × H) Units 1 Basket 50 L 315 × 250 mm 2 Fison Instruments Ltd 272 Bath Street Glasgow G2 4JR UK Email: info@fison.com | Website: www.fison.com
