Vertical-Autoclave 115 kg

Fison Vertical Autoclave is a 75L capacity unit operating at 105 to 136u00b0C with single-chip microcomputer control for automatic heating and release. It works at 0.23 MPa pressure with 4 preset programs and 1 customizable option for sterilizing various <br>materials.

rosieortiz
Download Presentation

Vertical-Autoclave 115 kg

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

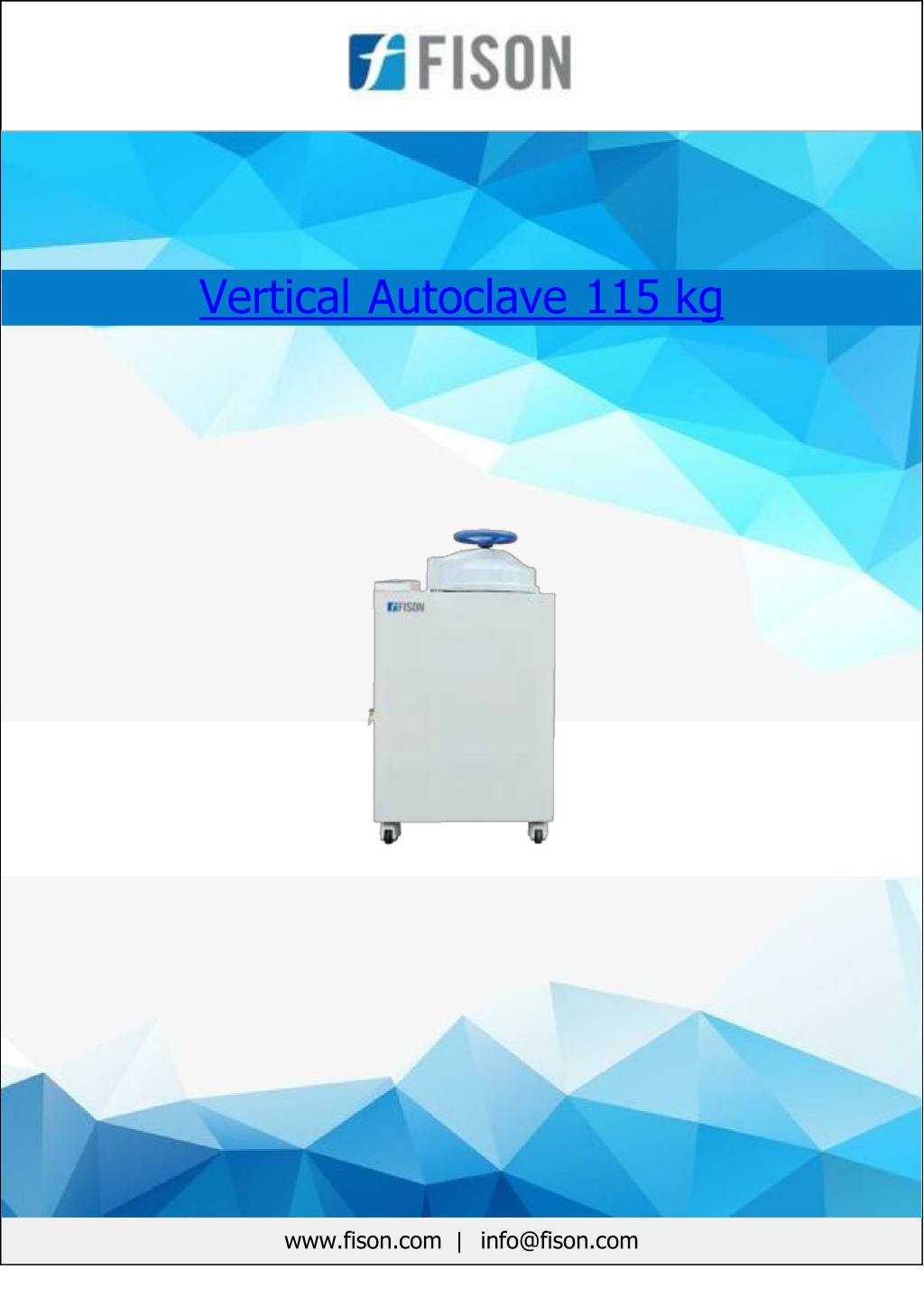

  1. Vertical Autoclave 115 kg www.fison.com | info@fison.com

  2. Description : Vertical Autoclave offers a capacity of 75L and operates within a temperature range of 105 to 136℃. It features single-chip microcomputer control, enabling fully automatic heating and release functions. Utilizes gravity displacement and positive pressure pulsation exhaust to remove load and cold air from the sterilization chamber. Provides 4 preset and 1 customizable program for sterilization of wrapped or unwrapped items, rubber products, dressings, and other materials. Features: Equipped with LED screen display SUS304 stainless steel sterilization chamber and basket Audio and visual safety alarms Water shortage protection function Door safety protection Power safety and anti-dry burning protection Hand wheel-operated door opening Over-pressure and over-temperature protection Includes an optional sterilization bucket Quick access window for easy maintenance Specifications: Capacity 75L Chamber Size Φ 386 × 695 mm

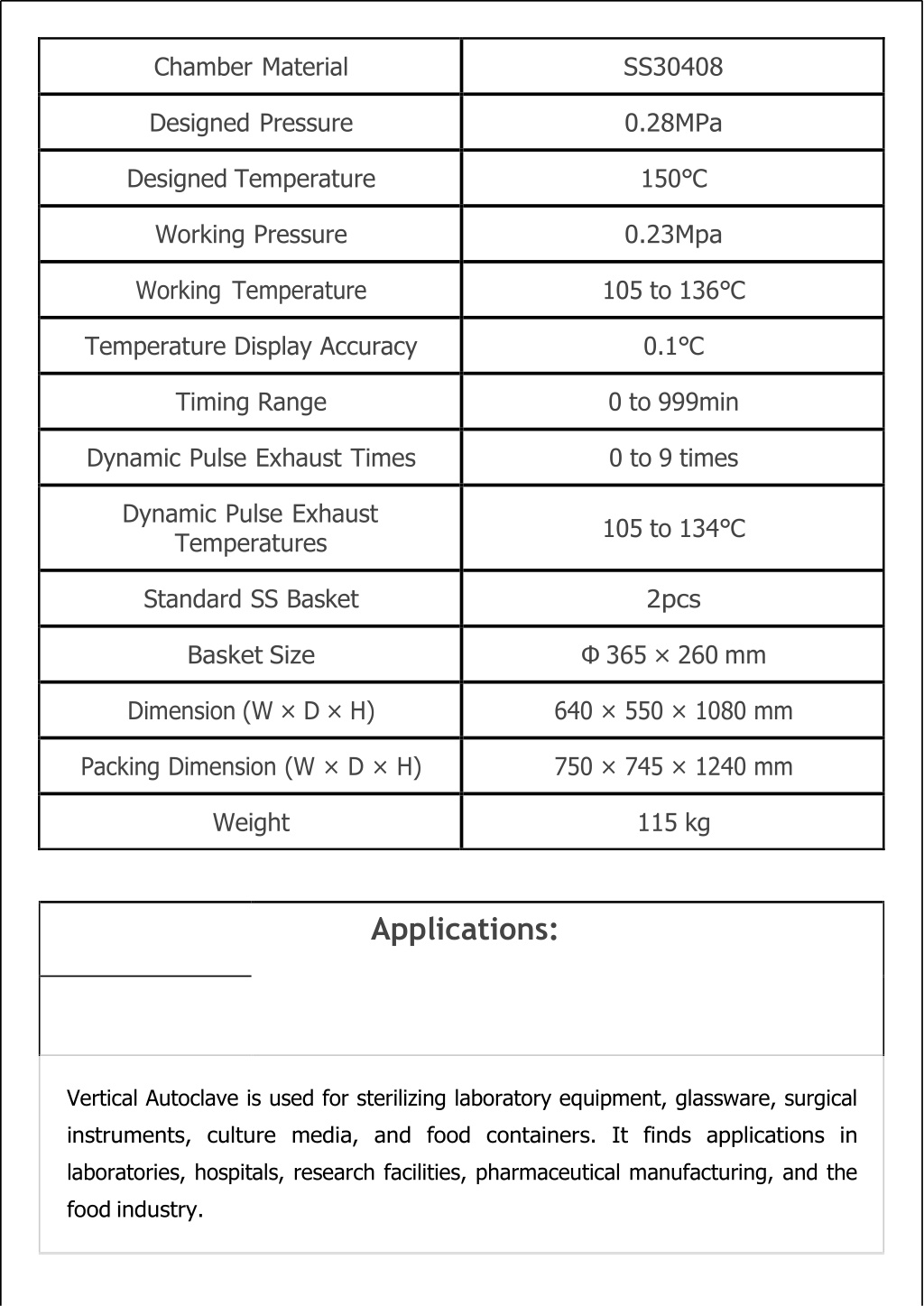

  3. Chamber Material SS30408 Designed Pressure 0.28MPa Designed Temperature 150℃ Working Pressure 0.23Mpa Working Temperature 105 to 136℃ Temperature Display Accuracy 0.1℃ Timing Range 0 to 999min Dynamic Pulse Exhaust Times 0 to 9 times Dynamic Pulse Exhaust Temperatures 105 to 134℃ Standard SS Basket 2pcs Basket Size Φ 365 × 260 mm Dimension (W × D × H) 640 × 550 × 1080 mm Packing Dimension (W × D × H) 750 × 745 × 1240 mm Weight 115 kg Applications: Vertical Autoclave is used for sterilizing laboratory equipment, glassware, surgical instruments, culture media, and food containers. It finds applications in laboratories, hospitals, research facilities, pharmaceutical manufacturing, and the food industry.

  4. AccessoriesOptional: Bucket Fison Instruments Ltd 272 Bath Street Glasgow G2 4JR UK Email:info@fison.com | Website:www.fison.com
