Portable-autoclave 12 kg

Fison 18L electric autoclave provides high-pressure steam sterilisation at 126u00b0C and 0.16 MPa with a leak-proof Class N chamber and a 0 to 60-minute cycle while offering adjustable temperature from 105u00b0C to 126u00b0C to ensure efficient sterilisation for medical and laboratory <br>applications.

rosieortiz
Download Presentation

Portable-autoclave 12 kg

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

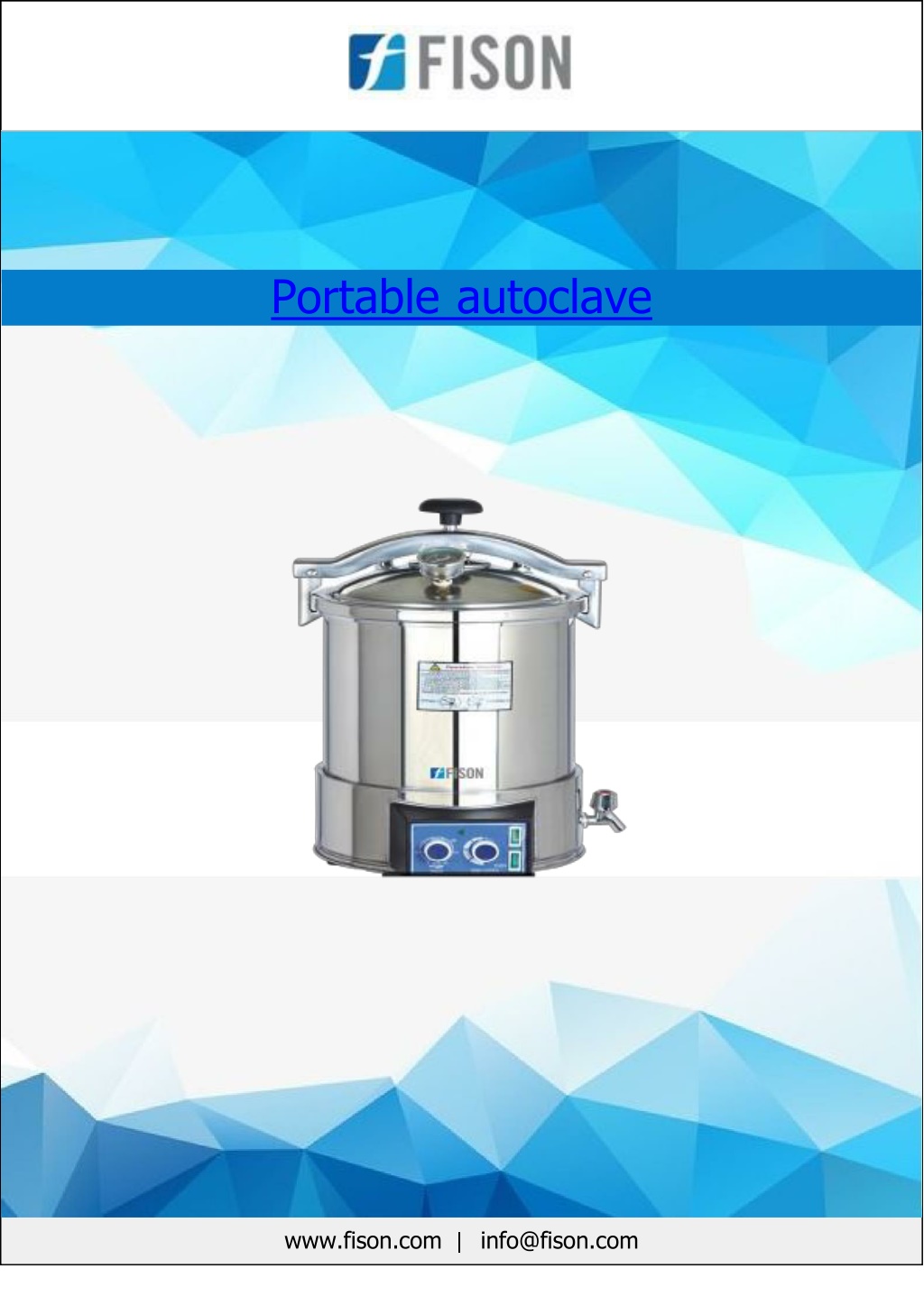

  1. Portable autoclave www.fison.com | info@fison.com

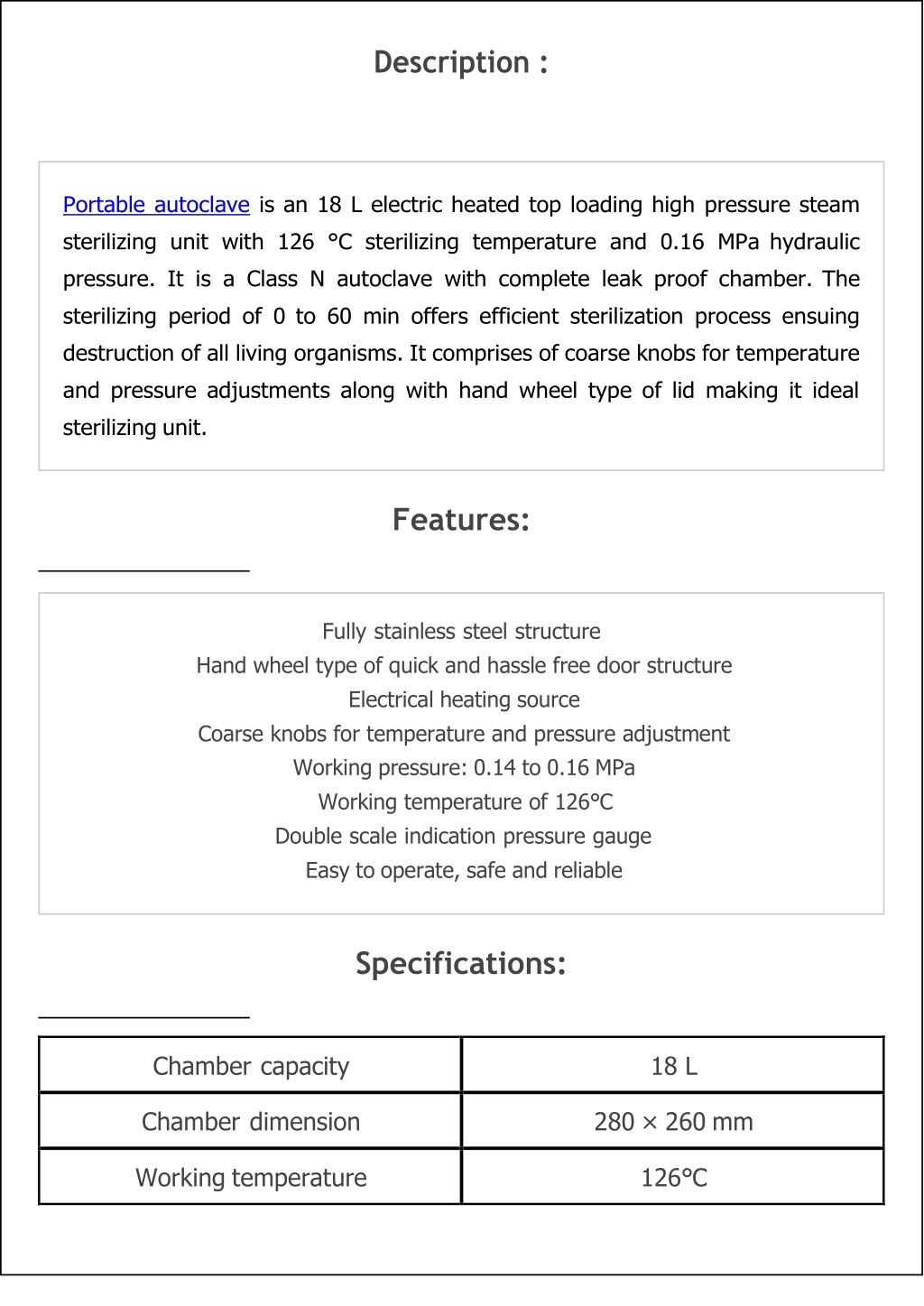

  2. Description : Portable autoclave is an 18 L electric heated top loading high pressure steam sterilizing unit with 126 °C sterilizing temperature and 0.16 MPa hydraulic pressure. It is a Class N autoclave with complete leak proof chamber. The sterilizing period of 0 to 60 min offers efficient sterilization process ensuing destruction of all living organisms. It comprises of coarse knobs for temperature and pressure adjustments along with hand wheel type of lid making it ideal sterilizing unit. Features: Fully stainless steel structure Hand wheel type of quick and hassle free door structure Electrical heating source Coarse knobs for temperature and pressure adjustment Working pressure: 0.14 to 0.16 MPa Working temperature of 126℃ Double scale indication pressure gauge Easy to operate, safe and reliable Specifications: Chamber capacity 18 L Chamber dimension 280 × 260 mm Working temperature 126℃

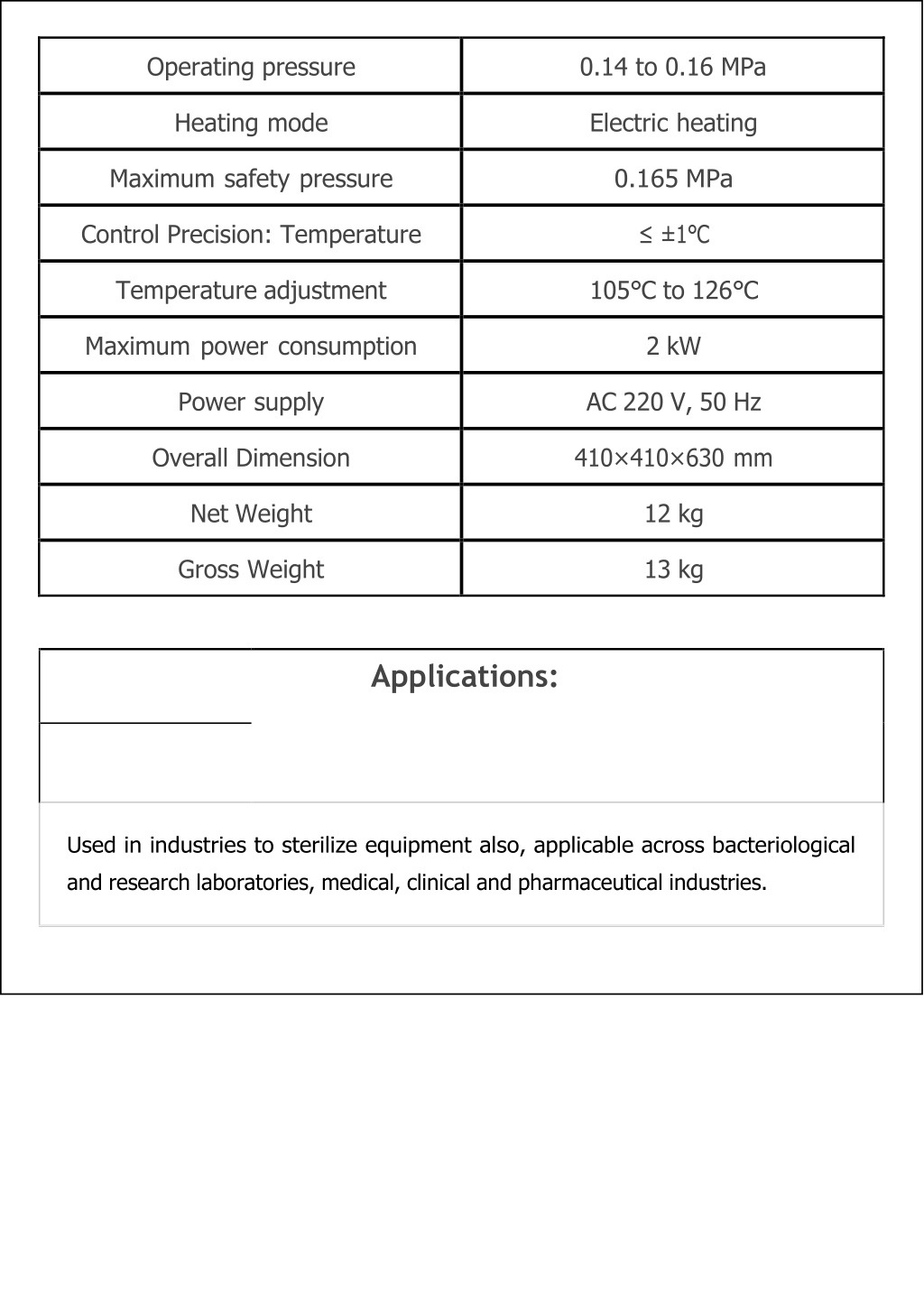

  3. Operating pressure 0.14 to 0.16 MPa Heating mode Electric heating Maximum safety pressure 0.165 MPa Control Precision: Temperature ≤±1℃ Temperature adjustment 105℃ to 126℃ Maximum power consumption 2 kW Power supply AC 220 V, 50 Hz Overall Dimension 410×410×630 mm Net Weight 12 kg Gross Weight 13 kg Applications: Used in industries to sterilize equipment also, applicable across bacteriological and research laboratories, medical, clinical and pharmaceutical industries.

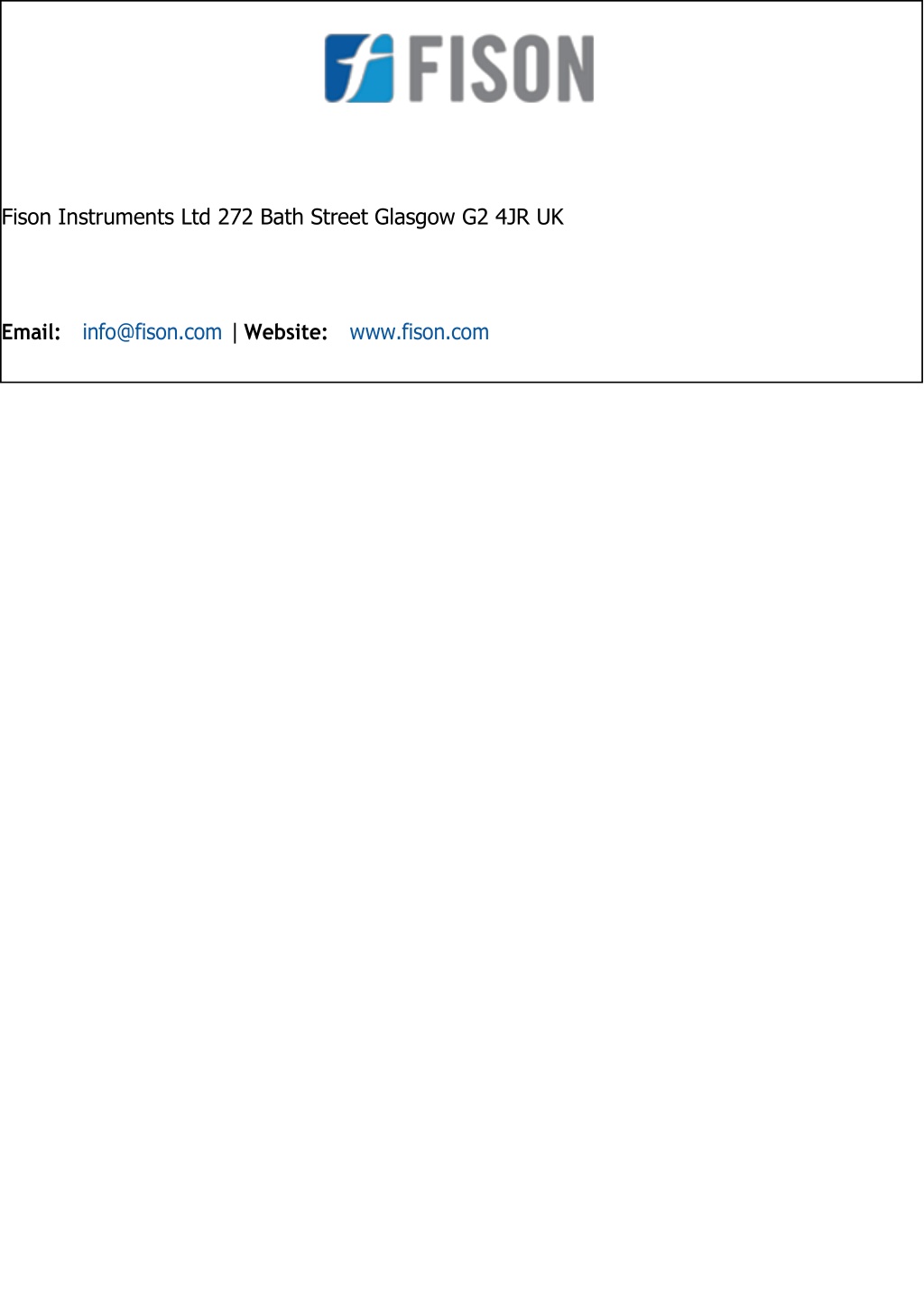

  4. Fison Instruments Ltd 272 Bath Street Glasgow G2 4JR UK Email:info@fison.com | Website:www.fison.com
