Horizontal-Autoclave 950 kg

Fison Horizontal Autoclave, with a 500 L capacity, features stainless steel interior and door panels. It operates at 150u2103, max 139u2103, and 0-0.25 MPa. Equipped with a pneumatic valve, vertical sliding door, vacuum pump, steam saturation, and thermal insulation, it ensures reliable.<br>

rosieortiz
Download Presentation

Horizontal-Autoclave 950 kg

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

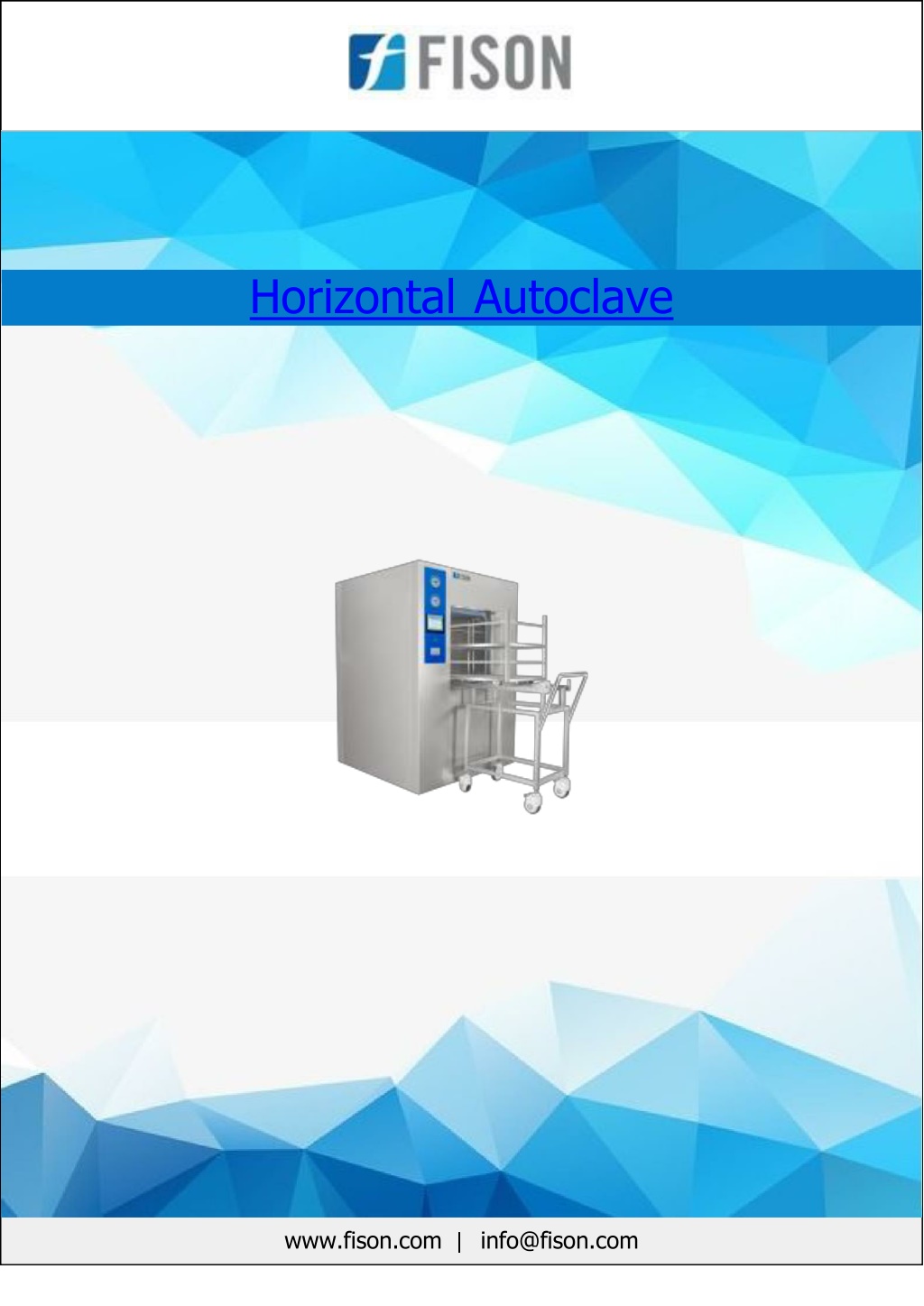

  1. Horizontal Autoclave www.fison.com | info@fison.com

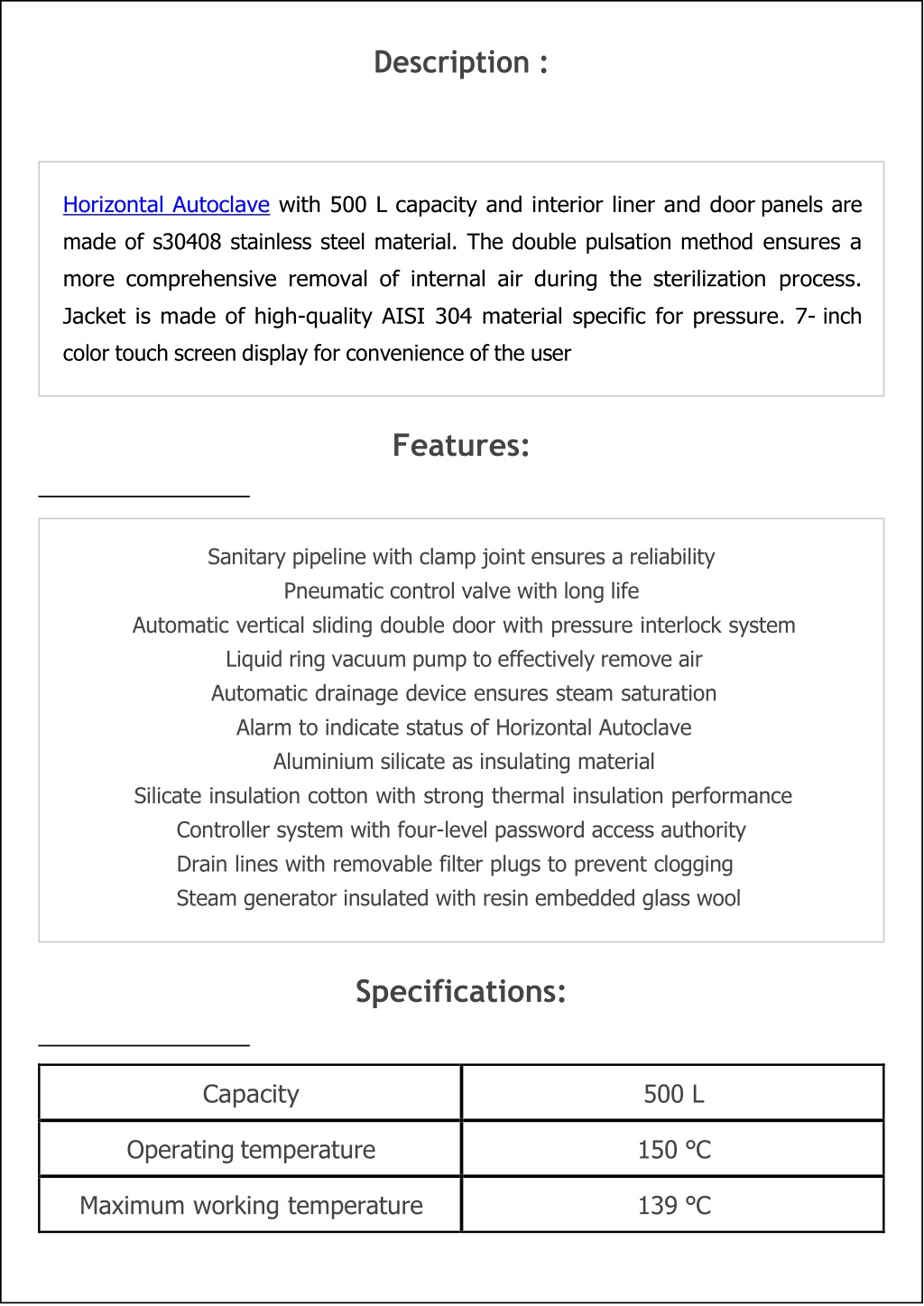

  2. Description : Horizontal Autoclave with 500 L capacity and interior liner and door panels are made of s30408 stainless steel material. The double pulsation method ensures a more comprehensive removal of internal air during the sterilization process. Jacket is made of high-quality AISI 304 material specific for pressure. 7- inch color touch screen display for convenience of the user Features: Sanitary pipeline with clamp joint ensures a reliability Pneumatic control valve with long life Automatic vertical sliding double door with pressure interlock system Liquid ring vacuum pump to effectively remove air Automatic drainage device ensures steam saturation Alarm to indicate status of Horizontal Autoclave Aluminium silicate as insulating material Silicate insulation cotton with strong thermal insulation performance Controller system with four-level password access authority Drain lines with removable filter plugs to prevent clogging Steam generator insulated with resin embedded glass wool Specifications: Capacity 500 L Operating temperature 150 ℃ Maximum working temperature 139 ℃

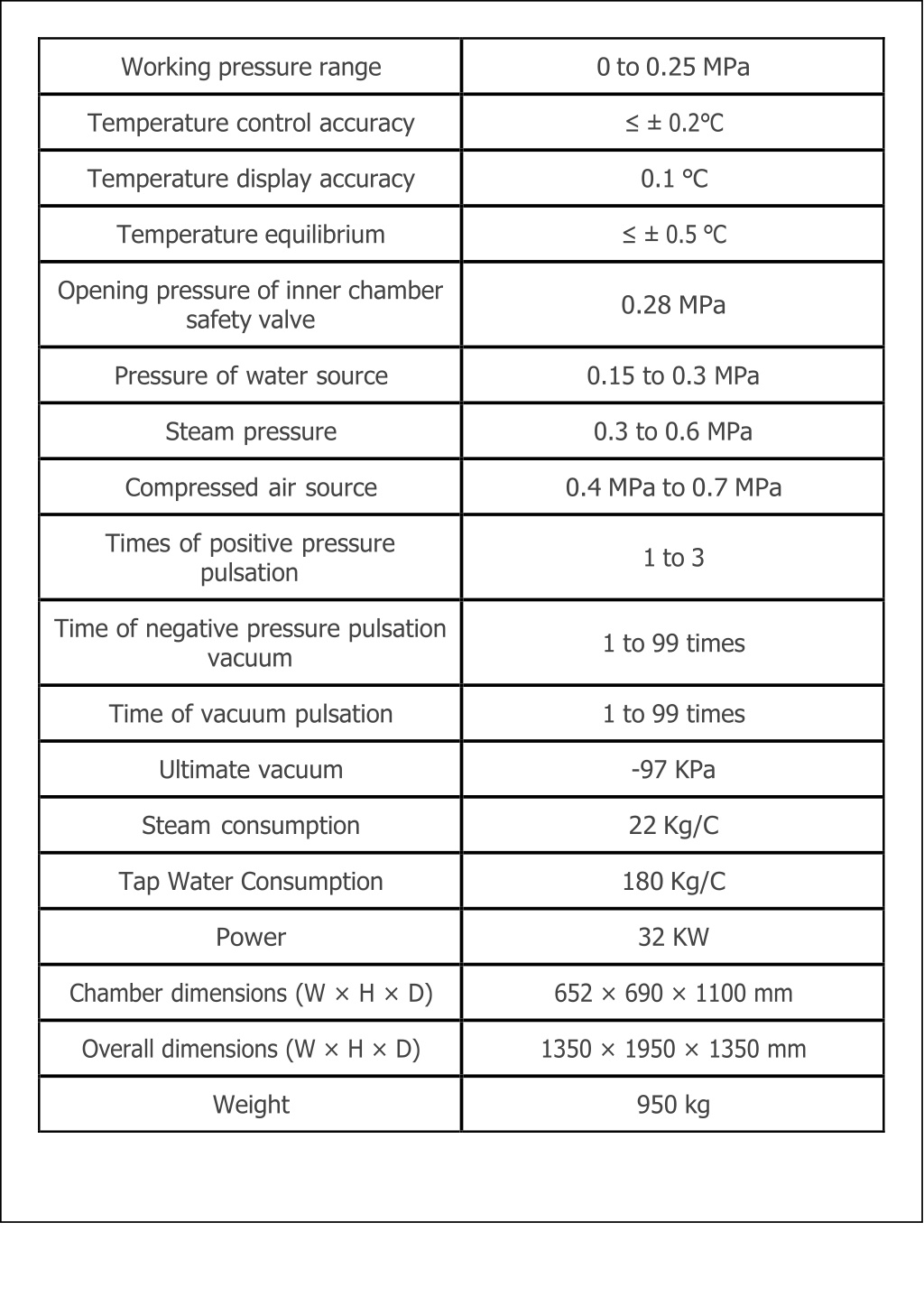

  3. Working pressure range 0 to 0.25 MPa Temperature control accuracy ≤ ± 0.2℃ Temperature display accuracy 0.1 ℃ Temperature equilibrium ≤ ± 0.5 ℃ Opening pressure of inner chamber safety valve 0.28 MPa Pressure of water source 0.15 to 0.3 MPa Steam pressure 0.3 to 0.6 MPa Compressed air source 0.4 MPa to 0.7 MPa Times of positive pressure pulsation 1 to 3 Time of negative pressure pulsation vacuum 1 to 99 times Time of vacuum pulsation 1 to 99 times Ultimate vacuum -97 KPa Steam consumption 22 Kg/C Tap Water Consumption 180 Kg/C Power 32 KW Chamber dimensions (W × H × D) 652 × 690 × 1100 mm Overall dimensions (W × H × D) 1350 × 1950 × 1350 mm Weight 950 kg

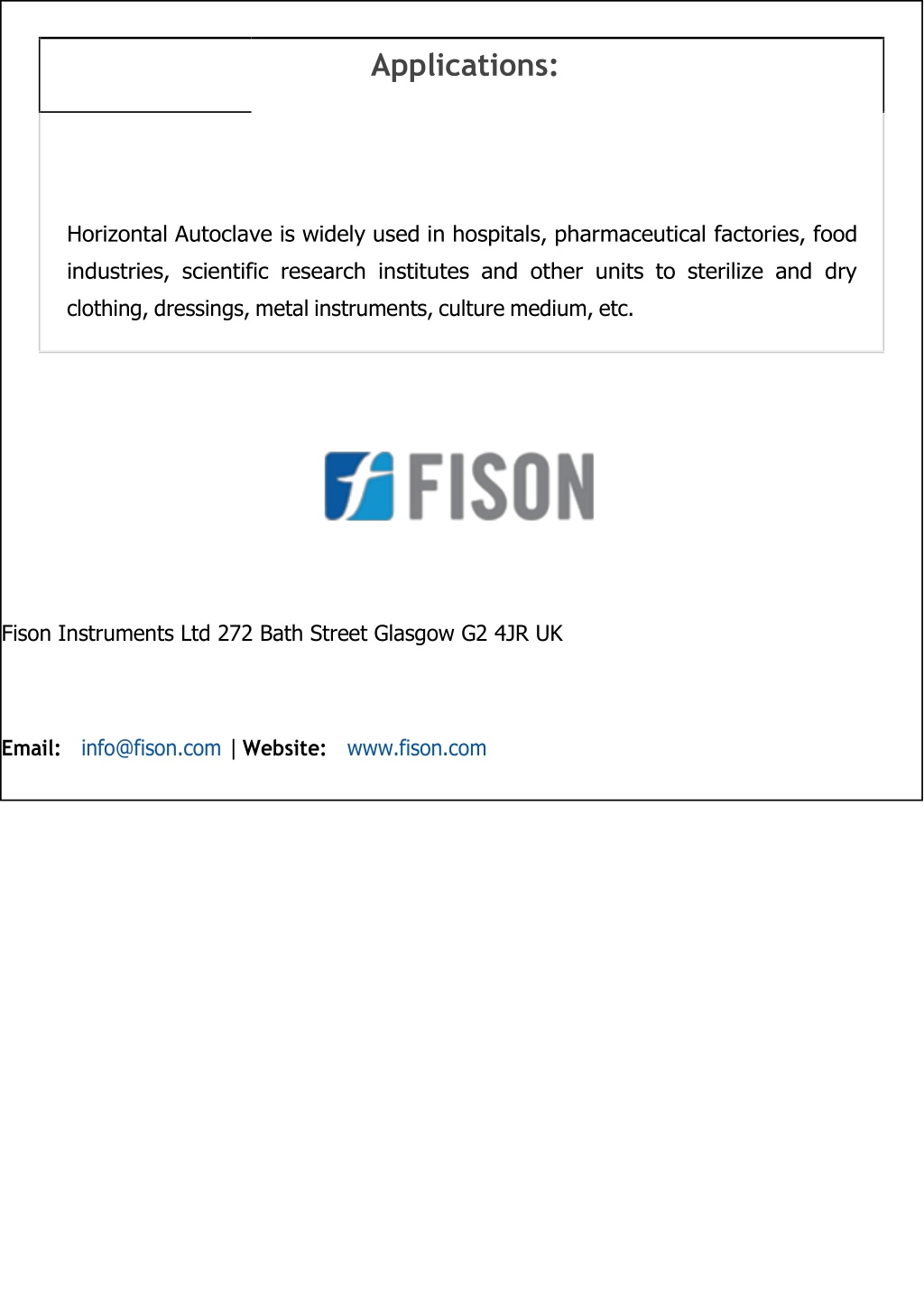

  4. Applications: Horizontal Autoclave is widely used in hospitals, pharmaceutical factories, food industries, scientific research institutes and other units to sterilize and dry clothing, dressings, metal instruments, culture medium, etc. Fison Instruments Ltd 272 Bath Street Glasgow G2 4JR UK Email:info@fison.com | Website:www.fison.com
