Horizontal Autoclave 340 kg

Fison Horizontal Autoclave with a 150 L capacity ensures efficient sterilisation at 0.22 MPa and 134u00b0C using a leak-proof chamber. The temperature is adjustable from 40 to 134 u00b0C. The unit is made of corrosion-resistant stainless steel and has advanced safety features for fast and reliable sterilisation.

rosieortiz
Download Presentation

Horizontal Autoclave 340 kg

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

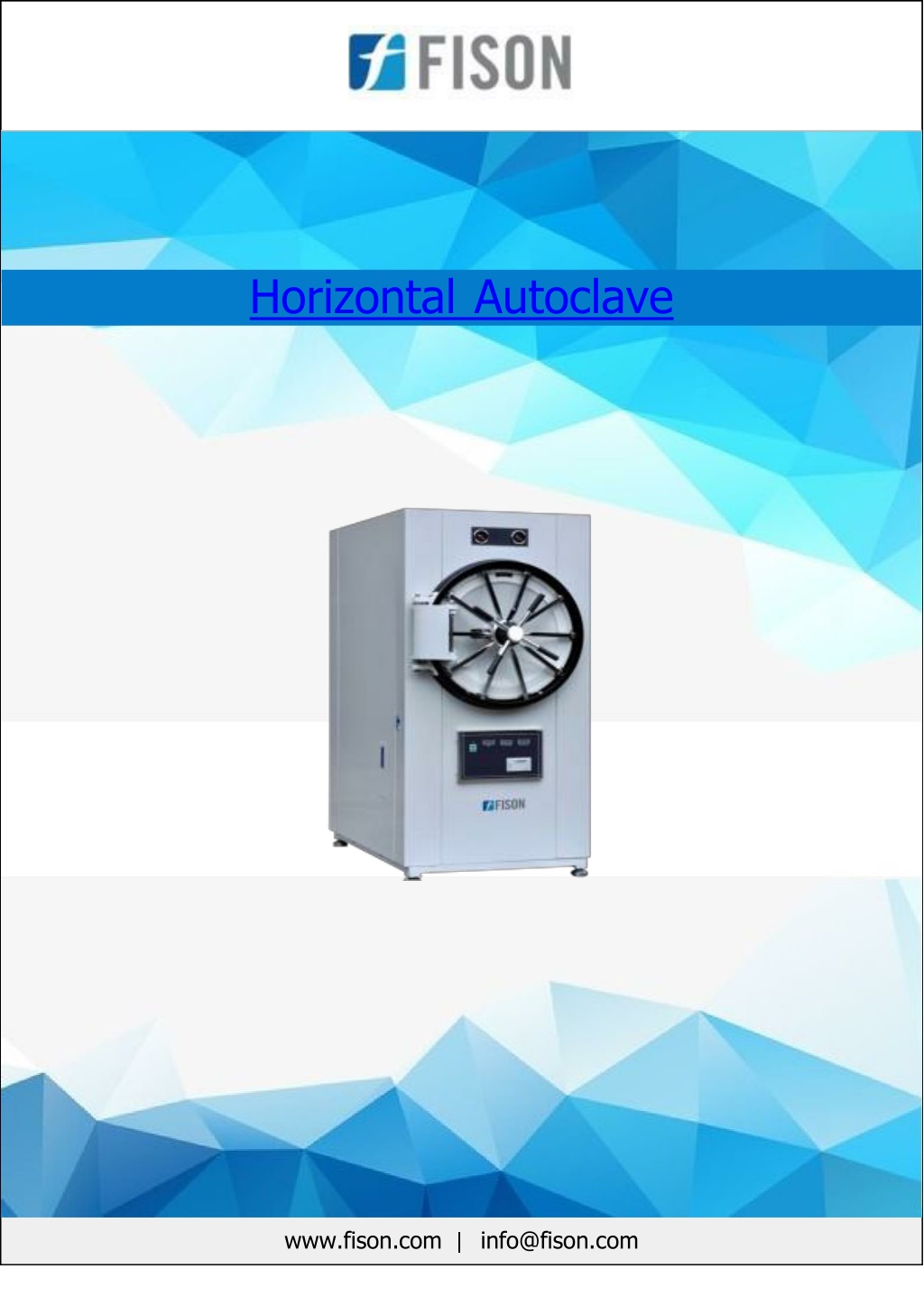

  1. Horizontal Autoclave www.fison.com | info@fison.com

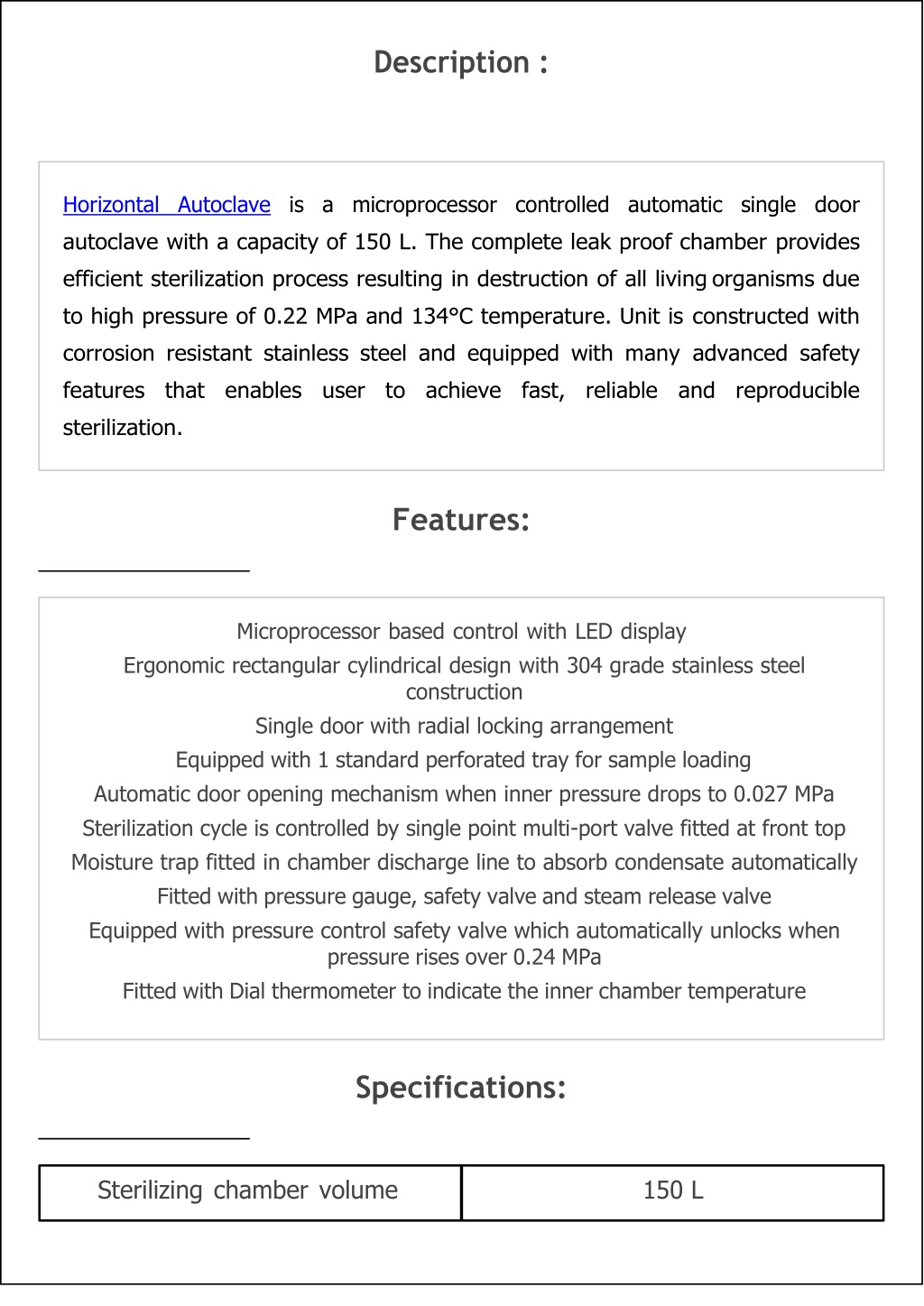

  2. Description : Horizontal Autoclave is a microprocessor controlled automatic single door autoclave with a capacity of 150 L. The complete leak proof chamber provides efficient sterilization process resulting in destruction of all living organisms due to high pressure of 0.22 MPa and 134°C temperature. Unit is constructed with corrosion resistant stainless steel and equipped with many advanced safety features that enables user to achieve fast, reliable and reproducible sterilization. Features: Microprocessor based control with LED display Ergonomic rectangular cylindrical design with 304 grade stainless steel construction Single door with radial locking arrangement Equipped with 1 standard perforated tray for sample loading Automatic door opening mechanism when inner pressure drops to 0.027 MPa Sterilization cycle is controlled by single point multi-port valve fitted at front top Moisture trap fitted in chamber discharge line to absorb condensate automatically Fitted with pressure gauge, safety valve and steam release valve Equipped with pressure control safety valve which automatically unlocks when pressure rises over 0.24 MPa Fitted with Dial thermometer to indicate the inner chamber temperature Specifications: Sterilizing chamber volume 150 L

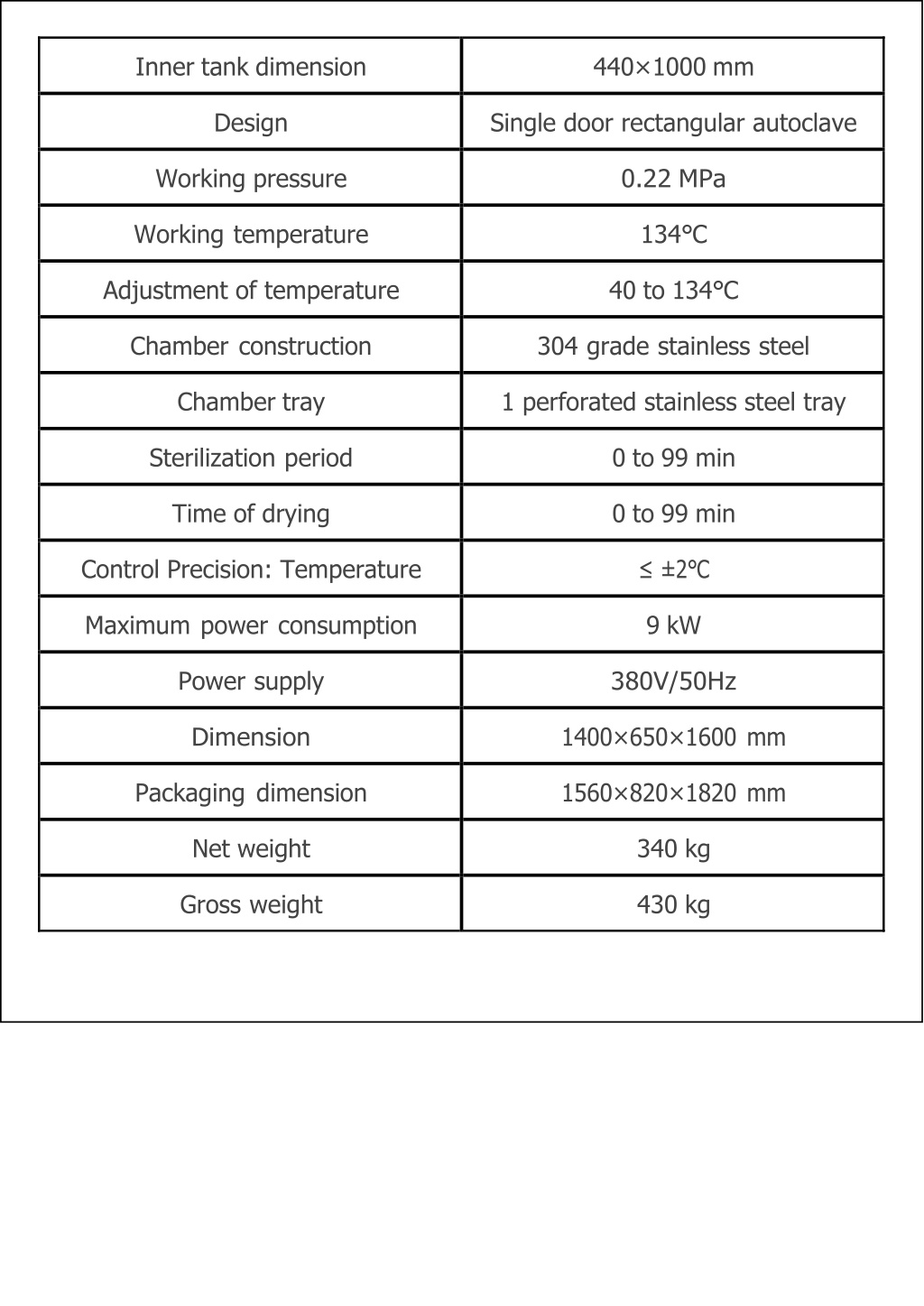

  3. Inner tank dimension 440×1000 mm Design Single door rectangular autoclave Working pressure 0.22 MPa Working temperature 134℃ Adjustment of temperature 40 to 134℃ Chamber construction 304 grade stainless steel Chamber tray 1 perforated stainless steel tray Sterilization period 0 to 99 min Time of drying 0 to 99 min Control Precision: Temperature ≤±2℃ Maximum power consumption 9 kW Power supply 380V/50Hz Dimension 1400×650×1600 mm Packaging dimension 1560×820×1820 mm Net weight 340 kg Gross weight 430 kg

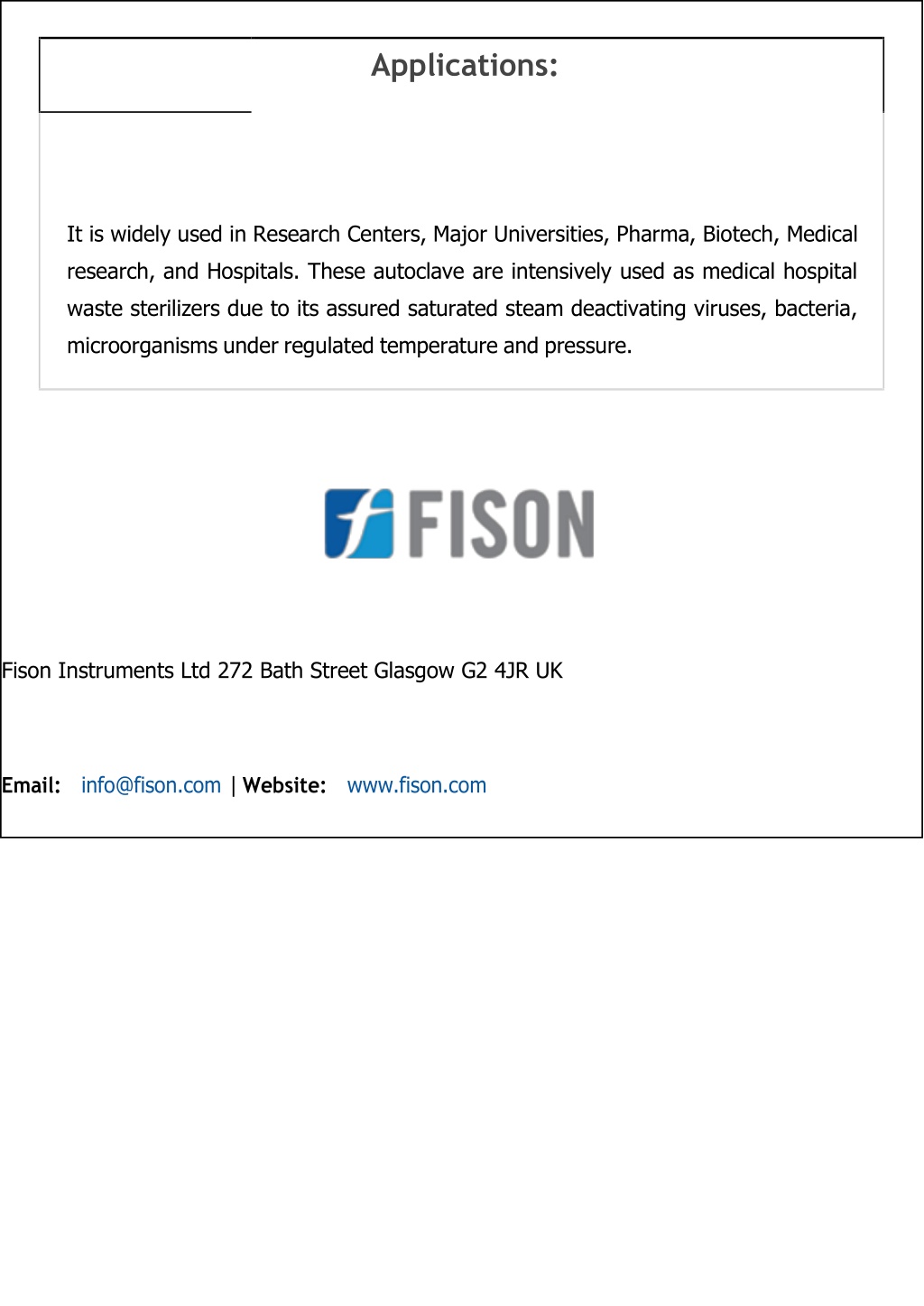

  4. Applications: It is widely used in Research Centers, Major Universities, Pharma, Biotech, Medical research, and Hospitals. These autoclave are intensively used as medical hospital waste sterilizers due to its assured saturated steam deactivating viruses, bacteria, microorganisms under regulated temperature and pressure. Fison Instruments Ltd 272 Bath Street Glasgow G2 4JR UK Email:info@fison.com | Website:www.fison.com
