Horizontal Autoclave 1000 kg

Fison Horizontal Autoclave is a 360 L floor-standing pulse vacuum steriliser with a 105 to 134u00b0C temperature range and 0.225 MPa pressure for effective sterilization. clothing in the pharmaceutical. It is used for high-temperature sterilisation and dry cooling of sterile equipment.

rosieortiz
Download Presentation

Horizontal Autoclave 1000 kg

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

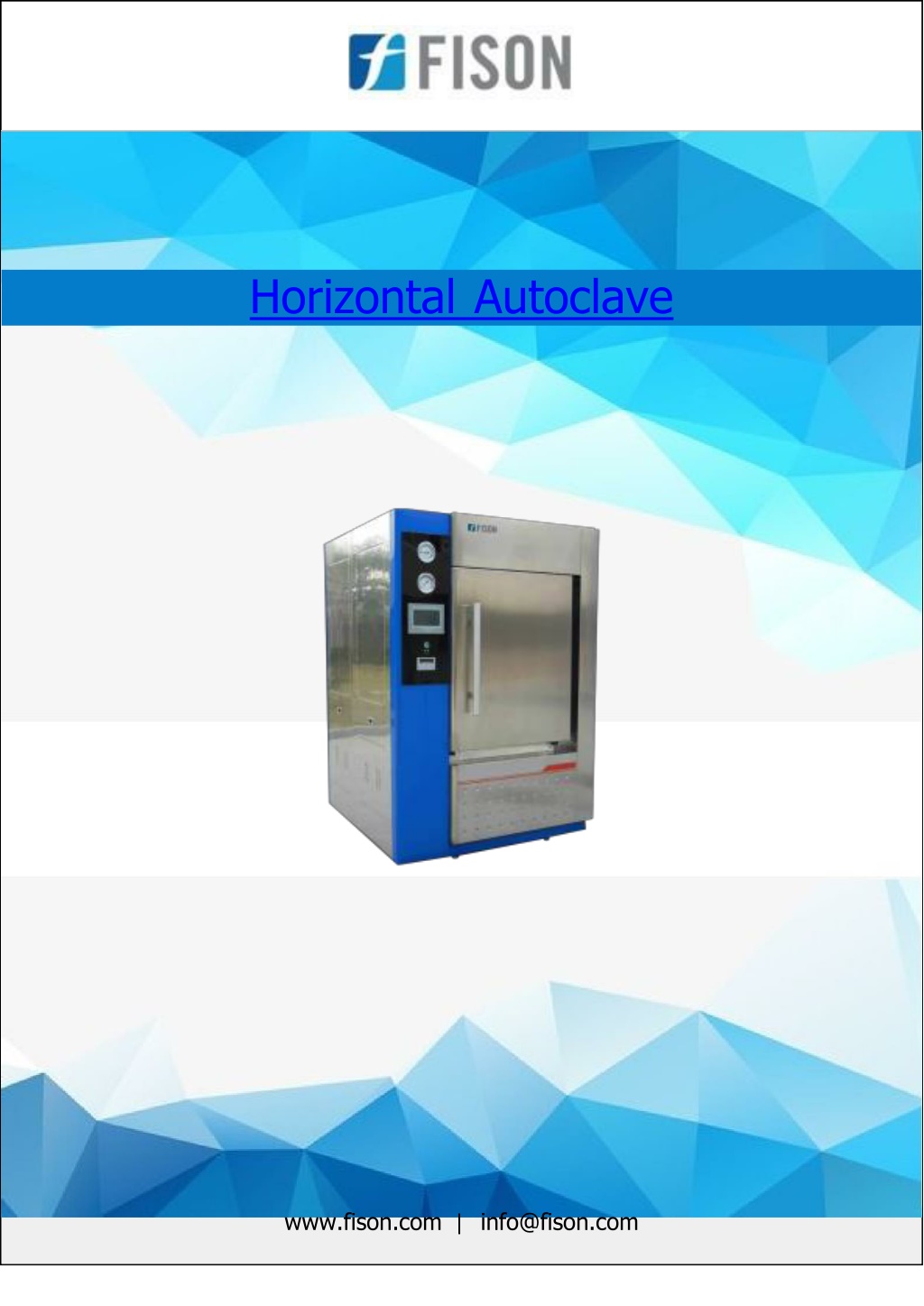

  1. Horizontal Autoclave www.fison.com | info@fison.com

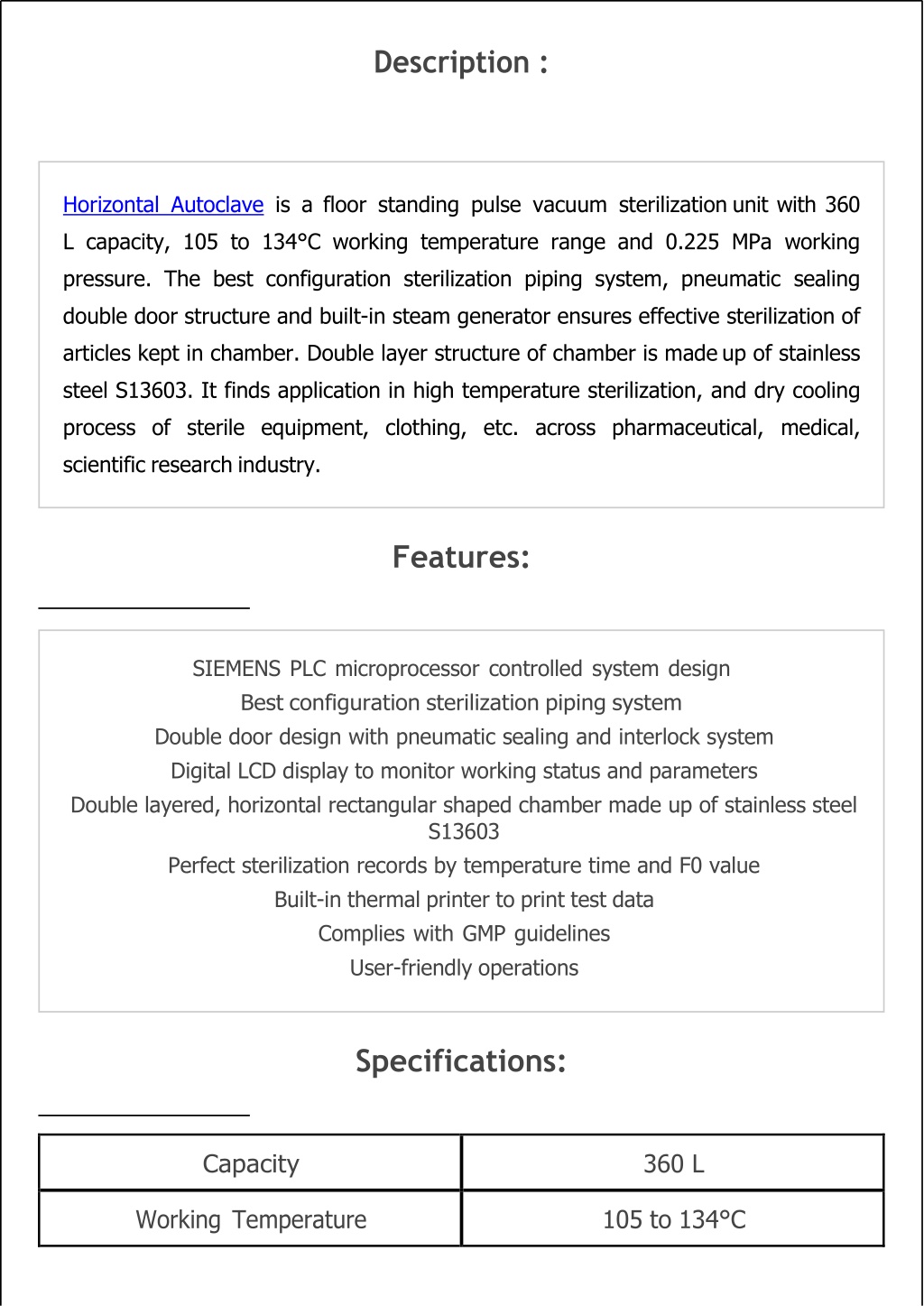

  2. Description : Horizontal Autoclave is a floor standing pulse vacuum sterilization unit with 360 L capacity, 105 to 134°C working temperature range and 0.225 MPa working pressure. The best configuration sterilization piping system, pneumatic sealing double door structure and built-in steam generator ensures effective sterilization of articles kept in chamber. Double layer structure of chamber is made up of stainless steel S13603. It finds application in high temperature sterilization, and dry cooling process of sterile equipment, clothing, etc. across pharmaceutical, medical, scientific research industry. Features: SIEMENS PLC microprocessor controlled system design Best configuration sterilization piping system Double door design with pneumatic sealing and interlock system Digital LCD display to monitor working status and parameters Double layered, horizontal rectangular shaped chamber made up of stainless steel S13603 Perfect sterilization records by temperature time and F0 value Built-in thermal printer to print test data Complies with GMP guidelines User-friendly operations Specifications: Capacity 360 L Working Temperature 105 to 134°C

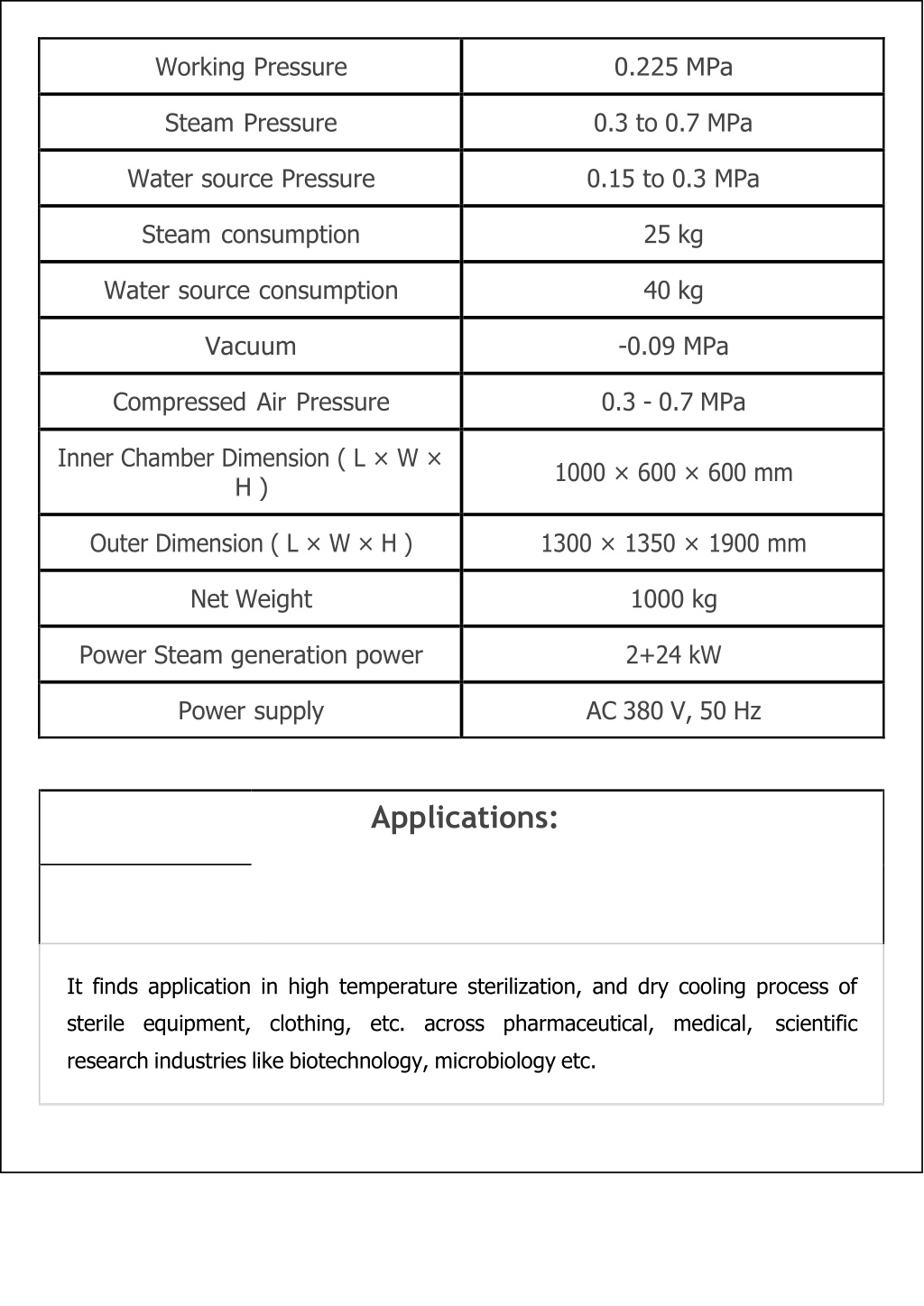

  3. Working Pressure 0.225 MPa Steam Pressure 0.3 to 0.7 MPa Water source Pressure 0.15 to 0.3 MPa Steam consumption 25 kg Water source consumption 40 kg Vacuum -0.09 MPa Compressed Air Pressure 0.3 - 0.7 MPa Inner Chamber Dimension ( L × W × H ) 1000 × 600 × 600 mm Outer Dimension ( L × W × H ) 1300 × 1350 × 1900 mm Net Weight 1000 kg Power Steam generation power 2+24 kW Power supply AC 380 V, 50 Hz Applications: It finds application in high temperature sterilization, and dry cooling process of sterile equipment, clothing, etc. across pharmaceutical, medical, scientific research industries like biotechnology, microbiology etc.

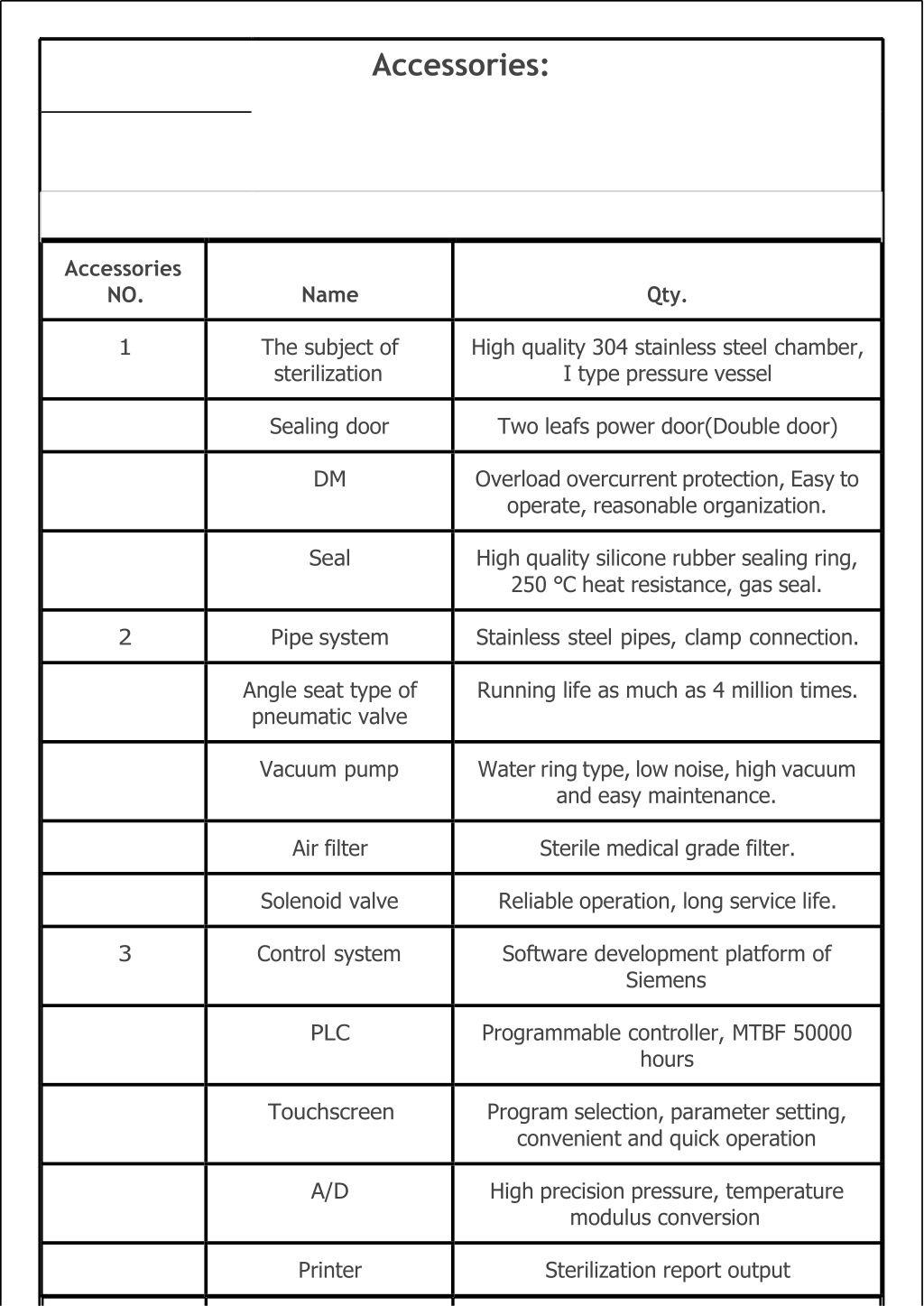

  4. Accessories: Accessories NO. Name Qty. 1 The subject of sterilization High quality 304 stainless steel chamber, Ⅰ type pressure vessel Sealing door Two leafs power door(Double door) DM Overload overcurrent protection, Easy to operate, reasonable organization. Seal High quality silicone rubber sealing ring, 250 ℃ heat resistance, gas seal. 2 Pipe system Stainless steel pipes, clamp connection. Angle seat type of pneumatic valve Running life as much as 4 million times. Vacuum pump Water ring type, low noise, high vacuum and easy maintenance. Air filter Sterile medical grade filter. Solenoid valve Reliable operation, long service life. 3 Control system Software development platform of Siemens PLC Programmable controller, MTBF 50000 hours Touchscreen Program selection, parameter setting, convenient and quick operation A/D High precision pressure, temperature modulus conversion Printer Sterilization report output

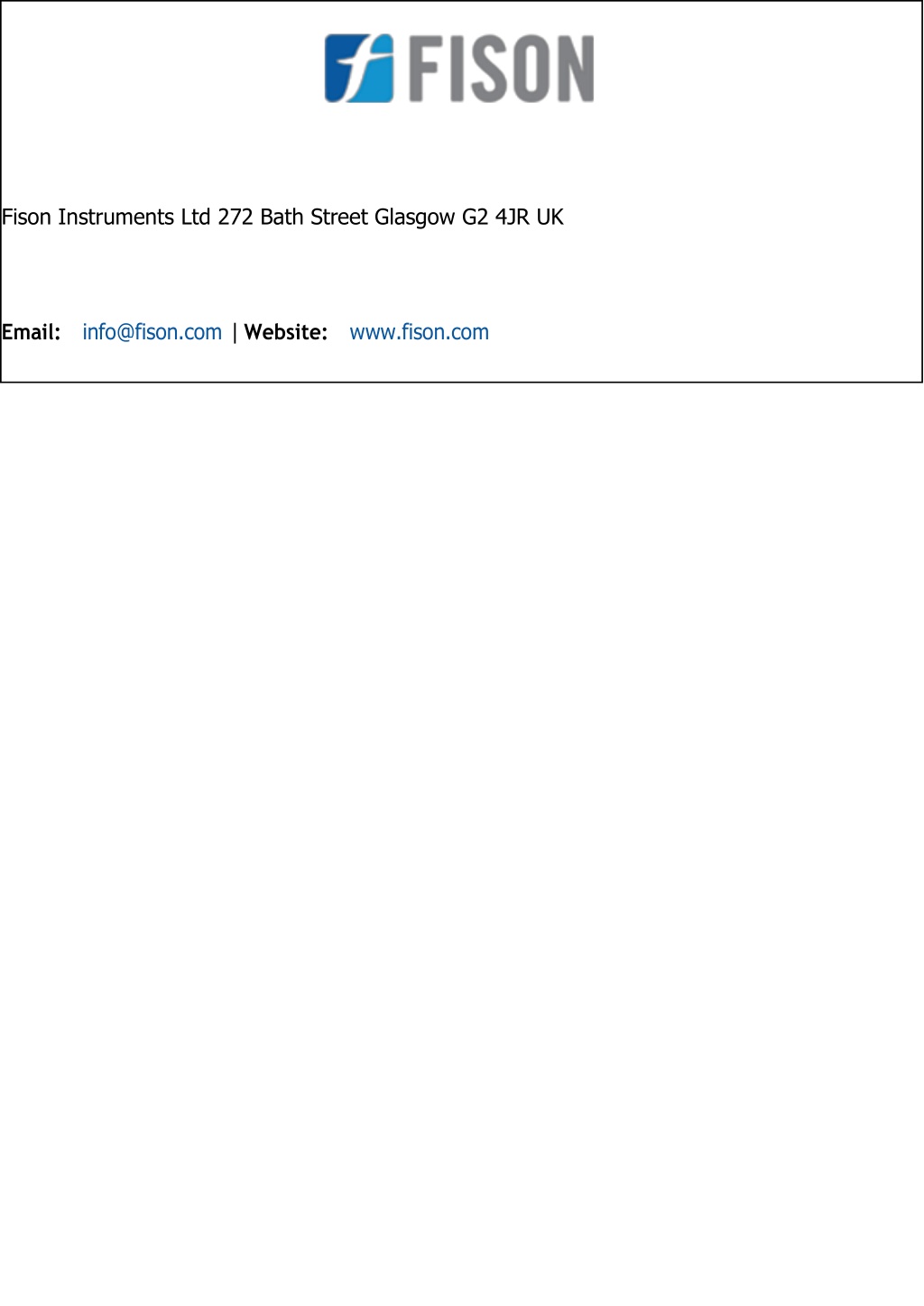

  5. Fison Instruments Ltd 272 Bath Street Glasgow G2 4JR UK Email:info@fison.com | Website:www.fison.com
