Horizontal-Autoclave

Fison Horizontal Autoclave is a cylindrical device with a 150 L tank that operates automatically. Features an adjustable temperature of 105u00b0C to 134u00b0C and 0.22 MPa hydraulic pressure. The device includes a vacuum breaker with a water level indicator and steam trap for safe operation.

rosieortiz
Download Presentation

Horizontal-Autoclave

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

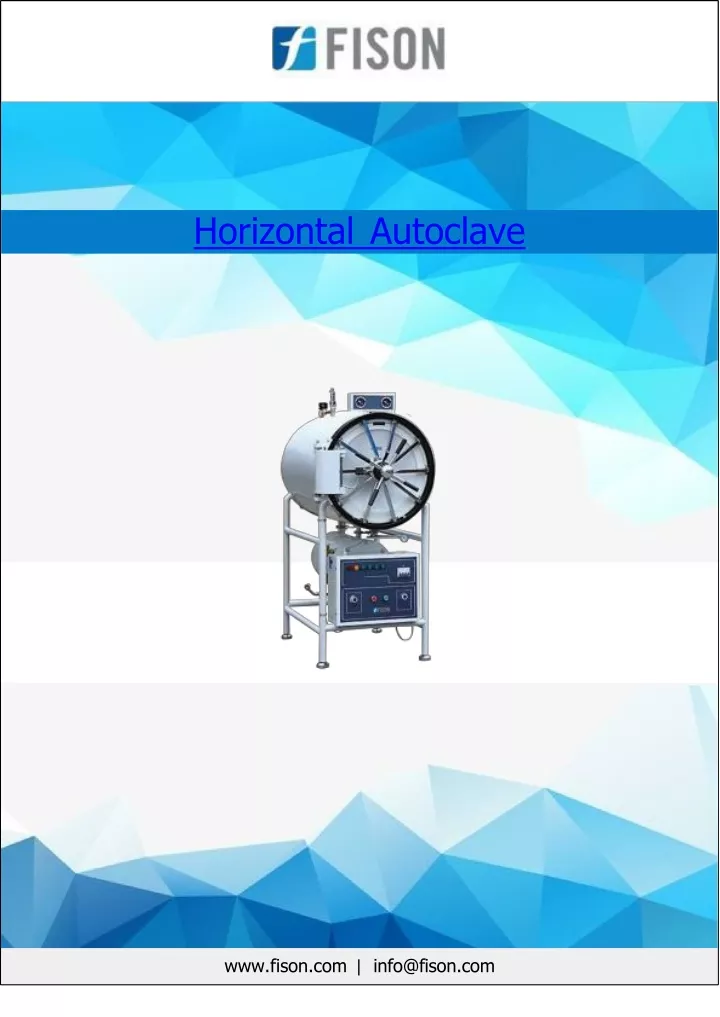

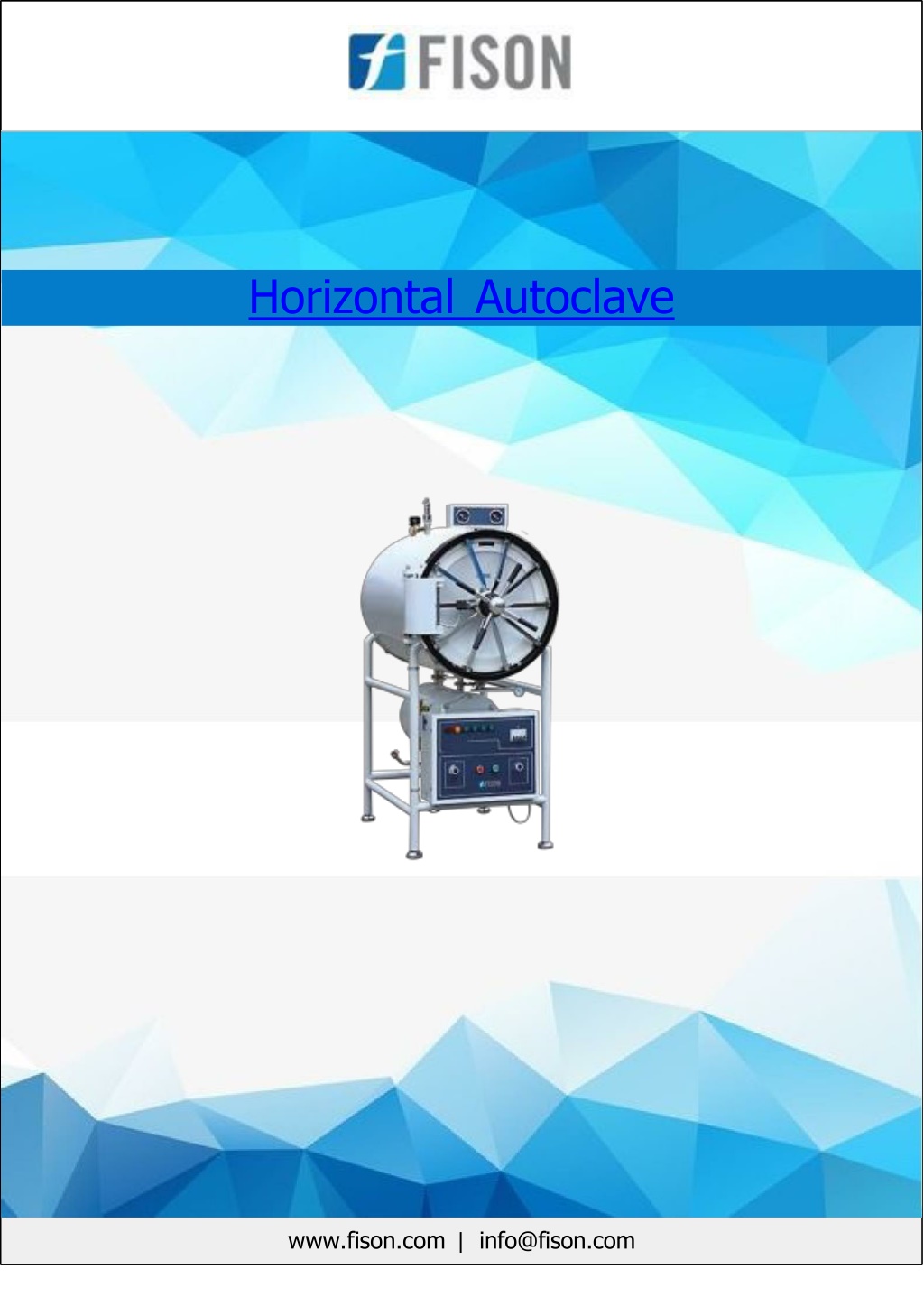

  1. Horizontal Autoclave www.fison.com |info@fison.com

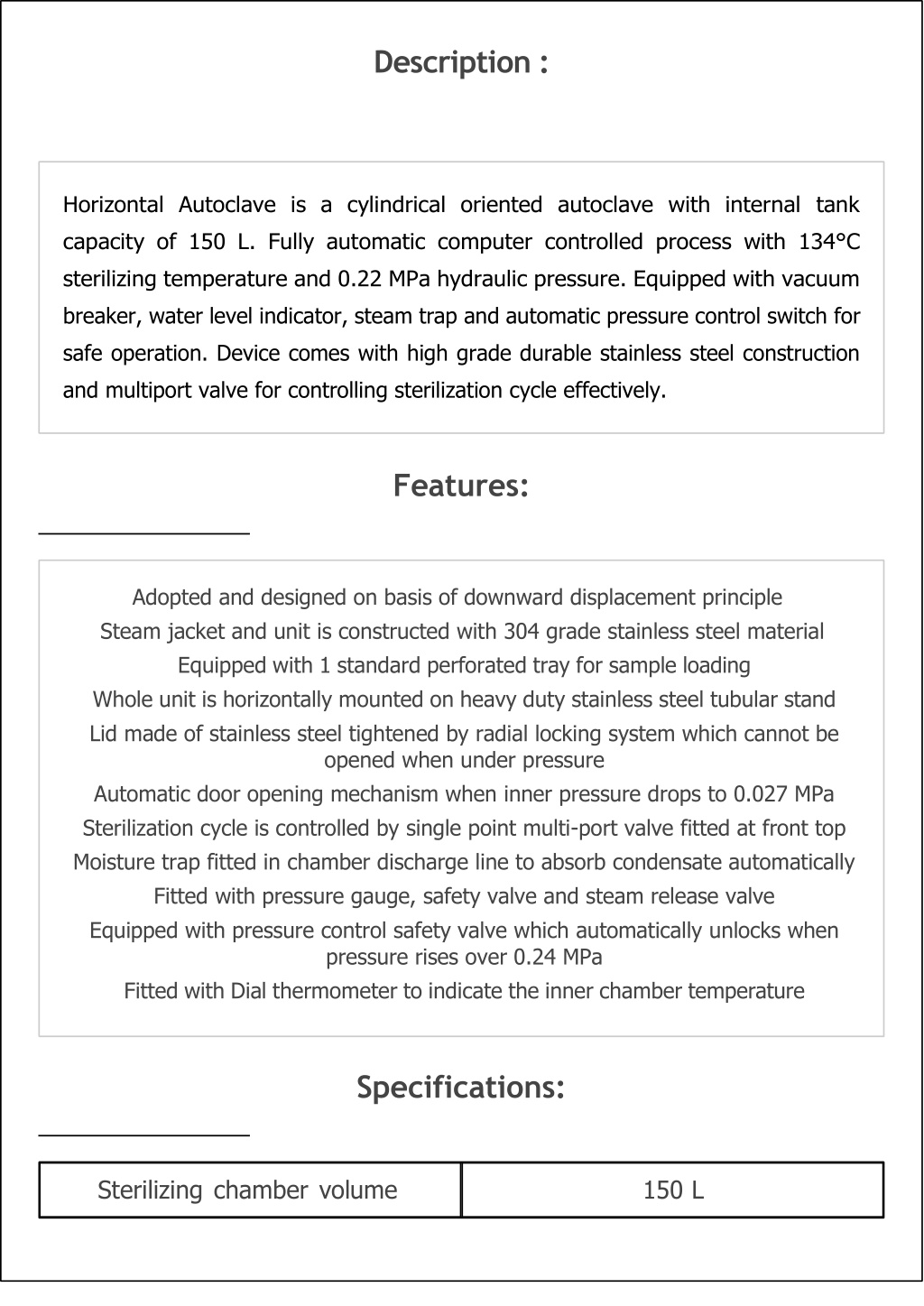

  2. Description : Horizontal Autoclave is a cylindrical oriented autoclave with internal tank capacity of 150 L. Fully automatic computer controlled process with 134°C sterilizing temperature and 0.22 MPa hydraulic pressure. Equipped with vacuum breaker, water level indicator, steam trap and automatic pressure control switch for safe operation. Device comes with high grade durable stainless steel construction and multiport valve for controlling sterilization cycle effectively. Features: Adopted and designed on basis of downward displacement principle Steam jacket and unit is constructed with 304 grade stainless steel material Equipped with 1 standard perforated tray for sample loading Whole unit is horizontally mounted on heavy duty stainless steel tubular stand Lid made of stainless steel tightened by radial locking system which cannot be opened when under pressure Automatic door opening mechanism when inner pressure drops to 0.027 MPa Sterilization cycle is controlled by single point multi-port valve fitted at front top Moisture trap fitted in chamber discharge line to absorb condensate automatically Fitted with pressure gauge, safety valve and steam release valve Equipped with pressure control safety valve which automatically unlocks when pressure rises over 0.24 MPa Fitted with Dial thermometer to indicate the inner chamber temperature Specifications: Sterilizing chamber volume 150 L

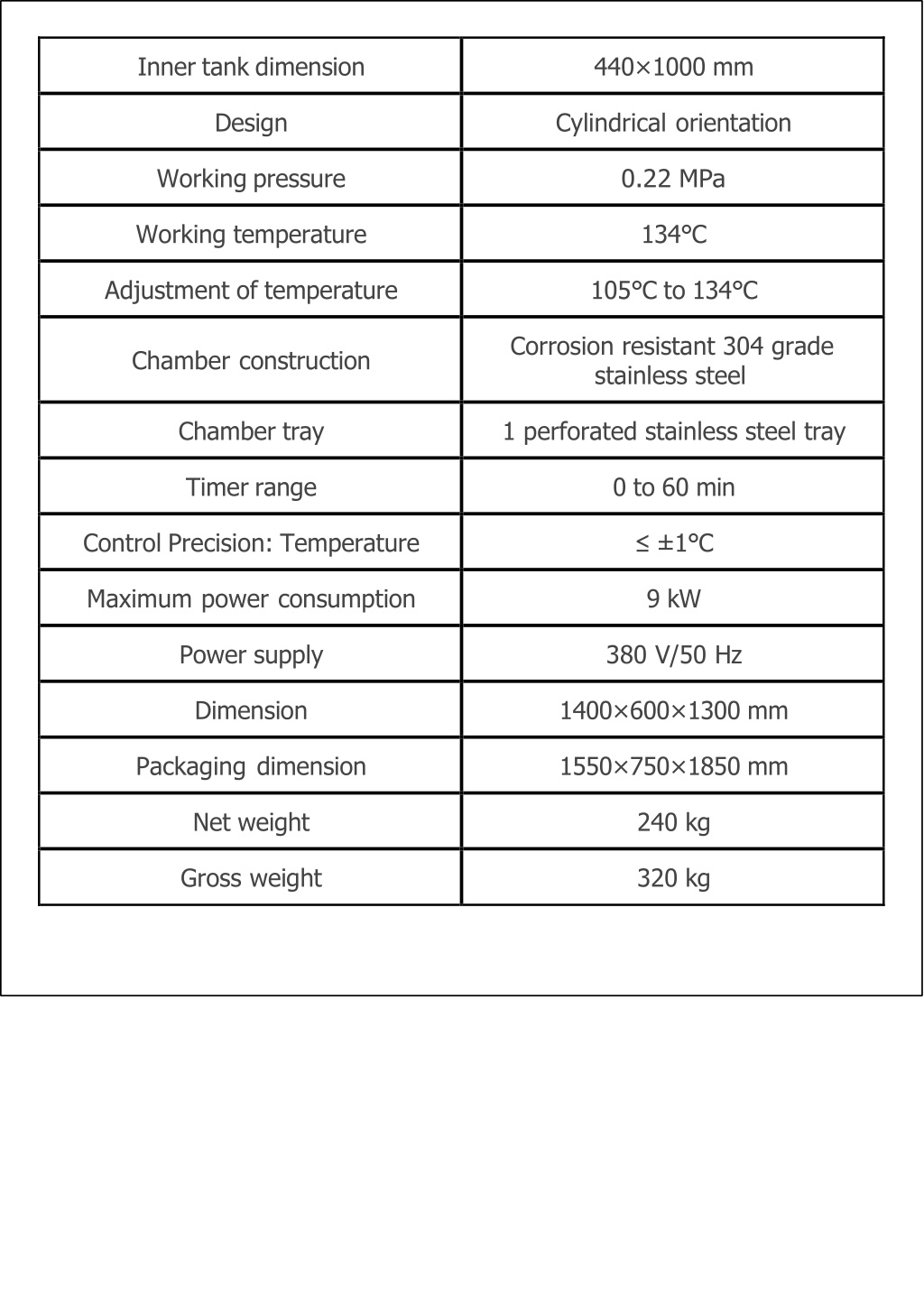

  3. Inner tank dimension 440×1000 mm Design Cylindrical orientation Working pressure 0.22 MPa Working temperature 134℃ Adjustment of temperature 105℃ to 134℃ Corrosion resistant 304 grade stainless steel Chamber construction Chamber tray 1 perforated stainless steel tray Timer range 0 to 60 min Control Precision: Temperature ≤±1℃ Maximum power consumption 9 kW Power supply 380 V/50 Hz Dimension 1400×600×1300 mm Packaging dimension 1550×750×1850 mm Net weight 240 kg Gross weight 320 kg

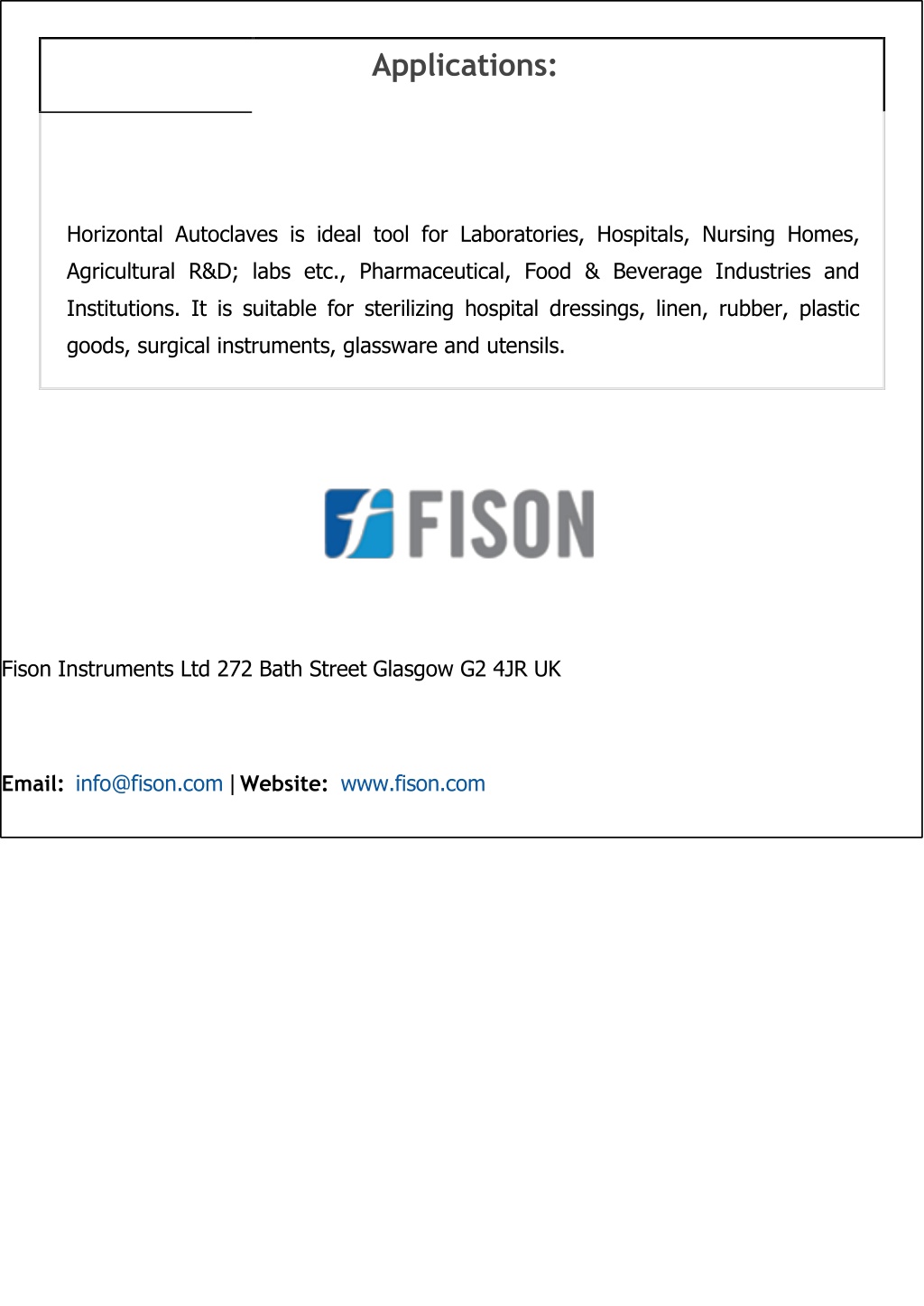

  4. Applications: Horizontal Autoclaves is ideal tool for Laboratories, Hospitals, Nursing Homes, Agricultural R&D; labs etc., Pharmaceutical, Food & Beverage Industries and Institutions. It is suitable for sterilizing hospital dressings, linen, rubber, plastic goods, surgical instruments, glassware and utensils. Fison Instruments Ltd 272 Bath Street Glasgow G2 4JR UK Email: info@fison.com | Website: www.fison.com
