Benchtop-Autoclave 15 L

Fison Benchtop Autoclave sterilises objects using pressured saturated steam with vacuum exhausting. Heat from condensation keeps objects wet. It has a chamber volume of 50 L, a maximum working pressure of 0.22 MPa, a sterilising temperature range of 550u00b0C to 1340u00b0C, and a timer range of 1 to 99 minutes.

rosieortiz
Download Presentation

Benchtop-Autoclave 15 L

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

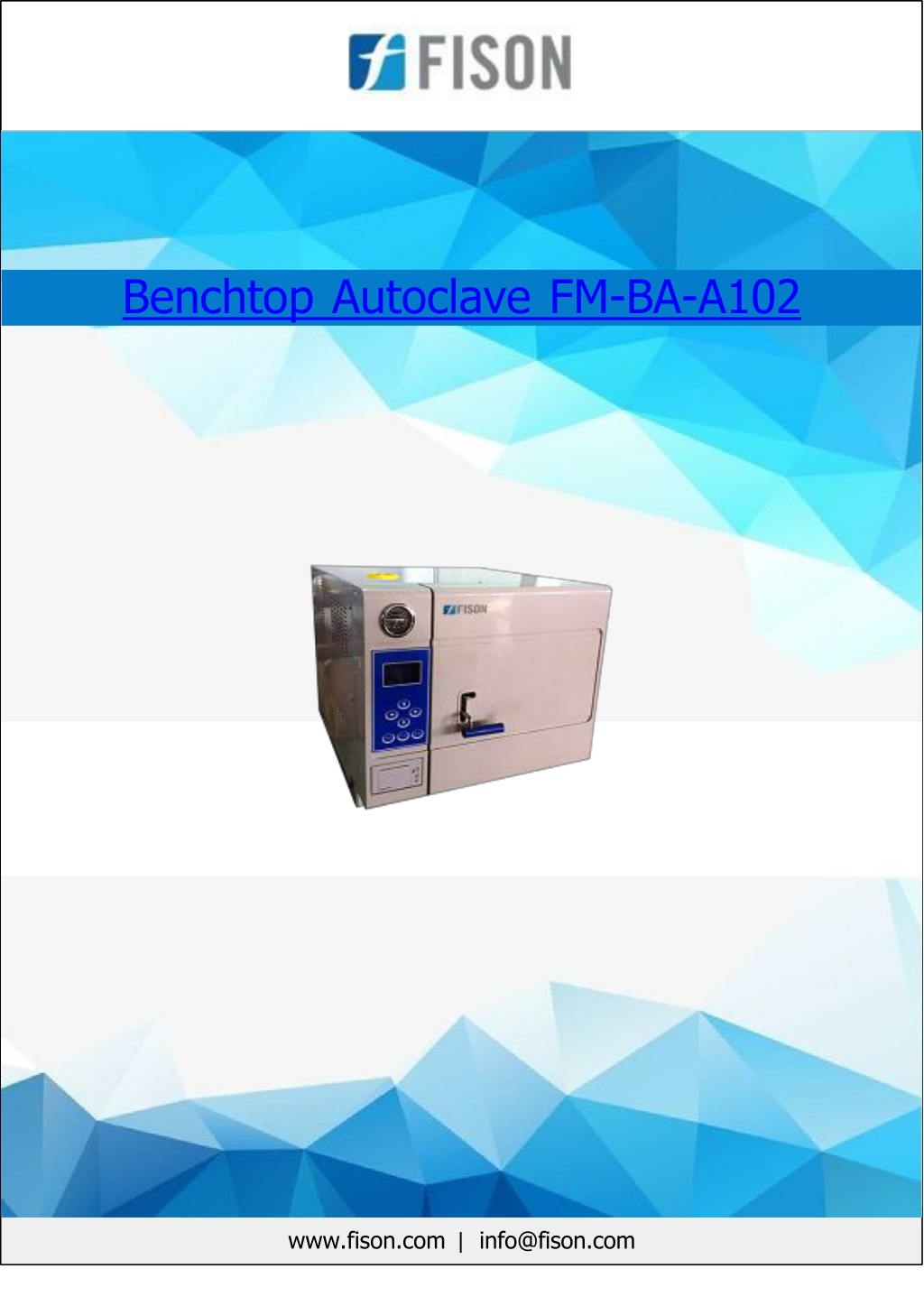

  1. Benchtop Autoclave FM-BA-A102 www.fison.com |info@fison.com

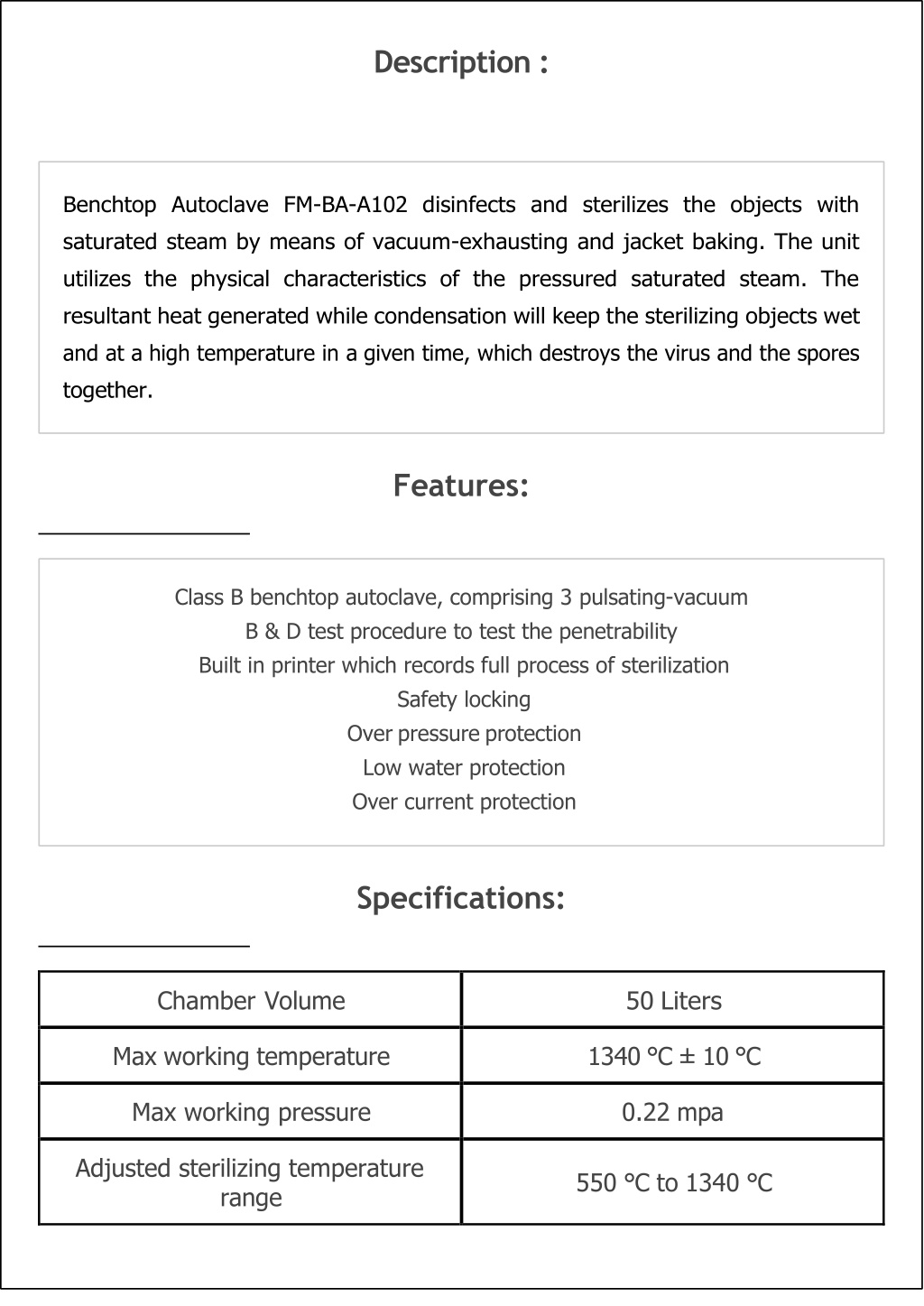

  2. Description : Benchtop Autoclave FM-BA-A102 disinfects and sterilizes the objects with saturated steam by means of vacuum-exhausting and jacket baking. The unit utilizes the physical characteristics of the pressured saturated steam. The resultant heat generated while condensation will keep the sterilizing objects wet and at a high temperature in a given time, which destroys the virus and the spores together. Features: Class B benchtop autoclave, comprising 3 pulsating-vacuum B & D test procedure to test the penetrability Built in printer which records full process of sterilization Safety locking Over pressure protection Low water protection Over current protection Specifications: Chamber Volume 50 Liters Max working temperature 1340 ℃ ± 10 ℃ Max working pressure 0.22 mpa Adjusted sterilizing temperature range 550 ℃ to 1340 ℃

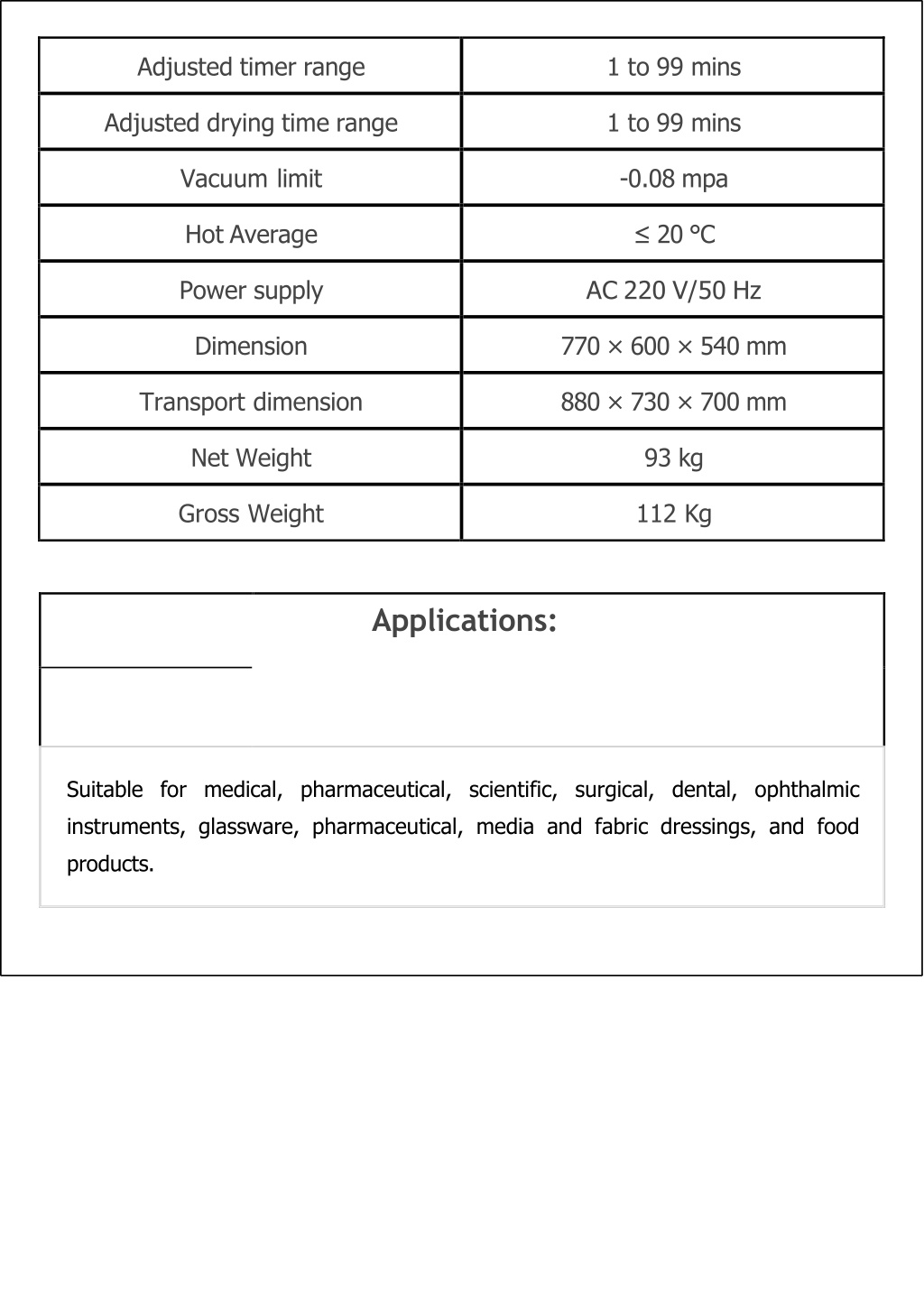

  3. Adjusted timer range 1 to 99 mins Adjusted drying time range 1 to 99 mins Vacuum limit -0.08 mpa Hot Average ≤ 20 ℃ Power supply AC 220 V/50 Hz Dimension 770 × 600 × 540 mm Transport dimension 880 × 730 × 700 mm Net Weight 93 kg Gross Weight 112 Kg Applications: Suitable for medical, pharmaceutical, scientific, surgical, dental, ophthalmic instruments, glassware, pharmaceutical, media and fabric dressings, and food products.

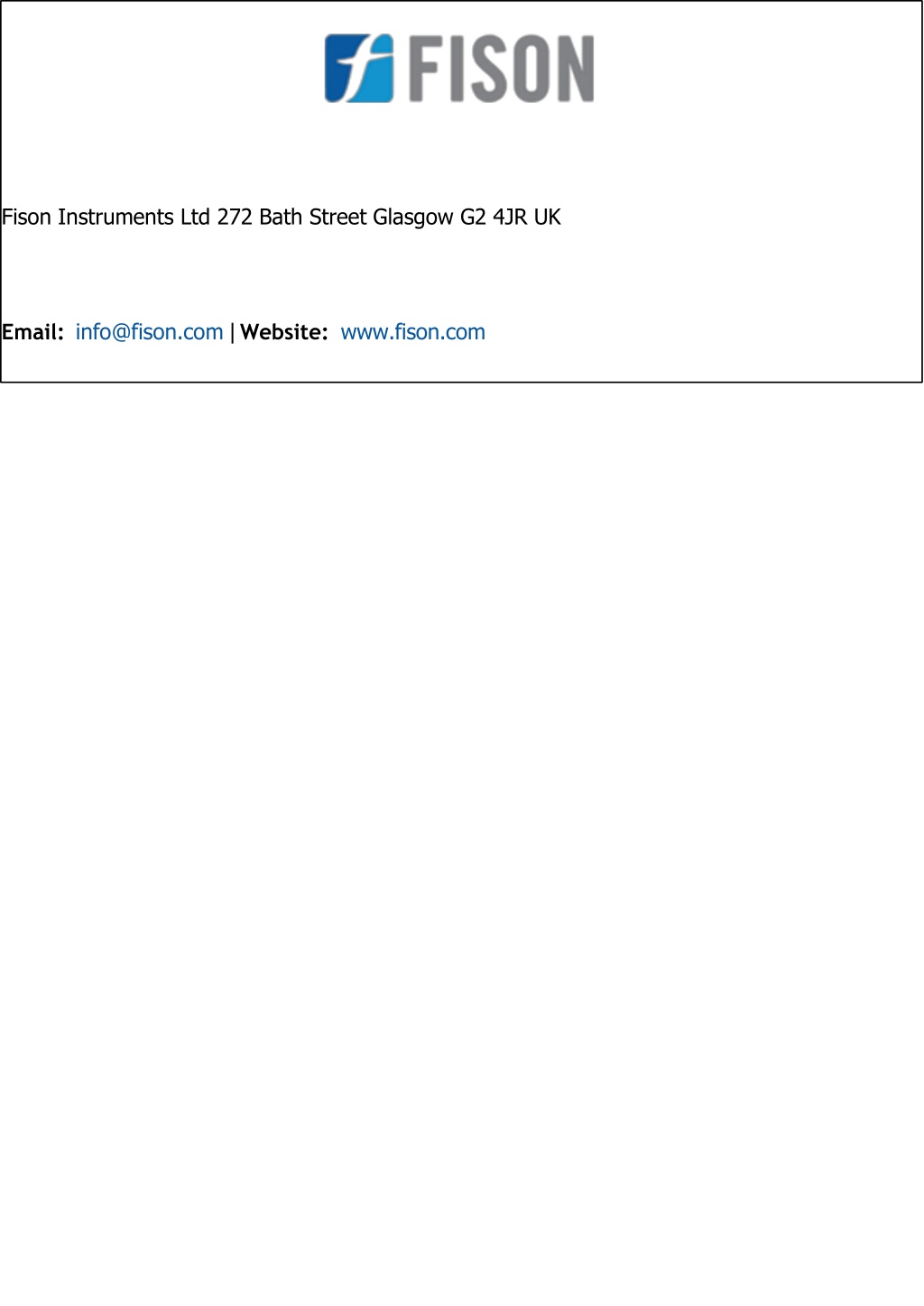

  4. Fison Instruments Ltd 272 Bath Street Glasgow G2 4JR UK Email: info@fison.com | Website: www.fison.com
