Uniform Motion

Uniform Motion. t = 1 s. t = 0. t = 2 s. t = 3 s. t = 7 s. t = 4 s. t = 5 s. t = 6 s. t = 8 s. Non-uniform motion. t = 1 s. t = 3 s. t = 9 s. t = 0. t = 2 s. t = 4 s. t = 5 s. t = 8 s. t = 6 s. t = 7 s. What is the velocity at t = 5.5 s?. t = 1 s. t = 3 s. t = 9 s. t = 0.

Download Presentation

Uniform Motion

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Uniform Motion t = 1 s t = 0 t = 2 s t = 3 s t = 7 s t = 4 s t = 5 s t = 6 s t = 8 s

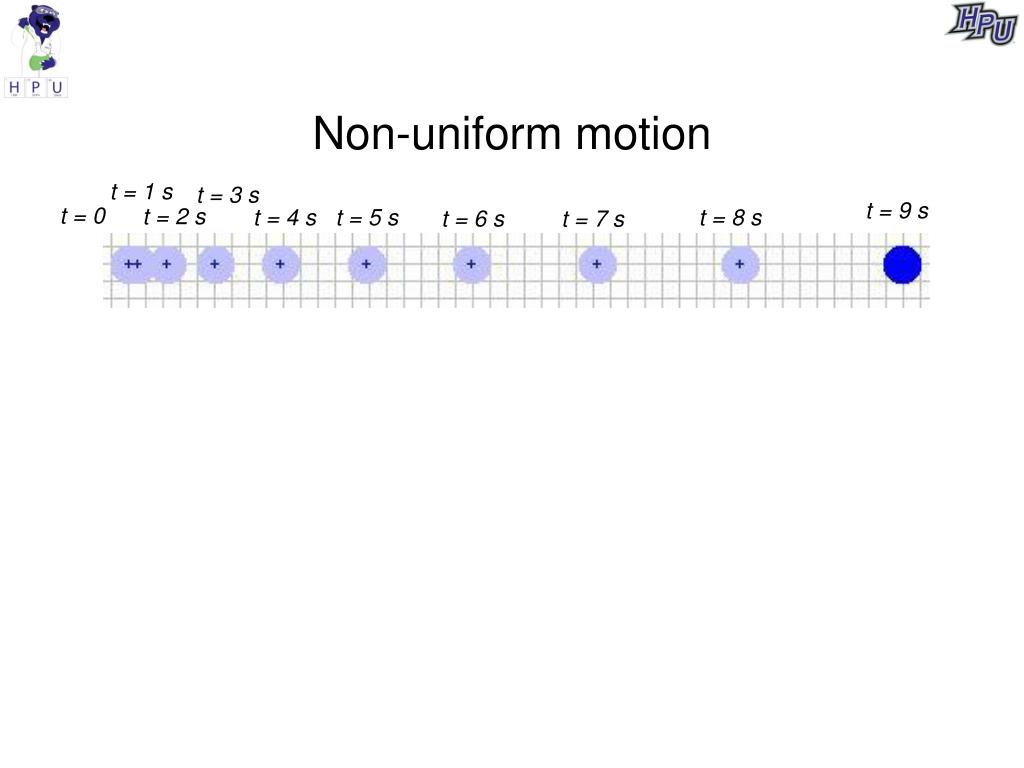

  2. Non-uniform motion t = 1 s t = 3 s t = 9 s t = 0 t = 2 s t = 4 s t = 5 s t = 8 s t = 6 s t = 7 s

  3. What is the velocity at t = 5.5 s? t = 1 s t = 3 s t = 9 s t = 0 t = 2 s t = 4 s t = 5 s t = 8 s t = 6 s t = 7 s • All we know from the given data is the average velocity between t = 5.0 and t = 6.0 s. • Measure the object’s position at a smaller time interval, like t = 5.4 s and t = 5.6 s. • Better yet, use t = 5.49 s and t = 5.51 s. • The velocity at the instant t = 5.5 s is approximately equal to the average velocity during a small time interval from t = 5.49 s to t = 5.51 s. But the best we can do with the given data is guess. PHY211 Dr. Aaron Titus

  4. Instantaneous Velocity • The velocity at an instant of time is called instantaneous velocity. • It is approximately equal to the average velocity measured during a very small time interval.

  5. Position vs. time graph

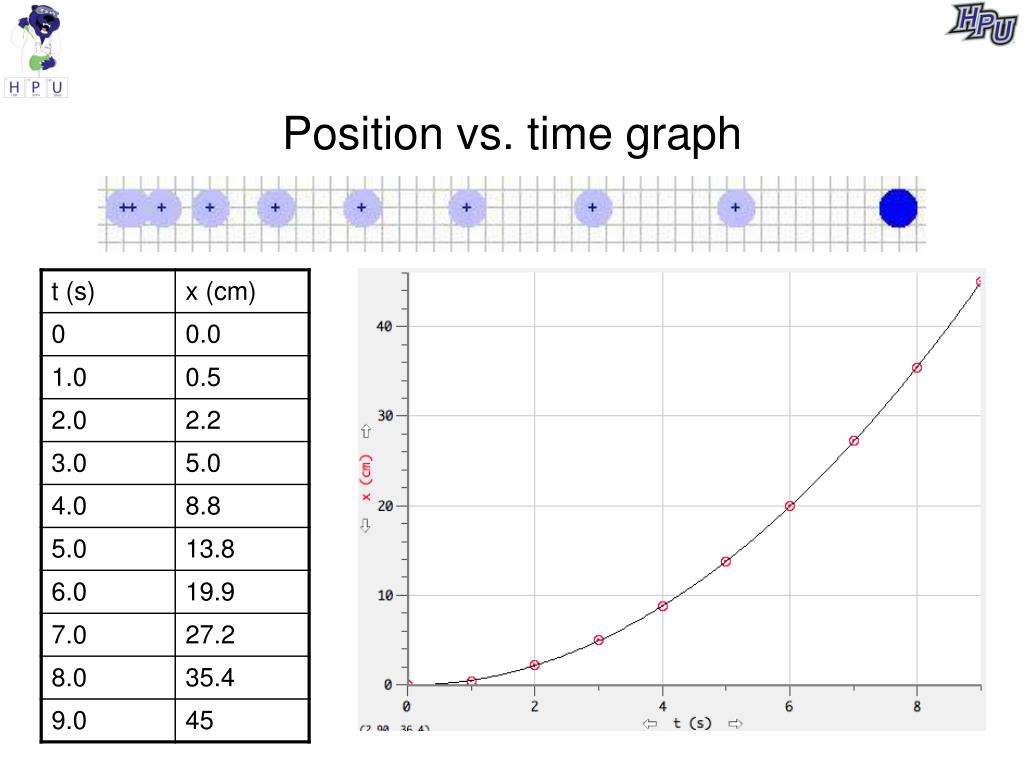

  6. Position vs. time graph

  7. Position vs. time graph -Slope of a tangent line on an x vs. t graph is instantaneous velocity. -Sign of slope (pos or neg) is direction of motion. -How slope changes tells you whether it is speeding up or slowing down.

  8. Example Describe the motion of the object whose x vs. t graph is shown below.

  9. Example Describe the motion of the object whose x vs. t graph is shown below.

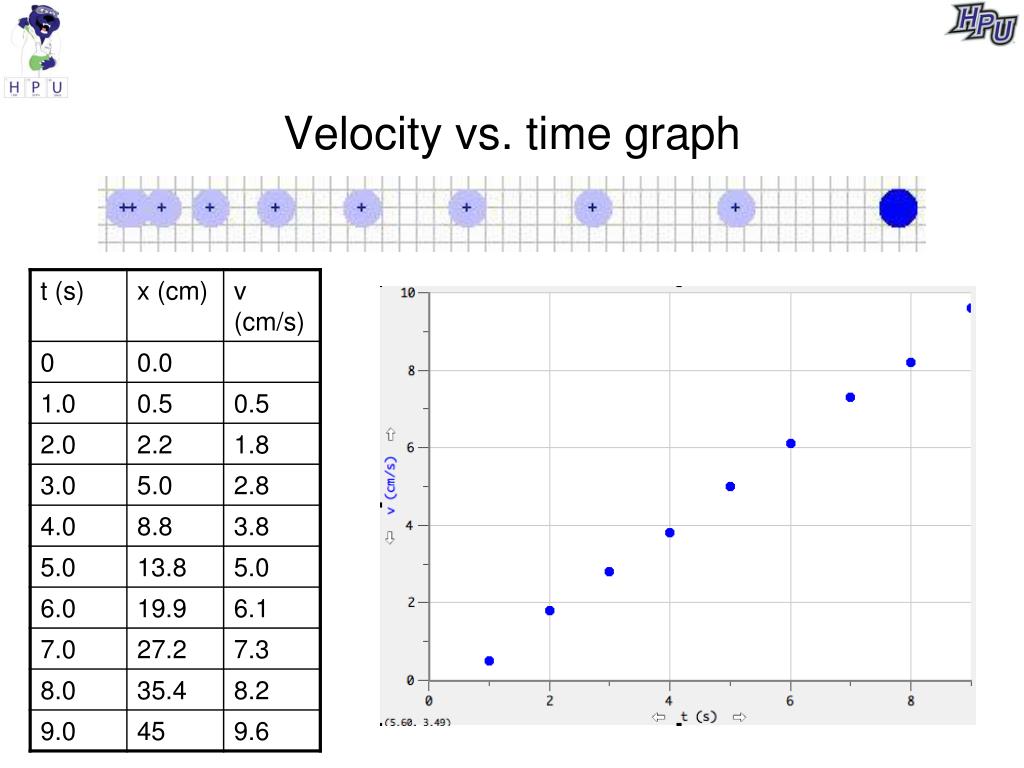

  10. Velocity vs. time graph

  11. Velocity vs. time graph

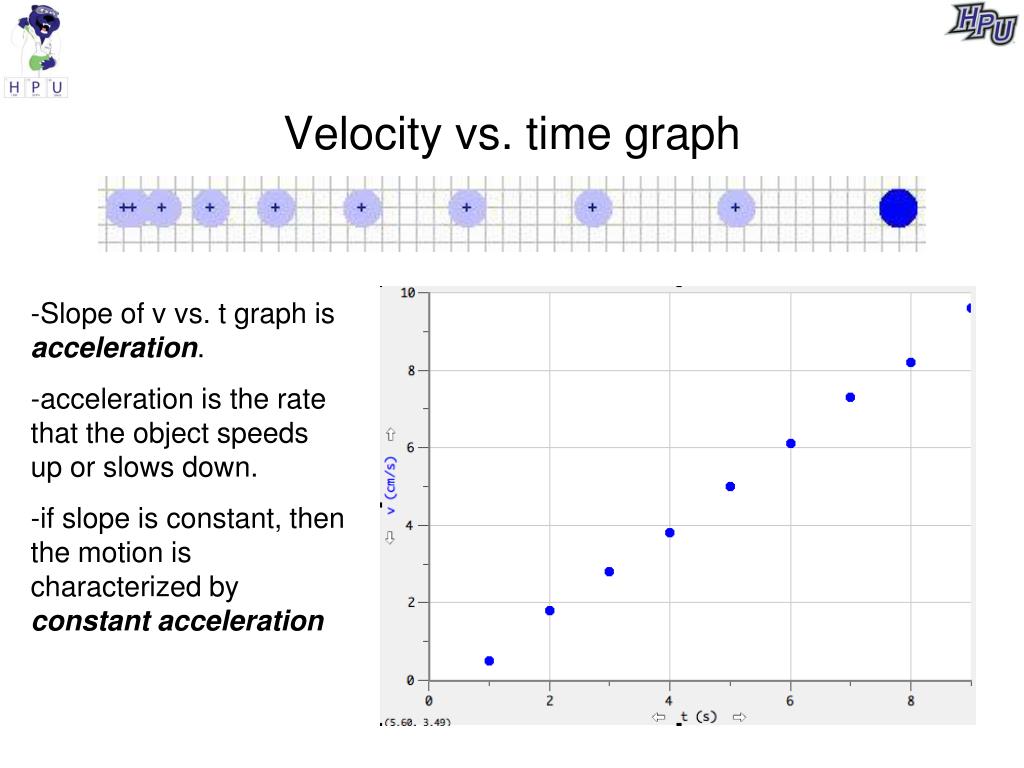

  12. Velocity vs. time graph -Slope of v vs. t graph is acceleration. -acceleration is the rate that the object speeds up or slows down. -if slope is constant, then the motion is characterized by constant acceleration

  13. Example Describe the motion of the object whose v vs. t graph is shown below.

  14. Example Describe the motion of the object whose v vs. t graph is shown below.

  15. Example Describe the motion of the object whose v vs. t graph is shown below.

  16. Observations If the object’s velocity is positive and the object speeds up, its acceleration is: positive negative zero

  17. Observations If the object’s velocity is positive and the object slows down, its acceleration is: positive negative zero

  18. Observations If the object’s velocity is negative and the object slows down, its acceleration is: positive negative zero

  19. Observations If the object’s velocity is positive and the object speeds up, its acceleration is: positive negative zero

  20. Matching position and velocity graphs Note what is being plotted in a given graph. Describe the motion in words or with a diagram. Sketch (or match) the graph that matches the motion diagram or verbal description of the motion.

  21. The graph at left shows a moving object’s velocityv vs clock reading t. One of the graphs below shows the object’s positionx plotted vs t over the same time interval. Which one is it? v 0 t A B C x x x 0 0 0 t t t D E x x 0 0 t t
