The CBC Method of electron counting

Five slides about…. The CBC Method of electron counting. Consider…. The ‘ionic’ method says. 2 Cp - 6e - each (-1 each) 2 Me - 2e - each (-1 each) Ligand total 16e - -4 So Ti +4 (d 0 ) since it is neutral 16e - exception?

ros
Download Presentation

The CBC Method of electron counting

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Five slides about… The CBC Method of electron counting

  2. Consider…

  3. The ‘ionic’ method says • 2 Cp- 6e- each (-1 each) • 2 Me- 2e- each (-1 each) • Ligand total 16e- -4 • So Ti+4 (d0) since it is neutral • 16e- exception? • Problem…is this really a +4 metal interacting with four anions?

  4. The ‘covalent’ method says • 2 Cp 5e- each • 2 Me 1e- each • Ligand total 12e- • So Ti0 (d4) since it is neutral • 16e- exception? • Problem…assuming the d-electrons are non-bonding how is this diamagnetic?

  5. CBC ligand classification • L • Ligand donates two electrons • CO, phosphines, alkenes • X • Ligand donates one electron • H, halides, alkyl • Z • Ligand donates zero electrons • boranes

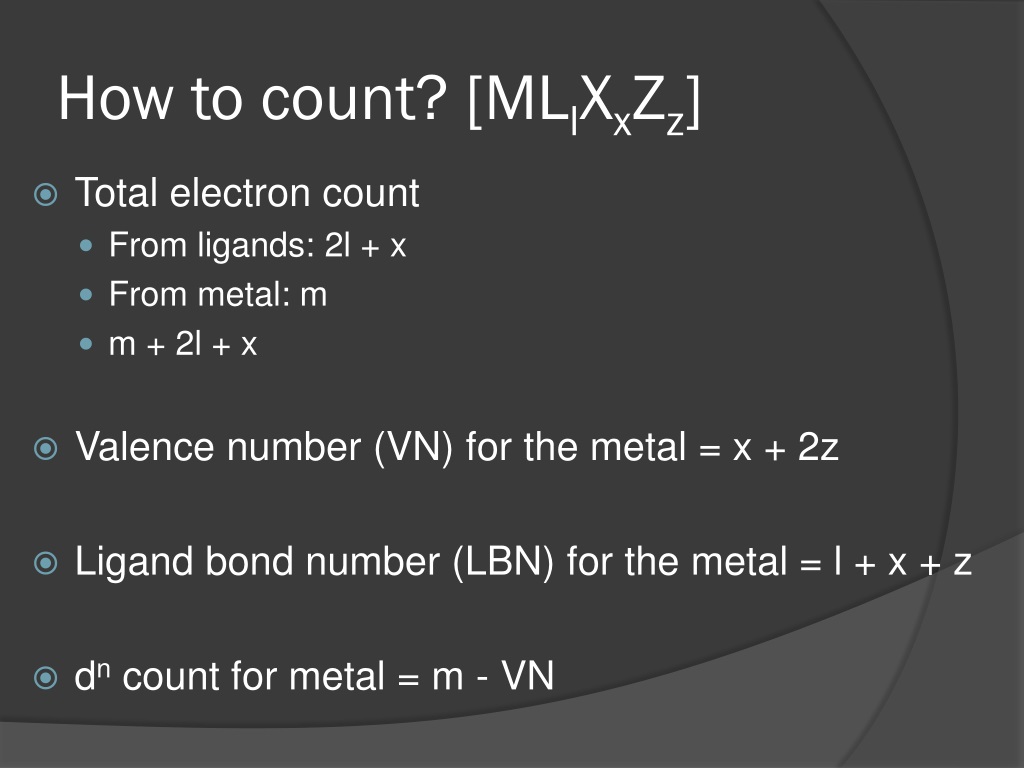

  6. How to count? [MLlXxZz] • Total electron count • From ligands: 2l + x • From metal: m • m + 2l + x • Valence number (VN) for the metal = x + 2z • Ligand bond number (LBN) for the metal = l + x + z • dn count for metal = m - VN

  7. Current example X H3C• L L2X X

  8. Counting • Metal is classified as ML4X4 • Electron count: 4 + 10 + 2 = 16 • VN: 4 • LBN: 8 • dn: 0

  9. What have we learned? • Electrons: 16 • VN: 4 • Classification: ML4X4 http://www.columbia.edu/cu/chemistry/groups/parkin/mlxz.htm

  10. A different view Ti http://www.columbia.edu/cu/chemistry/groups/parkin/mlxz.htm

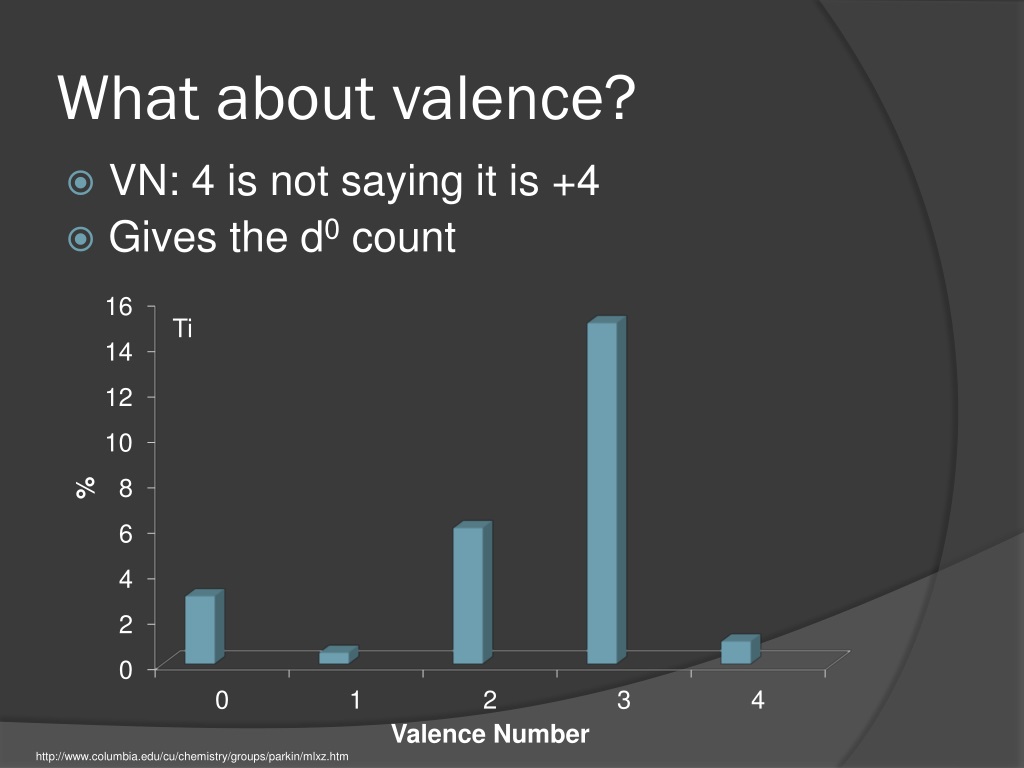

  11. What about valence? • VN: 4 is not saying it is +4 • Gives the d0 count Ti http://www.columbia.edu/cu/chemistry/groups/parkin/mlxz.htm

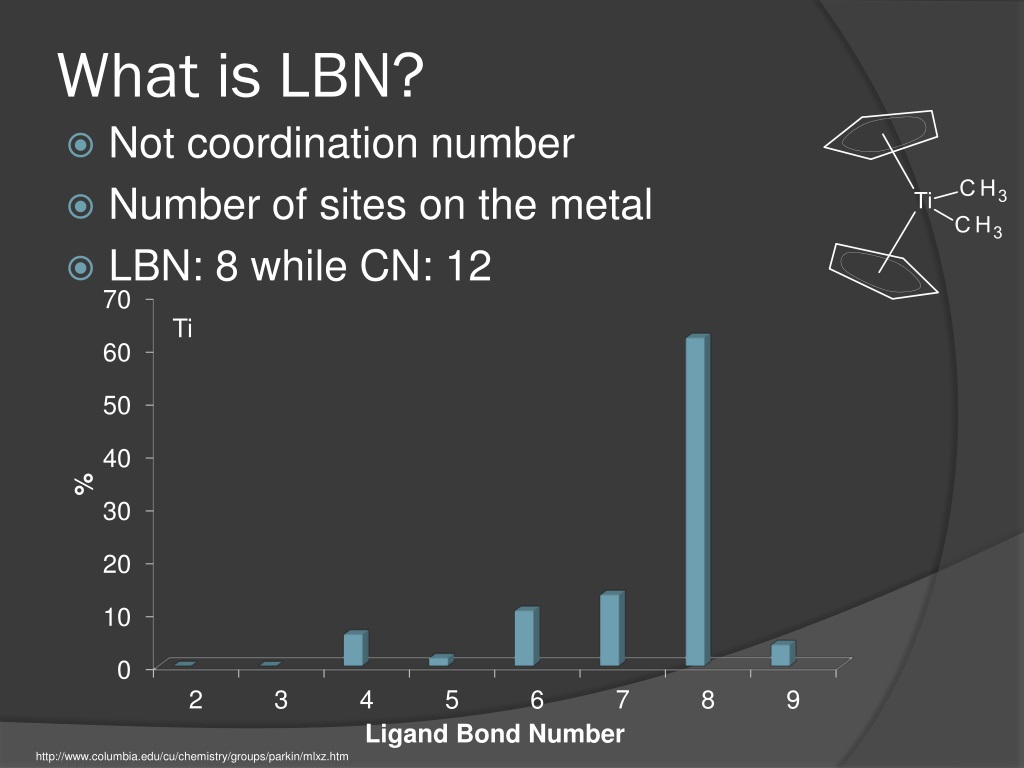

  12. What is LBN? • Not coordination number • Number of sites on the metal • LBN: 8 while CN: 12 Ti http://www.columbia.edu/cu/chemistry/groups/parkin/mlxz.htm

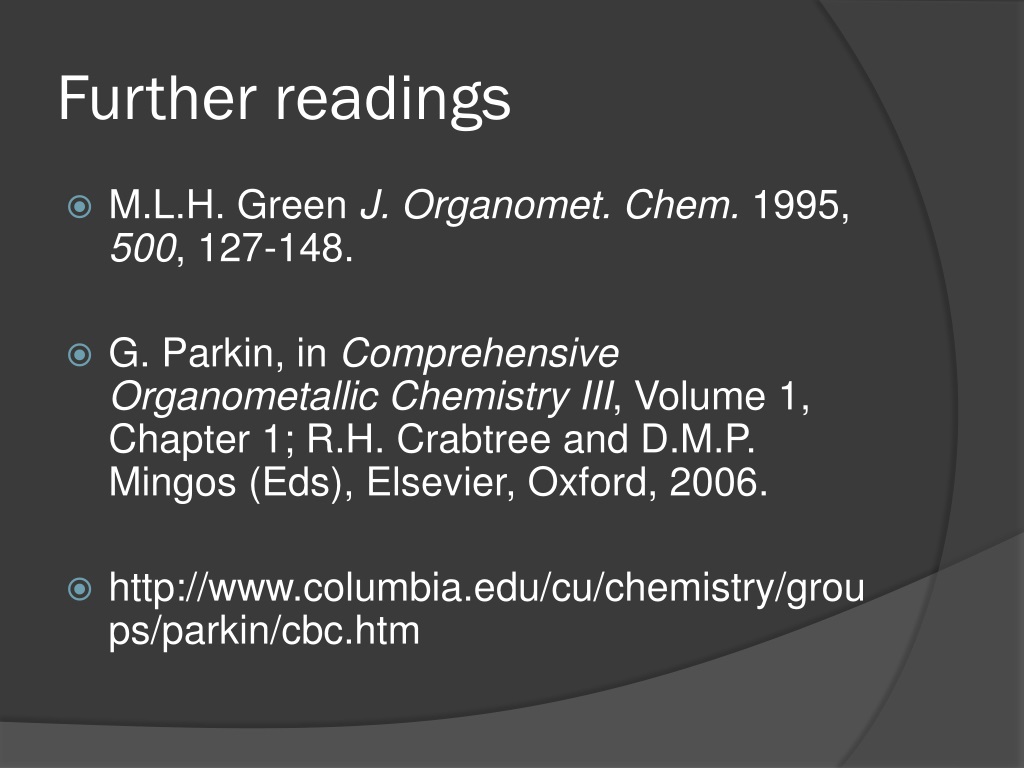

  13. Further readings • M.L.H. Green J. Organomet. Chem. 1995, 500, 127-148. • G. Parkin, in Comprehensive Organometallic Chemistry III, Volume 1, Chapter 1; R.H. Crabtree and D.M.P. Mingos(Eds), Elsevier, Oxford, 2006. • http://www.columbia.edu/cu/chemistry/groups/parkin/cbc.htm
