Geometry Notes

DESCRIPTION

This lesson delves into the relationships between angles formed when two lines are intersected by a transversal. By exploring with and without technology, students will learn to classify various angle types such as vertical angles, linear pairs, corresponding angles, alternate interior angles, alternate exterior angles, and same-side interior angles. Engaging activities include labeling angles with colors and identifying sets of angles based on their relationships. This foundational knowledge is crucial for justifying when lines are parallel.

1 / 12

Download Presentation

Geometry Notes

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

Playing audio...

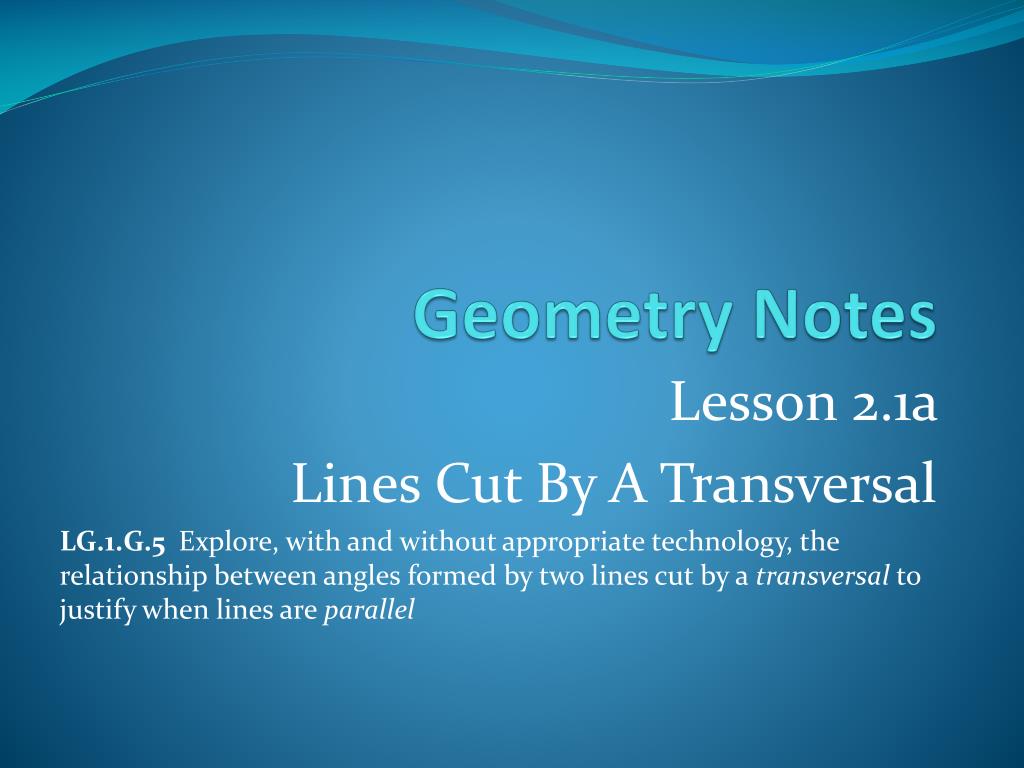

  1. Geometry Notes Lesson 2.1a Lines Cut By A Transversal LG.1.G.5 Explore, with and without appropriate technology, the relationship between angles formed by two lines cut by a transversal to justify when lines are parallel

  2. Vocabulary • Transversal – A line that intersects two or more coplanar lines at different points  • Vertical Angles – non-adjacent, non-overlapping congruent angles formed by two intersecting lines . (They share a common vertex.) • Linear Pairs of Angles –two adjacent angles whose non-shared rays form a straight angle • Corresponding Angles – angles that lie on the same side of the transversal and in corresponding positions relative to the parallel lines

  3. Vocabulary • Alternate Interior Angles – nonadjacent angles between the parallel lines that lie on opposite sides of the transversal • Alternate Exterior Angles – nonadjacent angles outside the parallel lines that lie on opposite sides of the transversal • Same-Side Interior Angles – angles that lie on the same side of the transversal and between the parallel lines

  4. b a c Vertical Angles • Label by shading sets of vertical angles with the same color.

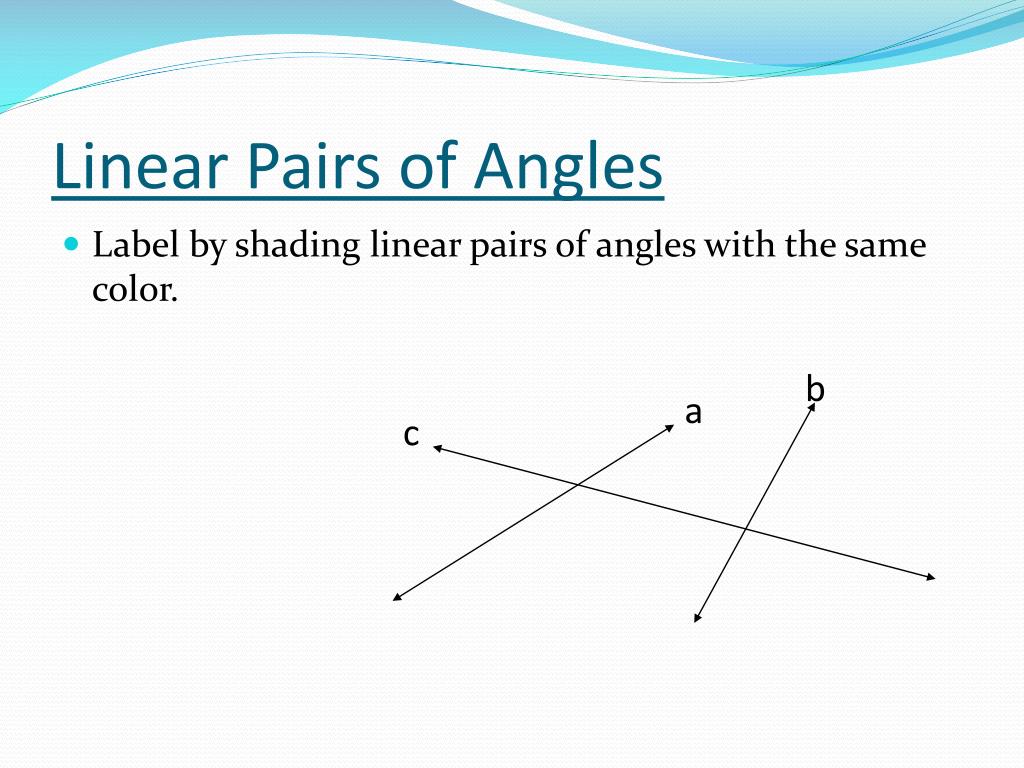

  5. b a c Linear Pairs of Angles • Label by shading linear pairs of angles with the same color.

  6. b a c Corresponding Angles • Label by shading sets of corresponding angles with the same color.

  7. b a c Alternate Interior Angles • Label by shading sets of alternate interior angles with the same color.

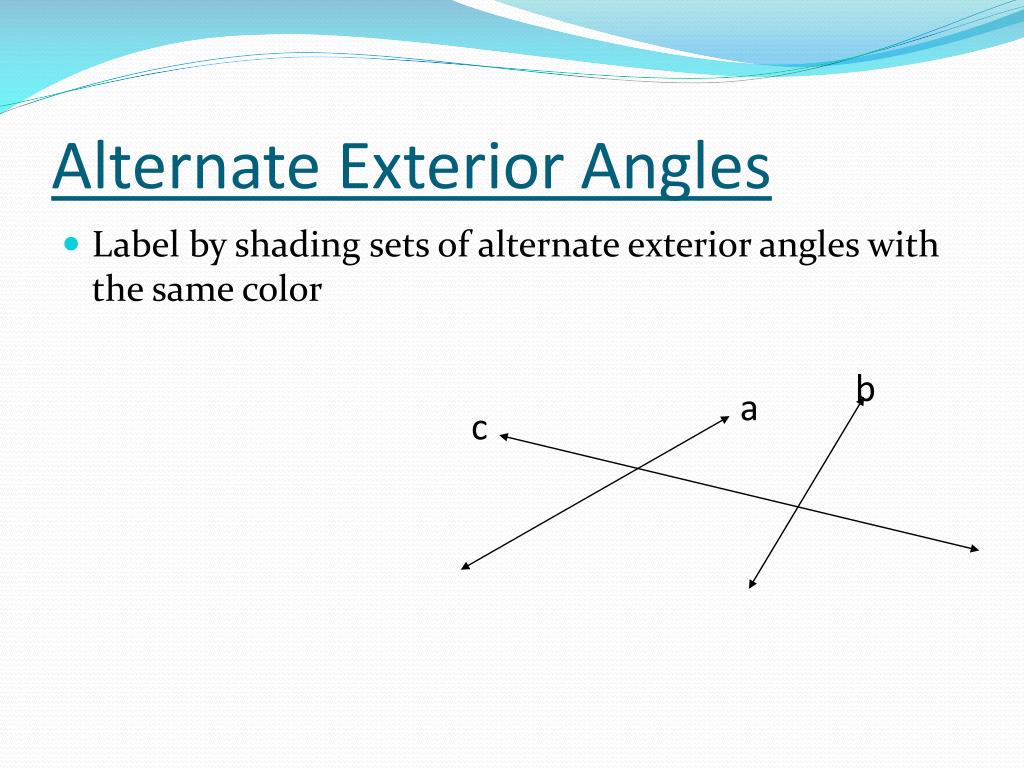

  8. b a c Alternate Exterior Angles • Label by shading sets of alternate exterior angles with the same color

  9. b a c Same-Side Interior Angles • Label by shading sets of same-side interior angles with the same color.

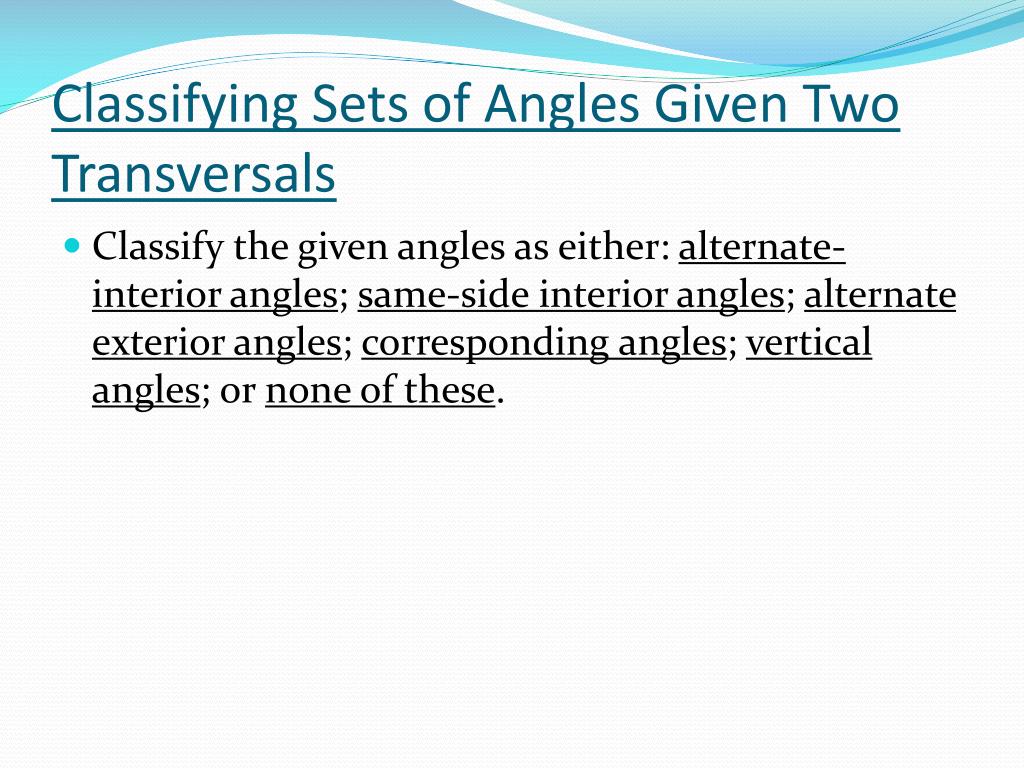

  10. Classifying Sets of Angles Given Two Transversals • Classify the given angles as either: alternate-interior angles; same-side interior angles; alternate exterior angles; corresponding angles; vertical angles; or none of these.

  11. 1 2 3 4 5 6 7 8 11 12 9 10 15 16 13 14 • 1 & 6 : ________ • 2 & 10 : _______ • 11 & 4 : _______ • 12 & 7 : _______ • 5 & 4 : _______ • 14 & 15: _______

  12. 6 2 1 3 4 5 8 9 10 11 7 12 13 14 • 2 & 7 : ______ • 3 & 5 : ______ • 7 & 14 : ______ • 8 & 2 : ______ • 13 & 7 : ______
