Butyl rubber sheet

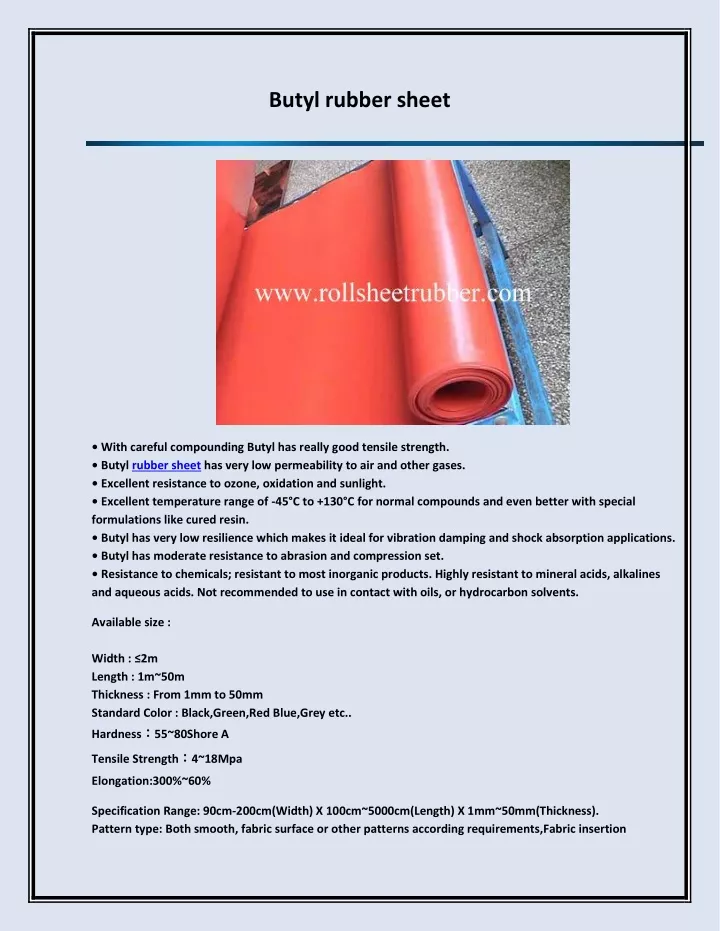

1. Butyl rubber sheet • With careful compounding Butyl has really good tensile strength. • Butyl rubber sheet has very low permeability to air and other gases. • Excellent resistance to ozone, oxidation and sunlight. • Excellent temperature range of -45°C to +130°C for normal compounds and even better with special formulations like cured resin. • Butyl has very low resilience which makes it ideal for vibration damping and shock absorption applications. • Butyl has moderate resistance to abrasion and compression set. • Resistance to chemicals; resistant to most inorganic products. Highly resistant to mineral acids, alkalines and aqueous acids. Not recommended to use in contact with oils, or hydrocarbon solvents. Available size : Width : ≤2m Length : 1m~50m Thickness : From 1mm to 50mm Standard Color : Black,Green,Red Blue,Grey etc.. Hardness：55~80Shore A Tensile Strength：4~18Mpa Elongation:300%~60% Specification Range: 90cm-200cm(Width) X 100cm~5000cm(Length) X 1mm~50mm(Thickness). Pattern type: Both smooth, fabric surface or other patterns according requirements,Fabric insertion

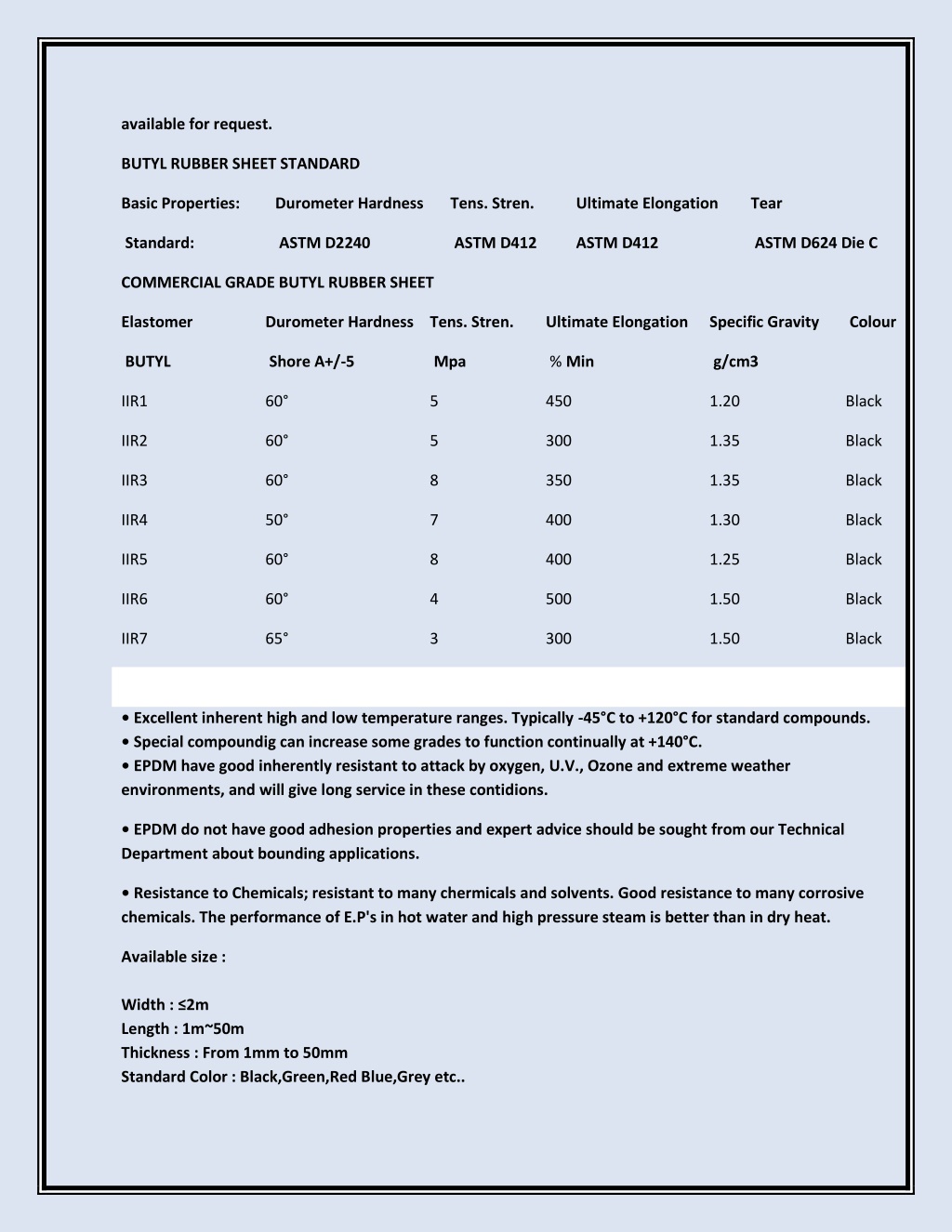

2. available for request. BUTYL RUBBER SHEETSTANDARD Basic Properties: Durometer Hardness Tens. Stren. Ultimate Elongation Tear Standard: ASTM D2240 ASTM D412 ASTM D412 ASTM D624 Die C COMMERCIAL GRADE BUTYL RUBBER SHEET Elastomer Durometer HardnessTens. Stren. Ultimate Elongation Specific Gravity Colour BUTYL Shore A+/-5 Mpa % Min g/cm3 IIR1 60° 5 450 1.20 Black IIR2 60° 5 300 1.35 Black IIR3 60° 8 350 1.35 Black IIR4 50° 7 400 1.30 Black IIR5 60° 8 400 1.25 Black IIR6 60° 4 500 1.50 Black IIR7 65° 3 300 1.50 Black • Excellent inherent high and low temperature ranges. Typically -45°C to +120°C for standard compounds. • Special compoundig can increase some grades to function continually at +140°C. • EPDM have good inherently resistant to attack by oxygen, U.V., Ozone and extreme weather environments, and will give long service in these contidions. • EPDM do not have good adhesion properties and expert advice should be sought from our Technical Department about bounding applications. • Resistance to Chemicals; resistant to many chermicals and solvents. Good resistance to many corrosive chemicals. The performance of E.P's in hot water and high pressure steam is better than in dry heat. Available size : Width : ≤2m Length : 1m~50m Thickness : From 1mm to 50mm Standard Color : Black,Green,Red Blue,Grey etc..

3. Hardness：55~80Shore A Tensile Strength：4~18Mpa Elongation:300%~650% Specification Range: 90cm-200cm(Width) X 100cm~5000cm(Length) X 1mm~50mm(Thickness). Pattern type: Both smooth, fabric surface or other patterns according requirements,Fabric insertion available for request. STANDARD EPDM RUBBER SHEET Basic Properties: Durometer Hardness Tens. Stren. Ultimate Elongation Tear Standard: ASTM D2240 ASTM D412 ASTM D412 ASTM D624 Die C COMMERCIAL GRADE EPDM RUBBER SHEET Elastomer Durometer HardnessTens. Stren. Ultimate Elongation Specific Gravity Colour EPDM Shore A+/-5 Mpa % Min g/cm3 EPDM1 70° 3 250 1.50 Black EPDM2 60° 4 300 1.50 Black EPDM3 70° 5 300 1.45 Black EPDM4 60° 9 350 1.50 Green EPDM7 70° 9 300 1.50 Green EPDM8 50° 9 400 1.30 White EPDM9 60° 9 350 1.25 White EPDM10 70° 9 300 1.35 White EPDM11 80° 5 200 1.40 White EPDM12 65° 5 300 1.25 Black EPDM13 65° 8 300 1.45 Black FOOD GRADE EPDM RUBBER SHEET Elastomer Durometer HardnessTens. Stren. Ultimate Elongation Specific Gravity Colour EPDM Shore A+/-5 Mpa % Min g/cm3

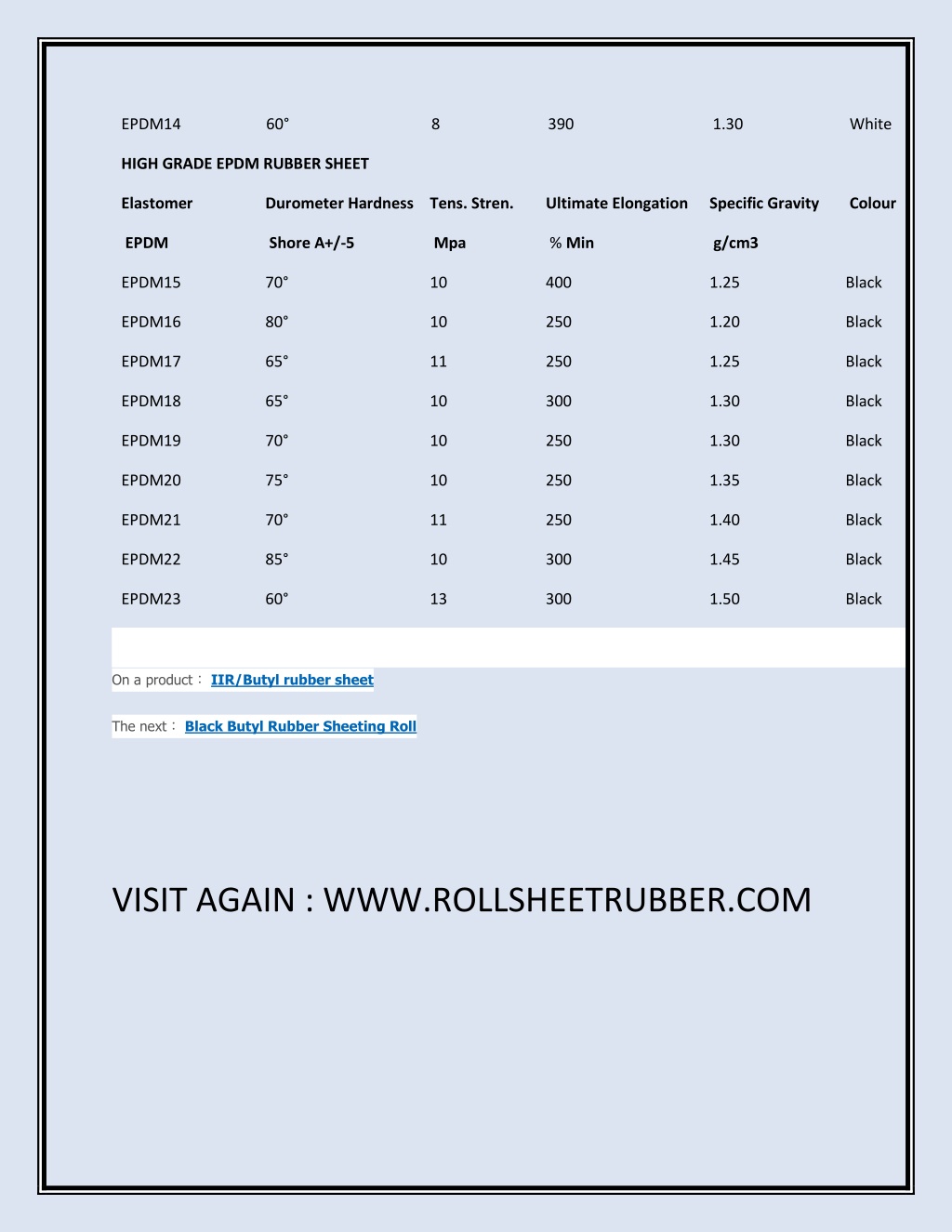

4. EPDM14 60° 8 390 1.30 White HIGH GRADE EPDM RUBBER SHEET Elastomer Durometer HardnessTens. Stren. Ultimate Elongation Specific Gravity Colour EPDM Shore A+/-5 Mpa % Min g/cm3 EPDM15 70° 10 400 1.25 Black EPDM16 80° 10 250 1.20 Black EPDM17 65° 11 250 1.25 Black EPDM18 65° 10 300 1.30 Black EPDM19 70° 10 250 1.30 Black EPDM20 75° 10 250 1.35 Black EPDM21 70° 11 250 1.40 Black EPDM22 85° 10 300 1.45 Black EPDM23 60° 13 300 1.50 Black On a product：IIR/Butyl rubber sheet The next：Black Butyl Rubber Sheeting Roll VISIT AGAIN : WWW.ROLLSHEETRUBBER.COM
