introducing visual studio 2010 what it is and why you should care

SESSION CODE: DEV203

Introducing Visual Studio 2010: What It Is and Why You Should Care

David Chappell

Principal

Chappell & Associates

agenda
Agenda
  • Understanding Visual Studio 2010: The Big Picture
  • Using Visual Studio 2010
  • Adopting Visual Studio 2010
tools for software development an evolution
Tools for Software DevelopmentAn evolution

1980s-1990s

1970s-1980s

1990s-2000s

Editors

Integrated development environments (IDEs)

Compilers

Team development tools

Build tools

Version control tools

Testing tools

Reporting and tracking tools

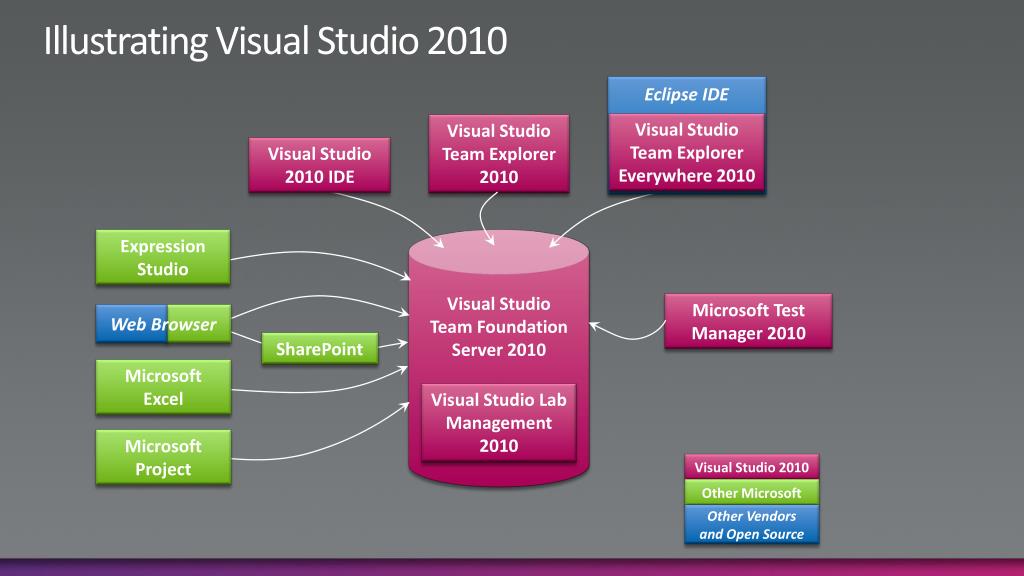

illustrating visual studio 2010
Illustrating Visual Studio 2010

Eclipse IDE

Visual Studio Team Explorer Everywhere 2010

Visual Studio Team Explorer 2010

Visual Studio 2010 IDE

Expression Studio

Visual Studio Team Foundation Server 2010

Microsoft Test Manager 2010

Web Browser

SharePoint

Microsoft Excel

Visual Studio Lab Management 2010

Microsoft Project

Visual Studio 2010

Other Microsoft

Other Vendors and Open Source

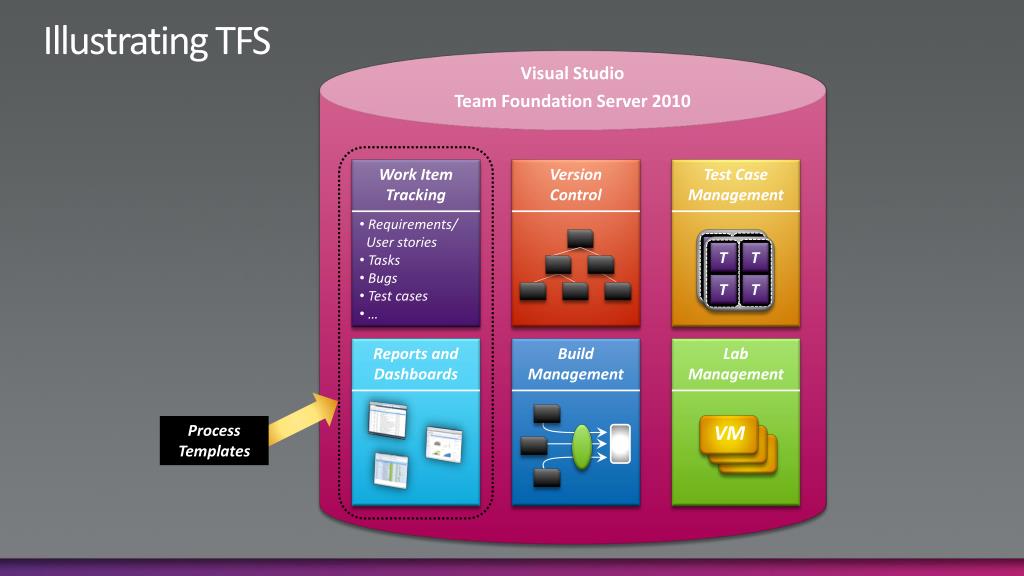

illustrating tfs
Illustrating TFS

Visual Studio

Team Foundation Server 2010

Work Item Tracking

Version

Control

Test Case Management

T

T

T

T

VM

  • Requirements/
  • User stories
  • Tasks
  • Bugs
  • Test cases

T

T

T

T

Reports and Dashboards

Build Management

Lab Management

Process Templates

managing requirements user stories
Managing Requirements/User Stories
  • VS 2010 doesn’t define how requirements/user stories should be gathered
  • It does define how they’re managed
    • Using Requirement/User Story work items
    • Which can be linked to other work items
  • This provides requirements traceability

Requirement Y

Bug

Requirement X

Task

Test Case

Task

Test Case

Bug

Task

Test Case

Task

Test Case

Bug

Bug

Task

Test Case

Test Case

Bug

Bug

Test Case

managing requirements user stories example accessing user story and task work items from excel
Managing Requirements/User StoriesExample: Accessing User Story and Task work items from Excel

User story

Tasks linked to that user story

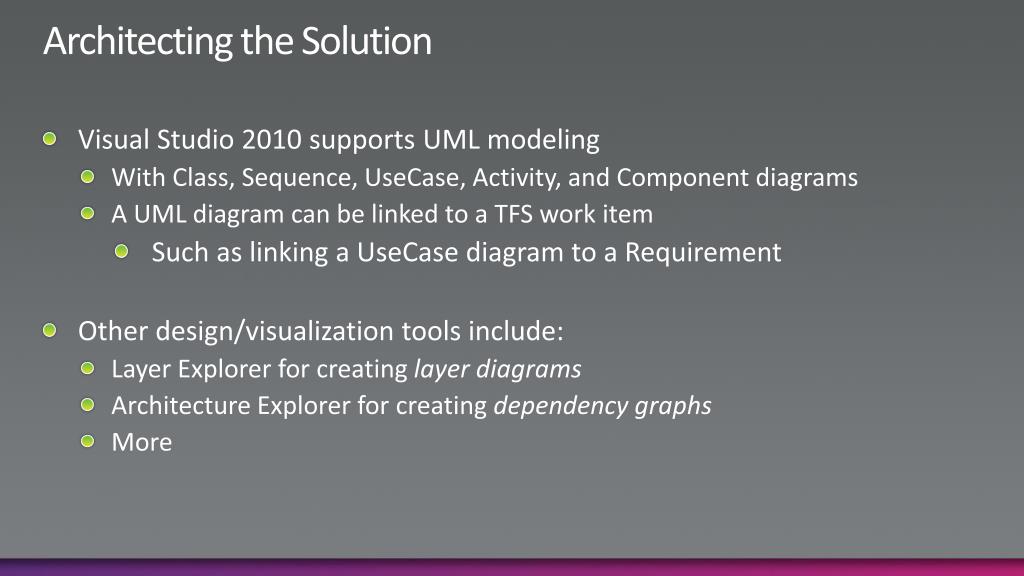

architecting the solution
Architecting the Solution
  • Visual Studio 2010 supports UML modeling
    • With Class, Sequence, UseCase, Activity, and Component diagrams
    • A UML diagram can be linked to a TFS work item
      • Such as linking a UseCase diagram to a Requirement
  • Other design/visualization tools include:

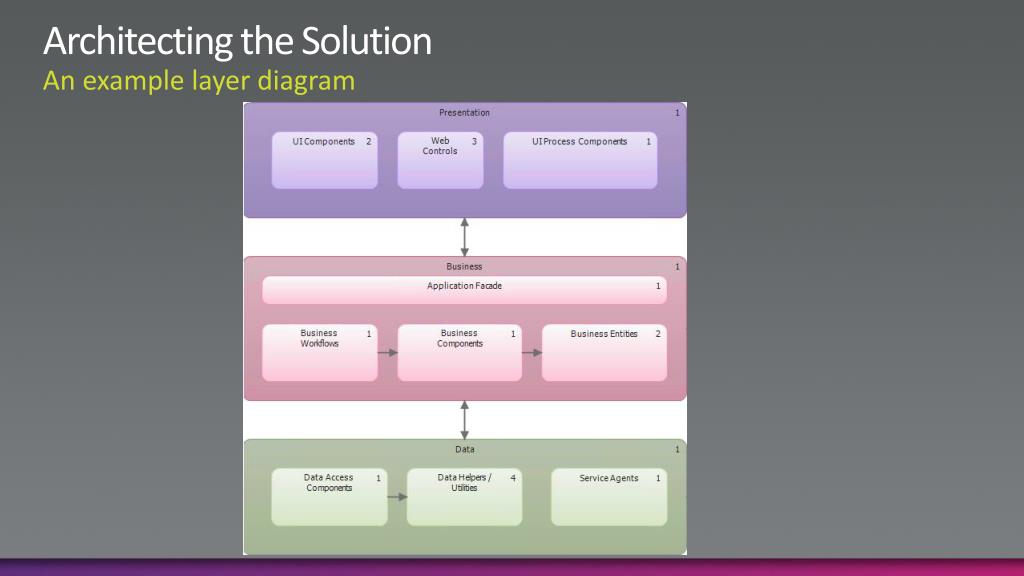

    • Layer Explorer for creating layer diagrams
    • Architecture Explorer for creating dependency graphs
    • More
writing code toolkits and designers

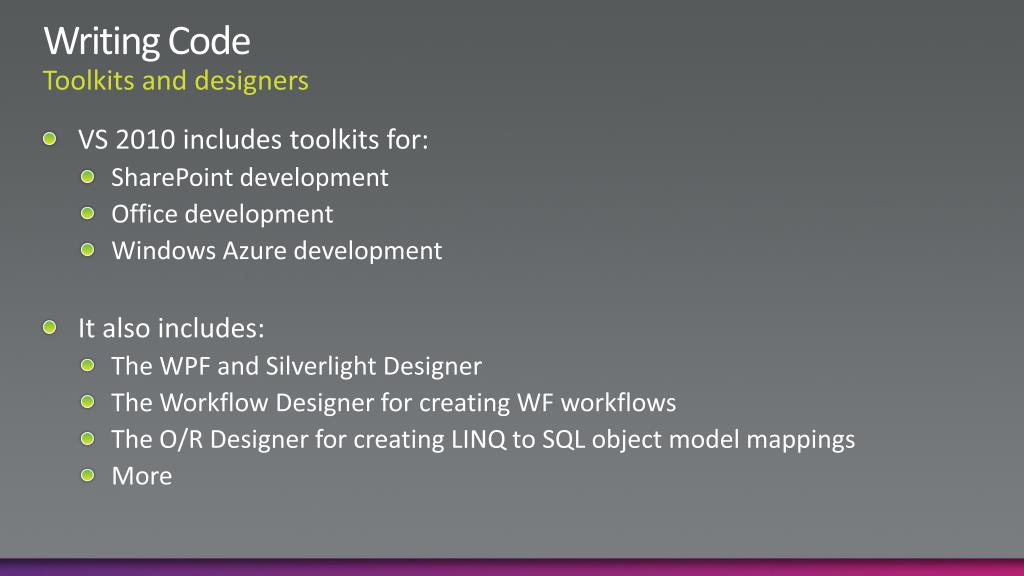

Writing CodeToolkits and designers
  • VS 2010 includes toolkits for:
    • SharePoint development
    • Office development
    • Windows Azure development
  • It also includes:
    • The WPF and Silverlight Designer
    • The Workflow Designer for creating WF workflows
    • The O/R Designer for creating LINQ to SQL object model mappings
    • More
writing code tools for writing better code
Writing CodeTools for writing better code
  • Unit testing framework
  • Static code analysis
    • Examines code for security holes and more
  • Dynamic code analysis
    • Performance profiling
    • Code coverage, showing what’s being tested
  • Code metrics
    • Measuring complexity and maintainability
  • Debugging support
    • Including IntelliTrace
writing code accessing tfs information with team explorer
Writing CodeAccessing TFS information with Team Explorer

User story

This developer’s tasks linked to that user story

Details about that user story

testing code
Testing Code
  • VS 2010 has lots of support for testing
    • It’s important
  • This release introduces Microsoft Test Manager (MTM), supporting:
    • Creating and managing test suites
    • Running manual tests
    • Running automated tests
    • More
testing code gathering test results
Testing CodeGathering test results
  • Testers must provide good diagnostic data about bugs
    • So developers can reproduce, diagnose, and fix those bugs
  • VS 2010 provides diagnostic data adapters to do this

R

Application Under Test

Visual Studio 2010 IDE

1) Run test

T

Test Agent

2) Return test results and diagnostic data

Microsoft Test Manager

Diagnostic Data Adapters (DDAs)

Tester

Test Controller

testing code example ddas

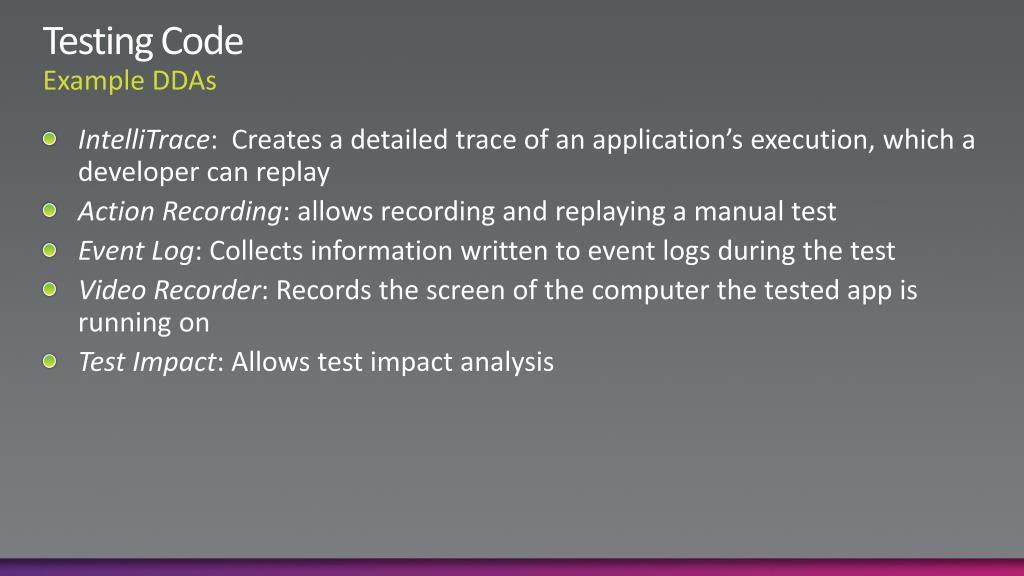

Testing CodeExample DDAs
  • IntelliTrace: Creates a detailed trace of an application’s execution, which a developer can replay
  • Action Recording: allows recording and replaying a manual test
  • Event Log: Collects information written to event logs during the test
  • Video Recorder: Records the screen of the computer the tested app is running on
  • Test Impact: Allows test impact analysis
testing code using mtm examining a requirement s test cases
Testing Code Using MTM: Examining a requirement’s test cases

Requirement

Tests linked to that requirement

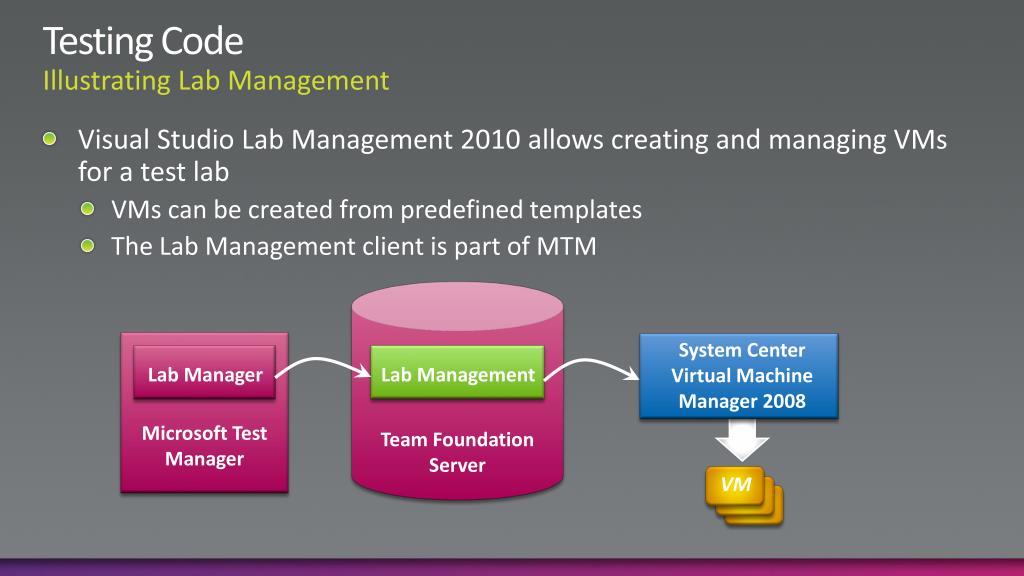

testing code illustrating lab management
Testing Code Illustrating Lab Management
  • Visual Studio Lab Management 2010 allows creating and managing VMs for a test lab
    • VMs can be created from predefined templates
    • The Lab Management client is part of MTM

VM

System Center Virtual Machine Manager 2008

Lab Manager

Lab Management

Microsoft Test Manager

Team Foundation Server

testing code using mtm and lab management preparing to run tests
Testing CodeUsing MTM and Lab Management: Preparing to run tests

Lab Management

T

T

T

T

1) Create test lab VMs

T

T

T

T

Lab Manager

Test Case Management

2) Create test plan

DDAs

Test Management

Test Agent

Test Agent

Test Agent

DDAs

DDAs

Microsoft Test Manager

Team Foundation Server

VM

VM

VM

testing code using mtm running tests
Testing CodeUsing MTM: Running tests

Build Management

T

T

T

T

1) Create and deploy test build

T

T

T

T

R

Test Case Management

2) Run test cases

Test Management

Test Agent

Test Agent

Test Agent

DDAs

DDAs

DDAs

5) Access test resultsand diagnostic data

4) Return test results and diagnostic data

Microsoft Test Manager

Team Foundation Server

3) Execute tests, collecting test results and diagnostic data

Test Controller

testing code using mtm running manual tests
Testing CodeUsing MTM: Running manual tests

Test

runner

Application

under test

testing code options for automated tests
Testing CodeOptions for automated tests
  • Visual Studio 2010 supports several kinds of automated tests

Coded UI Tests

Web Performance Tests

Unit Tests

Database

Unit Tests

T

T

T

T

T

T

T

T

T

T

T

T

T

T

T

T

T

T

User Interface

Business Logic

Database

testing code illustrating load testing
Testing CodeIllustrating load testing

Web Performance Tests

Load Test Virtual User Pack

Test Agent

T

T

T

T

Test Agent

T

T

Test Controller

T

T

Test Agent

T

T

T

T

Test Agent

T

T

T

T

managing and tracking the project

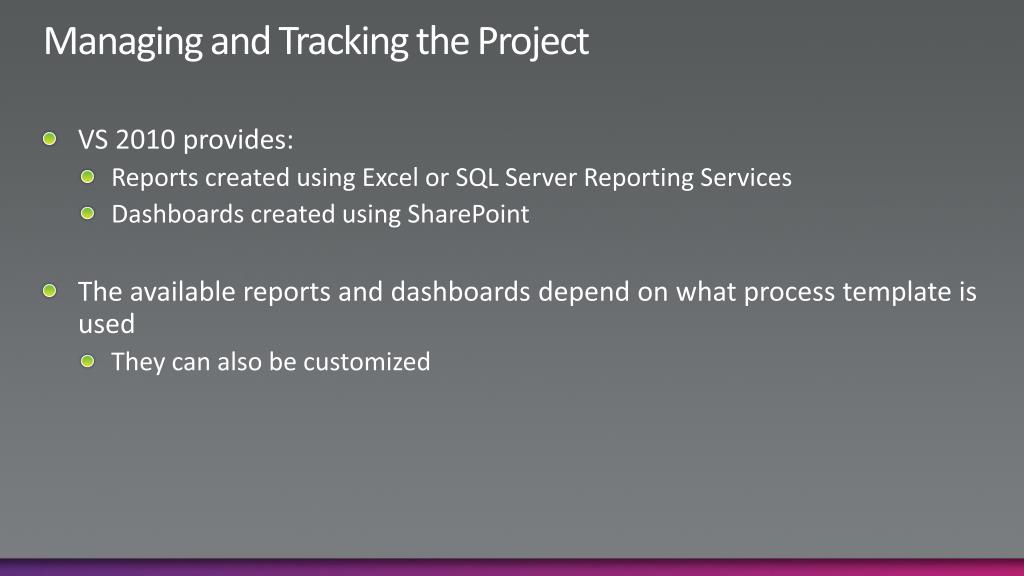

Managing and Tracking the Project
  • VS 2010 provides:
    • Reports created using Excel or SQL Server Reporting Services
    • Dashboards created using SharePoint
  • The available reports and dashboards depend on what process template is used
    • They can also be customized
managing and tracking the project example report stories overview

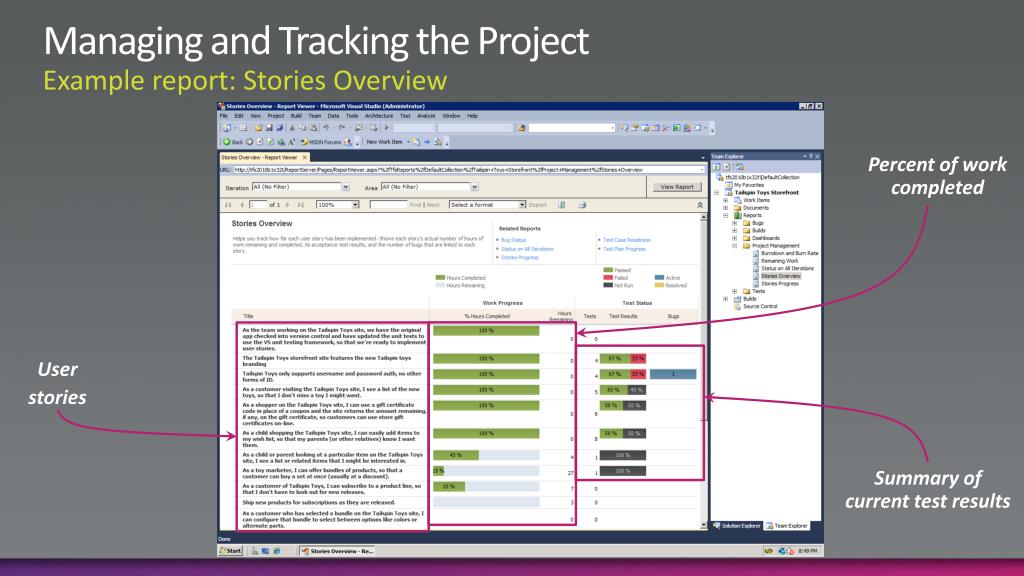

Managing and Tracking the ProjectExample report: Stories Overview

Percentof work completed

User

stories

Summary of current test results

managing and tracking the project example dashboard quality
Managing and Tracking the Project Example dashboard: Quality

Code churn

Bug reactivations

Test plan progress

how visual studio 2010 is packaged mapping software to skus

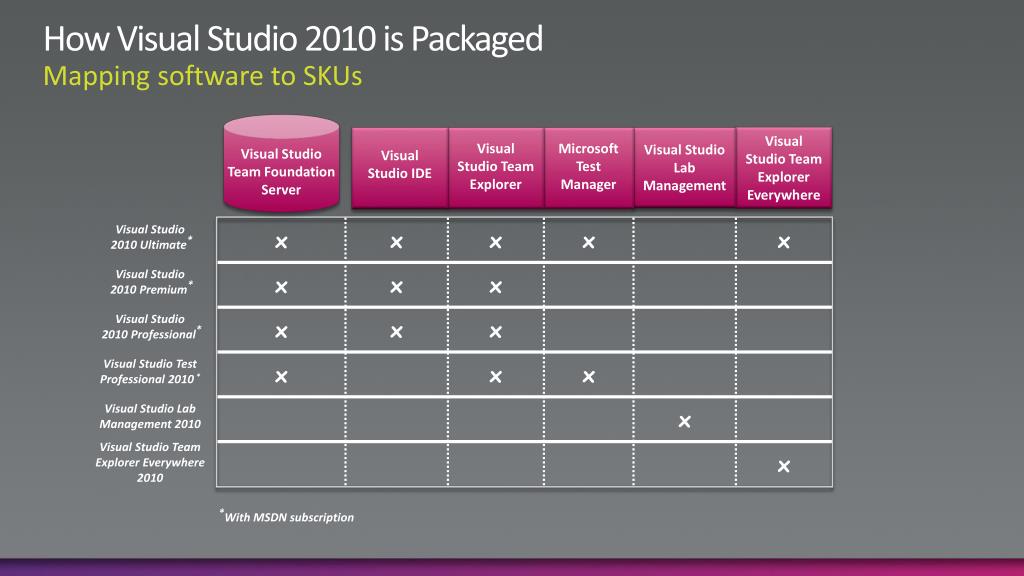

How Visual Studio 2010 is PackagedMapping software to SKUs

Visual Studio IDE

Visual Studio Team Explorer

Microsoft Test Manager

Visual Studio Lab Management

Visual Studio Team Explorer Everywhere

Visual Studio Team Foundation Server

Visual Studio

2010 Ultimate*

x

x

x

x

x

Visual Studio

2010 Premium*

x

x

x

Visual Studio

2010 Professional*

x

x

x

Visual Studio Test Professional 2010 *

x

x

x

Visual Studio Lab Management 2010

x

Visual Studio Team Explorer Everywhere 2010

x

*With MSDN subscription

how visual studio 2010 is packaged
How Visual Studio 2010 is Packaged

Visual Studio

2010 Ultimate

Microsoft Test Manager

Test Case Management

Manual

Testing

Fast Forward for Manual Testing

IntelliTrace

Web Performance Testing

Load

Testing

UML

Modeling

Architecture Explorer

Layer

Diagrams

Sequence Diagrams

Class

Designer

Visual Studio

2010 Premium

Test Agent and Test Controller

Diagnostic Data Adapters

Coded UI

Testing

Test Impact Analysis

Performance Profiling

Static Code Analysis

Code

Coverage

Code

Metrics

Database Change Management

Database Unit Testing

Database Test Data Generators

Database Deployment

Visual Studio

2010 Professional

C#, VB, C++, F#, JScript

Windows Development

Web Development

SharePoint Development

Windows Azure Development

Office Development

Multi-Core Development

Unit

Testing

WPF/Silverlight Designer

Object/Relational Designer

Workflow Designer

XML Schema Designer

conclusions
Conclusions
  • Modern software development requires a diverse set of tools
    • Integrating those tools makes sense
  • Visual Studio 2010 provides an integrated set of diverse development tools
    • For large teams, small teams, and solo developers
references
References
  • Introducing Visual Studio 2010, David Chappell

http://download.microsoft.com/download/C/D/3/CD39BB69-35CC-458A-B4EB-2F928B58FB4B/whitepapers for trizzies/Visual Studio 2010, v1.0 -- Chappell.pdf

about the speaker
About the Speaker

David Chappell is Principal of Chappell & Associates (www.davidchappell.com) in San Francisco, California. Through his speaking, writing, and consulting, he helps people around the world understand, use, and make better decisions about new technology. David has been the keynote speaker for events and conferences on five continents, and his seminars have been attended by tens of thousands of IT decision makers, architects, and developers in more than forty countries. His books have been published in a dozen languages and used regularly in courses at MIT, ETH Zurich, and other universities. In his consulting practice, he has helped clients such as Hewlett-Packard, IBM, Microsoft, Stanford University, and Target Corporation adopt new technologies, market new products, train their sales staffs, and create business plans. Earlier in his career, David wrote networking software, chaired a U.S. national standards working group, and played keyboards with the Peabody-award-winning Children’s Radio Theater. He holds a B.S. in Economics and an M.S. in Computer Science, both from the University of Wisconsin-Madison.

track resources

Required Slide

Track PMs will supply the content for this slide, which will be inserted during the final scrub.

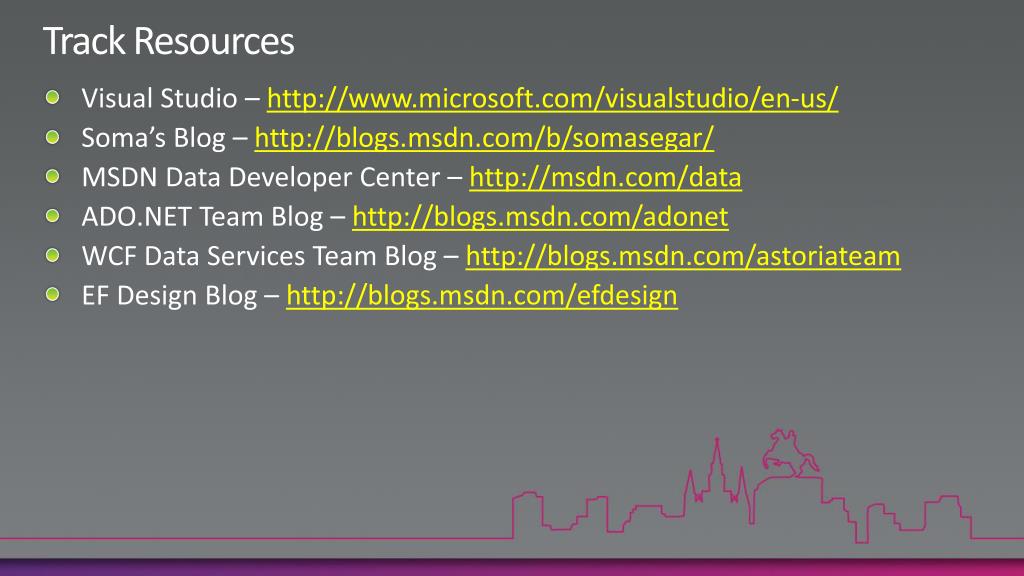

Track Resources
  • Visual Studio – http://www.microsoft.com/visualstudio/en-us/
  • Soma’s Blog – http://blogs.msdn.com/b/somasegar/
  • MSDN Data Developer Center – http://msdn.com/data
  • ADO.NET Team Blog – http://blogs.msdn.com/adonet
  • WCF Data Services Team Blog – http://blogs.msdn.com/astoriateam
  • EF Design Blog – http://blogs.msdn.com/efdesign
resources

Required Slide

Resources

Learning

  • Sessions On-Demand & Community
  • Microsoft Certification & Training Resources

www.microsoft.com/teched

www.microsoft.com/learning

  • Resources for IT Professionals
  • Resources for Developers
  • http://microsoft.com/technet
  • http://microsoft.com/msdn
slide37

Required Slide

Complete an evaluation on CommNet and enter to win!

slide38

Sign up for Tech·Ed 2011 and save $500 starting June 8 – June 31st

http://northamerica.msteched.com/registration

You can also register at the North America 2011 kiosk located at registrationJoin us in Atlanta next year

slide39

© 2010 Microsoft Corporation. All rights reserved. Microsoft, Windows, Windows Vista and other product names are or may be registered trademarks and/or trademarks in the U.S. and/or other countries.

The information herein is for informational purposes only and represents the current view of Microsoft Corporation as of the date of this presentation. Because Microsoft must respond to changing market conditions, it should not be interpreted to be a commitment on the part of Microsoft, and Microsoft cannot guarantee the accuracy of any information provided after the date of this presentation. MICROSOFT MAKES NO WARRANTIES, EXPRESS, IMPLIED OR STATUTORY, AS TO THE INFORMATION IN THIS PRESENTATION.
