Asterisk

Asterisk

The Open Source PBX & Telephony Platform


Topics
Topics

  • Basic Telephony terms

  • VOIP Protocols (relevant ones)

  • Asterisk info

  • How to control and change settings

  • Configuration files

  • Live demo

  • Set up your soft phone

  • Set up Grandstream SIP Phone


Terms
Terms

  • PBX - Private Branch Exchange

    • The control center for a phone system

    • Also called a switch or switchboard

  • PSTN - Public Switched Telephone Network

  • POTS - Plain Old Telephone System

    • Uses 48 VDC for passing analog voice

    • Rings at around 90-100 VAC


Terms1
Terms

  • DTMF - Dual Tone Multi Frequency

    • Tones used to dial and send signals to the switch

    • Inband

      • Uses same frequencies we talk with

      • Some peoples voices can trigger this (mostly females)

    • rfc2833

      • Out of band standard for passing dialing tones


Terms2
Terms

  • FXS - term used with POTS for a system that supplies voltage for dial tone and ring voltage

  • FXO - term used with POTS that connects to an FXS system. Your telephone is FXO.

    (These are mixed up a lot)


Terms3
Terms

  • Softphone - software phone that runs on your computer

  • Hardphone - Hardware phone

  • VOIP - Voice Over the Internet Protocol

    • Generic Term for all IP telephony

      • Skype

      • Ventrilo

      • Teamspeak

    • As far as I know always uses UDP/IP. Can use TCP/IP but why?


Terms protocols
Terms - Protocols

  • SIP - Session Initiation Protocol

    • Used to set up the VOIP call

    • Only sets up the connection

    • Passes voice packets off to RTP

  • RTP - Real-time Transport Protocol

    • Carries the voice packets for a SIP phone call

    • Issues with NAT (uses different ports than SIP)


Terms protocols1
Terms - Protocols

  • IAX - Intra Asterisk Exchange

    • Designed by Asterisk

    • Uses same port for both connection and voice packets so better through NAT

  • DUNDi - Distributed Universal Number Discovery

    • Just put in here because sample .conf files have code for it.

    • New protocol NOT universaly used but supported by Asterisk


The last mile
The Last Mile

  • The last mile is the term used to describe how the telephone company gets the signal to your home or office.

  • Typically POTS

  • Ironic as they convert everything to digital from that point and send it down the trunk.


Asterisk1
Asterisk

  • Open Source (*nix only, but windows bransh avalable)

  • Current Version 1.4.21.2

  • Version 1.6 RC6 is out

  • Code base controlled by Digium Inc.

  • Can run on a headless system

  • Business model is give away the software and sell the hardware.


Asterisk control
Asterisk Control

  • Command line and .conf files

    • /etc/asterisk except zaptell.conf which is in /etc

    • More on .conf files later

    • If you like emacs, vi or the like enjoy

    • You need to know the Asterisk syntax and settings

    • There are alternatives…..


Asterisk control1
Asterisk Control

  • GUI tools

    • Asterisk GUI

      • Web based AJAX

      • Edits .conf files directly

      • Same UI as AsteriskNOW (more later)

      • Says can edit .conf files manualy or use GUI and will not have problems (WRONG)

      • Does not use Apache, has own web server

      • /etc/asterisk/http.conf holds settings


Other free pbxs
Other Free PBXs

  • OpenPBX by VMX

    • Not the same as CallWeaver

  • CallWeaver - formerly OpenPBX.org


Asterisk control2
Asterisk Control

  • GUI Tools (cont)

    • AsteriskNOW

      • From Digium

      • Self installing with OS, Asterisk, and GUI

      • Wipes out ALL hard drives on the machine

    • Trixbox

      • Similar to AsteriskNOW but has better UI


Configuration files
Configuration Files

  • Only going to mention the most used

    • extensions.conf

    • Sip.conf

    • Iax.conf

    • Users.conf

    • Manager.conf

    • Logger.conf

    • Voicemail.conf

    • Asterisk.conf

    • Manager.conf

    • Zaptel.conf


Configuration files1
Configuration Files

  • extensions.conf

    • Holds the Dial Plan

    • Most complex to set up

    • Context

      • [incoming]

        Code here

      • [general]

        • Has some settings

      • [globals]

        • Holds global variable info


Configuration files2
Configuration Files

  • extensions.conf (cont)

    • Funky syntax

      • exten => (extension) a unique series of steps

      • exten => extension, series number, application

        • Exten => 123, 1, Answer()

          exten => 123, n, Wait(2)

          exten => 123, n, Background(tt-weasles)

          exten => 123, n, Hangup()


Configuration files3
Configuration Files

  • extensions.conf (cont)

    • Include

      • Include = name of another context

      • Include = [default]

    • Macros

      • Used to create reusable code

      • Can accept paramaters

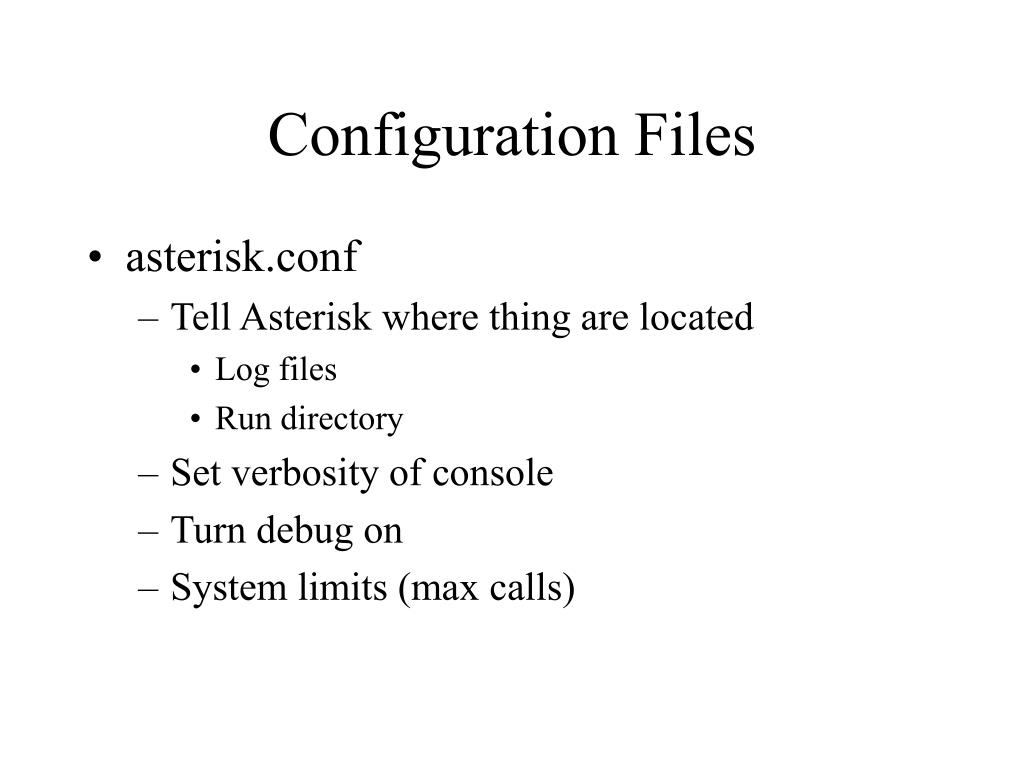

Configuration files4
Configuration Files

  • asterisk.conf

    • Tell Asterisk where thing are located

      • Log files

      • Run directory

    • Set verbosity of console

    • Turn debug on

    • System limits (max calls)


Configuration files5
Configuration Files

  • features.conf

    • Mostly for parked calls settings

  • http.conf

    • Setting for the Asterisk GUI web server

  • rtp.conf

    • Limit the ports RTP can use


Configuration files6
Configuration Files

  • iax.conf and sip.conf

    • Settings for connections

    • sip.conf for sip connections, ias.conf well you get it

    • Not used with GUIs, users.conf holds all that data

    • Contexts like in extensions.conf

      • [101] will be phone extension 101

      • All settings for that user under that context


Configuration files7
Configuration Files

  • zaptel.conf

    • Used to set up hardware for connecting your Asterisk system to POTS, either in or out.

    • I did not use this so can’t help here


Asterisk

  • manager.conf

    • Settings for the Asterisk GUI

      • Turn it on or off

      • Timeout

      • Password and user

      • Amount of control the GUI has


Configuration files8
Configuration Files

  • logger.conf

    • Name of log files

    • What to log

  • voicemail.conf

    • Turn on voicemail for a user

    • What capabilities the user has in VM


Configuration files9
Configuration Files

  • users.conf

    • Combines most of iax.conf, sip.conf, zaptel.conf, and voicemail.conf into one file.

    • Changed in later releases to make management easier

    • Uses contexts again like in sip.conf and iax.conf

    • Will show an example later


Phones
Phones

  • Hardphones

    • Grandstream BT200 inexpensive (about $50)

      • Only has 7 segment display so not caller ID name only number

      • Having problems with staying connected to Asterisk

      • Set up TFTP to set up firmware and ring tones for the phones

      • Use SIP

      • 100bTx in and out

    • Grandstream HT503

      • Multi use device

        • FXO to FXS

        • FXO to SIP

        • FXS to SIP

        • FXS to FXO

        • One 100bTx in and out


Phones1
Phones

  • Soft phones - program that runs on a computer

    • Xlite SIP (my favorite)

    • Zoiper - IAX


Resources
Resources

  • Asterisk, The Future of Telephone, 2nd ed.

    • O’Reily Publishing

    • Free PDF download from asterisk.org

    • Keep in mine this book does not talk about users.conf

  • voip-info.org

  • asterisk.org

  • trixbox.org

  • asterisktutorials.com

  • I found a web site from a San Diego company that had great Trixbox tutorials but alas I can’t find it now.
