Single Sign-onActive Directory and CU KerberosTechnical Support Provider ForumJanuary 19, 2005Moe ArifSystems AdministratorCIT Systems and Operations

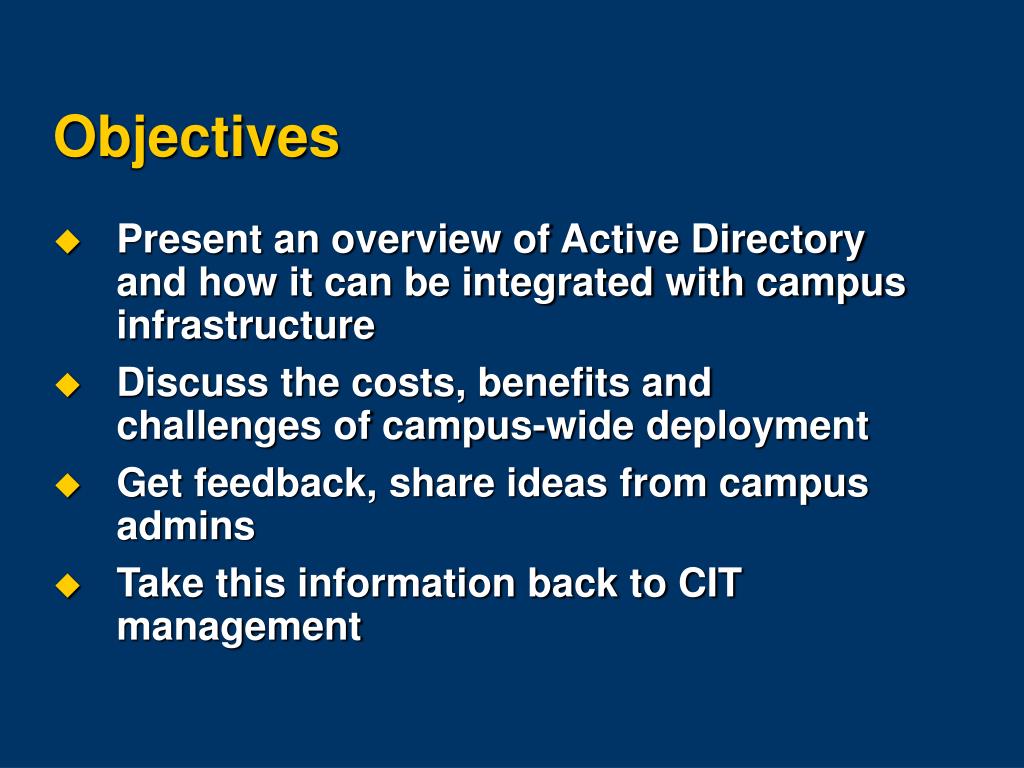

  • Present an overview of Active Directory and how it can be integrated with campus infrastructure

  • Discuss the costs, benefits and challenges of campus-wide deployment

  • Get feedback, share ideas from campus admins

  • Take this information back to CIT management


  • Overview of Active Directory (AD)

    • Brief and quick list of features

    • Non-technical

  • Campus Integration

    • DNS

    • Kerberos (K5) authentication

  • Pros and Cons

  • CIT’s current infrastructure

  • Q & A

About the speaker

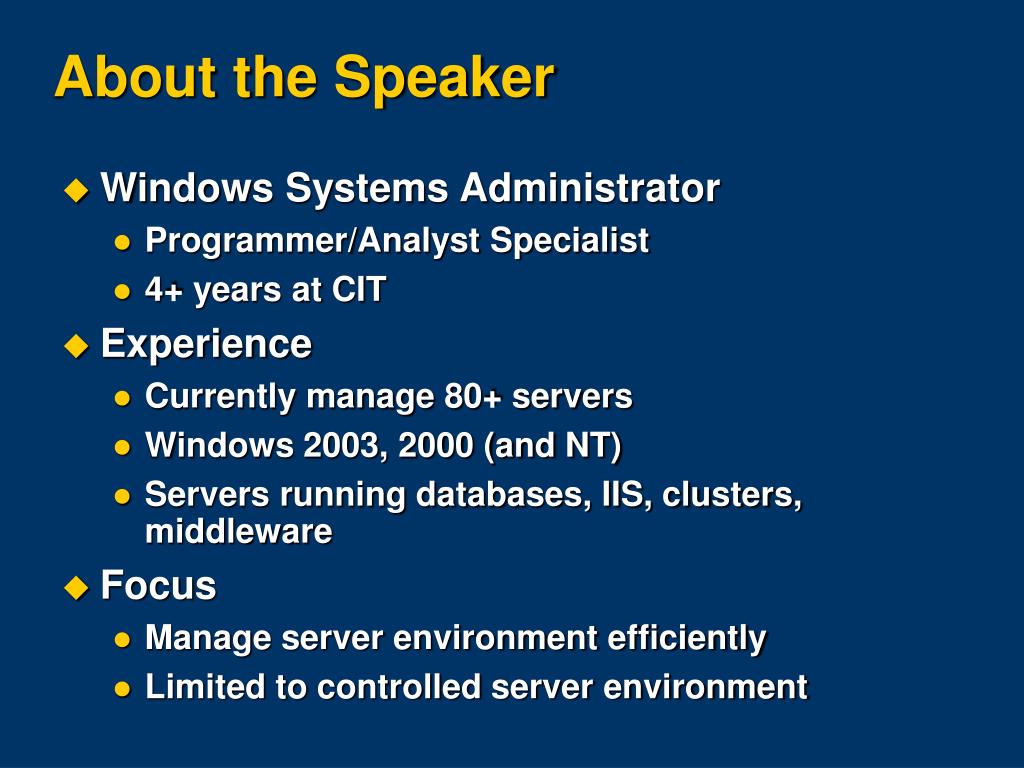

About the Speaker

  • Windows Systems Administrator

    • Programmer/Analyst Specialist

    • 4+ years at CIT

  • Experience

    • Currently manage 80+ servers

    • Windows 2003, 2000 (and NT)

    • Servers running databases, IIS, clusters, middleware

  • Focus

    • Manage server environment efficiently

    • Limited to controlled server environment

Active directory overview
Active Directory: Overview

  • AD is a Directory service

    • structured repository of people and resources in an organization

    • Released with Windows 2000 Server

  • LDAP Compliant (LDAPv3 protocol)

  • Logical structure

    • Consists of objects, OUs, domains, trees, forest

  • Physical structure

    • Domain controllers, LAN/WAN and sites

Active directory building blocks
Active Directory: Building Blocks

Active directory how it works
Active Directory: How it works

  • Servers that are Domain Controllers

    • AD database contains the objects

  • Schema

    • Can be extended

  • Flexible Single Master Operation (FSMO)

    • Five Roles (PDC, RID, Infrastructure, Schema Master, Domain Naming)

  • Global Catalog (GC)

    • Smaller copy of AD and searches

Active directory how it works1
Active Directory: How it works

  • DNS

    • Heavily relies on SRV records

    • Dynamically updates records

  • Kerberos

    • Kerberos authentication under the hood

    • KDC runs on Domain Controllers

  • More on DNS and Kerberos later

Active directory features
Active Directory: Features

  • Group Policy

    • Powerful feature

    • Control user and computer settings

    • Deploy to large number of systems

    • Can be applied to Site, Domain and OUs

  • Software Deployment

    • Via Group Policy (GPOs)

    • Install, upgrade, and remove

    • Control over installation via GPO

Active directory management
Active Directory: Management

  • Snap-ins and Tools for managing AD

  • MMC

    • ADUC, domains/trust, Sites/services

  • OUs to organize objects

    • Apply GPOs

    • Delegate control

  • Group Policy

    • Group Policy Management Console

    • gpupdate.exe utility (secedit in 2000)

    • gpresult.exe

Active directory management1
Active Directory: Management

  • Command-line tools and other utilities

    • Ntdsutil, ldifde, csvde

    • dsadd, dsget, dsrm, dsmod

    • ldp.exe (GUI)

    • replmon, repadmin, dcdiag

    • Admin tools (adminpak.msi)

    • Resource Kit and RK Tools (free)

    • WMI and wmic.exe

    • Many, many others

Integration dns
Integration: DNS

  • DNS is a must for AD to function

    • Run DNS servers under Windows

    • DCs (and desktops) perform dynamic updates (DDNS)

  • BIND can be set up for DDNS

    • CIT no longer offering DDNS

  • CIT recommended method


    • Search “dynamic DNS” at CIT website

Integration dns1

  • How to configure:

    • Install DNS service on your server

    • On the DC, configure DNS server addresses to be the server’s IP address (i.e. point to itself)

    • Configure desktop to point to CIT’s DNS

    • NS pointer on DNSDB points to your DNS server for these zones

      • Configured via DNSDB web page

  • _msdcs

  • _sites

  • _tcp

  • _udp

Integration: DNS

Integration dns2
Integration: DNS

  • Net Result:

    • AD servers happily update records

    • Desktops query CUDNS for SRV records

      • The records are served by the Windows DNS servers due to NS pointer

  • Register desktops with DNSDB

    • Network Registry requirement

    • Manually or batch upload

    • Non-AD integrated DNS servers have records in text file

      • Look in %systemroot%\system32\dns

Integration dns3
Integration: DNS

  • Live Demo

    • DNS Server config

    • *.dns files

    • IP configuration

    • DNSDB NS records

Integration cit kerberos
Integration: CIT Kerberos

  • AD supports cross-domain authentication to non-AD domains

  • CIT K5 realm “CIT.CORNELL.EDU”

    • One way trust

    • K5 domain is the trusted domain

  • Once established, users can login to AD domains using their NetID and Kerberos password

  • Result: Single Sign-on

Integration cit kerberos1
Integration: CIT Kerberos

How to configure

  • AD should be installed as usual

  • E-mail [email protected]

    • Need Domain name

    • Password will be given to you

  • CIT’s current practice

    • Will set up one-way trust to K5 realm

    • Technical support may be limited

      • Meeting with LDAP group, more testing, security, documentation

Integration cit kerberos2
Integration: CIT Kerberos

  • In Active Dir Domains and Trusts

    • Properties  Trusts

    • Domains trusted by this domain

      • ‘Add’ button in Win2000

      • ‘New Trust’ button in Win2003

  • Domain name: CIT.CORNELL.EDU

    • Must be uppercase

    • Will need password

    • Reboot server

Integration: CIT Kerberos

  • Need to create name mappings

    • Turn on Advanced Features in ADUC

    • User Name  Name Mappings

    • <netid>@CIT.CORNELL.EDU

    • AD accounts can be any format

    • Password can be anything (complex)

  • Install Kerberos utilities from OS CD

    • Part of Support Tools

    • <CD>:\support\tools\setup.exe

Integration: CIT Kerberos

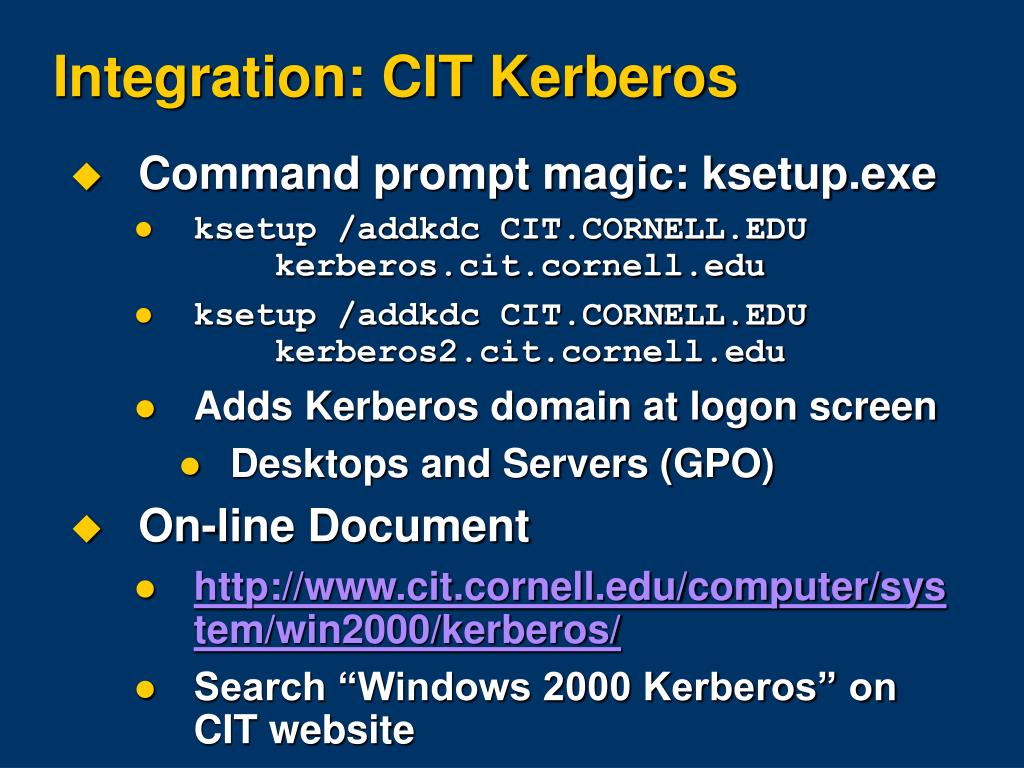

  • Command prompt magic: ksetup.exe

    • ksetup /addkdc CIT.CORNELL.EDU

    • ksetup /addkdc CIT.CORNELL.EDU

    • Adds Kerberos domain at logon screen

      • Desktops and Servers (GPO)

  • On-line Document


    • Search “Windows 2000 Kerberos” on CIT website

Integration: CIT Kerberos

  • Must create name mappings

    • Can be scripted

  • Authentication works from domain login screen only

  • Issues with non-members

    • Drive mapping, printing etc.

    • Down level clients

    • Some applications may have problem

    • What about non-windows machines?

  • Integration: CIT Kerberos

    • Live Demo

      • Authenticate to CIT realm

      • Domain trust setup screen

      • Name mappings example

      • ksetup.exe

    Single Sign-on: Pros and cons

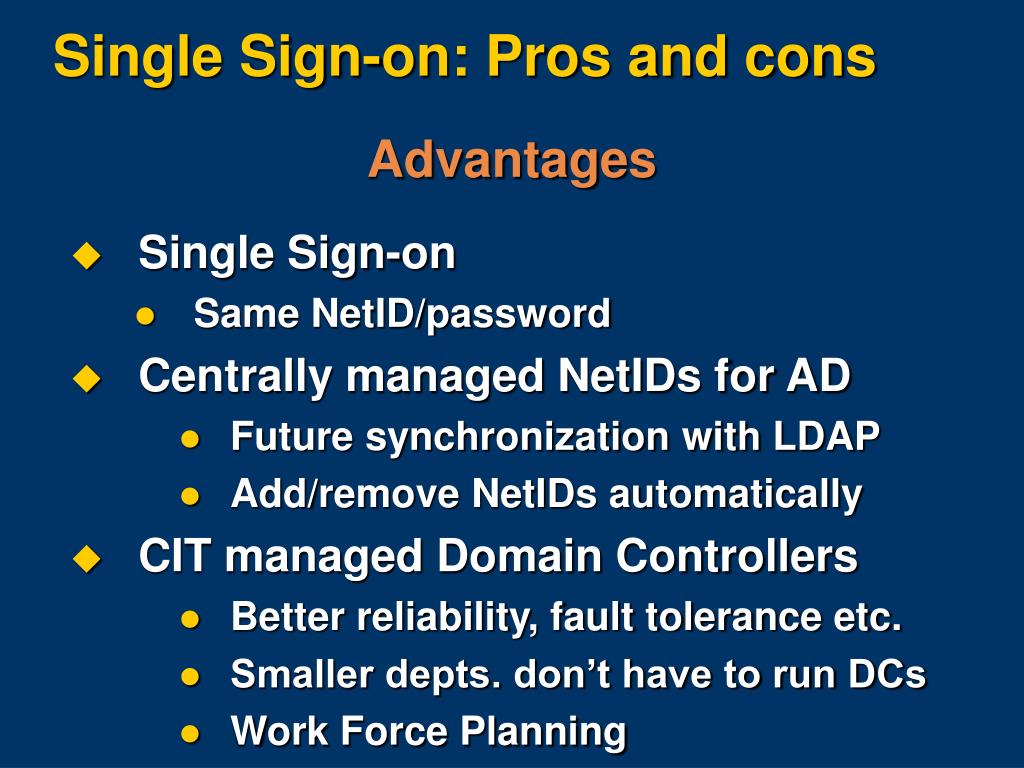

    • Single Sign-on

      • Same NetID/password

    • Centrally managed NetIDs for AD

      • Future synchronization with LDAP

      • Add/remove NetIDs automatically

  • CIT managed Domain Controllers

    • Better reliability, fault tolerance etc.

    • Smaller depts. don’t have to run DCs

    • Work Force Planning

  • Single Sign-on: Pros and cons

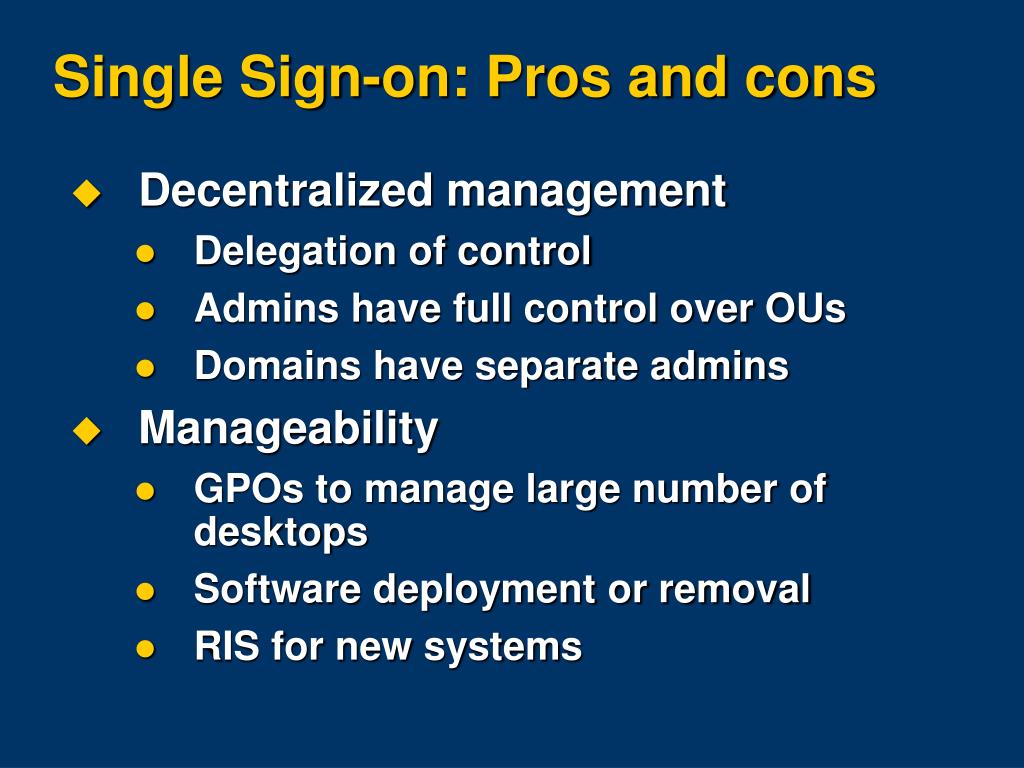

    • Decentralized management

      • Delegation of control

      • Admins have full control over OUs

      • Domains have separate admins

    • Manageability

      • GPOs to manage large number of desktops

      • Software deployment or removal

      • RIS for new systems

    Single Sign-on: Pros and cons

    • Usability

      • Powerful search capability

        • e.g. find plotter with special feature

      • Easier to setup rights across depts.

        • e.g. user with multiple appointments

    Single Sign-on: Pros and cons


    • Central Authority

      • CIT is Enterprise Admin

      • Full control over everything

        • Can be blocked to prevent accidents

        • Blocks can be easily removed

    • Security

      • Privilege elevation vulnerabilities

      • Human error and misconfiguration

      • Malicious attack

    Single Sign-on: Pros and cons

    • Schema

      • Schema extensions are forest-wide

        • Yikes!

      • Additional load on DCs, replication

        • Example: MS Exchange

      • Schema extensions are permanent

        • In Windows 2003, can be disabled

      • Some extensions may become obsolete

        • Example: software no longer used

    • So, these are bad things but …

    Single Sign-on: Pros and cons

    • Some thoughts about disadvantages

      • Schema extensions aren’t that bad

      • Similar security risks exist in separate domain

        • CIT can offer good security practices

      • CIT as Enterprise admin

        • CIT runs other more critical services that are already trusted

    • IMHO: Overall, pros outweigh the cons

    CIT’s Current Infrastructure

    • Empty Root

      • Installed in 2001

      • Place holder for

      • May be populated with NetIDs if “Go”

    • Under

      • – Internal CIT use

      • – Public labs

      • Separate domain tree for CIT managed Windows servers

    • Many larger organizations already running separate domains

    Costs, Benefits, Challenges

    • Costs:

    • Will need more powerful servers

    • Integration with LDAP

      • Project will need investigation

    • Managing Enterprise level AD

      • Non-trivial task

      • Creating OUs, objects, rights etc.

      • Everyday care and feed

      • Need a dedicated person (or 2 or 3)

    Costs, Benefits, Challenges

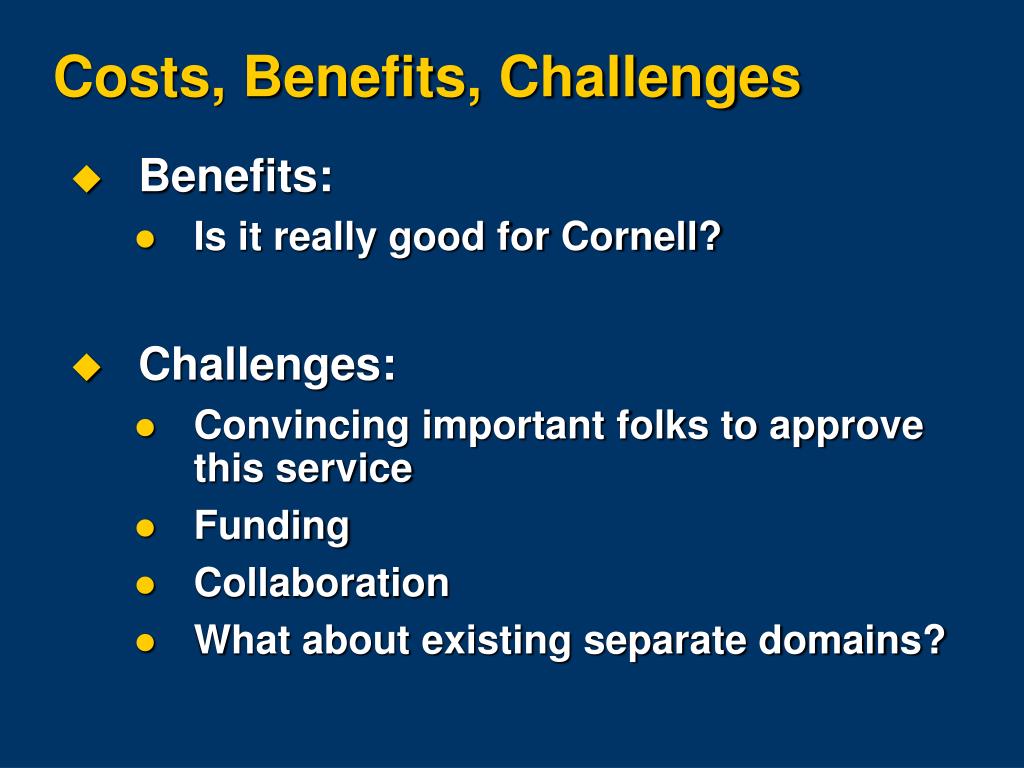

    • Benefits:

      • Is it really good for Cornell?

    • Challenges:

      • Convincing important folks to approve this service

      • Funding

      • Collaboration

      • What about existing separate domains?


    • Active Directory is here to stay

    • Many schools have implemented large or campus-wide ADs

    • Will a campus-wide Active Directory service (besides LDAP) benefit Cornell?


    • I don’t have all the answers

    • What are your thoughts?

    • What would you like to see at Cornell?

    • What can I take back to CIT management?

    • Should we form an Active Directory focus group and decide?

    • Questions, comments, suggestions

    Thank You

    Open Discussion, and Q&A
