unix foundations

UNIX Foundations

The Process and the Kernel

course description

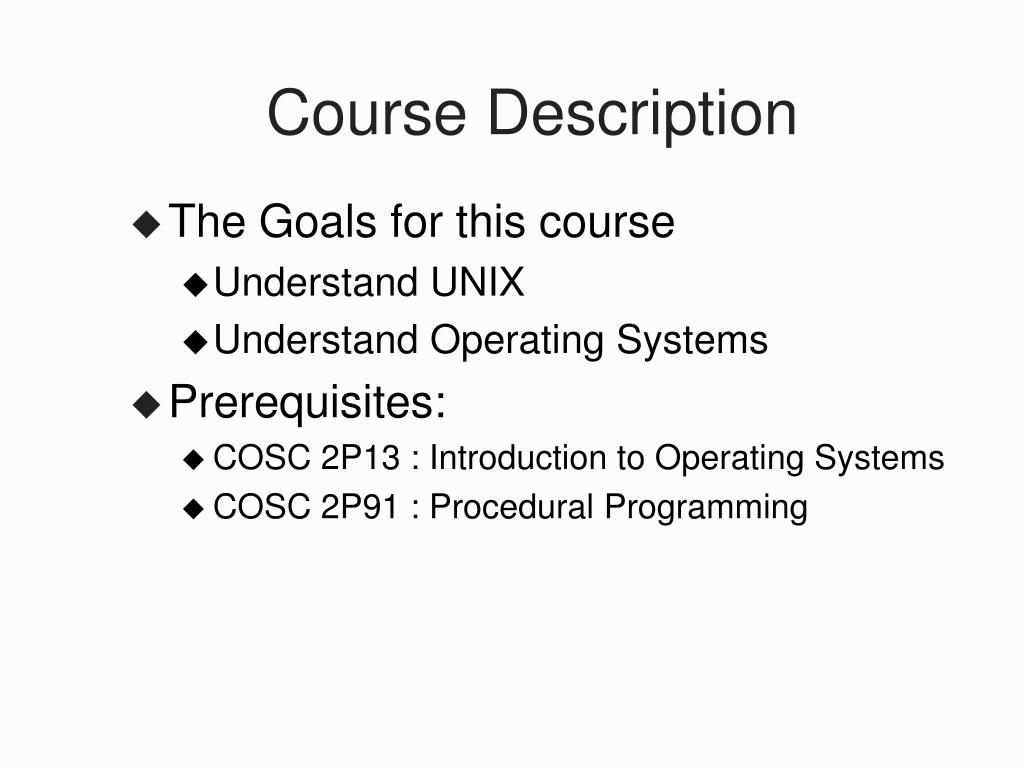

Course Description
  • The Goals for this course
    • Understand UNIX
    • Understand Operating Systems
  • Prerequisites:
    • COSC 2P13 : Introduction to Operating Systems
    • COSC 2P91 : Procedural Programming
course description3

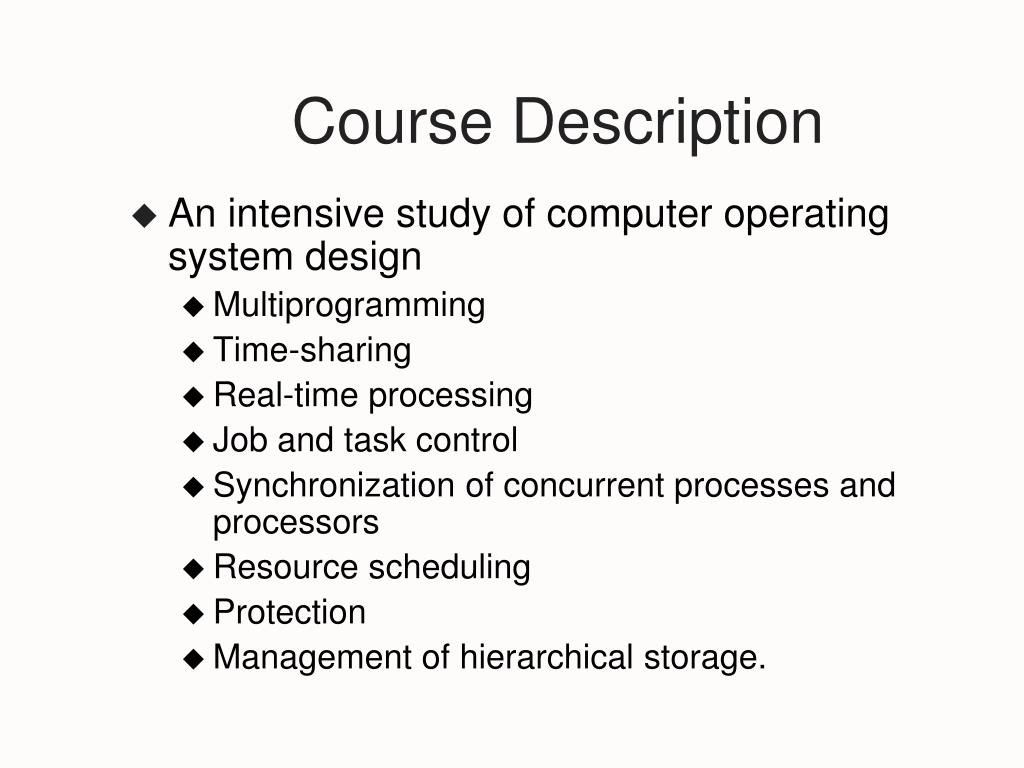

Course Description
  • An intensive study of computer operating system design
    • Multiprogramming
    • Time-sharing
    • Real-time processing
    • Job and task control
    • Synchronization of concurrent processes and processors
    • Resource scheduling
    • Protection
    • Management of hierarchical storage.
how to study this course

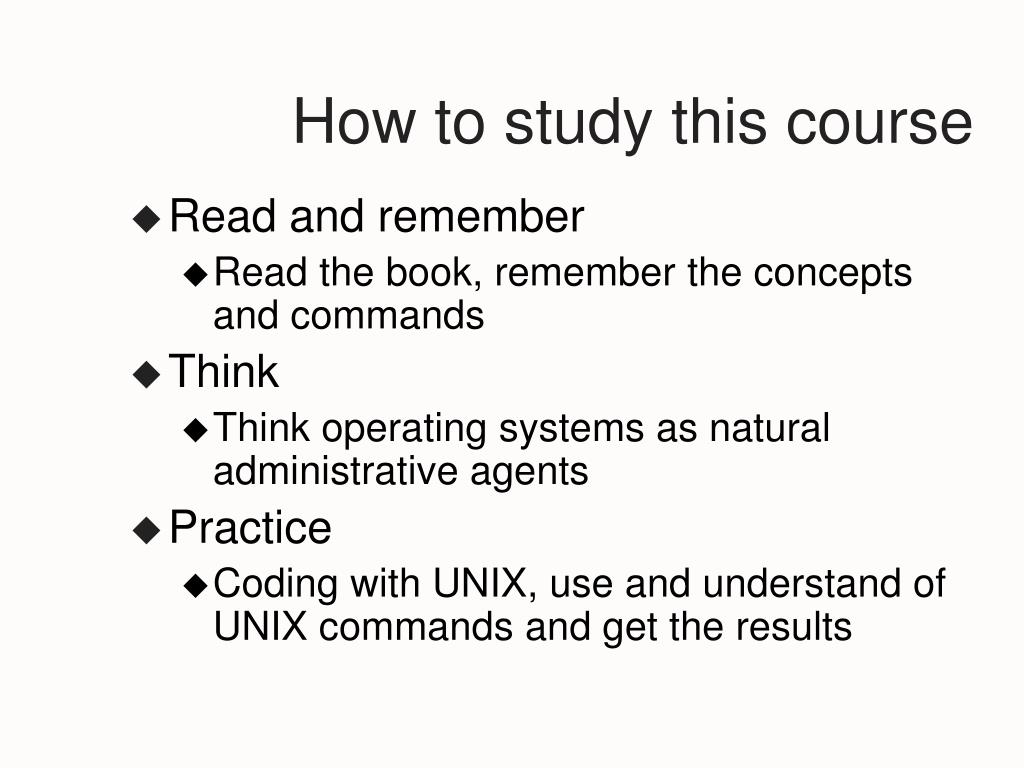

How to study this course
  • Read and remember
    • Read the book, remember the concepts and commands
  • Think
    • Think operating systems as natural administrative agents
  • Practice
    • Coding with UNIX, use and understand of UNIX commands and get the results
the textbook used

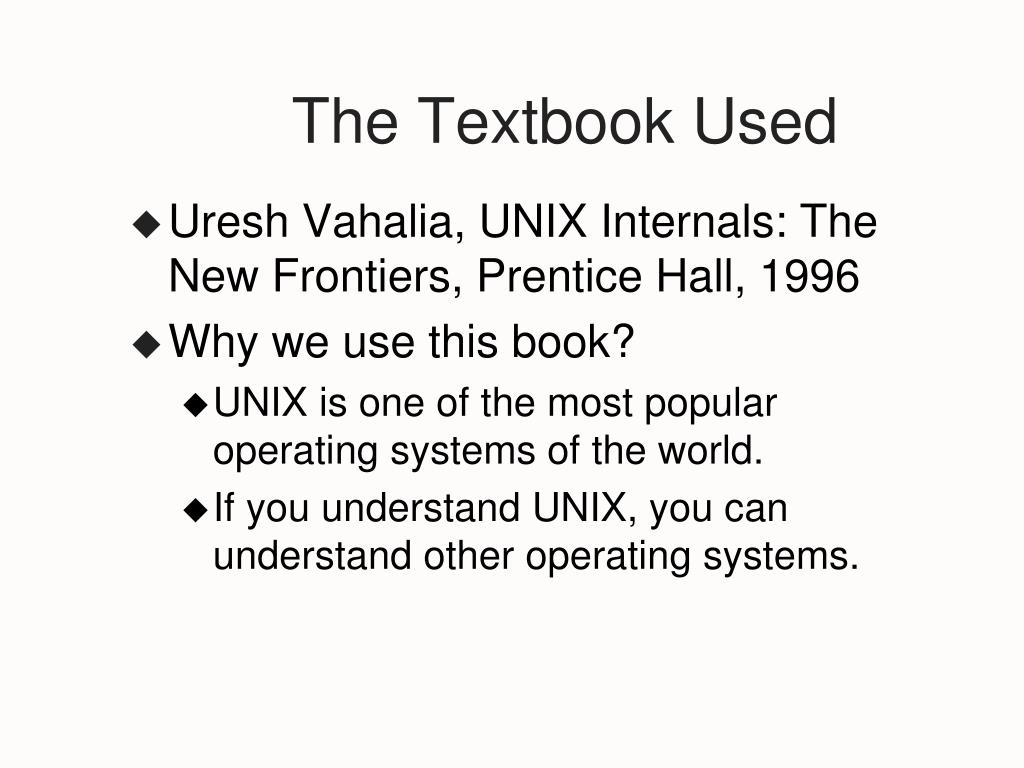

The Textbook Used
  • Uresh Vahalia, UNIX Internals: The New Frontiers, Prentice Hall, 1996
  • Why we use this book?
    • UNIX is one of the most popular operating systems of the world.
    • If you understand UNIX, you can understand other operating systems.
references
References
  • William Stallings, Operating Systems,5th Ed., Prentice Hall,2005
  • A. Tanenbaum, Modern Operating Systems, 2nd ed. Prentice Hall 2001
  • Kay A. Robbins and Steven Robbins, UNIX Systems Programming, Prentice Hall,2003
  • W. R. Stevens, Advanced Programming in the UNIX Environment, Addison Wesley, 1992
summary of unix history

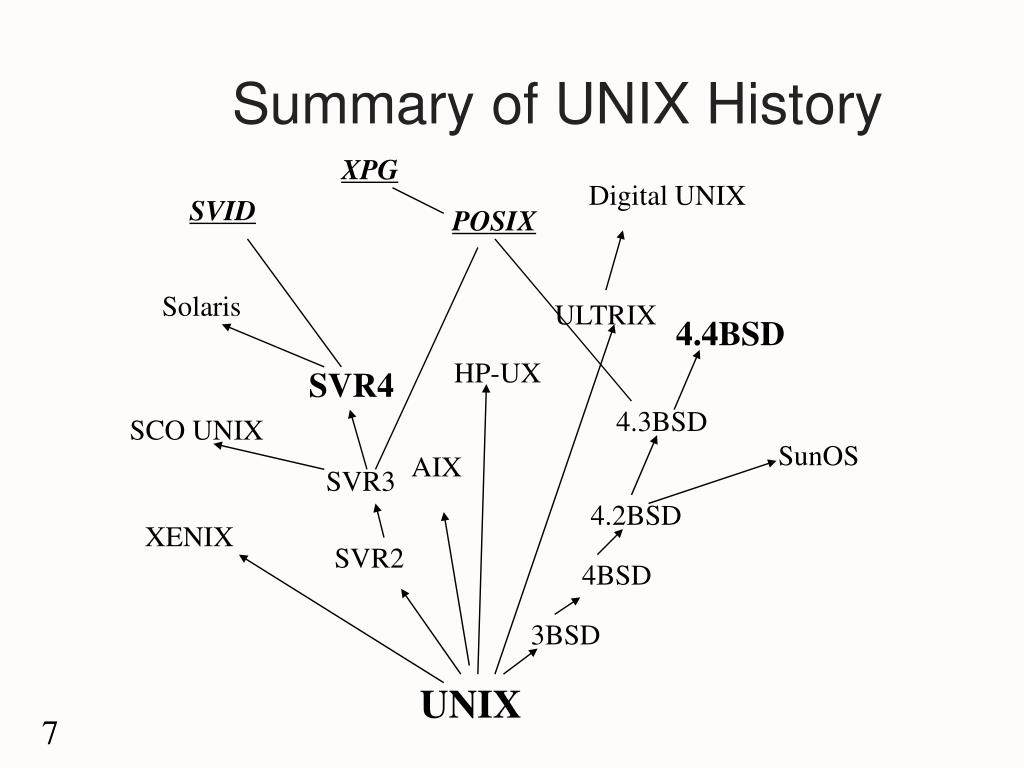

Summary of UNIX History

XPG

Digital UNIX

SVID

POSIX

Solaris

ULTRIX

4.4BSD

HP-UX

SVR4

4.3BSD

SCO UNIX

SunOS

AIX

SVR3

4.2BSD

XENIX

SVR2

4BSD

3BSD

UNIX

summary of unix history8

V1

.

.

.

V6

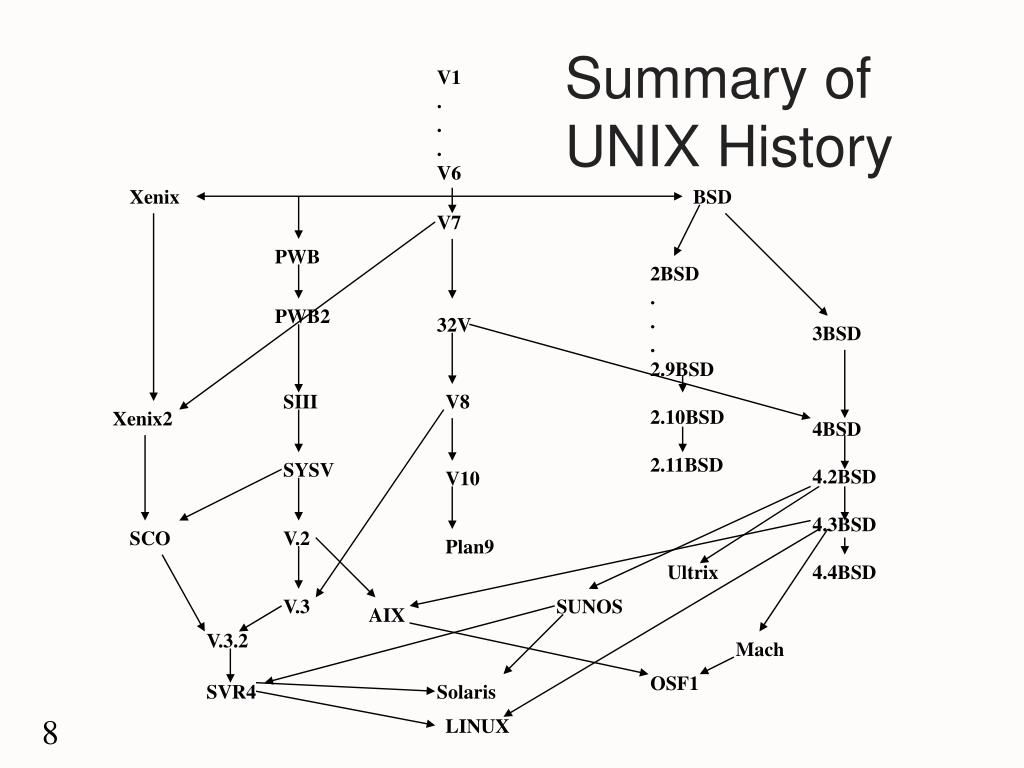

Summary of UNIX History

Xenix

BSD

V7

PWB

2BSD

.

.

.

2.9BSD

2.10BSD

2.11BSD

PWB2

32V

3BSD

4BSD

4.2BSD

4.3BSD

4.4BSD

SIII

V8

Xenix2

SYSV

V10

SCO

V.2

Plan9

Ultrix

V.3

SUNOS

AIX

V.3.2

Mach

OSF1

SVR4

Solaris

LINUX

flexibility

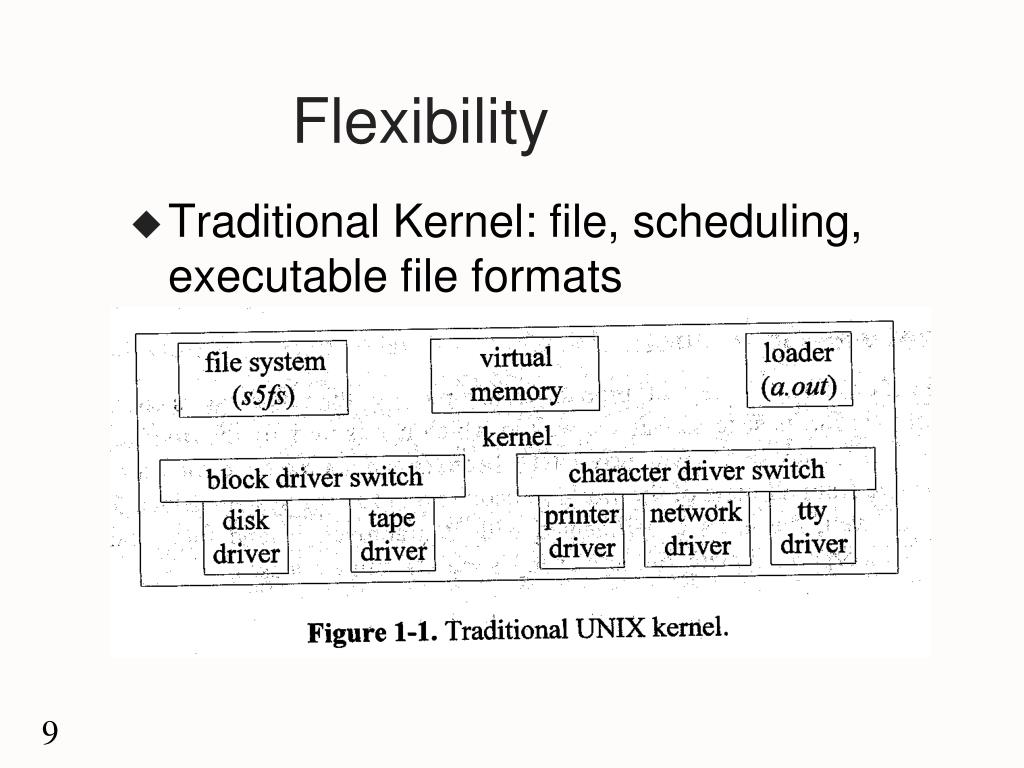

Flexibility
  • Traditional Kernel: file, scheduling, executable file formats
assessment of unix
Assessment of UNIX
  • Advantages: - open software process, - well designed, small and simple kernel, - text files in system databases, - simple, uniform interface to I/O devices, - portability (written in C)
assessment of unix12
Assessment of UNIX
  • Disadvantages: - expansion of the more and more complex I/O library, - unfriendly user interface, - building block approach to tools, but not to the kernel, - too many versions and standards, - monolithic, unmodular and more and more complex kernel.
unix architecture

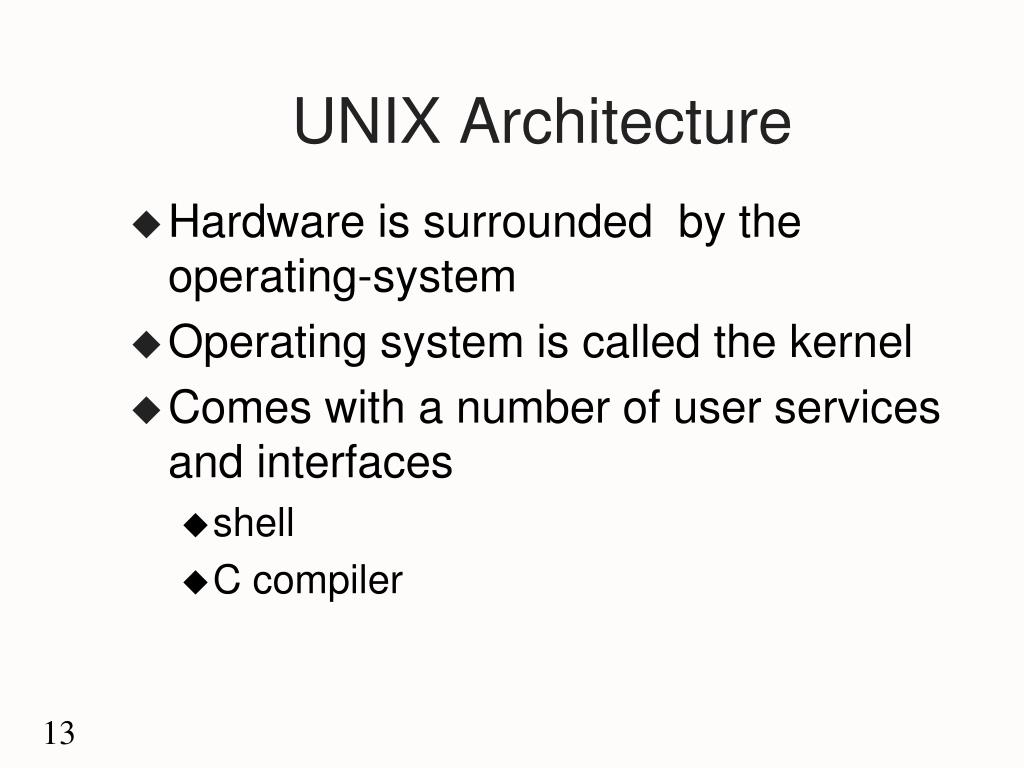

UNIX Architecture
  • Hardware is surrounded by the operating-system
  • Operating system is called the kernel
  • Comes with a number of user services and interfaces
    • shell
    • C compiler
unix architecture14

Application Programs

Shell Editors, and

Private User Programs

Kernel

Compiler

Compiler Components

Hardware

UNIX Architecture
slide15

UserInterface

The layers of a UNIX system.

unix utility programs

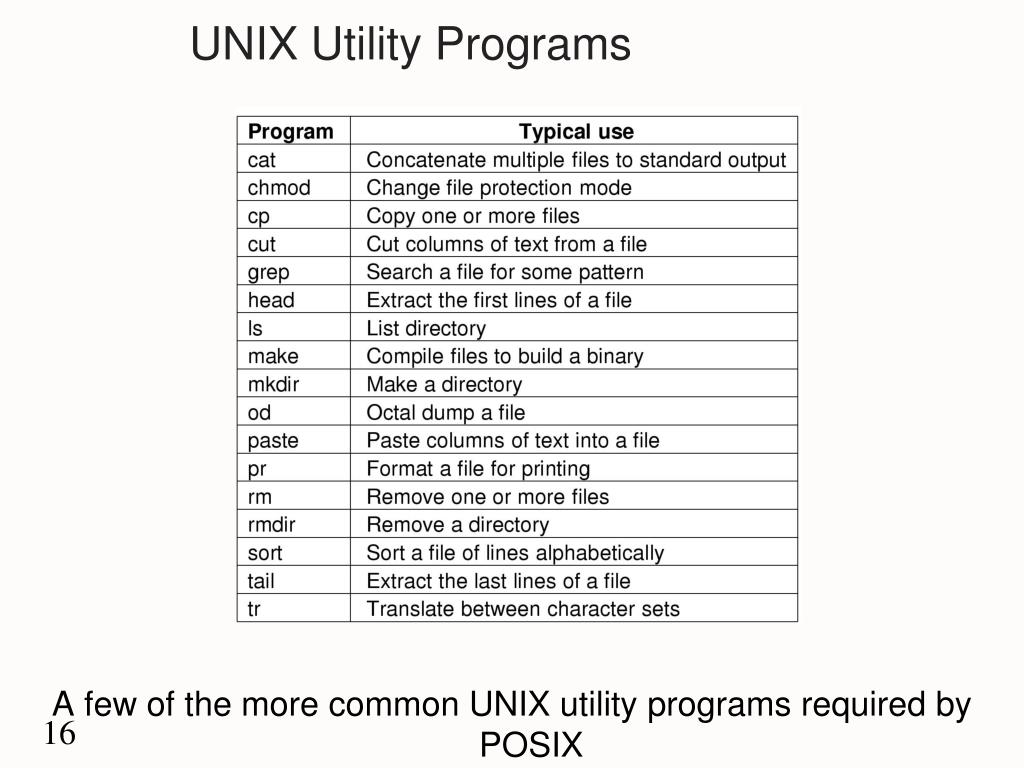

UNIX Utility Programs

A few of the more common UNIX utility programs required by POSIX

unix shell programming

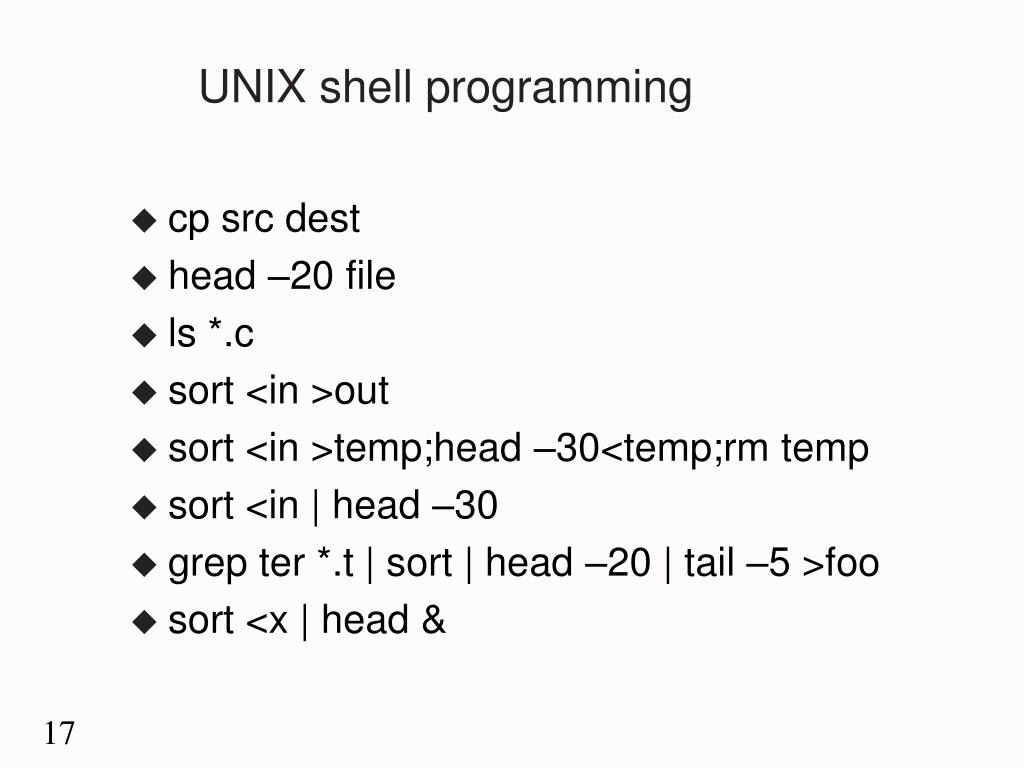

UNIX shell programming
  • cp src dest
  • head –20 file
  • ls *.c
  • sort <in >out
  • sort <in >temp;head –30<temp;rm temp
  • sort <in | head –30
  • grep ter *.t | sort | head –20 | tail –5 >foo
  • sort <x | head &
process
Process
  • In UNIX
    • Process is an instance of a running program.
    • Lifetime: fork/vfork->exec->exit
    • Well-defined hierarchy: parent,child,init,
    • init process: the top process
    • swapper & pagedeamon
    • Orphans: the parent process is terminated.
process creation

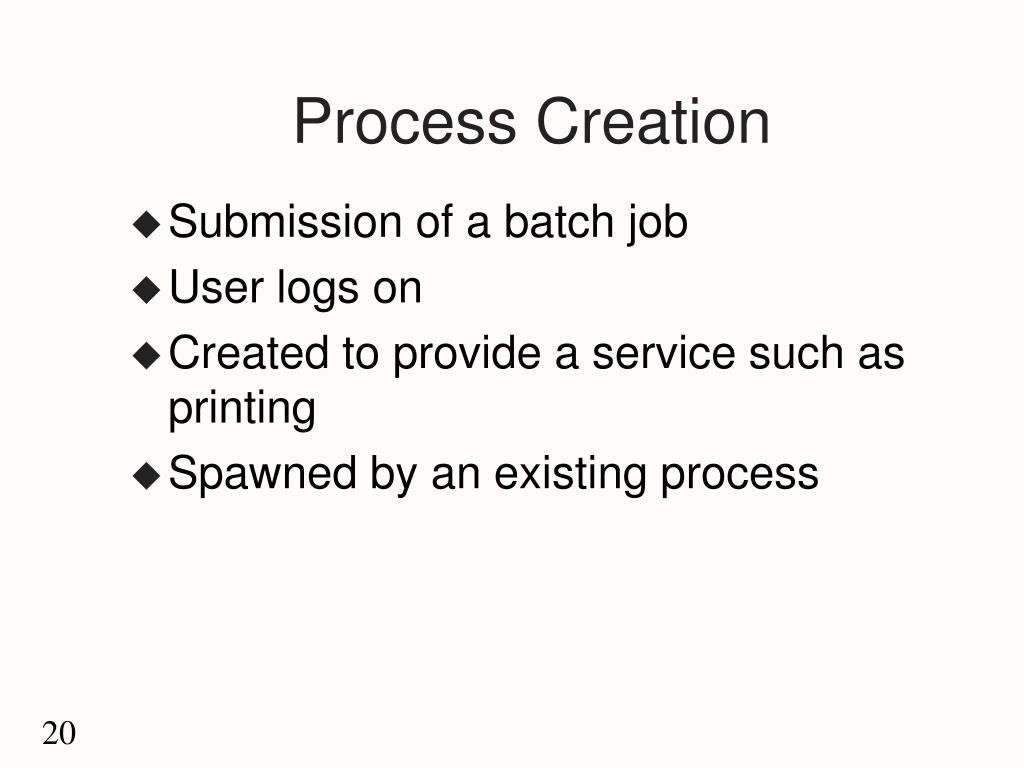

Process Creation
  • Submission of a batch job
  • User logs on
  • Created to provide a service such as printing
  • Spawned by an existing process
process termination
Process Termination
  • Batch job issues Halt instruction
  • User logs off
  • Process executes a service request to terminate
  • Error and fault conditions
reasons for process termination

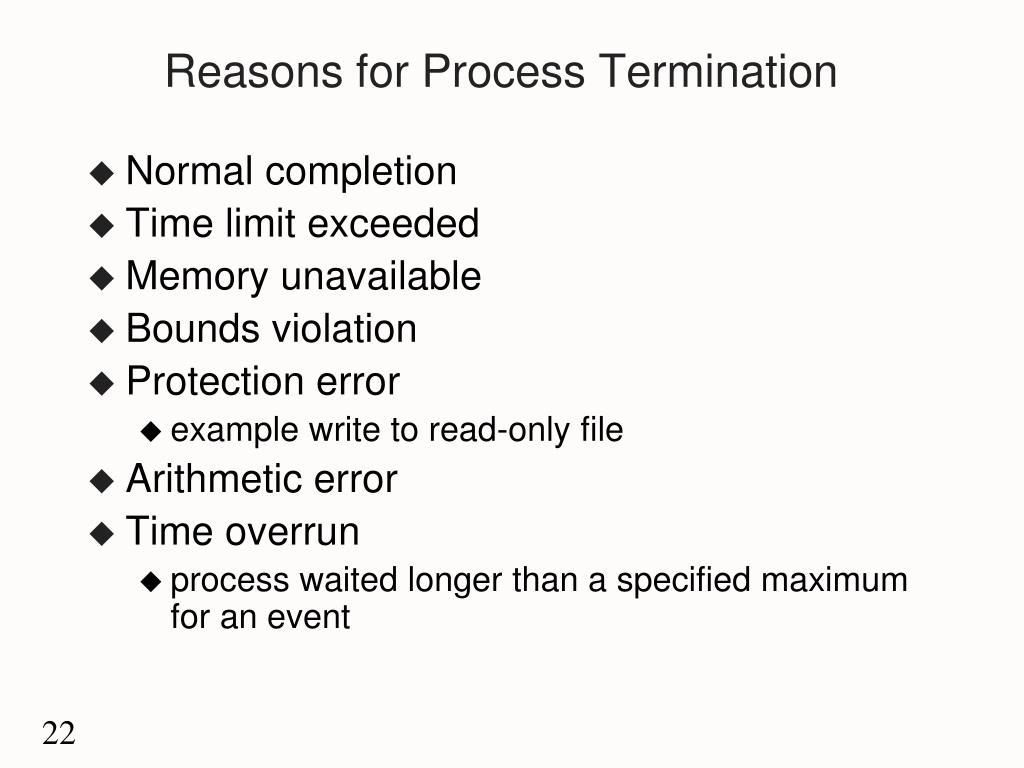

Reasons for Process Termination
  • Normal completion
  • Time limit exceeded
  • Memory unavailable
  • Bounds violation
  • Protection error
    • example write to read-only file
  • Arithmetic error
  • Time overrun
    • process waited longer than a specified maximum for an event
reasons for process termination23

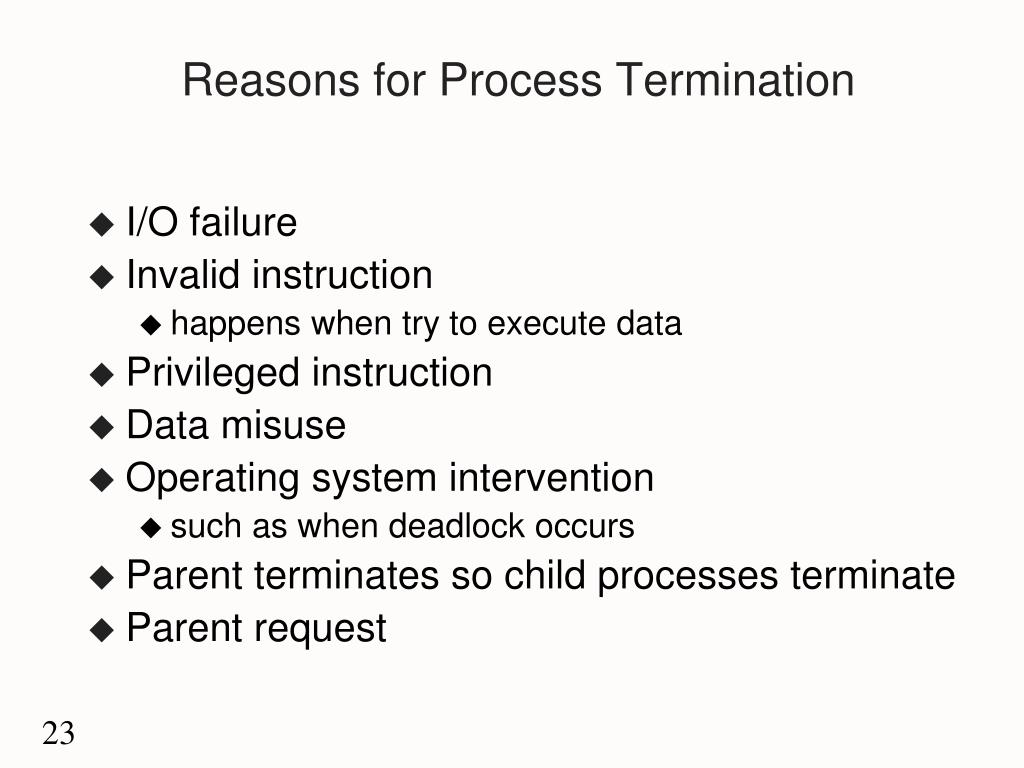

Reasons for Process Termination
  • I/O failure
  • Invalid instruction
    • happens when try to execute data
  • Privileged instruction
  • Data misuse
  • Operating system intervention
    • such as when deadlock occurs
  • Parent terminates so child processes terminate
  • Parent request
process states

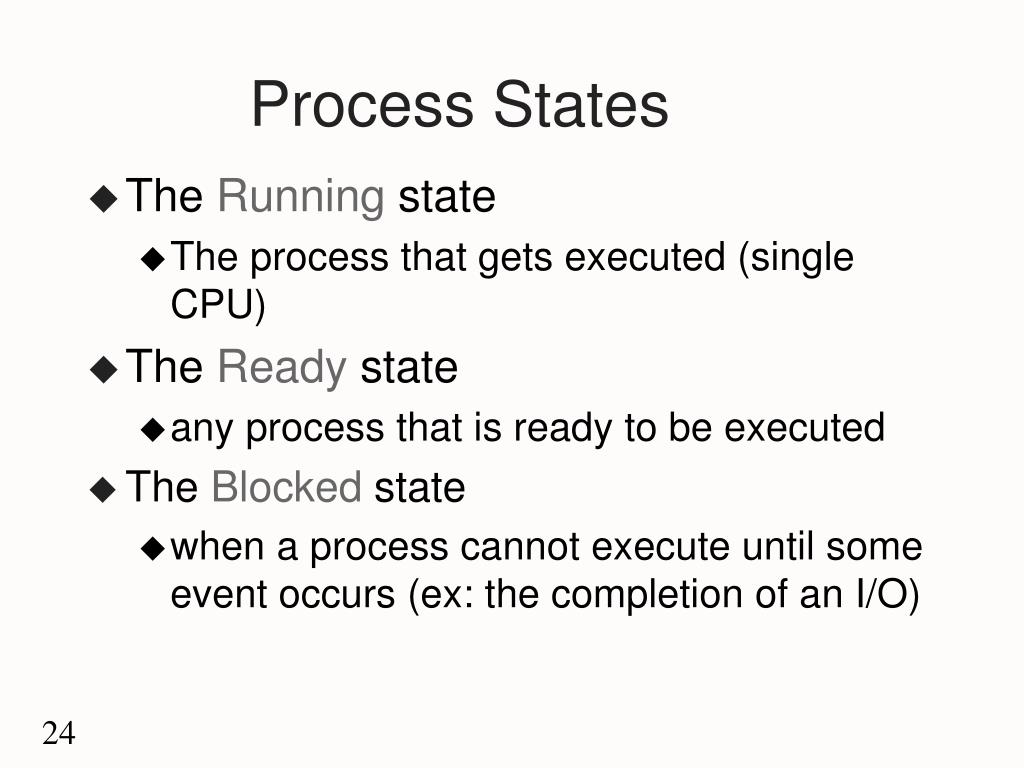

Process States
  • The Running state
    • The process that gets executed (single CPU)
  • The Ready state
    • any process that is ready to be executed
  • The Blocked state
    • when a process cannot execute until some event occurs (ex: the completion of an I/O)
process states25
Process States
  • The New state
    • OS has performed the necessary actions to create the process
      • has created a process identifier
      • has created tables needed to manage the process
    • but has not yet committed to execute the process (not yet admitted)
      • because resources are limited
  • The Exit state
    • Termination moves the process to this state
    • It is no longer eligible for execution
    • Tables and other info are temporarily preserved for auxiliary program
five state process model
Five-State Process Model

Dispatch

Release

Admit

New

Ready

Running

Exit

Time-out

Event

Wait

Event

Occurs

Blocked

single blocked queue
Single Blocked Queue

Ready Queue

Release

Dispatch

Admit

Processor

Time-out

Event Wait

Event

Occurs

Blocked Queue

multiple blocked queues

Event 1 Wait

Event 1

Occurs

Event 1 Queue

Event 2 Wait

Event 2

Occurs

Event 2 Queue

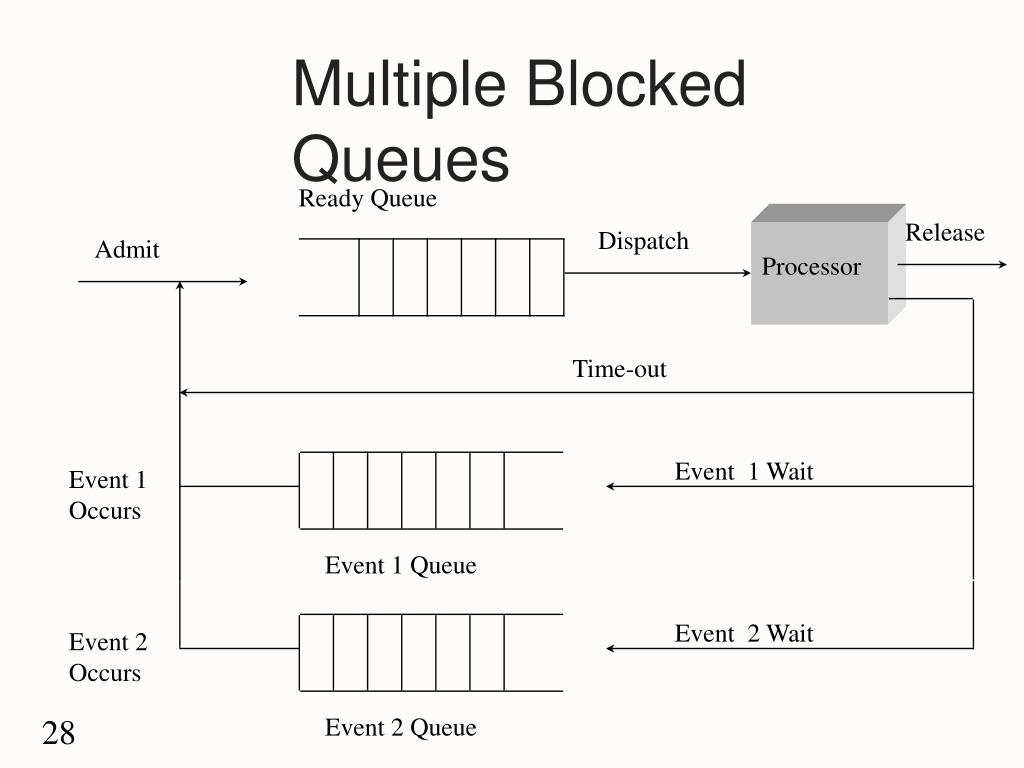

Multiple Blocked Queues

Ready Queue

Release

Dispatch

Admit

Processor

Time-out

suspended processes
Suspended Processes
  • Processor is faster than I/O so all processes could be waiting for I/O
  • Swap these processes to disk to free up more memory
  • Blocked state becomes suspend state when swapped to disk
  • Two new states
    • Blocked, suspend
    • Ready, suspend
process state transition diagram with two suspend states
Process State Transition Diagram with Two Suspend States

Ready

Admit

Suspend

Admit

Dispatch

Activate

Ready,

suspend

Ready

Running

Exit

Suspend

Time out

Event

Wait

Event

Occurs

Event

Occurs

Activate

Blocked,

suspend

Blocked

processor state information

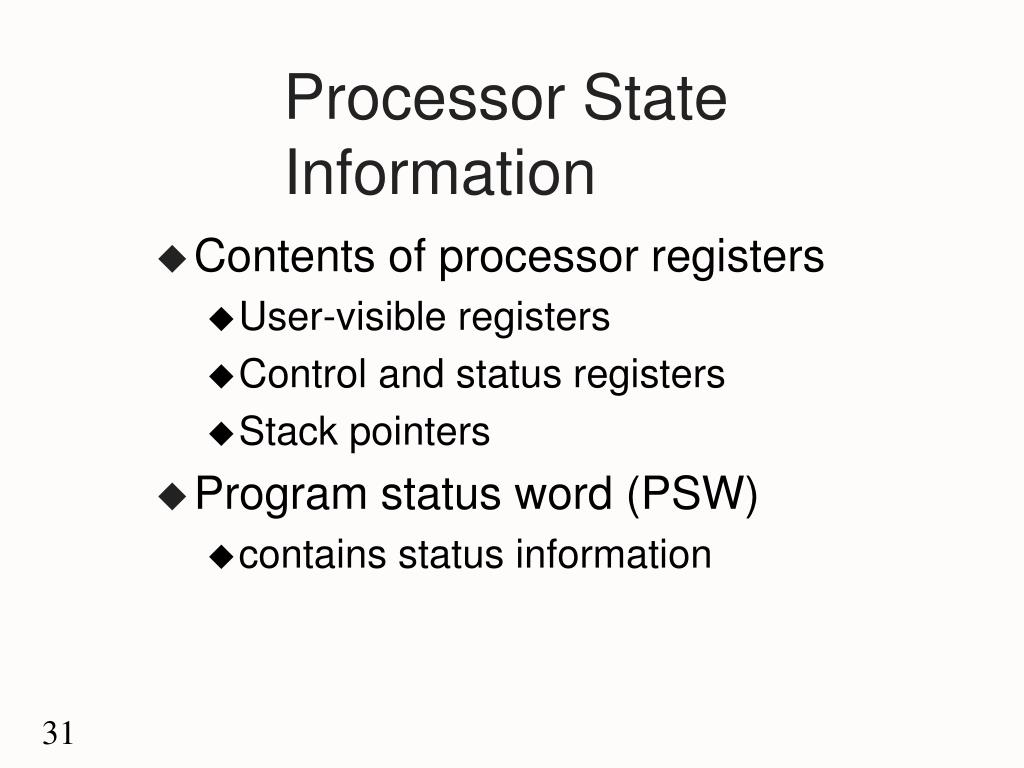

Processor State Information
  • Contents of processor registers
    • User-visible registers
    • Control and status registers
    • Stack pointers
  • Program status word (PSW)
    • contains status information
process control information

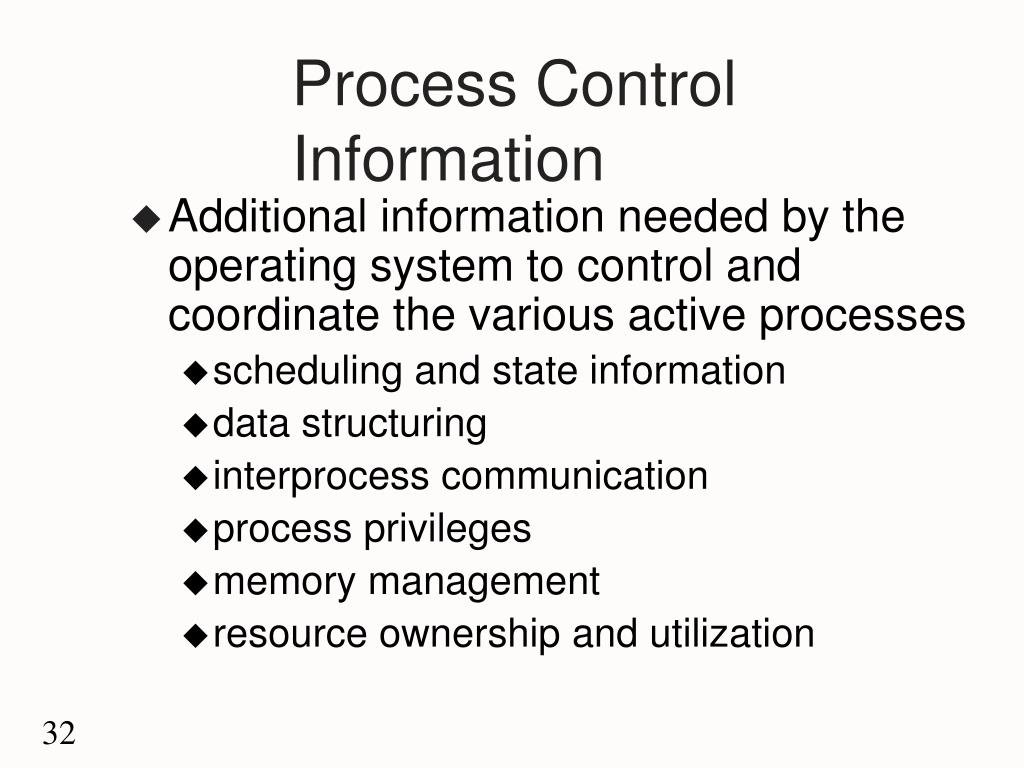

Process Control Information
  • Additional information needed by the operating system to control and coordinate the various active processes
    • scheduling and state information
    • data structuring
    • interprocess communication
    • process privileges
    • memory management
    • resource ownership and utilization
process creation33
Process Creation
  • Assign a unique process identifier
  • Allocate space for the process
  • Initialize process control block
  • Set up appropriate linkages
    • Ex: add new process to linked list used for scheduling queue
  • Other
    • maintain an accounting file
when to switch a process

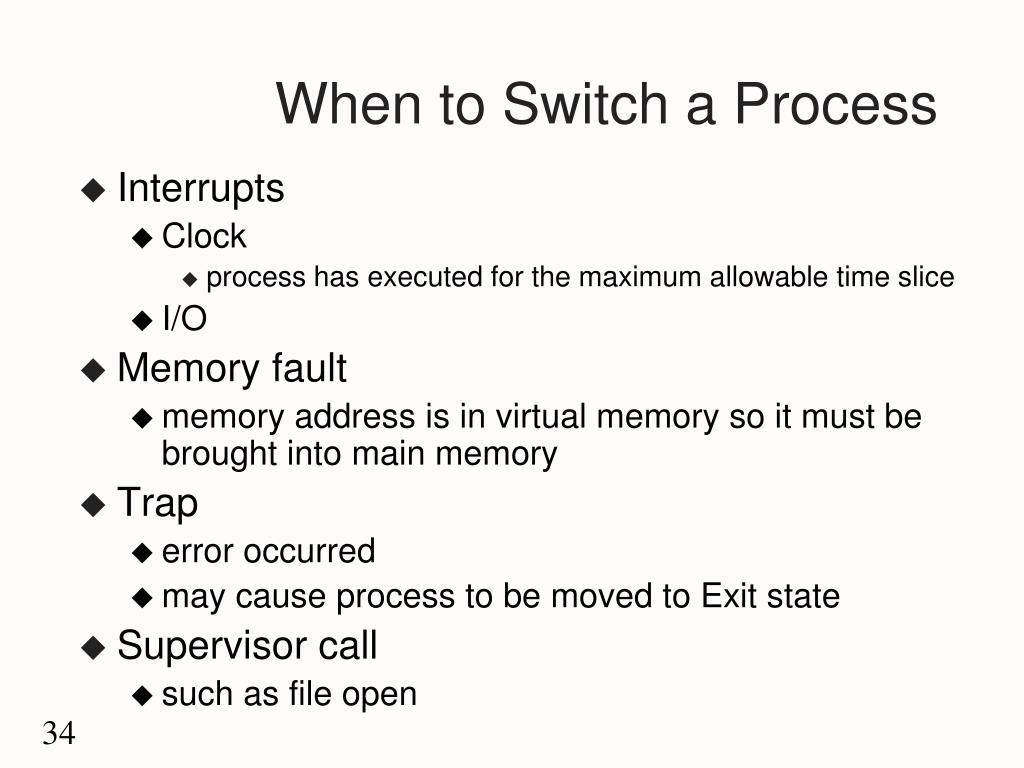

When to Switch a Process
  • Interrupts
    • Clock
      • process has executed for the maximum allowable time slice
    • I/O
  • Memory fault
    • memory address is in virtual memory so it must be brought into main memory
  • Trap
    • error occurred
    • may cause process to be moved to Exit state
  • Supervisor call
    • such as file open
change of process state
Change of Process State
  • Save context of processor including program counter and other registers
  • Update the process control block with the new state and any accounting information
  • Move process control block to appropriate queue - ready, blocked
  • Select another process for execution
  • Update the process control block of the process selected
  • Update memory-management data structures
  • Restore context of the selected process
unix process state

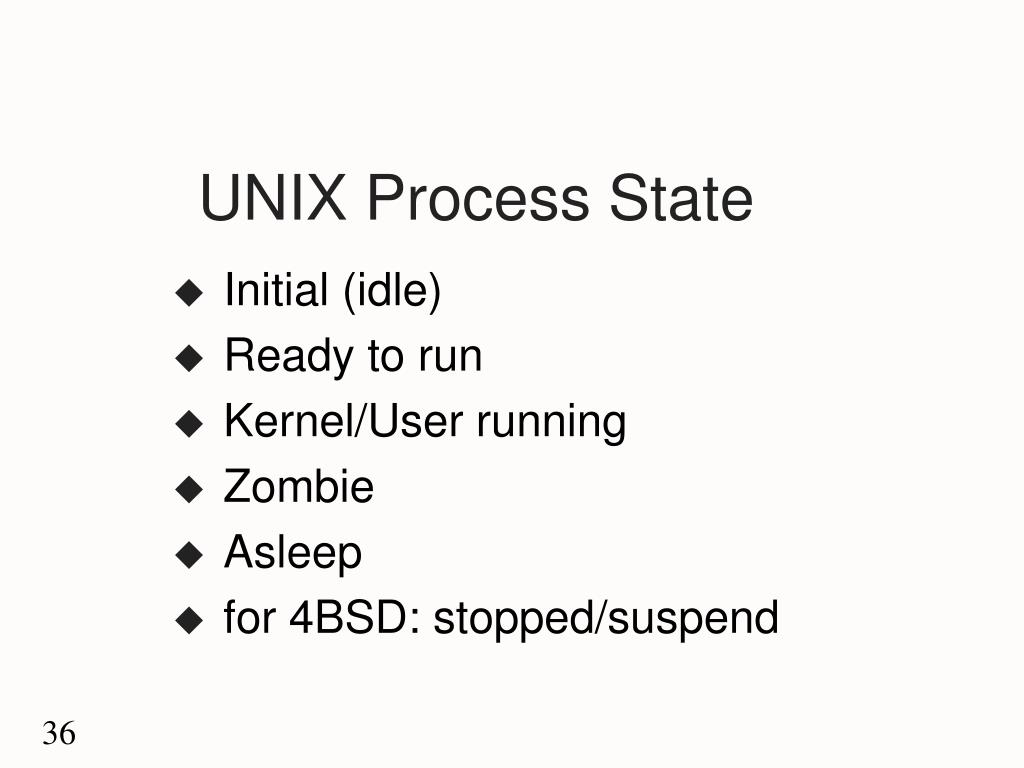

UNIX Process State
  • Initial (idle)
  • Ready to run
  • Kernel/User running
  • Zombie
  • Asleep
  • for 4BSD: stopped/suspend
process context
Process Context
  • User address space:
    • code, data, stack, shared memory regions,
  • Control information:
    • u area, proc, kernel stack, ATM
  • Credentials: UID & GID
  • Environment variables:
    • inherited from the parent
  • Hardware context(in PCB of u area):
    • PC, SP, PSW, MMR, FPU
user credentials

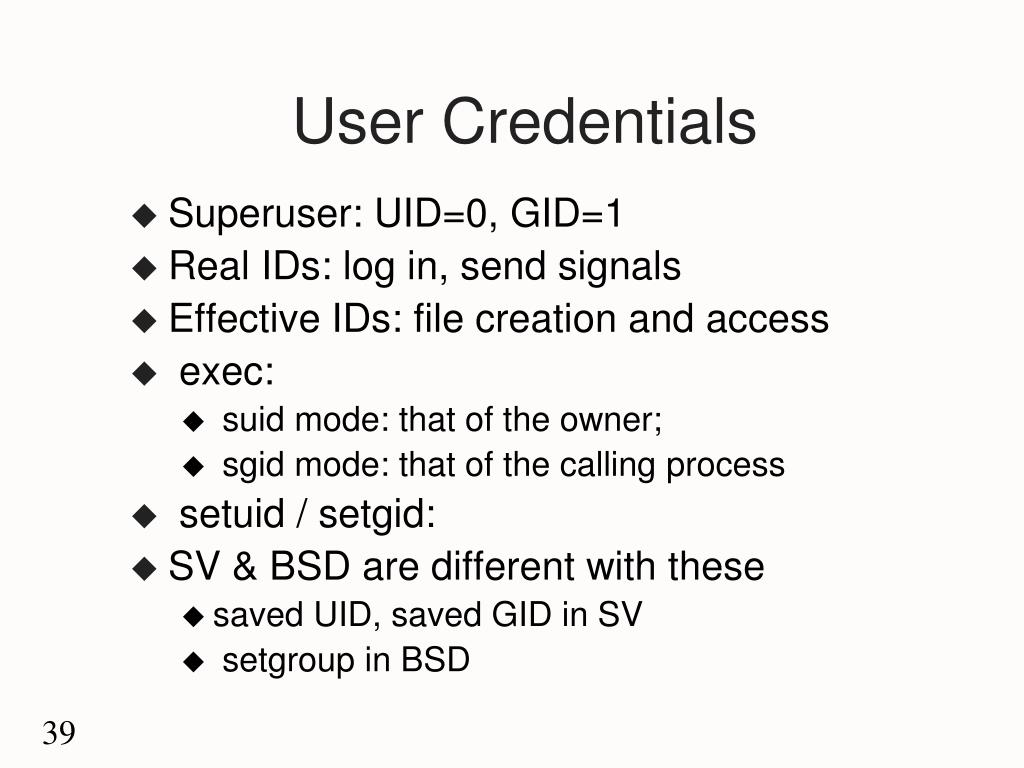

User Credentials
  • Superuser: UID=0, GID=1
  • Real IDs: log in, send signals
  • Effective IDs: file creation and access
  • exec:
    • suid mode: that of the owner;
    • sgid mode: that of the calling process
  • setuid / setgid:
  • SV & BSD are different with these
    • saved UID, saved GID in SV
    • setgroup in BSD
the u area

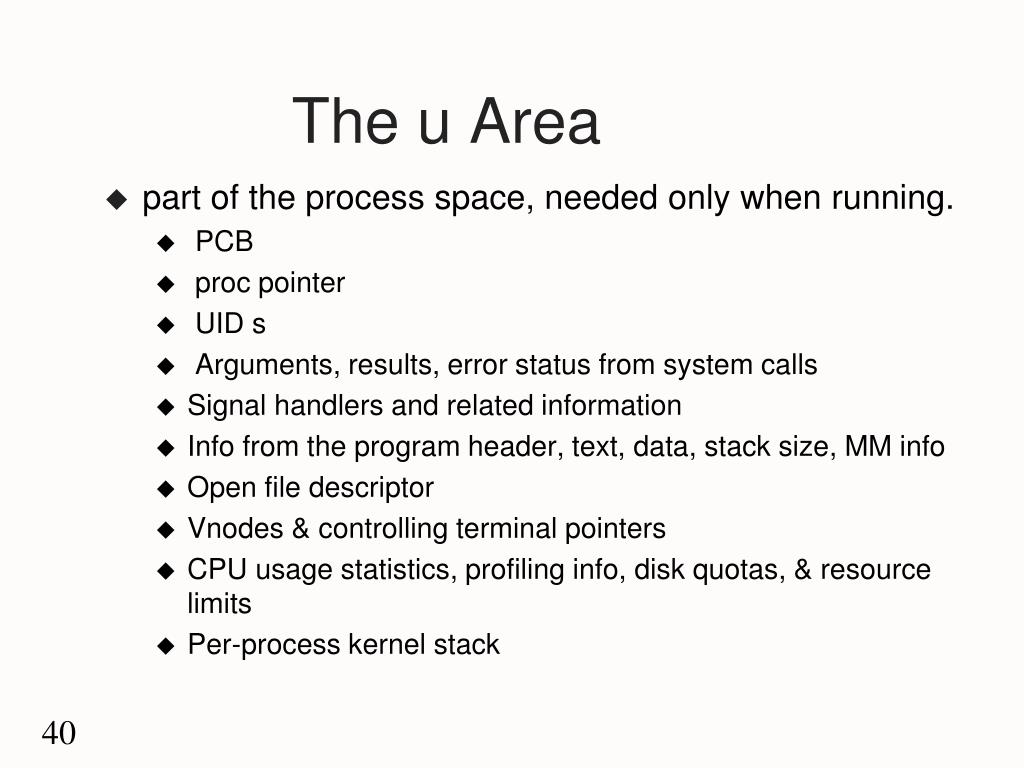

The u Area
  • part of the process space, needed only when running.
    • PCB
    • proc pointer
    • UID s
    • Arguments, results, error status from system calls
    • Signal handlers and related information
    • Info from the program header, text, data, stack size, MM info
    • Open file descriptor
    • Vnodes & controlling terminal pointers
    • CPU usage statistics, profiling info, disk quotas, & resource limits
    • Per-process kernel stack
the proc
The proc
  • Process table
    • Id
    • Location of the kernel address map for the u area
    • Current process state
    • Forward and backward pointers in scheduled queue
    • Sleep channel (7.2.3)
    • Scheduling priority and related (Chapter 5)
    • Signal handling info(Chapter 4).
    • MM info
    • Pointers to link active, free, zombie processes in lists
    • Flags
    • Pointers to keep structures on a hash queue by PID
    • Hierarchy info
a typical process hierarchy in 4 3bsd unix

Process ID

A typical process hierarchy in 4.3BSD UNIX

Parent Process ID

pointer to parent’s proc

Pointer to the younger sibling

Pointer to the oldest child

typical functions of an operating system kernel
Typical Functions of an Operating-System Kernel
  • Process Management
    • Process creation and termination
    • Process scheduling and dispatching
    • Process switching
    • Process synchronization and support for inter-process communication
    • Management of process control blocks
  • Memory Management
    • Allocation of address space to processes
    • Swapping
    • Page and segment management
typical functions of an operating system kernel44
Typical Functions of an Operating-System Kernel
  • I/O Management
    • Buffer management
    • Allocation of I/O channels and devices to processes
  • Support Functions
    • Interrupt handling
    • Accounting
    • Monitoring
operating system control structures
Operating System Control Structures
  • An OS maintains the following tables for managing processes and resources:
    • Memory tables
    • I/O tables
    • File tables
    • Process tables
memory tables
Memory Tables
  • Allocation of main memory to processes
  • Allocation of secondary memory to processes
  • Protection attributes for access to shared memory regions
  • Information needed to manage virtual memory
i o tables

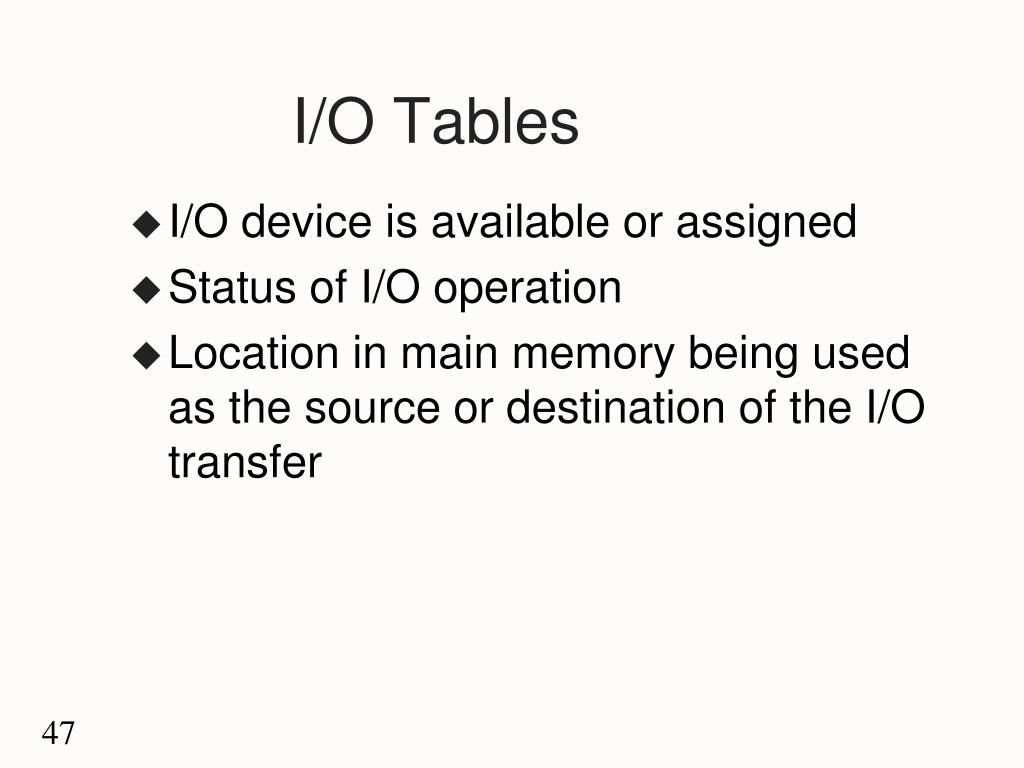

I/O Tables
  • I/O device is available or assigned
  • Status of I/O operation
  • Location in main memory being used as the source or destination of the I/O transfer
file tables

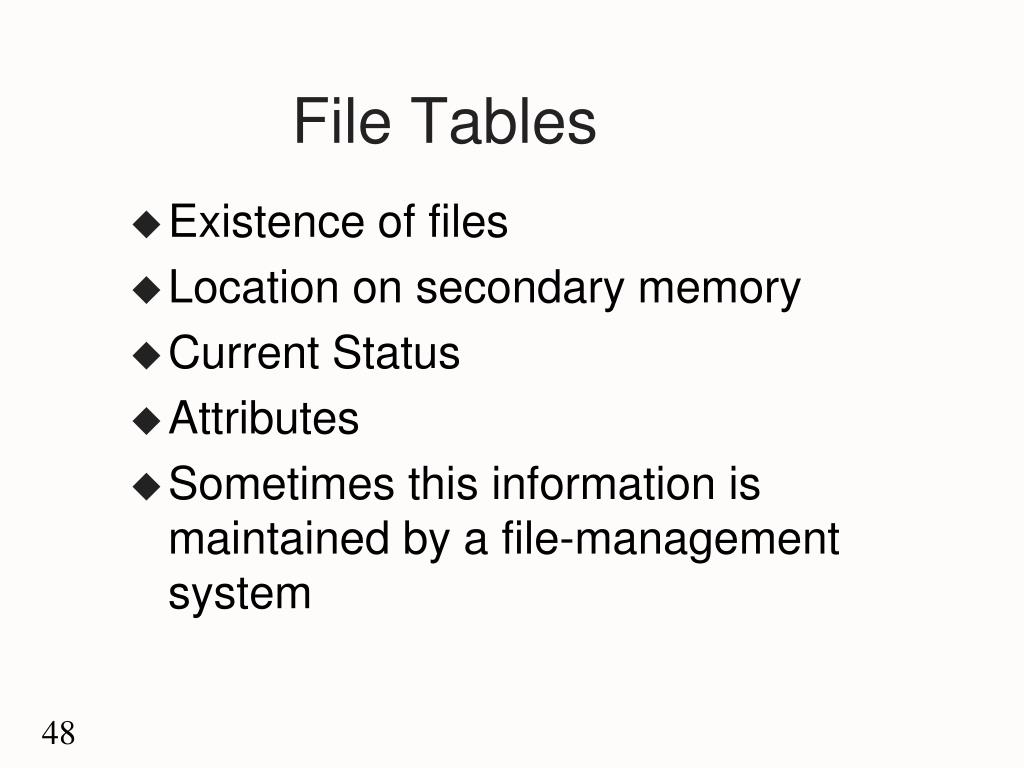

File Tables
  • Existence of files
  • Location on secondary memory
  • Current Status
  • Attributes
  • Sometimes this information is maintained by a file-management system
process table

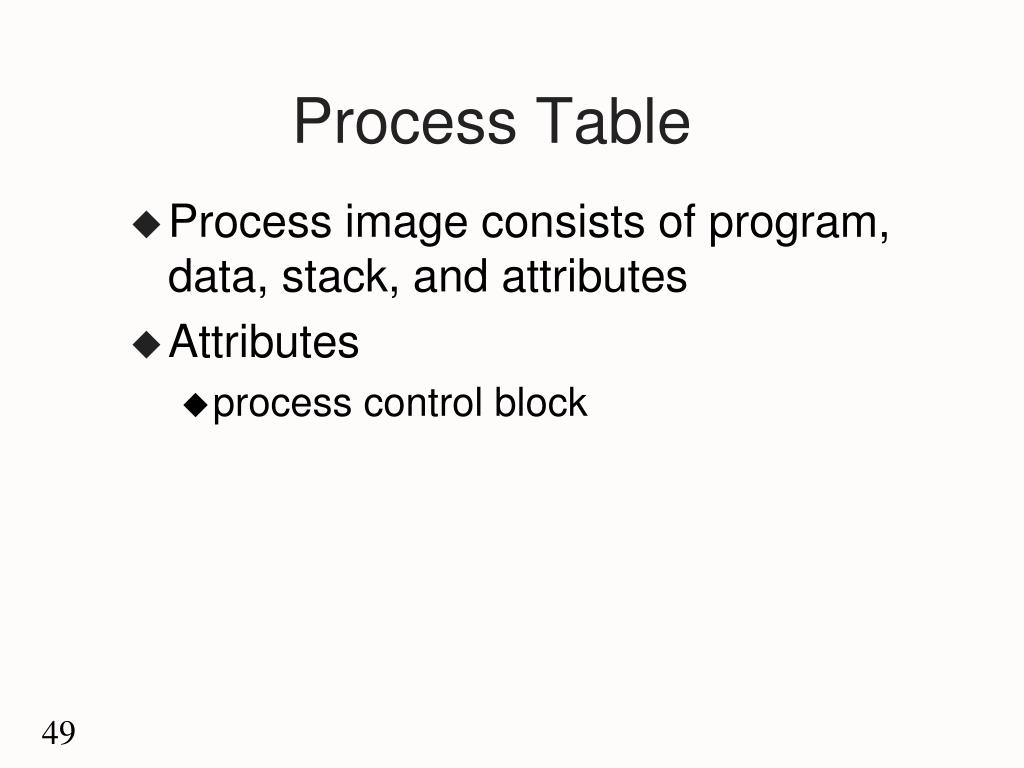

Process Table
  • Process image consists of program, data, stack, and attributes
  • Attributes
    • process control block
process control block process identification

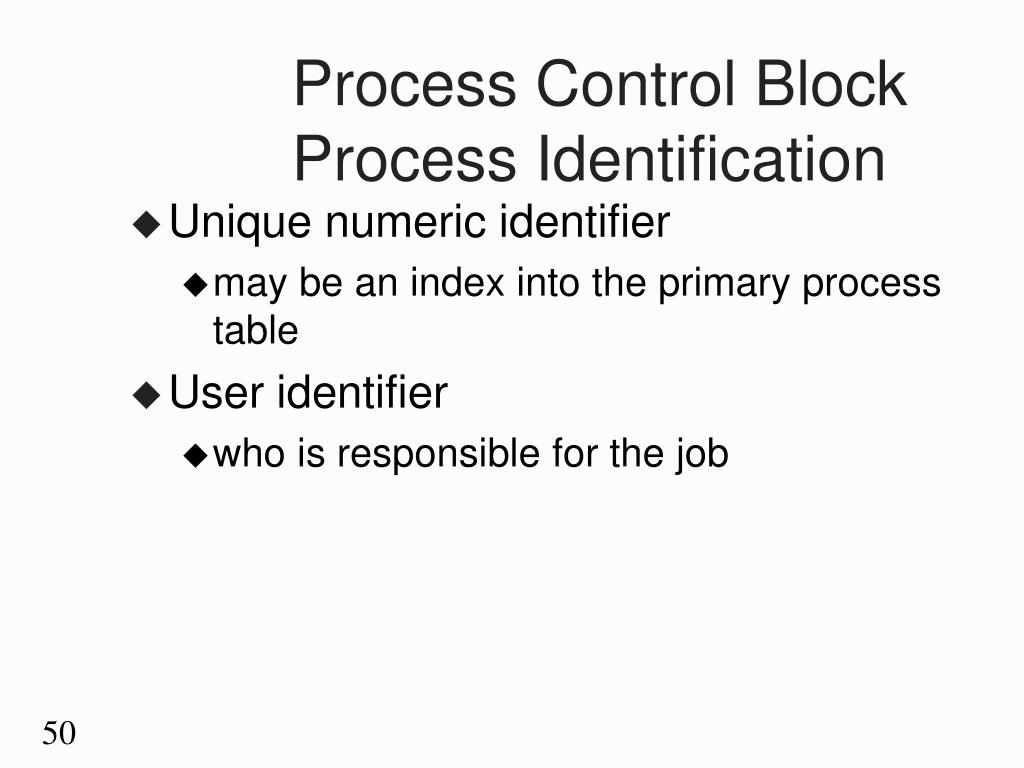

Process Control BlockProcess Identification
  • Unique numeric identifier
    • may be an index into the primary process table
  • User identifier
    • who is responsible for the job
execution of the operating system
Execution of the Operating System
  • Nonprocess Kernel
    • execute kernel outside of any process
    • operating system code is executed as a separate entity that operates in privileged mode
  • Execution Within User Processes
    • operating system software within context of a user process
    • process executes in privileged mode when executing operating system code
execution of the operating system52
Execution of the Operating System
  • Process-Based Operating System
    • major kernel functions are separate processes
    • a process is invoked by the operating system
the unix kernel
The UNIX kernel
  • A special program that runs directly on the hardware.
  • Implements the process model and services.
  • Resides on disk, in a file /vmunix or /unix.
  • Bootstrapping: loads the kernel.
  • Initializes the system and sets up the environment, remains in memory before shut down
unix services
UNIX Services
  • System call interface
  • Hardware exceptions
    • Divide by 0, overflowing user stack
  • Interrupts
    • Devices
  • Swapper, pagedaemon
mode space context
Mode,Space & Context
  • By modes: some critical resources can be protected.
    • Kernel Mode: More privileged, kernel functions
    • User Mode: Less privileged, user functions
  • Virtual Memory
    • VM space
    • Address Translation Maps
    • Memory Management Unit
kernel data
Kernel data
  • Current process & Context switch
  • One instance of the kernel
  • Global data structure
  • Pre-process objects
  • System call, Mode Switch
  • User area: info. about a process
  • Kernel stack:
context
Context
  • UNIX kernel is re-entrant: several processes may be involved in kernel activities concurrently.
  • Execution context
    • Process context:
    • System context (Interrupt context):
executing in kernel mode
Executing in Kernel Mode
  • 3 types of events:
    • Device interrupts
    • Exceptions
    • Traps or software interrupts
  • Dispatch table
  • System context: interrupts
  • Process context: traps, exceptions & software interrupts
the system call interface
The System Call Interface
  • syscall(): the starting point
  • in kernel mode, but in process context.
  • Copy arguments , save hardware context on the kernel stack.
  • Use system call number to index dispatch vector
  • Return results in registers, restore hardware context, to user mode, control back to the library routine.
unix interrupt handling
UNIX Interrupt Handling
  • Interrupt handler(interrupt service routine):
    • runs in kernel mode and system context,
    • not permitted to block.
  • the time used to service an interrupt charged to the interrupted process
  • The clock interrupt handler charges the clock tick to the current process
  • ipl(interrupt priority level)- specified for each interrupt and saved in interrupt register of the processor status word
  • Interrupts are preemptive
synchronization
Synchronization
  • UNIX is re-entrant
  • UNIX is non-preemptive, keeping the kernel states consistent.
  • Relinquish CPU voluntarily.
blocking operations
Blocking Operations
  • Blocks the process (make it sleep).
  • Lock: a single bit flag
  • wanted(flag):
  • sleep():
  • wake(): wake all the waiting processes.
  • upon waking up: check once again to make sure.
blocking interrupts
Blocking Interrupts
  • Blocking interrupts while accessing critical sections.
    • int x = splbio();/* raise ipl*/
    • modify disk buffer cache;
    • splx(x); /*restore ipl*/
  • Critical region:few & brief.
  • Blocked interrupts may access the critical region.
  • Different interrupts may have the same ipl
  • Blocking an interrupt may block others.
new processes programs
New Processes & Programs
  • fork:
    • creates a new process.
    • returns 0 to the child, PID to the parent
  • exec:
    • begins to execute a new program
using fork exec
Using fork & exec
  • if ((result = fork()==0){
  • /* child code*/
  • … …
  • if (execve(“new program”),…)<0)
  • perror(“execve failed!”);
  • } else if (result<0) {
  • perror(“fork”);/*fork failed*/
  • }
  • /*parent continures here*/
shell creating a process
Shell creating a process

A highly simplified shell

the ls command
The ls Command

Steps in executing the command ls typed to the shell

process creation74
Process Creation
  • Almost an exact clone of the parent.
    • Reserve swap space for the child
    • Allocate a new PID and proc structure for the child
    • Initialize proc structure
    • Allocate address translation map (ATM)
    • Allocate u area and copy
    • Update the u area to refer to the new ATM & Swap space
    • Add the child to the set of processes sharing the text region of the program
    • Duplicate the parent’s data and stack regions update ATM to refer to these new pages.
    • Acquire references to shared resources inherited by the child
    • Initialize the hardware context
    • Make the child runnable and put it on a scheduler queue
    • Arrange to return with 0
    • Return the PID to the parent
fork optimization
fork Optimization
  • It is wasteful to make an actual copy of the address space of the parent
    • Copy-on-write (SV) : only the pages that are modified must be copied
    • vfork (BSD): The parent loans the address space and blocks until the child returns to it.
      • dangerous!
    • csh: exploits it.
invoking a new program
Invoking a New Program
  • Process address space
    • Text: code
    • Initialized data:
    • Uninitialized data(bss):
    • Shared memory(SV):
    • Shared libraries:
    • Heap: dynamic space
    • User stack: space allocated by the kernel
exec system call
exec System Call
  • Parse & access
  • Verify the permission
  • Read the header and check if valid executable
  • If the file has SUID or SGID bits set in its mode, change the caller’s effective UID or GID to that of the owner
  • Copy the arguments to exec and the env. variables into kernel.
  • Allocate swap space for the data and stack region
  • Set up the new address space.
  • Copy the arguments and env. variables back onto the new user stack.
  • Reset all signal handlers to default actions.
  • Initialize the hardware context.
process termination exit
Process Termination (exit())
  • Turns off all signals.
  • Closes all open files.
  • Releases the text file and other resources such as the current directory.
  • Writes to the accounting log.
  • Saves resource usage statistics and exit status in the proc structure.
  • Changes state to SZOMB, and puts the proc on the zombie process list.
  • Makes the init process inherit any live children of the exiting process.
  • Releases the address space, u area, ATM, and swap space.
  • Notifies the parent by sending it a SIGCHLD signal.
  • Wakes up the parent if it is asleep.
  • Calls swtch() to schedule a new process to run.
awaiting process termination
Awaiting Process Termination
  • wait(stat_loc);/* SV, BSD & POSIX*/
  • wait3(statusp, options, rusagep); /*BSD*/
  • waitpid(pid, stat_loc, options);/*POSIX*/
  • waitid(idtype, id, infop, options);/*SVR4*/
zombie processes
Zombie Processes
  • after exit(), process holds only proc structure and is in zombie state until cleaned completely.
  • wait() (issued by the parent or the init process)frees the proc structure and completes process exit,
  • If the child dies before the parent which does not wait for it, the proc is not released until the system is rebooted.
  • Parent can specify that it will not wait for its children
linux
LINUX
  • Modular structure – collection of modules, some of them loadable and unloadable on demand,
  • Module – object file whose code be linked and unlinked from the kernel at runtime, executed in kernel mode on behalf of the current process
  • Loadable module characteristic – Dynamic linking, -- Stackable modules – may serve as libraries when they are referenced by client modules higher up in the hierarchy, and as clients when they reference modules further down the hierarchy.
linux components
Linux components
  • At user level – tasks (specific to Linux – combine features of processes and threads);
  • At kernel level – interacting collection of components;
  • Hardware components – in this case IA-64 Intel Itanium architecture
linux task data structure
Linux Task Data Structure
  • State
  • Scheduling information
  • Identifiers
  • Interprocess communication
  • Links
  • Times and timers
  • File system
  • Address space
  • Processor-specific context
linux states of a process thread
Linux States of a Process/Thread
  • Running
  • Interruptable
  • Uninterruptable
  • Stopped
  • Zombie
