Solar MPPT Controller Maximizes Efficiency in Solar Energy Systems

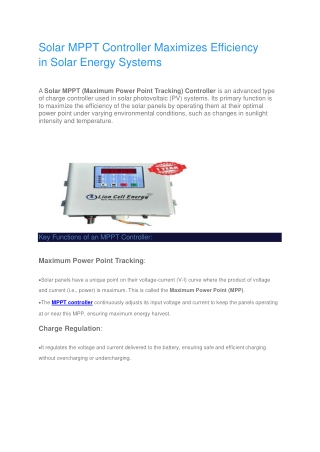

1. Solar MPPT Controller Maximizes Efficiency in Solar Energy Systems A Solar MPPT (Maximum Power Point Tracking) Controller is an advanced type of charge controller used in solar photovoltaic (PV) systems. Its primary function is to maximize the efficiency of the solar panels by operating them at their optimal power point under varying environmental conditions, such as changes in sunlight intensity and temperature. KeyFunctionsofanMPPTController: • Maximum Power Point Tracking: • Solar panels have a unique point on their voltage-current (V-I) curve where the product of voltage and current (i.e., power) is maximum. This is called the Maximum Power Point (MPP). • The MPPT controllercontinuously adjusts its input voltage and current to keep the panels operating at or near this MPP, ensuring maximum energy harvest. • Charge Regulation: • It regulates the voltage and current delivered to the battery, ensuring safe and efficient charging without overcharging or undercharging.

2. Voltage Conversion: • MPPT controllers can step down the higher voltage from the solar panels to match the battery voltage while increasing the current proportionally. For example, a 24V solar panel array can charge a 12V battery effectively with an MPPT controller.System Protection: • Many MPPT controllers include protections such as overvoltage, overcurrent, short-circuit, and reverse polarity protections. • Advantages of MPPT Controllers (MADE IN INDIA) :

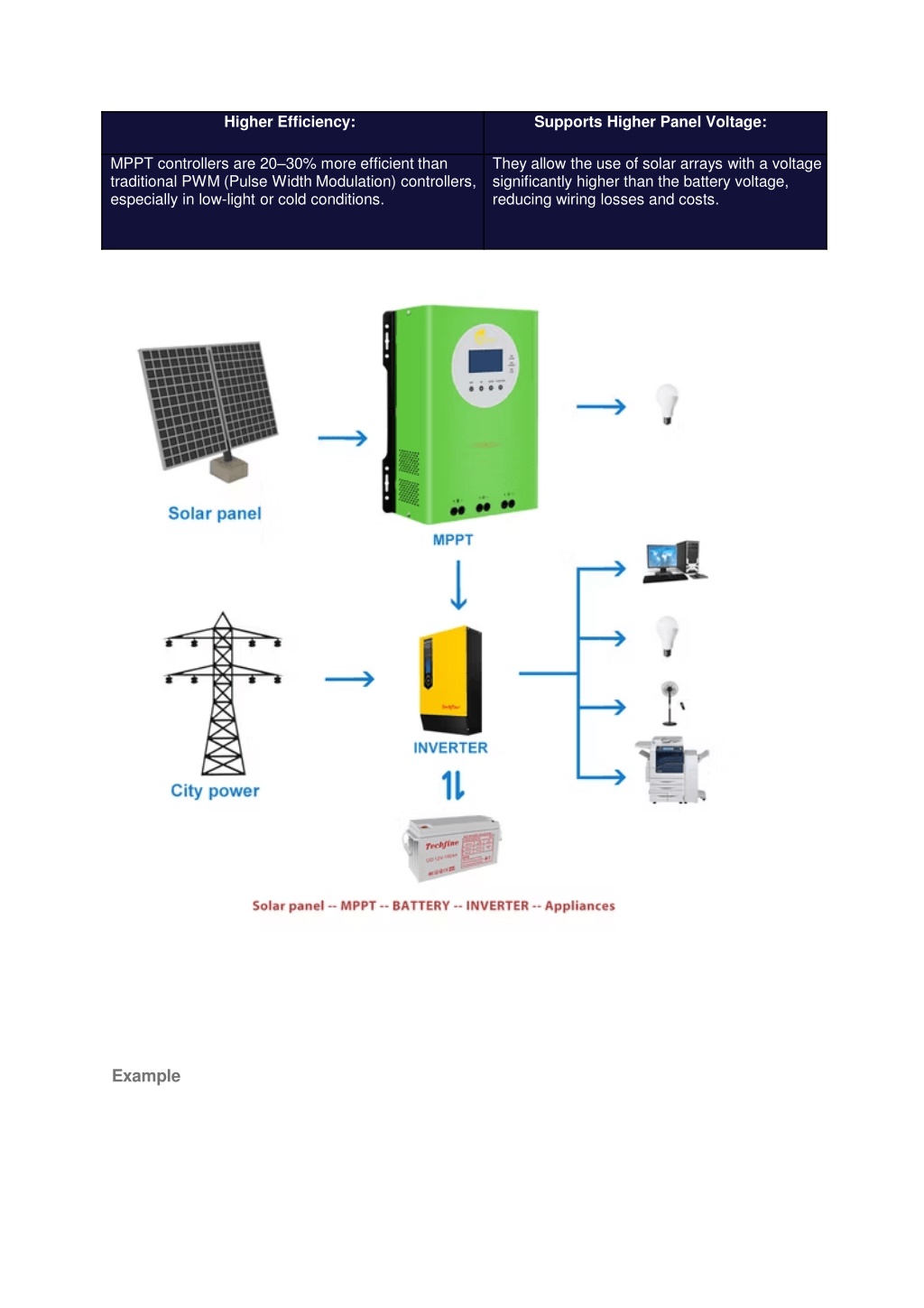

4. Example

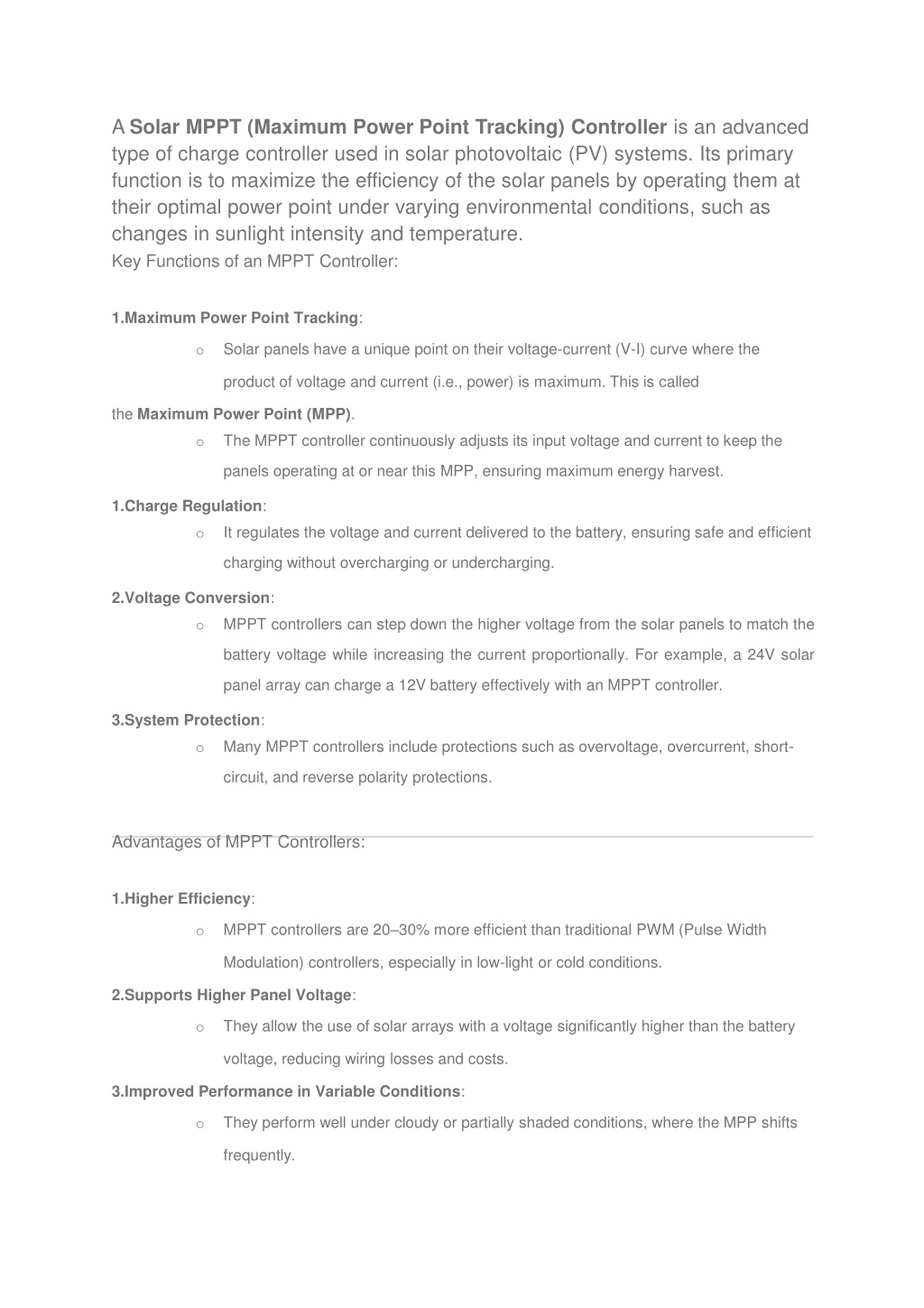

5. A Solar MPPT (Maximum Power Point Tracking) Controller is an advanced type of charge controller used in solar photovoltaic (PV) systems. Its primary function is to maximize the efficiency of the solar panels by operating them at their optimal power point under varying environmental conditions, such as changes in sunlight intensity and temperature. • Key Functions of an MPPT Controller: • Maximum Power Point Tracking: • Solar panels have a unique point on their voltage-current (V-I) curve where the product of voltage and current (i.e., power) is maximum. This is called • the Maximum Power Point (MPP). • The MPPT controller continuously adjusts its input voltage and current to keep the panels operating at or near this MPP, ensuring maximum energy harvest. • Charge Regulation: • It regulates the voltage and current delivered to the battery, ensuring safe and efficient charging without overcharging or undercharging. • Voltage Conversion: • MPPT controllers can step down the higher voltage from the solar panels to match the battery voltage while increasing the current proportionally. For example, a 24V solar panel array can charge a 12V battery effectively with an MPPT controller. • System Protection: • Many MPPT controllers include protections such as overvoltage, overcurrent, short- circuit, and reverse polarity protections. • Advantages of MPPT Controllers: • Higher Efficiency: • MPPT controllers are 20–30% more efficient than traditional PWM (Pulse Width Modulation) controllers, especially in low-light or cold conditions. • Supports Higher Panel Voltage: • They allow the use of solar arrays with a voltage significantly higher than the battery voltage, reducing wiring losses and costs. • Improved Performance in Variable Conditions: • They perform well under cloudy or partially shaded conditions, where the MPP shifts frequently.

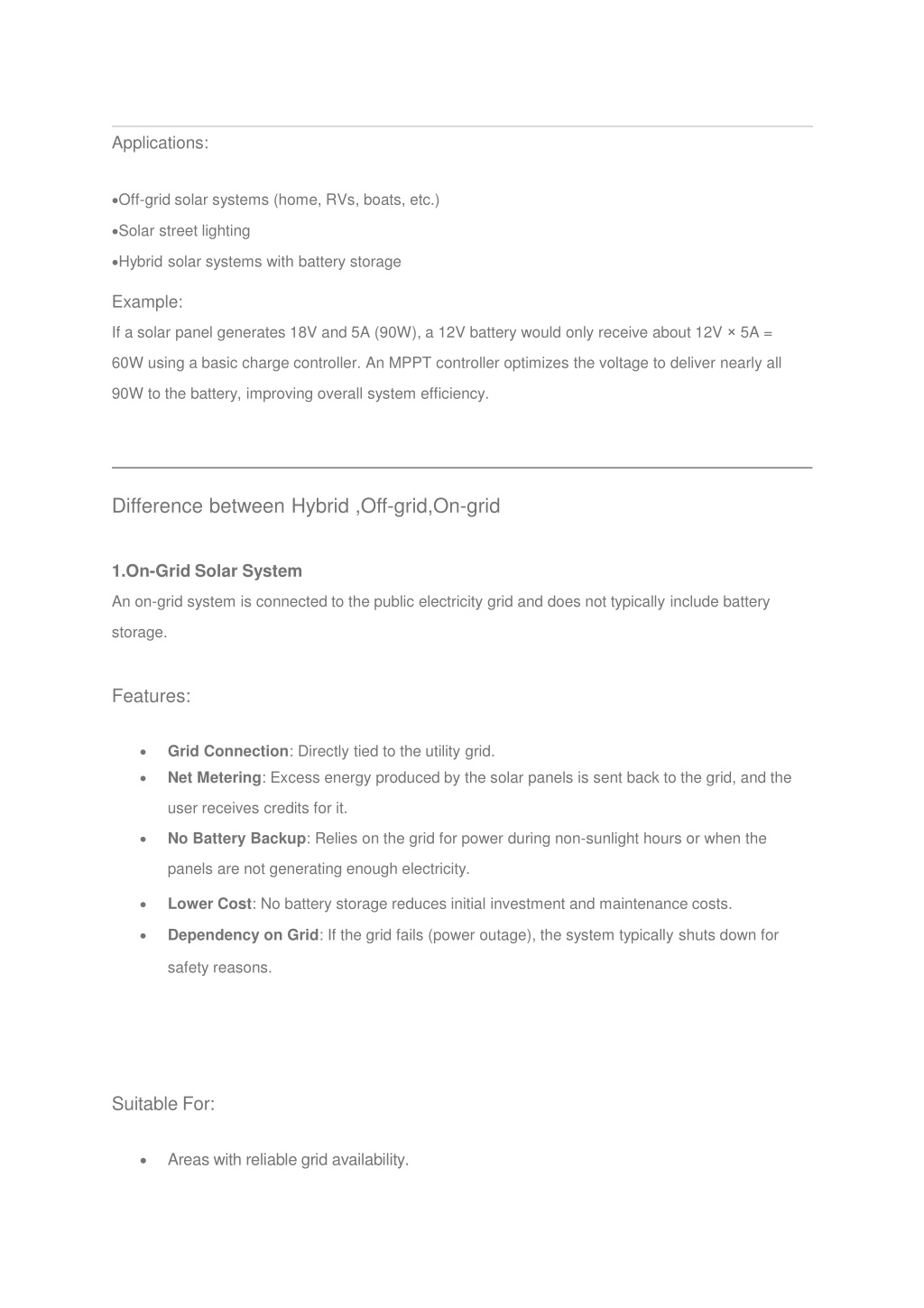

6. Applications: • Off-grid solar systems (home, RVs, boats, etc.) • Solar street lighting • Hybrid solar systems with battery storage • Example: • If a solar panel generates 18V and 5A (90W), a 12V battery would only receive about 12V × 5A = 60W using a basic charge controller. An MPPT controller optimizes the voltage to deliver nearly all 90W to the battery, improving overall system efficiency. • Difference between Hybrid ,Off-grid,On-grid • On-Grid Solar System • An on-grid system is connected to the public electricity grid and does not typically include battery storage. • Features: • Grid Connection: Directly tied to the utility grid. • Net Metering: Excess energy produced by the solar panels is sent back to the grid, and the user receives credits for it. • No Battery Backup: Relies on the grid for power during non-sunlight hours or when the panels are not generating enough electricity. • Lower Cost: No battery storage reduces initial investment and maintenance costs. • Dependency on Grid: If the grid fails (power outage), the system typically shuts down for safety reasons. • SuitableFor: • Areaswithreliablegridavailability.

7. Users who want to minimize upfront costs and maximize returns through net metering. • Off-Grid Solar System • An off-grid system operates independently of the public grid, using batteries for energy storage. • Features: • Complete Independence: Not connected to the electricity grid. • Battery Storage: Stores energy generated during the day to power devices at night or during cloudy weather. • Higher Initial Cost: Requires batteries, which increase the upfront and maintenance costs. • Backup Generators: Often includes a backup generator for additional reliability during prolonged low sunlight. • Suitable For: • Remote or rural areas without access to the electricity grid. • Users who prioritize energy independence. • Hybrid Solar System • A hybrid system combines the benefits of both on-grid and off-grid systems, featuring grid connection and battery storage. • Features: • Dual Functionality: Can draw power from the grid, solar panels, or batteries depending on availability and demand. • Battery Backup: Provides power during outages and stores excess energy for later use. • Energy Management: Smart inverters optimize energy usage by prioritizing solar, then battery, and finally the grid. • Higher Cost: Combines the costs of both on-grid systems and battery storage. • SuitableFor: • Areaswithunreliablegridsor frequentpoweroutages.

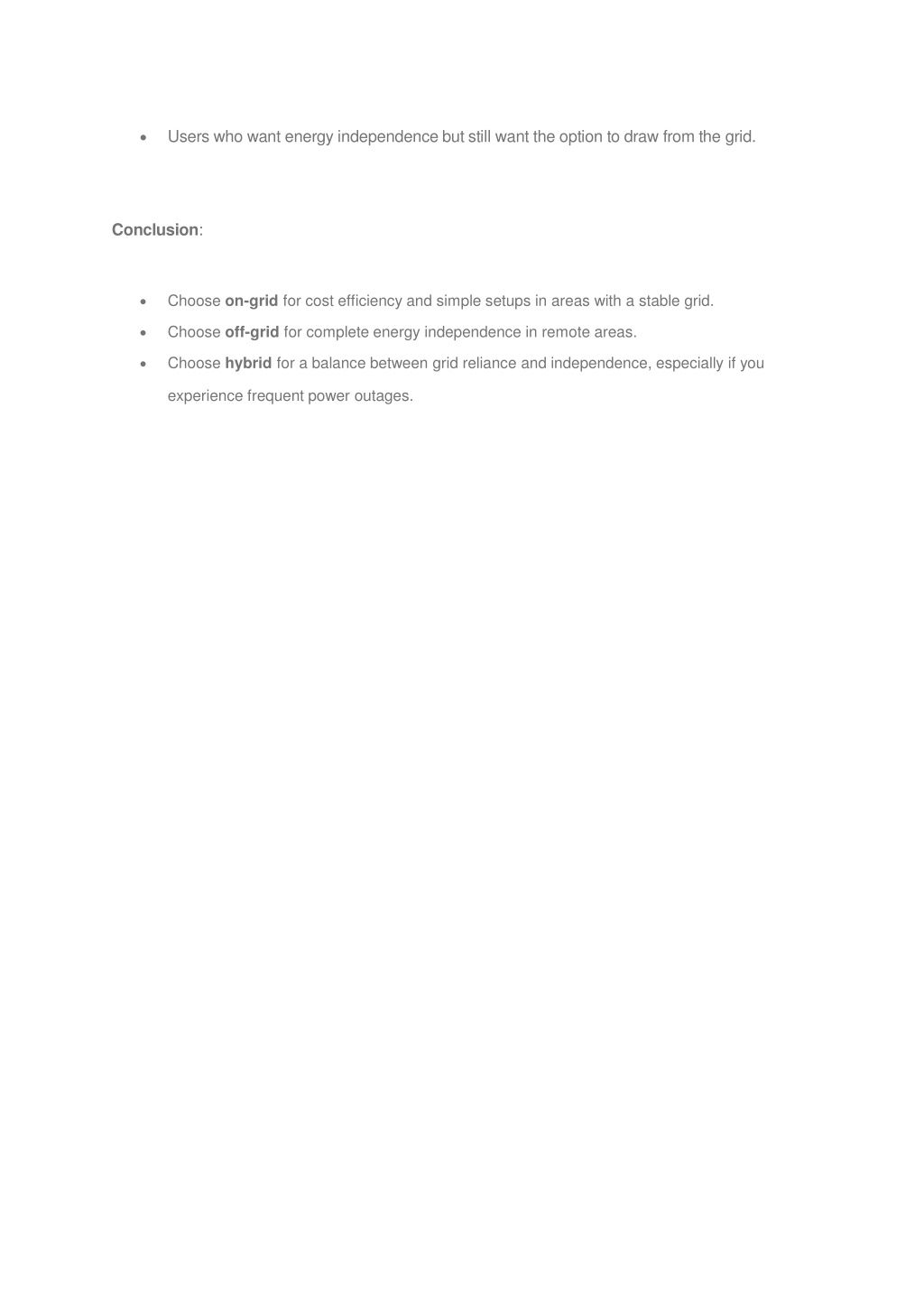

8. Userswhowantenergyindependencebutstillwanttheoptiontodrawfrom thegrid. Conclusion: • Choose on-grid for cost efficiency and simple setups in areas with a stable grid. • Choose off-grid for complete energy independence in remote areas. • Choose hybrid for a balance between grid reliance and independence, especially if you experience frequent power outages.
