  1. Horizontal Autoclave EZL-CH82 www.Ezilab.com | info@ezilab.com

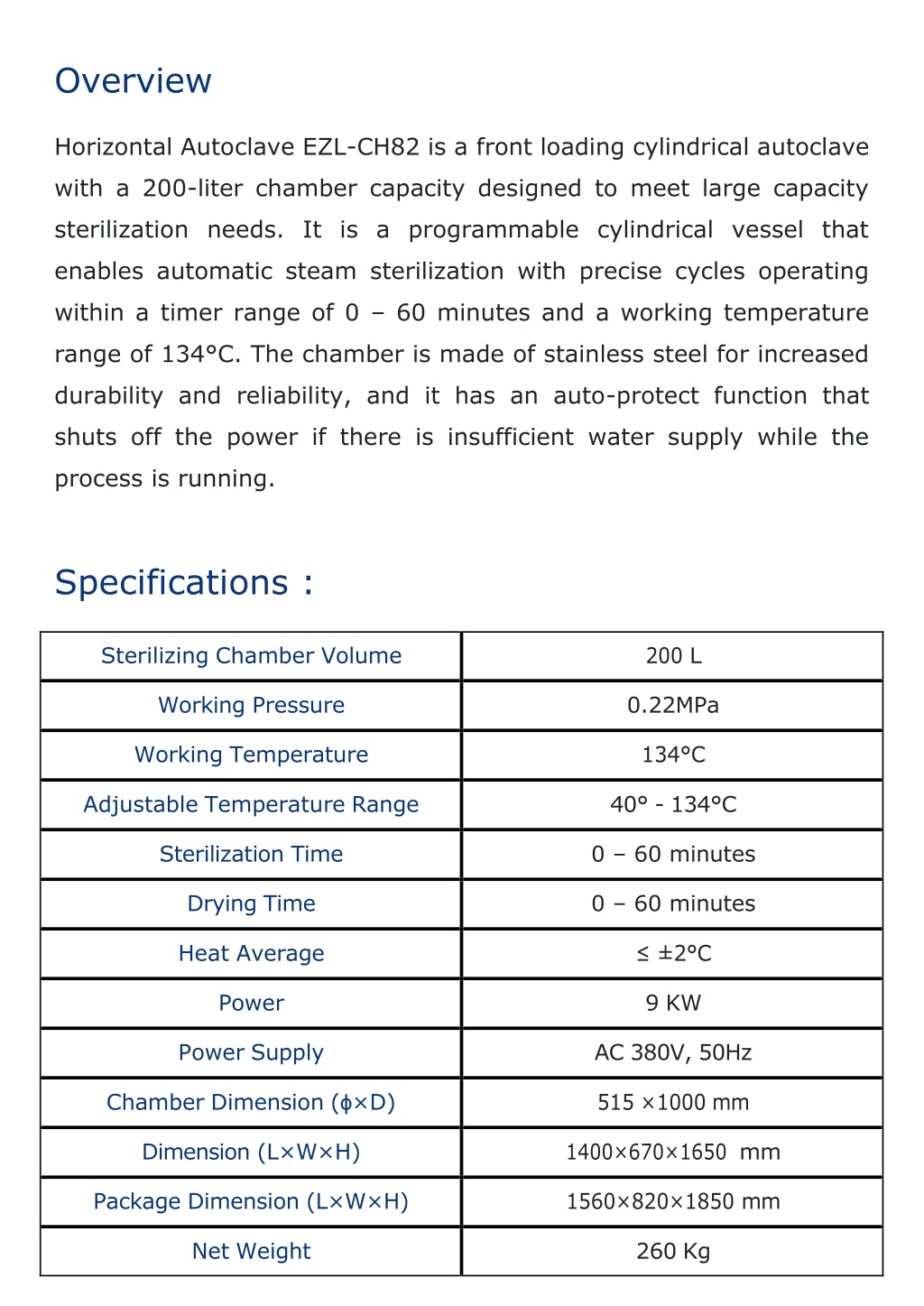

  2. Overview Horizontal Autoclave EZL-CH82 is a front loading cylindrical autoclave with a 200-liter chamber capacity designed to meet large capacity sterilization needs. It is a programmable cylindrical vessel that enables automatic steam sterilization with precise cycles operating within a timer range of 0 – 60 minutes and a working temperature range of 134°C. The chamber is made of stainless steel for increased durability and reliability, and it has an auto-protect function that shuts off the power if there is insufficient water supply while the process is running. Specifications : Sterilizing Chamber Volume 200 L Working Pressure 0.22MPa Working Temperature 134°C Adjustable Temperature Range 40° - 134°C Sterilization Time 0 – 60 minutes Drying Time 0 – 60 minutes Heat Average ≤±2°C Power 9 KW Power Supply AC 380V, 50Hz Chamber Dimension (ɸ×D) 515 ×1000 mm Dimension (L×W×H) 1400×670×1650 mm Package Dimension (L×W×H) 1560×820×1850 mm Net Weight 260 Kg

  3. Only two pages were converted. Please Sign Up to convert the full document. www.freepdfconvert.com/membership
