Horizontal-Autoclave-EZL-CH81-converted

Ezilab Horizontal Autoclave is a 150L front-loading sterilizer with programmable steam cycles, a 0u201360 min timer, and 134u00b0C operation. Built with durable stainless steel, it features an auto-protect function that ensures safety by cutting power during inadequate water supply.

robbmarva105
Download Presentation

Horizontal-Autoclave-EZL-CH81-converted

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

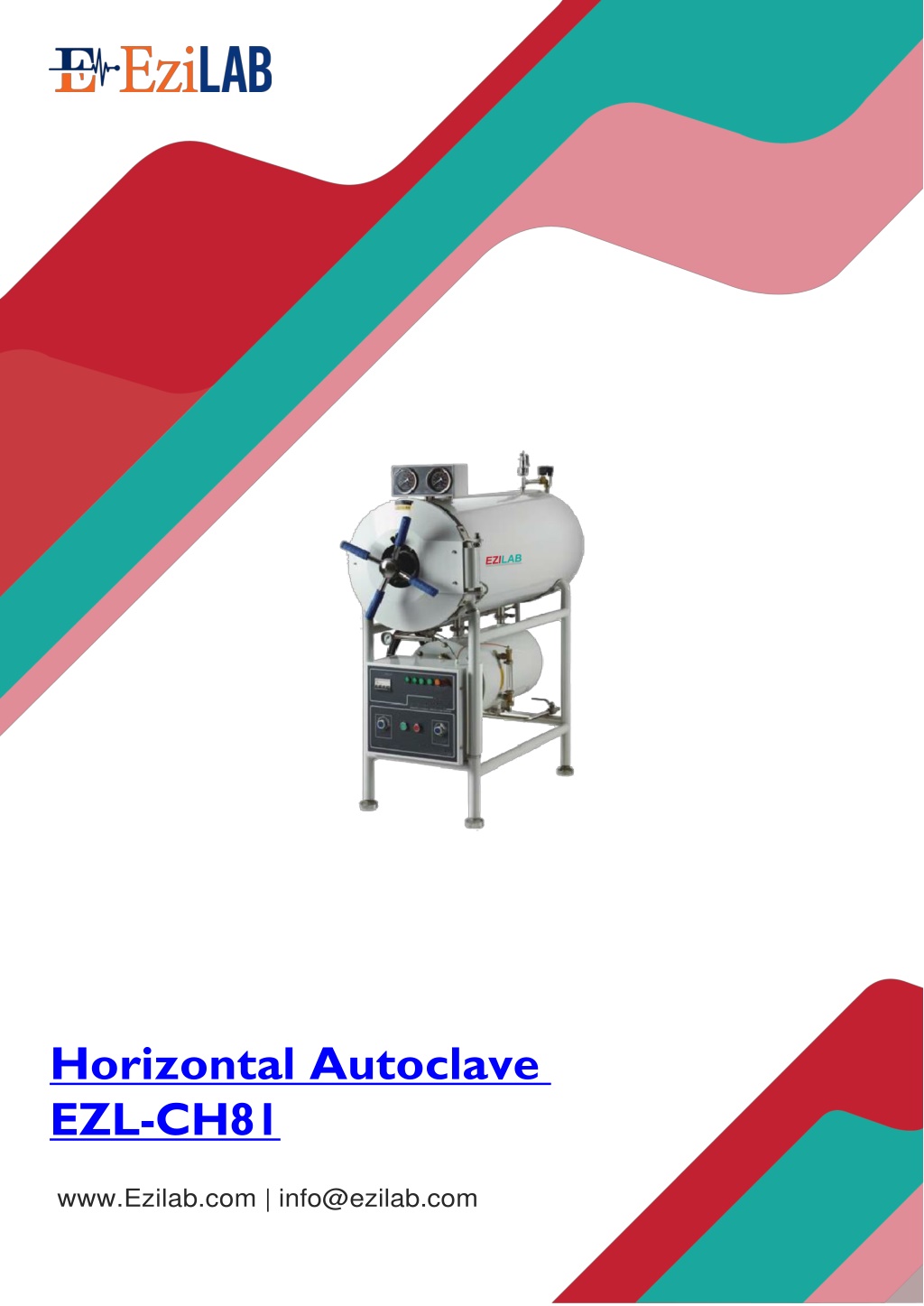

  1. Horizontal Autoclave EZL-CH81 www.Ezilab.com | info@ezilab.com

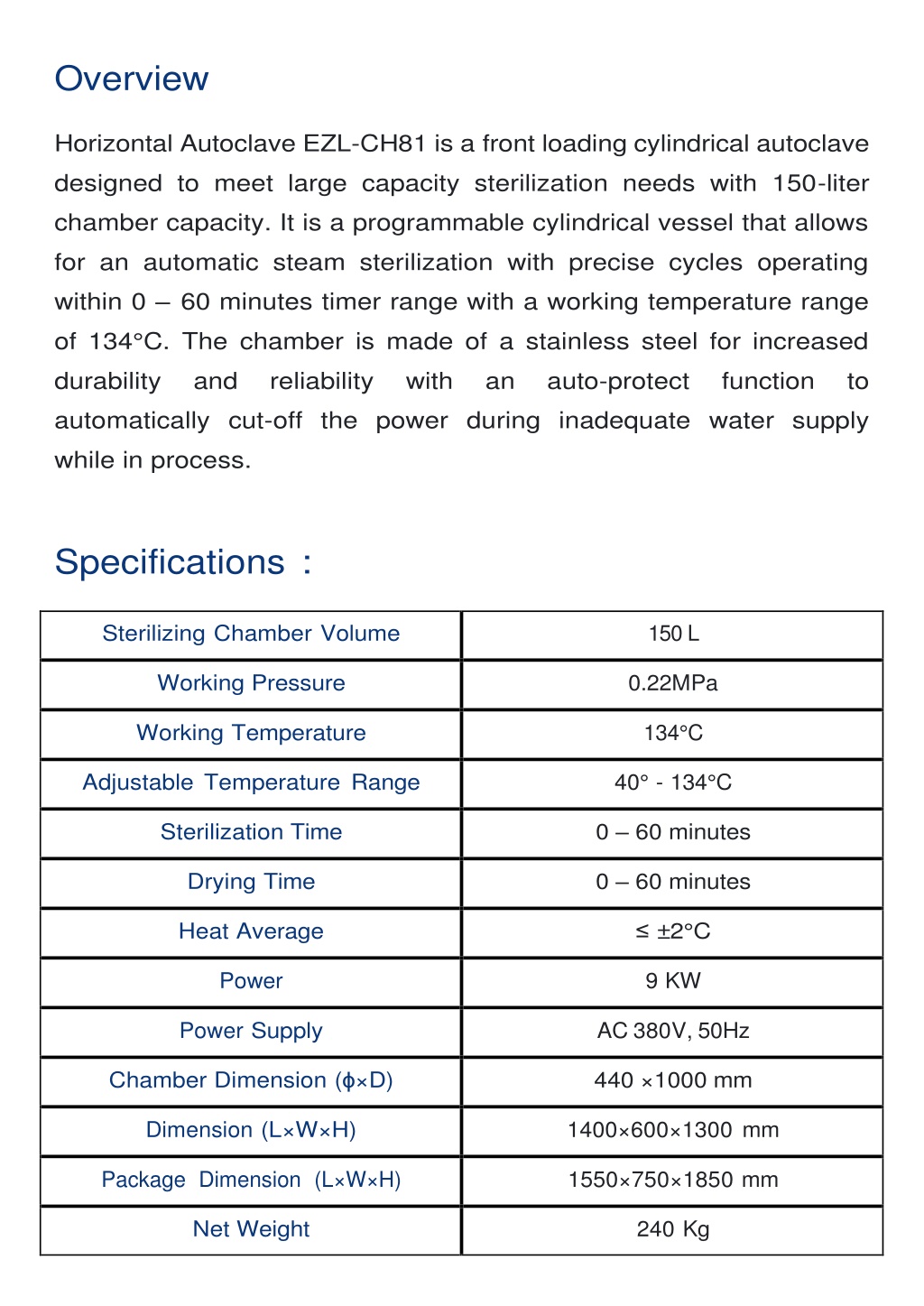

  2. Overview Horizontal Autoclave EZL-CH81 is a front loading cylindrical autoclave designed to meet large capacity sterilization needs with 150-liter chamber capacity. It is a programmable cylindrical vessel that allows for an automatic steam sterilization with precise cycles operating within 0 – 60 minutes timer range with a working temperature range of 134°C. The chamber is made of a stainless steel for increased durability and reliability with automatically cut-off the power during inadequate water supply while in process. an auto-protect function to Specifications : Sterilizing Chamber Volume 150 L Working Pressure 0.22MPa Working Temperature 134°C Adjustable Temperature Range 40° - 134°C Sterilization Time 0 – 60 minutes Drying Time 0 – 60 minutes Heat Average ≤ ±2°C Power 9 KW Power Supply AC 380V, 50Hz Chamber Dimension (ɸ×D) 440 ×1000 mm Dimension (L×W×H) 1400×600×1300 mm PackageDimension(L×W×H) 1550×750×1850 mm Net Weight 240 Kg

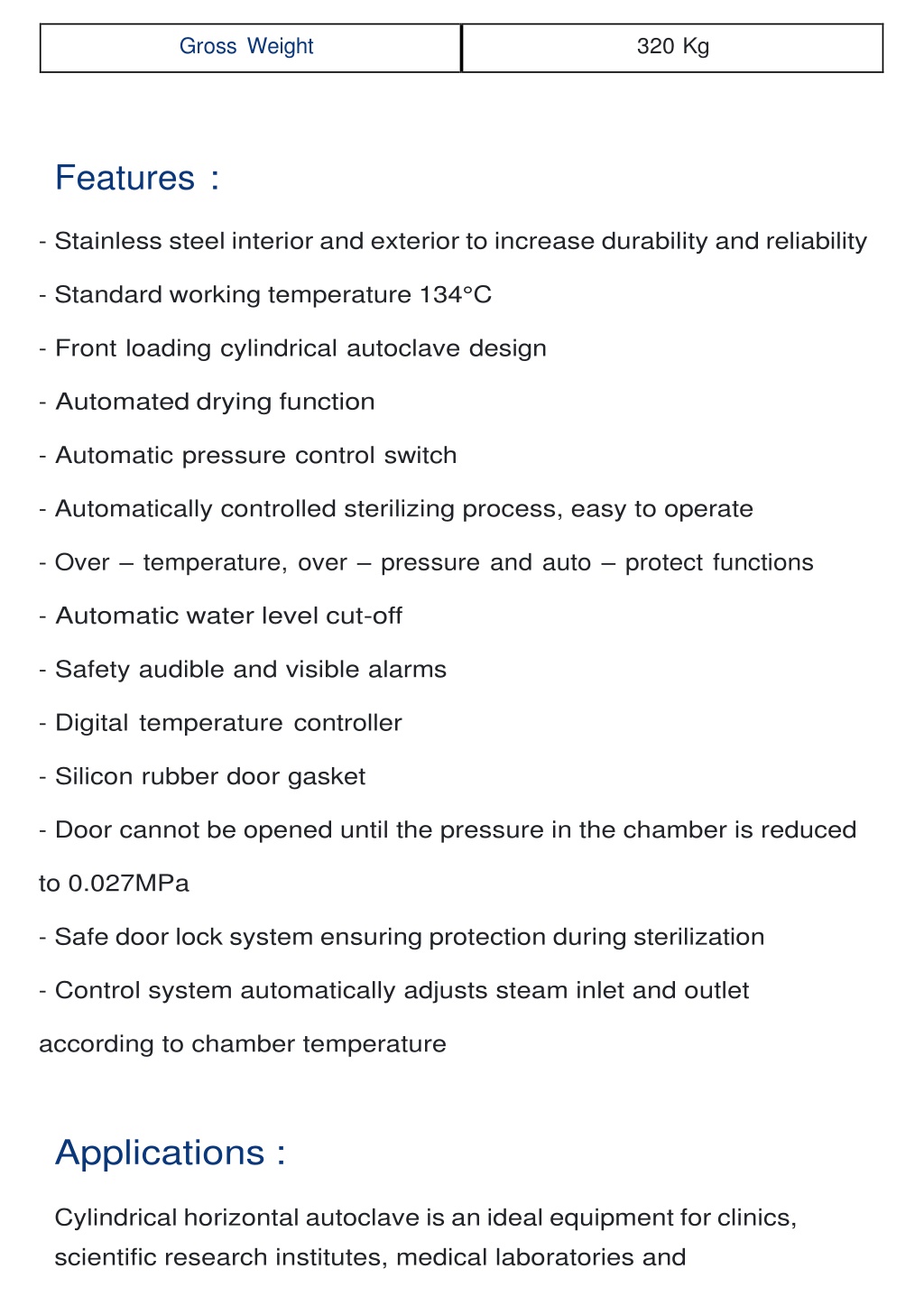

  3. Gross Weight 320 Kg Features : - Stainless steel interior and exterior to increase durability and reliability - Standard working temperature 134°C - Front loading cylindrical autoclave design - Automated drying function - Automatic pressure control switch - Automatically controlled sterilizing process, easy to operate - Over – temperature, over – pressure and auto – protect functions - Automatic water level cut-off - Safety audible and visible alarms - Digital temperature controller - Silicon rubber door gasket - Door cannot be opened until the pressure in the chamber is reduced to 0.027MPa - Safe door lock system ensuring protection during sterilization - Control system automatically adjusts steam inlet and outlet according to chamber temperature Applications : Cylindrical horizontal autoclave is an ideal equipment for clinics, scientific research institutes, medical laboratories and

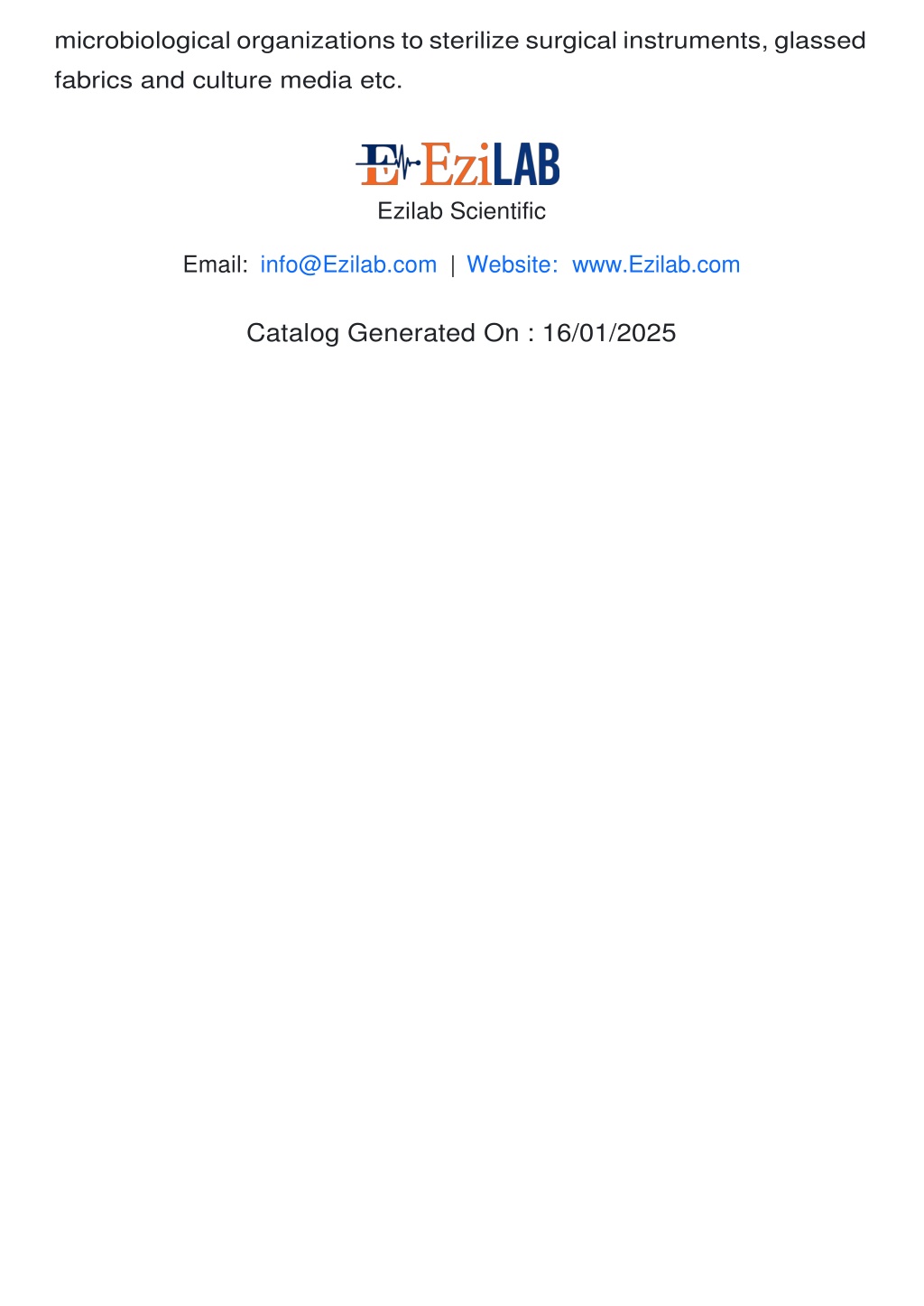

  4. microbiological organizations to sterilize surgical instruments, glassed fabrics and culture media etc. Ezilab Scientific Email: info@Ezilab.com | Website:www.Ezilab.com Catalog Generated On : 16/01/2025
