Electronic-Balance-EZL-EB53

Ezilab Electronic Balance ensures precise weighing with 0.1mg readability and a 0u2013160g capacity. It features an auto-calibrated system, 360u00b0 anti-static draft shield, u027890mm scale, and advanced weight-loading for seamless automatic calibration, offering unmatched efficiency and accuracy.

robbmarva105
Download Presentation

Electronic-Balance-EZL-EB53

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

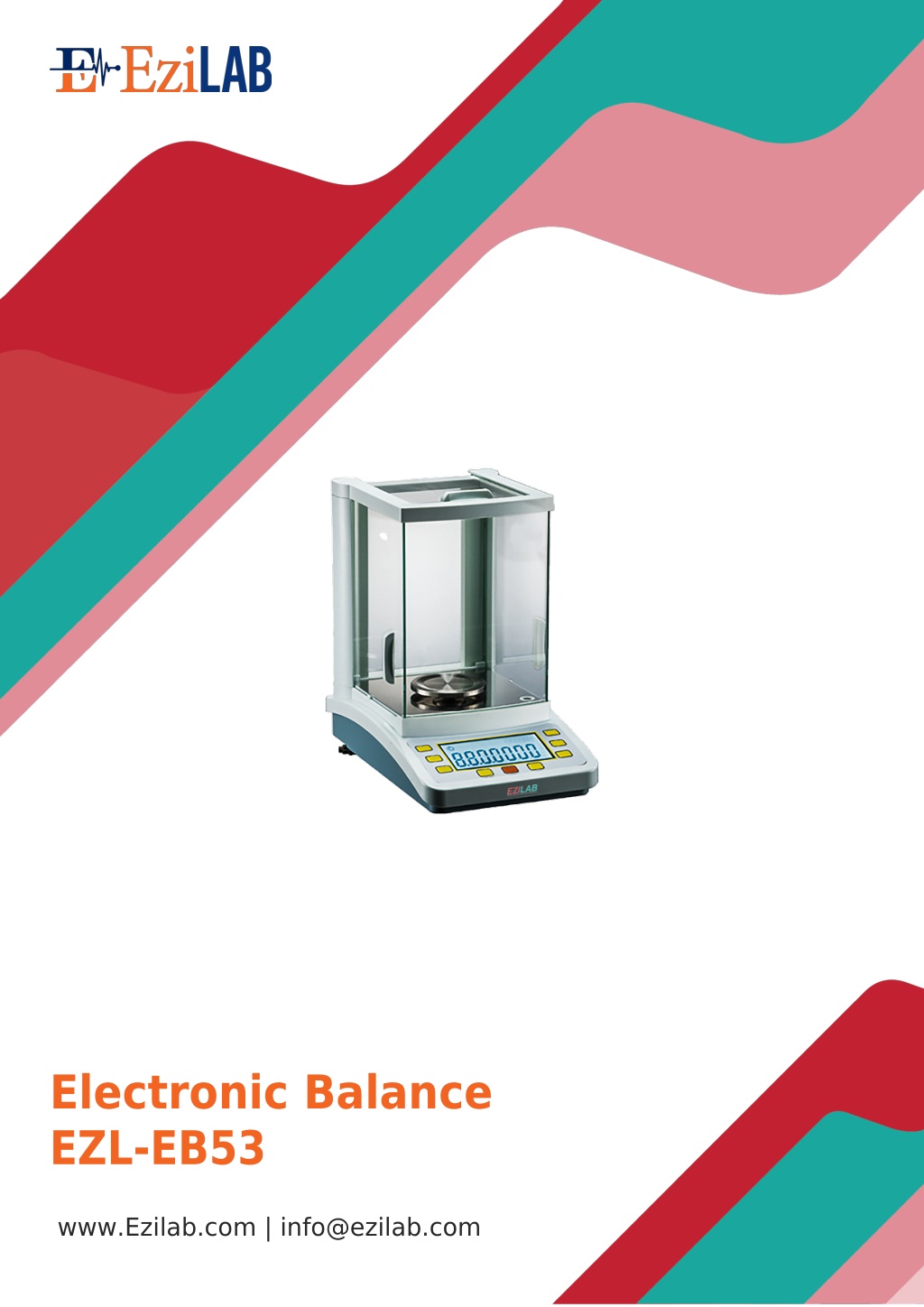

  1. Electronic Balance EZL-EB53 www.Ezilab.com | info@ezilab.com

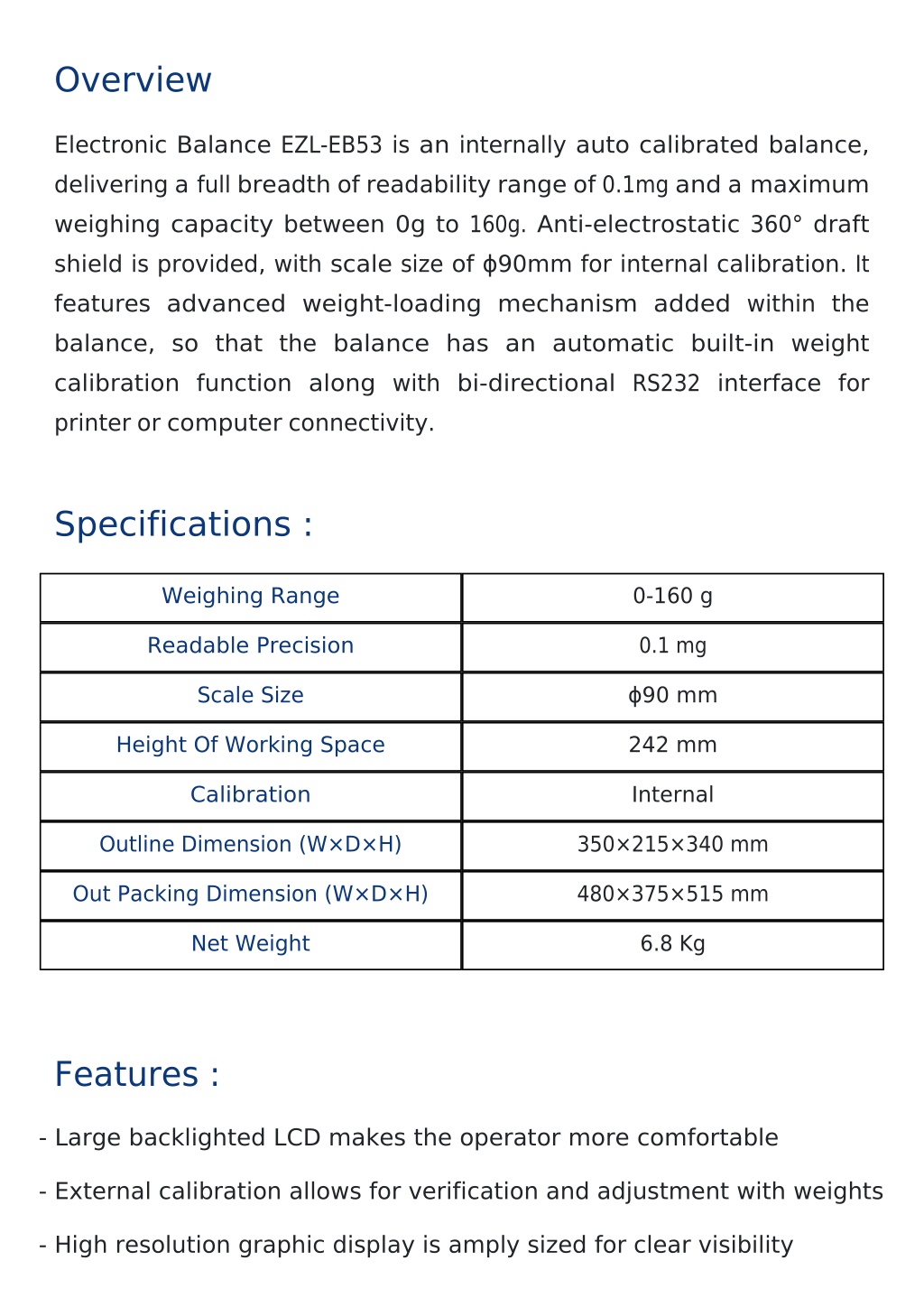

  2. Overview Electronic Balance EZL-EB53 is an internally auto calibrated balance, delivering a full breadth of readability range of 0.1mg and a maximum weighing capacity between 0g to 160g. Anti-electrostatic 360° draft shield is provided, with scale size of ɸ90mm for internal calibration. It features advanced weight-loading mechanism added within the balance, so that the balance has an automatic built-in weight calibration function along with bi-directional RS232 interface for printer or computer connectivity. Specifications : Weighing Range 0-160 g Readable Precision 0.1 mg Scale Size ɸ90 mm Height Of Working Space 242 mm Calibration Internal Outline Dimension (W×D×H) 350×215×340 mm Out Packing Dimension (W×D×H) 480×375×515 mm Net Weight 6.8 Kg Features : - Large backlighted LCD makes the operator more comfortable - External calibration allows for verification and adjustment with weights - High resolution graphic display is amply sized for clear visibility

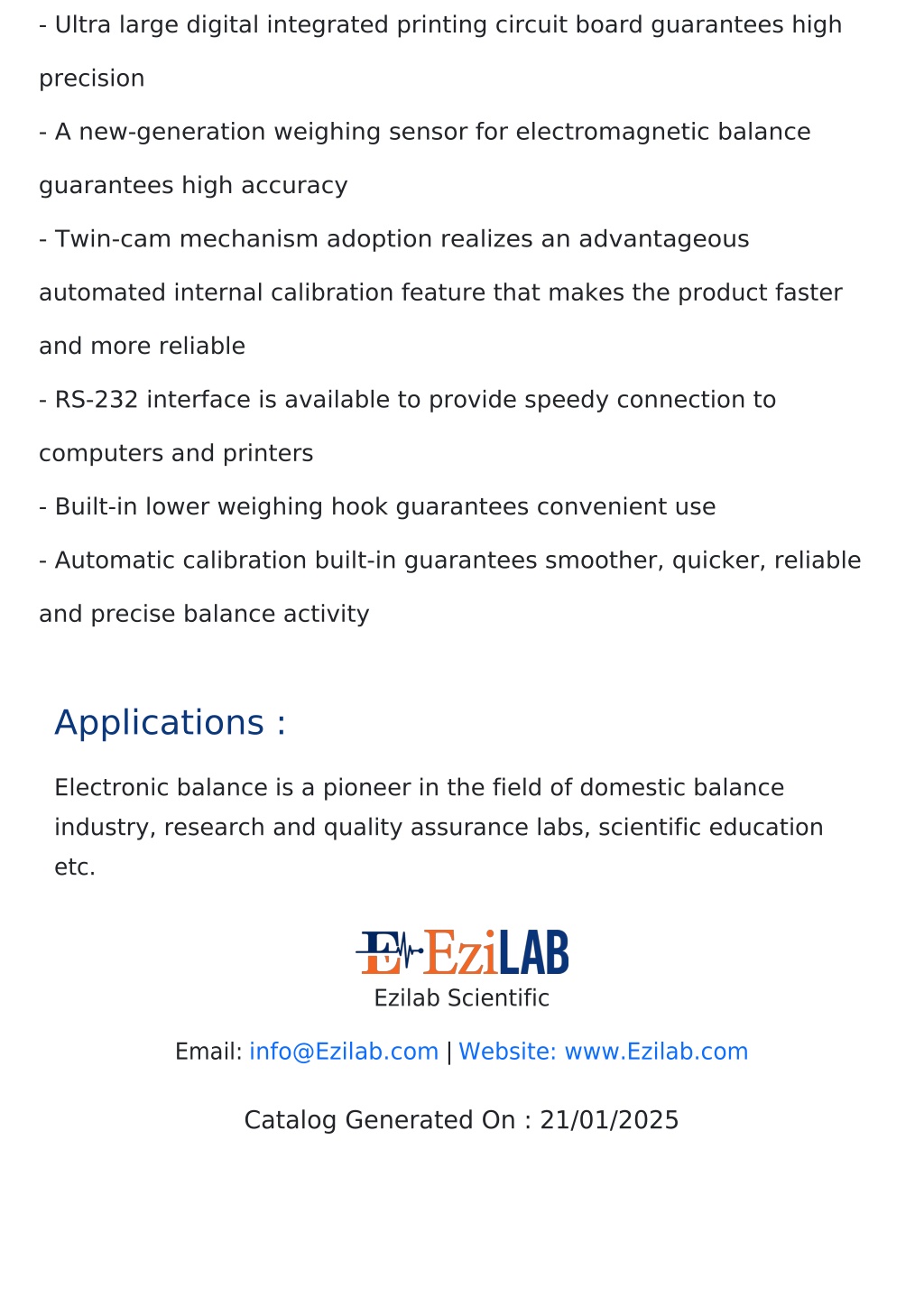

  3. - Ultra large digital integrated printing circuit board guarantees high precision - A new-generation weighing sensor for electromagnetic balance guarantees high accuracy - Twin-cam mechanism adoption realizes an advantageous automated internal calibration feature that makes the product faster and more reliable - RS-232 interface is available to provide speedy connection to computers and printers - Built-in lower weighing hook guarantees convenient use - Automatic calibration built-in guarantees smoother, quicker, reliable and precise balance activity Applications : Electronic balance is a pioneer in the field of domestic balance industry, research and quality assurance labs, scientific education etc. Ezilab Scientific Email: info@Ezilab.com Website: www.Ezilab.com | Catalog Generated On : 21/01/2025
