new solutions for cable

New Solutions for Cable

David Mitchinson

Solutions Manager

DM@appeartv.com

Paal Gulbrandsen

Regional Account Manager

Paal.Gulbrandsen@appeartv.com

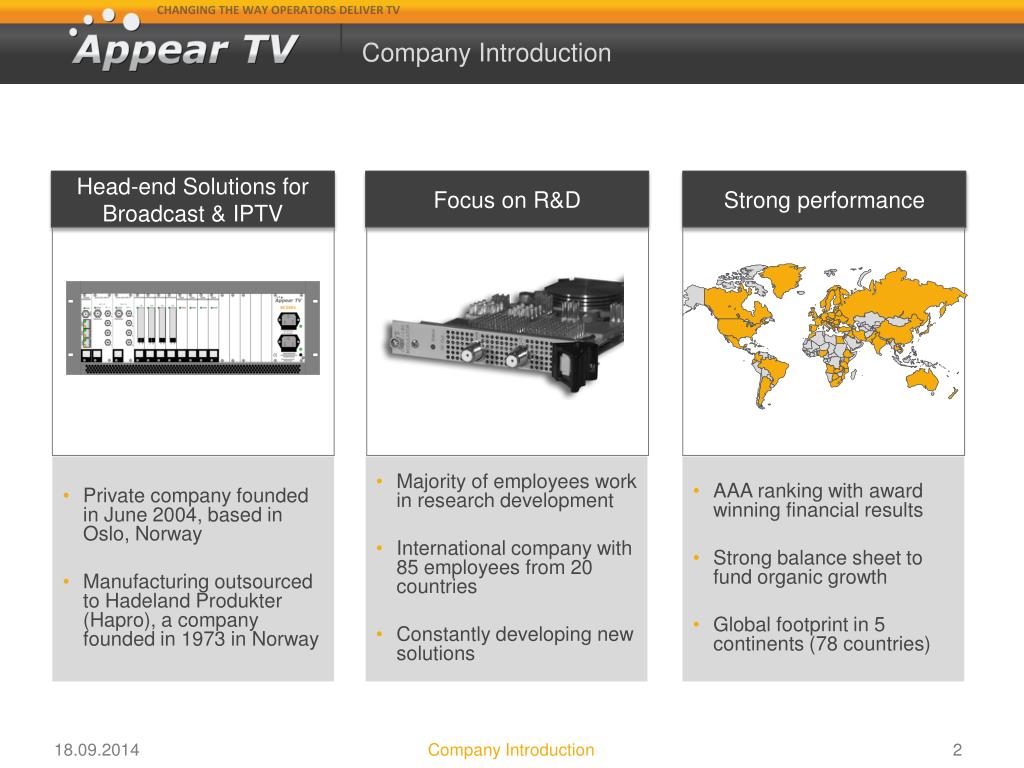

company introduction
Company Introduction

Head-end Solutions for Broadcast & IPTV

Focus on R&D

Strong performance

  • Private company founded in June 2004, based in Oslo, Norway
  • Manufacturing outsourced to Hadeland Produkter (Hapro), a company founded in 1973 in Norway
  • Majority of employees work in research development
  • International company with 85 employees from 20 countries
  • Constantly developing new solutions
  • AAA ranking with award winning financial results
  • Strong balance sheet to fund organic growth
  • Global footprint in 5 continents (78 countries)

Company Introduction

some european clients
Some European clients

Appear TV PowerPoint

agenda

Agenda

Cable Headend systems

Distribution Network

Cable Modulation (digital and analogue)

Redundancy options

OTT & Multiscreen

Theme of ‘What’s new’ for Cable

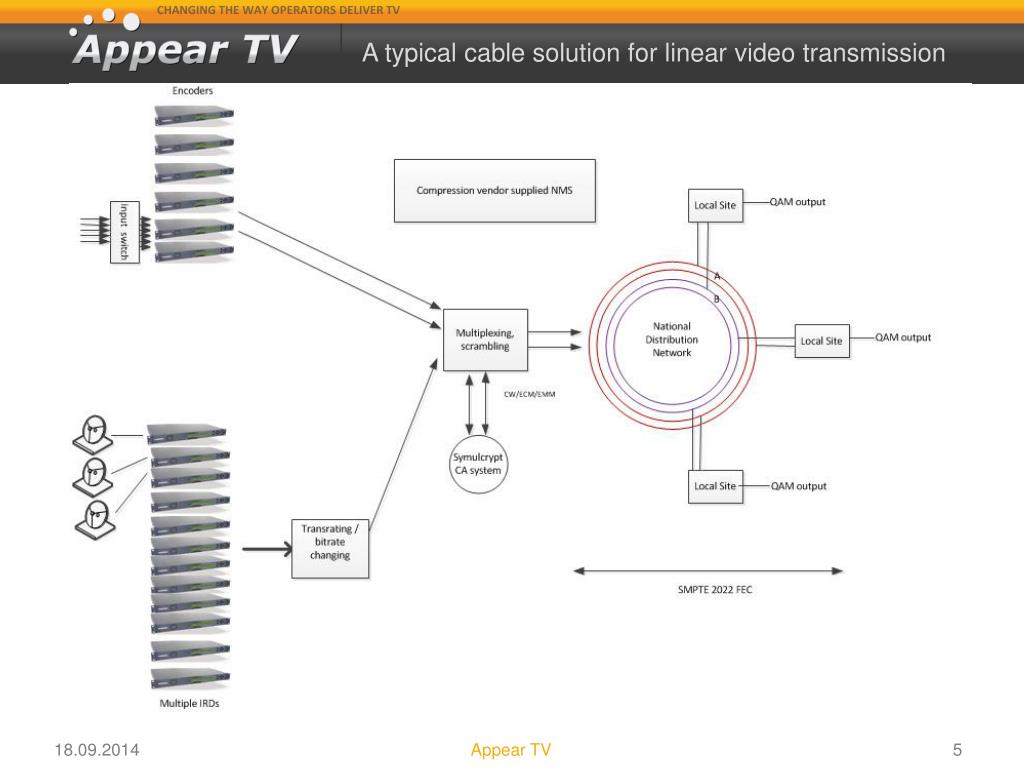

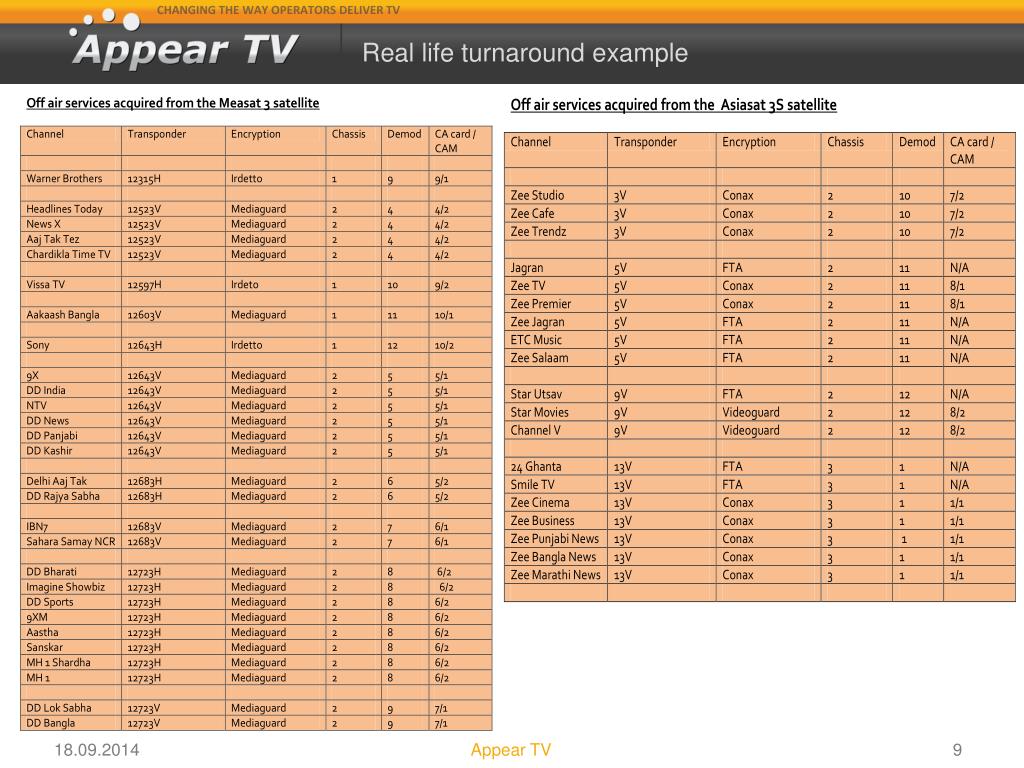

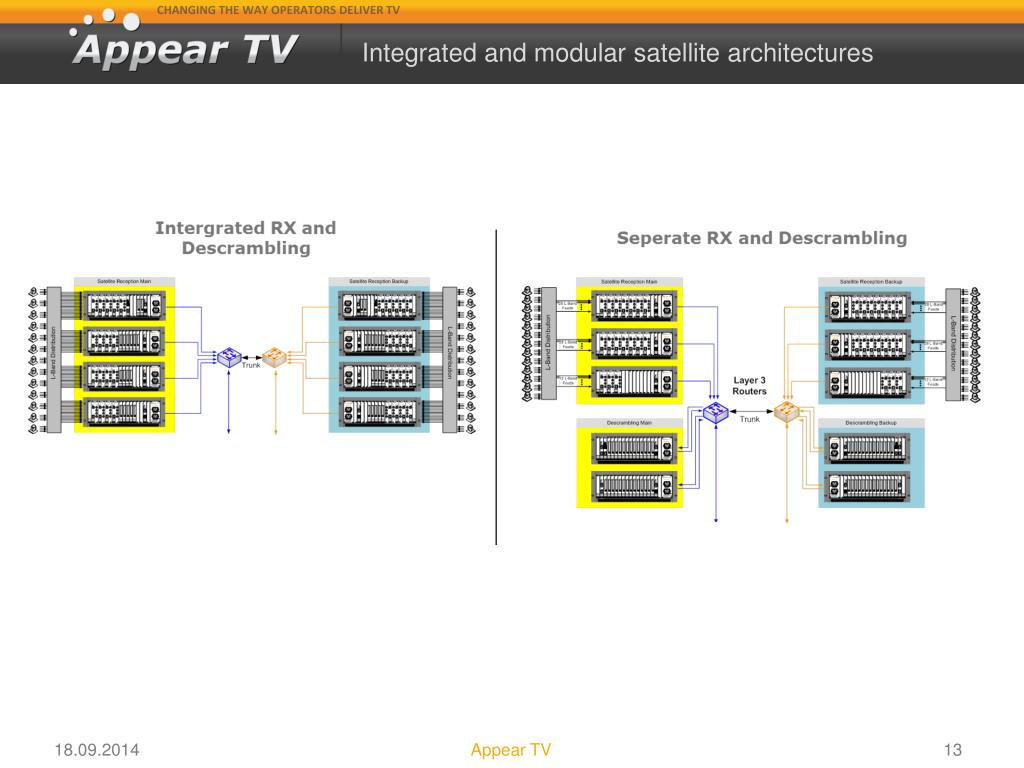

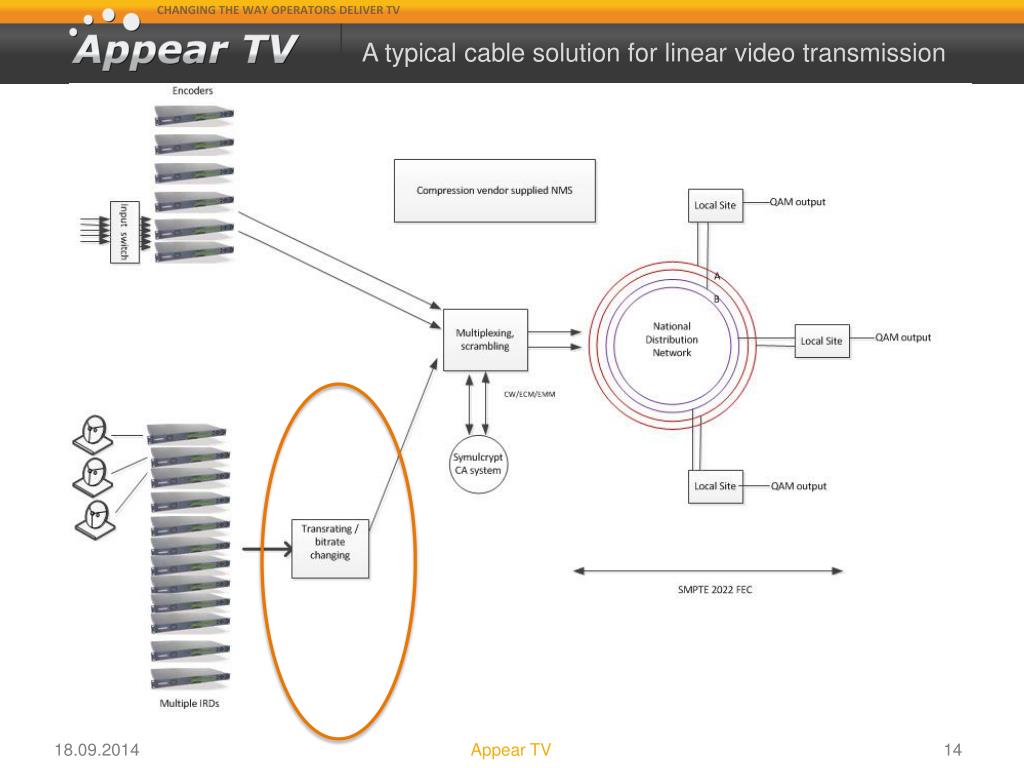

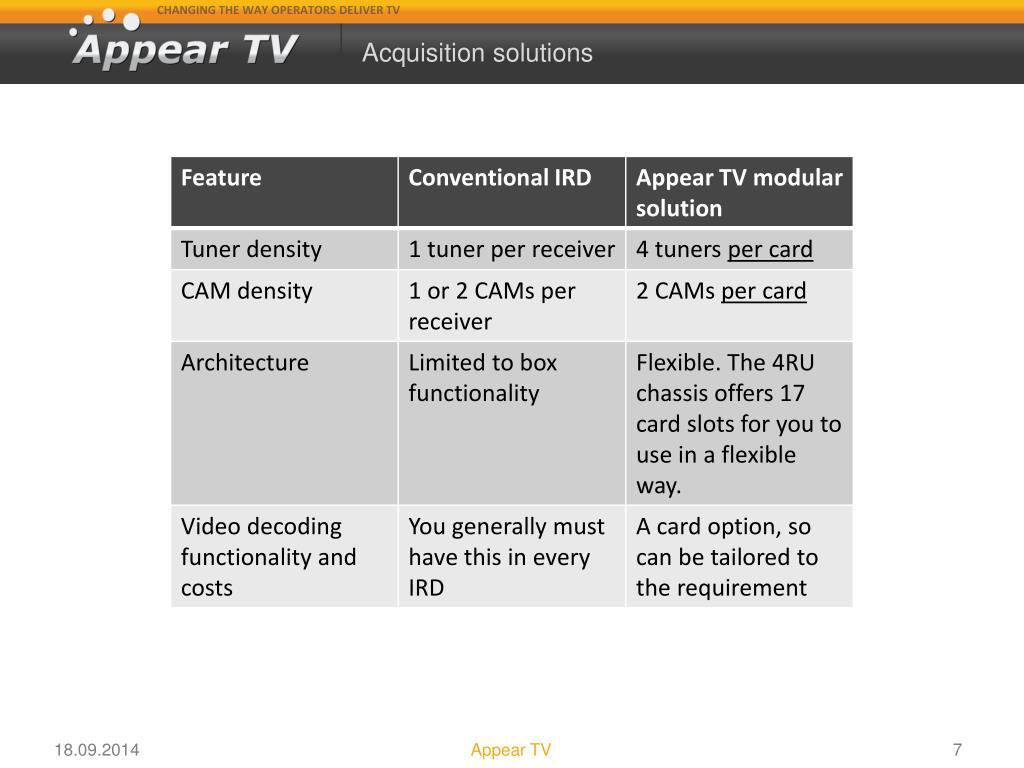

real life turnaround example3

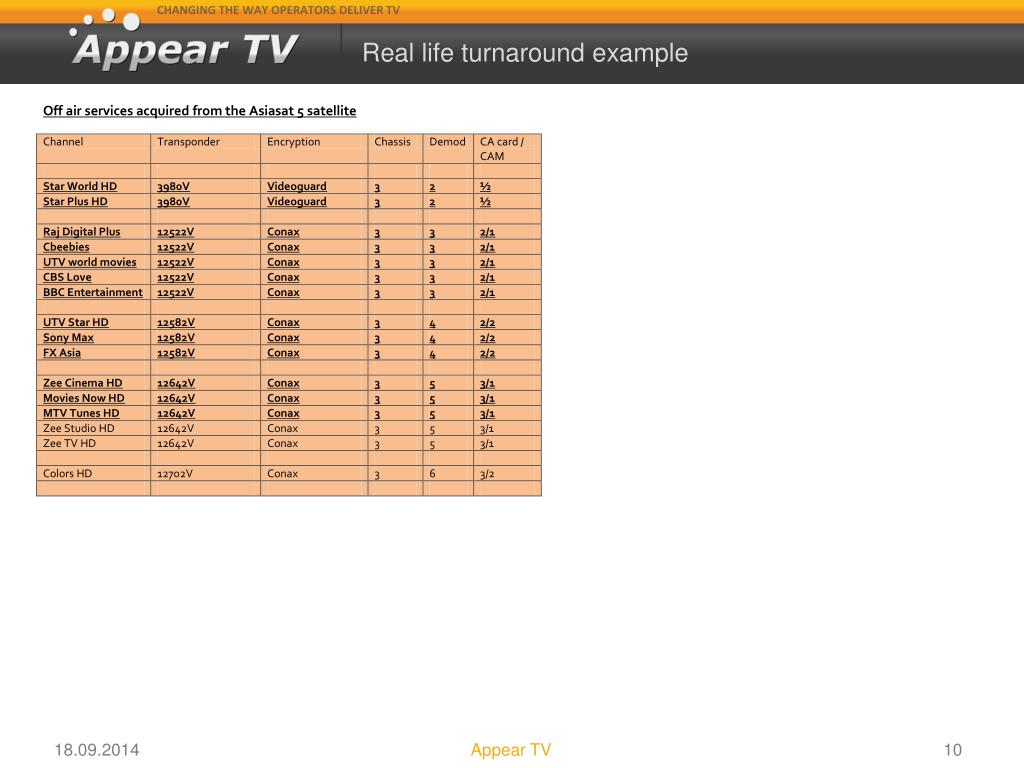

Real life turnaround example

Chassis 1 (recovering services from NSS6 and Measat 3)

Chassis 2 (recovering services from NSS6, Measat 3 and Asiasat 3S)

Chassis 3 (recovering services from Asiasat 3S and Asiasat 5)

real life turnaround example4

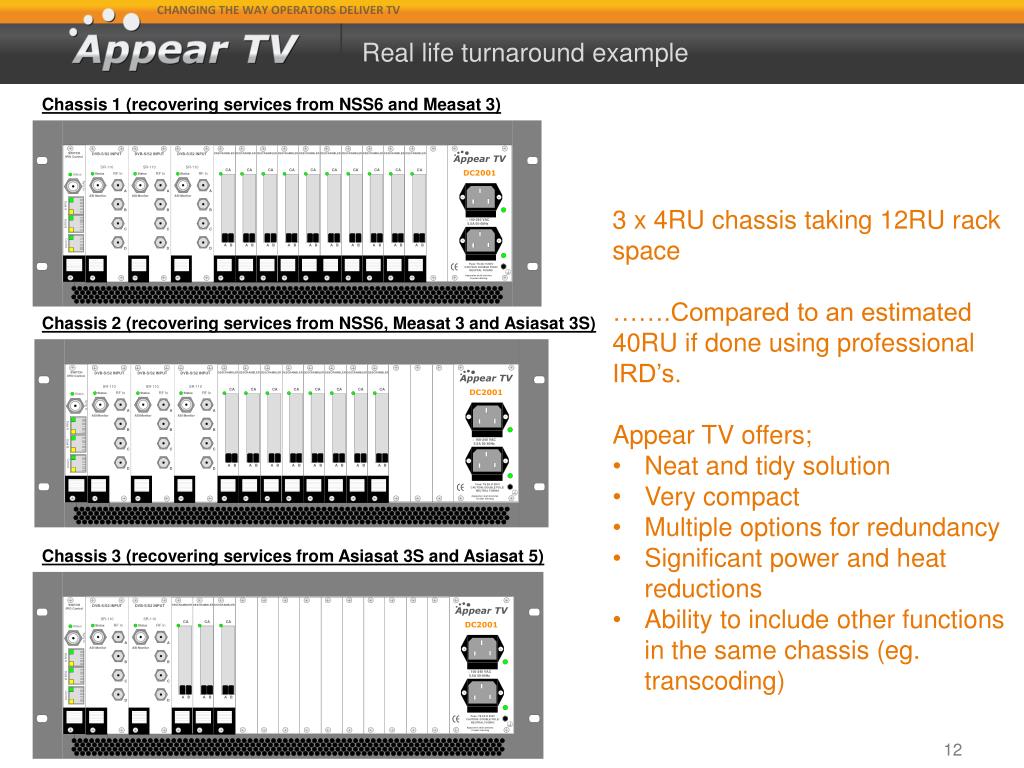

Real life turnaround example

Chassis 1 (recovering services from NSS6 and Measat 3)

  • 3 x 4RU chassis taking 12RU rack space
  • …….Compared to an estimated 40RU if done using professional IRD’s.
  • Appear TV offers;
  • Neat and tidy solution
  • Very compact
  • Multiple options for redundancy
  • Significant power and heat reductions

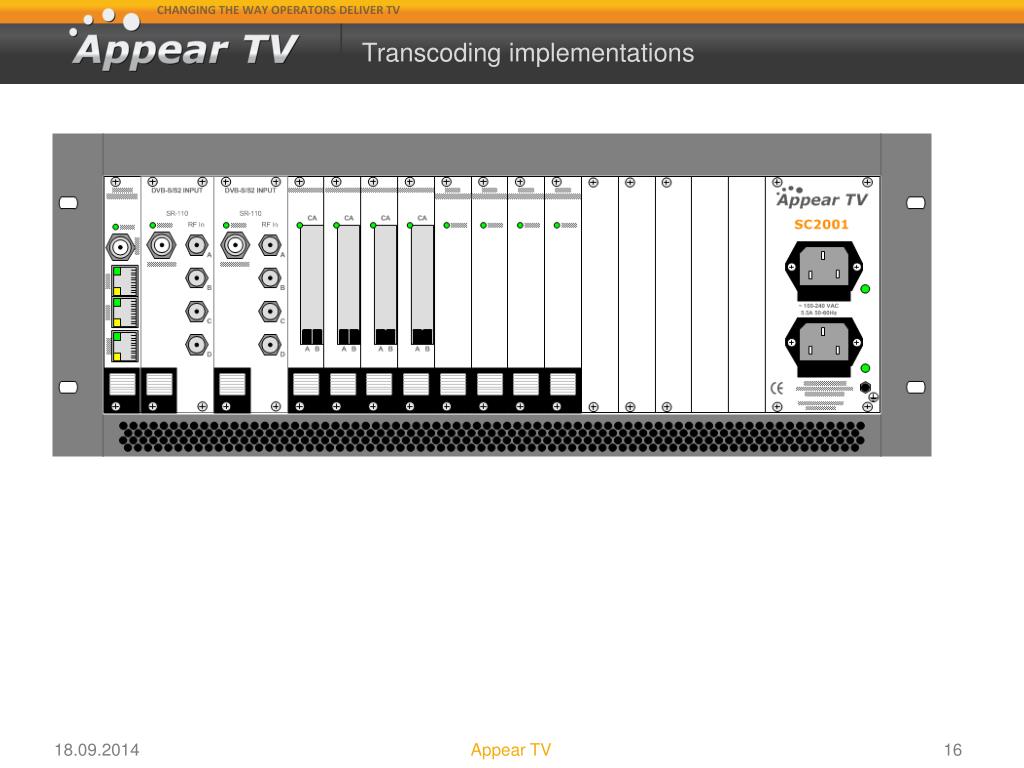

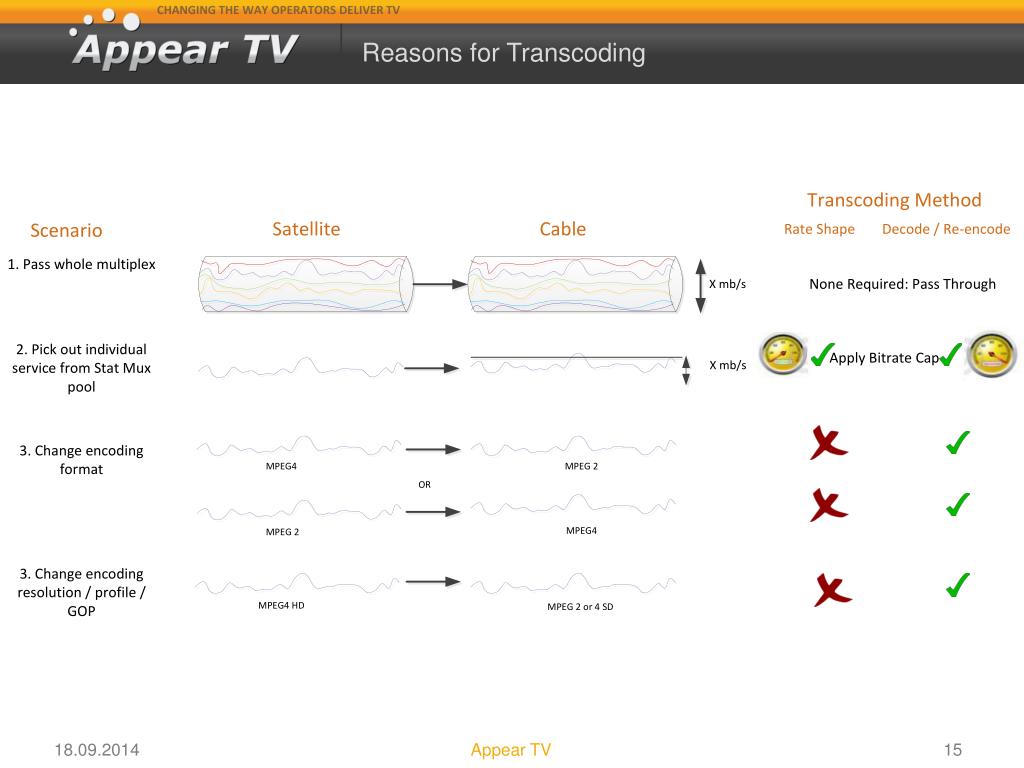

  • Ability to include other functions in the same chassis (eg. transcoding)

Chassis 2 (recovering services from NSS6, Measat 3 and Asiasat 3S)

Chassis 3 (recovering services from Asiasat 3S and Asiasat 5)

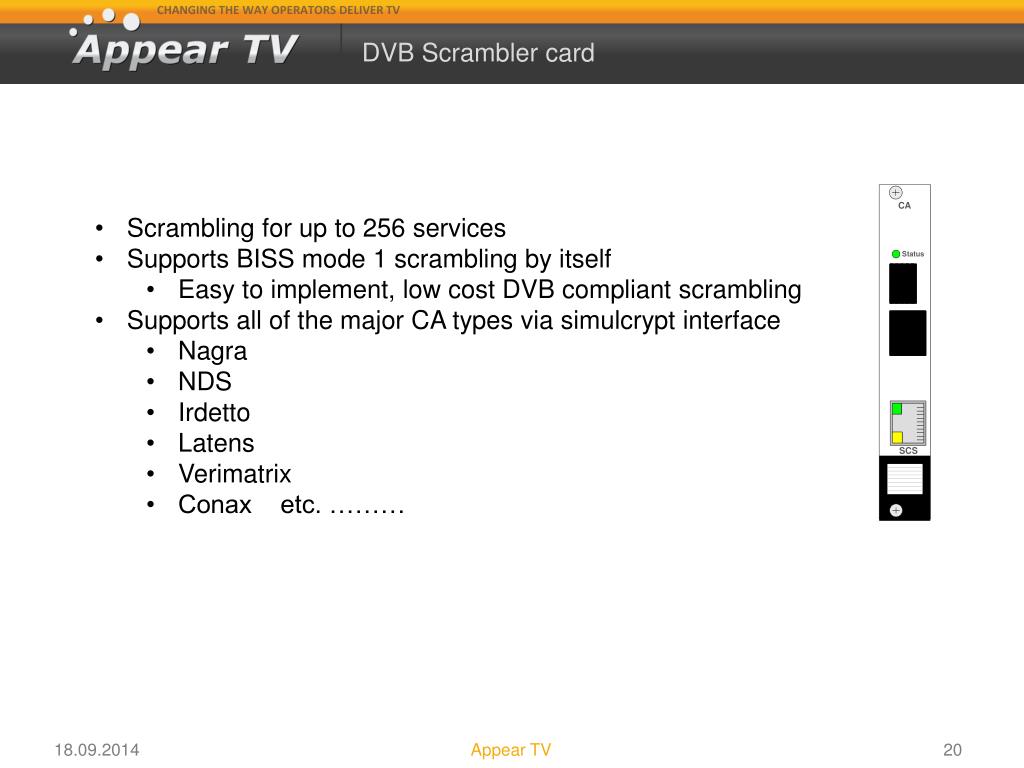

dvb scrambler card
DVB Scrambler card
  • Scrambling for up to 256 services
  • Supports BISS mode 1 scrambling by itself
    • Easy to implement, low cost DVB compliant scrambling
  • Supports all of the major CA types via simulcrypt interface
    • Nagra
    • NDS
    • Irdetto
    • Latens
    • Verimatrix
    • Conax etc. ………

Appear TV

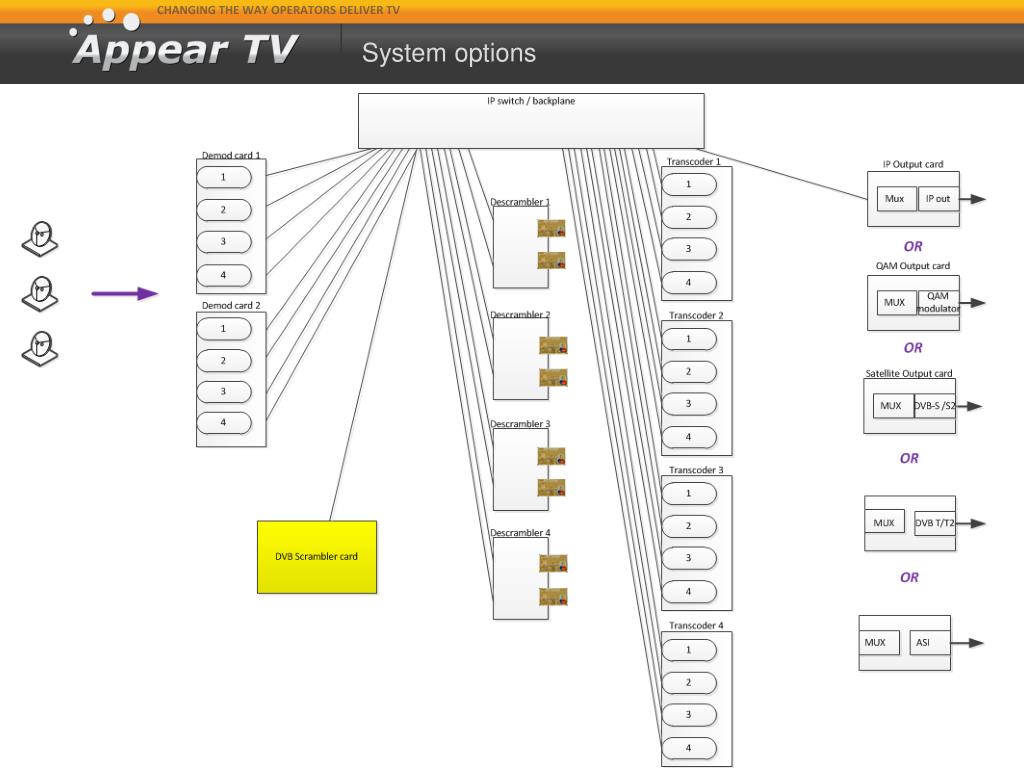

system options2

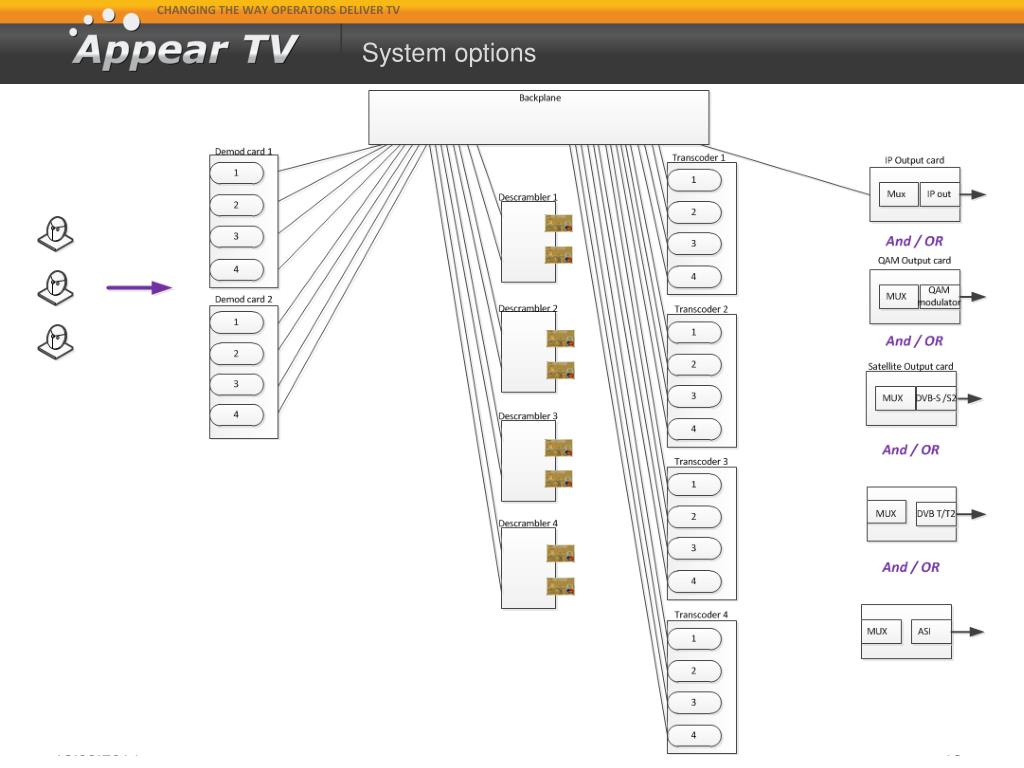

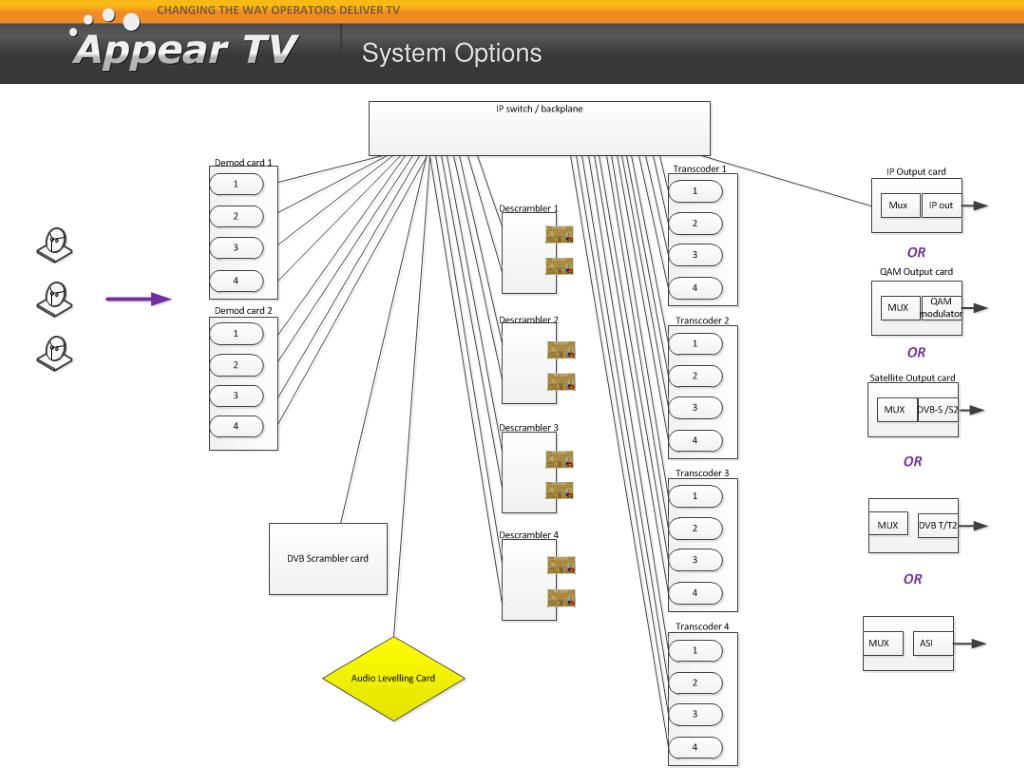

System Options

Appear TV PowerPoint

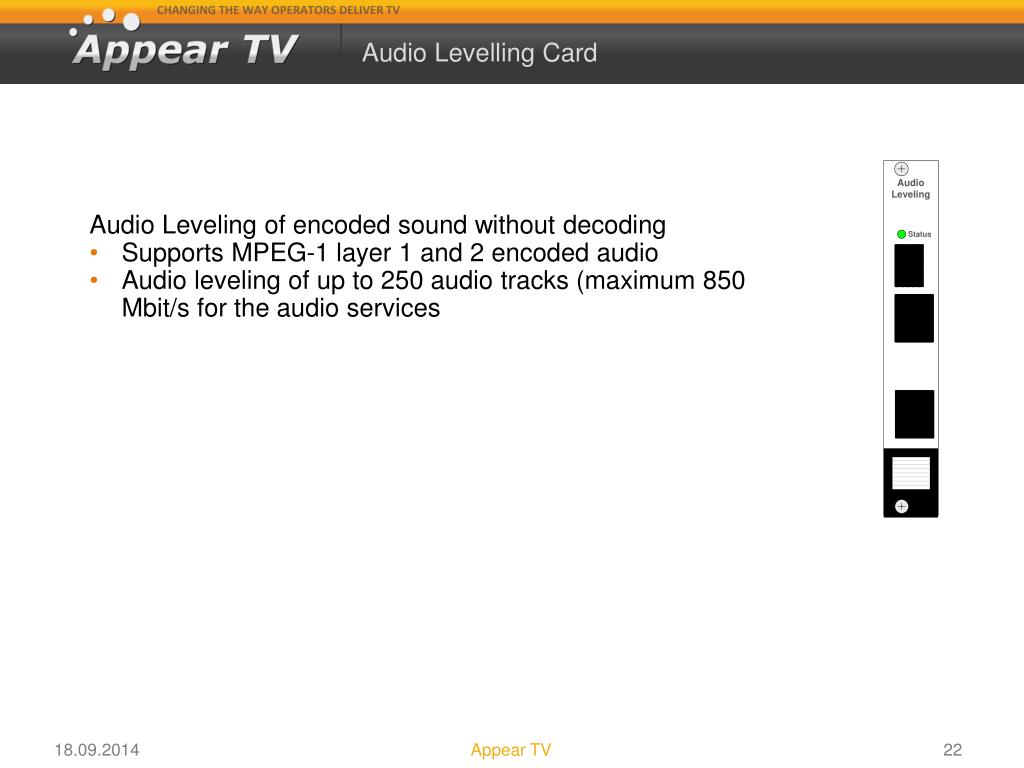

audio levelling card
Audio Levelling Card
  • Audio Leveling of encoded sound without decoding
  • Supports MPEG-1 layer 1 and 2 encoded audio
  • Audio leveling of up to 250 audio tracks (maximum 850 Mbit/s for the audio services

Appear TV

system options3
System Options

Appear TV PowerPoint

new dvb t t2 input card

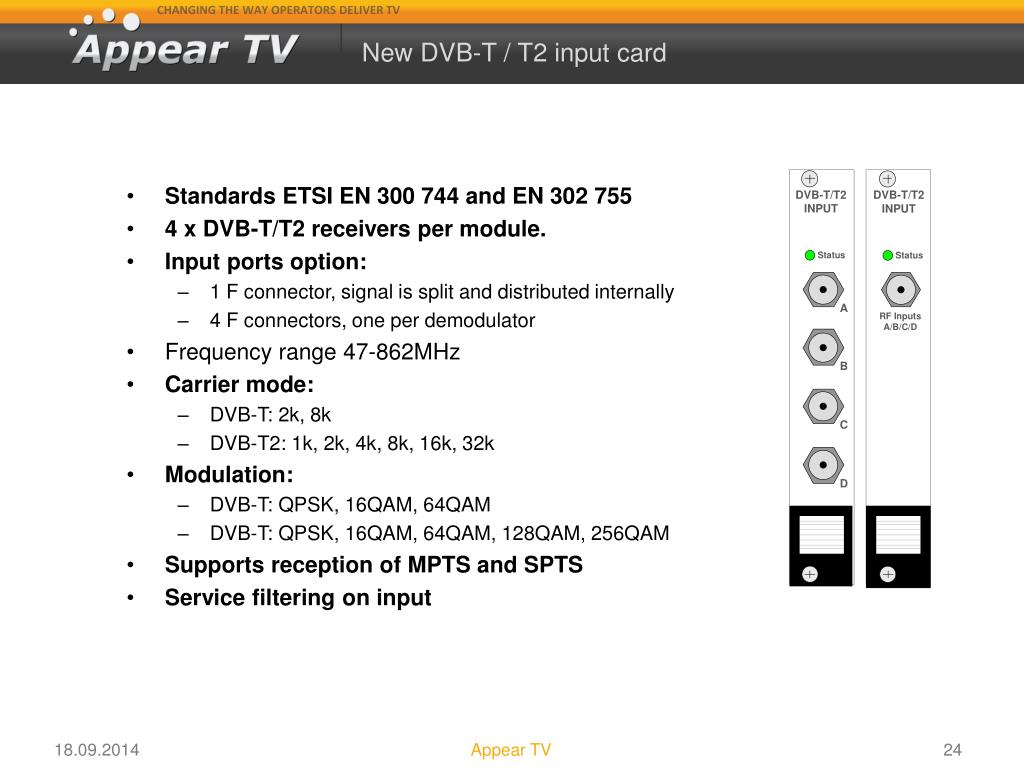

New DVB-T / T2 input card
  • Standards ETSI EN 300 744 and EN 302 755
  • 4 x DVB-T/T2 receivers per module.
  • Input ports option:
    • 1 F connector, signal is split and distributed internally
    • 4 F connectors, one per demodulator
  • Frequency range 47-862MHz
  • Carrier mode:
    • DVB-T: 2k, 8k
    • DVB-T2: 1k, 2k, 4k, 8k, 16k, 32k
  • Modulation:
    • DVB-T: QPSK, 16QAM, 64QAM
    • DVB-T: QPSK, 16QAM, 64QAM, 128QAM, 256QAM
  • Supports reception of MPTS and SPTS
  • Service filtering on input

Appear TV

encoding trends
Encoding Trends

Mpeg 2 SD in 12RU (6RU if lucky!)

8

MPEG-2 (even HD) on a chip

Better quality MPEG-2 SD on one card

(2RU and then 1RU encoders!

7

6

MPEG-4 still a whole card

Everything now available on a chip.

Performance and functionality increasing…

5

Bit Rate for broadcast television (Mbits/s)

4

3

2

1

2007

2009

1995

1996

1997

1998

1999

2000

2004

2005

2006

2008

1994

2001

2002

2003

Appear TV

encoding trends1
Encoding Trends

Mpeg 2 SD in 12RU (6RU if lucky!)

  • Dramatic changes in technology
  • Huge increases in silicon densities and speeds
  • Premium performance on a dense platform is now possible

8

MPEG-2 (even HD) on a chip

Better quality MPEG-2 SD on one card

(2RU and then 1RU encoders!

7

6

MPEG-4 still a whole card

Everything now available on a chip.

Performance and functionality increasing…

5

Bit Rate for broadcast television (Mbits/s)

4

3

2

1

2007

2009

1995

1996

1997

1998

1999

2000

2004

2005

2006

2008

1994

2001

2002

2003

Appear TV

hd sd mpeg 2 4 encoder with sdi hdsdi input

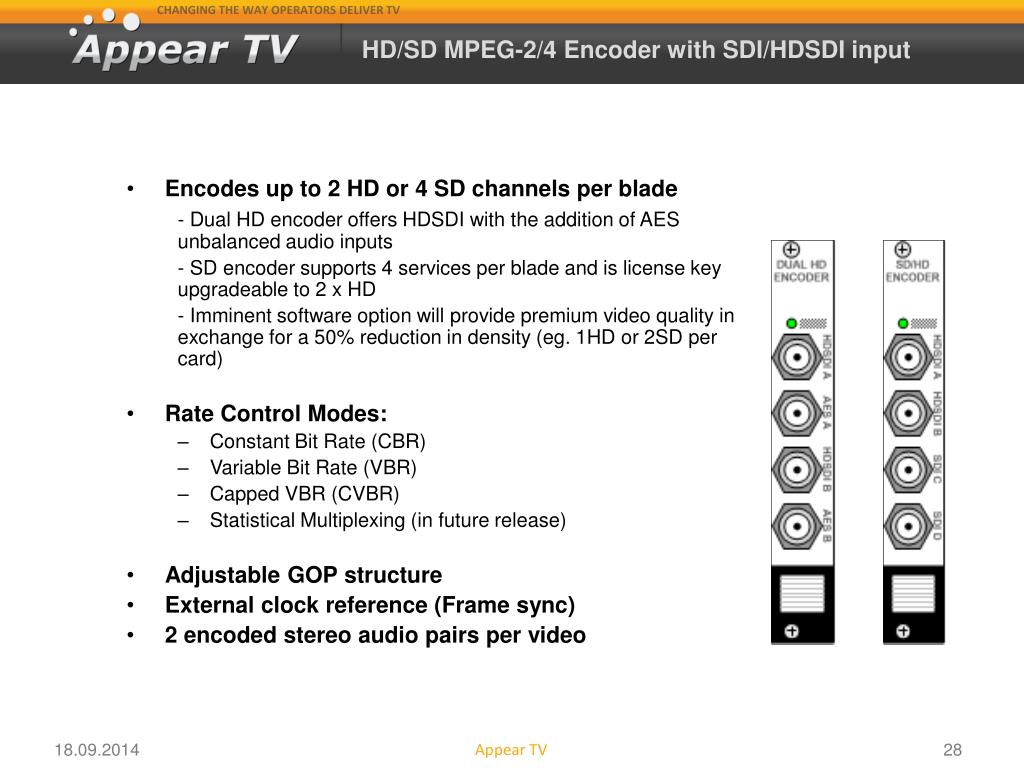

HD/SD MPEG-2/4 Encoder with SDI/HDSDI input
  • Encodes up to 2 HD or 4 SD channels per blade

- Dual HD encoder offers HDSDI with the addition of AES unbalanced audio inputs

- SD encoder supports 4 services per blade and is license key upgradeable to 2 x HD

- Imminent software option will provide premium video quality in exchange for a 50% reduction in density (eg. 1HD or 2SD per card)

  • Rate Control Modes:
    • Constant Bit Rate (CBR)
    • Variable Bit Rate (VBR)
    • Capped VBR (CVBR)
    • Statistical Multiplexing (in future release)
  • Adjustable GOP structure
  • External clock reference (Frame sync)
  • 2 encoded stereo audio pairs per video

Appear TV

analogue input option

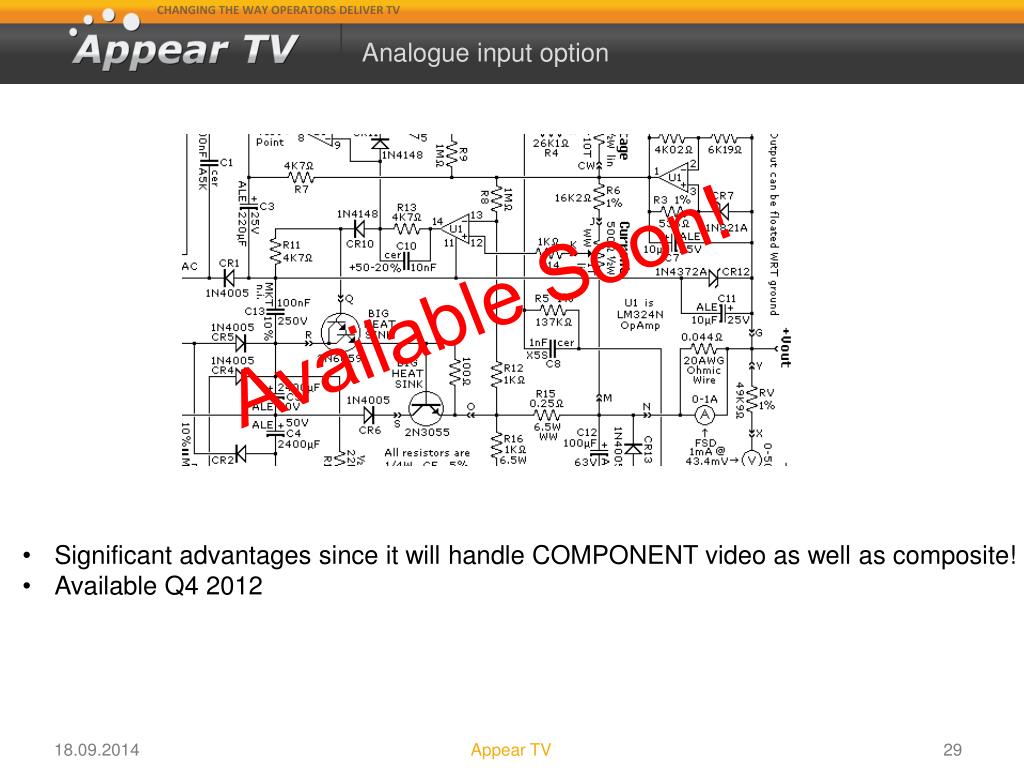

Analogue input option

Available Soon!

  • Significant advantages since it will handle COMPONENT video as well as composite!
  • Available Q4 2012

Appear TV

the problems with composite

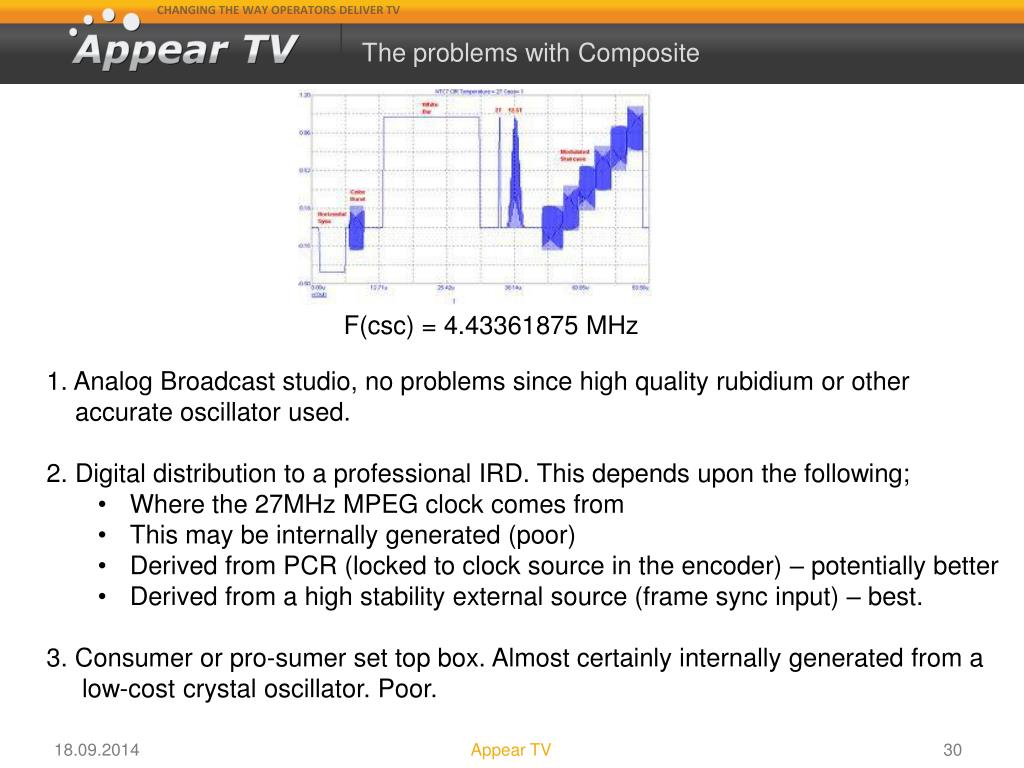

The problems with Composite

F(csc) = 4.43361875 MHz

  • 1. Analog Broadcast studio, no problems since high quality rubidium or other
  • accurate oscillator used.
  • 2. Digital distribution to a professional IRD. This depends upon the following;
    • Where the 27MHz MPEG clock comes from
    • This may be internally generated (poor)
    • Derived from PCR (locked to clock source in the encoder) – potentially better
    • Derived from a high stability external source (frame sync input) – best.
  • 3. Consumer or pro-sumer set top box. Almost certainly internally generated from a
  • low-cost crystal oscillator. Poor.

Appear TV

composite and component video
Composite and component video

With digital distribution of analogue signals, the best solution is to keep the

chrominance and luminance signals separate and AVOID using composite!

Appear TV

system options4

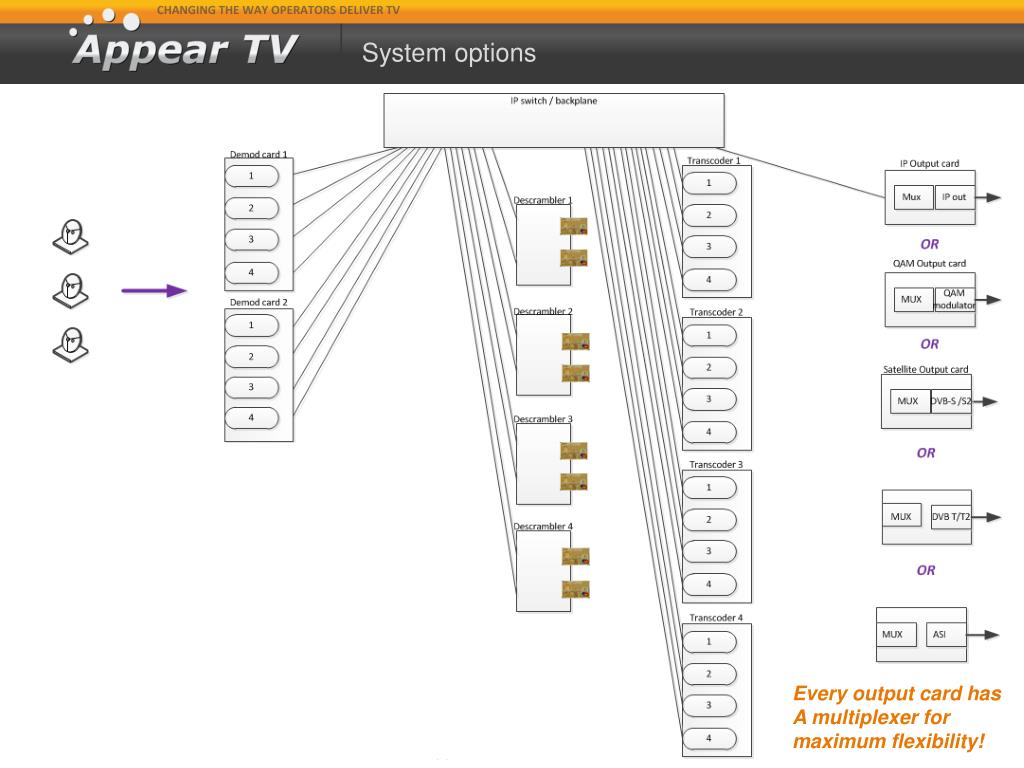

System options

Every output card has

A multiplexer for

maximum flexibility!

Appear TV PowerPoint

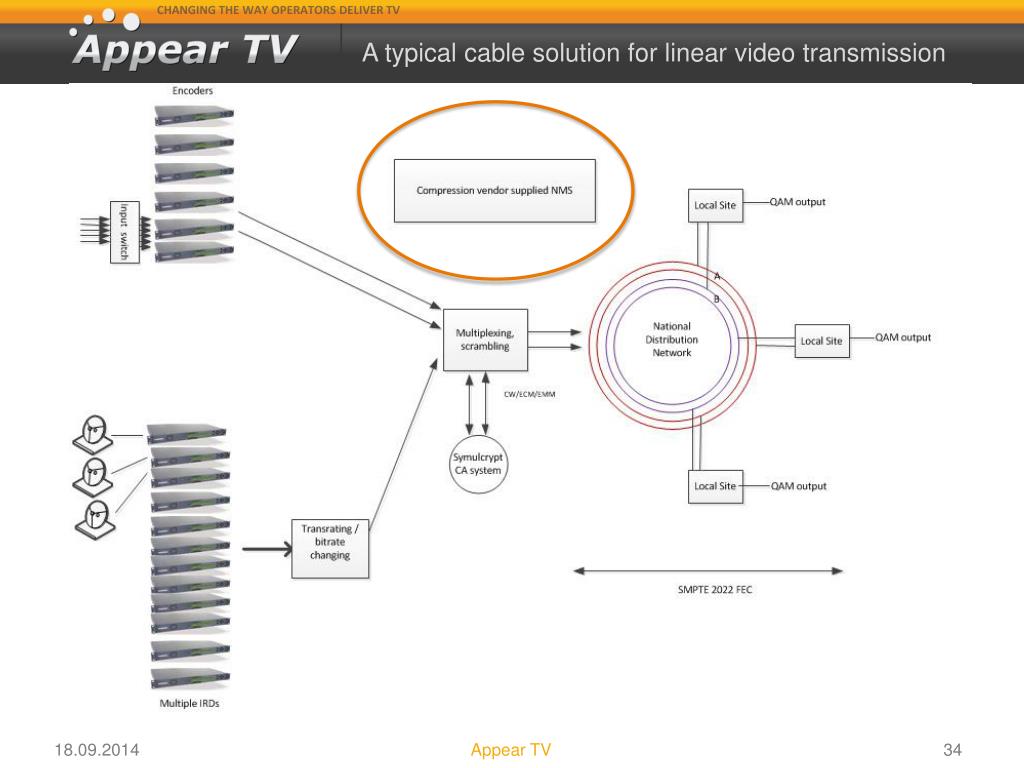

the nms

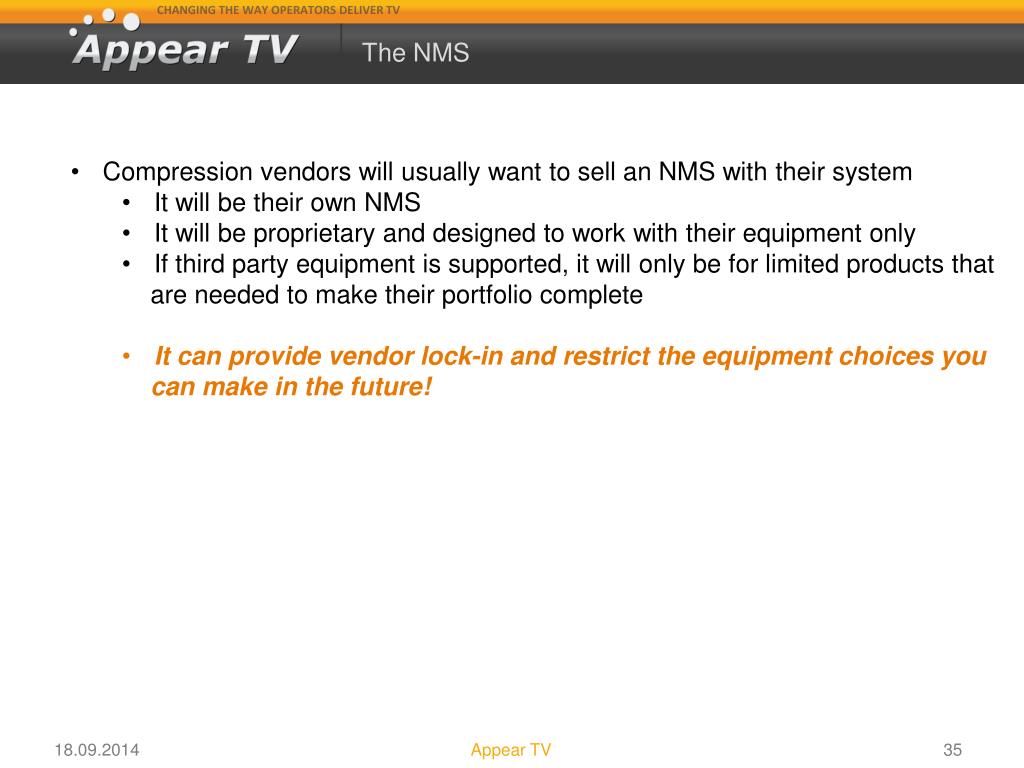

The NMS
  • Compression vendors will usually want to sell an NMS with their system
    • It will be their own NMS
    • It will be proprietary and designed to work with their equipment only
    • If third party equipment is supported, it will only be for limited products that
    • are needed to make their portfolio complete
    • It can provide vendor lock-in and restrict the equipment choices you
    • can make in the future!

Appear TV

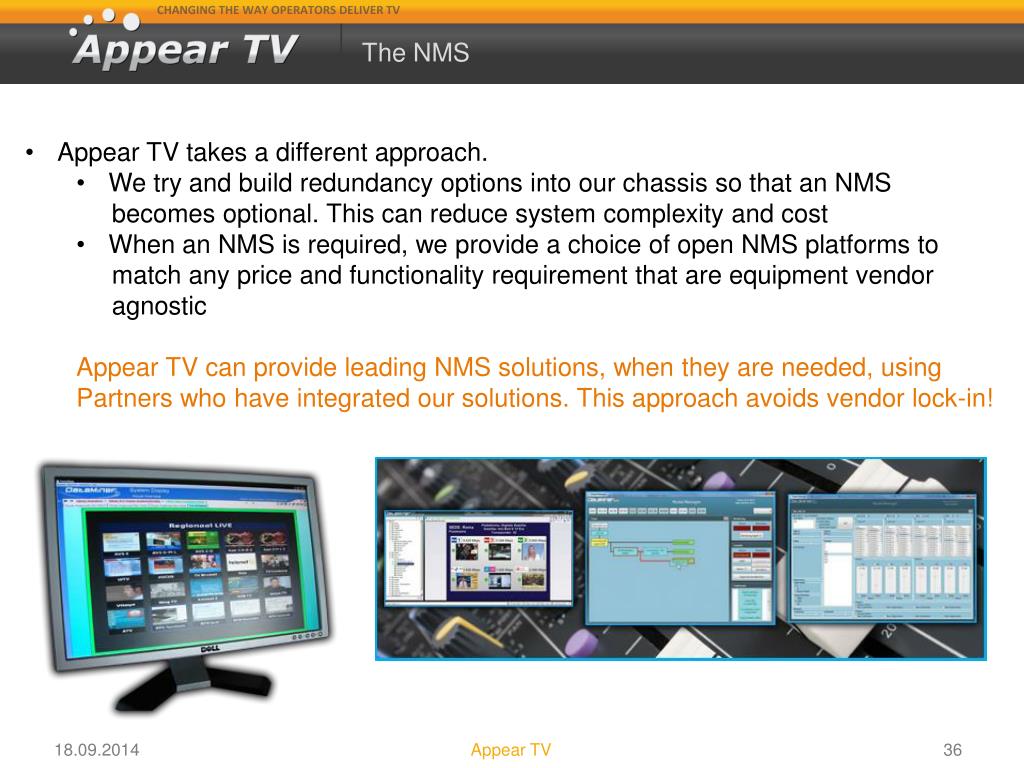

the nms1
The NMS
  • Appear TV takes a different approach.
    • We try and build redundancy options into our chassis so that an NMS
    • becomes optional. This can reduce system complexity and cost
    • When an NMS is required, we provide a choice of open NMS platforms to
    • match any price and functionality requirement that are equipment vendor
    • agnostic
    • Appear TV can provide leading NMS solutions, when they are needed, using
    • Partners who have integrated our solutions. This approach avoids vendor lock-in!

Appear TV

protecting the distribution network

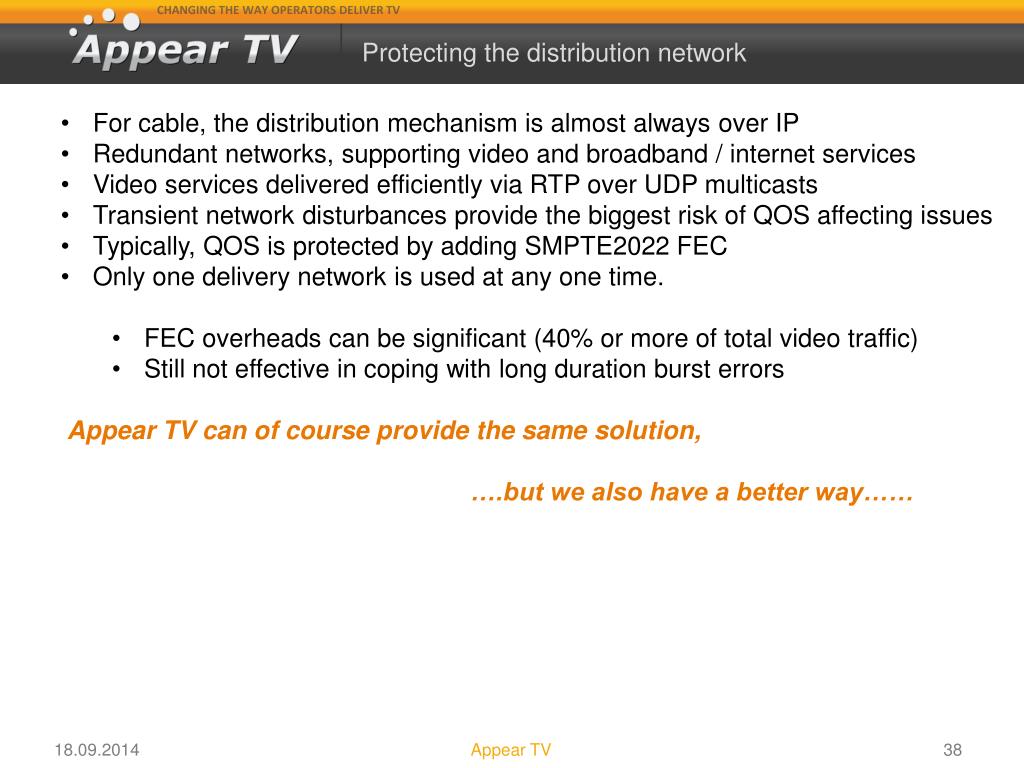

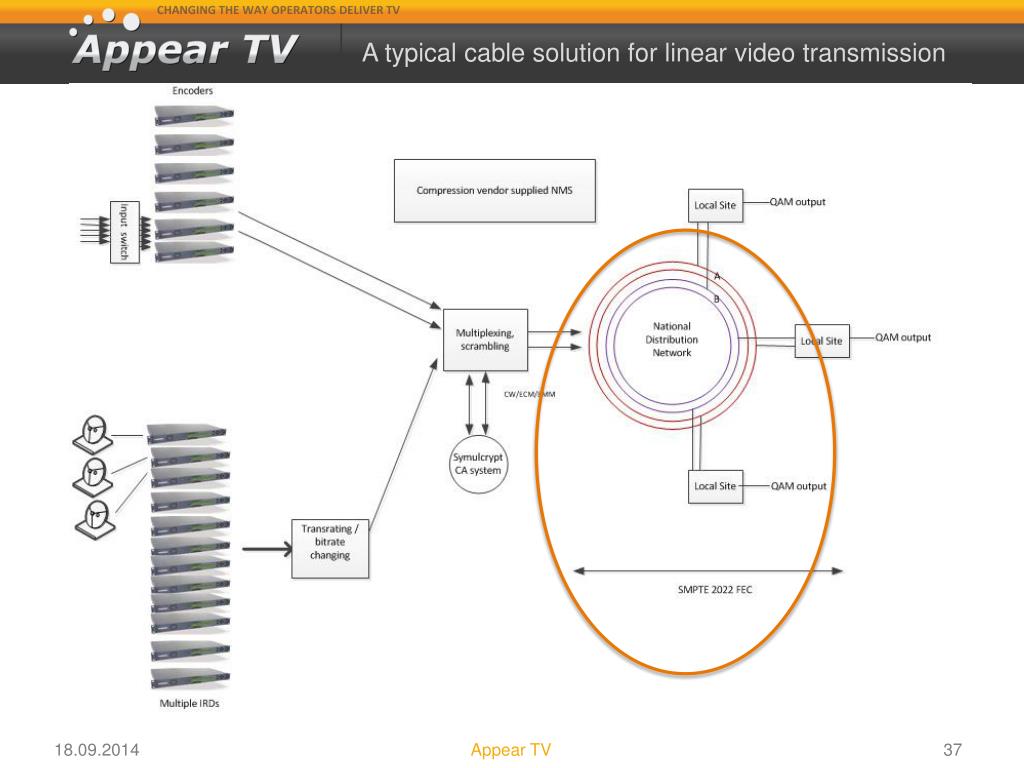

Protecting the distribution network
  • For cable, the distribution mechanism is almost always over IP
  • Redundant networks, supporting video and broadband / internet services
  • Video services delivered efficiently via RTP over UDP multicasts
  • Transient network disturbances provide the biggest risk of QOS affecting issues
  • Typically, QOS is protected by adding SMPTE2022 FEC
  • Only one delivery network is used at any one time.
    • FEC overheads can be significant (40% or more of total video traffic)
    • Still not effective in coping with long duration burst errors
  • Appear TV can of course provide the same solution,
  • ….but we also have a better way……

Appear TV

protecting the distribution network1

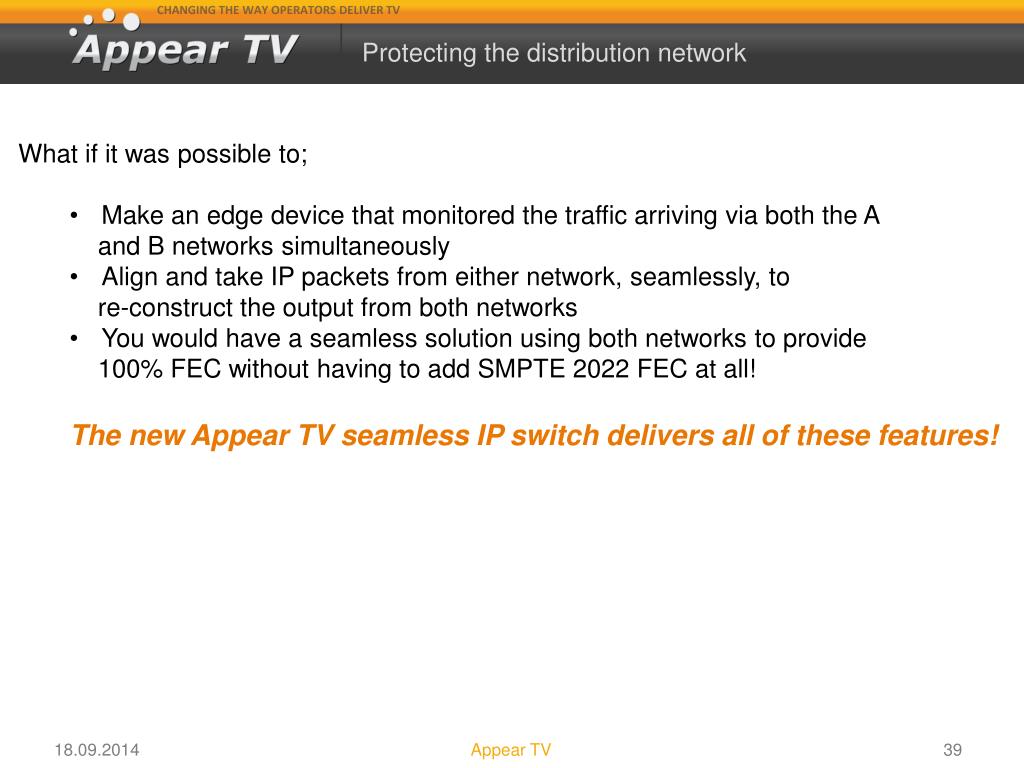

Protecting the distribution network
  • What if it was possible to;
    • Make an edge device that monitored the traffic arriving via both the A
    • and B networks simultaneously
    • Align and take IP packets from either network, seamlessly, to
    • re-construct the output from both networks
    • You would have a seamless solution using both networks to provide
    • 100% FEC without having to add SMPTE 2022 FEC at all!

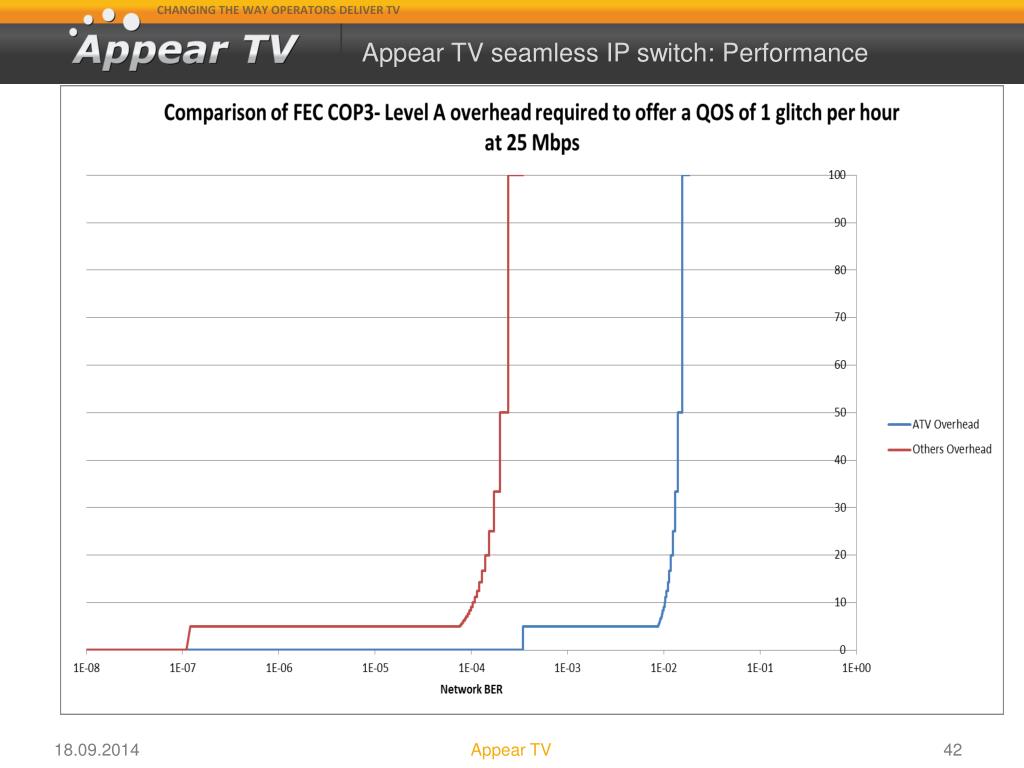

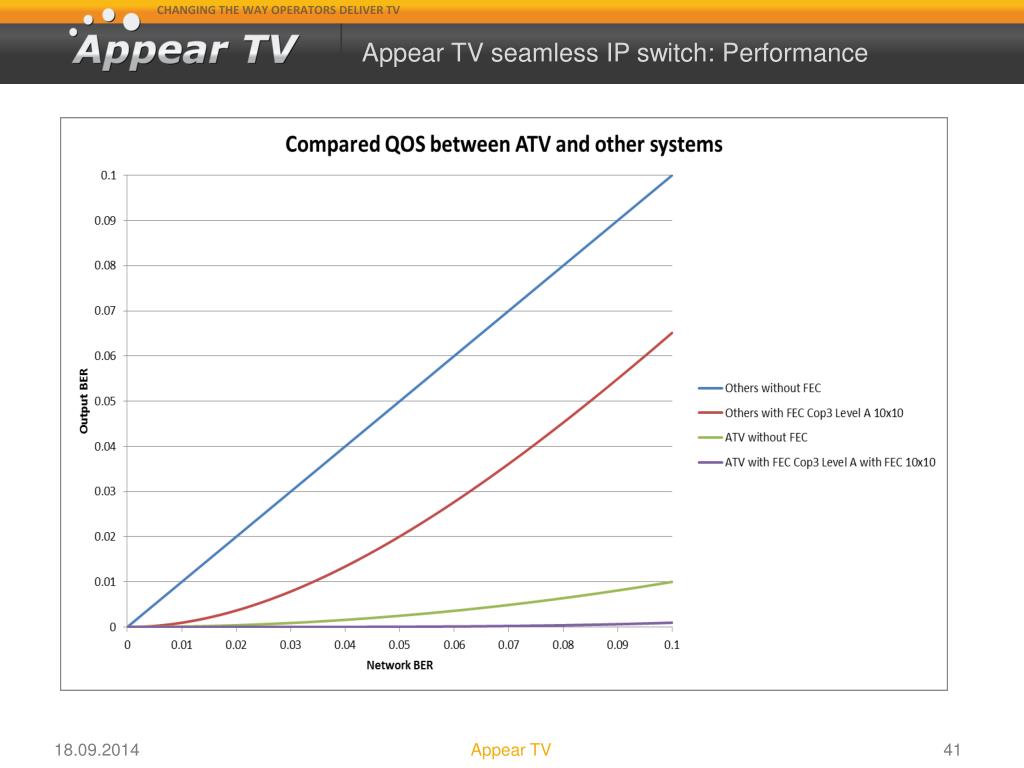

    • The new Appear TV seamless IP switch delivers all of these features!

Appear TV

qam modulator card

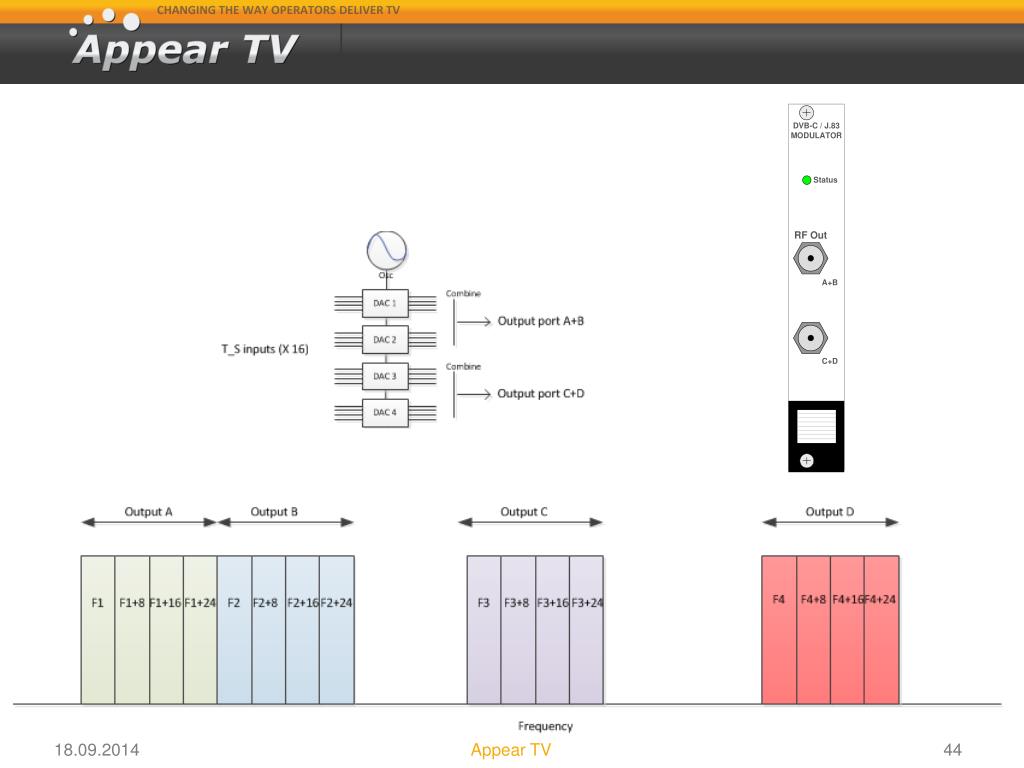

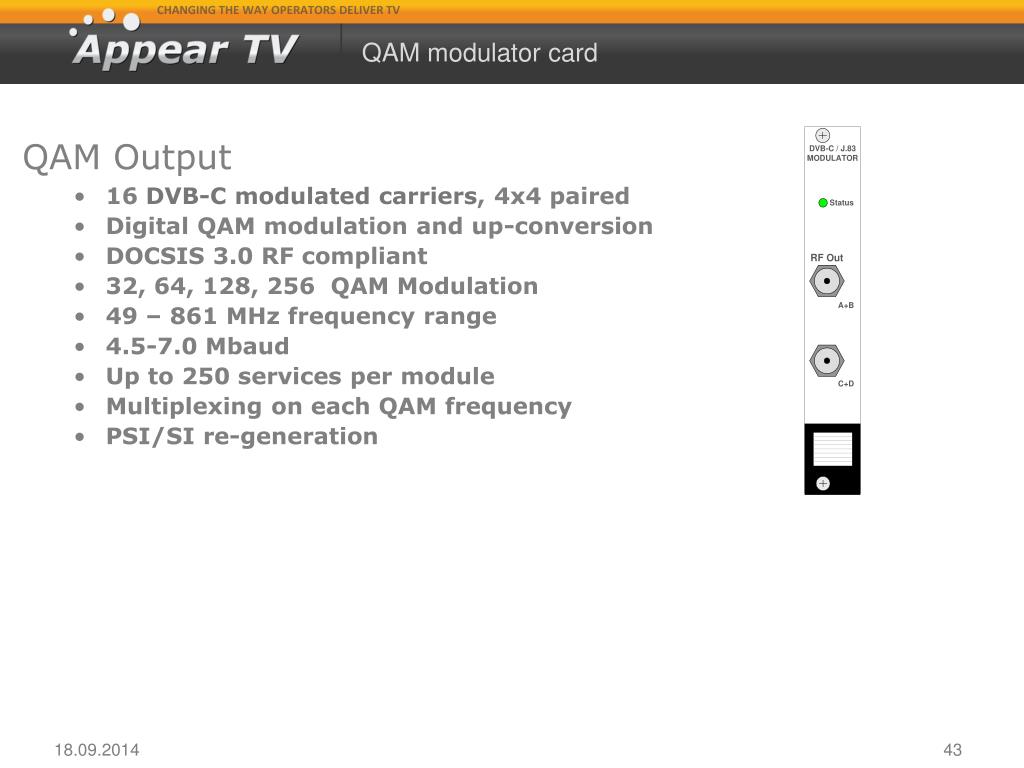

QAM modulator card

QAM Output

  • 16 DVB-C modulated carriers, 4x4 paired
  • Digital QAM modulation and up-conversion
  • DOCSIS 3.0 RF compliant
  • 32, 64, 128, 256 QAM Modulation
  • 49 – 861 MHz frequency range
  • 4.5-7.0 Mbaud
  • Up to 250 services per module
  • Multiplexing on each QAM frequency
  • PSI/SI re-generation

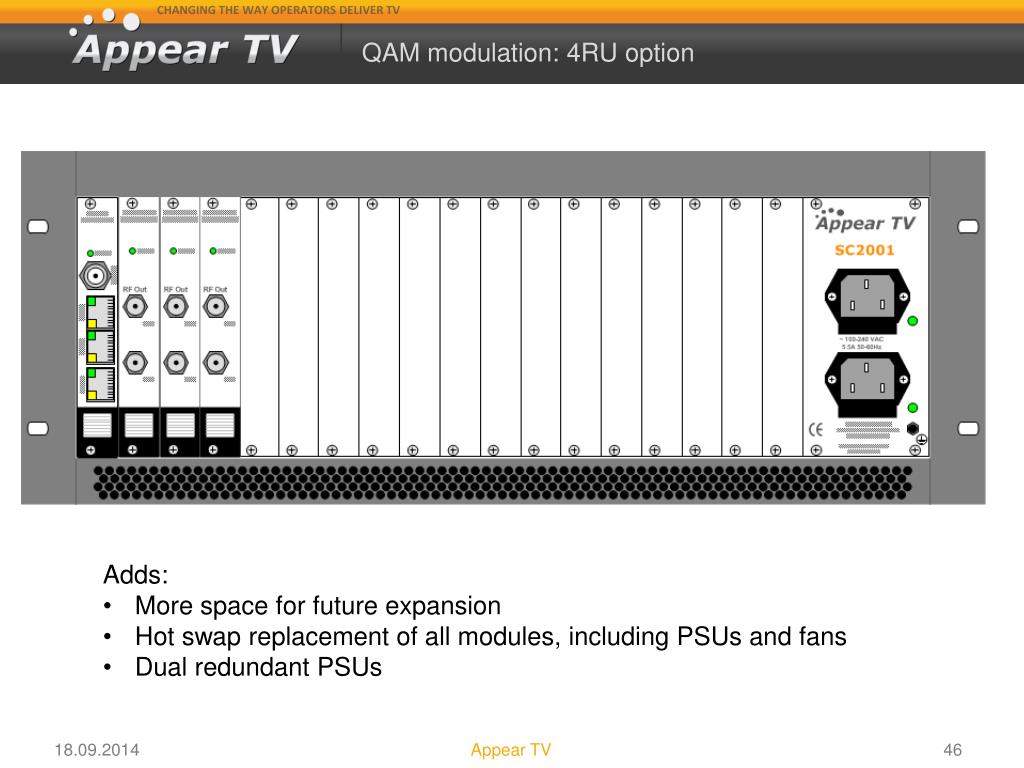

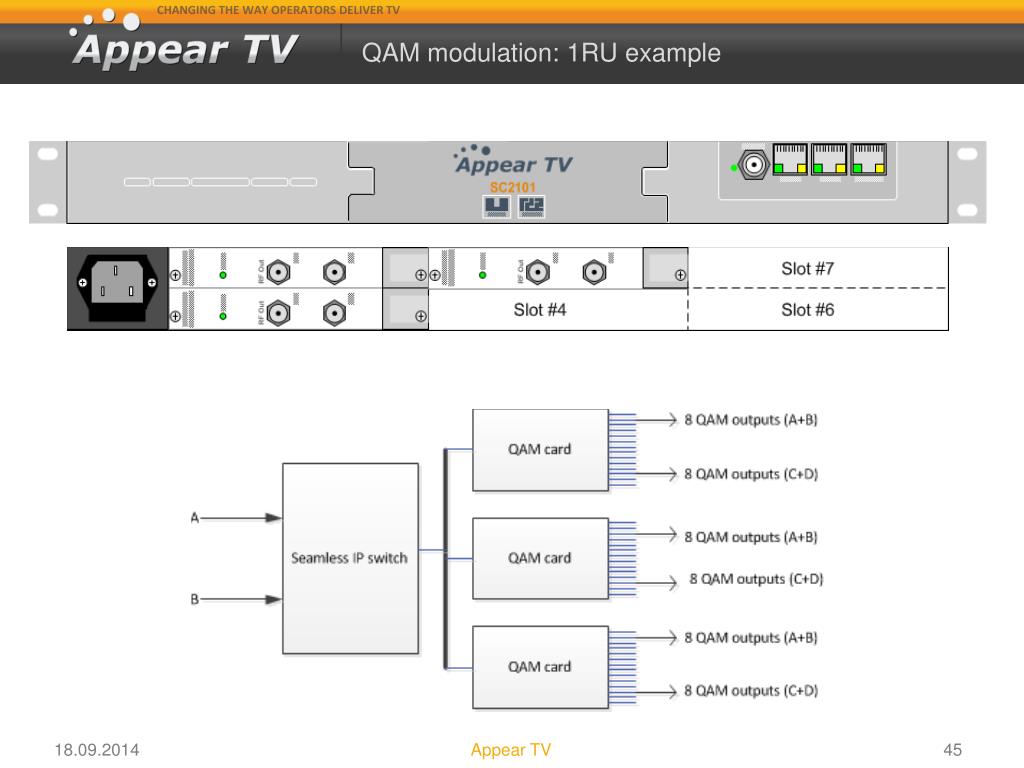

qam modulation 4ru option
QAM modulation: 4RU option
  • Adds:
  • More space for future expansion
  • Hot swap replacement of all modules, including PSUs and fans
  • Dual redundant PSUs

Appear TV

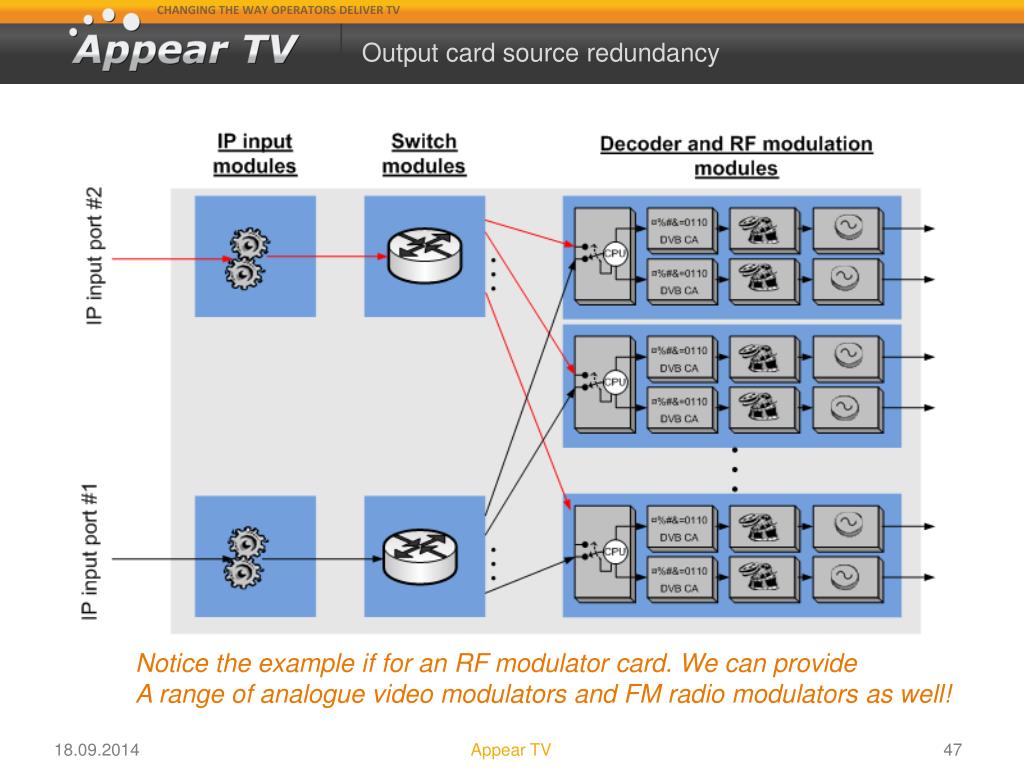

output card source redundancy

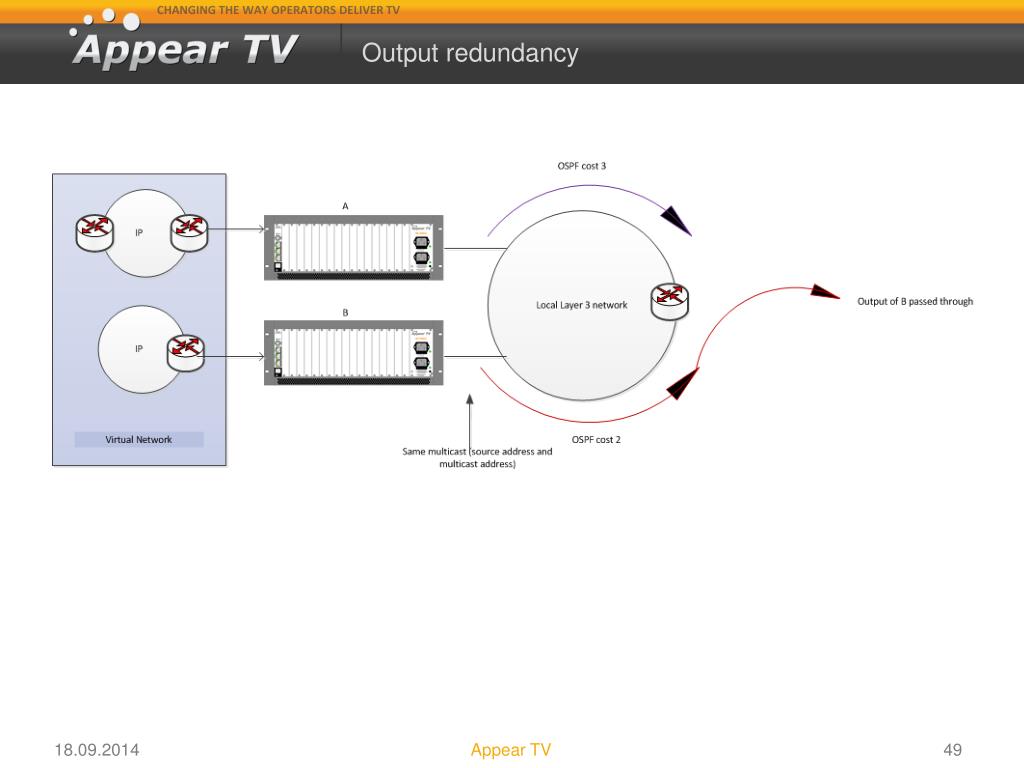

Output card source redundancy

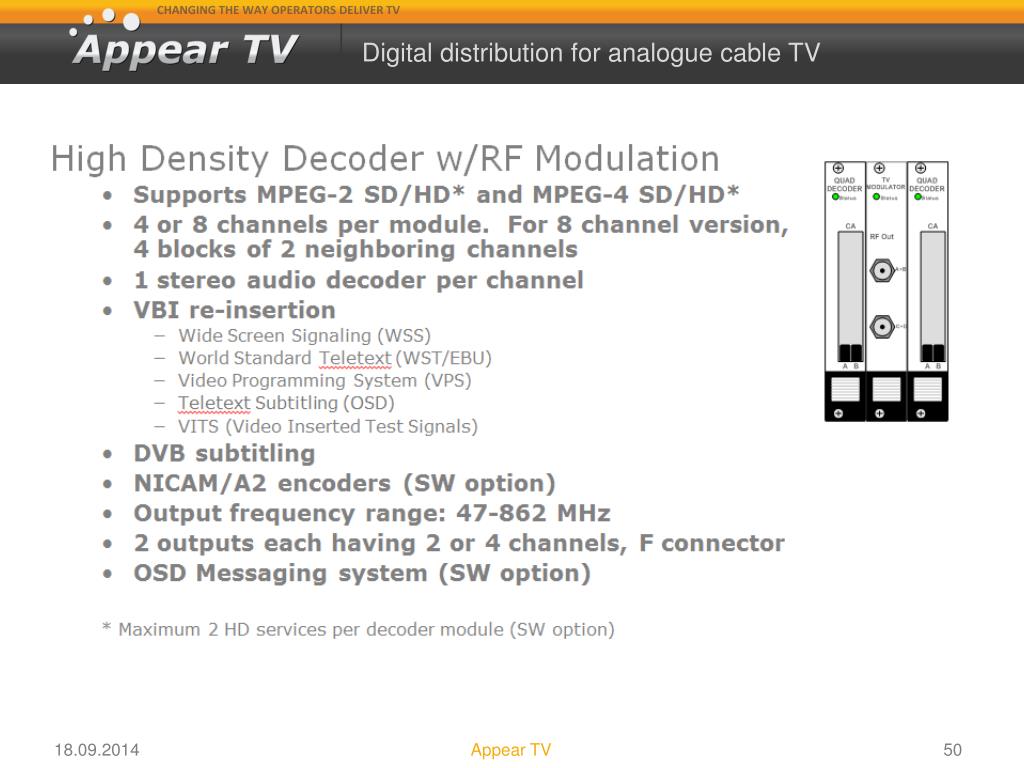

Notice the example if for an RF modulator card. We can provide

A range of analogue video modulators and FM radio modulators as well!

Appear TV

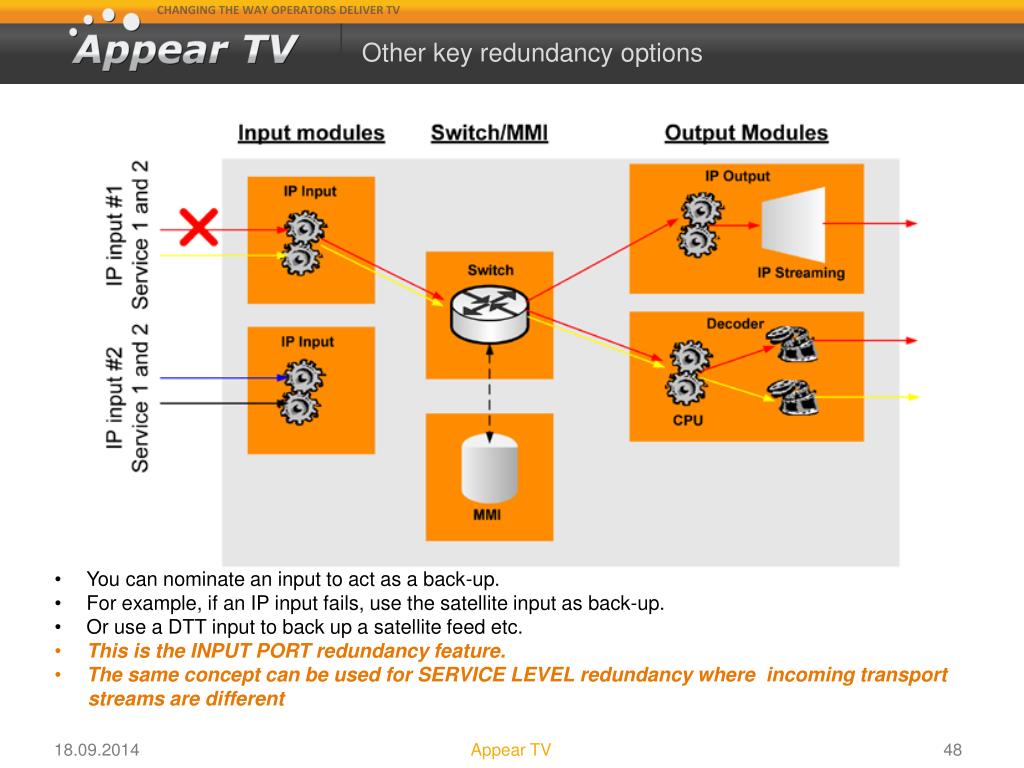

other key redundancy options
Other key redundancy options
  • You can nominate an input to act as a back-up.
  • For example, if an IP input fails, use the satellite input as back-up.
  • Or use a DTT input to back up a satellite feed etc.
  • This is the INPUT PORT redundancy feature.
  • The same concept can be used for SERVICE LEVEL redundancy where incoming transport
  • streams are different

Appear TV

new solutions ott multiscreen
New solutions: OTT / multiscreen
  • Targeting linear video applications
  • Offering hardware based encoding and transcoding to provide
  • high density and best compression performance
  • Works alongside other vendors equipment so great for headend
  • expansion / upgrade
  • Works with many 3rd party segmenters.
  • Enables you to have the density and performance only hardware solutions
  • can provide and works with your chosen segmentation equipment provider.

Appear TV
