Presentation Transcript
agenda
Agenda

Introduction

Timing Setup Verification

True or False

FIS Severity Codes

Urban Legends

FIS Update 2012

timing is almost everything
Timing is (almost) everything

No Racers = No Race

No Race Track = No Race

No Timing = No Race

  • 3 Components of a race:
    • Racers
    • Race Track
    • Timing

FIS Update 2012

timing is almost everything1

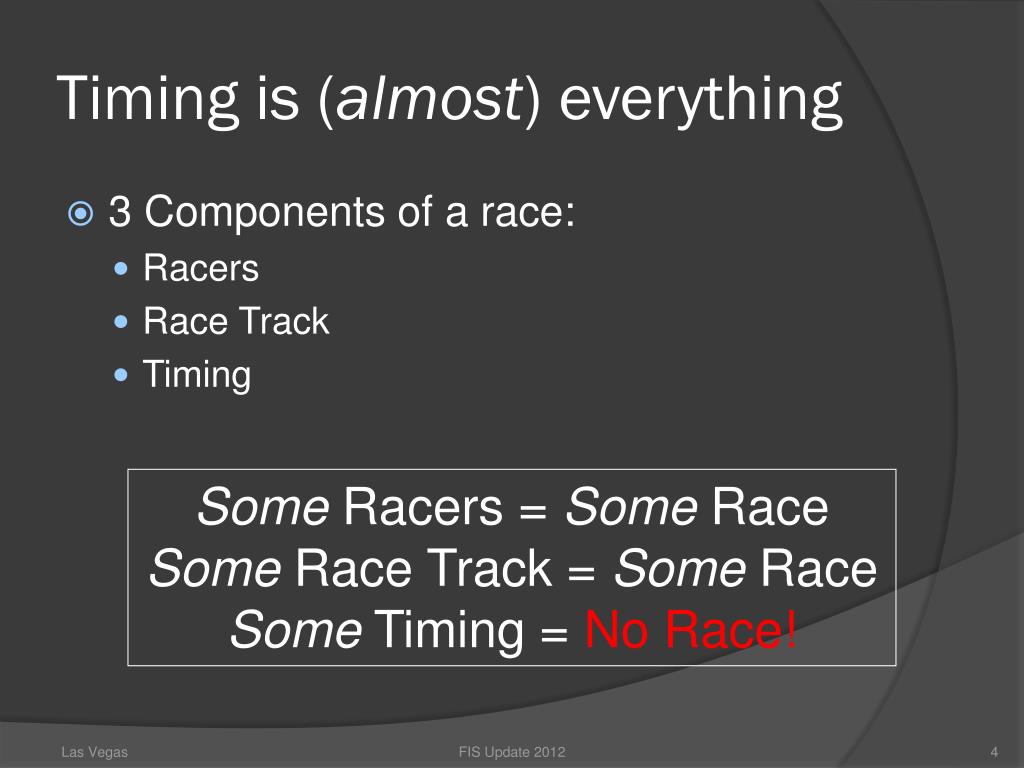

Timing is (almost) everything

Some Racers = Some Race

Some Race Track = Some Race

Some Timing = No Race!

  • 3 Components of a race:
    • Racers
    • Race Track
    • Timing

FIS Update 2012

timing setup verification

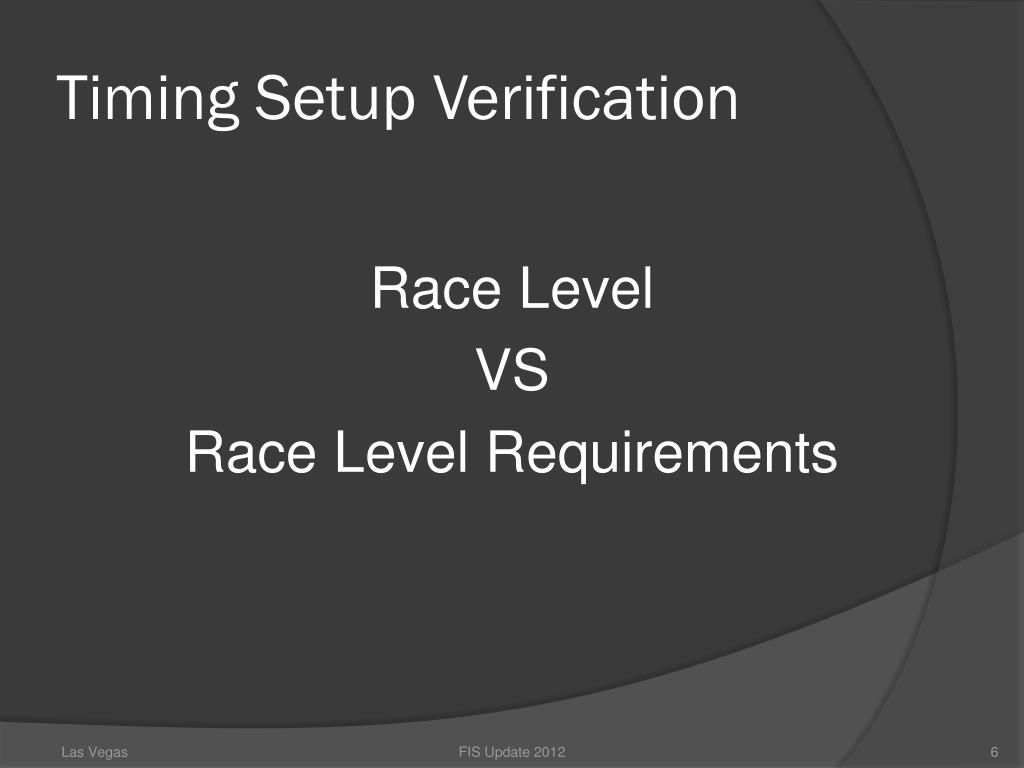

Timing Setup Verification

Race Level

VS

Race Level Requirements

FIS Update 2012

timing setup verification1
Timing Setup Verification
  • Race Level Determination:

FIS Update 2012

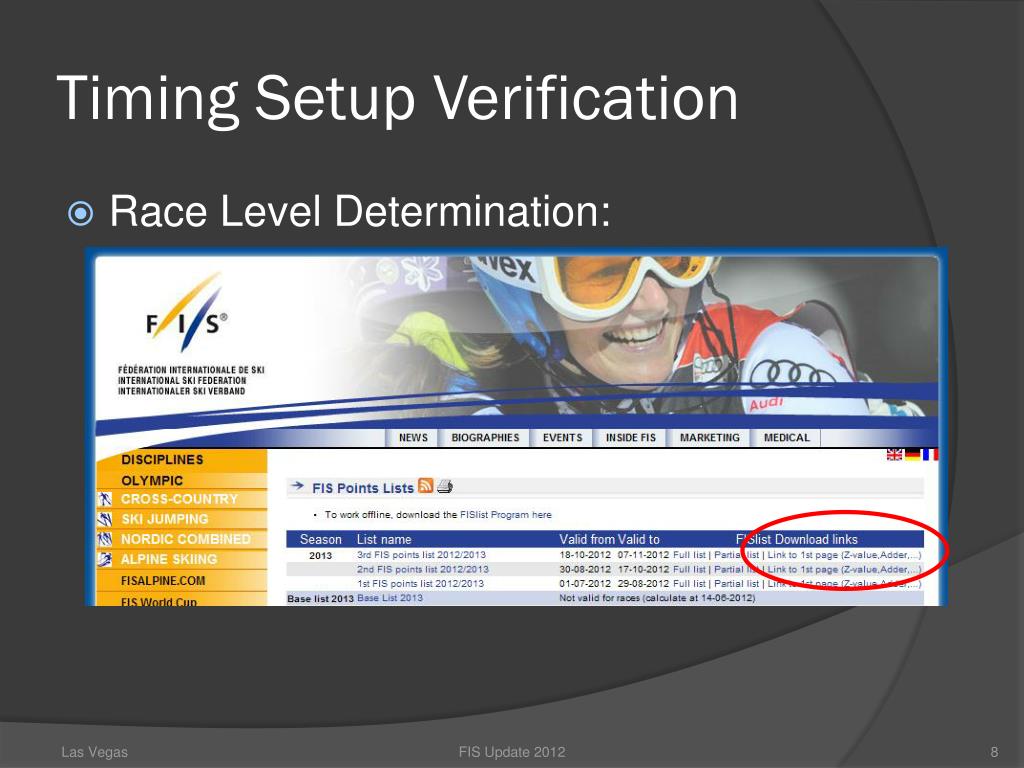

timing setup verification2

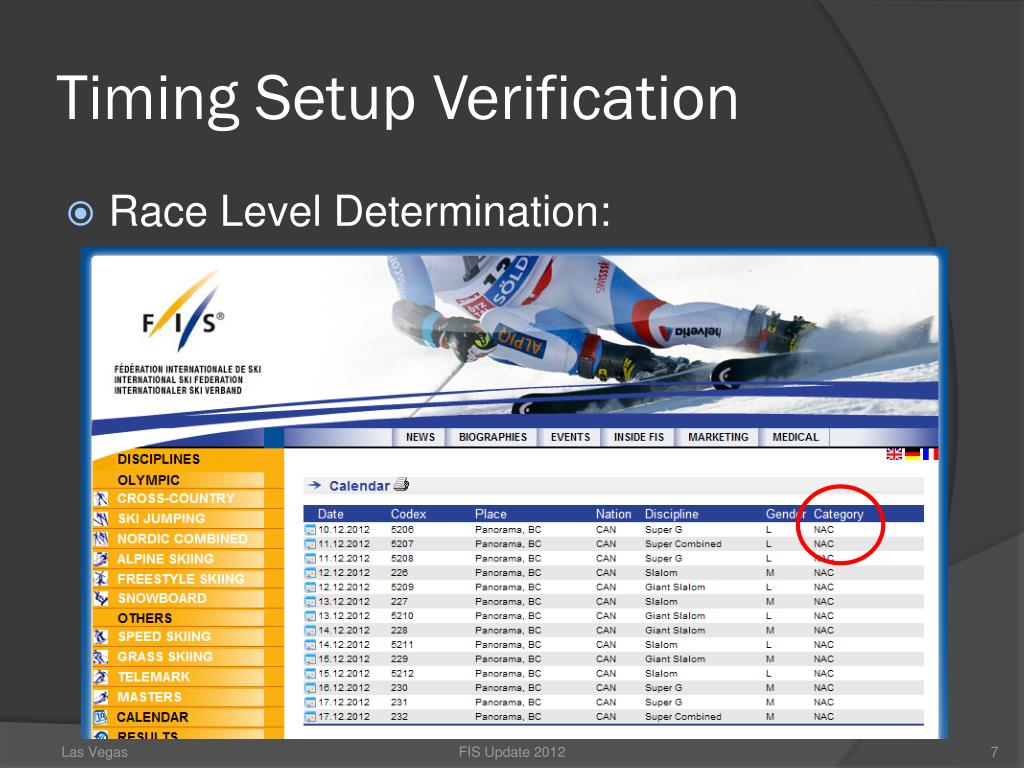

Timing Setup Verification
  • Race Level Determination:

FIS Update 2012

timing setup verification3

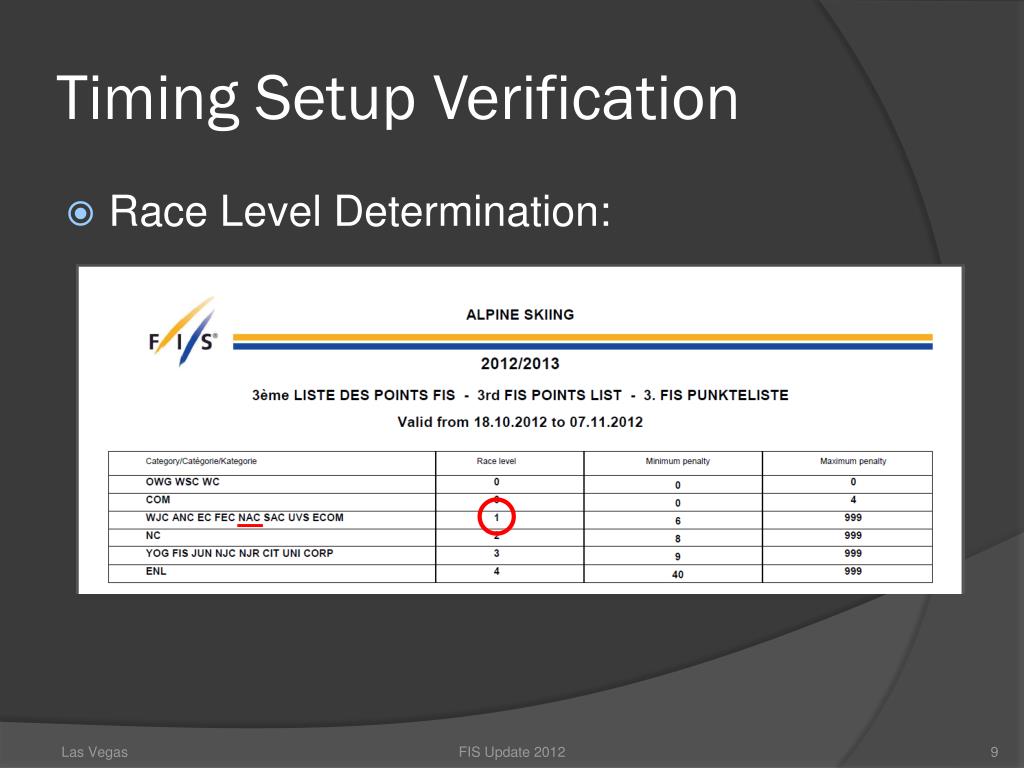

Timing Setup Verification
  • Race Level Determination:

FIS Update 2012

timing setup verification4
Timing Setup Verification
  • Race Level Requirements:

FIS Update 2012

timing setup verification5
Timing Setup Verification
  • Race Level Requirements:

FIS Update 2012

timing setup verification6

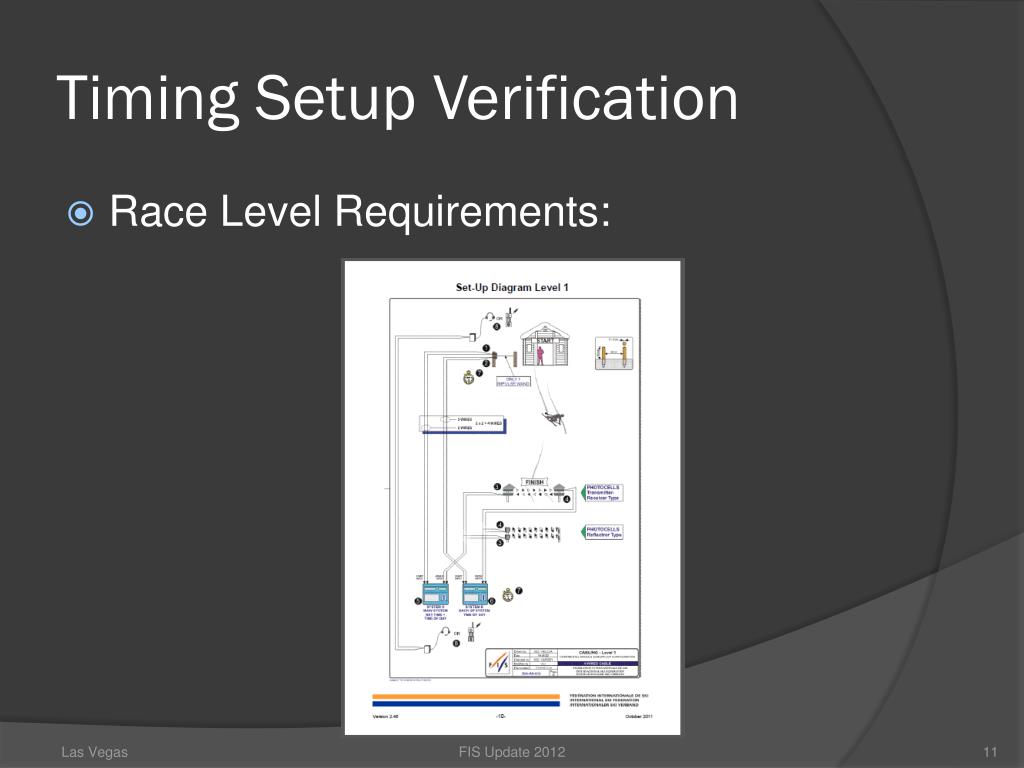

Timing Setup Verification
  • Race Level Requirements:

FIS Update 2012

timing setup verification7
Timing Setup Verification
  • Race Level Requirements:

FIS Update 2012

timing setup verification8

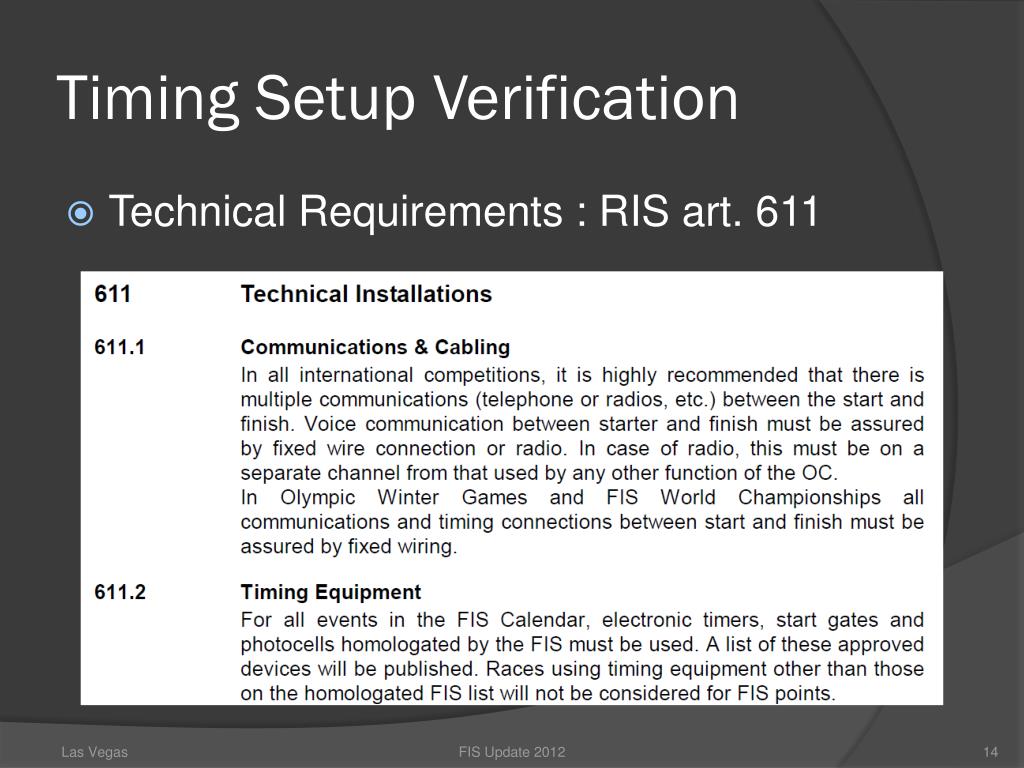

Timing Setup Verification
  • Technical Requirements : RIS art. 611

FIS Update 2012

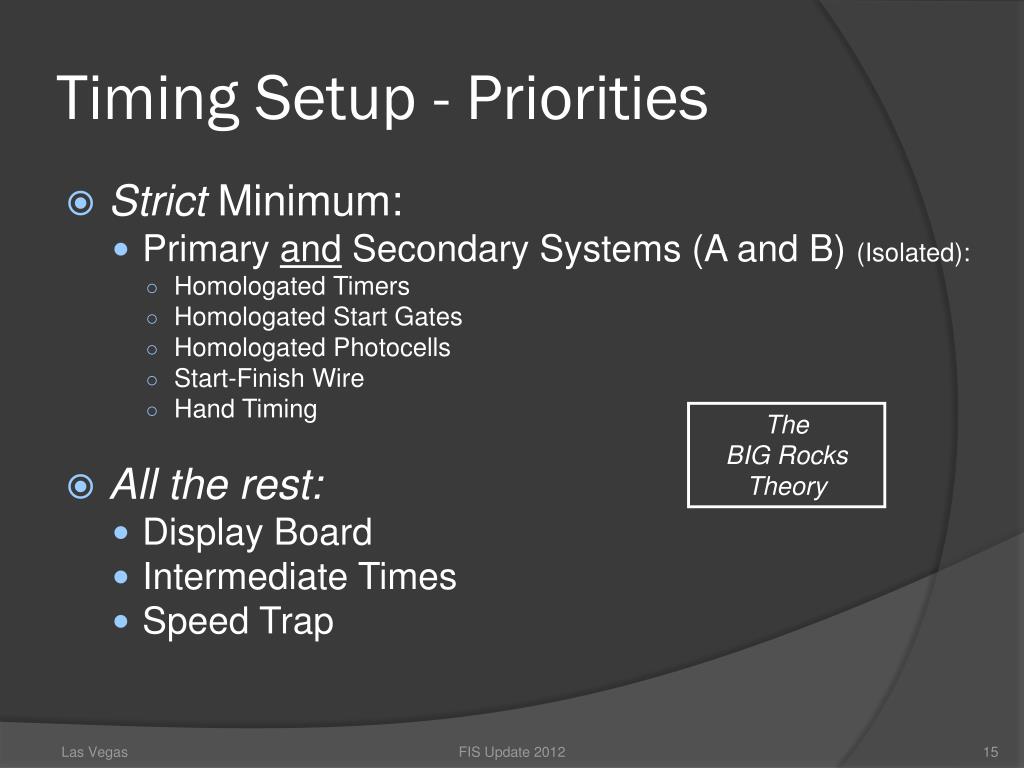

timing setup priorities
Timing Setup - Priorities

The BIG Rocks Theory

  • Strict Minimum:
    • Primary and Secondary Systems (A and B) (Isolated):
      • Homologated Timers
      • Homologated Start Gates
      • Homologated Photocells
      • Start-Finish Wire
      • Hand Timing
  • All the rest:
    • Display Board
    • Intermediate Times
    • Speed Trap

FIS Update 2012

frequent errors
Frequent errors

The timer forgets to sync the timers before the men’s run (ex: 2nd run of the morning, after the women).

The Net Times are printed with more than 2 decimals (or less)(ex: 52.4379) (rounding or truncating ?)

A and B systems are connected on the same wire (1 pair - Jumpered).

Synching the B system from the A system instead of from the Start Gate together.

FIS Update 2012

slide17

True or False

These guys are Twins but use different Car Rental Agencies…

FIS Update 2012

true or false
True or False

TRUE

or

False ?

The timer can also be the forerunner…

FIS Update 2012

true or false1
True or False

TRUE!

But it may not be a good idea…!!!

What about if there is no forerunners…?!?

The timer can also be the forerunner…

FIS Update 2012

true or false2
True or False

TRUE

or

False ?

Hand Times that are 5 seconds off from other samples can be used in the EET calculation…

FIS Update 2012

true or false3
True or False

Uhhhhhh....

Hand Times that are 5 seconds off from other samples can be used in the EET calculation…

FIS Update 2012

true or false4
True or False

TRUE

or

False ?

If the electronic time of a racer is 6 sec. off from his ‘usual’ times, we can calculate his net time with an EET…

FIS Update 2012

true or false5
True or False

Why ???

If the electronic time of a racer is 6 sec. off from his ‘usual’ times, we can calculate his net time with an EET…

FIS Update 2012

true or false6
True or False

TRUE

or

False ?

At a FIS race in CAN, only certified officials that have a « Chief of Timing » licence (valid: 2 years) can oversee timing.

FIS Update 2012

true or false7
True or False

Unfortunately, there is no timing certification in Canada…

At a FIS race in CAN, only certified officials that have a « Chief of Timing » licence (valid: 2 years) can oversee timing.

FIS Update 2012

true or false8
True or False

TRUE

or

False ?

Only one timing system (i.e. one timer) is required at a national FIS ENL race (Level 4)…

FIS Update 2012

true or false9
True or False

FALSE!

FIS Timing Booklet(Note: Level 3, 4 = 2)

Only one timing system (i.e. one timer) is required at a national FIS ENL race (Level 4)…

FIS Update 2012

true or false10
True or False

TRUE

or

False ?

A StartClock is mandatory for a NorAm GS race…

FIS Update 2012

true or false11
True or False

TRUE!

ICR 611.2.1.3

A StartClock is mandatory for a NorAm GS race…

FIS Update 2012

true or false12
True or False

TRUE

or

False ?

System A Photocells must be installed below the System B Photocells…

FIS Update 2012

true or false13
True or False

TRUE!

FIS Timing Booklet, p. 25

System A Photocells must be installed below the System B Photocells…

FIS Update 2012

true or false14
True or False

TRUE

or

False ?

Wireless timing of a Level 3 race requires a minimum of 4 homologated timers with printer…

FIS Update 2012

true or false15
True or False

TRUE!

FIS Timing Booklet, p. 8

Wireless timing of a Level 3 race requires a minimum of 4 homologated timers with printer…

FIS Update 2012

slide34

“Go ahead...ask me another question...”

FIS Severity Codes

FIS Update 2012

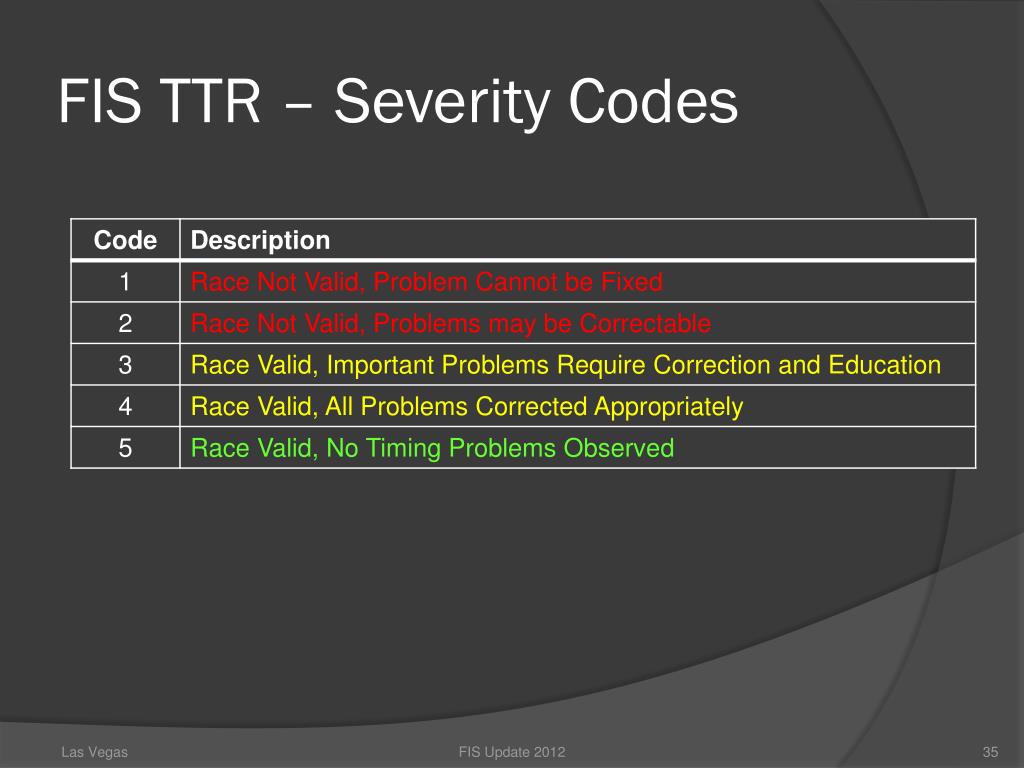

fis ttr severity codes1

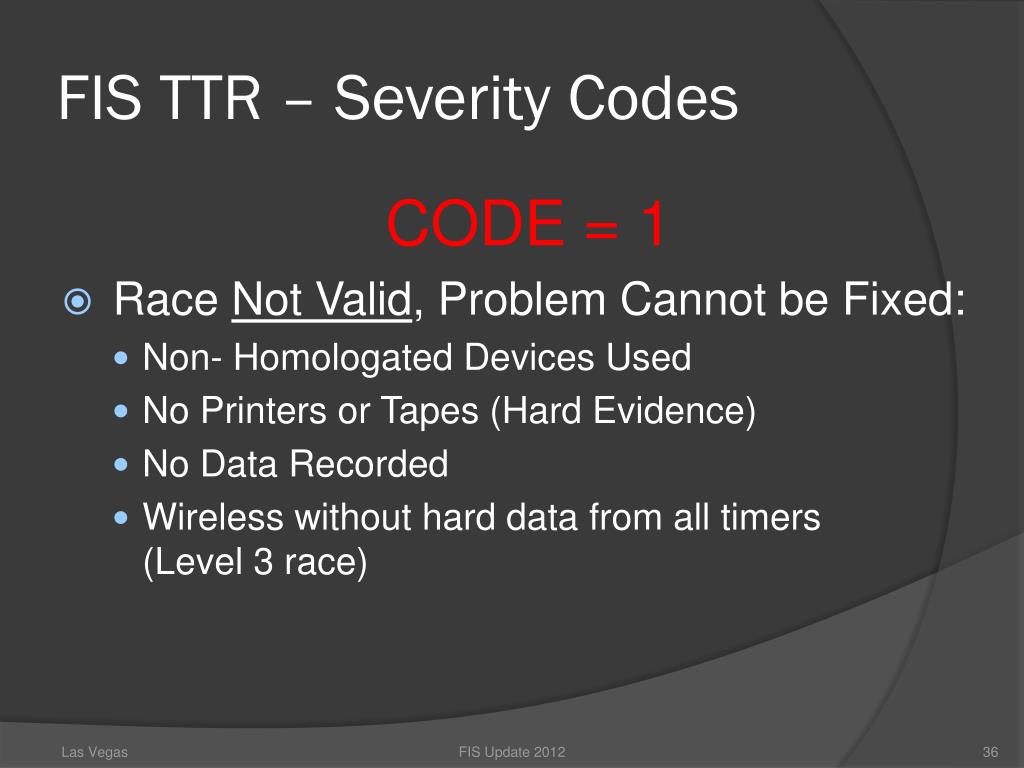

FIS TTR – Severity Codes

CODE = 1

  • Race Not Valid, Problem Cannot be Fixed:
    • Non- HomologatedDevicesUsed
    • No Printers or Tapes (Hard Evidence)
    • No Data Recorded
    • Wireless withouthard data from all timers(Level 3 race)

FIS Update 2012

fis ttr severity codes2
FIS TTR – Severity Codes

CODE = 2

  • Race Not Valid, Problems may be Correctable:
    • No Timing Report Form (TTR)
    • Missing Data or Signatures on TTR
    • Only 1 timing system used
    • TOD on tapes not shown to at least 1/1000sec

FIS Update 2012

fis ttr severity codes3
FIS TTR – Severity Codes

CODE = 3

  • Race Valid, Important Problems Require Correction and Education:
    • Hand Timing not Effected
    • A=B times (everything exactly the same)
    • EET docs missing
    • Sync bad or missing
    • B times in 1/100ths
    • B Partial Data only

FIS Update 2012

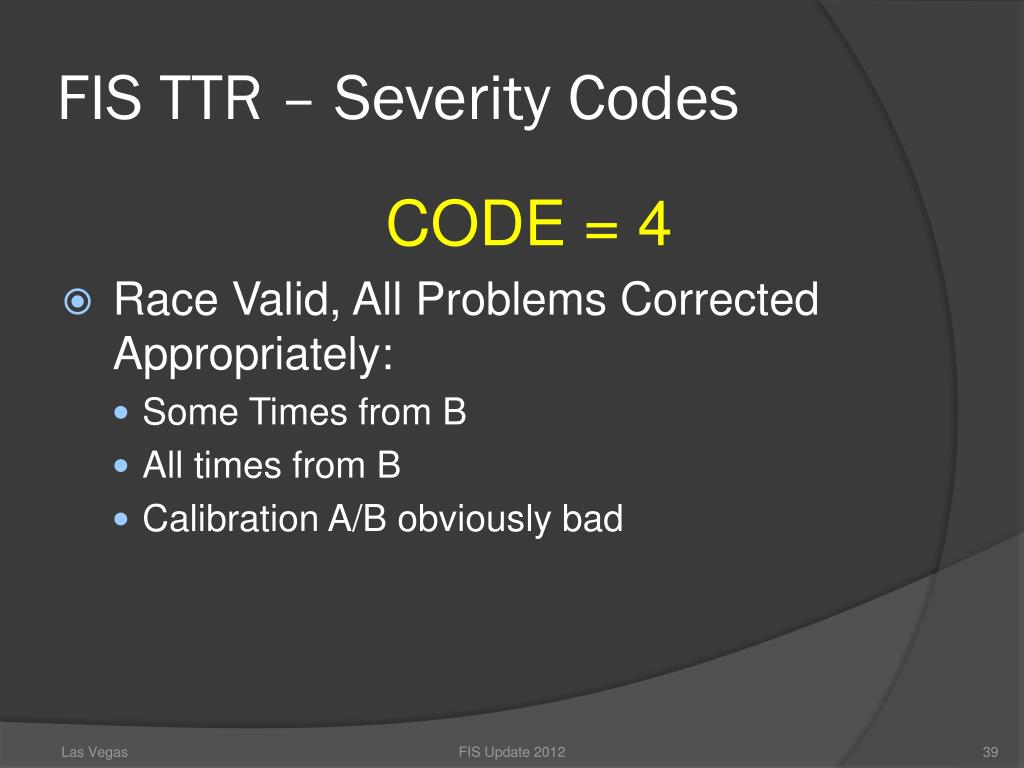

fis ttr severity codes4
FIS TTR – Severity Codes

CODE = 4

  • Race Valid, All Problems Corrected Appropriately:
    • Some Times from B
    • All times from B
    • Calibration A/B obviously bad

FIS Update 2012

fis ttr severity codes5

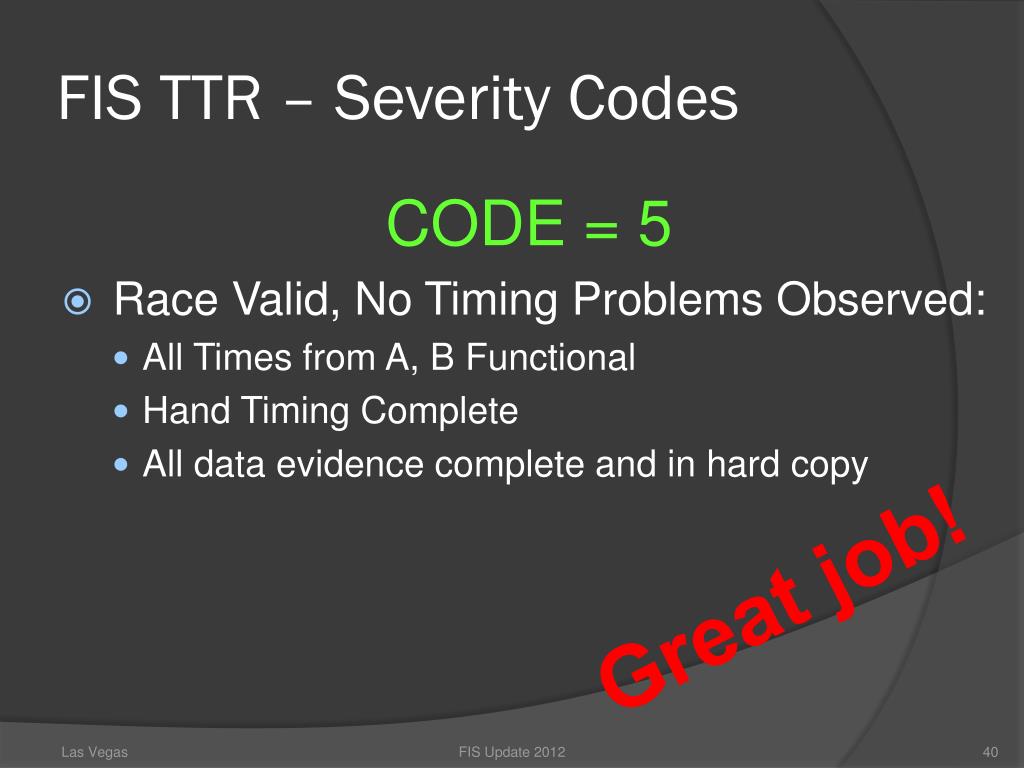

FIS TTR – Severity Codes

Great job!

CODE = 5

  • Race Valid, No Timing Problems Observed:
    • All Times from A, B Functional
    • Hand Timing Complete
    • All data evidence complete and in hard copy

FIS Update 2012

urban legend
Urban Legend ???

André Robitaille, TD

  • Coach:

« My racer is not DSQ because he finished the course with 3 pieces of equipement… »

FIS Update 2012

urban legend1
Urban Legend ???

Dave Bartle, Profesional Timer

  • Coach / Timer:

« It is not that bad if racer-21 raced with bib 22 and racer-22 raced with bib 21… »

FIS Update 2012

urban legend2
Urban Legend ???

Ted Savage, Profesionnal Timer

  • Timer:

« The sun interfered with the photocells… »

FIS Update 2012

urban legend3
Urban Legend ???

Ted Savage, Profesionnal Timer

  • Timer:

« The Computer crashed so we lost the times of the racers… »

FIS Update 2012

urban legend4
Urban Legend ???

Ted Savage, Profesionnal Timer

  • Timer:

« We mixed up the finish order so we lost the times…»

FIS Update 2012

urban legend5
Urban Legend ???

Ken Smith, Professionnal Timer

  • Coach:

«Video tape can be used in a protest to confirm the time of my racer…»

FIS Update 2012

urban legend6
Urban Legend ???

Ken Smith, Professionnal Timer

  • Timer:

« Rechargeable batteries are better… »

FIS Update 2012

urban legend7
Urban Legend ???

Ken Smith, Professionnal Timer

  • Timer:

« Finish photocells should be crossed… »

FIS Update 2012

urban legend8
Urban Legend ???

Jenna Ginsberg, Professionnal Timer

  • Coachs / Racers:

« Racers are not allowed to cross the finish line during inspection… »

FIS Update 2012

urban legend9
Urban Legend ???

Mike Walker, Professionnal Timer

  • Coach:

« The display board did’nt show the time of my racer so he should have a rerun… »

FIS Update 2012

urban legend10
Urban Legend ???

Mike Walker, Professionnal Timer

  • Timer:

« Wireless timers are easier to set up and as reliable as running cables up the hill… »

FIS Update 2012

urban legend11
Urban Legend ???

Mike Walker, Professionnal Timer

  • Timer:

« Ground loops in the timing hut aren't a problem…»

FIS Update 2012

urban legend12
Urban Legend ???

Mike Walker, Professionnal Timer

  • Timer:

« The timing tape is too complicated to read, so give the racer a rerun… »

FIS Update 2012

urban legend13
Urban Legend ???

Mike Walker, Professionnal Timer

  • Timer:

« There is no need to print the times as they are stored in the computer …»

FIS Update 2012

urban legend14
Urban Legend ???

Mike Walker, Professionnal Timer

  • Timer:

« Auto-return start-gate (i.e. wand) are safer to operate because we can’t forget to close it…»

FIS Update 2012

urban legend15
Urban Legend ???

Mike Walker, Professionnal Timer

  • Coach:

«  The times on the display board are official… »

FIS Update 2012

urban legend 1
Urban Legend ??? - #1

???

  • Timer:

« The majority of TDs can’t read a timing tape! »

FIS Update 2012

slide59

One Last Word…

FIS Update 2012

one last w ord
One Last Word…

Be On Time…!
