slide1

Biochemical and Molecular Toxicology

UNC ENVR/TOXC 442

November 8th, 2011

Toxic Effects of Pesticides

Matthew T. Martin, Ph.D.

National Center for Computational Toxicology

Office of Research & Development

U.S. Environmental Protection Agency

RTP, NC 27711

Email: martin.matt@epa.gov

http://www.epa.gov/ncct/

pesticides
Pesticides
  • Prevent, destroy, repel or mitigate any pest ranging from insects, animals and weeds, to microorganisms such as fungi, molds, bacteria and viruses
  • Fungicides, Rodenticides, Herbicides, Fungicides, Antimicrobials
  • Inert & Other Ingredients make up final pesticide formulation
  • OPP (US) & PMRA (Canada) Regulate Pesticides
  • FIFRA, FFDCA, FQPA – Covers Most of US Pesticide Legislation
  • Why have a lecture on pesticide toxicology?

OPP= USEPA Office of Pesticide Programs

PMRA=Pest Management Regulation Agency

FIFRA =Federal Insecticide, Fungicide, Rodenticide Act

FFDCA=Federal Food, Drug, and Cosmetic Act

FQPA =Food Quality Protection Act

pesticides3
Pesticides

Pesticide Mass

  • Toxicity data rich chemicals
  • Potential for high human exposure
  • Designed to be bioactive
  • What makes a pesticide different from a commodity chemical?
    • Designed to be bioactive
    • Is any pesticide just a pesticide? (“biocide”)
    • Statutory authority to require toxicity tests
    • Indirect & direct application to food/crops
  • What makes a pesticide different from a pharmaceutical?
    • No direct human exposure
    • Design intentions (destroy vs treat)… Are they really different?
    • Molecular target potencies & efficacy differences
pesticides by the numbers
Pesticides (by the numbers)
  • About 8800 total pesticidal ingredients
  • About 4200 active ingredients
    • 1800 conventional pesticides
    • 300 antimicrobial pesticides
    • 250 biopesticides
    • 400 food-use (direct or indirect contact with the food supply)
    • Remaining are unsupported
  • About 4600 inert or other ingredients
  • ~200 Chemical class represented
pesticides in the news
Pesticides in the News

August 23, 2009

Debating How Much Weed Killer Is Safe in Your Water Glass

By CHARLES DUHIGG

For decades, farmers, lawn care workers and professional green thumbs have relied on the popular weed killer atrazine to protect their crops, golf courses and manicured lawns.

But atrazine often washes into water supplies and has become among the most common contaminants in American reservoirs and other sources of drinking water.

Now, new research suggests that atrazine may be dangerous at lower concentrations than previously thought. Recent studies suggest that, even at concentrations meeting current federal standards, the chemical may be associated with birth defects, low birth weights and menstrual problems.

Laboratory experiments suggest that when animals are exposed to brief doses of atrazine before birth, they may become more vulnerable to cancer later.

An investigation by The New York Times has found that in some towns, atrazine concentrations in drinking water have spiked, sometimes for longer than a month. But the reports produced by local water systems for residents often fail to reflect those higher concentrations.

pesticides in the news6
Pesticides in the News

October 7, 2009

Regulators Plan to Study Risks of Atrazine

By CHARLES DUHIGG

The Environmental Protection Agency plans to conduct a new study about the potential health risks of atrazine, a widely used weedkiller that recent research suggests may be more dangerous to humans than previously thought.

Atrazine — a herbicide often used on corn fields, golf courses and even lawns — has become one of the most common contaminants in American drinking water.

For years, the E.P.A. has decided against acting on calls to ban the chemical from environmental activists and some scientists who argued that runoff was polluting ecosystems and harming animals.

More recently, new studies have suggested that atrazine in drinking water is associated with birth defects, low birth weights and reproductive problems among humans, even at concentrations that meet current federal standards.

The E.P.A. is expected to announce on Wednesday that it will conduct a new evaluation of the pesticide to assess any possible links between atrazine and cancer, as well as other health problems, such as premature births. The E.P.A. may determine that new restrictions are necessary.

pesticides in the scientific literature

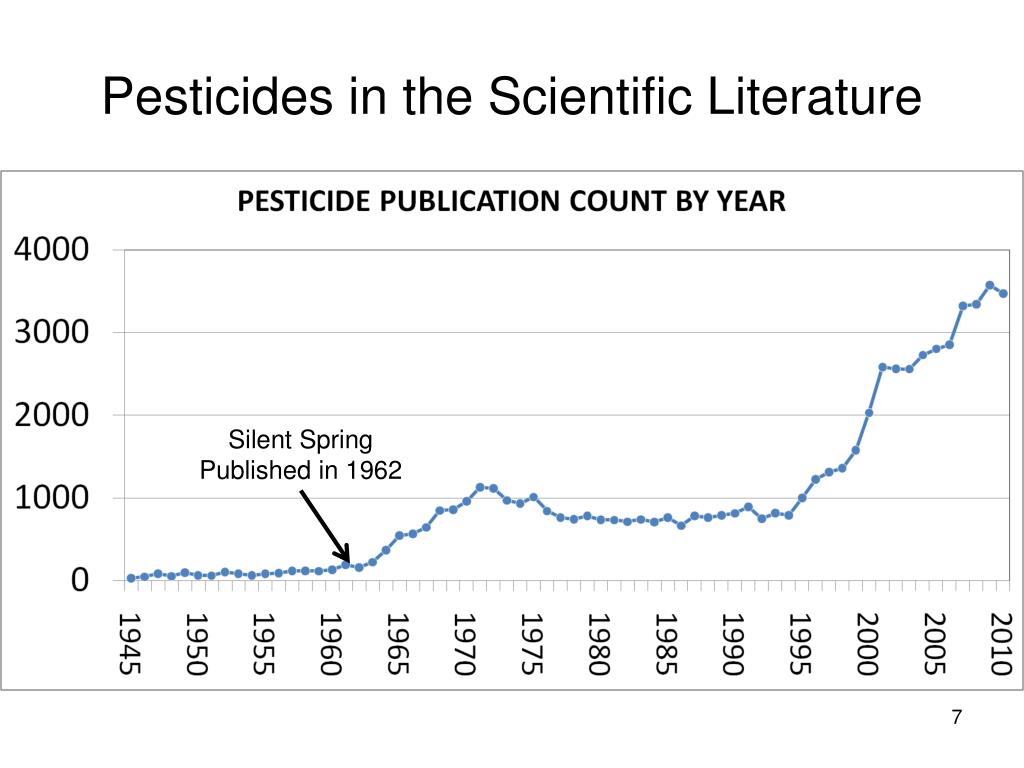

Pesticides in the Scientific Literature

Silent Spring

Published in 1962

resource for high quality pesticide chemical use class annotation

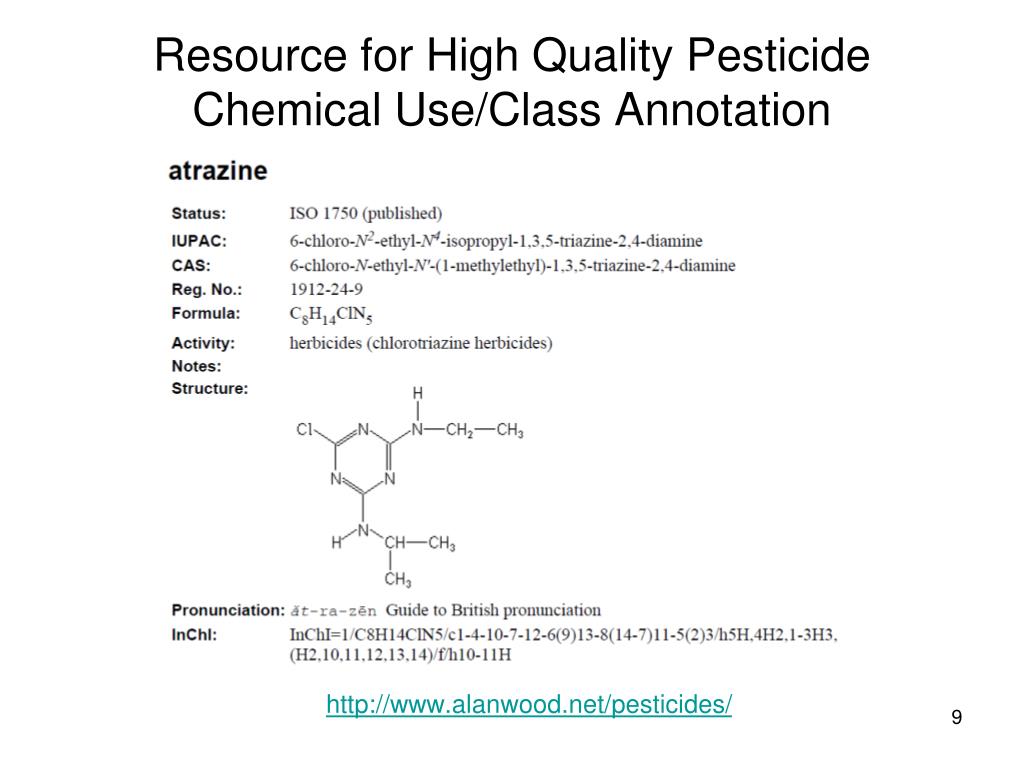

Resource for High Quality Pesticide Chemical Use/Class Annotation

http://www.alanwood.net/pesticides/

pesticide regulation
Pesticide Regulation
  • Federal Insecticide, Fungicide, and Rodenticide Act (FIFRA, 1947) administered by USDA
    • Major amendments in 1972 and 1988
  • Federal Food, Drug, and Cosmetic Act (FFDCA, 1954) established pesticide tolerances on food
    • Delaney Clause, forbade the use of carcinogens as food additives
  • Food Quality Protection Act (FQPA, 1996) reauthorized FFIFRA provisions
    • Tolerances reassessed as part of re-registrations
    • single, health-based standard
    • aggregate risk from all routes of non-occupational exposure
    • evaluating endocrine effects
    • extra tenfold uncertainty factor for children/in utero
vulnerability of children
Vulnerability of Children

Greater exposure

  • On a caloric consumption:body-weight ratio Children are 2.5x adults. Diet less varied (fruit and milk)
  •  Hand to mouth activity
  • Skin surface area per body weight is double that of an adult
  •  Rate of respiration

Greater physiological susceptibility

  • Period of rapid development of nerve cells
  • Loss of organ function can be permanently imprinted
  •  Absorption and  elimination of pesticides
  • Metabolizing enzymes not fully developed
pesticide testing us epa
Pesticide Testing- US EPA

Harmonized Test Guidelines

810 - Product Performance Test Guidelines

830 - Product Properties Test Guidelines

835 - Fate, Transport and Transformation Test Guidelines

840 - Spray Drift Test Guidelines

850 - Ecological Effects Test Guidelines

860 - Residue Chemistry Test Guidelines

870 - Health Effects Test Guidelines

875 - Occupational and Residential Exposure Test Guidelines

880 - Biochemicals Test Guidelines

885 - Microbial Pesticide Test Guidelines

890 - Endocrine Distruptor Screening Program Test Guidelines

http://www.epa.gov/ocspp/pubs/frs/home/guidelin.htm

what is the acute and chronic point of departure for pesticide toxicity

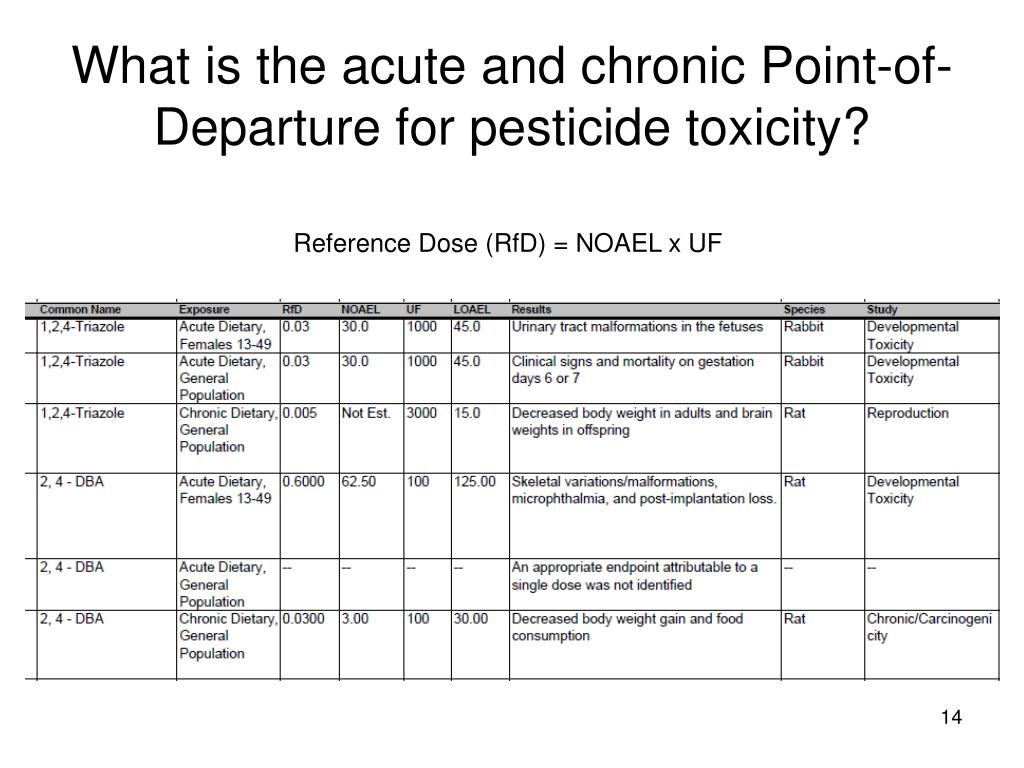

What is the acute and chronic Point-of-Departure for pesticide toxicity?

Reference Dose (RfD) = NOAEL x UF

reproductive toxicity profiling

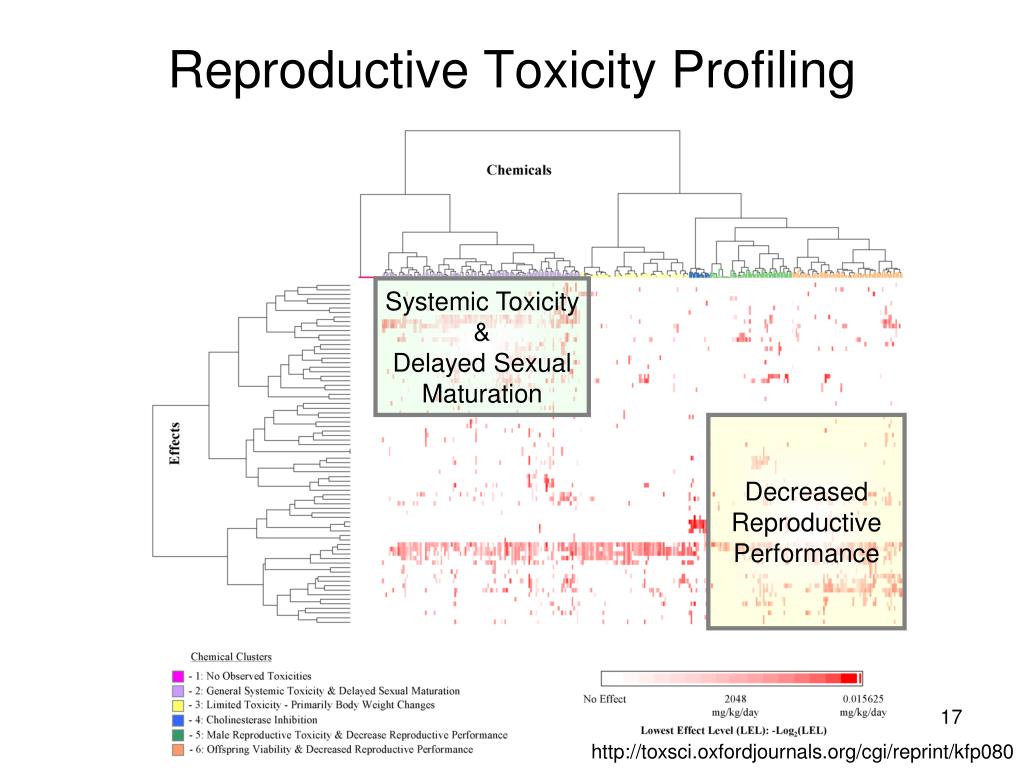

Reproductive Toxicity Profiling

Systemic Toxicity

&

Delayed Sexual

Maturation

Decreased

Reproductive

Performance

http://toxsci.oxfordjournals.org/cgi/reprint/kfp080

pesticide carcinogenicity
Pesticide Carcinogenicity
  • Roughly 50% of all conventional pesticides cause tumors in rodents
  • Generally pesticides are non-genotoxic carcinogens (screened out in development process)
  • Human relevance?
    • Site and tissue specificity (liver tumor in rodent vs lymphoma inc in humans)
    • Mechanistic relevance (peroxisome proliferators)
    • High dose vs real world exposure potential

248 Chemicals

122 w/ No Liver Pathology

126 w/ Liver Pathology

chemicals evaluated for carcinogenic potential by us epa
Chemicals Evaluated for Carcinogenic Potential by US EPA

http://www.epa.gov/pesticides/carlist/

is a pesticide an endocrine disruptor
Is a pesticide an endocrine disruptor?
  • Estrogenic
  • (anti) Androgenic
  • Thyrotoxic
  • Other

Panzica et al 2005

slide21

Endocrine Disruptor Screening Program

  • The Food Quality Protection Act (FQPA) of 1996 and subsequent amendments to the Federal Food, Drug, and Cosmetic Act (FFDCA) and Safe Drinking Water Act (SDWA) required EPA to “develop a screening program, using appropriate validated test systems and other scientifically relevant information, to determine whether certain substances may have an effect in humans that is similar to an effect produced by a naturally occurring estrogen, or other such endocrine effect as the Administrator may designate.”
  • The first phase of EDSP assays are designated Tier 1 tests with a purpose of identifying chemicals that exhibit potential to interact with endocrine pathways or mechanisms (i.e. the estrogen, androgen, and/or thyroid hormone systems) and ultimately determine which chemicals should undergo more definitive in vivo testing (i.e., Tier 2).

First test orders have been issued: http://www.epa.gov/endo/pubs/regaspects/testorders.htm

importance of biotransformation
Importance of Biotransformation

ERa radioligand binding assay

ERa cellular (HEK293) transactivation assay

pesticidal moa vs toxicological moa

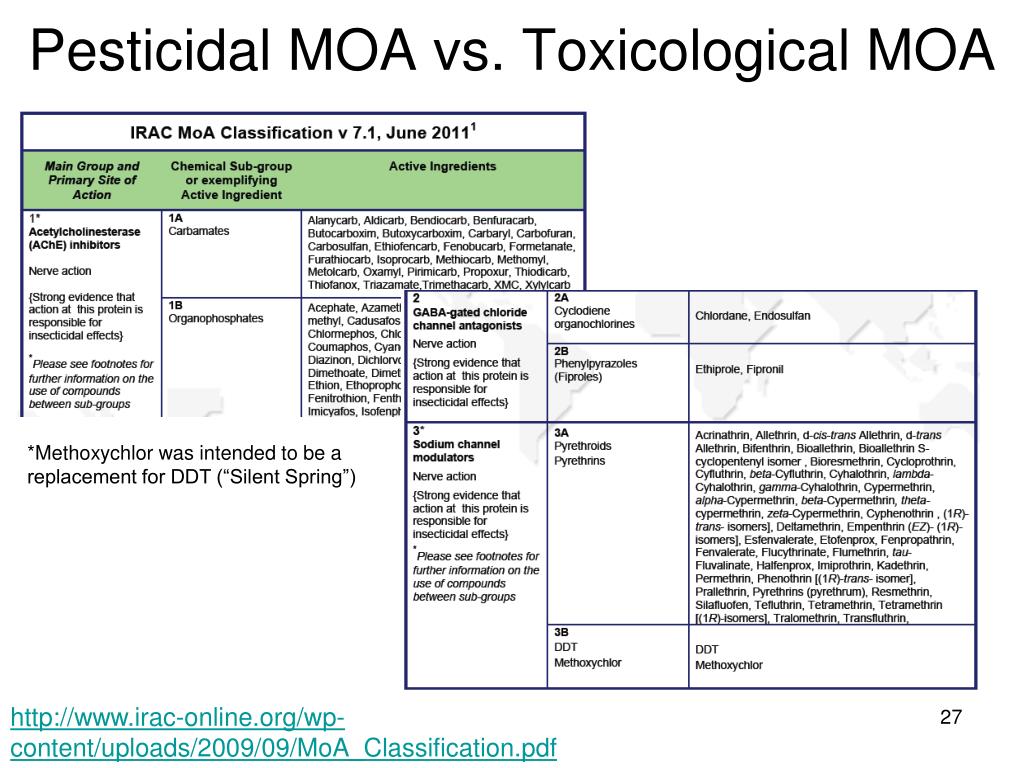

Pesticidal MOA vs. Toxicological MOA

*Methoxychlor was intended to be a replacement for DDT (“Silent Spring”)

http://www.irac-online.org/wp-content/uploads/2009/09/MoA_Classification.pdf

focus on a mode of action

Environmental

Chemicals

Molecular

response

Cellular

response

Tissue

response

Chemicals

Molecular Response (Early)

Cell fate

Proliferation

Death

Apoptosis

Necrosis

Adverse

Outcome

Hyperplasia

Tumor

Cancer

NR-sig

Gene-reg.

Transcription

Pesticides

Conazoles

Pyrethroids

Toxics

DE-71

PCBs

Phthalates

PFOA/PFOS

CAR

PXR

PPARa

cis-reg.

trans-reg.

Xen. Met.

Phase I

Phase II

Phase III

Focus On a Mode of Action …

NR activators stimulate intracellular processes that lead to hyperplasia

Chronic stimulation increases the risk of neoplasms

history of ddt 1 1 1 trichloro 2 2 bis p chlorophenyl ethane
HISTORY OF DDT1,1,1-trichloro-2,2-bis-(p-chlorophenyl) ethane

DDT was discovered to be an insecticide in 1939 by Paul Muller. He was a scientist working for Geigy, a Swiss firm that was focused on the chemical development of agricultural insecticides. Products with DDT entered the Swiss market in 1941. Seven years later, in 1948, Muller received the Nobel Prize for medicine and physiology in recognition for the lives DDT saved.

  • WWII – DDT was used by the allies to suppress a typhus epidemic in Naples
  • 1943-1944 DDT was applied directly to the head of humans to control lice
  • Success with DDT hastened the development of aldrin, dieldrin, endrin, chlordane, benzene hexachloride etc.
slide32

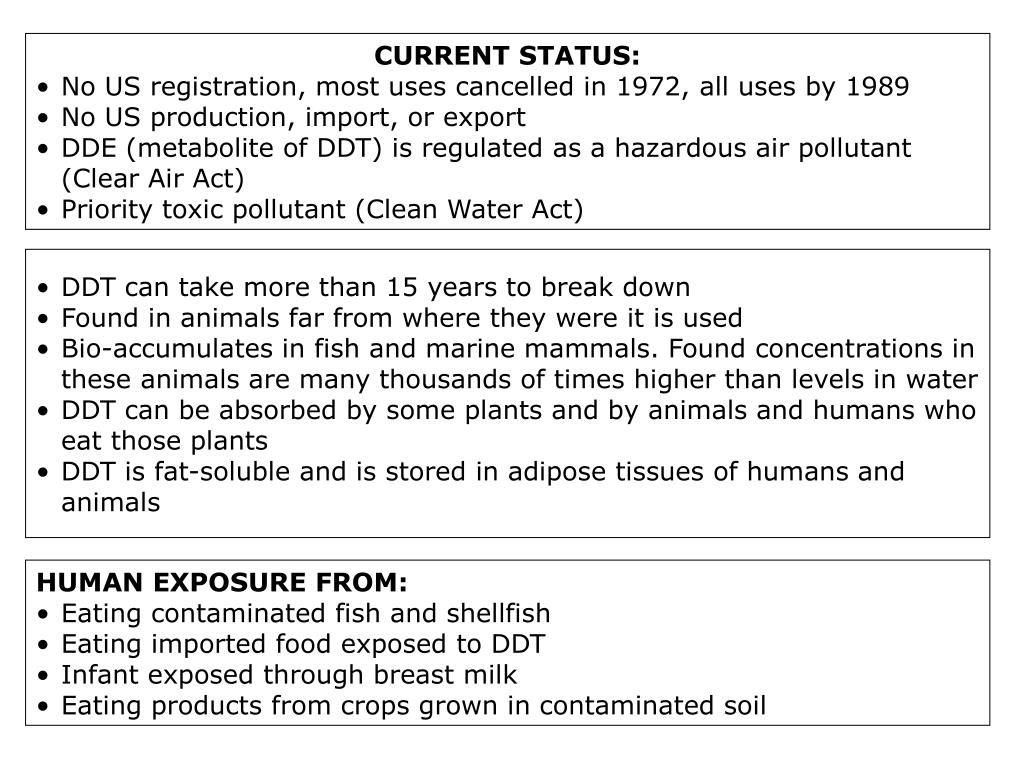

CURRENT STATUS:

  • No US registration, most uses cancelled in 1972, all uses by 1989
  • No US production, import, or export
  • DDE (metabolite of DDT) is regulated as a hazardous air pollutant (Clear Air Act)
  • Priority toxic pollutant (Clean Water Act)

DDT

  • DDT can take more than 15 years to break down
  • Found in animals far from where they were it is used
  • Bio-accumulates in fish and marine mammals. Found concentrations in these animals are many thousands of times higher than levels in water
  • DDT can be absorbed by some plants and by animals and humans who eat those plants
  • DDT is fat-soluble and is stored in adipose tissues of humans and animals
  • HUMAN EXPOSURE FROM:
  • Eating contaminated fish and shellfish
  • Eating imported food exposed to DDT
  • Infant exposed through breast milk
  • Eating products from crops grown in contaminated soil
insecticide advantages of ddt
Insecticide advantages of DDT
  • Low volatility
  • Chemical stability
  • Lipid solubility
  • Slow rate of biotransformation and degradation

Disadvantages of DDT

  • Persistence in the environment
  • Bioconcentration
  • Biomagnification in food chain
  • Profound effects on wild life (“Silent Spring”)

Health Effects of DDT

  • Paresthesia of tongue, lips, and face
  • Irritability, dizziness, vertigo, tremor, and convulsions
  • Hypersusceptibility to external stimuli (light, touch, and sound)
  • Hypertrophy of hepatocytes
  • Hepatic tumors
  • No epidemiological evidence linking DDT to carcinogenicity in humans
  • Low rate of absorption through the skin
  • Human health effects minor
slide34

Klaassen, CD. CASARETT AND DOULL's Toxicology: The Basic Science of Poisons. McGraw-Hill 2001

sites of ddt poisoning

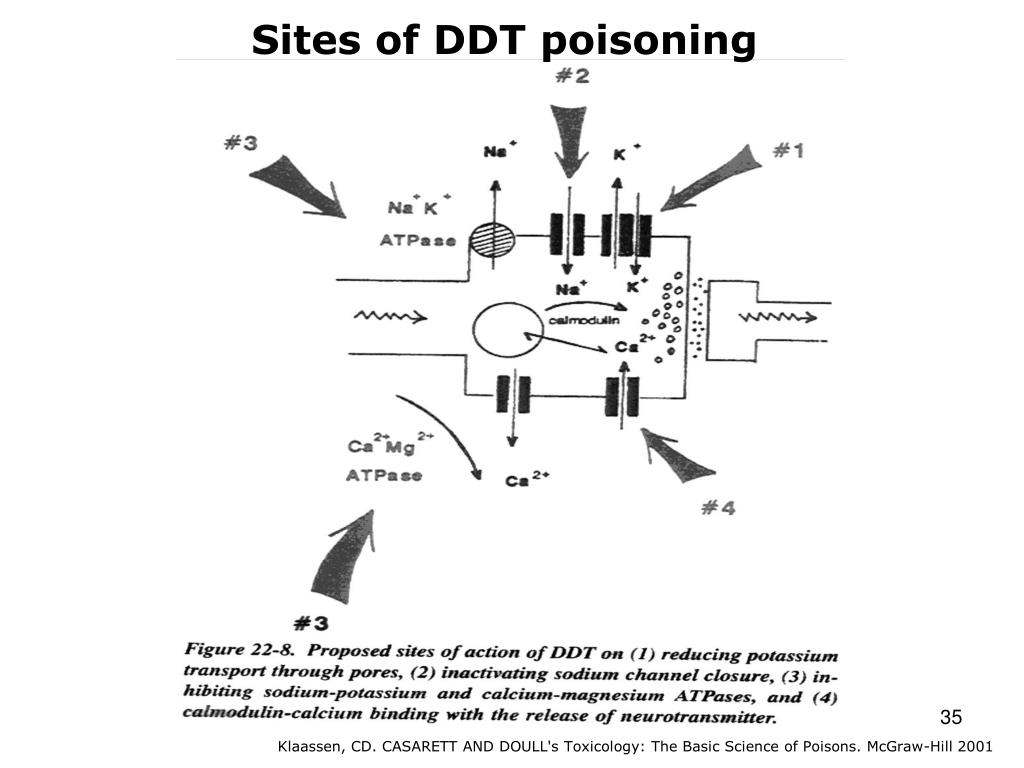

Sites of DDT poisoning

Klaassen, CD. CASARETT AND DOULL's Toxicology: The Basic Science of Poisons. McGraw-Hill 2001

neurotoxicity inhibition of choline esterase or action potential

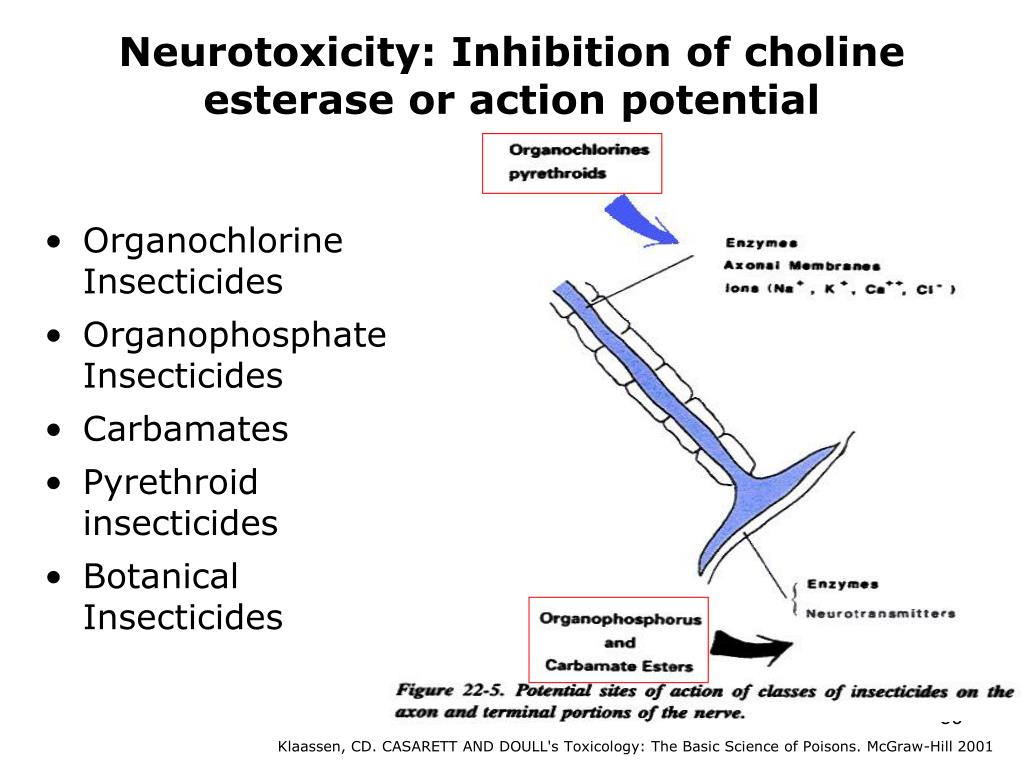

Neurotoxicity: Inhibition of choline esterase or action potential
  • Organochlorine Insecticides
  • Organophosphate Insecticides
  • Carbamates
  • Pyrethroid insecticides
  • Botanical Insecticides

Klaassen, CD. CASARETT AND DOULL's Toxicology: The Basic Science of Poisons. McGraw-Hill 2001

slide37

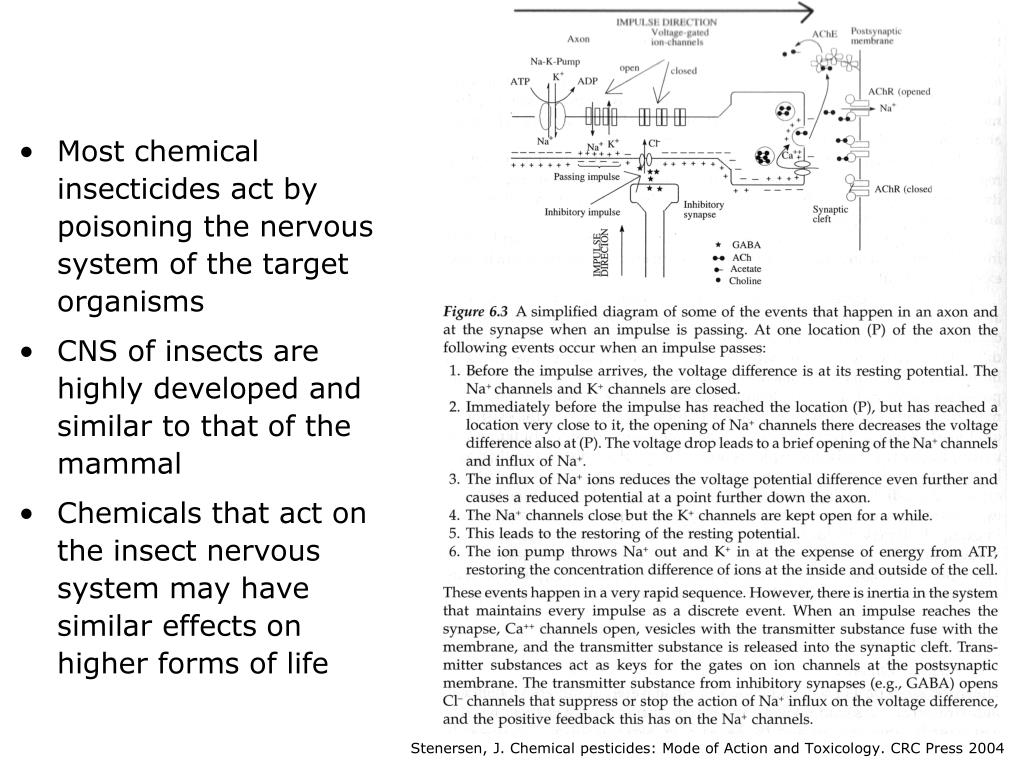

Most chemical insecticides act by poisoning the nervous system of the target organisms

  • CNS of insects are highly developed and similar to that of the mammal
  • Chemicals that act on the insect nervous system may have similar effects on higher forms of life

Stenersen, J. Chemical pesticides: Mode of Action and Toxicology. CRC Press 2004

general modes of action
General Modes of Action

Pesticides acting on the axon (impulse transmission):

  • Interference with transport of, Na+, K+, Ca2+, or Cl- ions

Pesticides acting on synaptic transmission:

  • Inhibition of specific enzyme activities:

GABA-ergic (inhibitory) synapses

Cholinergic synapses

  • Contribution to the release or persistence of chemical transmitters at nerve endings

Stenersen J, Chemical Pesticides Mode of Action and Toxicology, CRC Press 2004

pyrethroid insecticides

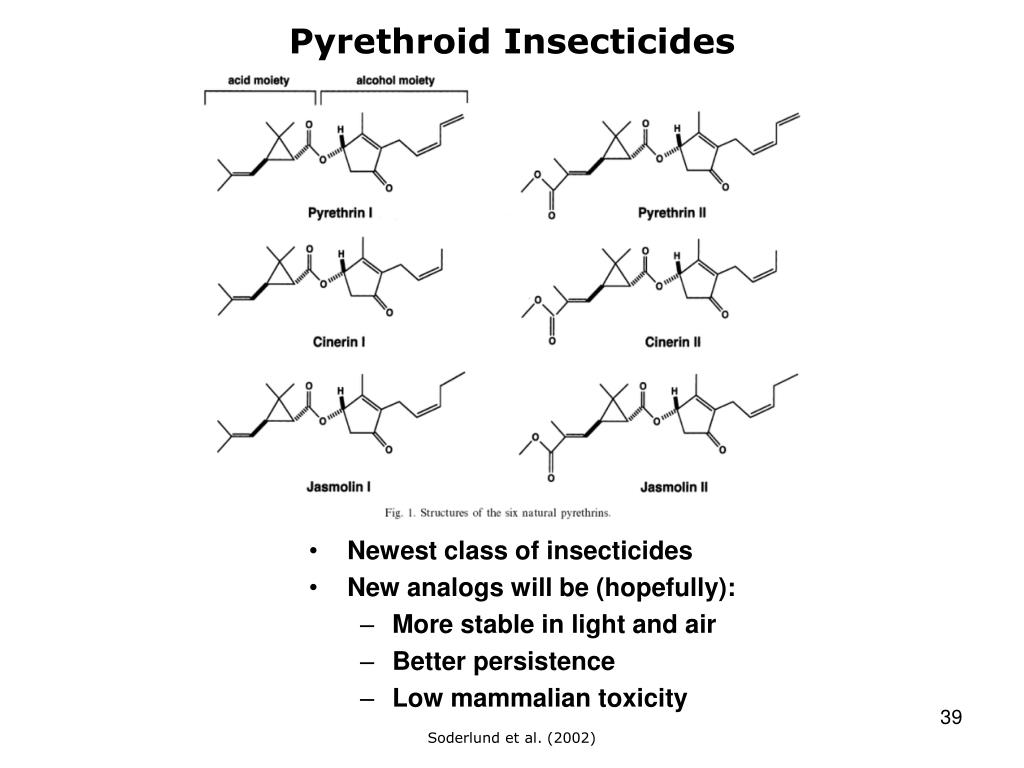

Pyrethroid Insecticides
  • Newest class of insecticides
  • New analogs will be (hopefully):
    • More stable in light and air
    • Better persistence
    • Low mammalian toxicity

Soderlund et al. (2002)

slide40

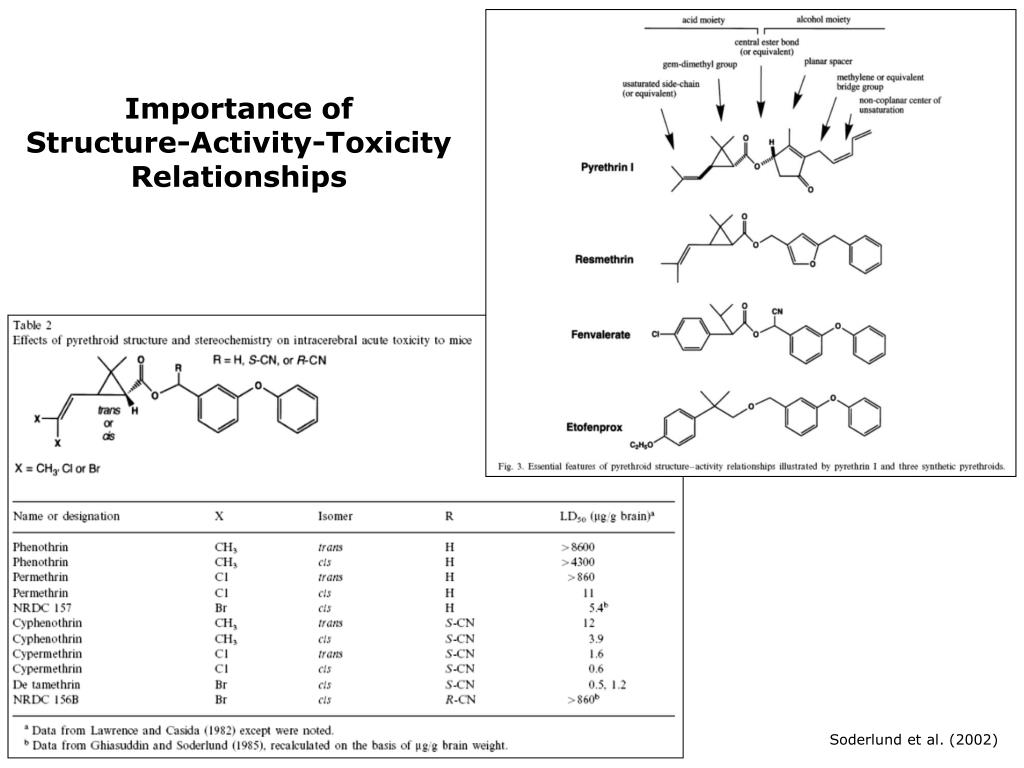

Importance of

Structure-Activity-Toxicity Relationships

Soderlund et al. (2002)

pyrethroid use

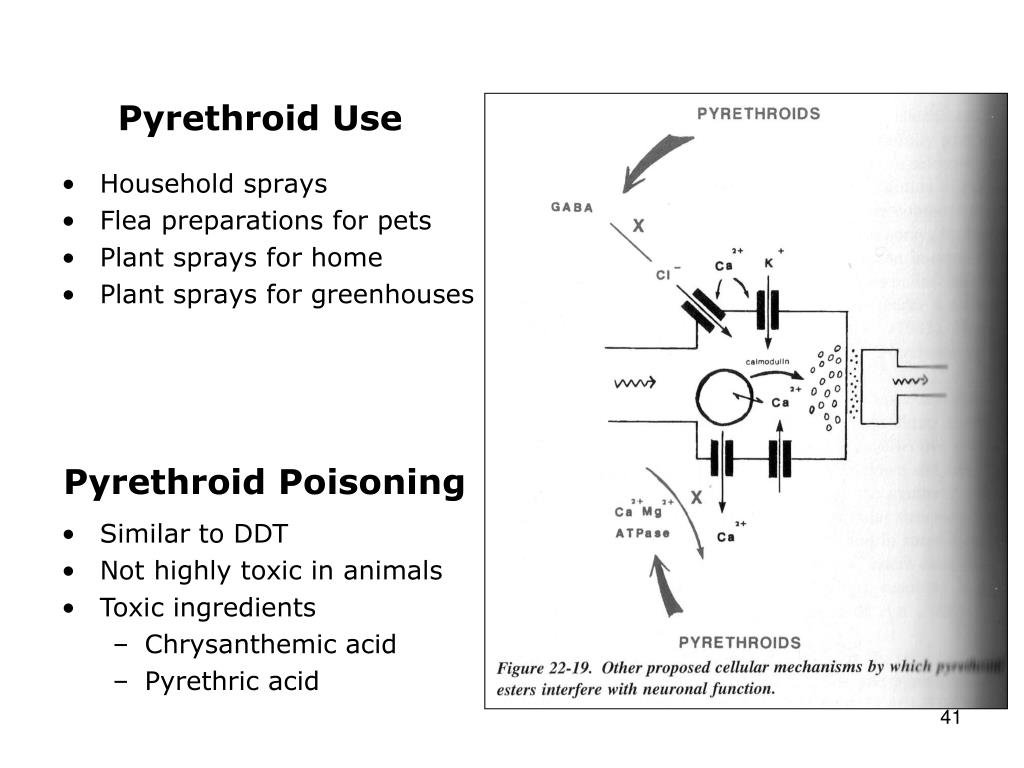

Pyrethroid Use
  • Household sprays
  • Flea preparations for pets
  • Plant sprays for home
  • Plant sprays for greenhouses

Pyrethroid Poisoning

  • Similar to DDT
  • Not highly toxic in animals
  • Toxic ingredients
    • Chrysanthemic acid
    • Pyrethric acid
slide42

Figure 1. Nine neonicotinoid insecticides and four nicotinoids.

The neonicotinoids are nitromethylenes (C==CHNO2), nitroguanidines (C==NNO2), and cyanoamidines

(C==NCN). Compounds with 6-chloro-3-pyridinylmethyl, 2-chloro-5-thiazolylmethyl, and 3-tetrahydro-furanmethyl moieties are referred to as chloropyridinyls (or chloronicotinyls),

chlorothiazolyls (or thianicotinyls), and tefuryl, respectively. The nicotinoids

are naturally occurring [(−)-nicotine and (−)-epibatidine] and synthetics (ABT-594 and desnitroimidacloprid).

Tomizawa & Casida (2004)
