Perform plastic flow analysis for mold design to optimize gate placement. Recommendations for surface texture and gate design to avoid sink marks and ensure proper release. Detailed views for cavity, core, and slider sides provided.
E N D
I C A L Part image 1 - Date of opening (all dates in 2005) 2 - Date of beginning of action 3 - Date foreseen for validation 4 - Date of validation (closing)
Plastic Flow Analysis Plastic Flow Analysis
Gate One side gate
Left Side Parting Line LEFT VIEW

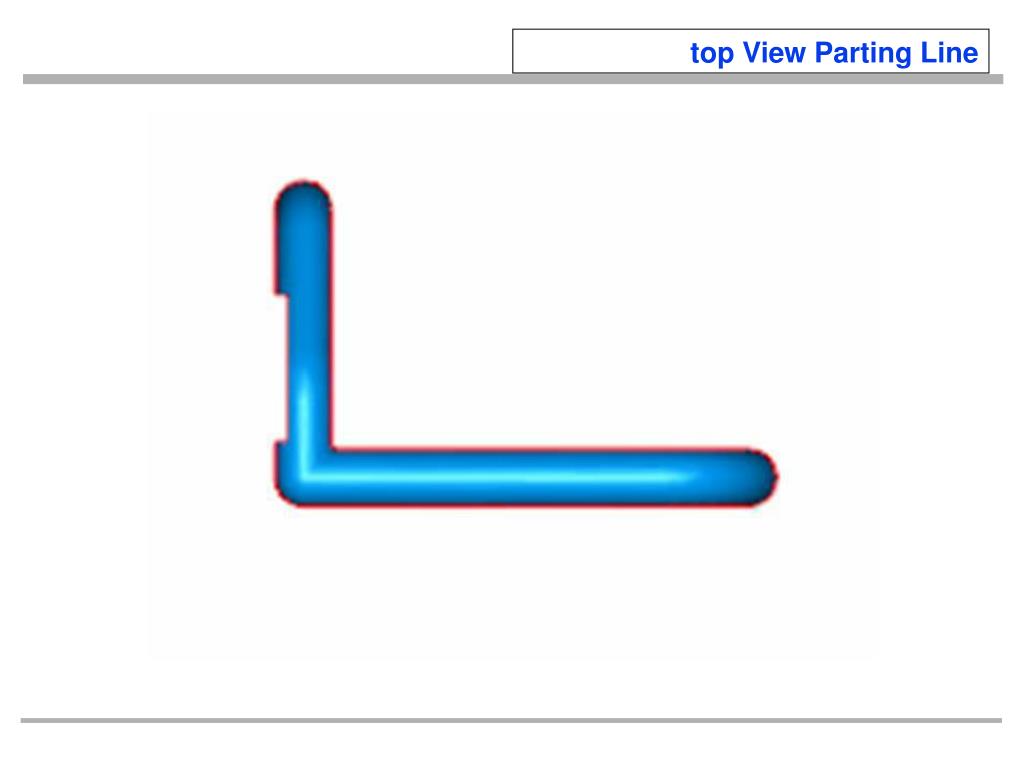

back View Parting Line BACK VIEW
front View Parting Line FRONT VIEW
Ejector Pin Point Layout EJECTOR PIN EJECTOR SLEEVES
Cavity / Core / Slider / View CAVITY SIDE GREEN ARROW CORE SIDE PINK ARROW SLIDER BLACK ARROW

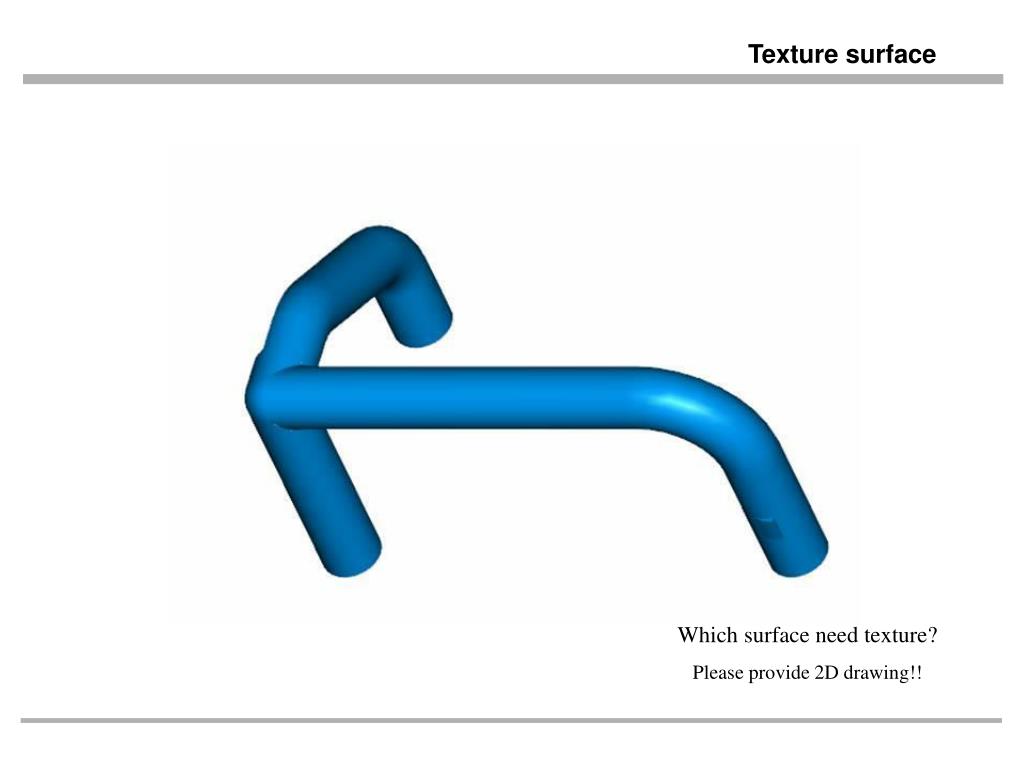

Texture surface Which surface need texture? Please provide 2D drawing!!
Suggestion All green surface need cut plastics 0.5° for cavity release. All red surface need cut plastics 1° for core release.
Suggestion Reverse Notch and this view. Model is reversed to recommendations. This area. Cut plastics for side gate
Concerns Here is too thick plastics , it will cause sink mark. R0.3 Suggest change the R0.3 to R1
