  1. Schenk Pegasus Water Brake Dynamometer

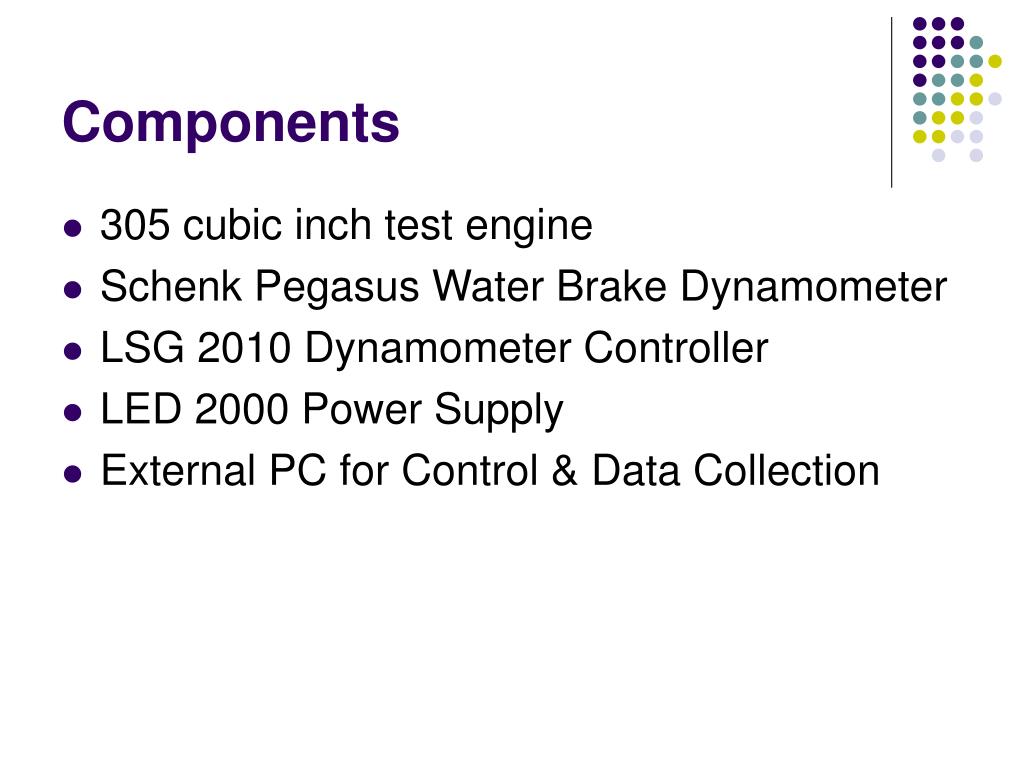

  2. Components • 305 cubic inch test engine • Schenk Pegasus Water Brake Dynamometer • LSG 2010 Dynamometer Controller • LED 2000 Power Supply • External PC for Control & Data Collection

  3. Capabilities • Dynamometer can maintain test engine at a user specified torque or RPM. • Control of dynamometer can be accomplished through the external PC and DAQ card or the LSG 2010 controller. • External PC offers time based data collection. • Dynamometer and Controller combination are compatible with virtually any engine.

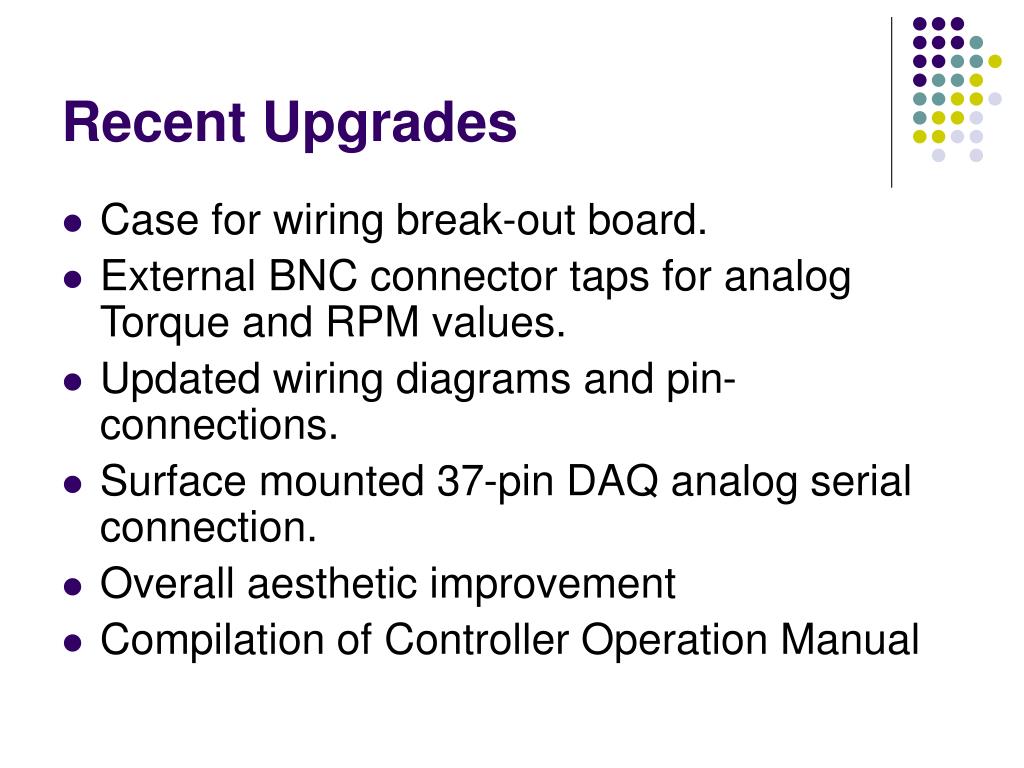

  4. Recent Upgrades • Case for wiring break-out board. • External BNC connector taps for analog Torque and RPM values. • Updated wiring diagrams and pin-connections. • Surface mounted 37-pin DAQ analog serial connection. • Overall aesthetic improvement • Compilation of Controller Operation Manual

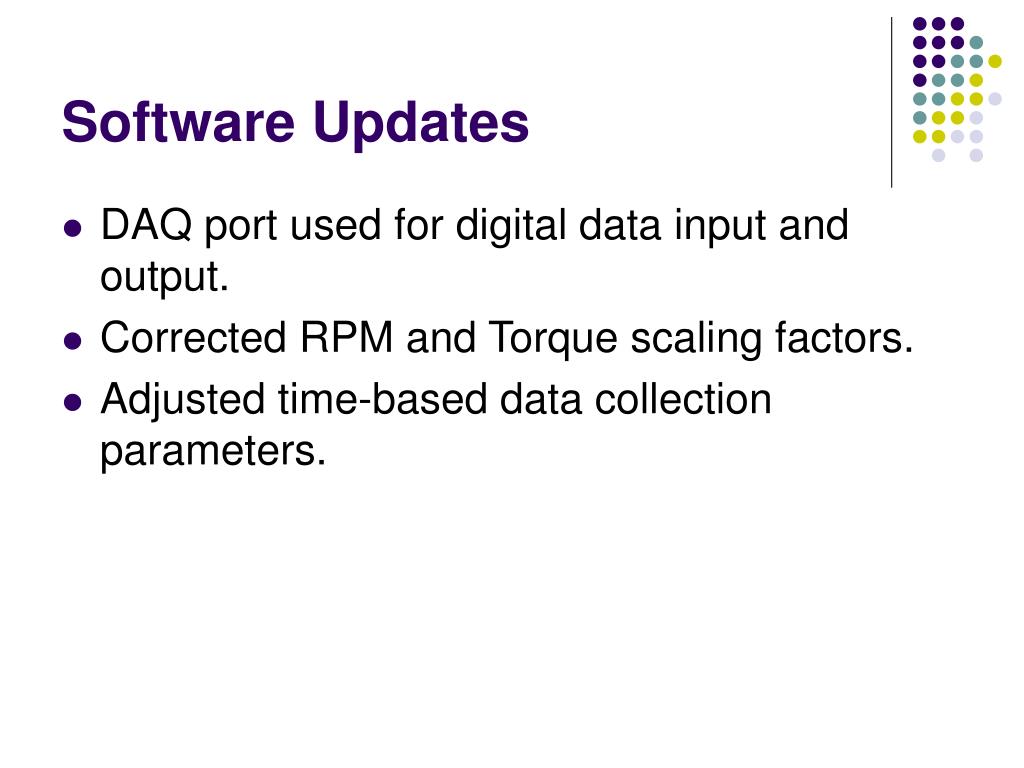

  5. Software Updates • DAQ port used for digital data input and output. • Corrected RPM and Torque scaling factors. • Adjusted time-based data collection parameters.
