Presentation Transcript
Lecture 11 reflection refraction and dispersion l.jpg

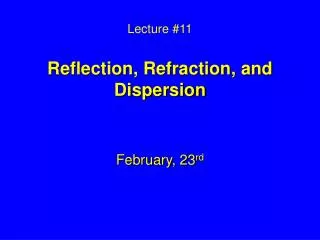

Lecture #11Reflection, Refraction, and Dispersion

February, 23rd


Slide2 l.jpg

  • Agenda

  • Review Reflection

  • 2. Refraction (…the bending of light…). Refraction occurs when light is traveling in one material and then enters a new material.

  • 3. Dispersion

  • 4. Total Internal Reflection


Slide3 l.jpg

Geometric Optics (tracing rays) We are interested about the direction of travel of the electromagnetic wave (propagation direction).Light does cool things1. Reflection2. Refraction 3. Dispersion


Reflection l.jpg
Reflection

One obvious property of light is that it reflects off of surfaces. Among other things, this gives rise to the images we see in mirrors.


Slide5 l.jpg

Reflection

light waves can be reflected at

a surface between two media

refl

inc

Law of Reflection

inc = refl


Law of reflection l.jpg

5

4

1

2

3

LAW OF REFLECTION

  • Using Fermat's principle one can show the law of reflection.

A

B

Fermat's principle:

Light travels in straight lines and will take the path of least time.


Plane mirrors l.jpg
Plane Mirrors

Using ray diagramming one finds that the image is upright, the same size as the object, and is virtual.


Slide8 l.jpg

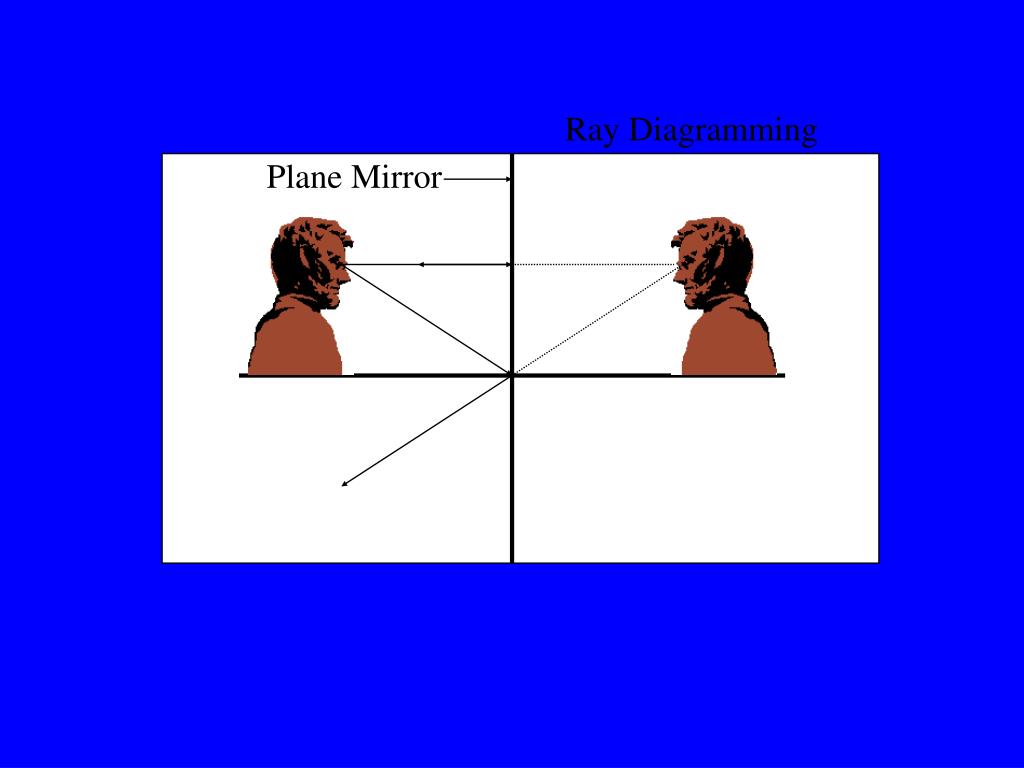

Ray Diagramming

Plane Mirror


Refraction l.jpg
Refraction

Light refracts, which means that it bends when passing from one medium to another. When light enters a more dense medium from one that is less dense, it bends towards a line normal to the boundary between the two media.

Example:


5 cause of refraction l.jpg
5. CAUSE OF REFRACTION

  • When light passes from one medium to another, its speed changes which in turn causes a bending of the light.

  • Example: car running onto shoulder

  • This bending produces illusions.

  • Example: objects in water appear closer and nearer the surface


Slide11 l.jpg

Refraction:1. At surface, the direction of the ray changes.2. When speed of ray decreases, the ray is bent towards the normal.3. Usually, a more dense medium…decreases the light speed.


Slide12 l.jpg

Refraction

Snell found (in 1621) a law called the Law of Refraction (Bending)

Its qualitative form:

If a ray of light enters a more dense medium, then the ray is bent

towards the normal.

If it enters a less dense medium, the ray is bent away from

the normal.

This explains the direction of bending.


Slide13 l.jpg

Refraction

Snell found (in 1621) a law called the Law of Refraction (Bending)

Its qualitative form:

If a ray of light enters a more dense medium, then the ray is bent

towards the normal.

If it enters a less dense medium, the ray is bent away from

the normal.

This explains the direction of bending.


Slide14 l.jpg

Question:

Why does the wave-speed of light get slower, in a material

medium?

Model:

The atoms of the material absorb (temporarily)

the light. Then they re-emit it.

On its way from one atom to another, light travels with speed

c. But, there is a time-delay between the absorption of light by

an atom, and its re-emission.

Problem: Suppose white light is sent through a prism. It then is

dispersed into a rainbow of colors. Which takes longer to get

through the prism – red light or green light?


Slide15 l.jpg

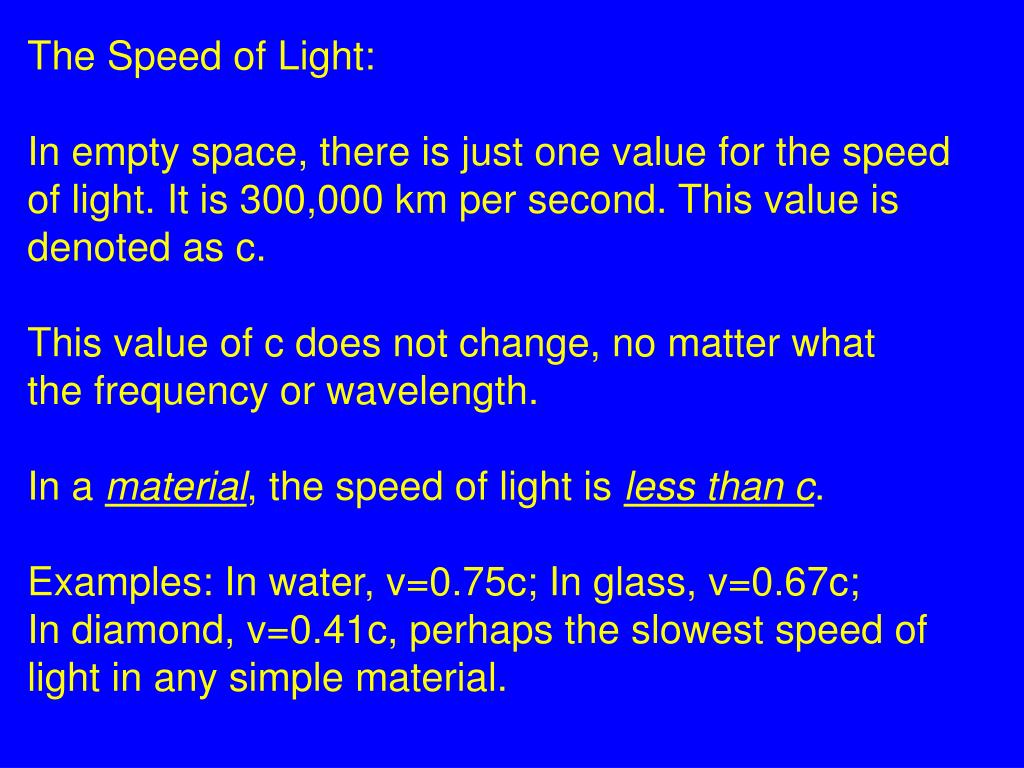

The Speed of Light:

In empty space, there is just one value for the speed of light. It is 300,000 km per second. This value is denoted as c.

This value of c does not change, no matter what

the frequency or wavelength.

In a material, the speed of light is less than c.

Examples: In water, v=0.75c; In glass, v=0.67c;

In diamond, v=0.41c, perhaps the slowest speed of light in any simple material.


Index of refraction refractive index l.jpg
Index of Refraction (Refractive index)

Index of refraction of a material equals

the speed of light in a vacuum divided by

the speed of light in the material.

Note that v < c always. So n is always less

than 1. From experiment, n is also a measure

of the strength of light-bending of the material,

in going from air to the material.

n1sin 1=n2sin 2


Taking advantage of refraction l.jpg
Taking Advantage of Refraction

The greater the density difference between the two materials, the more the light bends. One place where this is used is in lenses for a variety of optical devices, such as microscopes, magnifying glasses, and glasses for correcting vision. An example of an image formed from a lens is shown below.


Dispersion l.jpg
Dispersion

Another aspect of light that is quite familiar is dispersion. If a beam of white light enters a glass prism, what emerges from the other side is a spread out beam of many colored light. The various colors are refracted through different angles by the glass, and are ``dispersed'', or spread out.


Dispersion19 l.jpg

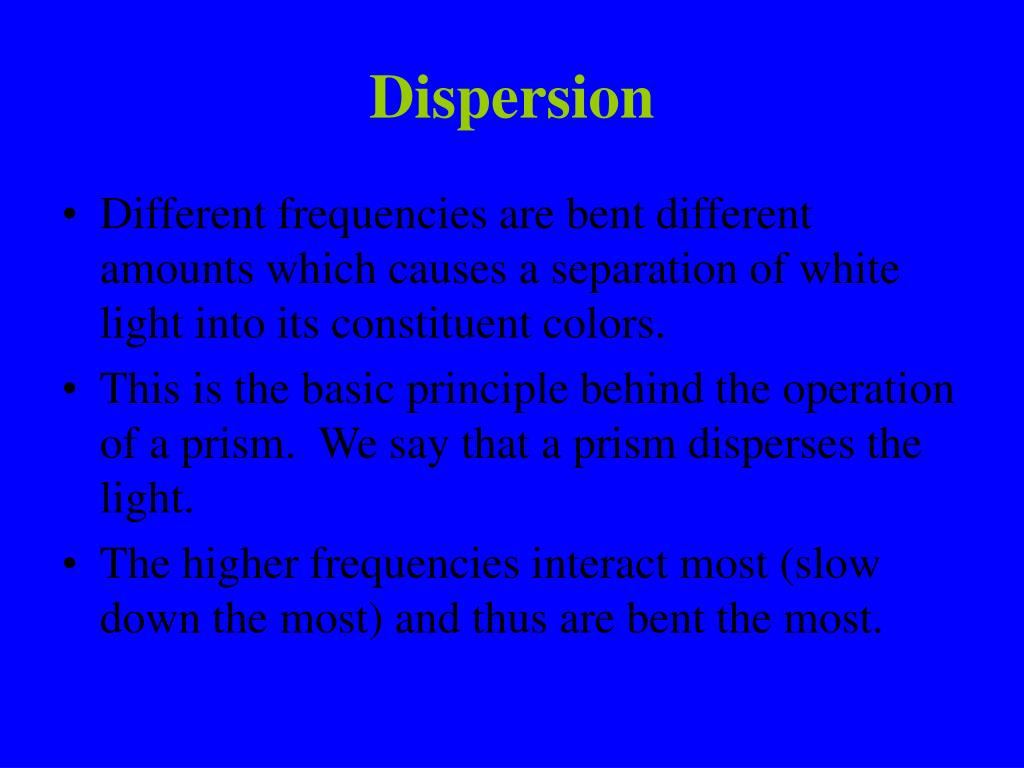

Dispersion

  • Different frequencies are bent different amounts which causes a separation of white light into its constituent colors.

  • This is the basic principle behind the operation of a prism. We say that a prism disperses the light.

  • The higher frequencies interact most (slow down the most) and thus are bent the most.


Slide21 l.jpg

Supplementary Materials:

Chapter 23rd,

pp. 633-634, 642-644, 645-646

Look at examples

Homework assignment:

Chapter 23,

Practice problems!!!

#1, #5,
