architectural technology courses involved
ARCHITECTURAL TECHNOLOGY COURSES INVOLVED
  • ACH 150
    • Construction Documents II
      • 2nd Semester Drafting/Design Studio
      • Normal project – advanced residential
      • 11 students
  • ACH 250
    • Construction Documents IV
      • 4th Semester Drafting/Design Studio
      • Normal project – advanced commercial
      • 3 students
time line for semester
TIME LINE FOR SEMESTER
  • WEEKS 1-2
    • TOWN PLANNING
  • WEEKS 3-4
    • CAMPUS PLANNING
  • WEEKS 5-16
    • BUILDING PROJECT
process
PROCESS
  • Town Plan
    • Students divided up into three teams
      • Student from ACH 250 acting as team coordinator
    • Analysis of surrounding area
      • Tour of area
      • In-class and outside of class work
      • End product – sketches
process1
PROCESS
  • Analysis of ESH site
    • Class work
    • Field trip
    • Brown bag
    • End Product
      • Digital layout of campus
process2

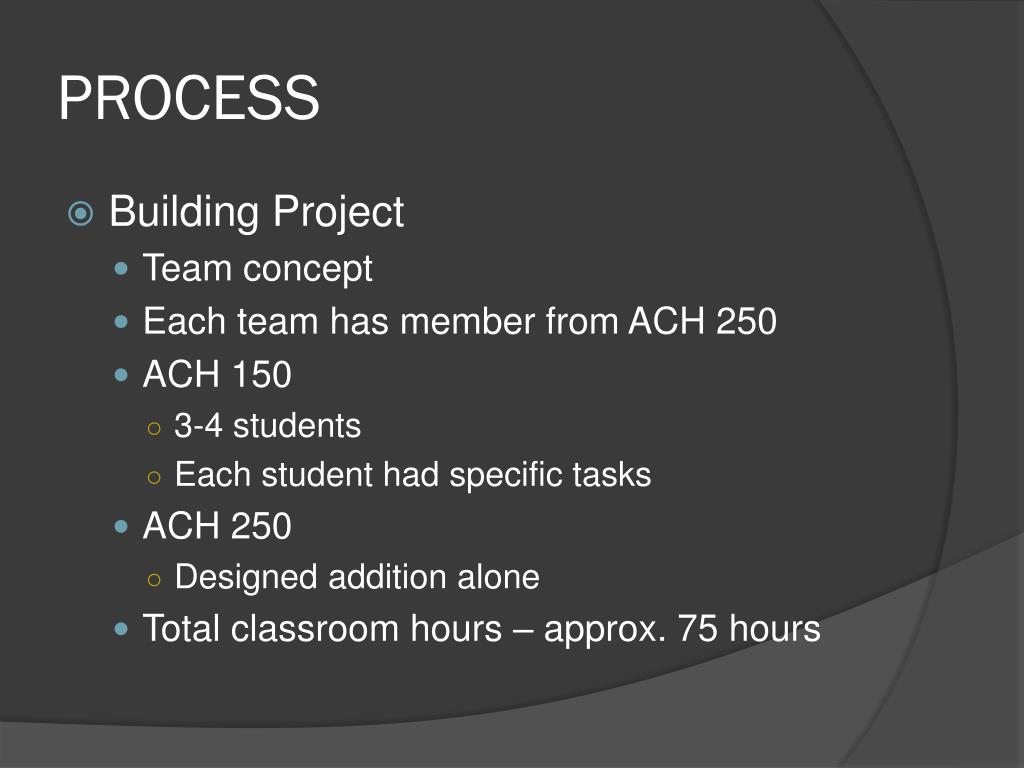

PROCESS
  • Building Project
    • Team concept
    • Each team has member from ACH 250
    • ACH 150
      • 3-4 students
      • Each student had specific tasks
    • ACH 250
      • Designed addition alone
    • Total classroom hours – approx. 75 hours
context

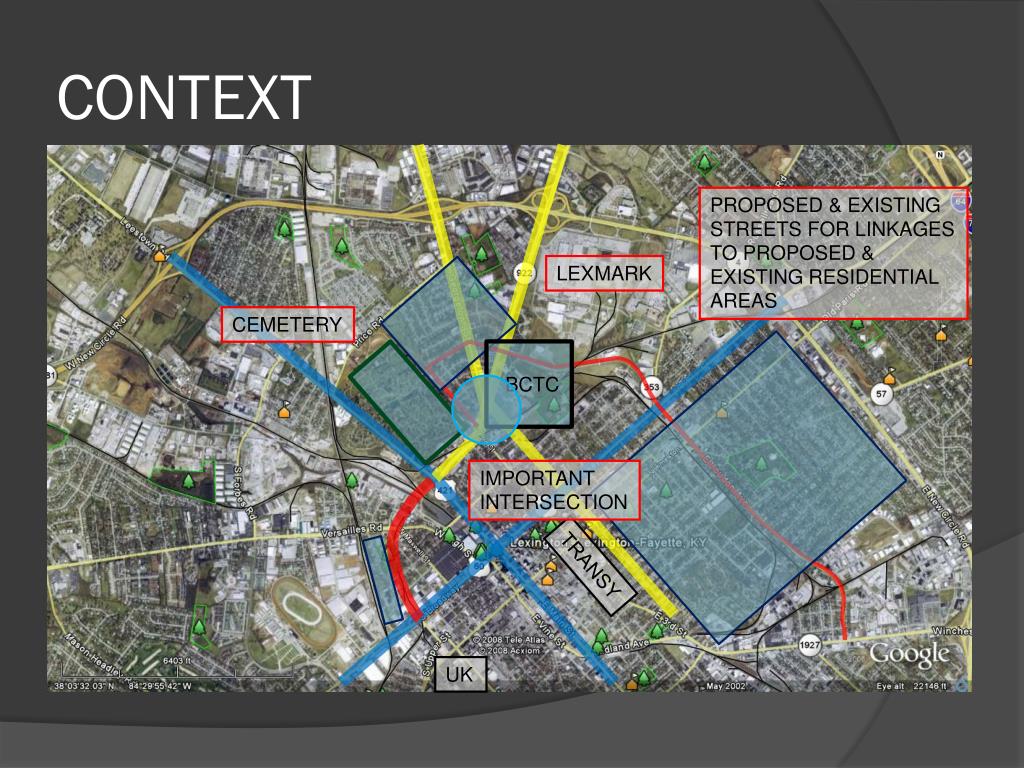

CONTEXT

PROPOSED & EXISTING

STREETS FOR LINKAGES

TO PROPOSED &

EXISTING RESIDENTIAL

AREAS

LEXMARK

CEMETERY

BCTC

IMPORTANT

INTERSECTION

TRANSY

UK

eastern state hospital

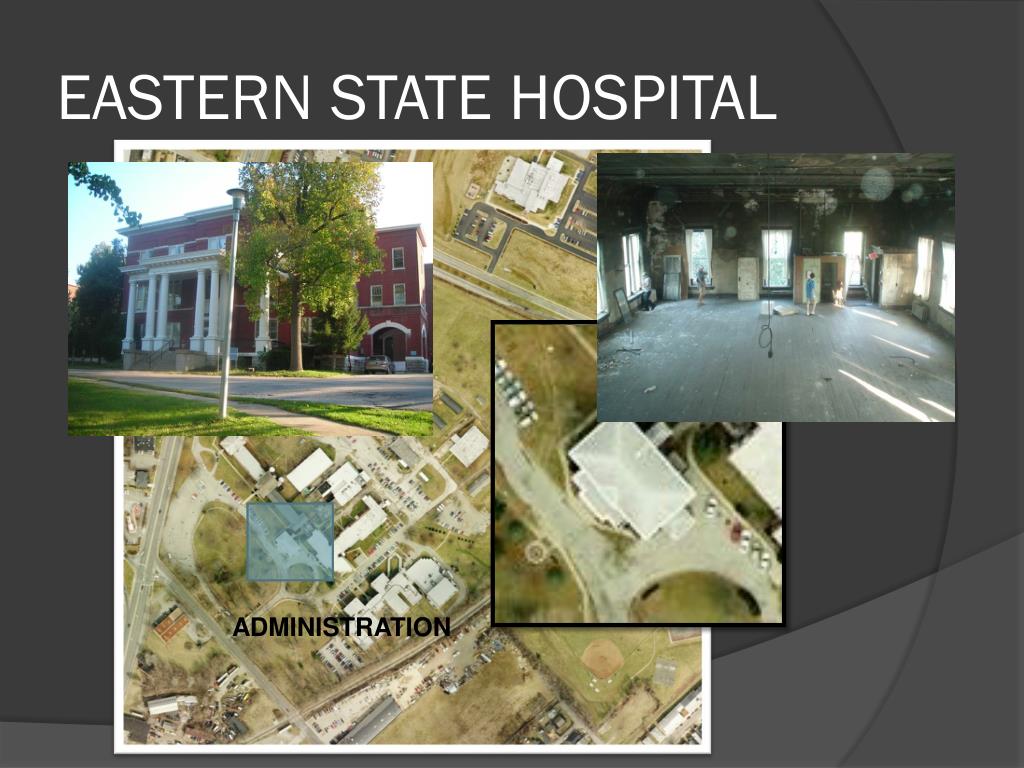

EASTERN STATE HOSPITAL

LEXMARK

HEALTH CENTER

YMCA

HOPE CENTER

COOLAVIN

APTS.

FLORENCE CRITTENTON HOME

RAILROAD

COOLAVIN

PARK

eastern state hospital2
EASTERN STATE HOSPITAL

OLD

LAUNDRY

FACILITY

A BUILDING ONLY AN ARCHITECT COULD LOVE

campus plan

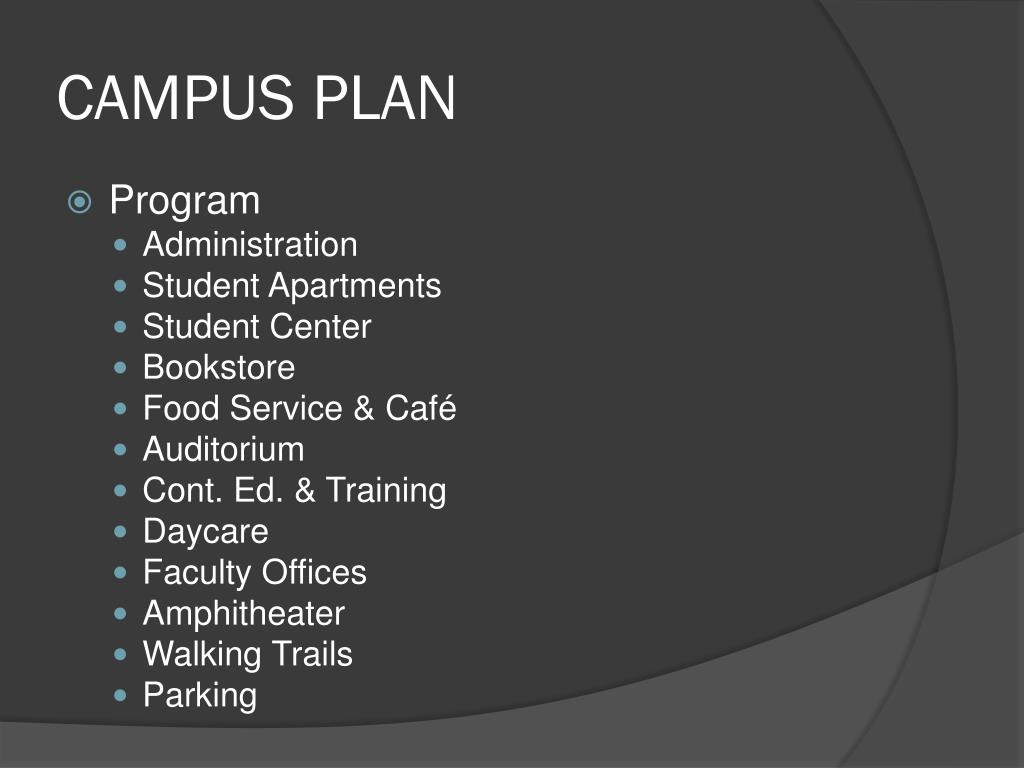

CAMPUS PLAN
  • Program
    • Administration
    • Student Apartments
    • Student Center
    • Bookstore
    • Food Service & Café
    • Auditorium
    • Cont. Ed. & Training
    • Daycare
    • Faculty Offices
    • Amphitheater
    • Walking Trails
    • Parking
existing esh admin bldg

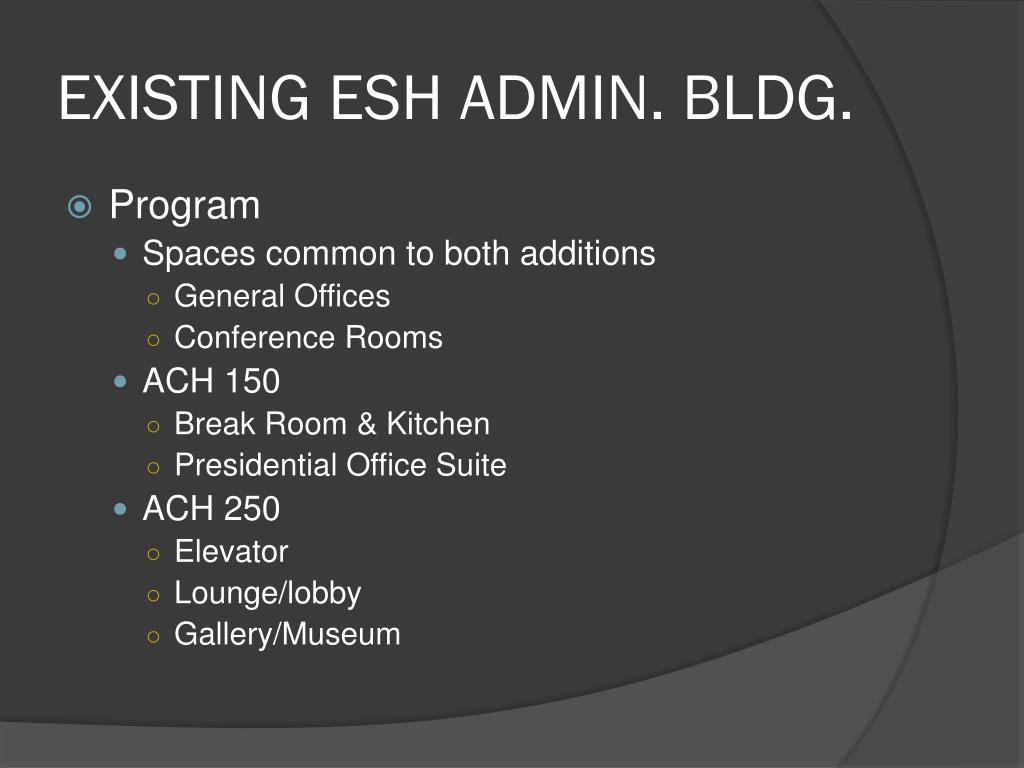

EXISTING ESH ADMIN. BLDG.
  • Program
    • Spaces common to both additions
      • General Offices
      • Conference Rooms
    • ACH 150
      • Break Room & Kitchen
      • Presidential Office Suite
    • ACH 250
      • Elevator
      • Lounge/lobby
      • Gallery/Museum
existing esh admin bldg1
EXISTING ESH ADMIN. BLDG.
  • CHARACTERISTICS
    • Common
      • Two-story – first floor aligns with second floor of existing building
      • Additions cannot obscure building front
      • No major renovations proposed for existing building
      • Design of additions not intended to relate to earlier campus plans
    • ACH 150
      • Project characteristics
        • Residential scale
        • Intended to be more reflective of existing architecture
    • ACH 250
      • Project characteristics
        • Commercial scale
        • Intended to be modern with some characteristics of existing
    • End Product
      • Construction documents
      • Produced using Revit Architecture 2008
