socks

SOCKS

Group: Challenger

Member: Lichun Zhan

agenda
Agenda
  • Introduction
  • SOCKS v4
  • SOCKS v5
  • Summary
  • Conclusion
  • References
  • Questions
introduction
Introduction
  • SOCKS was originally developed by David and Michelle Koblas.
  • It is modified and extended by Ying-Da Lee -- SOCKS v4.
  • SOCKS v5 is defined in RFC 1928 by IETF.
introduction what is socks

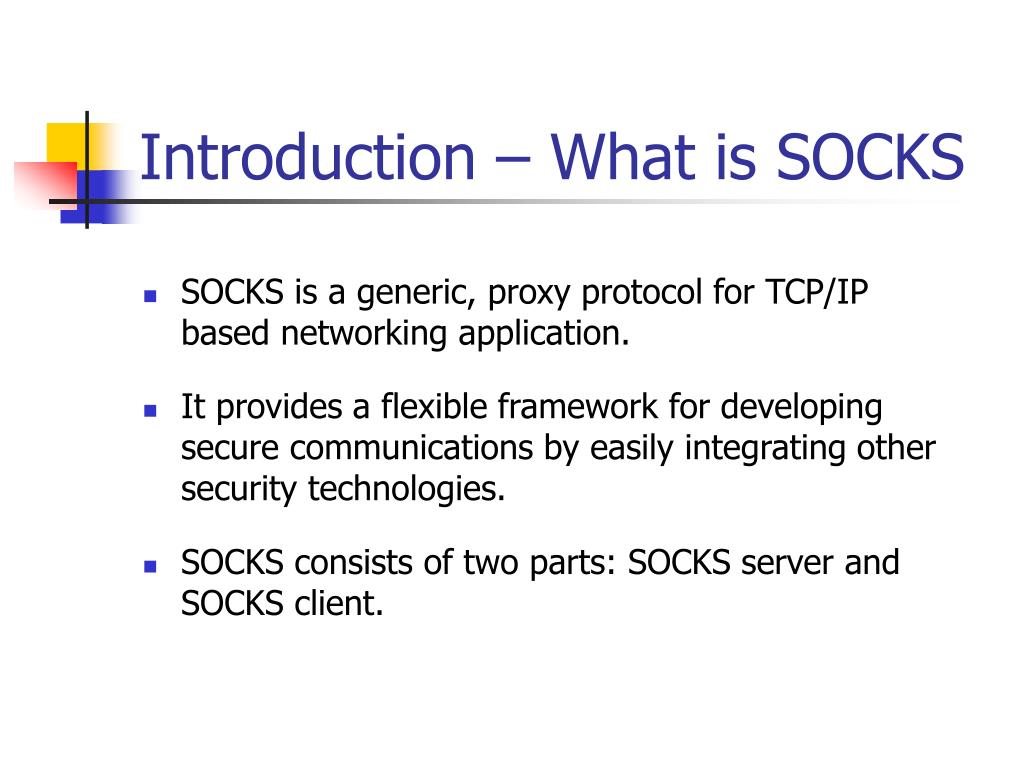

Introduction – What is SOCKS
  • SOCKS is a generic, proxy protocol for TCP/IP based networking application.
  • It provides a flexible framework for developing secure communications by easily integrating other security technologies.
  • SOCKS consists of two parts: SOCKS server and SOCKS client.
introduction socks server and client
Introduction – SOCKS Server and Client
  • SOCKS server is a program that is run on a host that can communicate directly with both the Internet and the internal computers on the network.
  • SOCKS client is a specially modified Internet client programs that contacts the SOCKS server instead of sending requests directly to the Internet.
  • According to the OSI model, the SOCKS server is implemented at the application layer.The SOCKS client is implemented between the application and transport layers.
slide6

Client

SOCKS

Server

Application

Application

Application

Transport

Transport

Transport

Physical

Physical

Physical

Place In OSI Layer

introduction how does it work
Introduction – How does it work?
  • The client connects to a SOCKS proxy server.
  • The proxy server connects to the application server on behalf of the client.
  • The proxy server relays data between the client and the application server.
  • For the application server, the proxy server is the client.
introduction connection setup

SOCKS Connection Setup

TCP Connect and

TCP Connect

SOCKS Request

(SYN)

SOCKS

Proxy

Server

User

Server

SOCKS Reply

TCP Connect

ACK

Introduction – Connection Setup
introduction data relay

SOCKS Data Relay Phase

Packet

Packet

SOCKS

Proxy

Server

User

Server

Packet

Packet

Introduction – Data Relay
socks v4 three functions
SOCKS V4 – Three functions
  • CONNECT:makes connection requests.
  • BIND: sets up proxy circuits
  • Relays application data
v4 connect request reply
V4 – CONNECT request & reply
  • Request(from client to SOCKS server):

+------+-----+-------+-------+-------+--------+--------+---------+....+--------+

| VN | CD | DSTPORT | DSTIP | USERID |NULL|

+------+-----+-------+-------+-------+--------+--------+---------+....+--------+

# of bytes: 1 1 2 4 variable 1

  • (if granted, SOCKS server makes connection to the destination server.)
  • Reply(from SOCKS server to client) :

+---- -+-----+-------+------- +-------+-------+

| VN | CD | DSTPORT | DSTIP |

+----- +-----+-------+------ -+-------+-------+

# of bytes: 1 1 2 4

  • (SOCKS server closes the connection if reject, or ready relay data on both directions)
v4 bind request reply
V4 – BIND request & reply
  • Request(from client to let SOCKS server prepare inbound connection):

+------+-----+-------+-------+-------+--------+--------+---------+....+--------+

| VN | CD | DSTPORT | DSTIP | USERID |NULL|

+------+-----+-------+-------+-------+--------+--------+---------+....+--------+

# of bytes: 1 1 2 4 variable 1

  • Reply(from SOCKS server to client):

+---- -+-----+-------+------- +-------+-------+

| VN | CD | DSTPORT | DSTIP |

+----- +-----+-------+------ -+-------+-------+

# of bytes: 1 1 2 4

  • bind(), getsockname(), listen(), send IP and port to app., accept().
v4 extension
V4 Extension
  • It eliminates the requirement for SOCKSv4 clients to resolve internal and external domain names.
  • Appending the unresolved domain names to the SOCKSv4 client requests, SOCKSv4 servers can attempt to resolve domain names.

+-----+----+------+-----+-----+-----+-----+----+---+---+-------+----+-----+-----+-------+

| VN | CD | DSTPORT| DSTIP 0.0.0.x | USERID |NULL| HOSTNAME |NULL|

+-----+----+------+-----+-----+-----+-----+----+---+---+-------+----+-----+-----+-------+

# of bytes: 1 1 2 4 variable 1 variable 1

v4 how it is plugged in unix
V4 – How it is plugged in (UNIX)
  • The SOCKS client replace calls to the socket functions such as connect(), getsocketname(), bind(), accept(), listen() and select() - with its own versions of these functions.
  • Makefile of the program used to compile the network client program is modified.
  • The resulting program is linked to the SOCKS library.
  • The SOCKS library intercepts the connection attempt and opens up a connection to the SOCKS server.
v4 weakness
V4 Weakness
  • Lack of strong authentication.
  • The requirement to recompile applications with SOCKSv4 client library.
socks v5 rfc 1928 new functions

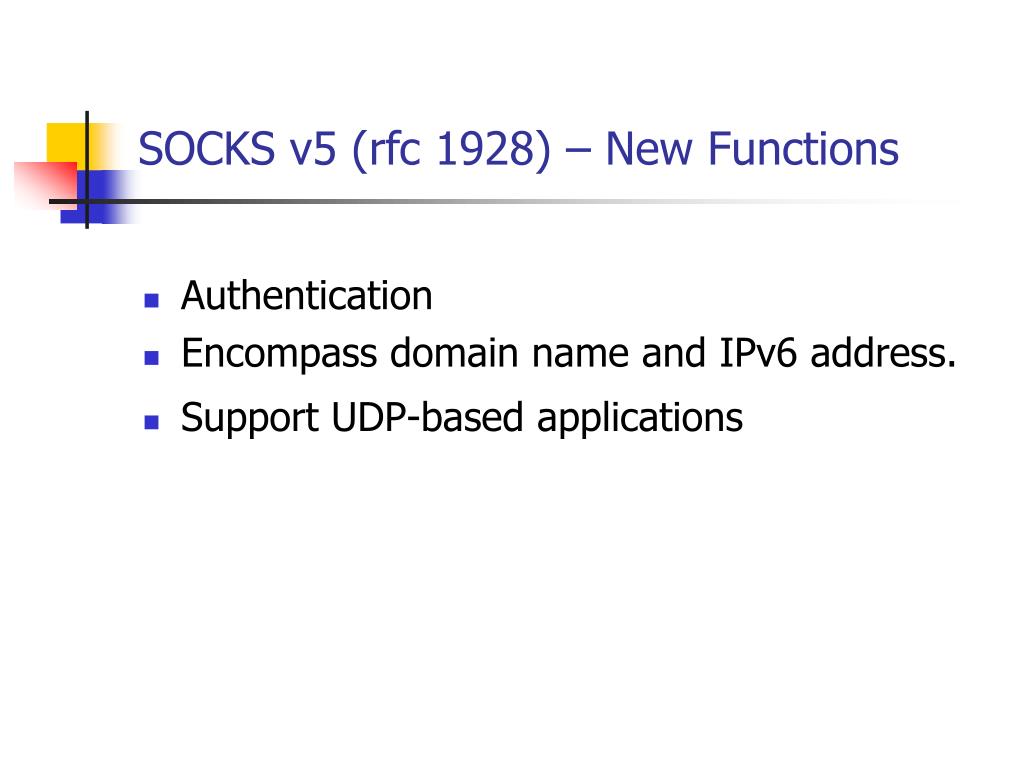

SOCKS v5 (rfc 1928) – New Functions
  • Authentication
  • Encompass domain name and IPv6 address.
  • Support UDP-based applications
v5 authentication method negotiation 1

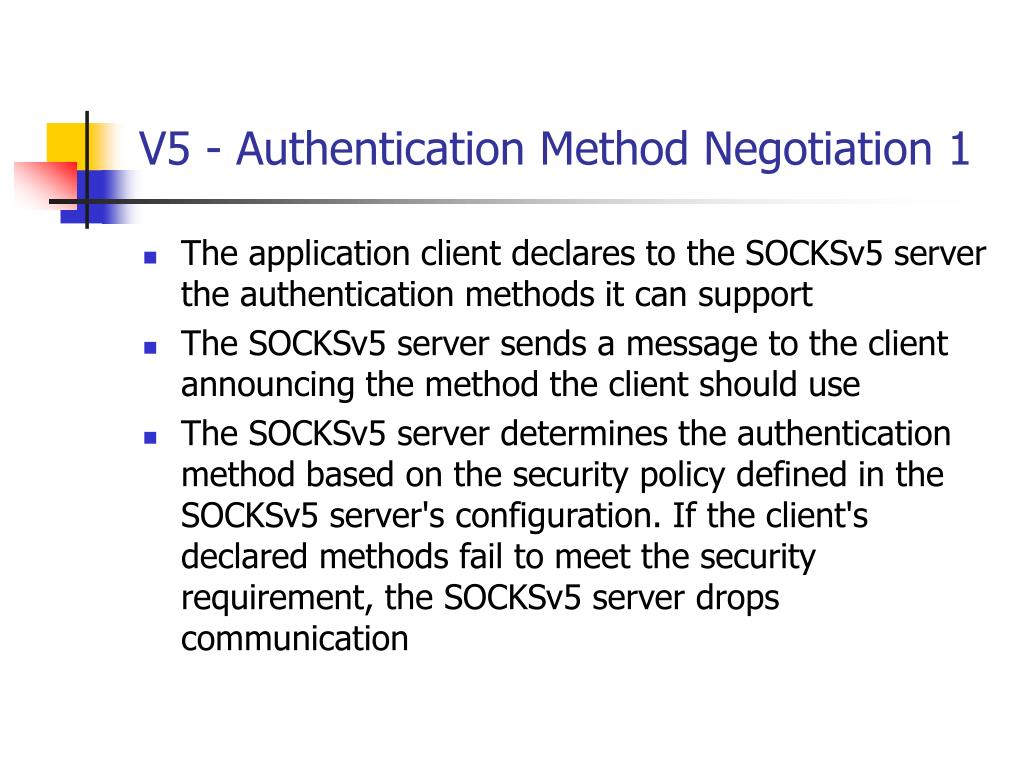

V5 - Authentication Method Negotiation 1
  • The application client declares to the SOCKSv5 server the authentication methods it can support
  • The SOCKSv5 server sends a message to the client announcing the method the client should use
  • The SOCKSv5 server determines the authentication method based on the security policy defined in the SOCKSv5 server's configuration. If the client's declared methods fail to meet the security requirement, the SOCKSv5 server drops communication
v5 authentication method negotiation 2

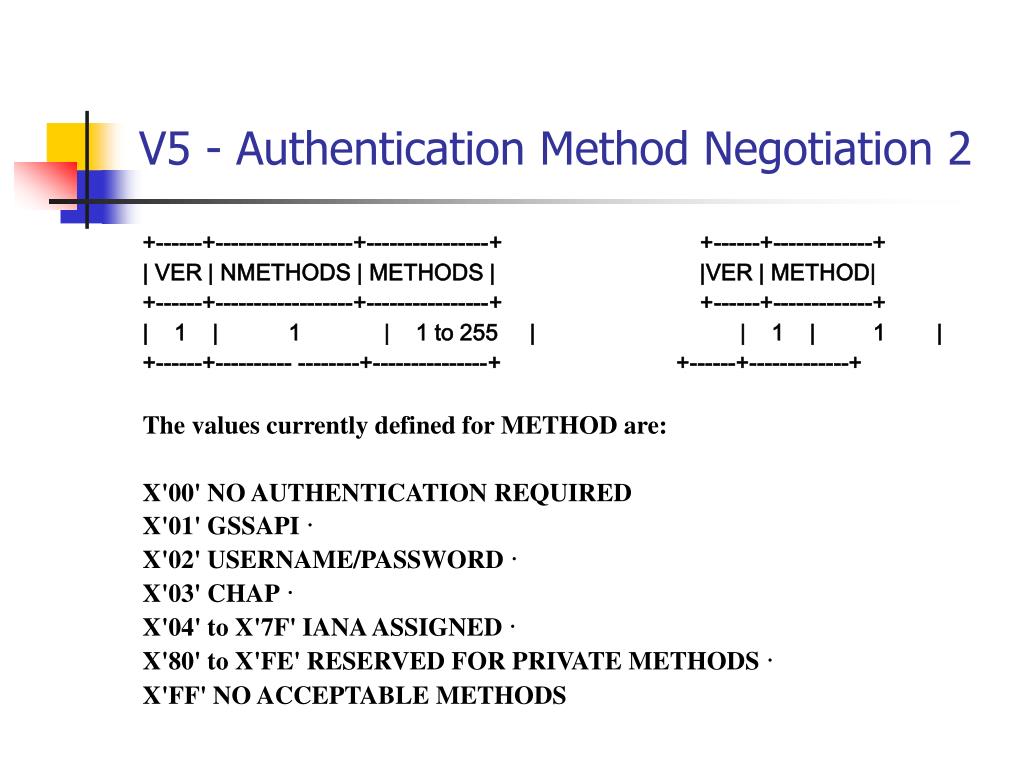

V5 - Authentication Method Negotiation 2

+------+------------------+----------------+ +------+-------------+

| VER | NMETHODS | METHODS | |VER | METHOD|

+------+------------------+----------------+ +------+-------------+

| 1 | 1 | 1 to 255 | | 1 | 1 |

+------+---------- --------+---------------++------+-------------+

The values currently defined for METHOD are:

X'00' NO AUTHENTICATION REQUIRED

X'01' GSSAPI·

X'02' USERNAME/PASSWORD·

X'03' CHAP·

X'04' to X'7F' IANA ASSIGNED·

X'80' to X'FE' RESERVED FOR PRIVATE METHODS·

X'FF' NO ACCEPTABLE METHODS

username password authentication for socks v5

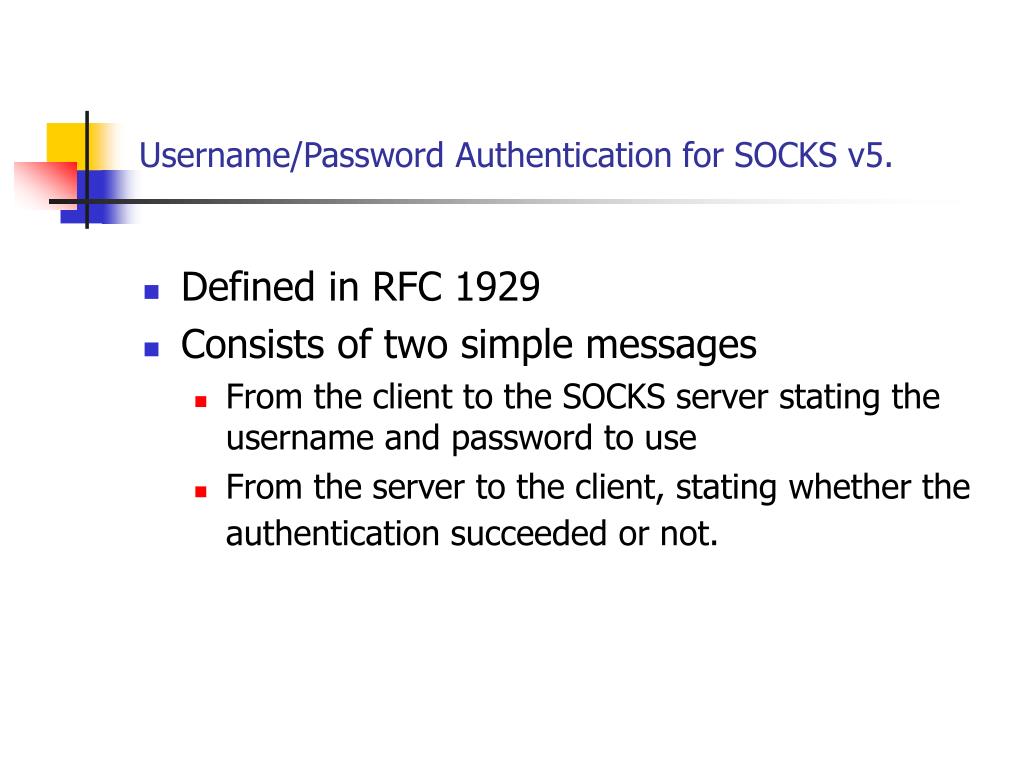

Username/Password Authentication for SOCKS v5.
  • Defined in RFC 1929
  • Consists of two simple messages
    • From the client to the SOCKS server stating the username and password to use
    • From the server to the client, stating whether the authentication succeeded or not.
gss api authentication method for socks v5
GSS-API Authentication Method for SOCKS v5
  • Defined in RFC 1961.
  • GSS-API: generic security service API.
  • Establishing a GSS-API security context to encapsulates negotiation protocol for mechanism selection and the agreement of security service options.
  • GSS-API per-message protection calls encapsulate TCP/UDP traffic between client and server.
v5 domain name and ipv6 address
V5 –Domain Name and IPv6 Address.

Request & Reply:

+------+------+-------+--------- +-----------------+---------------+

| VER | REP | RSV | ATYP | BND. ADDR | BND.PORT|

+------+------+-------+--------- +-----------------+---------------+

| 1 | 1 |x’00’| 1 | variable | 2 |

+------+------+-------+--------- +-----------------+---------------+

The values currently defined for ATYP are:

X'01' IP v4 address

X'03' DOMAINNAME

X'04' IP v6 address

v5 support udp association
V5 – Support UDP Association
  • UDP association creates a virtual proxy circuit for traversing UDP-based application data.
  • The proxy circuit for UDP is a pair of addresses from the communication endpoints that send and receive datagrams
  • UDP headers encapsulate application data including the destination address of a datagram.
  • UDP request header:

+------+---------+---------+----------------+----------------+------------+

| RSV | FRAG | ATYP | DST.ADDR | DST.PORT | DATA |

+------+---------+---------+----------------+----------------+------------+

| 2 | 1 | 1 | Variable | 2 | Variable |

+------+---------+---------+----------------+----------------+------------+

summary 1

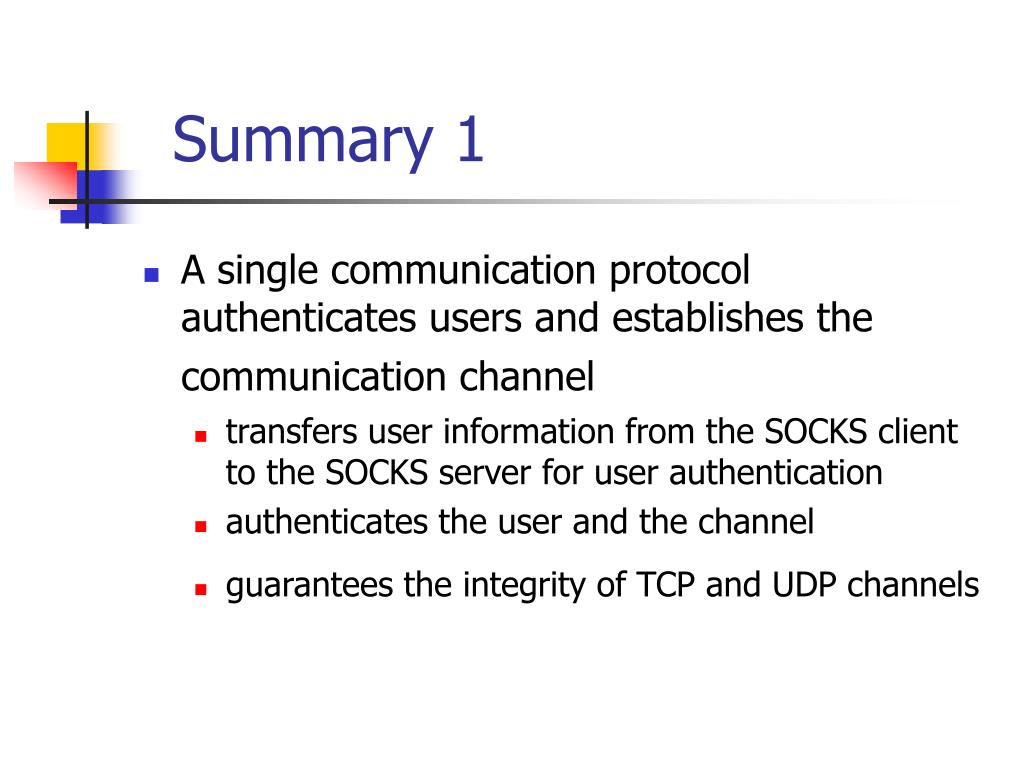

Summary 1
  • A single communication protocol authenticates users and establishes the communication channel
    • transfers user information from the SOCKS client to the SOCKS server for user authentication
    • authenticates the user and the channel
    • guarantees the integrity of TCP and UDP channels
summary 2

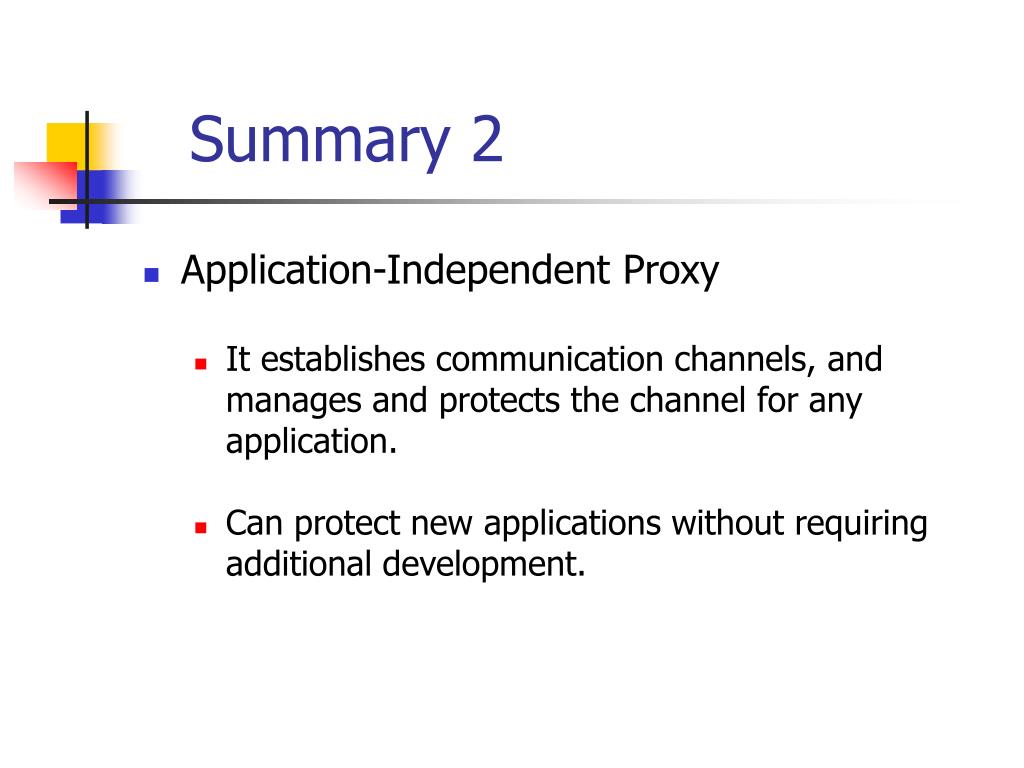

Summary 2
  • Application-Independent Proxy
    • It establishes communication channels, and manages and protects the channel for any application.
    • Can protect new applications without requiring additional development.
summary 3
Summary 3
  • Flexible protection through a variety of access control policies
    • SOCKS delivers TCP and UDP connections through a proxy mechanism at the TCP/UDP layer, therefore it works with any application, and virtually all IP layer technologies, such as firewalls, NAT, and private IP.
    • SOCKS adds the flexibility to manage the network through access control policies based on user, application, and time, in addition to source and destination addresses.
summary 4

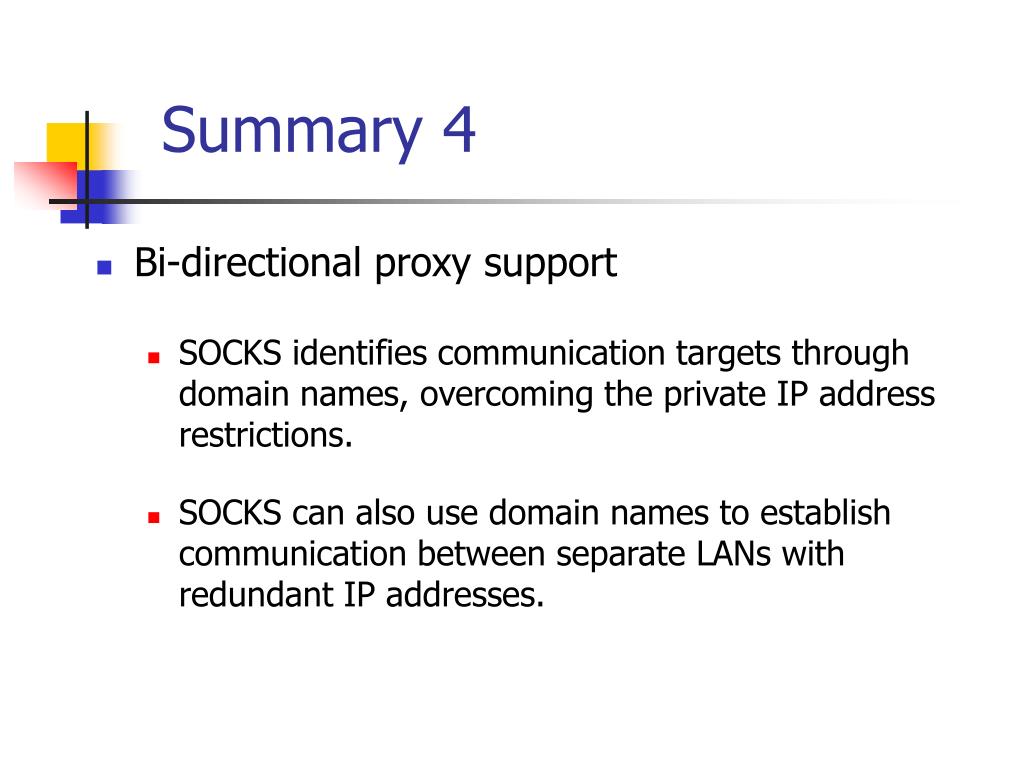

Summary 4
  • Bi-directional proxy support
    • SOCKS identifies communication targets through domain names, overcoming the private IP address restrictions.
    • SOCKS can also use domain names to establish communication between separate LANs with redundant IP addresses.
conclusion socks is widely used

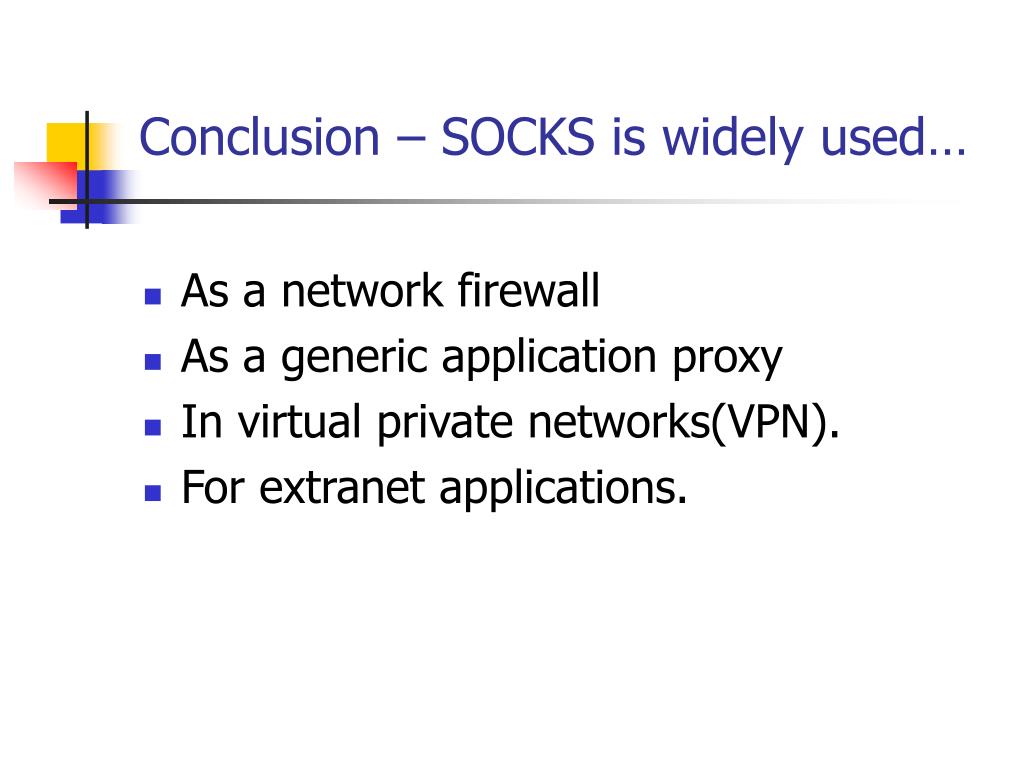

Conclusion – SOCKS is widely used…
  • As a network firewall
  • As a generic application proxy
  • In virtual private networks(VPN).
  • For extranet applications.
references

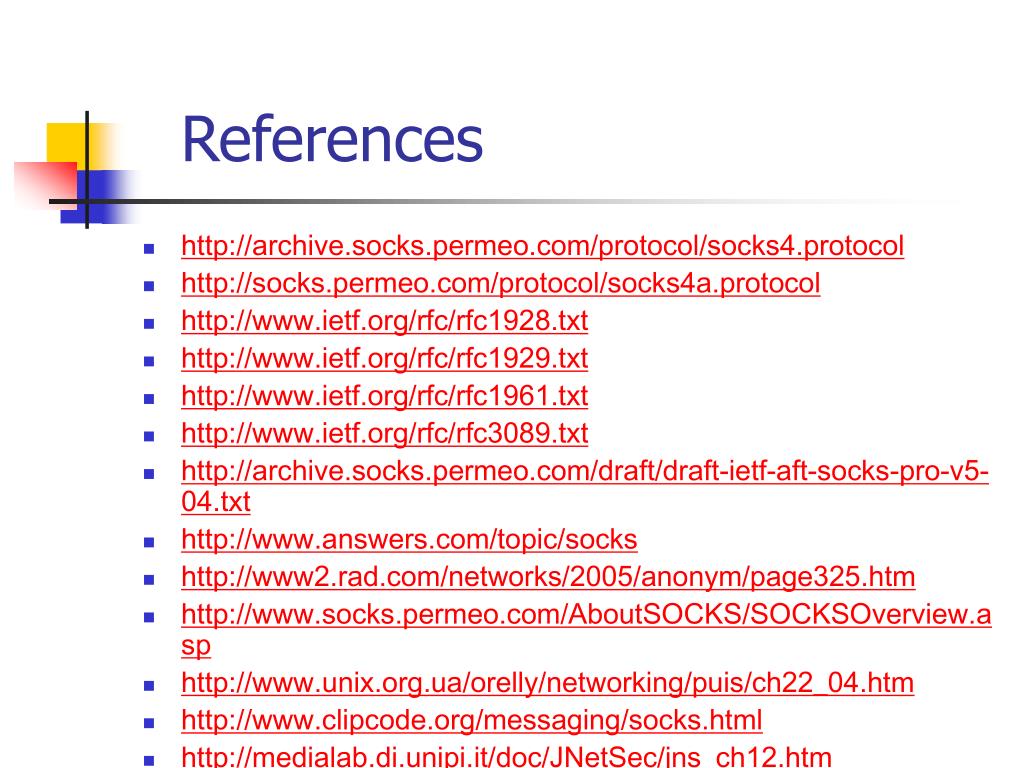

References
  • http://archive.socks.permeo.com/protocol/socks4.protocol
  • http://socks.permeo.com/protocol/socks4a.protocol
  • http://www.ietf.org/rfc/rfc1928.txt
  • http://www.ietf.org/rfc/rfc1929.txt
  • http://www.ietf.org/rfc/rfc1961.txt
  • http://www.ietf.org/rfc/rfc3089.txt
  • http://archive.socks.permeo.com/draft/draft-ietf-aft-socks-pro-v5-04.txt
  • http://www.answers.com/topic/socks
  • http://www2.rad.com/networks/2005/anonym/page325.htm
  • http://www.socks.permeo.com/AboutSOCKS/SOCKSOverview.asp
  • http://www.unix.org.ua/orelly/networking/puis/ch22_04.htm
  • http://www.clipcode.org/messaging/socks.html
  • http://medialab.di.unipi.it/doc/JNetSec/jns_ch12.htm
thank you

Thank You !

Questions?
