omnistack 6100

OmniStack 6100

Economical L2+ 10/100 workgroup switching

alcatel omnistack 6100
Alcatel OmniStack 6100
  • Overview
  • Competitive
  • Pricing
  • Network Applications
  • Service and Support
  • Summary
alcatel esd nibu lan switches best of breed from the edge to the core
Alcatel ESD NIBU LAN SwitchesBest of breed from the edge to the core

High end modular switch

OmniSwitch

8800

> application

  • High density GigE, 10GigE
  • Wire-speed network services
  • Highest availability and performance
  • Backbone and data center
  • Core & high density distribution

OmniSwitch

7800 7700

Multiservice modular switch

> application

  • Convergence ready
  • Wire-speed network services
  • Highest availability, PoE
  • Converged wiring closet
  • Small / medium core
  • Aggregation & small data center

AOS L3

New

Advanced stackable

OmniVista Network Management

> application

OmniSwitch 68006602

  • Virtual chassis
  • Wire-speed network services
  • Highest availability
  • Aggregation/Small Core
  • Converged Wiring Closet
  • Fiber to the Desktop applications

Entry level fixed configuration

> application

OmniStack

6300

  • Wire-speed 10/100/1000 L2+
  • Rich network services
  • Gig to the desktop wiring closet
  • Gig aggregation
  • Data center

Value L2+

OmniStack

6100

  • Wire-speed 10/100 L2+
  • Basic services
  • Stackable
  • Closets and workgroups

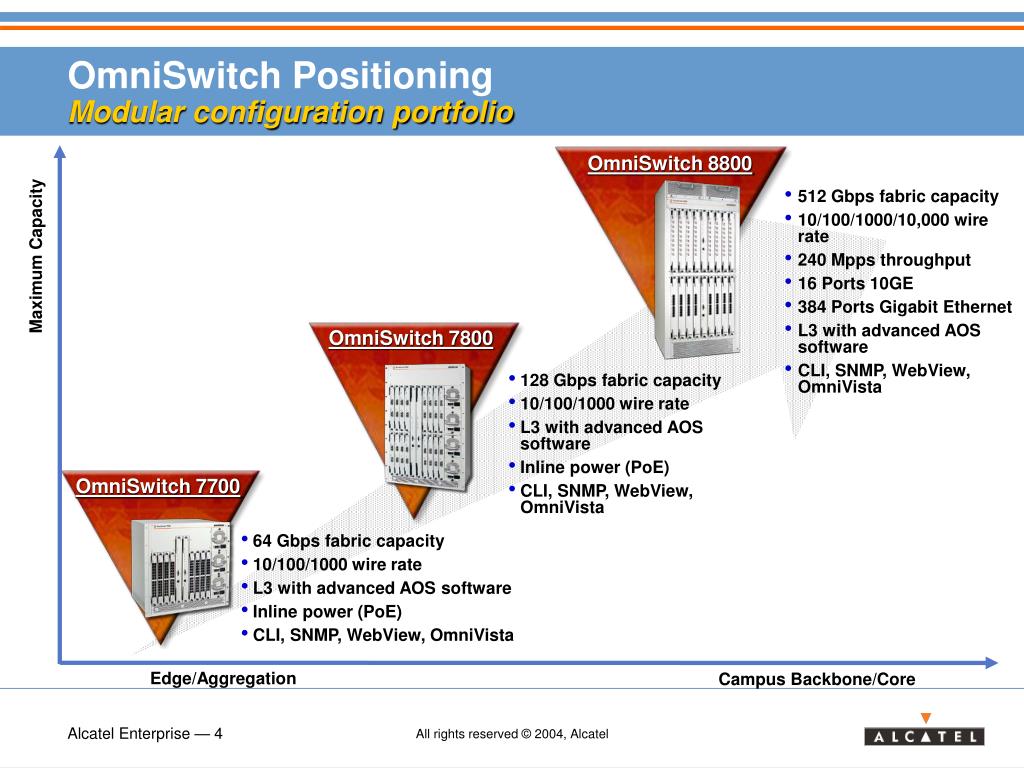

omniswitch positioning modular configuration portfolio
OmniSwitch Positioning Modular configuration portfolio

OmniSwitch 8800

  • 512 Gbps fabric capacity
  • 10/100/1000/10,000 wire rate
  • 240 Mpps throughput
  • 16 Ports 10GE
  • 384 Ports Gigabit Ethernet
  • L3 with advanced AOS software
  • CLI, SNMP, WebView, OmniVista

Maximum Capacity

OmniSwitch 7800

  • 128 Gbps fabric capacity
  • 10/100/1000 wire rate
  • L3 with advanced AOS software
  • Inline power (PoE)
  • CLI, SNMP, WebView, OmniVista

OmniSwitch 7700

  • 64 Gbps fabric capacity
  • 10/100/1000 wire rate
  • L3 with advanced AOS software
  • Inline power (PoE)
  • CLI, SNMP, WebView, OmniVista

Edge/Aggregation

Campus Backbone/Core

omnistack 6100 in a nutshell stackable l2 switching
OmniStack 6100 in a NutshellStackable L2 switching
  • Stackable fixed configuration design
  • 24 or 48 wirespeed 10/100 ports
  • Modular management & stacking
  • Modular uplinks:
    • 100BaseFX
    • 1000BaseSX and LX
    • 1000BaseT
    • 1000BaseGBIC
  • L2+ switching
  • Lifetime warranty
omnistack 6100 workgroup switching features
Availability

Redundant management

Redundant stacking loop

Backup power supply

802.3ad link aggregation

2 QoS strict priority queues

L2 & L3 QoS marking

Security

Radius & TACACS+

MAC address lockdown

802.1x

Manageability

Menu based CLI

Web based element manager

OmniVista enterprise network management system

OmniStack 6100Workgroup switching features

* Check for availability

alcatel omnistack 61001
Alcatel OmniStack 6100
  • Overview
  • Competitive
  • Pricing
  • Network Applications
  • Service and Support
  • Summary
entry level layer 2 10 100 switching os 6124 competitive position 24 2 uplinks with optics
Entry level Layer 2 10/100 switchingOS-6124 competitive position (24+2 uplinks-with optics)

List

Price

$4,000

$3,000

ENTR VH2402

ENTR V2H124-24

$2,385

$2,385

CSCO 2950SX-24-SI

$1,795

3COM 4228G

$2,000

$1,850

ALA 6124

$1,750

HP 2626

$1,529

$1,000

$500

Feature rating

entry level layer 2 10 100 switching os 6148 competitive position 48 2 uplinks with optics
Entry level Layer 2 10/100 switchingOS-6148 competitive position (48+2 uplinks-with optics)

List

Price

$6,000

$5,000

CSCO 2950SX-48-SI

$3,995

$4,000

ENTR VH4802

$3,660*

$3,000

HP 2650

ALA 6148 $2,290

$2,159

$2,000

No fiber uplink capability

3com 4250T

$1,745

$1,000

Feature rating

*Calculated list using avg. street price and assuming 35% discount

alcatel omnistack 61002
Alcatel OmniStack 6100
  • Overview
  • Competitive
  • Pricing
  • Network Applications
  • Service and Support
  • Summary
alcatel omnistack 61003
Alcatel OmniStack 6100
  • Overview
  • Competitive
  • Pricing
  • Network Applications
  • Service and Support
  • Summary

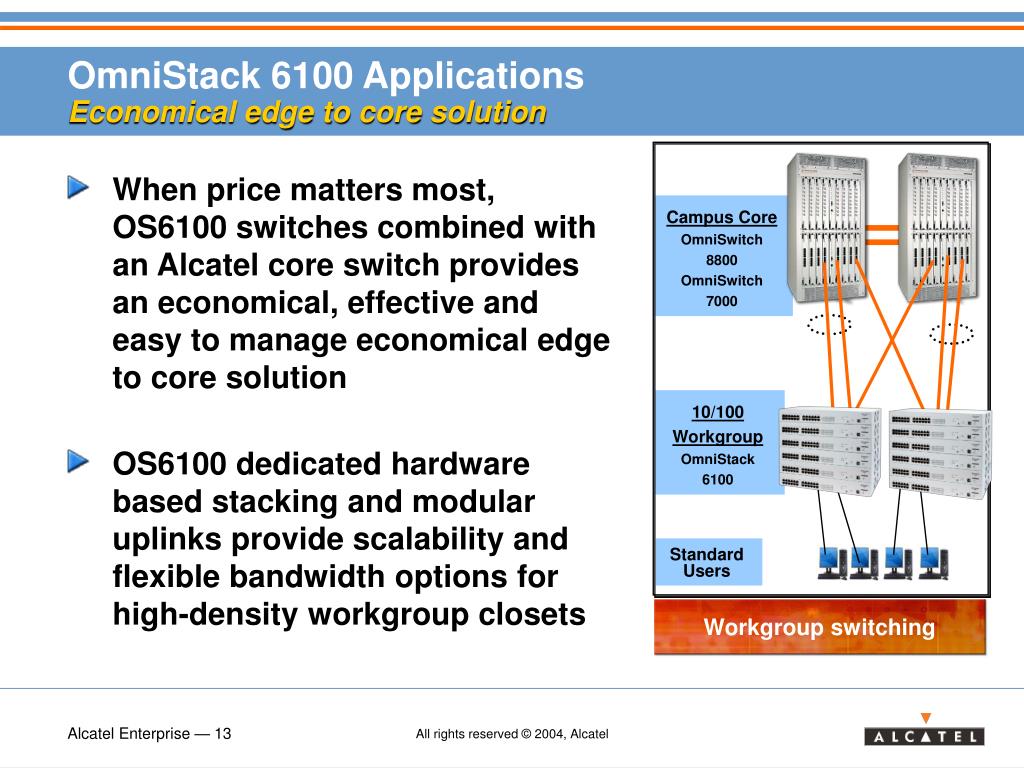

omnistack 6100 applications economical edge to core solution
OmniStack 6100 Applications Economical edge to core solution
  • When price matters most, OS6100 switches combined with an Alcatel core switch provides an economical, effective and easy to manage economical edge to core solution
  • OS6100 dedicated hardware based stacking and modular uplinks provide scalability and flexible bandwidth options for high-density workgroup closets

Campus Core OmniSwitch 8800OmniSwitch 7000

10/100 WorkgroupOmniStack 6100

Standard Users

Workgroup switching

omnistack 6100 positioning

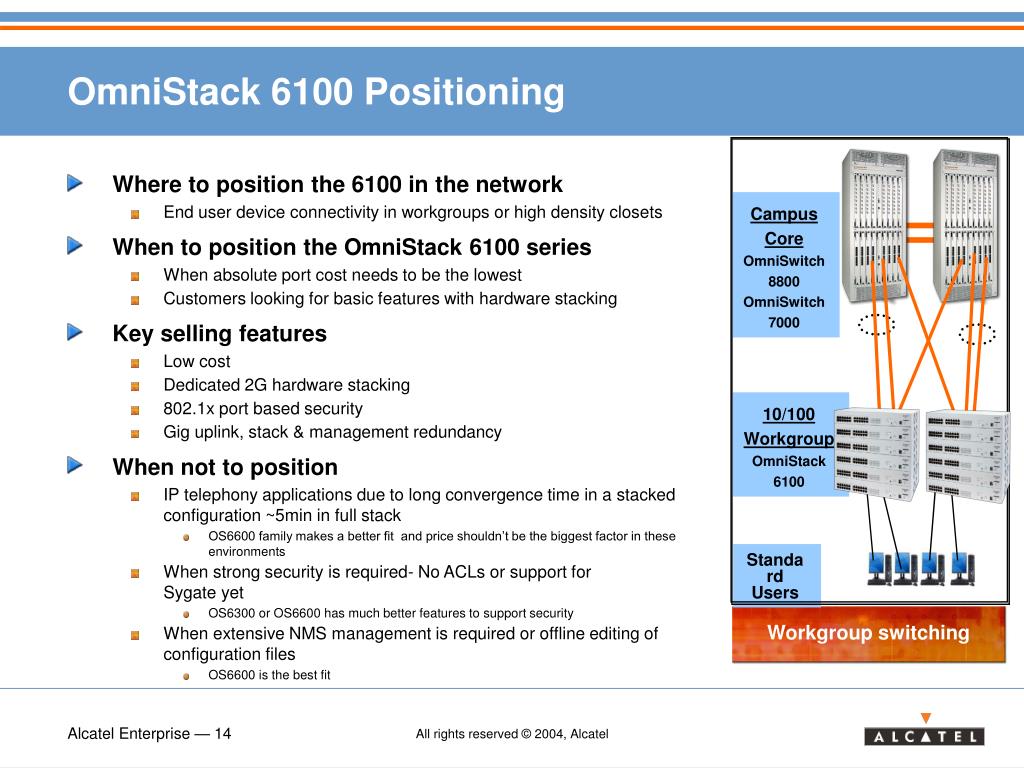

OmniStack 6100 Positioning
  • Where to position the 6100 in the network
    • End user device connectivity in workgroups or high density closets
  • When to position the OmniStack 6100 series
    • When absolute port cost needs to be the lowest
    • Customers looking for basic features with hardware stacking
  • Key selling features
    • Low cost
    • Dedicated 2G hardware stacking
    • 802.1x port based security
    • Gig uplink, stack & management redundancy
  • When not to position
    • IP telephony applications due to long convergence time in a stacked configuration ~5min in full stack
      • OS6600 family makes a better fit and price shouldn’t be the biggest factor in these environments
    • When strong security is required- No ACLs or support for Sygate yet
      • OS6300 or OS6600 has much better features to support security
    • When extensive NMS management is required or offline editing of configuration files
      • OS6600 is the best fit

Campus Core OmniSwitch 8800OmniSwitch 7000

10/100 WorkgroupOmniStack 6100

Standard Users

Workgroup switching

simplified consistent network management snmp web interface and omnivista
Simplified & Consistent Network ManagementSNMP, web interface and OmniVista
  • OmniStack 6100 element management
    • Easy to navigate Menu based CLI
    • Intuitive Web based GUI
    • SNMPv1/v2
  • Integrated into OmniVista global network management
    • Topology with AMAP
    • Monitoring
    • Configuration
    • VLAN manager
    • Resource manager
  • Consistent management of the whole portfolio
    • From the core to the edge
    • Reduced training and operations costs
alcatel omnistack 61004
Alcatel OmniStack 6100
  • Overview
  • Competitive
  • Pricing
  • Network Applications
  • Service and Support
  • Summary
os6100 service support industry s best practices free lifetime warranty on every os6100
OS6100 Service & Support Industry’s Best practices - free lifetime warranty on every OS6100

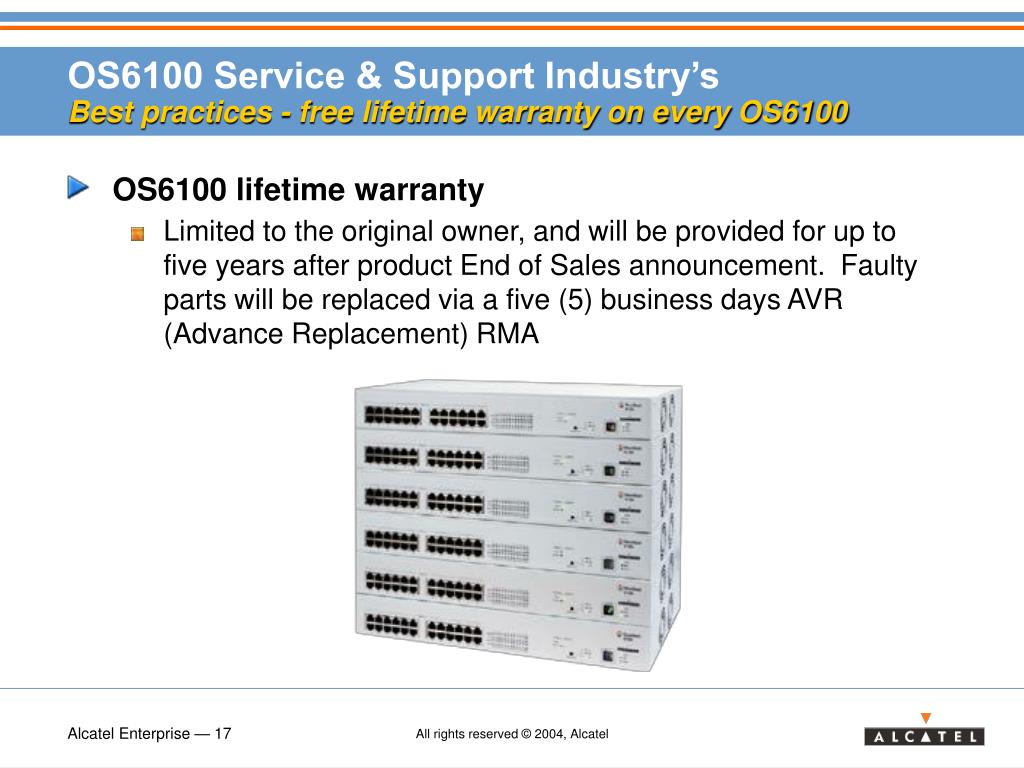

  • OS6100 lifetime warranty
    • Limited to the original owner, and will be provided for up to five years after product End of Sales announcement. Faulty parts will be replaced via a five (5) business days AVR (Advance Replacement) RMA
os6100 service support extended business partner worldwide maintenance programs
OS6100 Service & SupportExtended business partner worldwide maintenance programs
  • Alcatel Certified Business Partner provides:
    • Certified support engineers
    • Case management database
    • Installation services
    • Local onsite support
    • Design and other professional services
    • Spares stock for rapid deployment
  • Alcatel WW service and support provides
    • Return-to-factory or advanced hardware replacement (per limited lifetime warranty)
  • Upgraded – lifetime warranty
    • 24X7 TRC support to certified business partner
    • Return-to-factory or advanced hardware replacement (NBD)
    • e-Service: Case management, S/W distribution, tech tips, etc.
os6100 service support learning solutions
OS6100 Service & SupportLearning solutions
  • Virtual Classroom
    • Remote synchronous class session led by expert instructors
  • Virtual Lab
    • Remote synchronous access to real equipment
    • On-line help from expert instructors
  • Classroom sessions in controlled educational environment
  • Tap-Lab for life-size configuration on real equipment
alcatel omnistack 61005
Alcatel OmniStack 6100
  • Overview
  • Competitive
  • Pricing
  • Network Applications
  • Service and Support
  • Summary
summary
Summary

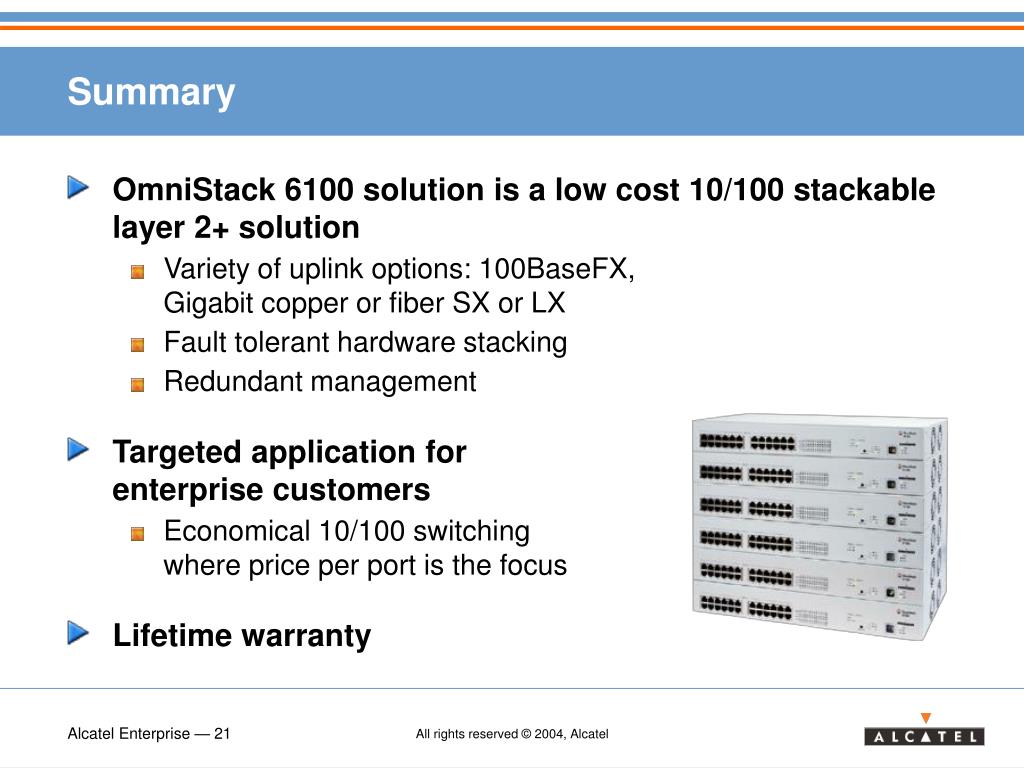

  • OmniStack 6100 solution is a low cost 10/100 stackable layer 2+ solution
    • Variety of uplink options: 100BaseFX, Gigabit copper or fiber SX or LX
    • Fault tolerant hardware stacking
    • Redundant management
  • Targeted application for enterprise customers
    • Economical 10/100 switching where price per port is the focus
  • Lifetime warranty
thank you

Thank You

Thank You

www.alcatel.com/enterprise
