Random Constrained Stimuli Generation. Jean-Michel Chabloz. Classes. Data type including data (properties) and subroutines (methods) class Packet ; //data or class properties bit [3:0] command; bit [40:0] address; bit [4:0] master_id; integer time_requested;

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Random Constrained Stimuli Generation' - rhona


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
classes
Classes
  • Data type including data (properties) and subroutines (methods)

class Packet ;

//data or class properties

bit [3:0] command;

bit [40:0] address;

bit [4:0] master_id;

integer time_requested;

integer time_issued;

integer status;

function new();

command = IDLE;address = 41'b0; master_id = 5'bx;

endfunction

task clean();

command = 0; address = 0; master_id = 5'bx;

endtask

task issue_request( int delay );

// send request to bus

endtask

function integer current_status();

current_status = status;

endfunction

endclass

classes creation and access
Classes creation and access
  • To create an object of the type defined by the class, use:
  • Packet P; //generate a handle to an object of type Packet – initialized to null
  • P=new; //allocate the space for the object and automatically execute the function new() in the class for initialization
  • the function new() is the constructor – no return value. The constructor can be omitted from the class: in this case, the space for the new object is allocated and the initial values of the properties are retained.
  • new() can take arguments:
    • function new(bit [40:0] a);
    • address = a;
    • endfunction
classes properties and methods access
Classes – Properties and methods access
  • Properties and methods of a class object can be accessed through:
    • P.master_id = 3;
    • a = P.command;
    • r = P.current_status()
    • etc.
  • Only after the class object has been created through “new”
example queue of classes
Example: Queue of classes

class InputData;

bit a;

bit [15:0] b;

function new() begin

a=0; b=0;

end

endclass;

InputData q[$];

initial begin

for(int i=0; i<10;i++) begin

InputData id;

id = new;

id.b=i;

id.a=$urandom();

q.push_front(id);

end

end

initial begin

##10;

while(q.size()!=0) begin

InputData id;

id=q.pop_back(id);

$display(id.a,id.b);

end

end

example queue of classes1
Example: Queue of classes

class InputData;

bit a;

bit [15:0] b;

function new() begin

a=$urandom;

b=$urandom;

end

endclass;

InputData q[$];

initial begin

for(int i=0; i<10;i++) begin

InputData id = new; //automatically assigns random values to a and b;

q.push_front(id);

end

end

classes1
Classes
  • We only saw 1% of the things we can do with classes.
  • Classes in SV support more or less all the things that classes in C++ support:
    • inheritance
    • data hiding and encapsulation
    • virtual methods
    • polymorphism
example of crsg
Example of CRSG

class Bus;

rand bit [15:0] addr;

rand bit [31:0] data;

constraint word_align {addr[1:0] == 2’b0;}

constraint addr_data_dep {addr==0 -> data==0;}

endclass

initial begin

Bus busInst;

busInst = new;

// now busInt.addr and busInst.data are both zeroes

if (!busInst.randomize()) begin

$display(“randomization failed”);

$finish();

end

// now bustInst.addr and busInst.data have random values

// that satisfy the constraints

if (!busInst.randomize()) begin

$display(“randomization failed”);

$finish();

end

// now bustInst.addr and busInst.data have other random values

// that satisfy the constraints

end

constraints
Constraints
  • Specify an expression that must be true
  • can optionally have a name
    • useful to turn them on and off
  • can include any type of expression:
  • {a ^ b == 8’b10000111 && a + b==255;}
  • {a > b || a + b==255;}
inside keyword
Inside keyword
  • Can be useful to indicate constraints

class inData;

rand bit[2:0] b;

constraint bc {b inside {0, 3, [5:7]};};

endclass;

class inData;

rand bit[7:0] b;

rand bit[7:0] c;

constraint bc {b inside {0, 3, [c+1:255]};};

endclass;

implication
Implication
  • Implication constraints:
    • constraint c1 {mode == little -> len < 10;};
    • constraint c2 {mode == big -> len > 100;};
  • If mode is little, then len must be < 10;
  • if mode is big, then len must be > 100;
  • Alternative syntax – uses if-else

constraint c {if(mode == little)

len < 10;

else if(mode == big)

len > 100;}

implication1
Implication
  • Implication {cond1 -> cond2;}
  • meaning:
    • if condition 1 is false it doesn’t matter if cond2 is true or false
    • if condition 1 is true than cond2 must be true
  • It means: cond1 cannot be true and cond2 be false at the same time
  • Equivalent to: {!(cond1 & !cond2);}
implication2
Implication
  • bit a,b;
  • constraint {a->b;}
  • possible solutions:
    • a==0, b==0
    • a==0, b==1
    • a==1, b==1
    • a==1, b==0 is not acceptable
randomize
randomize
  • Every time we randomize a class, one among all possible combination of all random variables satisfying all constraints is selected randomly

Bus bus = new;

repeat (50) begin

if ( bus.randomize() == 1 )

$display ("addr = %16h data = %h", bus.addr, bus.data);

else

$display ("Randomization failed");

end

randomize function
randomize function
  • returns 1 if it succeeds, 0 if it fails
  • Why should it fail?
randomize function1
Randomize function
  • The randomize function fails when constraints are conflicting

class inData;

rand bit [15:0] a;

constraint c1 {a > 10;}

constraint c2 {a < 8;}

endclass

class inData;

rand bit a;

rand bit[31:0] data;

constraint c1 {a == 1;}

constraint c2 {a -> data!=0;}

constraint c3 {data==0;}

endclass

adding constraints when randomizing

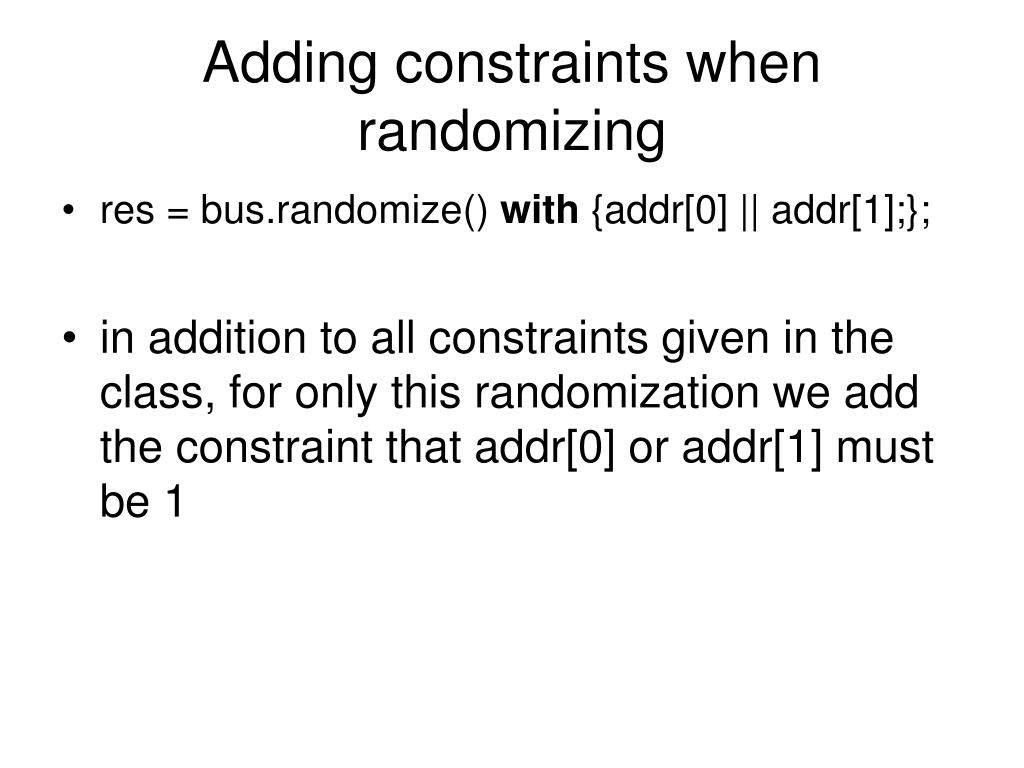

Adding constraints when randomizing
  • res = bus.randomize() with {addr[0] || addr[1];};
  • in addition to all constraints given in the class, for only this randomization we add the constraint that addr[0] or addr[1] must be 1

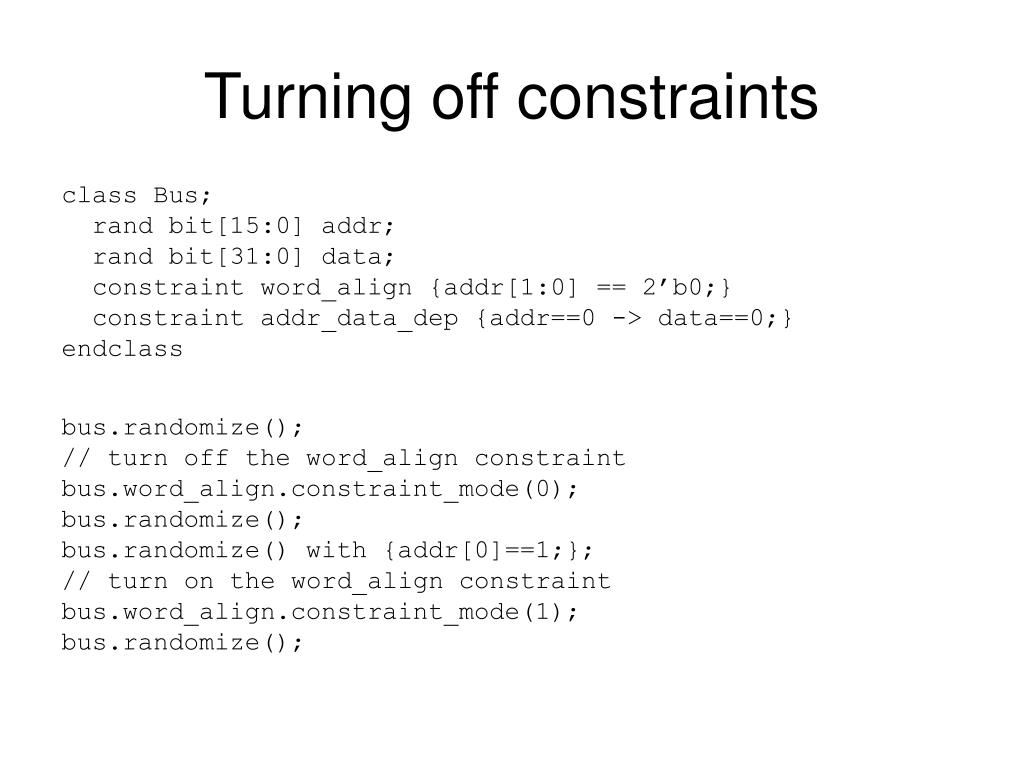

turning off constraints
Turning off constraints

class Bus;

rand bit[15:0] addr;

rand bit[31:0] data;

constraint word_align {addr[1:0] == 2’b0;}

constraint addr_data_dep {addr==0 -> data==0;}

endclass

bus.randomize();

// turn off the word_align constraint

bus.word_align.constraint_mode(0);

bus.randomize();

bus.randomize() with {addr[0]==1;};

// turn on the word_align constraint

bus.word_align.constraint_mode(1);

bus.randomize();

pre and post randomize
Pre- and post-randomize

class Bus;

rand bit[15:0] addr;

rand bit[31:0] data;

constraint word_align {addr[1:0] == 2’b0;}

constraint addr_data_dep {addr==0 -> data==0;}

function void pre_randomize();

$display("Before randomize x=%0d, y=%0d", x, y);

endfunction

function void post_randomize();

$display("After randomize x=%0d, y=%0d", x, y);

endfunction

endclass

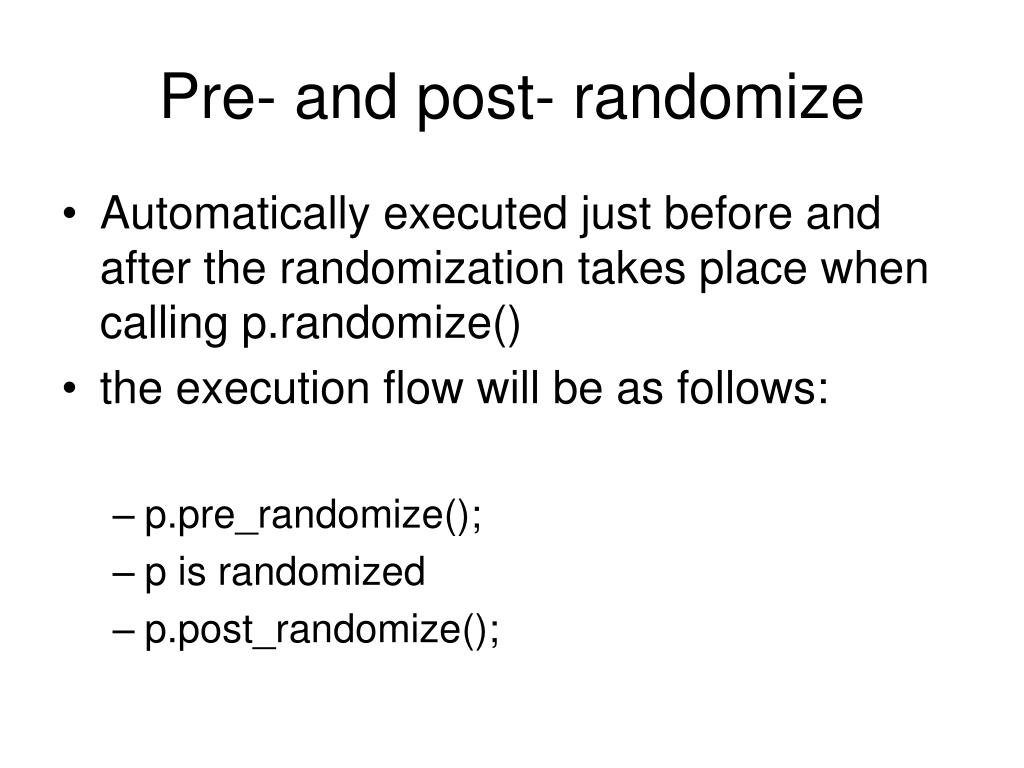

pre and post randomize1
Pre- and post- randomize
  • Automatically executed just before and after the randomization takes place when calling p.randomize()
  • the execution flow will be as follows:
    • p.pre_randomize();
    • p is randomized
    • p.post_randomize();
dist keyword
dist keyword

class id;

rand int x;

constraint {x dist{100 := 1, 200 := 2, 300 := 5};}

endclass;

  • x can take the values 100, 200, 300 with probability 1/8, 2/8, 5/8 (weights 1,2,5).
  • x cannot take any other values (such as 97, 262, etc.)
  • If there is an additional constraint x!=200, or other constraints that make x==200 not acceptable, then x takes the values 100 with 1/6 probability and 300 with 5/6 probability.
slide22
dist
  • dist can be made conditional:
  • constraint c {a -> b dist{0 := 1, 1 := 4;};}
  • if a is true then b is distributed according to the dist
randc
randc
  • Instead of rand, members can be called as randc.
  • The random solver will iterate through all values in a random order, then restart a new cycle
  • Example:

class inData;

randc bit[2:0] b;

endclass;

1st cycle

100

111

011

010

101

001

000

110

111

010

101

000

110

100

001

011

2nd cycle

probability distribution
Probability distribution
  • class id;
  • rand bit a;
  • rand bit [7:0] b;
  • constraint c1 {a==1 -> b==0;};
  • endclass;
  • What is the probability to have a=1 after randomization?
probability distribution1
Probability distribution
  • class id;
  • rand bit a;
  • rand bit [7:0] b;
  • constraint c1 {a==1 -> b==0;};
  • endclass;
  • Probability is 1/257:
    • 1 legal combination of values with a==1
    • 256 legal combination of values with a==0
probability distribution2
Probability distribution
  • Rule: all combinations of legal values have the same probability to occur
  • To determine the probability of an event to occur, just write down all legal combinations and determine how many satisfy all constraints.
solving order
Solving order

class B;

rand bit s;

rand bit [31:0] d;

constraint c { s -> d == 0; }

constraint order { solve s before d; }

endclass

  • first the elements in s will be solved deactivating all constraints that include an element which is different than s, then s is taken as a fixed value and d is solved after turning on again all constraints
solving order1
Solving order

class B;

rand bit a, b;

rand bit [7:0] c;

constraint c1 { a -> b;};

constraint c2 { a & b -> c inside {[0,4]};};

constraint c3 {c inside {[0,3]} -> a==0;}

constraint order { solve a,b before c; }

endclass

  • first c2,c3 are deactivated, a and b are randomized with only c1 active. Then c2, c3 are reactivated, all legal combinations are calculated based on the values of a and b, and c is randomized.
solving order2
Solving order
  • first randomization: a and b are randomized with a -> b.
  • Legal combinations:
    • a=1,b=1
    • a=0, b=0
    • a=0, b=1
  • All three have the same probability to occur
solving order3
Solving order
  • Often it is a good idea to make a strict order between all rand variables, such as:
    • solve pktType before length, outPort, payload;
    • solve outPort before length, payload;
    • solve length before payload;
dynamic vector randomization
dynamic vector randomization
  • Choose length randomly, then make a random-values vector of size length
  • foreach gives constraints on every element of the dynamic vector
  • Note: without the solving order constraint, vectors with a high value of size have much higher probability to be generated

class C;

rand int length

rand byte v[] ;

constraint CL {length>3 & length <16; }

constraint vSize {v.size()==length;}

constraint C1 {foreach ( v [ j ] ) v[j] > 2 * j; }

constraint order {solve length before v;}

endclass

rand and non rand members
rand and non-rand members
  • classes can have both rand and non-rand members
  • when randomizing a class, we randomize only the random variables, the non-random keep their values
  • constraint can mix them together, the constraints depend on the value of the state variables

class B;

rand bit a, b;

bit c, d;

constraint c1 { d -> b;};

constraint c2 { a & b == c;};

endclass

  • It is possible to force this default behaviour by specifying which variables to randomize:
    • Binst.randomize(a) // only randomize a, consider b as a state variable
    • Binst.randomize(a,c) // only randomize a,c; b and d considered as state vars
turn off a random variable
Turn off a random variable
  • After this statement:
    • packet_a.source_value.rand_mode(0);
  • source_value inside packet_a object is considered as a state variable (not randomized when issuing randomize())
  • To turn it on again use:
    • packet_a.source_value.rand_mode(1);
