Warehouse Layout Planning – Tips For Optimizing Storage And Workflow

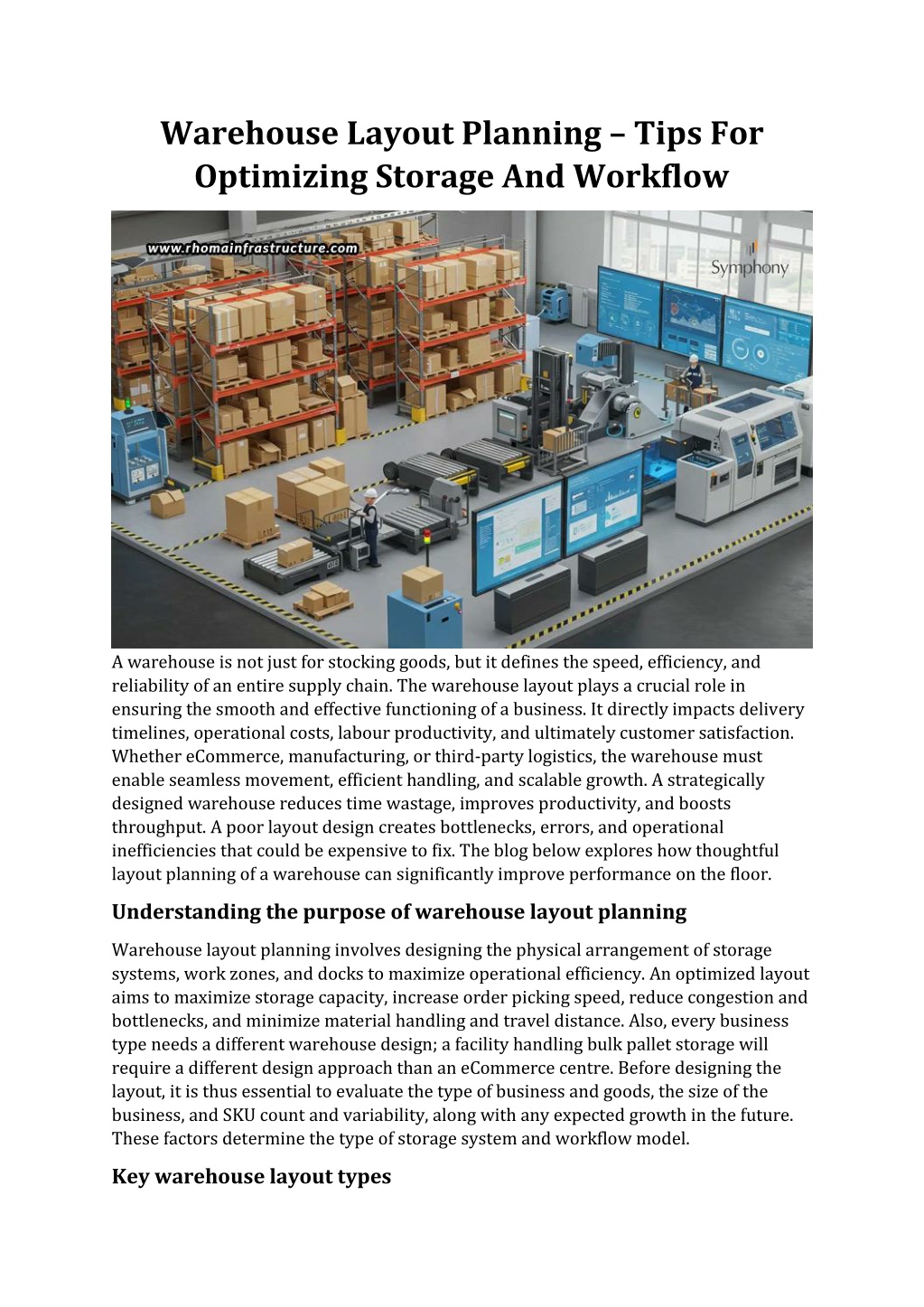

1. Warehouse Layout Planning – Tips For Optimizing Storage And Workflow A warehouse is not just for stocking goods, but it defines the speed, efficiency, and reliability of an entire supply chain. The warehouse layout plays a crucial role in ensuring the smooth and effective functioning of a business. It directly impacts delivery timelines, operational costs, labour productivity, and ultimately customer satisfaction. Whether eCommerce, manufacturing, or third-party logistics, the warehouse must enable seamless movement, efficient handling, and scalable growth. A strategically designed warehouse reduces time wastage, improves productivity, and boosts throughput. A poor layout design creates bottlenecks, errors, and operational inefficiencies that could be expensive to fix. The blog below explores how thoughtful layout planning of a warehouse can significantly improve performance on the floor. Understanding the purpose of warehouse layout planning Warehouse layout planning involves designing the physical arrangement of storage systems, work zones, and docks to maximize operational efficiency. An optimized layout aims to maximize storage capacity, increase order picking speed, reduce congestion and bottlenecks, and minimize material handling and travel distance. Also, every business type needs a different warehouse design; a facility handling bulk pallet storage will require a different design approach than an eCommerce centre. Before designing the layout, it is thus essential to evaluate the type of business and goods, the size of the business, and SKU count and variability, along with any expected growth in the future. These factors determine the type of storage system and workflow model. Key warehouse layout types

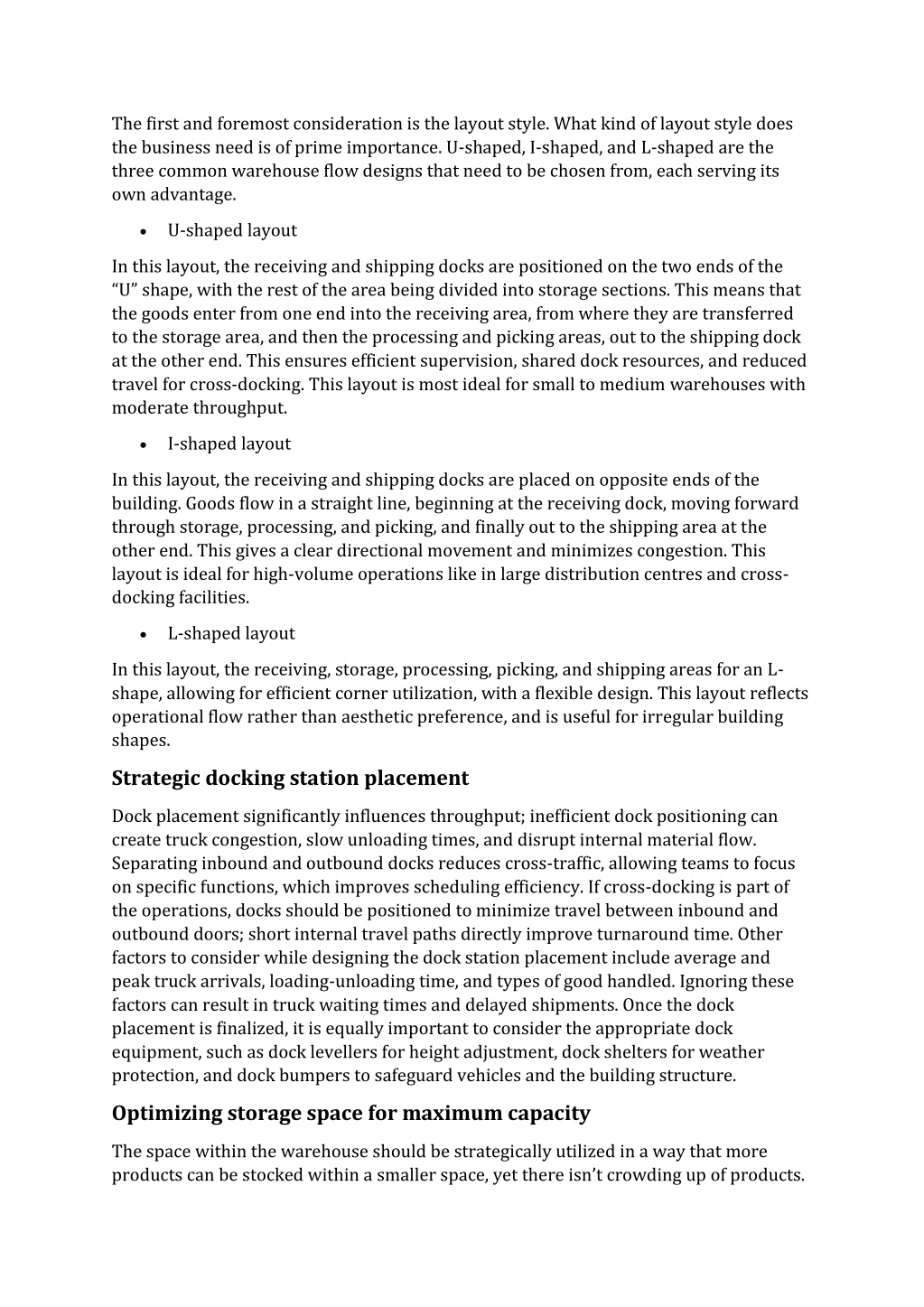

2. The first and foremost consideration is the layout style. What kind of layout style does the business need is of prime importance. U-shaped, I-shaped, and L-shaped are the three common warehouse flow designs that need to be chosen from, each serving its own advantage. •U-shaped layout In this layout, the receiving and shipping docks are positioned on the two ends of the “U” shape, with the rest of the area being divided into storage sections. This means that the goods enter from one end into the receiving area, from where they are transferred to the storage area, and then the processing and picking areas, out to the shipping dock at the other end. This ensures efficient supervision, shared dock resources, and reduced travel for cross-docking. This layout is most ideal for small to medium warehouses with moderate throughput. •I-shaped layout In this layout, the receiving and shipping docks are placed on opposite ends of the building. Goods flow in a straight line, beginning at the receiving dock, moving forward through storage, processing, and picking, and finally out to the shipping area at the other end. This gives a clear directional movement and minimizes congestion. This layout is ideal for high-volume operations like in large distribution centres and cross- docking facilities. •L-shaped layout In this layout, the receiving, storage, processing, picking, and shipping areas for an L- shape, allowing for efficient corner utilization, with a flexible design. This layout reflects operational flow rather than aesthetic preference, and is useful for irregular building shapes. Strategic docking station placement Dock placement significantly influences throughput; inefficient dock positioning can create truck congestion, slow unloading times, and disrupt internal material flow. Separating inbound and outbound docks reduces cross-traffic, allowing teams to focus on specific functions, which improves scheduling efficiency. If cross-docking is part of the operations, docks should be positioned to minimize travel between inbound and outbound doors; short internal travel paths directly improve turnaround time. Other factors to consider while designing the dock station placement include average and peak truck arrivals, loading-unloading time, and types of good handled. Ignoring these factors can result in truck waiting times and delayed shipments. Once the dock placement is finalized, it is equally important to consider the appropriate dock equipment, such as dock levellers for height adjustment, dock shelters for weather protection, and dock bumpers to safeguard vehicles and the building structure. Optimizing storage space for maximum capacity The space within the warehouse should be strategically utilized in a way that more products can be stocked within a smaller space, yet there isn’t crowding up of products.

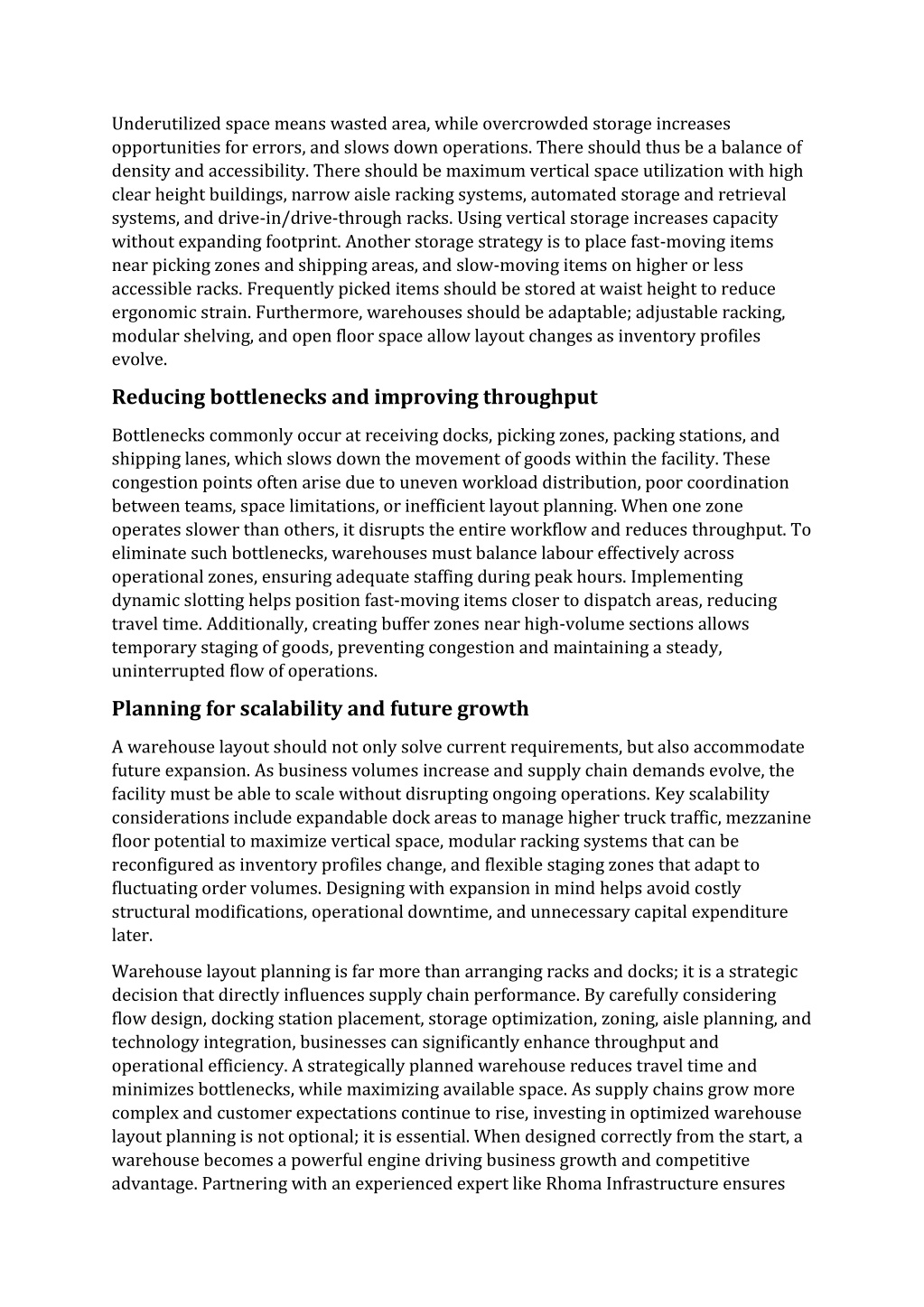

3. Underutilized space means wasted area, while overcrowded storage increases opportunities for errors, and slows down operations. There should thus be a balance of density and accessibility. There should be maximum vertical space utilization with high clear height buildings, narrow aisle racking systems, automated storage and retrieval systems, and drive-in/drive-through racks. Using vertical storage increases capacity without expanding footprint. Another storage strategy is to place fast-moving items near picking zones and shipping areas, and slow-moving items on higher or less accessible racks. Frequently picked items should be stored at waist height to reduce ergonomic strain. Furthermore, warehouses should be adaptable; adjustable racking, modular shelving, and open floor space allow layout changes as inventory profiles evolve. Reducing bottlenecks and improving throughput Bottlenecks commonly occur at receiving docks, picking zones, packing stations, and shipping lanes, which slows down the movement of goods within the facility. These congestion points often arise due to uneven workload distribution, poor coordination between teams, space limitations, or inefficient layout planning. When one zone operates slower than others, it disrupts the entire workflow and reduces throughput. To eliminate such bottlenecks, warehouses must balance labour effectively across operational zones, ensuring adequate staffing during peak hours. Implementing dynamic slotting helps position fast-moving items closer to dispatch areas, reducing travel time. Additionally, creating buffer zones near high-volume sections allows temporary staging of goods, preventing congestion and maintaining a steady, uninterrupted flow of operations. Planning for scalability and future growth A warehouse layout should not only solve current requirements, but also accommodate future expansion. As business volumes increase and supply chain demands evolve, the facility must be able to scale without disrupting ongoing operations. Key scalability considerations include expandable dock areas to manage higher truck traffic, mezzanine floor potential to maximize vertical space, modular racking systems that can be reconfigured as inventory profiles change, and flexible staging zones that adapt to fluctuating order volumes. Designing with expansion in mind helps avoid costly structural modifications, operational downtime, and unnecessary capital expenditure later. Warehouse layout planning is far more than arranging racks and docks; it is a strategic decision that directly influences supply chain performance. By carefully considering flow design, docking station placement, storage optimization, zoning, aisle planning, and technology integration, businesses can significantly enhance throughput and operational efficiency. A strategically planned warehouse reduces travel time and minimizes bottlenecks, while maximizing available space. As supply chains grow more complex and customer expectations continue to rise, investing in optimized warehouse layout planning is not optional; it is essential. When designed correctly from the start, a warehouse becomes a powerful engine driving business growth and competitive advantage. Partnering with an experienced expert like Rhoma Infrastructure ensures

4. that vision turns into reality. With proven expertise in warehouse construction services in Ahmedabad, Rhoma Infrastructure delivers thoughtfully planned, scalable, and future-ready warehouse facilities tailored to modern logistics and industrial demands. Read More Article : Warehouse Layout Planning – Tips For Optimizing Storage And Workflow
