service bus overview

AZR308

Service Bus Overview

Clemens Vasters

Principal Technical Lead

Microsoft Corporation@clemensv

AbhishekLal

Senior Program Manager

Microsoft Corporation@AbhishekRLal

agenda
Agenda

SDK and Tools

Access Control

Service Bus:What and Why

Q&A

Relayed Messaging

Pricing

Brokered Messaging

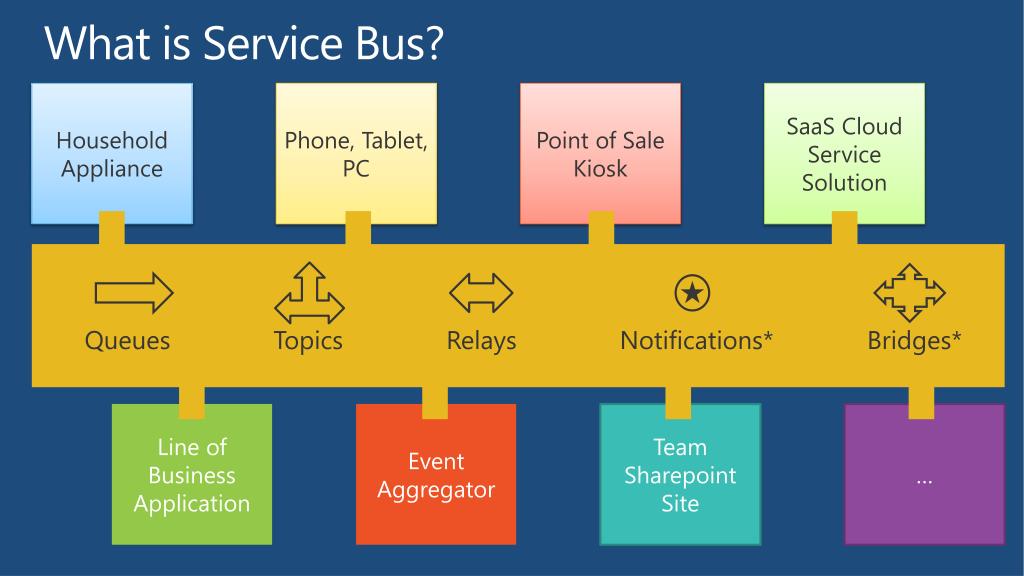

what is service bus
What is Service Bus?

Household Appliance

Phone, Tablet, PC

Point of Sale Kiosk

SaaS Cloud Service Solution

Queues

Topics

Relays

Notifications*

Bridges*

Line of Business Application

Event Aggregator

Team Sharepoint

Site

a scenario

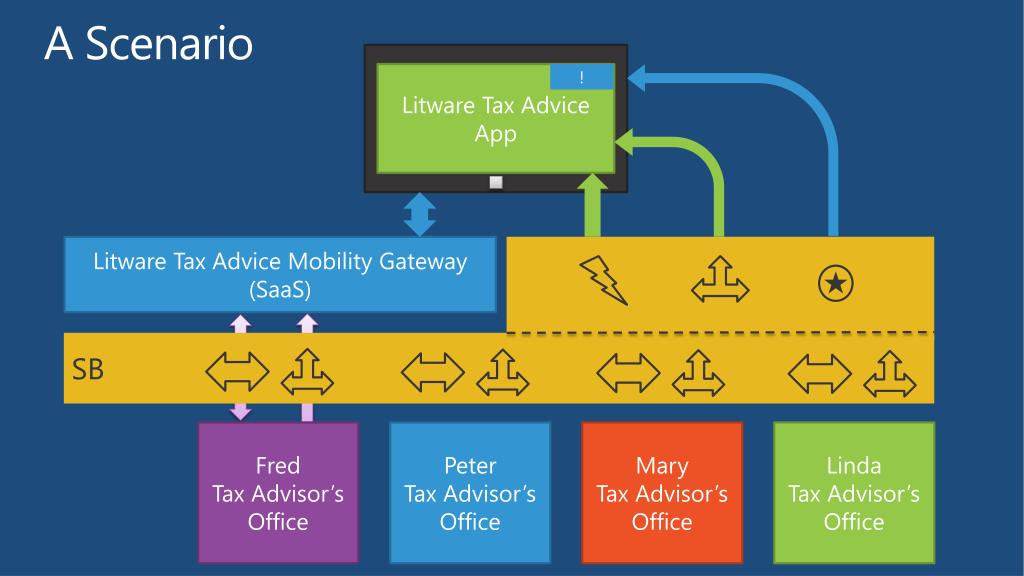

A Scenario

Litware Tax Advice App

!

Litware Tax Advice Mobility Gateway (SaaS)

SB

Fred

Tax Advisor’s Office

Peter

Tax Advisor’s Office

Mary

Tax Advisor’s Office

Linda

Tax Advisor’s Office

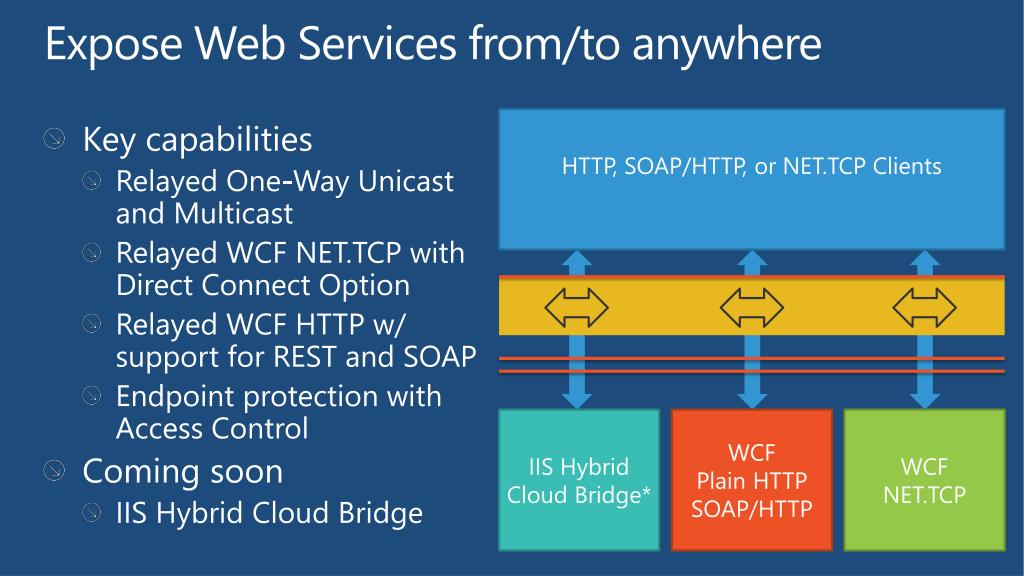

expose web services from to anywhere
Expose Web Services from/to anywhere

HTTP, SOAP/HTTP, or NET.TCP Clients

  • Key capabilities
    • Relayed One-Way Unicast and Multicast
    • Relayed WCF NET.TCP with Direct Connect Option
    • Relayed WCF HTTP w/ support for REST and SOAP
    • Endpoint protection with Access Control
  • Coming soon
    • IIS Hybrid Cloud Bridge

IIS Hybrid Cloud Bridge*

WCF Plain HTTPSOAP/HTTP

WCF NET.TCP

relay programming model

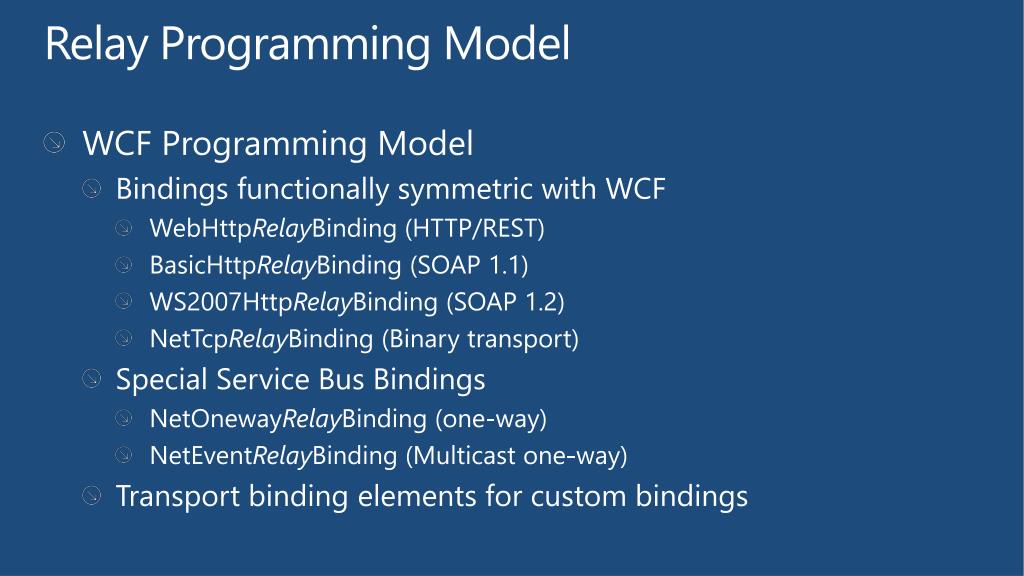

Relay Programming Model
  • WCF Programming Model
    • Bindings functionally symmetric with WCF
      • WebHttpRelayBinding (HTTP/REST)
      • BasicHttpRelayBinding (SOAP 1.1)
      • WS2007HttpRelayBinding (SOAP 1.2)
      • NetTcpRelayBinding (Binary transport)
    • Special Service Bus Bindings
      • NetOnewayRelayBinding (one-way)
      • NetEventRelayBinding(Multicast one-way)
    • Transport binding elements for custom bindings

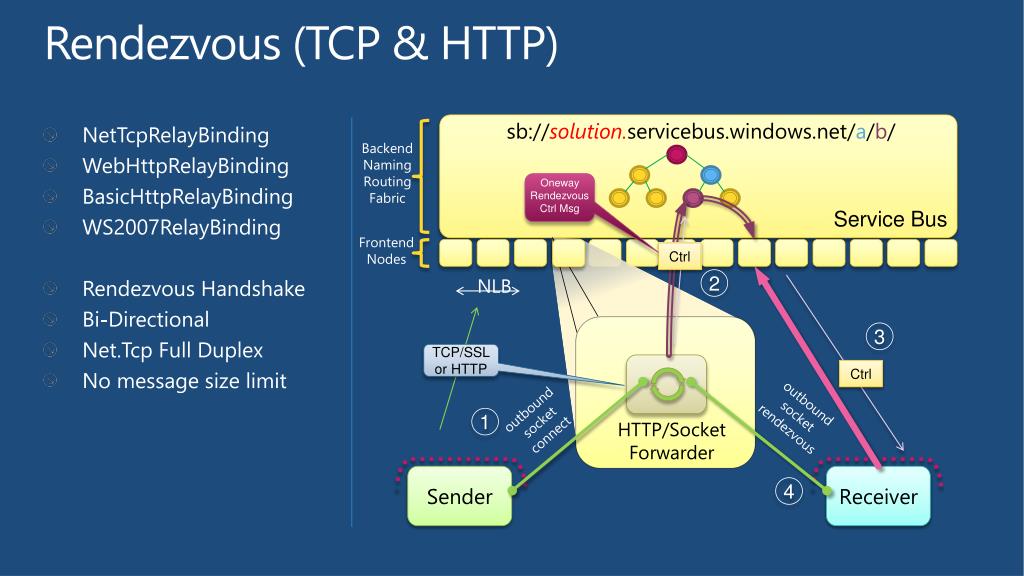

rendezvous tcp http
Rendezvous (TCP & HTTP)

ServiceBus

sb://solution.servicebus.windows.net/a/b/

  • NetTcpRelayBinding
  • WebHttpRelayBinding
  • BasicHttpRelayBinding
  • WS2007RelayBinding
  • Rendezvous Handshake
  • Bi-Directional
  • Net.Tcp Full Duplex
  • No message size limit

BackendNaming

RoutingFabric

Oneway

RendezvousCtrl Msg

Frontend Nodes

Ctrl

NLB

2

3

TCP/SSL or HTTP

1

HTTP/SocketForwarder

Ctrl

Sender

Receiver

outbound socket rendezvous

outbound socket connect

4

using queues
Using Queues

R

  • Load Leveling
    • Receiver receives and processes at its own pace. Can never be overloaded. Can add receivers as queue length grows, reduce receiver if queue length is low or zero. Gracefully handles traffic spikes by never stressing out the backend.
  • Load Balancing
    • Multiple receivers compete for messages on the same queue. Provides automatic load balancing of work to receivers volunteering for jobs.
  • Offline/Batch
    • Allows taking the receiver offline for servicing or other reasons. Requests are buffered up until the receiver is available again.

S

R

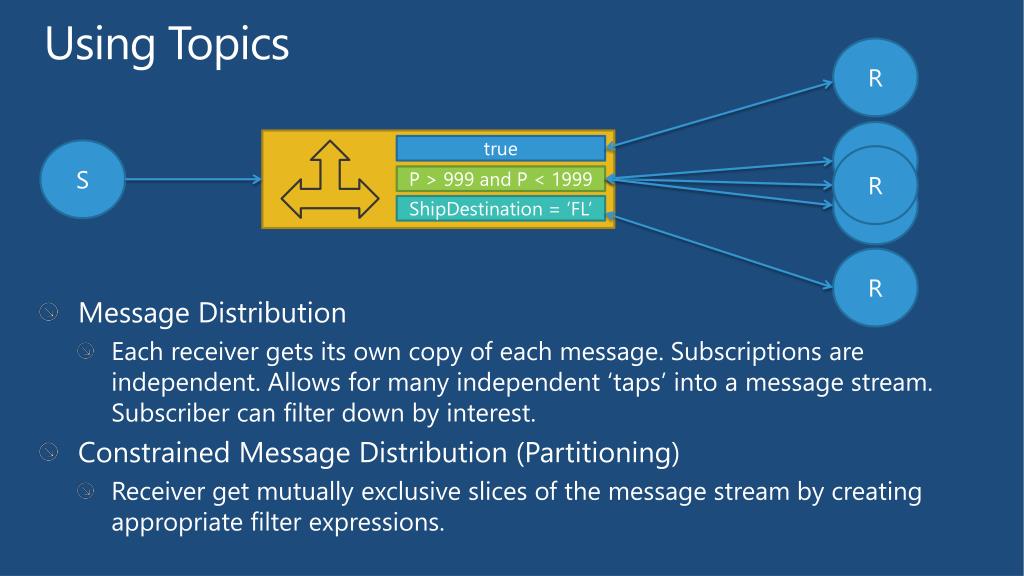

using topics
Using Topics

R

  • Message Distribution
    • Each receiver gets its own copy of each message. Subscriptions are independent. Allows for many independent ‘taps’ into a message stream. Subscriber can filter down by interest.
  • Constrained Message Distribution (Partitioning)
    • Receiver get mutually exclusive slices of the message stream by creating appropriate filter expressions.

R

true

S

R

P > 999 and P < 1999

R

ShipDestination = ‘FL’

R

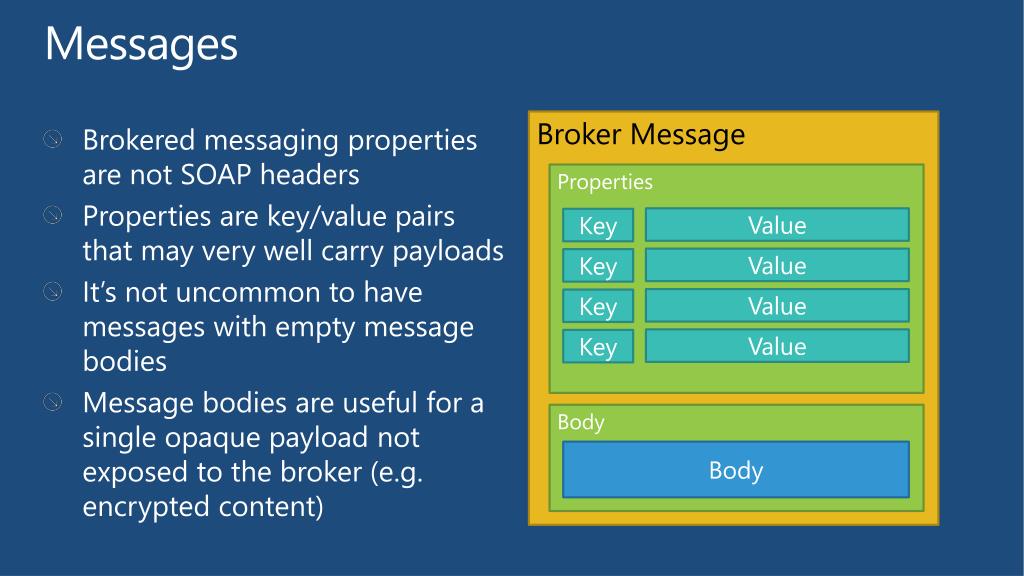

messages
Messages

Broker Message

  • Brokered messaging properties are not SOAP headers
  • Properties are key/value pairs that may very well carry payloads
  • It’s not uncommon to have messages with empty message bodies
  • Message bodies are useful for a single opaque payload not exposed to the broker (e.g. encrypted content)

Properties

Value

Key

Value

Key

Value

Key

Value

Key

Body

Body

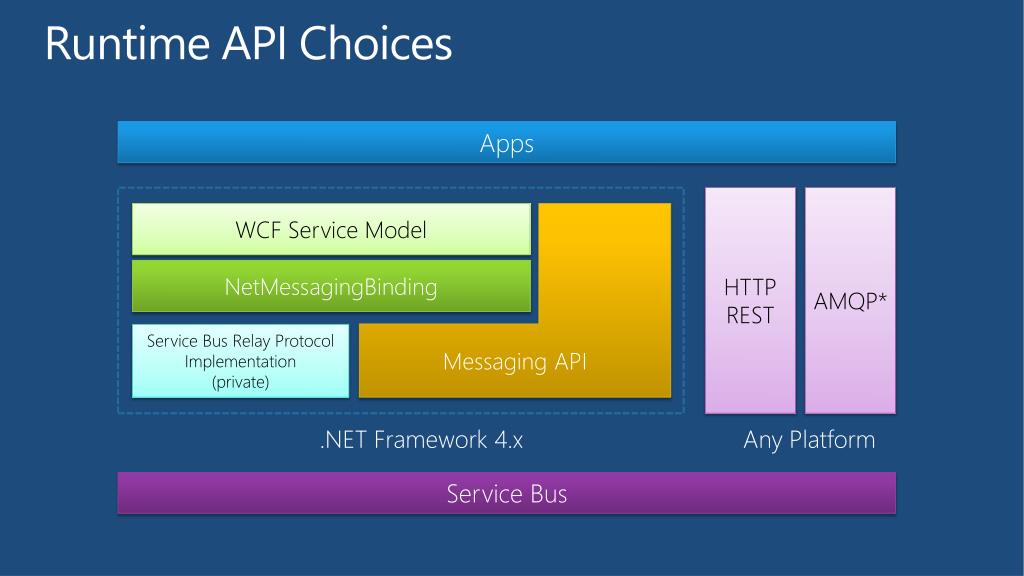

runtime api choices
Runtime API Choices

Apps

HTTPREST

AMQP*

WCF Service Model

Messaging API

NetMessagingBinding

Service Bus Relay Protocol Implementation(private)

.NET Framework 4.x

Any Platform

Service Bus

lots of fixes based on feedback

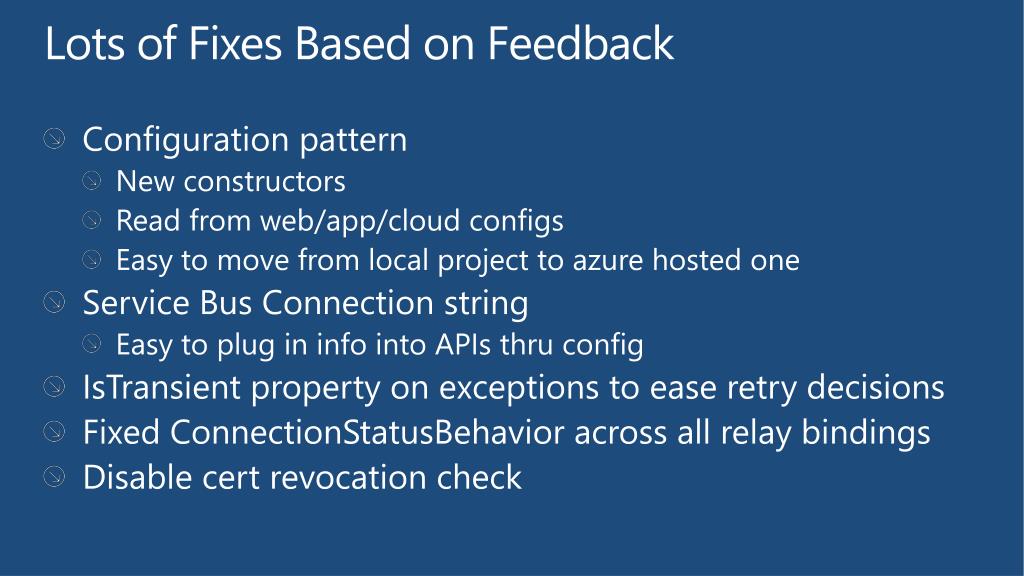

Lots of Fixes Based on Feedback
  • Configuration pattern
    • New constructors
    • Read from web/app/cloud configs
    • Easy to move from local project to azure hosted one
  • Service Bus Connection string
    • Easy to plug in info into APIs thru config
  • IsTransientproperty on exceptions to ease retry decisions
  • Fixed ConnectionStatusBehavioracross all relay bindings
  • Disable cert revocation check
access control conceptual model

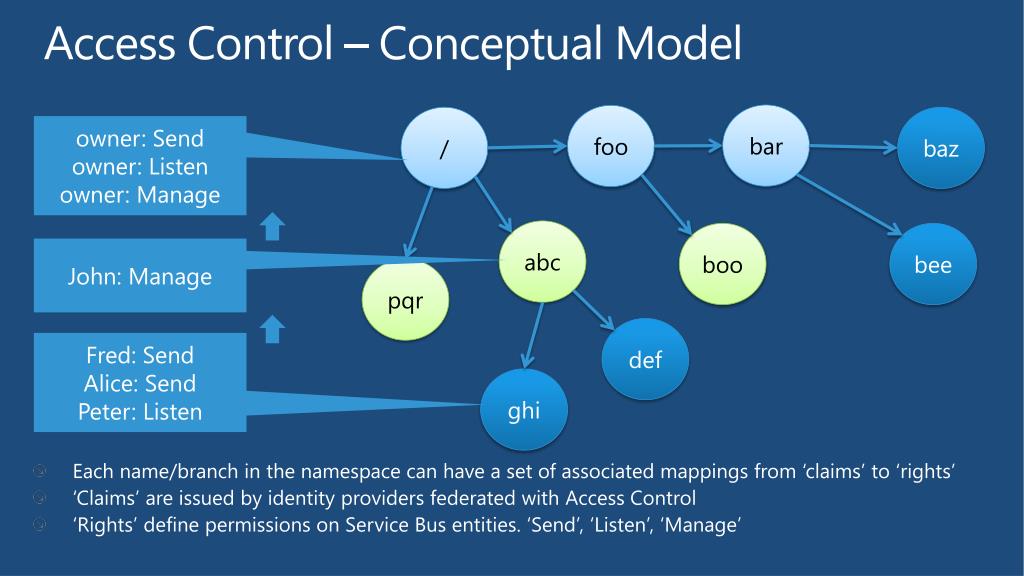

Access Control – Conceptual Model

bar

foo

/

baz

owner: Sendowner: Listenowner: Manage

  • Each name/branch in the namespace can have a set of associated mappings from ‘claims’ to ‘rights’
  • ‘Claims’ are issued by identity providers federated with Access Control
  • ‘Rights’ define permissions on Service Bus entities. ‘Send’, ‘Listen’, ‘Manage’

abc

boo

bee

John: Manage

pqr

def

Fred: SendAlice: SendPeter: Listen

ghi

sbaztool service bus authorization tool
SBAzTool– Service Bus Authorization Tool
  • Included in the SDK samples collection
    • sbaztoolmakeid <id> <key> – Create a new service identity
    • sbaztoolshowid <id> – Show details of a service identity
    • sbaztooldeleteid<id> – Delete a service identity
    • sbaztoolgrant <op> <path> <id> – Grant right
      • sbaztool grant Listen /foo clemensv
      • sbaztool grant Send /bar fredsmith
    • sbaztoolrevoke<op> <path> <id> – Revoke right
    • sbaztoolshow <path> – Show rights on path
  • Sample also includes the Microsoft.ServiceBus. AccessControlExtensions reusable library

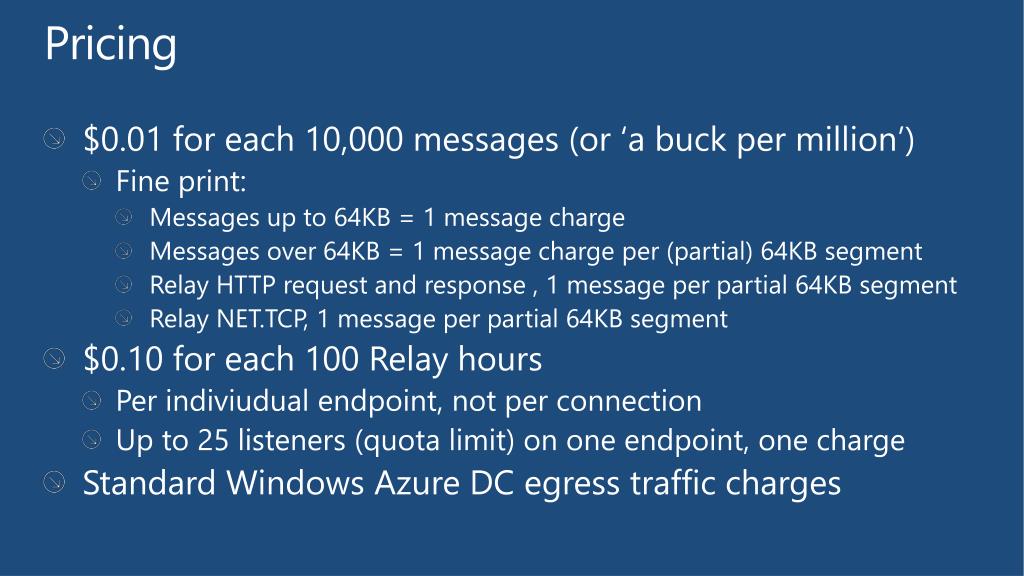

pricing
Pricing
  • $0.01 for each 10,000 messages (or ‘a buck per million’)
    • Fine print:
      • Messages up to 64KB = 1 message charge
      • Messages over 64KB = 1 message charge per (partial) 64KB segment
      • Relay HTTP request and response , 1 message per partial 64KB segment
      • Relay NET.TCP, 1 message per partial 64KB segment
  • $0.10 for each 100 Relay hours
    • Per indiviudual endpoint, not per connection
    • Up to 25 listeners (quota limit) on one endpoint, one charge
  • Standard Windows Azure DC egress traffic charges
iguazu
“Iguazu”
  • Cross-platform push notification integration for Service Bus
  • “Notification Topics”
    • New entity type alongside Queues, Topics, Relays
    • Same Message Format
    • Composition with Other Entities
iguazu delivery model

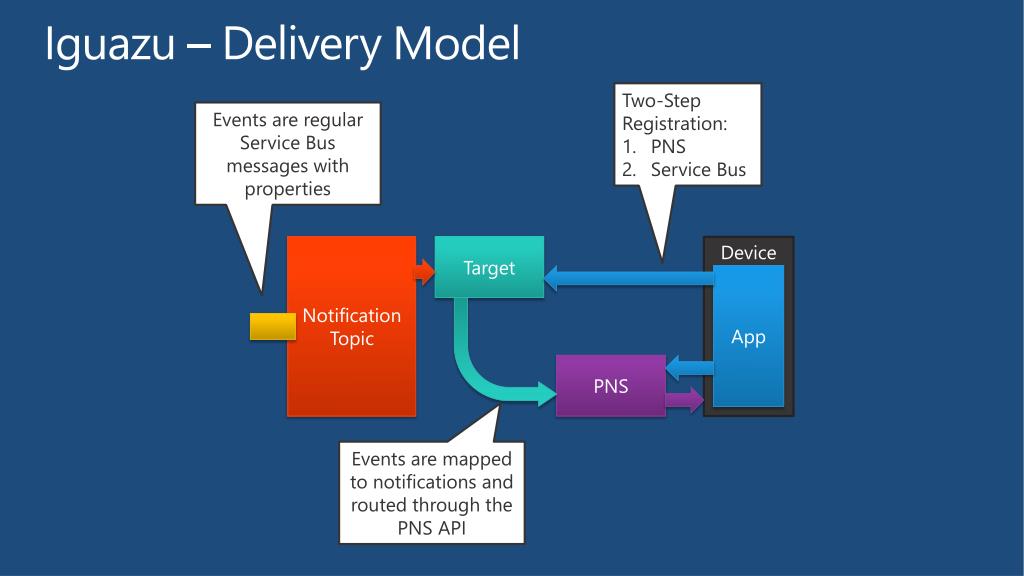

Iguazu – Delivery Model

Two-Step Registration:

PNS

Service Bus

Events are regular Service Bus messages with properties

Notification Topic

Target

Device

App

PNS

Events are mapped to notifications and routed through the PNS API

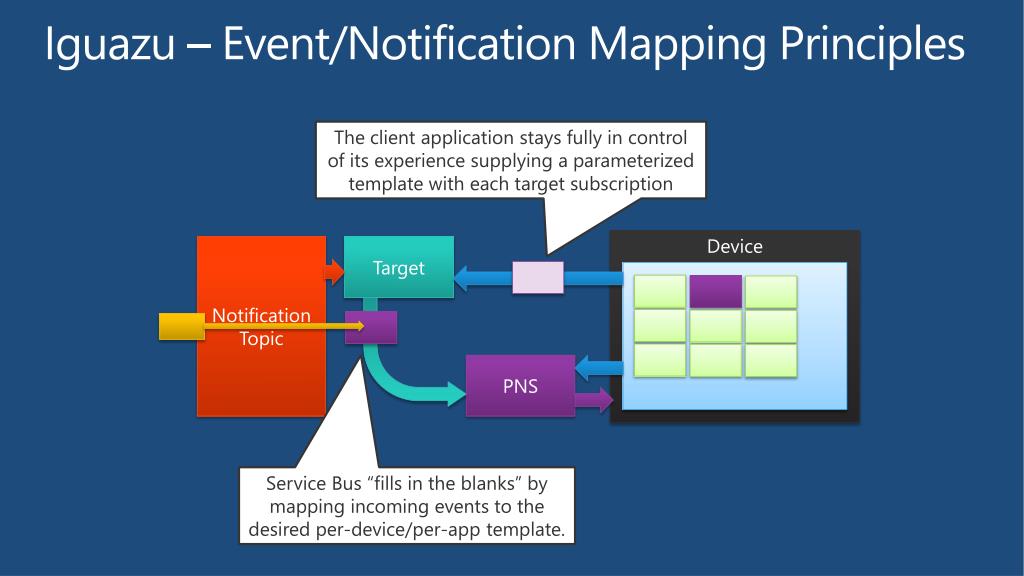

iguazu event notification mapping principles
Iguazu – Event/Notification Mapping Principles

The client application stays fully in control of its experience supplying a parameterized template with each target subscription

Device

Notification Topic

Target

PNS

Service Bus “fills in the blanks” by mapping incoming events to the desired per-device/per-app template.

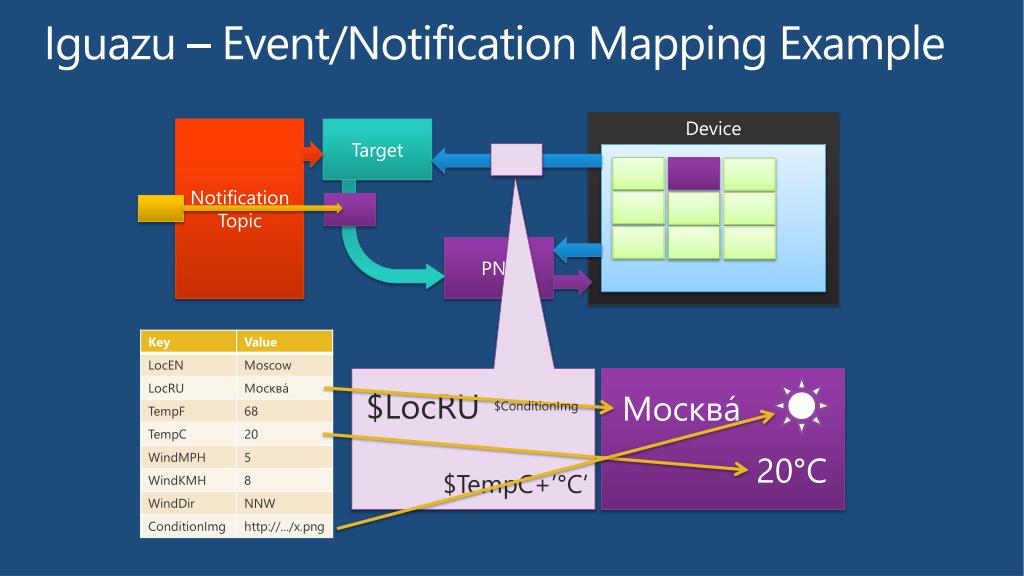

iguazu event notification mapping example
Iguazu – Event/Notification Mapping Example

Device

Notification Topic

Target

PNS

$LocRU

Москва́

$ConditionImg

20°C

$TempC+’°C’

service bus eai edi
Service Bus EAI/EDI
  • Service components plugged into Service Bus
  • Adds a ‘Bridge’ component to extend Service Bus with protocol bridges and transformations
  • Currently in ‘Labs’
  • Owned by the BizTalk Server team
  •  AZR207 Thursday, 2:45p in N230

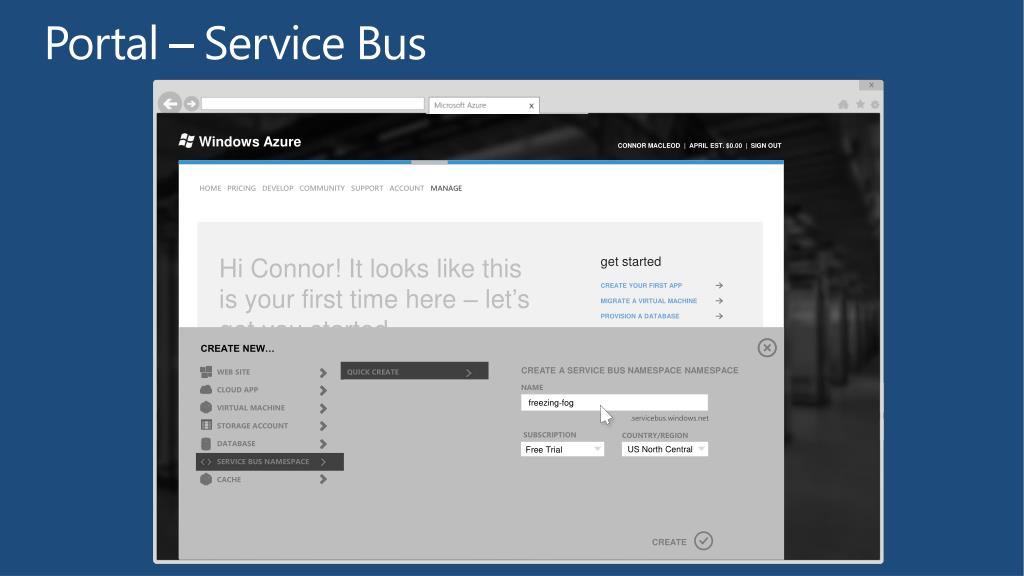

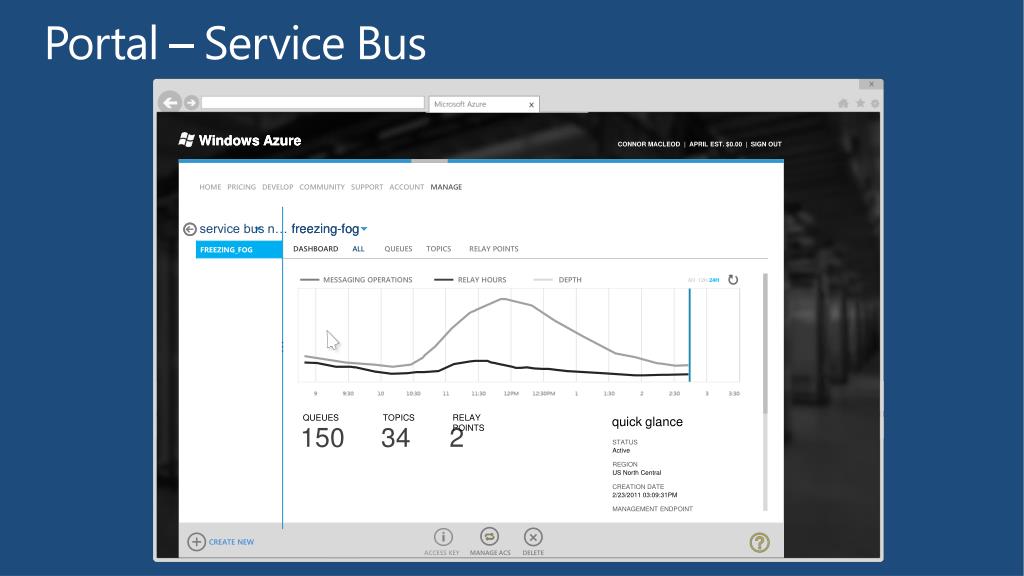

portal service bus
Portal – Service Bus

Windows Azure

CONNOR MACLEOD | APRIL EST. $0.00 | SIGN OUT

HOME PRICING DEVELOP COMMUNITY SUPPORT ACCOUNT MANAGE

get started

  • Hi Connor! It looks like this is your first time here – let’s get you started.

Create your first App

Migrate a Virtual Machine

Provision a Database

Get Visual Studio Certificates

WEB SITE

CLOUD APP

VIRTUAL MACHINE

STORAGE ACCOUNT

DATABASE

SERVICE BUS NAMESPACE

CACHE

NAME

freezing-fog

CREATE NEW…

QUICK CREATE

CREATE A SERVICE BUS NAMESPACE NAMESPACE

CUSTOM CREATE

.servicebus.windows.net

See what you can build

View the overview

Go to the developer center

developer center

platform basics

stories

SUBSCRIPTION

COUNTRY/REGION

Free Trial

US North Central

Get started developing in the language of your choice – one cloud for all.

It’s a big cloud, take the right first step to understanding how to maximize the cloud.

Take a look at the possibilities: social, mobile, Windows 8 and more.

CREATE

CREATE NEW

portal service bus1
Portal – Service Bus

Windows Azure

Windows Azure

Windows Azure

CONNOR MACLEOD | APRIL EST. $0.00 | SIGN OUT

HOME PRICING DEVELOP COMMUNITY SUPPORT ACCOUNT MANAGE

MESSAGING OPERATIONS

RELAY HOURS

DEPTH

freezing-fog

freezing-fog

service bus n…

DASHBOARD ALL QUEUESTOPICSRELAY POINTS

6H 12H 24H

QUEUES

RELAY POINTS

TOPICS

2

150

34

MANAGEMENT ENDPOINT

STATUS

CREATION DATE

REGION

2/23/2011 03:09:31PM

US North Central

Active

quick glance

ACCESS KEY

MANAGE ACS

DELETE

CREATE NEW

summary
Summary

SDK and Tools

Access Control

Service Bus:What and Why

Q&A

Relayed Messaging

Pricing

Brokered Messaging

related content
Related Content

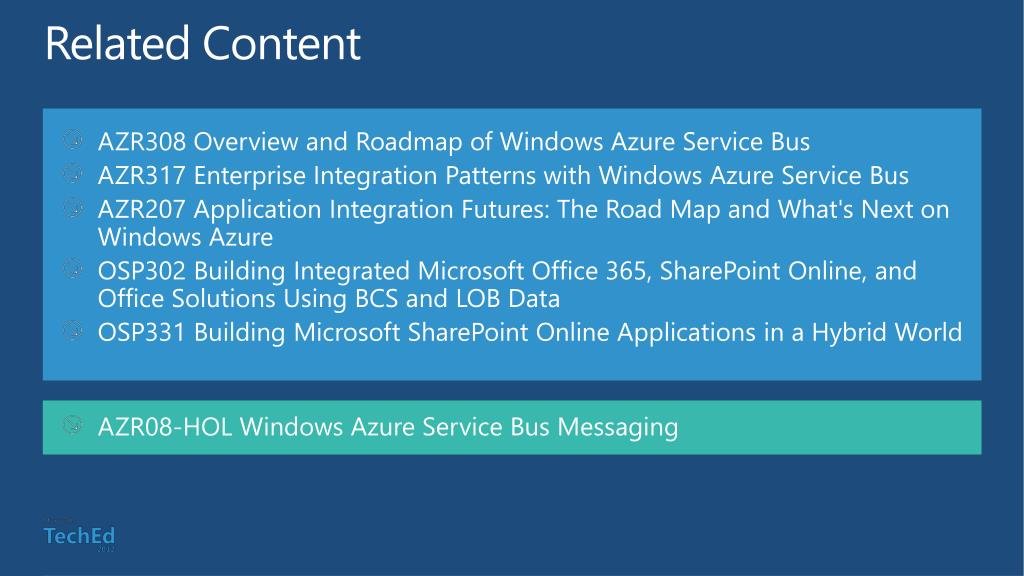

  • AZR308 Overview and Roadmap of Windows Azure Service Bus
  • AZR317 Enterprise Integration Patterns with Windows Azure Service Bus
  • AZR207 Application Integration Futures: The Road Map and What's Next on Windows Azure
  • OSP302 Building Integrated Microsoft Office 365, SharePoint Online, and Office Solutions Using BCS and LOB Data
  • OSP331 Building Microsoft SharePoint Online Applications in a Hybrid World

AZR08-HOL Windows Azure Service Bus Messaging

track resources
Track Resources

@WindowsAzure

@ms_teched

Hands-On Labs

Meetwindowsazure.com

DOWNLOAD Windows Azure

Windowsazure.com/

teched

resources

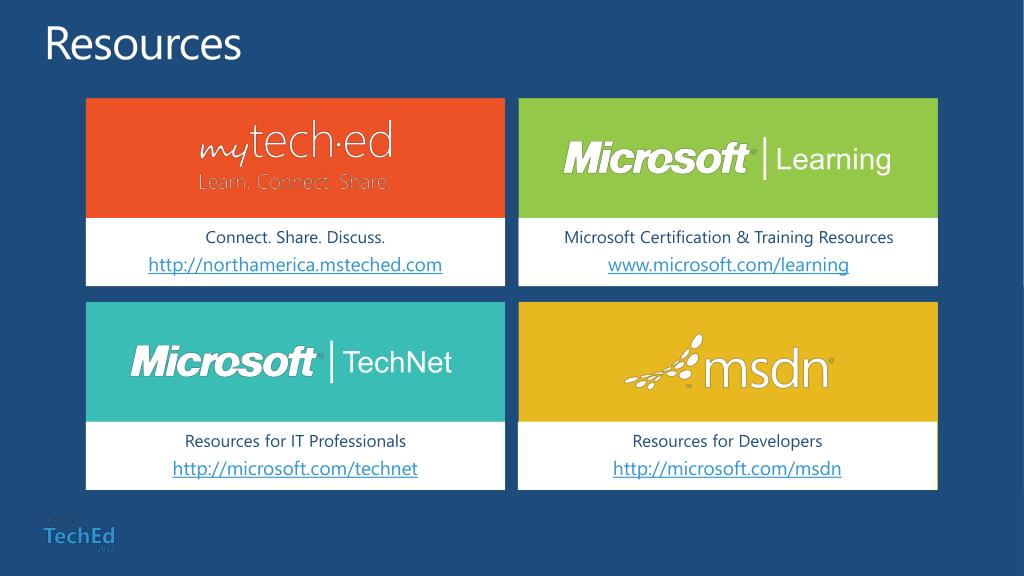

Resources
