Presentation Transcript
frequency distributions

Frequency Distributions

Ungrouped and Grouped

Percentiles and percentile ranks

Graphs

frequency distributions2

Frequency Distributions

Tables and graphs

Any scale of measurement

How many times does each score occur?

how to make a frequency distribution

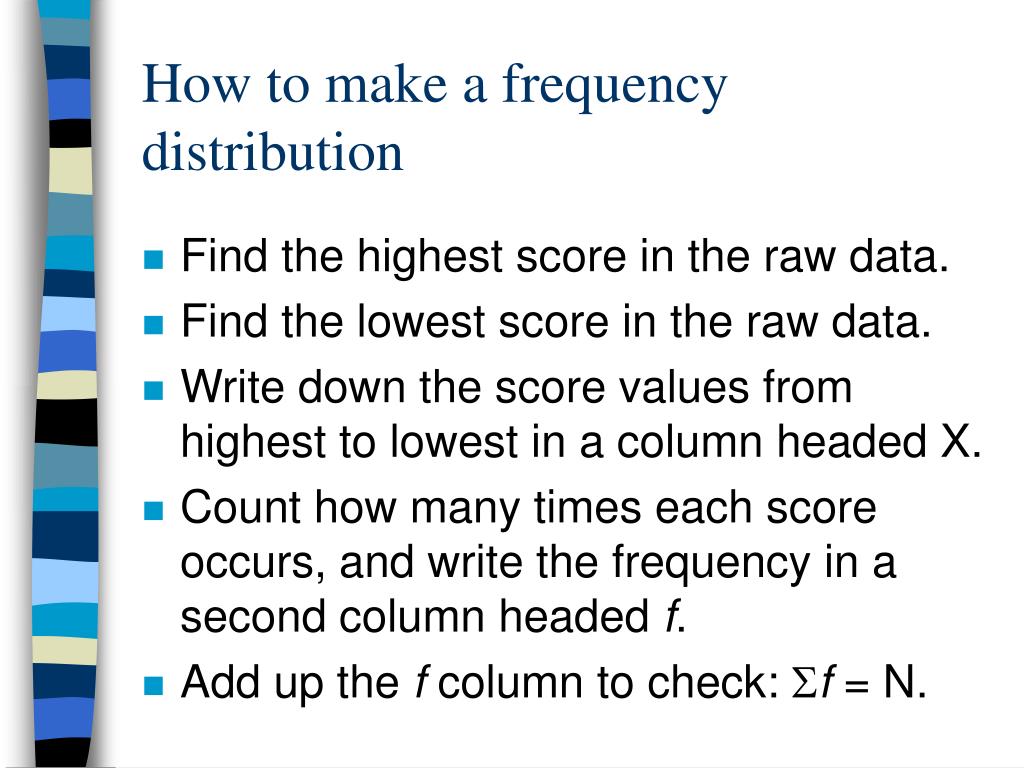

How to make a frequency distribution
  • Find the highest score in the raw data.
  • Find the lowest score in the raw data.
  • Write down the score values from highest to lowest in a column headed X.
  • Count how many times each score occurs, and write the frequency in a second column headed f.
  • Add up the f column to check: Sf = N.
an example
An example
  • The DIT-2 test of moral reasoning was taken by 20 Houghton seniors. On the new N-scale, which measures the rejection of self-interest in moral reasoning, their scores were:

20 18 16 13 19 19 20 18 18 17 18 19 17 19 18 17 19 18 15 19

The highest score is 20; the lowest is 13.

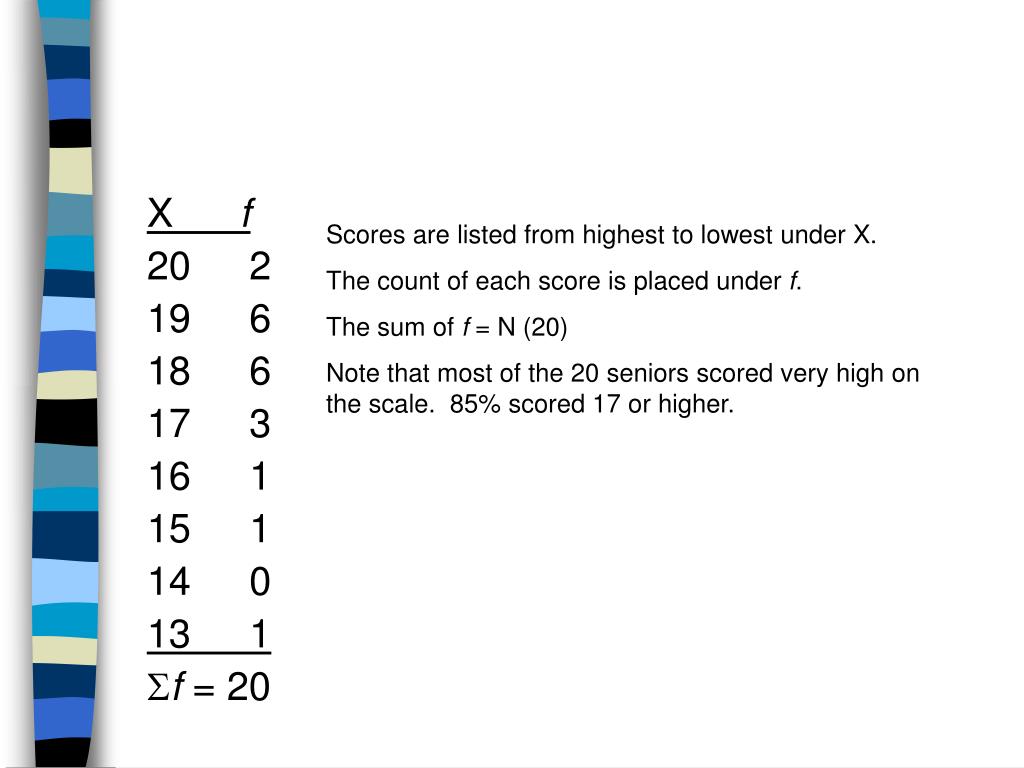

slide5

Scores are listed from highest to lowest under X.

The count of each score is placed under f.

The sum of f = N (20)

Note that most of the 20 seniors scored very high on the scale. 85% scored 17 or higher.

X f

20 2

19 6

18 6

17 3

16 1

15 1

14 0

13 1

Sf = 20

another example

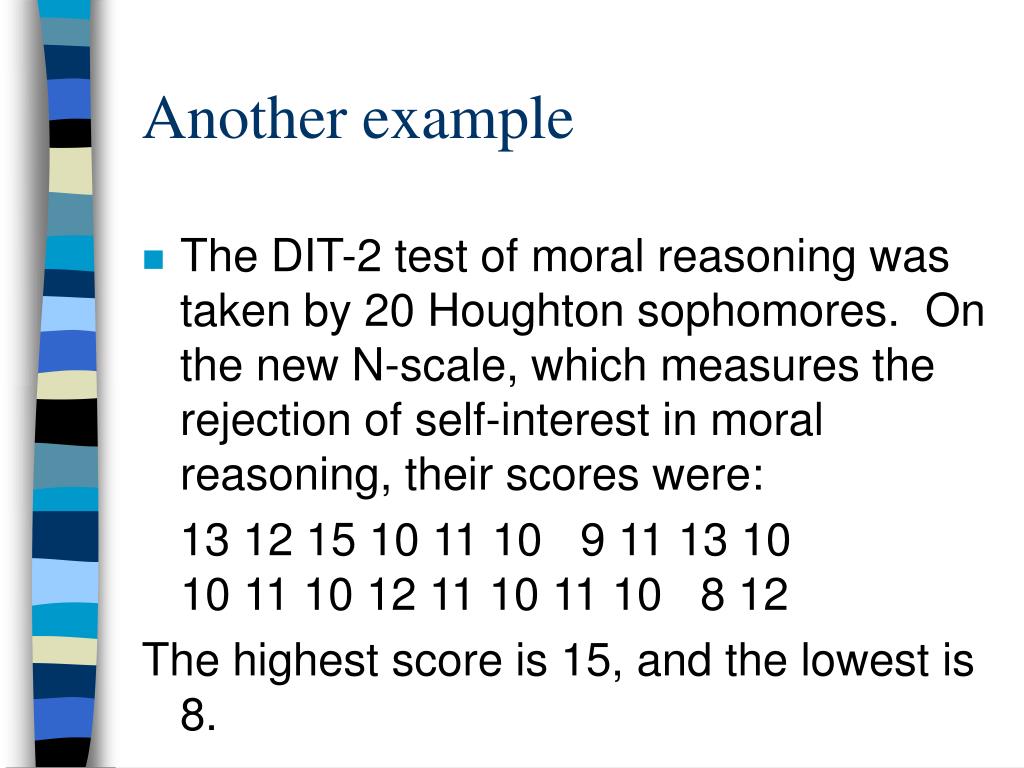

Another example
  • The DIT-2 test of moral reasoning was taken by 20 Houghton sophomores. On the new N-scale, which measures the rejection of self-interest in moral reasoning, their scores were:

13 12 15 10 11 10 9 11 13 1010 11 10 12 11 10 11 10 8 12

The highest score is 15, and the lowest is 8.

slide7

Scores are listed from highest to lowest under X.

The count of each score is placed under f.

The sum of f = N (20)

Note that most of the 20 sophomores scored in the middle of the scale. 85% scored between 10 and 13.

X f

15 1

14 0

13 2

12 3

11 5

10 7

9 1

8 1

Sf = 20

compare the seniors with the sophomores
Compare the seniors with the sophomores.

Seniors

X f

20 2

19 6

18 6

17 3

16 1

15 1

14 0

13 1

Sophomores

X f

15 1

14 0

13 2

12 3

11 5

10 7

9 1

8 1

Although the distributions overlap,most seniors score well above most sophomores.

Seniors are more likely thansophomores to reject self-interest when they make moral decisions .

frequency distribution

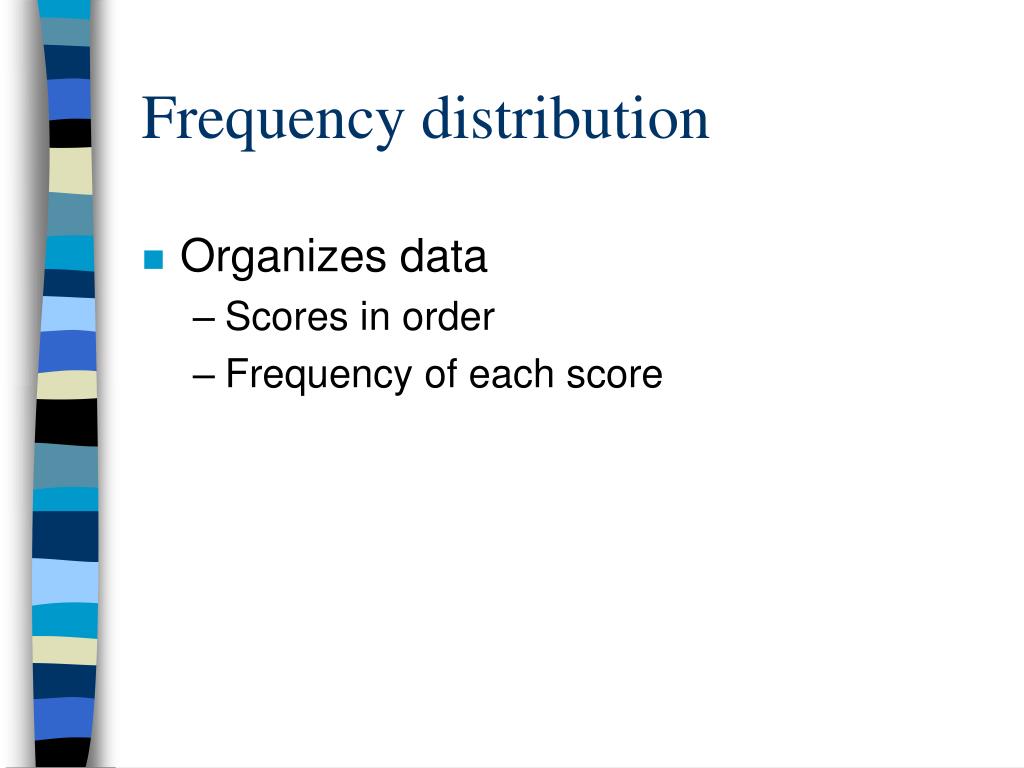

Frequency distribution
  • Organizes data
    • Scores in order
    • Frequency of each score
slide10
10 12 9 17 6

11 21 7 16 13

19 16 20 14 18

16 15 17 13 21

9 17 8 12 10

15 18 20 14 12

x frequency f p f n cum f cum
X Frequency (f)p=f/NCum f Cum %

100.00

93.33

86.67

83.00

76.33

66.33

56.33

49.67

43.00

36.67

26.67

23.33

16.67

10.00

6.67

3.33

0.07

0.07

0.03

0.07

0.10

0.10

0.07

0.07

0.07

0.10

0.03

0.07

0.07

0.03

0.03

0.03

30

28

26

25

23

20

17

15

13

11

8

7

5

3

2

1

21 2

20 2

19 1

18 2

17

16

15

14

13

12

11

10

9

8

7

6

3

3

2

2

2

3

1

2

2

1

1

1

Sf = N = 30

grouped frequency distributions

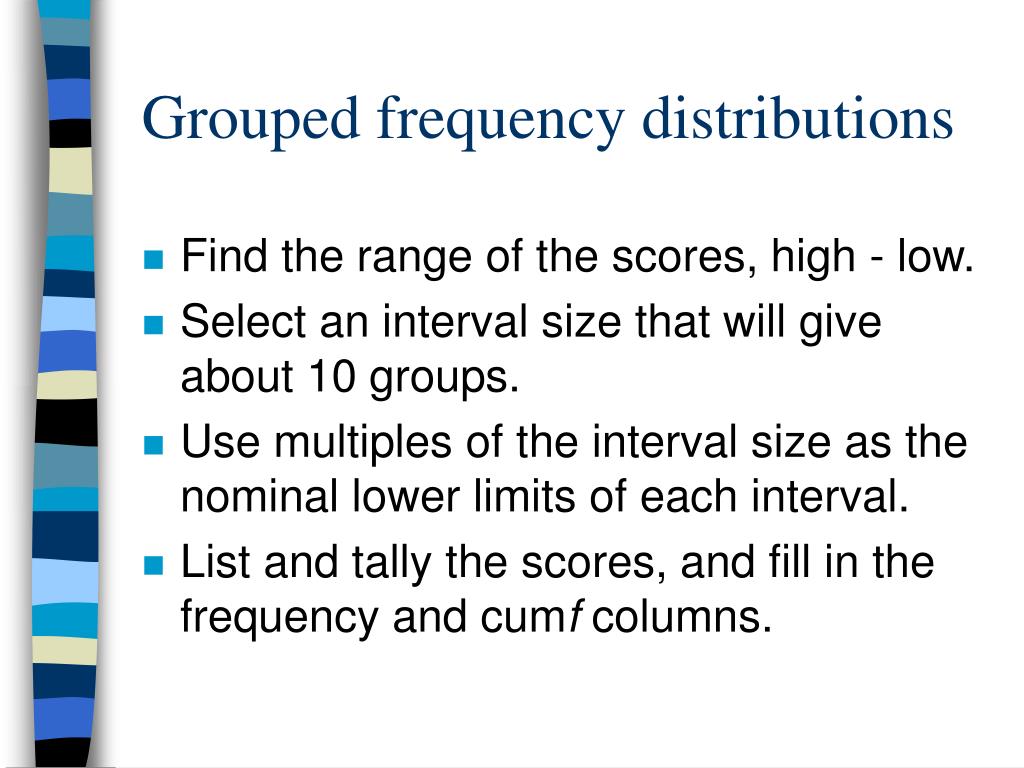

Grouped frequency distributions
  • Find the range of the scores, high - low.
  • Select an interval size that will give about 10 groups.
  • Use multiples of the interval size as the nominal lower limits of each interval.
  • List and tally the scores, and fill in the frequency and cumf columns.
percentiles or percentile points
Percentiles or percentile points
  • The percentile is the score (value of X) that has a given percentage of the number of scores (N) below it.
  • For example, if a distribution contains 60 scores (N = 60), then the 50th percentile is the score that has 30 scores (50% of 60 scores) below it.
  • The 20th percentile is the score that has 12 scores (20% of 60) below it.
percentile ranks
Percentile Ranks
  • The percentile rank is the percentage of the scores in a distribution that fall below a given score.
  • For example, if an SAT verbal score of 660 is higher than 80% of the scores in the distribution, then the percentile rank of a score of 660 is 80.
  • If an SAT math score of 550 is higher than 55% of the scores in the distribution, then the percentile rank of a score of 550 is 55.
percentile or percentile rank
Percentile or percentile rank?

Percentile rank

Percent

Score

Percentile

calculating percentiles
Calculating percentiles

1. Multiply the percentage in the question by N to find the number of scores below the desired percentile (cumfp)

2. Find the lower limit of the interval containing cumfp.

3. Determine the proportion of the scores in the interval needed to reach cumfp

(cumfp - cumfL)/ fi

4. Find the corresponding score.

the formula approach

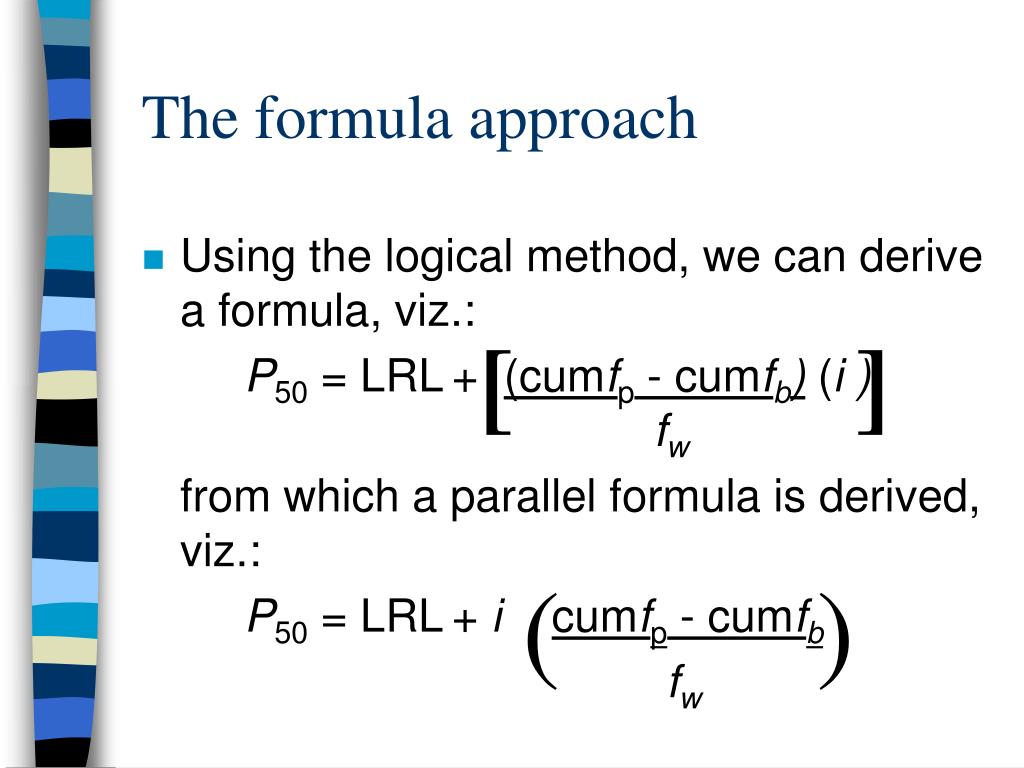

The formula approach
  • Using the logical method, we can derive a formula, viz.:

P50 = LRL+ (cumfp - cumfb)(i ) fw

from which a parallel formula is derived, viz.:

P50 = LRL+ i cumfp - cumfb

fw

[

]

( )

percentile examples verbal sat
Percentile examples: Verbal SAT

Class Intervalfcum f

760-800 4 60

710-750 4 56

660-700 6 52

610-660 12 46

560-600 16 34

510-550 11 18

460-500 5 7

410-450 2 2

60

percentile rank
Percentile rank
  • PRank = cumfL + (fi /i)( X – XL ) N
  • Later in the course, we will learn a much simpler method of finding percentiles and percentile ranks.

x 100

graph types
Graph types
  • Bar graph: For frequency distributions of discrete variables, often nominal or ordinal data. Bars represent separate groups, so they should be separated.
  • Histogram: For frequency distributions of continuous variables, usually interval or ratio data. Bars represent segments of a range, so they should touch.
bar graphs
Bar graphs
  • Number of students in statistics class from each of four majors, fall, 2005
histogram

1 2 3 4 5 6 7 8

60 70 80 90 100

Histogram
  • Scores of statistics students on first exam
frequency polygons

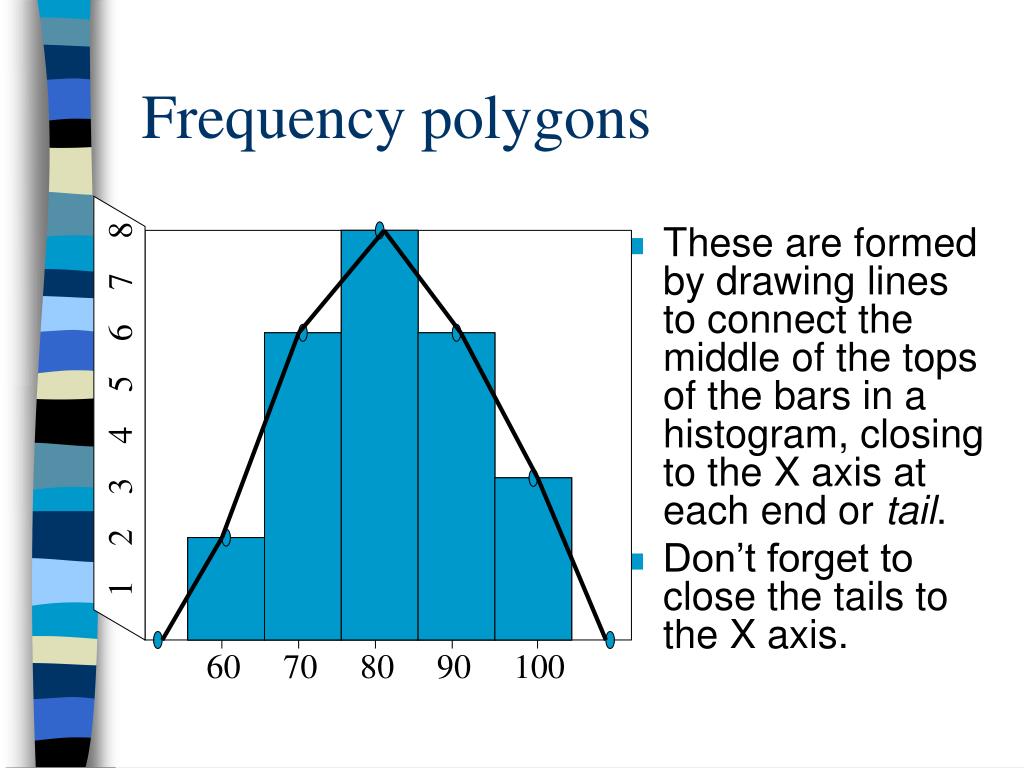

Frequency polygons
  • These are formed by drawing lines to connect the middle of the tops of the bars in a histogram, closing to the X axis at each end or tail.
  • Don’t forget to close the tails to the X axis.

1 2 3 4 5 6 7 8

60 70 80 90 100

more graphs
More graphs
  • Cumulative frequency or cumulative percentage curve
  • Stem-and-leaf diagram
  • Excel “charts”
characteristic shapes of distributions
Characteristic shapes of distributions
  • One-mode symmetrical
    • The normal distribution
  • Bimodal, multimodal, and no-mode distributions
  • Skewed distributions
    • Negative skew and positive skew
    • Skew is mean - median
  • Rectangular distributions
