3. Lesson 1: Introduction and Piloting Team • AGENDA: • Types of Marine Navigation • The Bridge Watch Team • Members of the Piloting Team • Navigation Department Organization • Applicable reading: Hobbs, pp. 3-20

4. Navigation Defined • Navigation • The process of safely and efficiently directing the movements of a vessel from one place to another.

5. USS PRINCETON CG-59 USS TRIPOLI LPH-10 1950-52 KOREA USS S. B. ROBERTS FFG-58 1969-72 VIETNAM 15 USS WARRINGTON DD-843 USS WESTCHESTER COUNTY LST 1167 1967 ISRAEL USS BARTON DD-772 USS E.G. SMALL DDR-838 13 1987-88 IRAN USS WALKE DD-723 USS MANSFIELD DD-728 1991 IRAQ 10 2000 YEMEN USS BRUSH DD-745 USS SARSI ATF-111 8 1950-2001 VARIOUS USS PARTRIDGE AMS-31 USS PLEDGE AM-277 6 USS PIRATE AM-275 USS MAGPIE AMS-25 4 USS HIGBEE DD-806 2 USS LIBERTY AGTR5 U.S. Ship Casualties 1950-2000 972 USS COLE DDG-67 USS STARKE FFG-31 USS LIBERTY AGTR-5 TERRORIST MISSILE TORPEDO AERIAL ATTACK MINE GROUNDING & COLLISIONS

6. USS RADFORD (DDG 446) Photo taken as ship was being drydocked

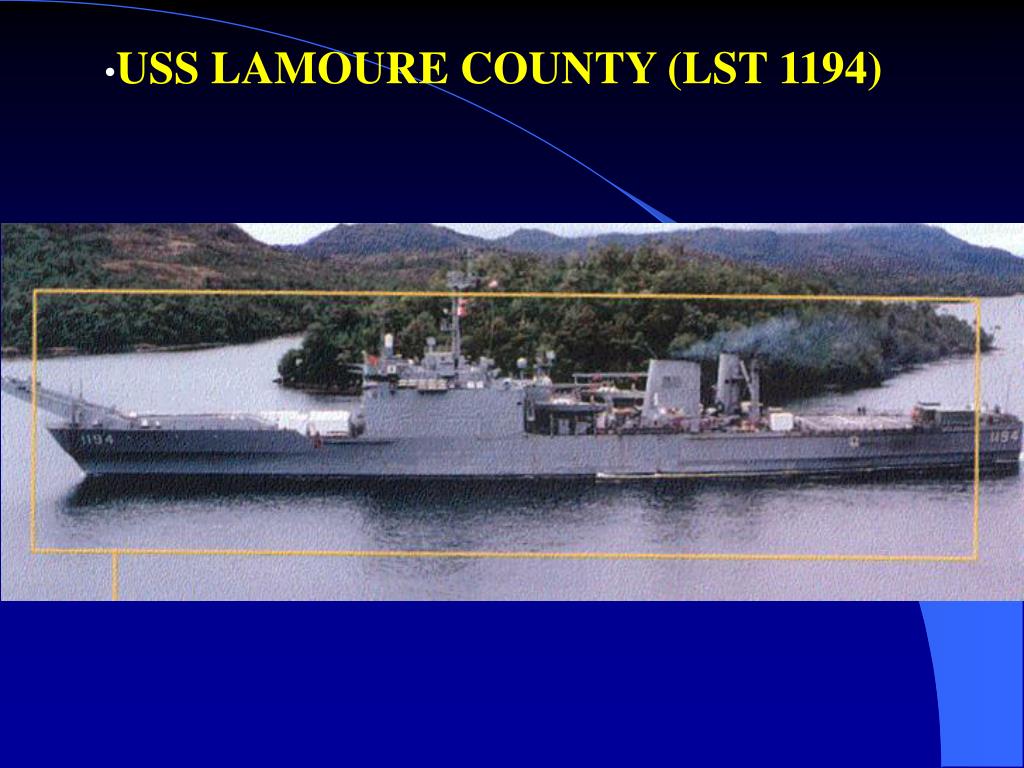

11. USS LAMOURE COUNTY (LST 1194)

13. USS DENVER (LPD 9) USNS YUKON (T-AO 202)

15. USS SAN FRANCISCO (SSN 711)

16. Types of Navigation • Coastal Piloting • Dead Reckoning • Celestial Navigation • Radio Navigation • Electronic Navigation

17. The Bridge Team(Normal, underway watch) • Officer of the Deck (OOD) • Conning Officer (CONN) • Junior Officer of the Deck (JOOD) • Quartermaster of the Watch (QMOW) • Boatswain’s Mate of the Watch (BMOW) • Lookouts • Helmsman

18. OOD Conning CO Bearing Officer Taker Bearing Taker Chart Table Navigator Bridge Plotter Bearing Recorder CIC Radar Chart Operator Table Plotter Piloting Officer The Piloting Team(Navigation Detail Stationed) Bridge (Piloting) • Navigator • Plotter • Brg Recorder • Bearing Taker CIC (RadNav) • Piloting Officer • Radar Operator • BRG Recorder • Plotter

19. OOD Conning CO Officer Bearing Taker Chart Table Navigator Bridge Plotter Bearing Recorder CIC Radar Chart Operator Table Plotter Piloting Officer The Navigator’s Report “Based on an excellent fix at time :20, Navigation holds us 100 yards left of track. Nearest hazard to navigation is shoal water 500 yards off the port bow. Nearest aid to navigation is red buoy 8, off the stbd beam. Fathometer reads 45 feet beneath the keel, concurs with charted depth. Distance remaining this leg; 2,500 yards. Next time to turn with be at time :25 to new course 095 °T. Turn bearing is 272°T to Castle Rock. Navigation recommends coming right to new course 045º to regain track. Set and drift is 090ºT at 1 knot.” “CIC concurs/does not concur.” Bearing Taker

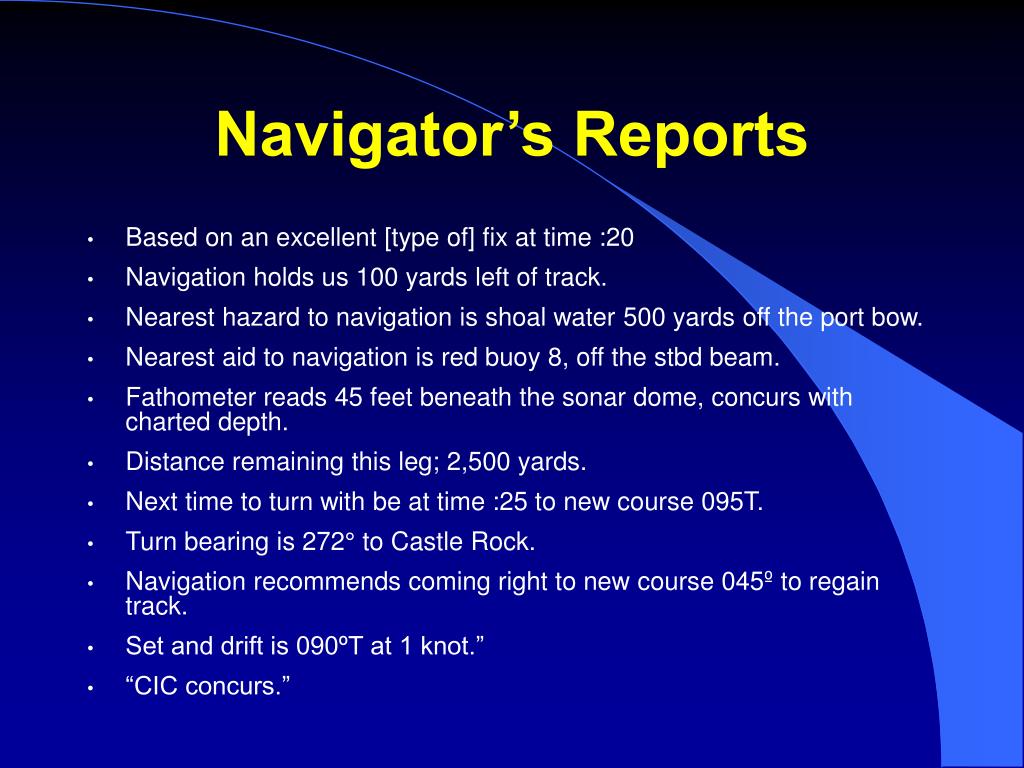

20. Navigator’s Reports • Based on an excellent [type of] fix at time :20 • Navigation holds us 100 yards left of track. • Nearest hazard to navigation is shoal water 500 yards off the port bow. • Nearest aid to navigation is red buoy 8, off the stbd beam. • Fathometer reads 45 feet beneath the sonar dome, concurs with charted depth. • Distance remaining this leg; 2,500 yards. • Next time to turn with be at time :25 to new course 095T. • Turn bearing is 272° to Castle Rock. • Navigation recommends coming right to new course 045º to regain track. • Set and drift is 090ºT at 1 knot.” • “CIC concurs.”

21. How do you shoot bearings? • On the beam first, then forward and aft. • Lines will cross in triangle. Where is the ship’s position?

22. Cardinal Rule • “No single source of information should be relied upon to the exclusion of others”

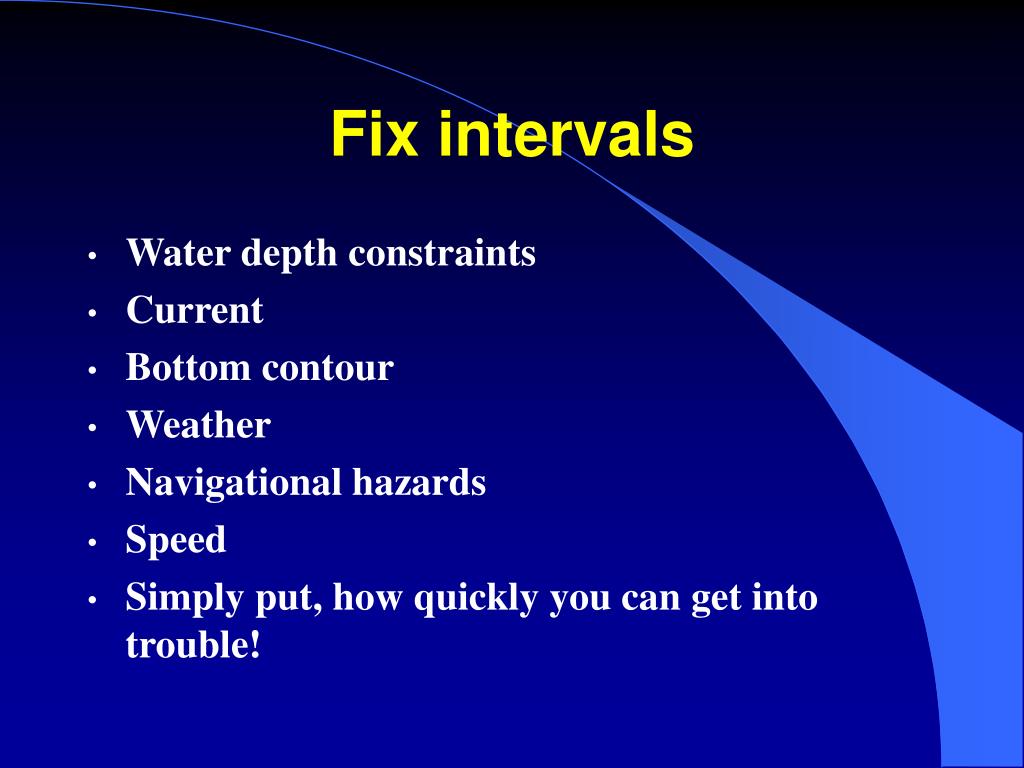

23. Fix intervals • Water depth constraints • Current • Bottom contour • Weather • Navigational hazards • Speed • Simply put, how quickly you can get into trouble!

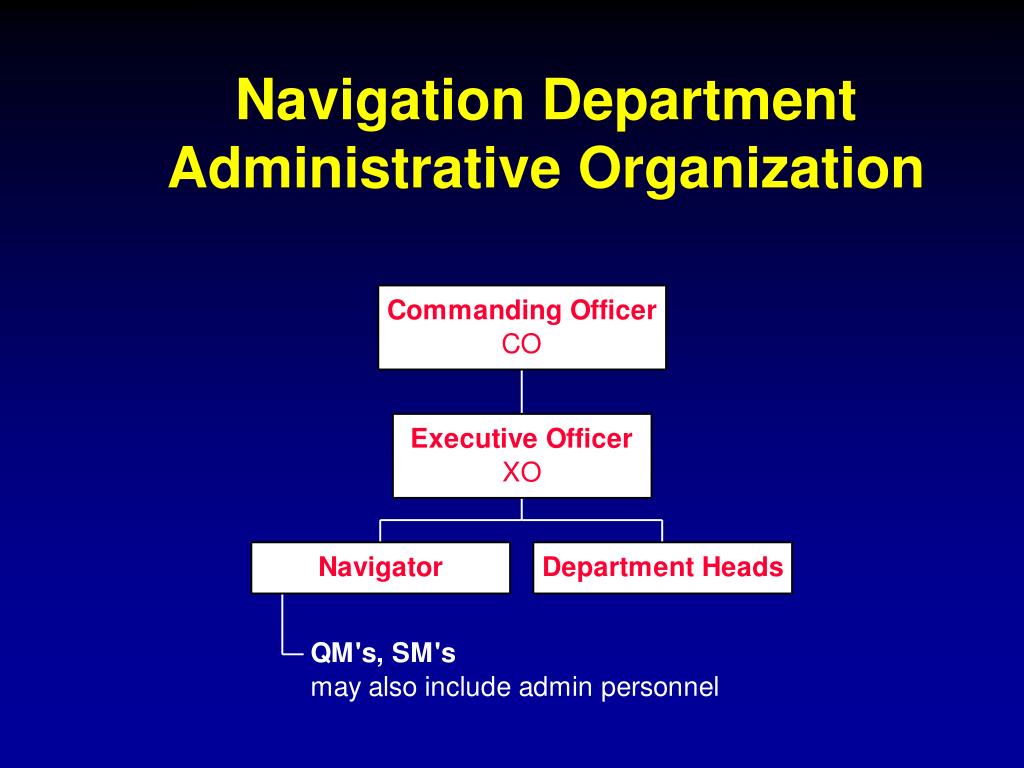

24. Navigation Department Administrative Organization

25. Navigation DepartmentOperational Organization

26. Review • How are bearing shot (order) • Who must acknowledge the Navigator’s report?
