  1. V O I P

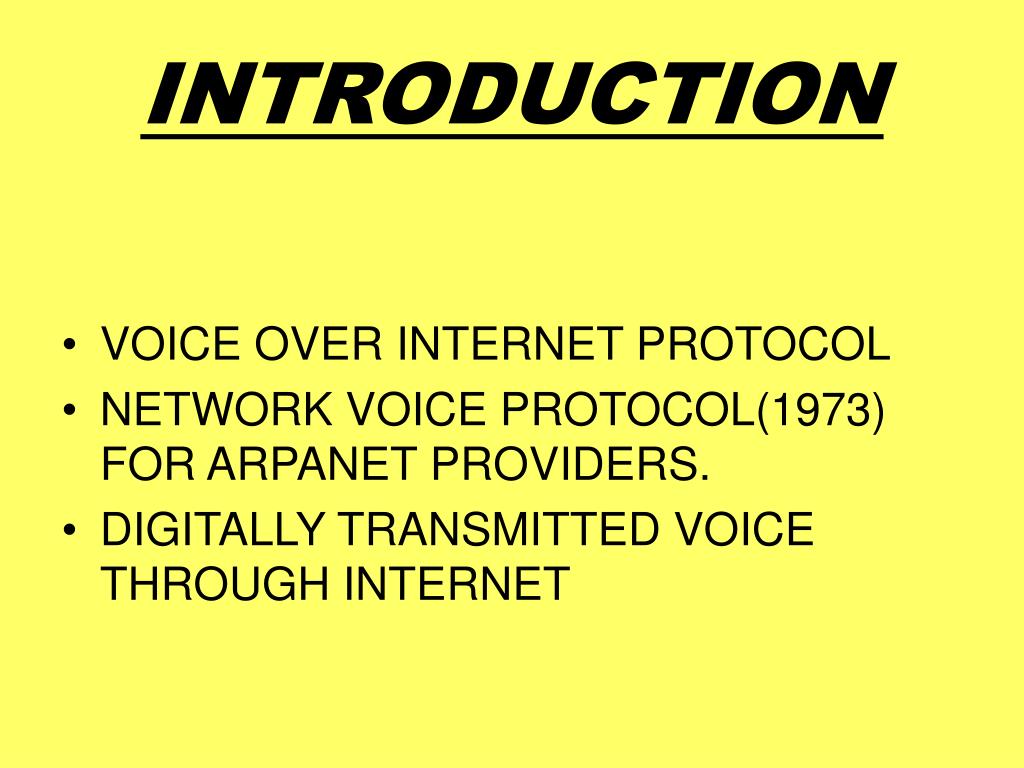

  2. INTRODUCTION • VOICE OVER INTERNET PROTOCOL • NETWORK VOICE PROTOCOL(1973) FOR ARPANET PROVIDERS. • DIGITALLY TRANSMITTED VOICE THROUGH INTERNET

  3. HOW IT WORKS • VOICE CONVERTED INTO DIGITAL SIGNAL • SPLITTED INTO PACKETS • TRAVEL THE INTERNET TOWARDS DESTINATION • AGAIN CONVERTED INTO ANALOG FORM

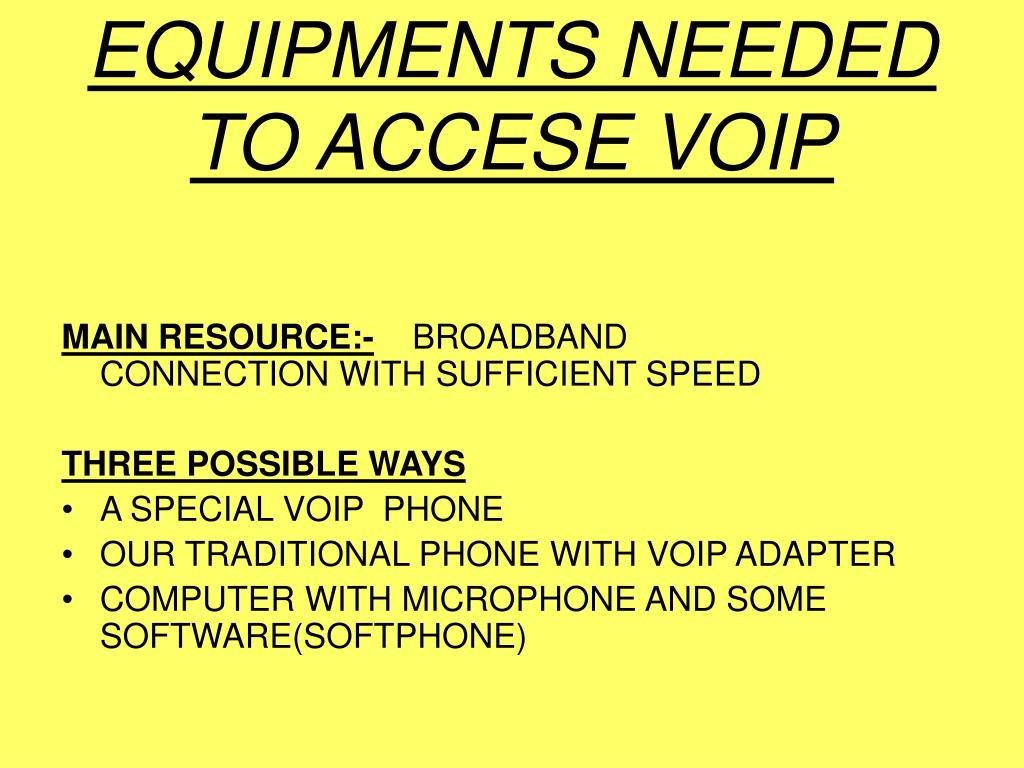

  4. EQUIPMENTS NEEDED TO ACCESE VOIP MAIN RESOURCE:- BROADBAND CONNECTION WITH SUFFICIENT SPEED THREE POSSIBLE WAYS • A SPECIAL VOIP PHONE • OUR TRADITIONAL PHONE WITH VOIP ADAPTER • COMPUTER WITH MICROPHONE AND SOME SOFTWARE(SOFTPHONE)

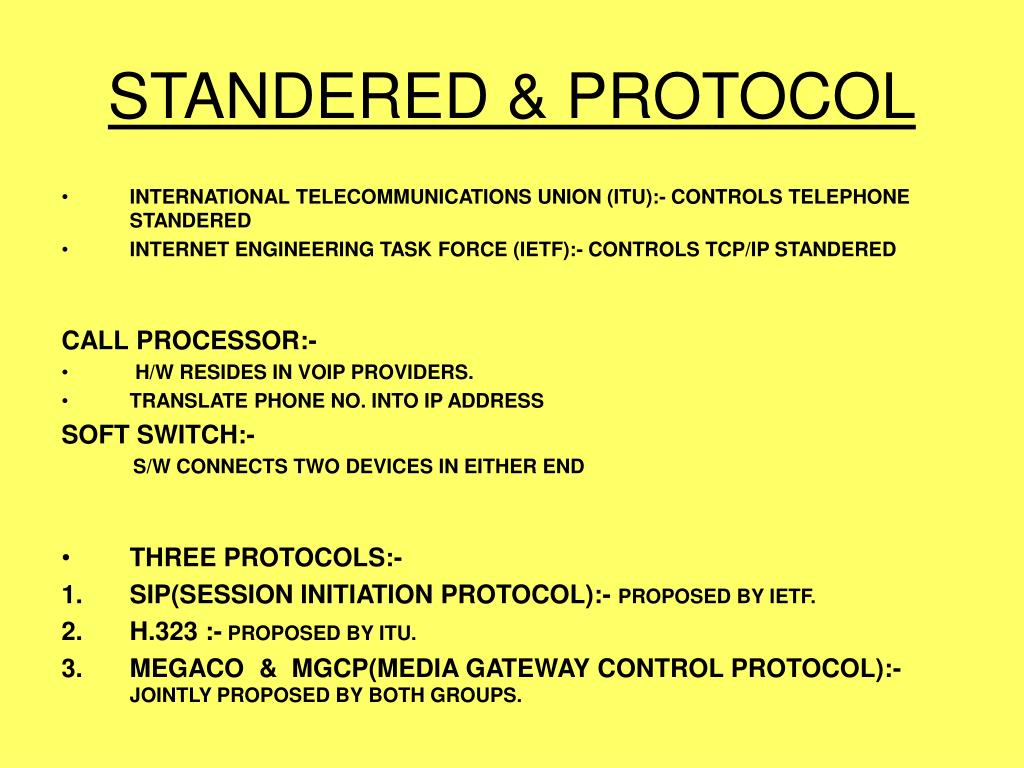

  5. STANDERED & PROTOCOL • INTERNATIONAL TELECOMMUNICATIONS UNION (ITU):- CONTROLS TELEPHONE STANDERED • INTERNET ENGINEERING TASK FORCE (IETF):- CONTROLS TCP/IP STANDERED CALL PROCESSOR:- • H/W RESIDES IN VOIP PROVIDERS. • TRANSLATE PHONE NO. INTO IP ADDRESS SOFT SWITCH:- S/W CONNECTS TWO DEVICES IN EITHER END • THREE PROTOCOLS:- • SIP(SESSION INITIATION PROTOCOL):- PROPOSED BY IETF. • H.323 :- PROPOSED BY ITU. • MEGACO & MGCP(MEDIA GATEWAY CONTROL PROTOCOL):- JOINTLY PROPOSED BY BOTH GROUPS.

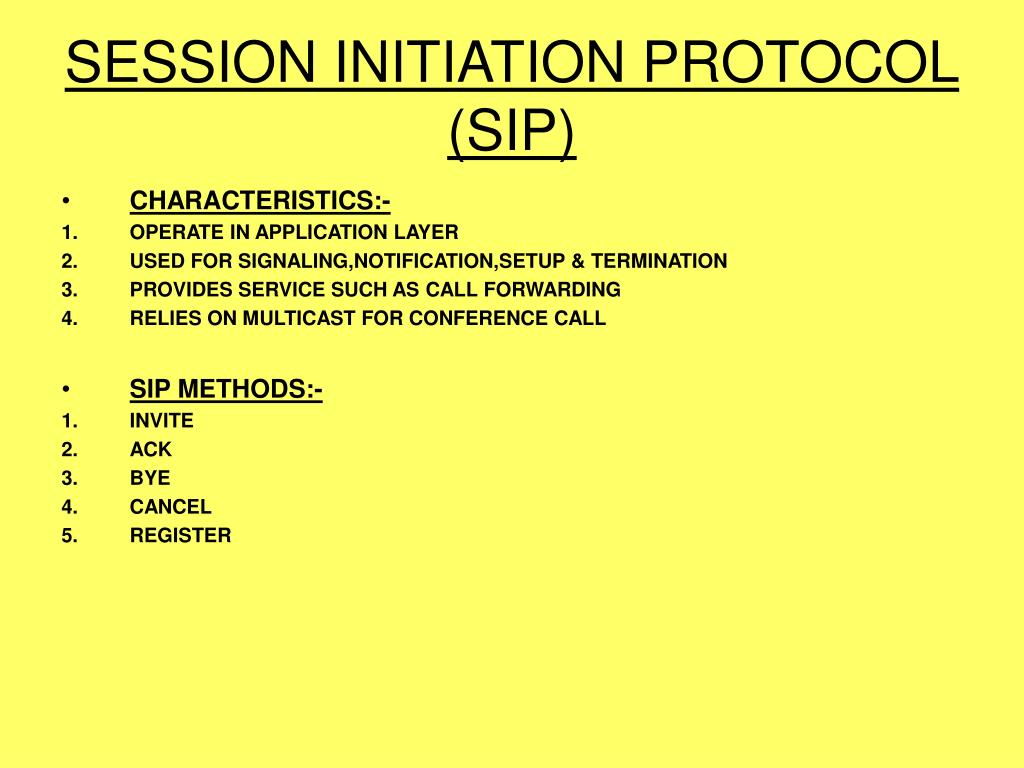

  6. SESSION INITIATION PROTOCOL(SIP) • CHARACTERISTICS:- • OPERATE IN APPLICATION LAYER • USED FOR SIGNALING,NOTIFICATION,SETUP & TERMINATION • PROVIDES SERVICE SUCH AS CALL FORWARDING • RELIES ON MULTICAST FOR CONFERENCE CALL • SIP METHODS:- • INVITE • ACK • BYE • CANCEL • REGISTER

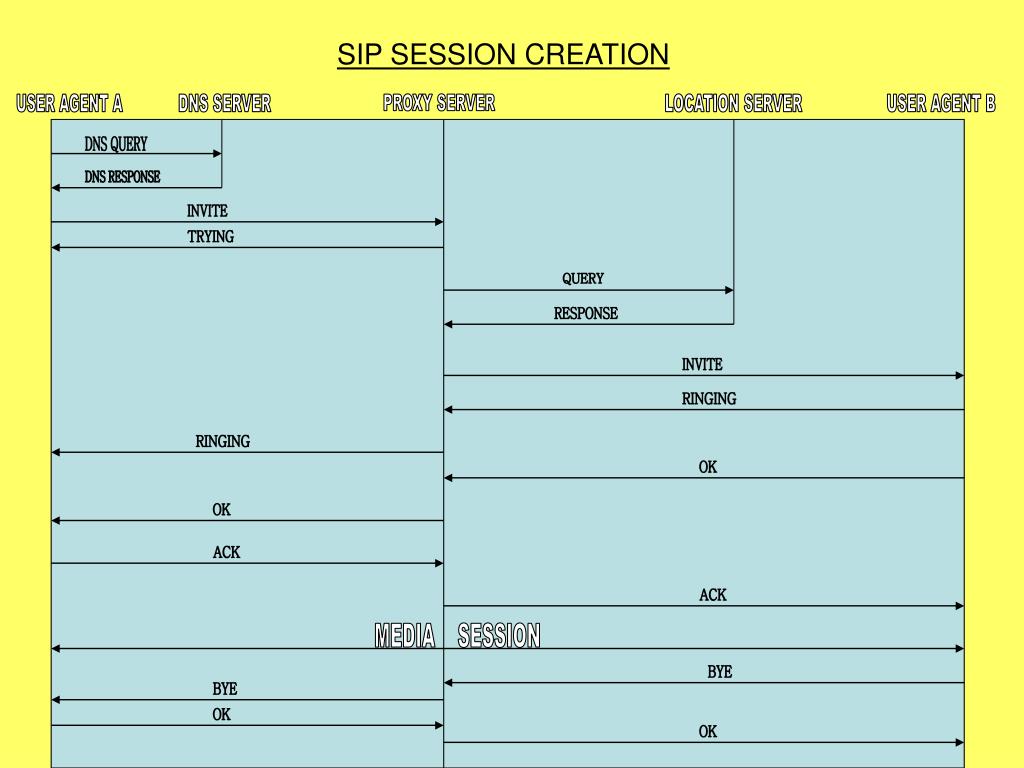

  7. SIP SESSION CREATION USER AGENT A DNS SERVER PROXY SERVER LOCATION SERVER USER AGENT B DNS QUERY DNS RESPONSE INVITE TRYING QUERY RESPONSE INVITE RINGING RINGING OK OK ACK ACK MEDIA SESSION BYE BYE OK OK

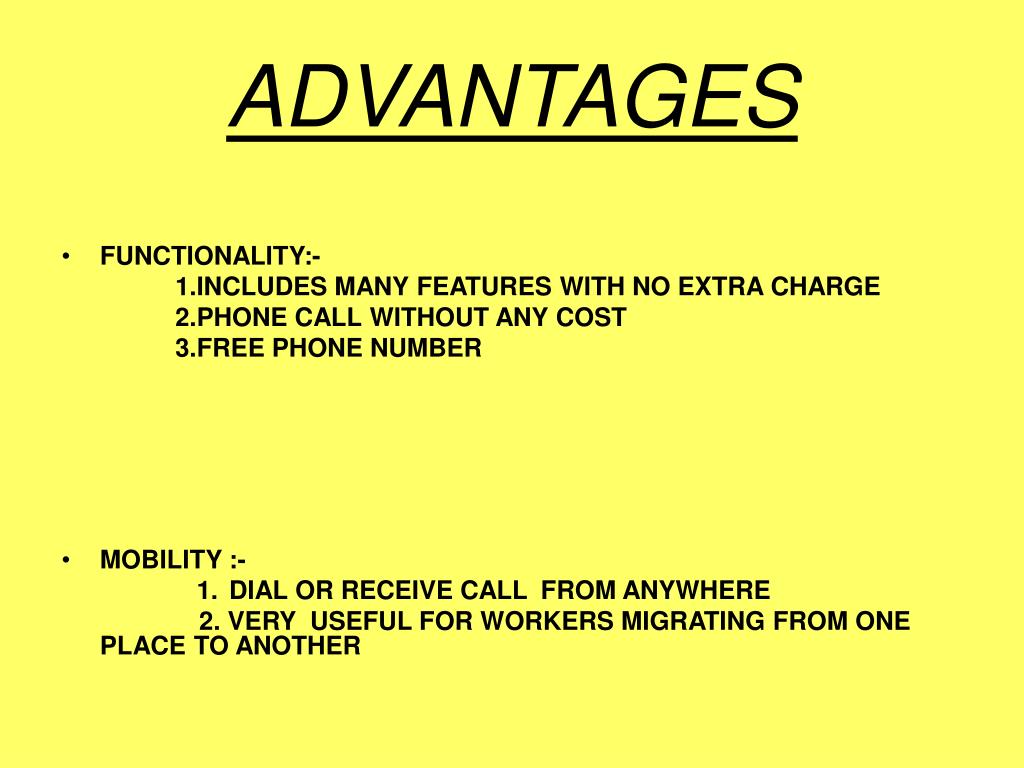

  8. ADVANTAGES • FUNCTIONALITY:- 1.INCLUDES MANY FEATURES WITH NO EXTRA CHARGE 2.PHONE CALL WITHOUT ANY COST 3.FREE PHONE NUMBER • MOBILITY :- 1.DIAL OR RECEIVE CALL FROM ANYWHERE 2. VERY USEFUL FOR WORKERS MIGRATING FROM ONE PLACE TO ANOTHER

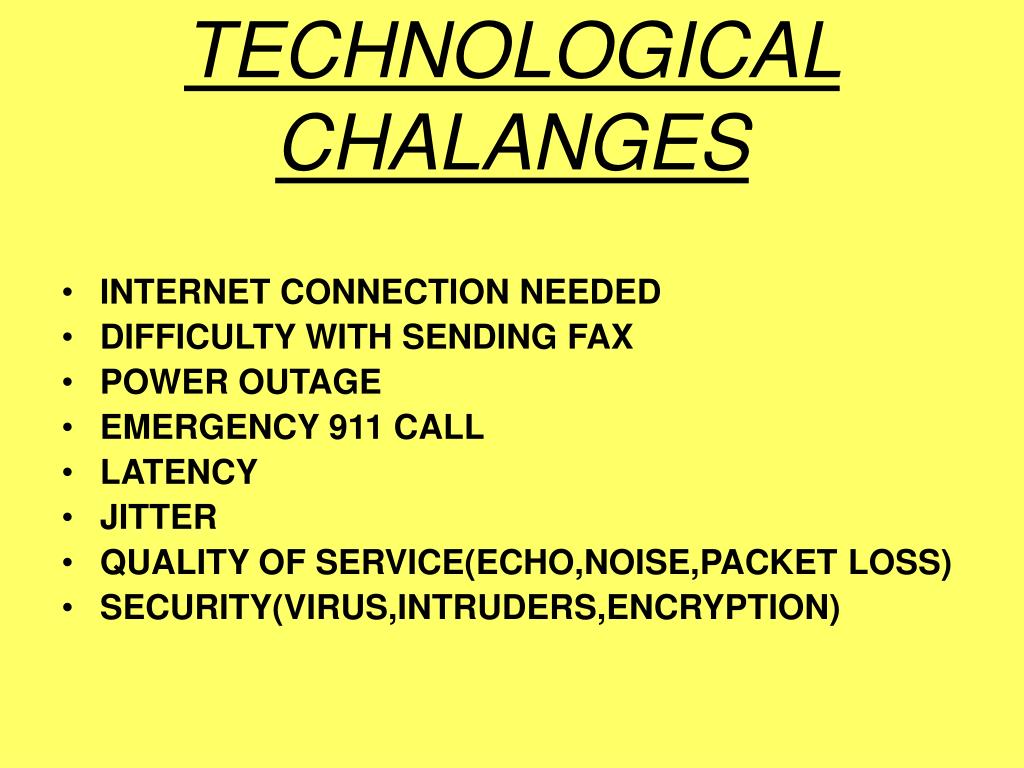

  9. TECHNOLOGICAL CHALANGES • INTERNET CONNECTION NEEDED • DIFFICULTY WITH SENDING FAX • POWER OUTAGE • EMERGENCY 911 CALL • LATENCY • JITTER • QUALITY OF SERVICE(ECHO,NOISE,PACKET LOSS) • SECURITY(VIRUS,INTRUDERS,ENCRYPTION)

  10. CONCLUSION • Become an important technology for phone services to travelers, migrant workers who, either, due to not having a fixed or mobile phone or high overseas roaming charges, choose instead to use VoIP services to make their phone calls. • Pre-paid phone cards can be used . • Developing countries and areas with high tourist or immigrant communities generally have a higher uptake

  11. E N D
