modeling time correlation in passive network loss tomography

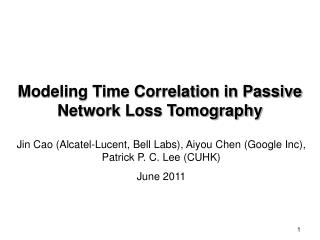

Modeling Time Correlation in Passive Network Loss Tomography

Jin Cao (Alcatel-Lucent, Bell Labs), Aiyou Chen (Google Inc), Patrick P. C. Lee (CUHK)

June 2011

outline
Outline
  • Motivation
  • Loss model
    • Include correlation
  • Profile likelihood inference
    • Basic approach
    • Extensions
  • Simulation results
motivation
Motivation
  • Monitoring a network’s health is critical for reliability guarantees
    • to identify bottlenecks/failures of network elements
    • to plan resource provisioning
  • It’s challenging to monitor a large-scale network
    • Collection of statistics can bring huge overhead
  • Network loss tomography
    • compute statistical estimates of internal losses through end-to-end external measurements
loss tomography overview
Loss Tomography Overview
  • Active probing
    • Consider a tree setting.
    • Send unicast probes to different receivers (leaves)
    • Collect statistics at receivers
    • Assume probes may be lost at links
    • Our goal: infer loss rate of common link (root-to-middle-node link)
  • Key idea: time correlation of packet losses
    • neighboring packets likely experience similar loss behavior on the common link

probes

4

3

2

1

passive loss tomography
Passive Loss Tomography
  • Drawback of active probing:
    • introduce probing overhead
    • require collaboration of both senders and receivers
  • Passive loss tomography:
    • Monitor underlying traffic
    • E.g., use TCP data and ACKs to infer losses
  • Challenges:
    • Limited control. Time correlation highly varies.
    • Can we model time correlation?
prior work on loss tomography
Prior Work on Loss Tomography
  • Multicast loss inference [Cáceres et al. ’99, Ziotopolous et al. ’01, Arya et al. ’03]
    • Send multicast probes
    • Drawback: require multicast be enabled
  • Unicast loss inference [Coates & Novak ’00, Harfoush et al. ’00, Duffield et al. ’06]
    • Send unicast probes to different receivers
    • Drawback: introduce probing overhead
  • Passive loss tomography [Tsang et al. ’01, Brosh et al. ’05, Padmanabhan et al. ’03]
    • Use existing traffic for inference
    • Drawback: no explicit model of time correlation
our contributions
Our Contributions
  • Formulate a loss model as a function of time correlation
  • Show our loss model is identifiable
  • Develop a profile-likelihood method for simple and accurate inference
  • Extend our method for complex topologies
  • Model and network simulations with R and ns2
where to apply our work
Where to Apply Our Work?
  • An extension for TCP loss inference platform
    • use packet retransmissions to infer losses
    • Identify packet pairs: neighboring packets to different leaf branches

TCP packets/ACKs

Determine information

of loss samples

TCP

packets

common link

loss samples &

packet pairs

TCP

ACKs

Our inference approach

infer loss rate

of common link

1

2

K

  • Note: our work is not on how to sample, but uses existing samples to accurately compute loss rates
loss modeling
Loss Modeling
  • Main idea: use packet pairs to capture loss correlation
  • Issues to address:
    • How to integrate correlation into loss model?
    • Is the model identifiable?
    • What is the inference error if we wrongly assume perfect correlation?
loss model

V

p

U

p1

p2

1

2

Loss Model
  • Define:
    • A packet pair (U, V) to diff. leaves
    • p, p1, p2 = link success rates
    • Zu, Zv = success events on common link
    • ρ(Δ) = correlation(Zu, Zv) with time difference Δ
      • 0 ≤ ρ(Δ) ≤ 1 (by definition)
      • ρ(0) = 1
      • ρ(Δ) is monotonically decreasing w.r.t. Δ
  • Probability that both U, V are successfully delivered from root to respective leaf nodes
    • r11 = p p1 p2 (p + (1 – p) ρ(Δ))
      • if ρ(Δ) = 1, r11 = p p1 p2
      • if ρ(Δ) = 0, r11 = p2 p1 p2
modeling time correlation
Modeling Time Correlation
  • Perfect correlation: ρ(Δ) = 1
  • In practice, ρ(Δ) < 1 for Δ > 0 (i.e., decaying)
    • r11 = p p1 p2 (p + (1 – p) ρ(Δ)) is over-estimated in perfect correlation
  • Consider two specific approximations:
    • Linear form: ρ(Δ) = exp(-a Δ) (a is decaying constant)
    • Quadratic form: ρ(Δ) = exp(-a Δ2)
    • If Δ is small, good enough approximations to capture time-decaying of correlation
    • Claim: better than simply assuming perfect correlation
theorems
Theorems
  • Theorem 1: Under the loss correlation model, the link success rates p, p1, p2 and constant a are identifiable, given that ρ(0) = 1
  • Theorem 2: If perfect correlation is wrongly assumed in a setting with imperfect correlation, then there is an absolute asymptotic bias.
  • See proofs in paper.
profile likelihood inference

p

p1

pK

p2

2

1

K

Profile Likelihood Inference
  • Given the loss model, how to estimate loss rate?
  • Inputs:
    • single packet end-to-end measurements
    • packet pair end-to-end measurements
  • Topology:
    • Two-level, K-leaf tree
  • Profile likelihood (PL) inference:
    • Focus on parameters of interest (i.e., link loss rates to be inferred)
    • Replace nuisance unknowns with appropriate estimates
profile likelihood inference1
Profile Likelihood Inference
  • Step 1: apply end-to-end success rates
    • Let Pi = end-to-end success rate to leaf link I
    • Re-parameterize r11(for every pair of leaves) as a function of p and Pi’s
    • Solve for {p, P1, P2, …, PK, a}
      • But this is challenging with many variables to solve

Pi = p pi

r11 = PU PV p-1(p + (1 – p) ρ(Δ))

profile likelihood inference2

^

Pi = Mi / Ni

Profile Likelihood Inference
  • Step 2: remove nuisance parameters
    • Based on profile likelihood [Murphy ’00], replace nuisance unknowns with appropriate estimates
    • Replace Piwith maximum likelihood estimate
      • Ni = number of packets going to leaf i
      • Mi = number of total successes to leaf I
    • Only two variables to solve: p and a
profile likelihood inference3
Profile Likelihood Inference
  • Step 3: estimate p when ρ(.) is unknown
    • Approximate ρ(.) with either linear or quadratic form
    • To solve for p and a, we optimize log-likelihood function using BFGS quasi-Newton method
  • See paper for details
extension remove skewness

^

Pi = M / N for all i

Extension: Remove Skewness
  • If some leaf has only a few packets (i.e., Mi, Ni are small), the approximation of Pi will be inaccurate.
    • Especially when there are many leaf branches
  • Heuristic: let Pi be the same for all i
    • Intuition: remove skewness of traffic loads among leaves by taking aggregate average
    • Let:
      • N = total number of packets to all leaves
      • M = total number of successes to all leaves
    • Take the approximation:
extension large scale topology
Extension: Large-Scale Topology
  • If there are many levels in a tree, we decompose into many two-level problems
  • Estimate loss rates f0 and f1
  • f = max(0, (f1 – f0) / (1 – f0))
network simulations

p

p1

pK

p2

2

1

K

Network Simulations
  • We use model simulations to verify the correctness of our models under ideal settings
    • See details in paper
  • Network simulations with ns2:
    • Traffic models:
      • Short-lived TCP sessions
      • Background UDP on-off flows
    • Loss models:
      • Links follow exponential ON-OFF loss model
      • Queue overflow due to UDP bursts
      • Both loss models are justified in practice and show loss correlation

TCP/UDP

flows

network simulations1

^

Pi = Mi / Ni

^

Pi = M / N for all i

Network Simulations
  • Three estimation methods:
    • est.equal: take aggregate average in end-to-end success rates
    • est.self: take individual end-to-end success rates
    • est.perfect: use est.self but assuming perfect correlation
experiment 1 on off loss

p

p1

pK

p2

2

1

K

Experiment 1: ON-OFF Loss
  • Consider two-level tree, with exponential on-off loss
  • est.perfect is worst among all

p = 2%, pi = 0

p = 2%, pi = 2%

experiment 2 skewed traffic

p

p1

pK

p2

2

1

K = 10

Experiment 2: Skewed Traffic
  • Uneven traffic (let K = 10)
    • β: % of traffic going to leaves 1 – 5
    • 1 – β: % of traffic going to leaves 6 - 10
  • est.equal is robust to skewed traffic

p = 2%, pi = 0

p = 2%, pi = 2%

experiment 3 large topology
Experiment 3: Large Topology
  • Goal: verify if two-level inference can be extended for multi-level topology
experiment 3 large topology1
Experiment 3: Large Topology

Level 1

Level 2

Level 3

Losses occur only in links of interest

experiment 3 large topology2
Experiment 3: Large Topology
  • est.equal is best among all
    • around 5%, 10%, 20% errors in levels 1, 2, 3 resp.

Level 1

Level 2

Level 3

Losses occur only in links of interest

conclusions
Conclusions
  • Provide first attempt to explicitly model time correlation in loss tomography
  • Propose profile likelihood inference
    • Remove nuisance parameters
    • Simplify loss inference without compromising accuracy
  • Conduct extensive model/network simulations
    • Assuming perfect correlation is not a good idea
    • est.equal is robust in general, even for skewed traffic loads and large topology
