  1. CMP238: Projeto e Teste de Sistemas VLSI Marcelo Lubaszewski Aula 4 - Teste PPGC - UFRGS 2005/I

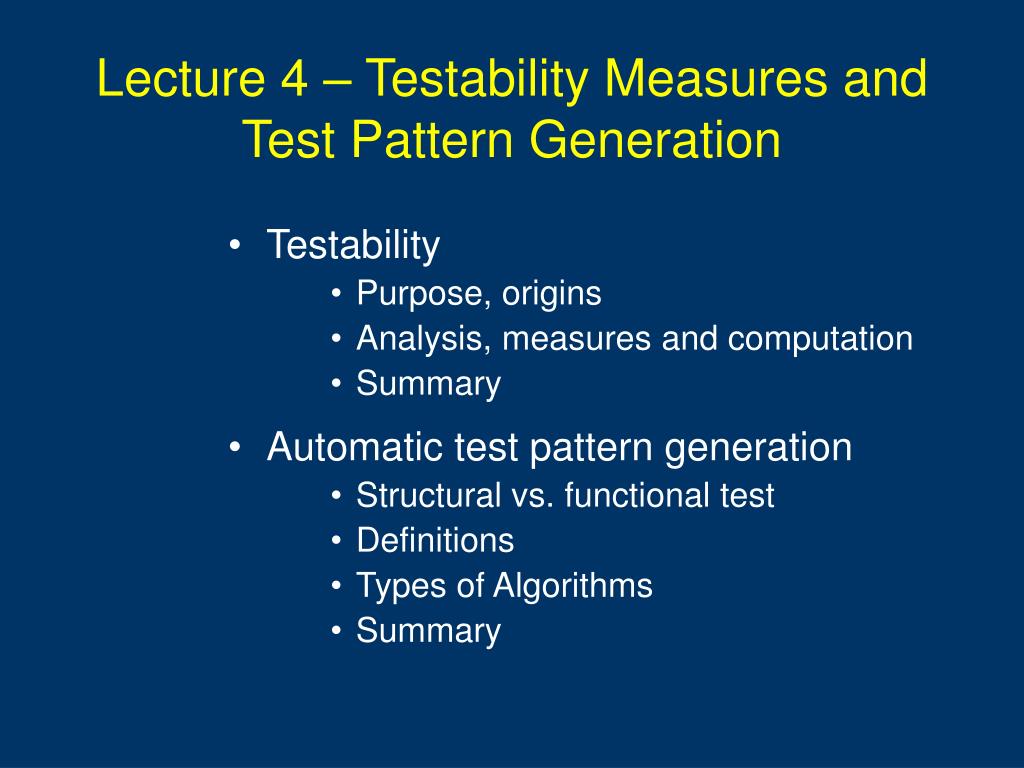

  2. Lecture 4 – Testability Measures andTest Pattern Generation • Testability • Purpose, origins • Analysis, measures and computation • Summary • Automatic test pattern generation • Structural vs. functional test • Definitions • Types of Algorithms • Summary

  3. Purpose • Need approximate measure of: • Difficulty of setting internal circuit lines to 0 or 1 by setting primary circuit inputs • Difficulty of observing internal circuit lines by observing primary outputs • Uses: • Analysis of difficulty of testing internal circuit parts – redesign or add special test hardware • Guidance for algorithms computing test patterns – avoid using hard-to-control lines • Estimation of fault coverage • Estimation of test vector length

  4. Origins • Control theory • Rutman 1972 -- First definition of controllability • Goldstein 1979 -- SCOAP • First definition of observability • First elegant formulation • First efficient algorithm to compute controllability and observability • Parker & McCluskey 1975 • Definition of Probabilistic Controllability • Brglez 1984 -- COP • 1st probabilistic measures • Seth, Pan & Agrawal 1985 – PREDICT • 1st exact probabilistic measures

  5. Testability Analysis • Involves Circuit Topological analysis, but no test vectors and no search algorithm • Static analysis • Linear computational complexity • Otherwise, is pointless – might as well use automatic test-pattern generation and calculate: • Exact fault coverage • Exact test vectors

  6. Types of Measures • SCOAP – Sandia Controllability and Observability Analysis Program • Combinational measures: • CC0 – Difficulty of setting circuit line to logic 0 • CC1 – Difficulty of setting circuit line to logic 1 • CO – Difficulty of observing a circuit line • Sequential measures – analogous: • SC0 • SC1 • SO

  7. Range of SCOAP Measures • Controllabilities – 1 (easiest) to infinity (hardest) • Observabilities – 0 (easiest) to infinity (hardest) • Combinational measures: • Roughly proportional to # circuit lines that must be set to control or observe given line • Sequential measures: • Roughly proportional to # times a flip-flop must be clocked to control or observe given line

  8. Goldstein’s SCOAP Measures • AND gate O/P 0 controllability: output_controllability = min (input_controllabilities) + 1 • AND gate O/P 1 controllability: output_controllability = S (input_controllabilities) +1 • XOR gate O/P controllability output_controllability = min (controllabilities of each input set) + 1 • Fanout Stem observability: S or min (some or all fanout branch observabilities)

  9. Controllability Examples

  10. More Controllability Examples

  11. Controllability Through Level 0 Circled numbers give level number. (CC0, CC1)

  12. Controllability Through Level 2

  13. Final Combinational Controllability

  14. Observability Examples To observe a gate input: Observe output and make other input values non-controlling

  15. More Observability Examples To observe a fanout stem: Observe it through branch with best observability

  16. Combinational Observability for Level 1 Number in square box is level from primary outputs (POs). (CC0, CC1) CO

  17. Combinational Observabilities for Level 2

  18. Final Combinational Observabilities

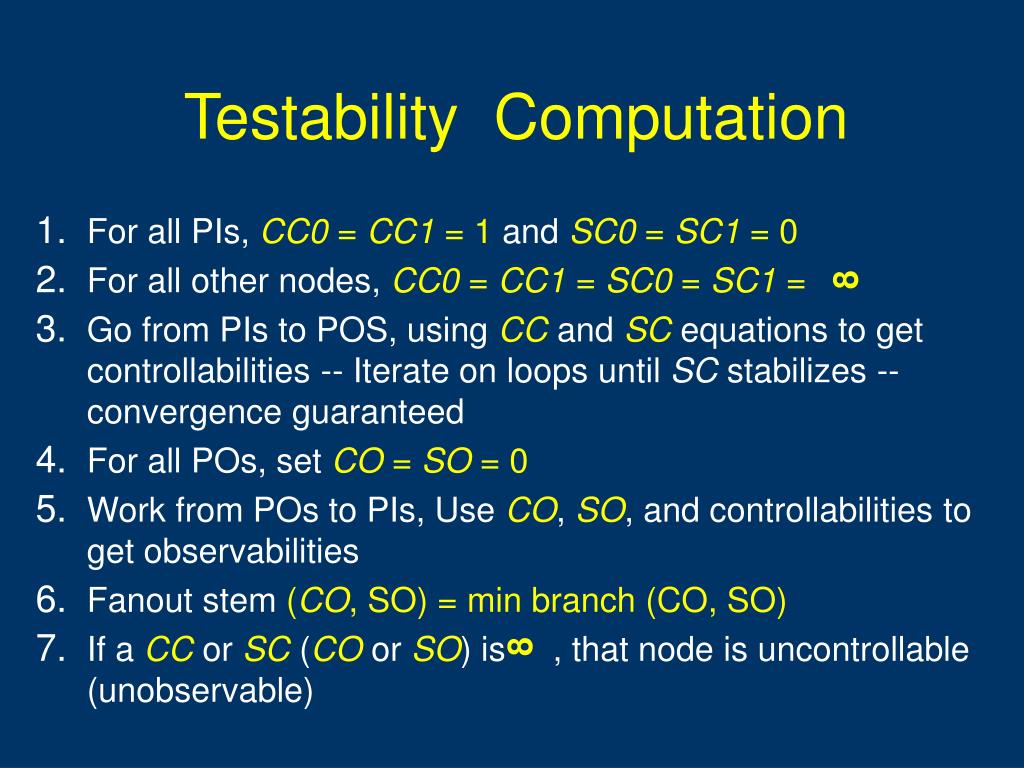

  19. Testability Computation For all PIs, CC0 = CC1 = 1 and SC0 = SC1 = 0 For all other nodes, CC0 = CC1 = SC0 = SC1 = Go from PIs to POS, using CC and SC equations to get controllabilities -- Iterate on loops until SC stabilizes -- convergence guaranteed For all POs, set CO = SO =0 Work from POs to PIs, Use CO, SO, and controllabilities to get observabilities Fanout stem (CO, SO) = min branch (CO, SO) If a CC or SC (CO or SO) is , that node is uncontrollable (unobservable) 8 8

  20. Summary • Testability approximately measures: • Difficulty of setting circuit lines to 0 or 1 • Difficulty of observing internal circuit lines • Uses: • Analysis of difficulty of testing internal circuit parts • Redesign circuit hardware or add special test hardware where measures show bad controllability or observability • Guidance for algorithms computing test patterns – avoid using hard-to-control lines • Estimation of fault coverage – 3-5 % error • Estimation of test vector length

  21. Functional vs. Structural ATPG • Functional ATPG • generate complete set of tests for circuit input-output combinations • 129 inputs, 65 outputs: • 2129 = 680,564,733,841,876,926,926,749, • 214,863,536,422,912 patterns • Using 1 GHz ATE, would take 2.15 x 1022 years

  22. Sum and Carry Circuits

  23. Functional vs. Structural (Cont’d) • Structural test: • No redundant adder hardware, 64 bit slices • Each with 27 faults (using fault equivalence) • At most 64 x 27 = 1728 faults (tests) • Takes 0.000001728 s on 1 GHz ATE • Designer gives small set of functional tests – augment with structural tests to boost coverage to 98+ %

  24. Definition of Automatic Test-Pattern Generator • Operations on digital hardware: • Inject fault into circuit modeled in computer • Use various ways to activate and propagate fault effect through hardware to circuit output • Output flips from expected to faulty signal • Test generation cost • fault-dependent or not • Quality of generated test • fault coverage (fault simulation) • Test application cost • test time, memory requirements

  25. TG Types • Exhaustive • cheap generation, high FC, expensive application • Fault-Oriented (deterministic) • expensive generation, possibly high FC, cheaper application • reduction of generation costs • Random (pseudo-random) • cheap generation, low FC, + - expensive application

  26. Exhaustive Algorithm • For n-input circuit, generate all 2n input patterns • Infeasible, unless circuit is partitioned into cones of logic, with 15 inputs • Perform exhaustive ATPG for each cone • Misses faults that require specific activation patterns for multiple cones to be tested

  27. Random-Pattern Generation • Flow chart for method • Use to get tests for 60-80% of faults, then switch to D-algorithm or other ATPG for rest

  28. Path Sensitization Method • Fault Sensitization (activation) • Fault Propagation • Line Justification

  29. Path Sensitization Method • Fault l s-a-v • Activation • set l to v • Propagation • find a path from l to a primary output that keeps faulty value • Justification • set the primary inputs to activate the fault

  30. Composite Logic Values • consider line value for original AND faulty circuit • v/vf = original/faulty • Symbols D and D (Roth, 1966) • D = 1/0 • D = 0/1 • 0 = 0/0 • 1 = 1/1

  31. Operations on Composite Values • D + 0 = 0/1 + 0/0 = 0/1 = D

  32. Path Sensitization Method • Propagation D 1

  33. Path Sensitization Method • Propagation: try path f – h – k – L 1 D D D D 1 0 1

  34. Path Sensitization Method • Propagation: try path f – h – k – L 1 D D D D 1 0 1

  35. Path Sensitization Method • Justification: Try path f – h – k – L blocked at j, since there is no way to justify the 1 on i 1 D D D D 1 D 0 1 1

  36. Path Sensitization Method • Justification: Try path f – h – k – L blocked at j, since there is no way to justify the 1 on i 1 D 1 D 1 1 D D’ D 1 1

  37. Path Sensitization Method • Backtracking! X X 1 D X 1 D X 1 1 X D D’ X D X 1 X 1

  38. Path Sensitization Method • Try other propagation: pathg – i – j – k – L 0 D D D 1 D D D 1 1

  39. Path Sensitization Method • Try other propagation: pathg – i – j – k – L 0 D D D 1 D D D 1 1

  40. Path Sensitization Method • Try other propagation: pathg – i – j – k – L 0 0 D D D 1 D D D 1 1

  41. Major Combinational Automatic Test-Pattern Generation Algorithms • D-Algorithm (Roth) -- 1966 • PODEM (Goel) -- 1981 • FAN (Fujiwara and Shimono) --1983

  42. Sequential Circuit ATPGTime-Frame Expansion • Problem of sequential circuit ATPG • Time-frame expansion

  43. Example of Sequential Circuit

  44. Sequential Circuits • A sequential circuit has memory in addition to combinational logic. • Test for a fault in a sequential circuit is a sequence of vectors, which • Initializes the circuit to a known state • Activates the fault, and • Propagates the fault effect to a primary output • Methods of sequential circuit ATPG • Time-frame expansion methods • Simulation-based methods

  45. Extended D-Algorithm 1. Pick up a target fault f. 2. Create a copy of a combinational logic, set it time-frame 0. 3. Generate a test for f using D-algorithm for time-frame 0. 4. When the fault effect is propagate to the DFFs, continue fault propagation in the next time-frame. 5. When there are values required in the DFFs, continue the justification in the previous time-frame.

  46. Example for Extended D- Algorithm

  47. Example: Step 1

  48. Example: Step 2

  49. Example: Step 3

  50. Summary • Hierarchical ATPG -- 9 Times speedup (Min) • Handles adders, comparators, MUXes • Advances over D-algorithm • Results of 40 years research – mature – methods: • Path sensitization • Simulation-based • Boolean satisfiability and neural networks • Genetic algorithms
