  1. caBIG-ICR - VISDA VT –GU Developer Team: Huai Li, Jiajing Wang, Yue Wang, Jianhua Xuan, Robert Clarke UPenn – The Wistar Institute Adopter Team: Louise Showe, Michael Showe, Malik Yousef, Hsiuan-Lin Wu,and Michael Nebozhyn

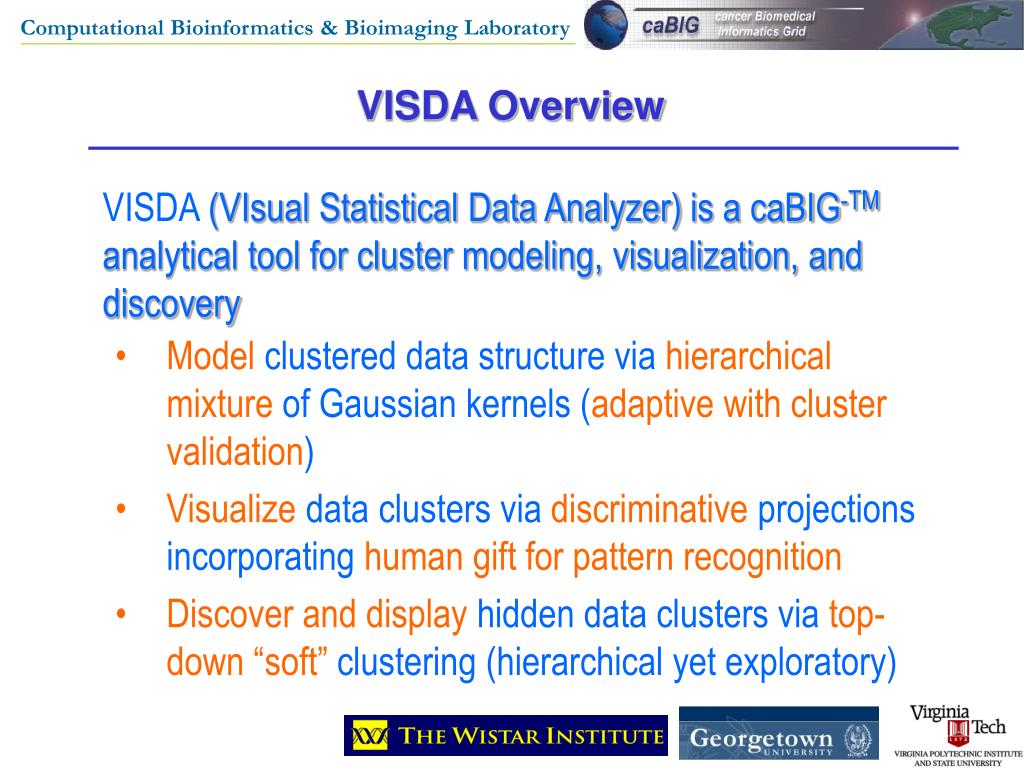

  2. VISDA Overview VISDA (VIsual Statistical Data Analyzer)is a caBIG-TM analytical tool for cluster modeling, visualization, and discovery • Model clustered data structure via hierarchical mixture of Gaussian kernels (adaptive with cluster validation) • Visualize data clusters via discriminative projections incorporating human gift for pattern recognition • Discover and display hidden data clusters via top-down“soft” clustering (hierarchical yet exploratory)

  3. Supported Data File Support data retrieving from caArray Support local MAGE-ML file format Support tab-delimited data file with multiple gene annotations as well as multiple sample annotations Analytical Algorithms Support sample clustering and gene clustering Has supervised/unsupervised feature selection Has PCA and PPM projections Has hierarchical statistical modeling and parameter estimation by EM algorithm Has advanced options for DCA projection and MDL cluster validation VISDA-caBIGTM Key Features

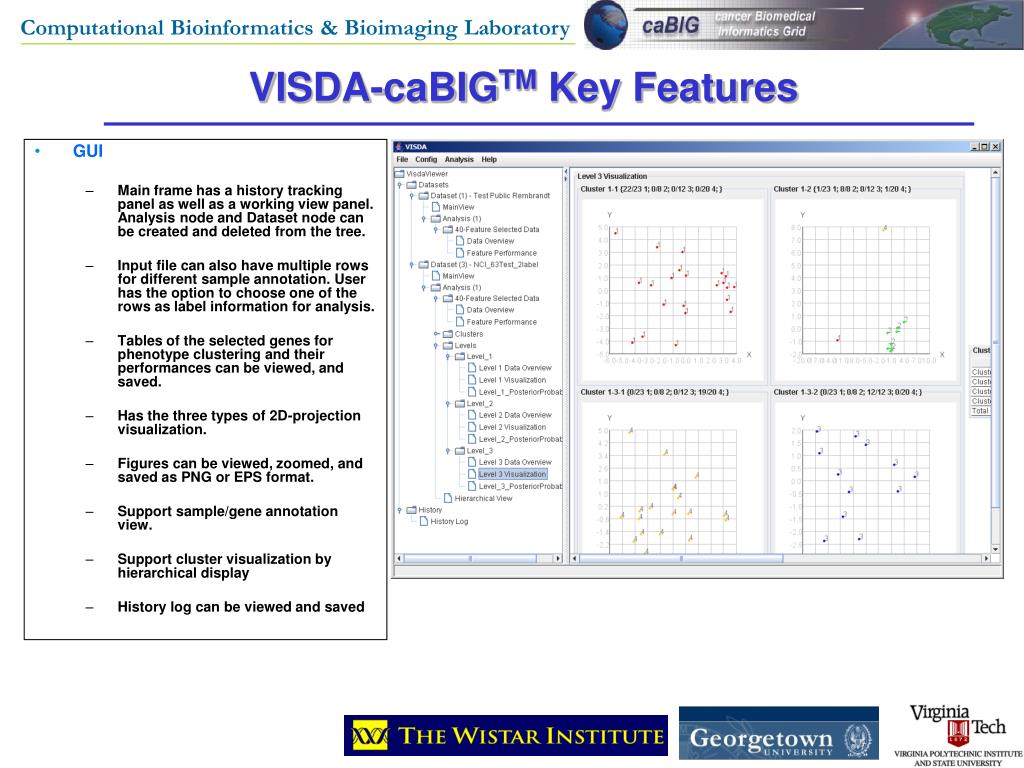

  4. GUI Main frame has a history tracking panel as well as a working view panel. Analysis node and Dataset node can be created and deleted from the tree. Input file can also have multiple rows for different sample annotation. User has the option to choose one of the rows as label information for analysis. Tables of the selected genes for phenotype clustering and their performances can be viewed, and saved. Has the three types of 2D-projection visualization. Figures can be viewed, zoomed, and saved as PNG or EPS format. Support sample/gene annotation view. Support cluster visualization by hierarchical display History log can be viewed and saved VISDA-caBIGTM Key Features

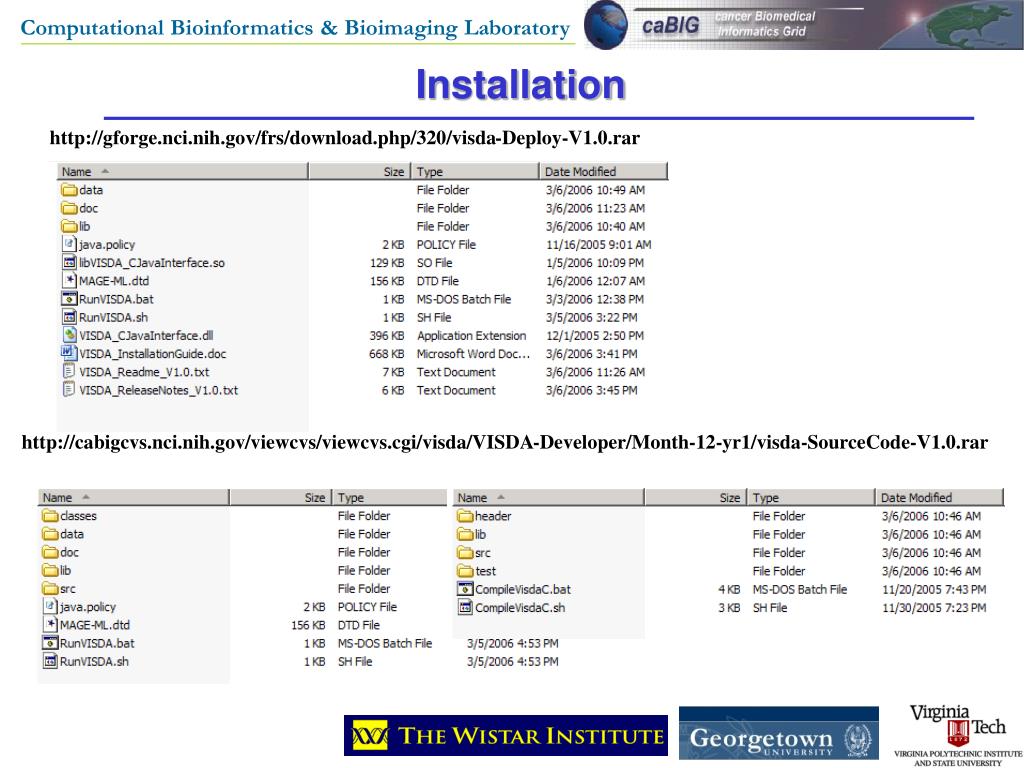

  5. Installation http://gforge.nci.nih.gov/frs/download.php/320/visda-Deploy-V1.0.rar http://cabigcvs.nci.nih.gov/viewcvs/viewcvs.cgi/visda/VISDA-Developer/Month-12-yr1/visda-SourceCode-V1.0.rar

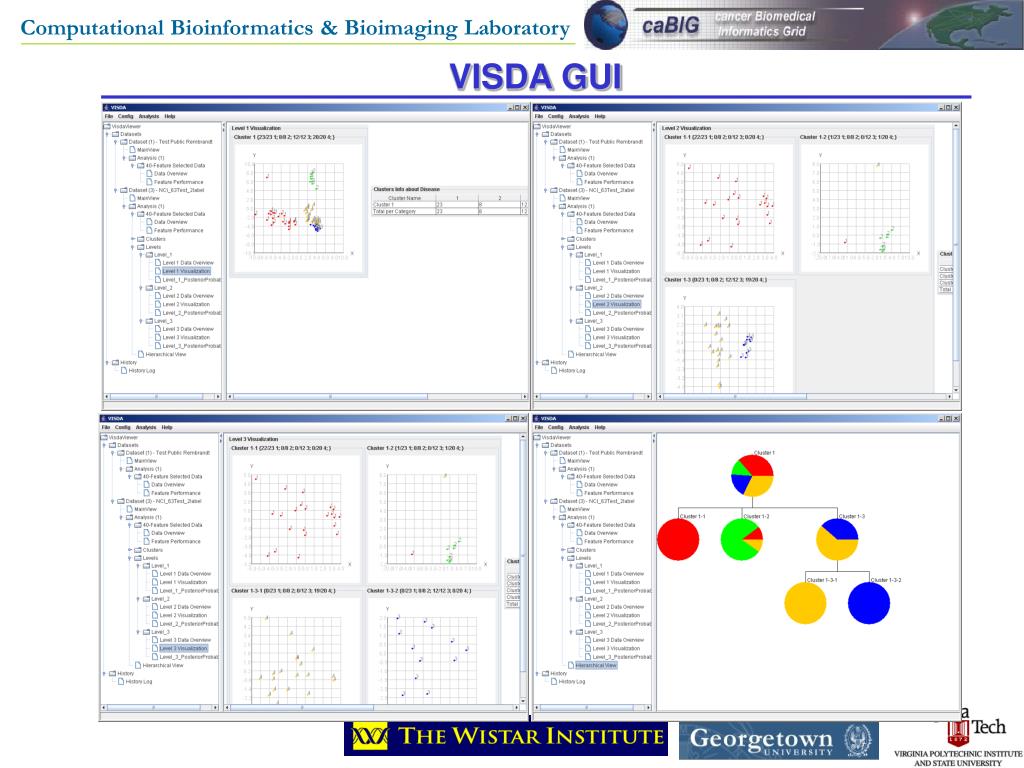

  6. VISDA GUI

  7. VISDA GUI

  8. VISDA GUI

  9. VISDA Silver Compatibility • VISDA can retrieve data from caArray (can be considered as one caGrid node) by utilizing MAGE-OM APIs. • MAGE-OM CDEs (registered in caDSR) used in VISDA are documented. • Analysis results got from VISDA are the selected feature set, the "soft-clustering" probabilities of the samples/genes in each cluster and the hierarchical "tree of phenotype" or "tree of gene module" plots which are retained locally. • Well documented VISDA APIs. • UML documentation of all VISDA components using Enterprise Architect (EA).

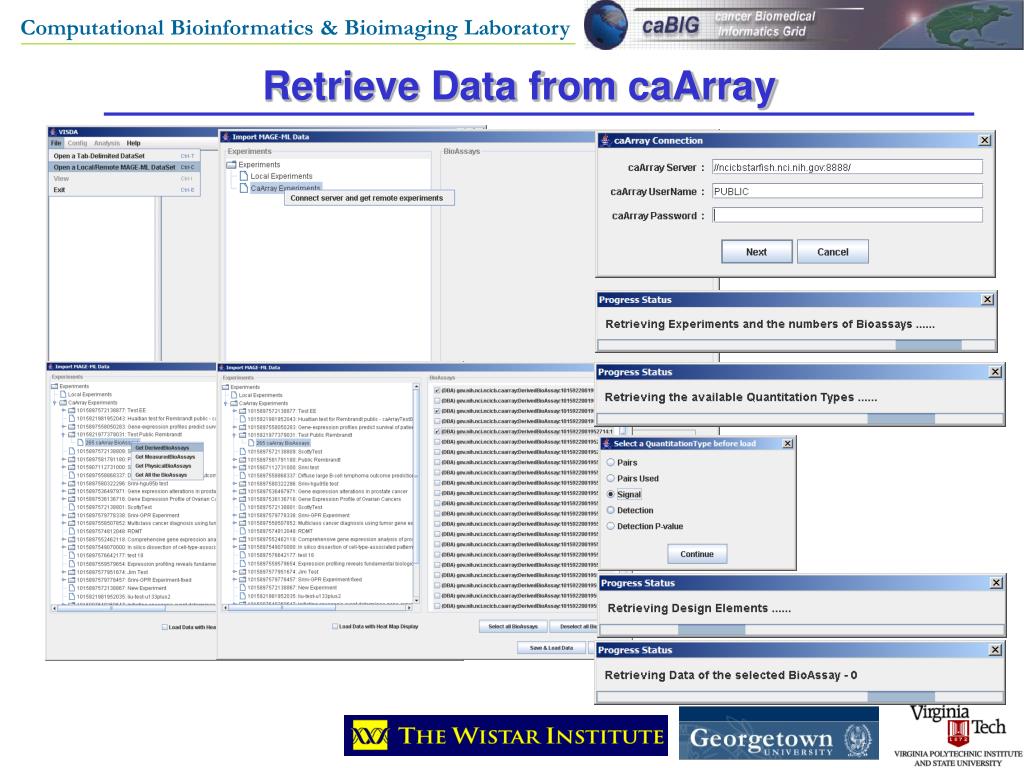

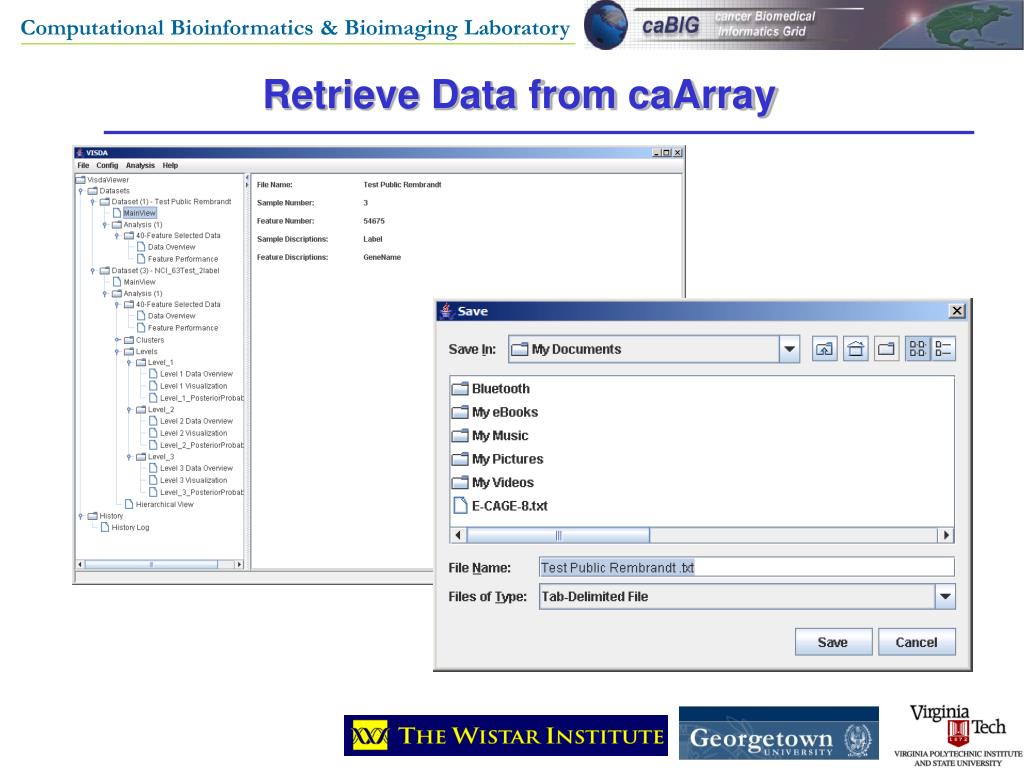

  10. Retrieve Data from caArray

  11. Retrieve Data from caArray

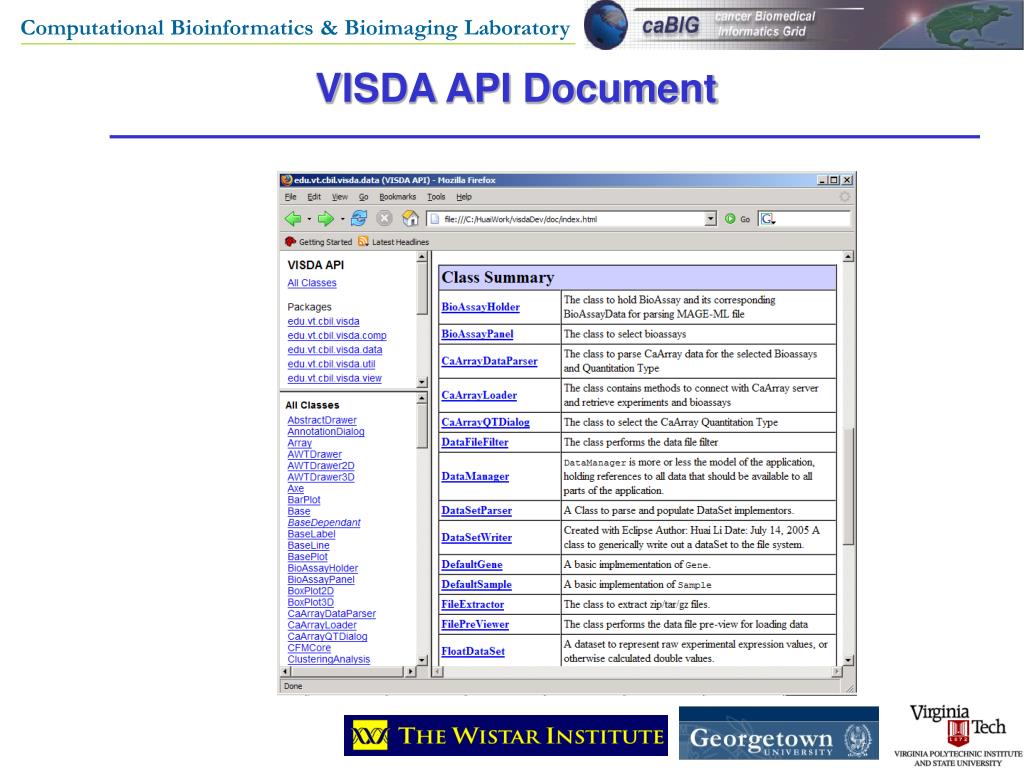

  12. VISDA API Document

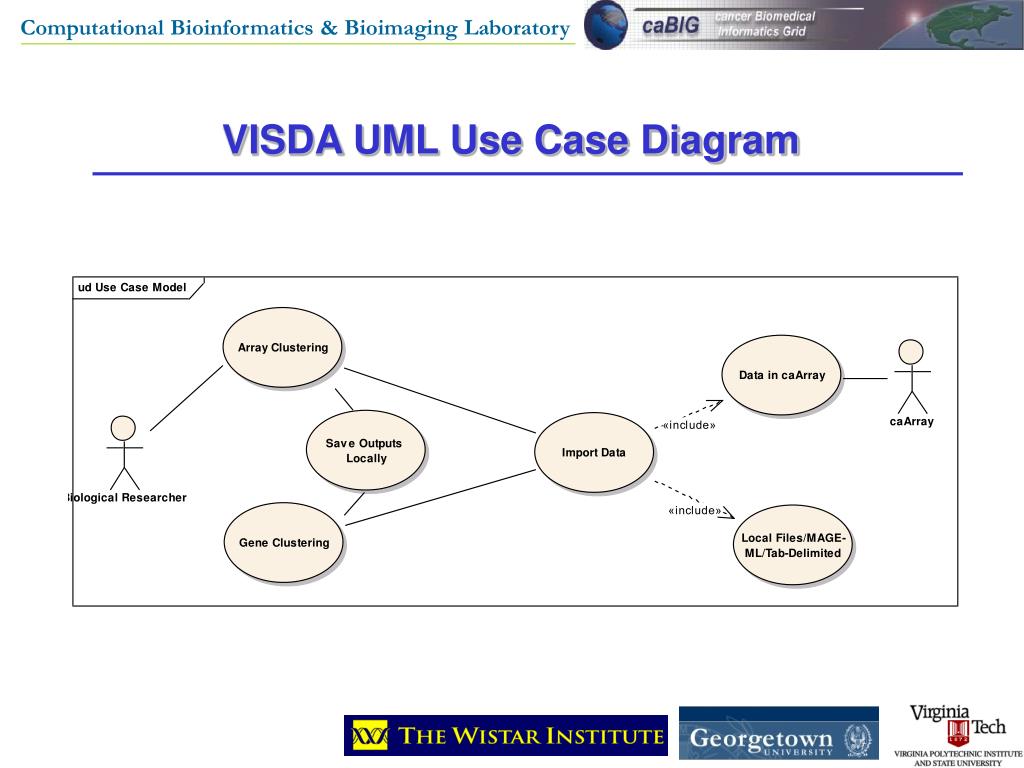

  13. VISDA UML Use Case Diagram

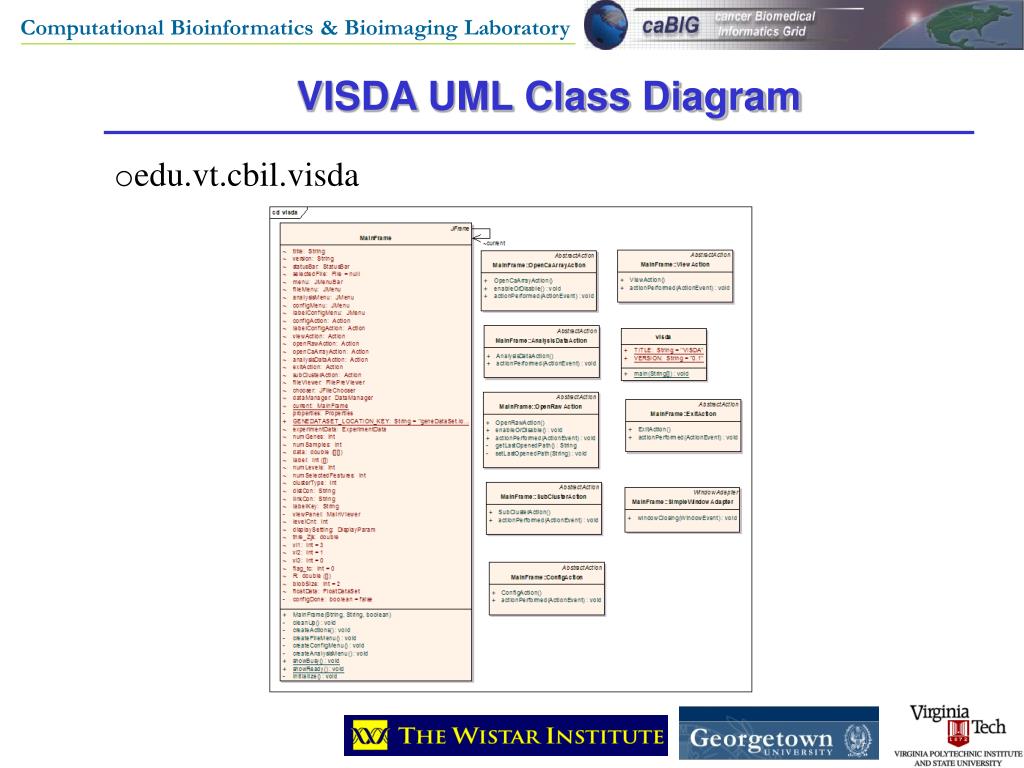

  14. VISDA UML Class Diagram • edu.vt.cbil.visda

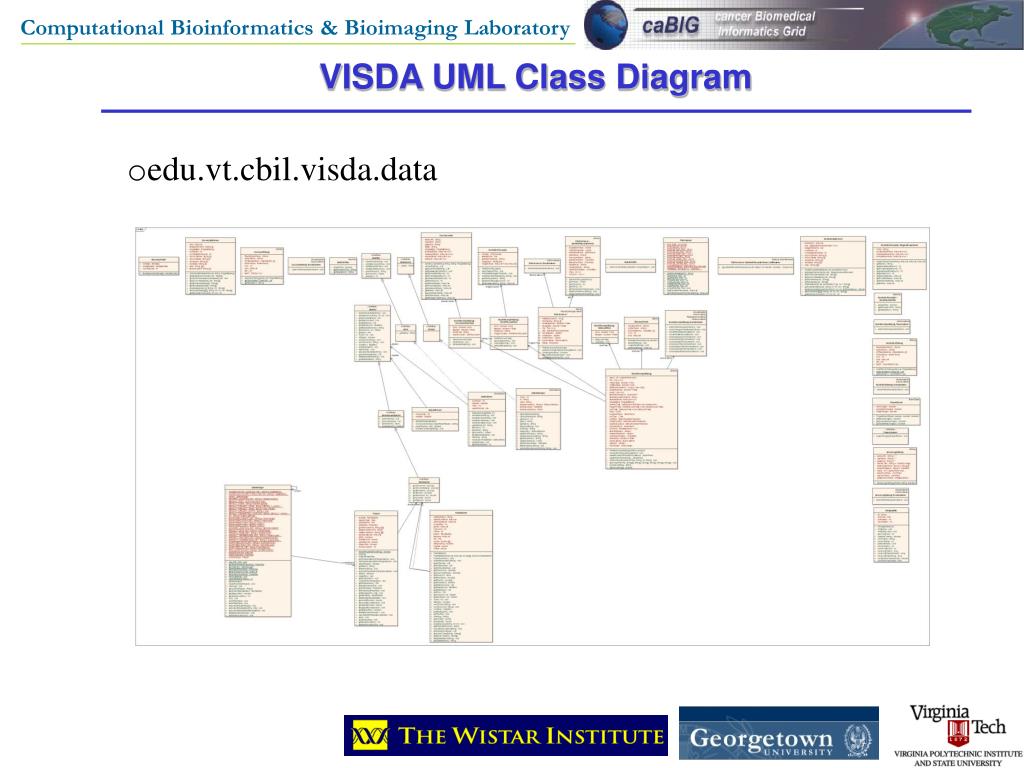

  15. VISDA UML Class Diagram • edu.vt.cbil.visda.data

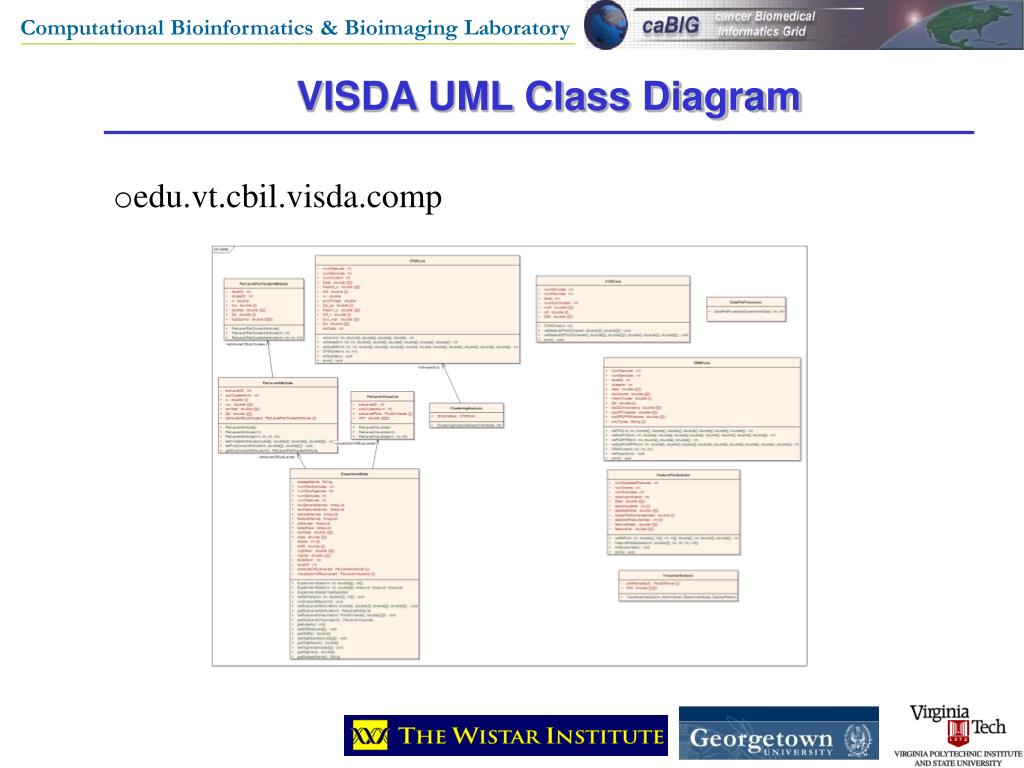

  16. VISDA UML Class Diagram • edu.vt.cbil.visda.comp

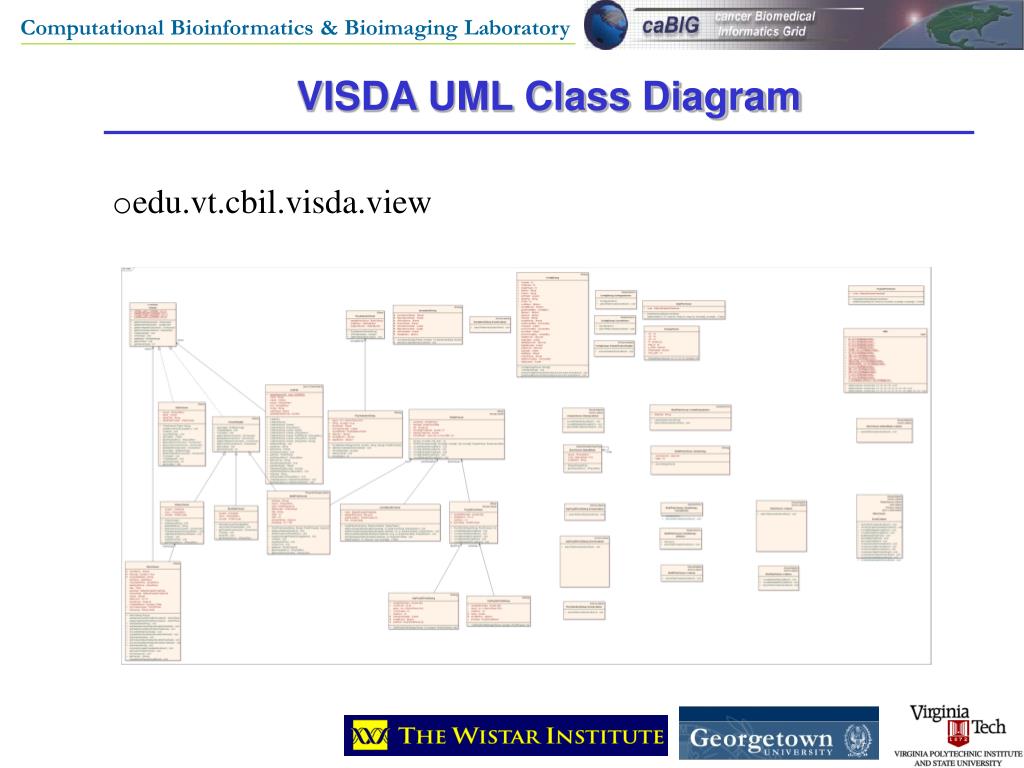

  17. VISDA UML Class Diagram • edu.vt.cbil.visda.view
