  1. EPC Network Services building blocks EPC Network World Wide Web DNS Authoritative system that routes requests for Web sites and email ONS Authoritative record of manufacturers that routes requests for product information Web Sites Resource that contains information on a particular topic EPC Information Services Resource for specific information about a product, e.g. date of expiration Search Engines A tool for finding Web sites on the network EPC Discovery Services A tool for finding EPC Information Services on the network EPC Trust Services A tool for securing access based on permission level authentication SSL A security tool for web pages

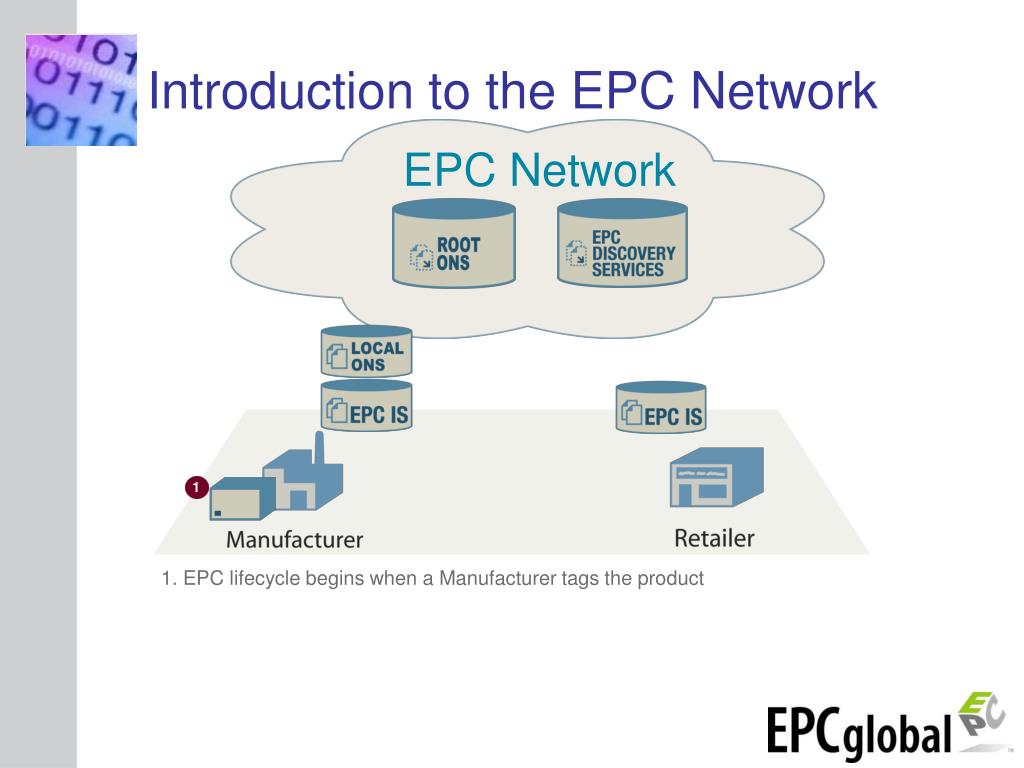

  2. 1 1. EPC lifecycle begins when a Manufacturer tags the product Introduction to the EPC Network EPC Network

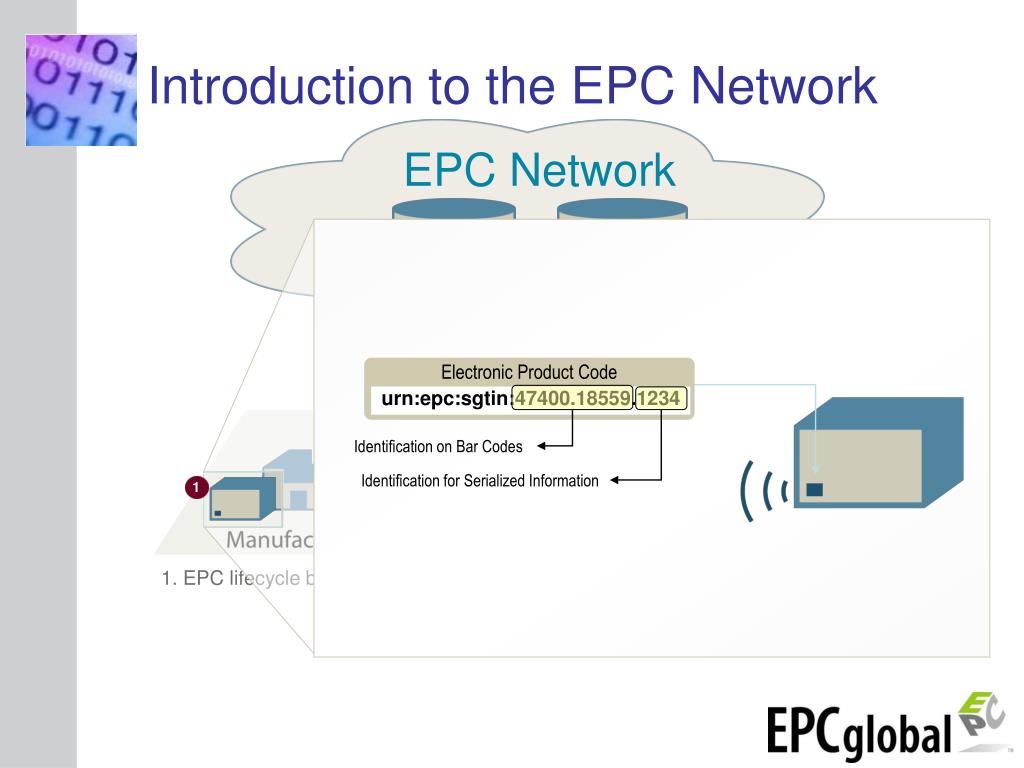

  3. 1 Introduction to the EPC Network EPC Network Electronic Product Code urn:epc:sgtin:47400.18559.1234 Identification on Bar Codes Identification for Serialized Information 1. EPC lifecycle begins when a Manufacturer tags the product

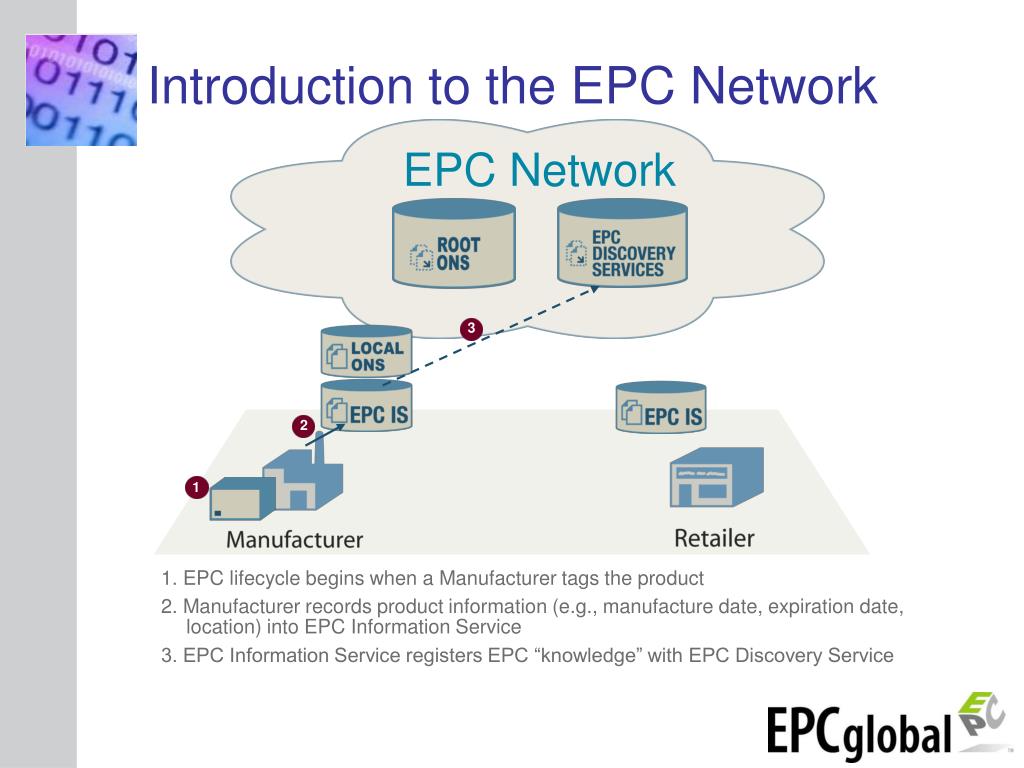

  4. 3 2 1 Introduction to the EPC Network EPC Network 1. EPC lifecycle begins when a Manufacturer tags the product 2. Manufacturer records product information (e.g., manufacture date, expiration date, location) into EPC Information Service 3. EPC Information Service registers EPC “knowledge” with EPC Discovery Service

  5. 5 6 4 Introduction to the EPC Network EPC Network 4. Manufacturer sends product to Retailer 5. Retailer records “receipt” of product into EPC-IS 6. Retailer’s EPC-IS then registers product “knowledge” with EPC Discovery Service

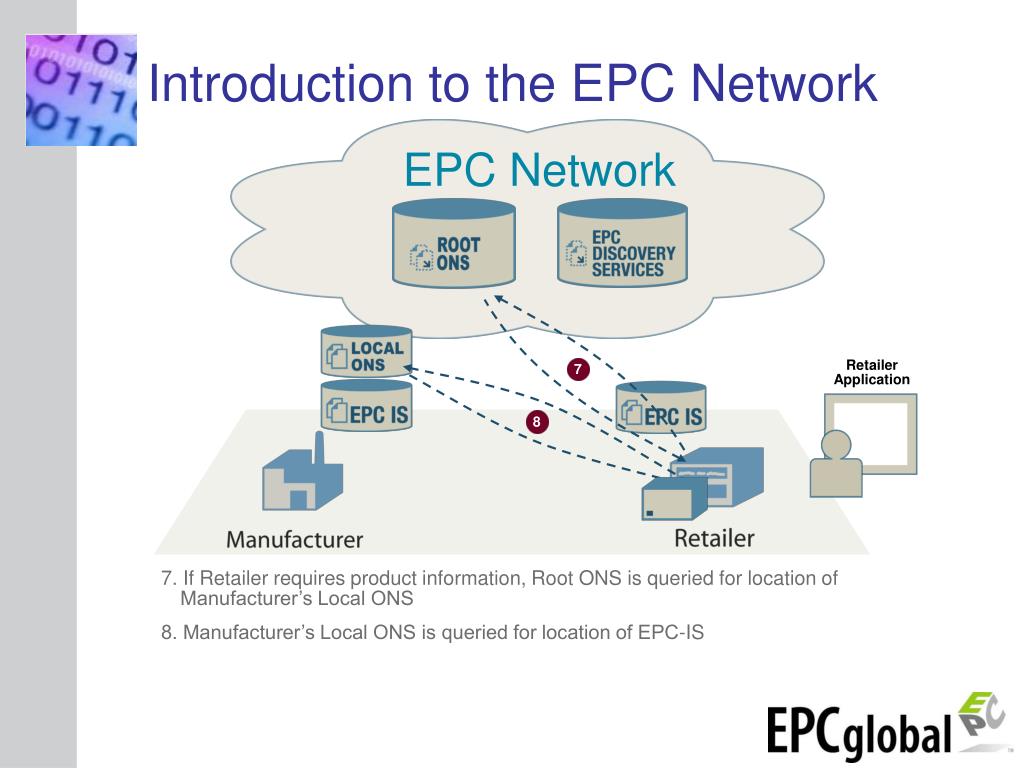

  6. 8 7 Introduction to the EPC Network EPC Network Retailer Application 7. If Retailer requires product information, Root ONS is queried for location of Manufacturer’s Local ONS 8. Manufacturer’s Local ONS is queried for location of EPC-IS

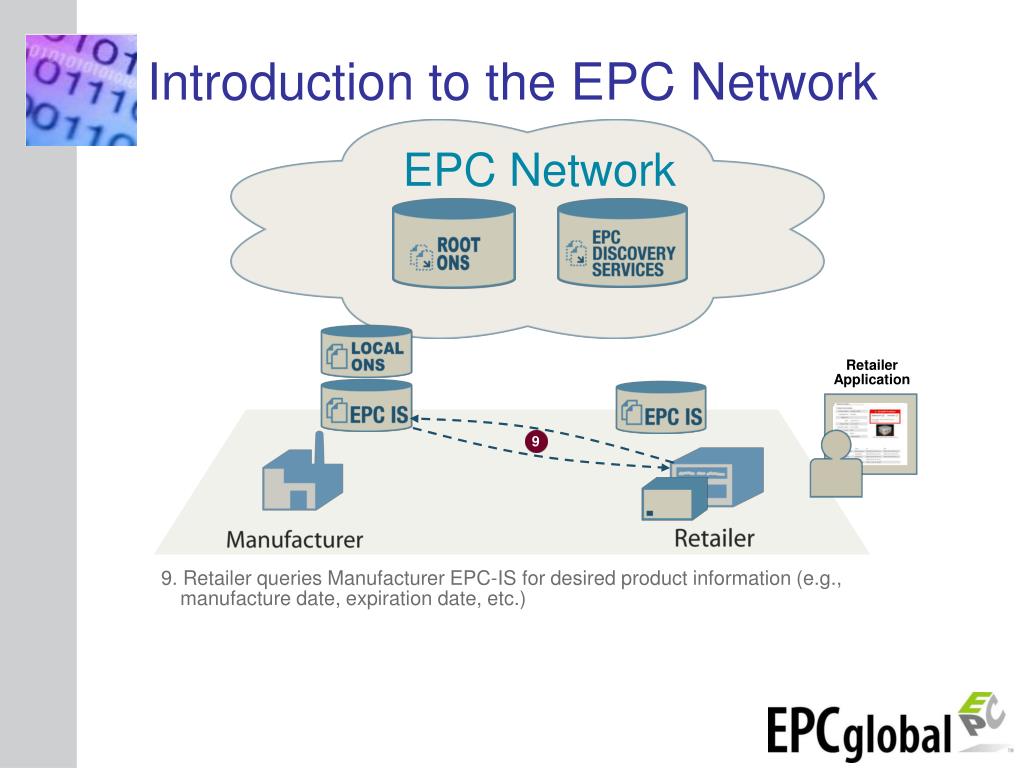

  7. 9 Introduction to the EPC Network EPC Network Retailer Application 9. Retailer queries Manufacturer EPC-IS for desired product information (e.g., manufacture date, expiration date, etc.)

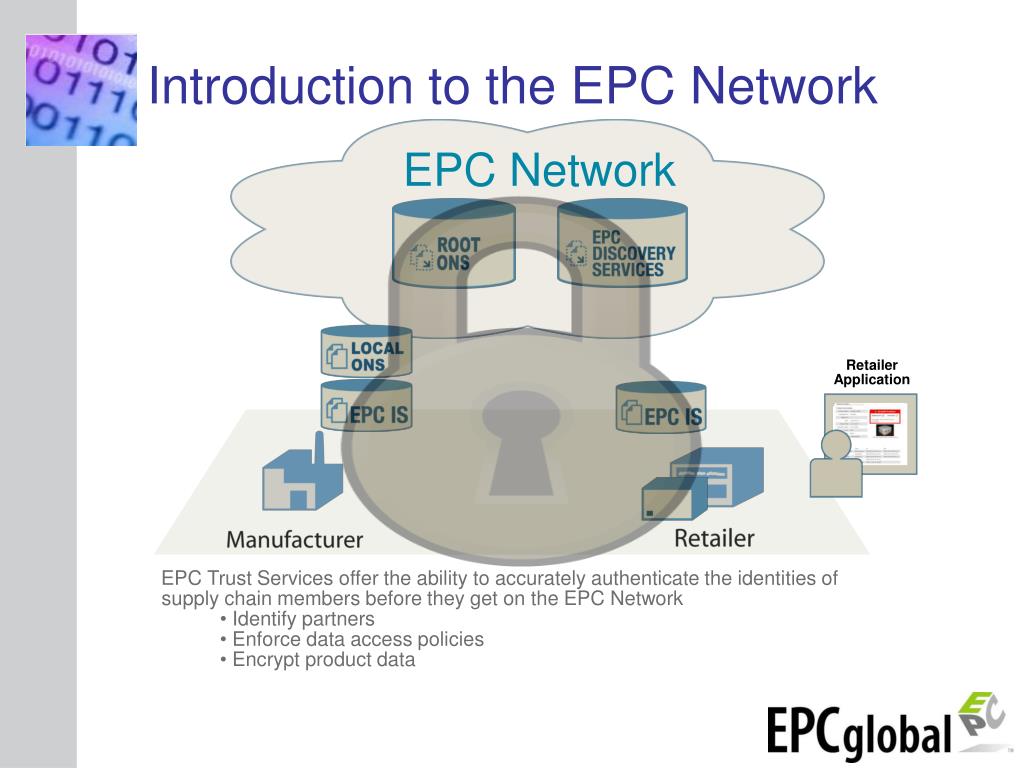

  8. Introduction to the EPC Network EPC Network Retailer Application • EPC Trust Services offer the ability to accurately authenticate the identities of supply chain members before they get on the EPC Network • Identify partners • Enforce data access policies • Encrypt product data

  9. Evaluation Kit Screen Shot
