Napolean's Theorem

Eunmi. Mandy. Napolean's Theorem. Julia. Amelia. ~is said to be one of the most-often rediscovered results in mathematics . ~earliest appearance of this theorem was said to be is an 1825 article by Dr. W. Rutherford in "The Ladies Diary“. Although he was probably not the first discoverer. .

reginald
Download Presentation

Napolean's Theorem

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Eunmi Mandy Napolean's Theorem Julia Amelia

  2. ~is said to be one of the most-often rediscovered results in mathematics ~earliest appearance of this theorem was said to be is an 1825 article by Dr. W. Rutherford in "The Ladies Diary“. Although he was probably not the first discoverer. HISTORY ~The theorem is named after Napoleon Bonaparte, although he was not the first to discover it but apparently found it independently and so it bears his name. http://www.mathpages.com/home/kmath270/kmath270.htm

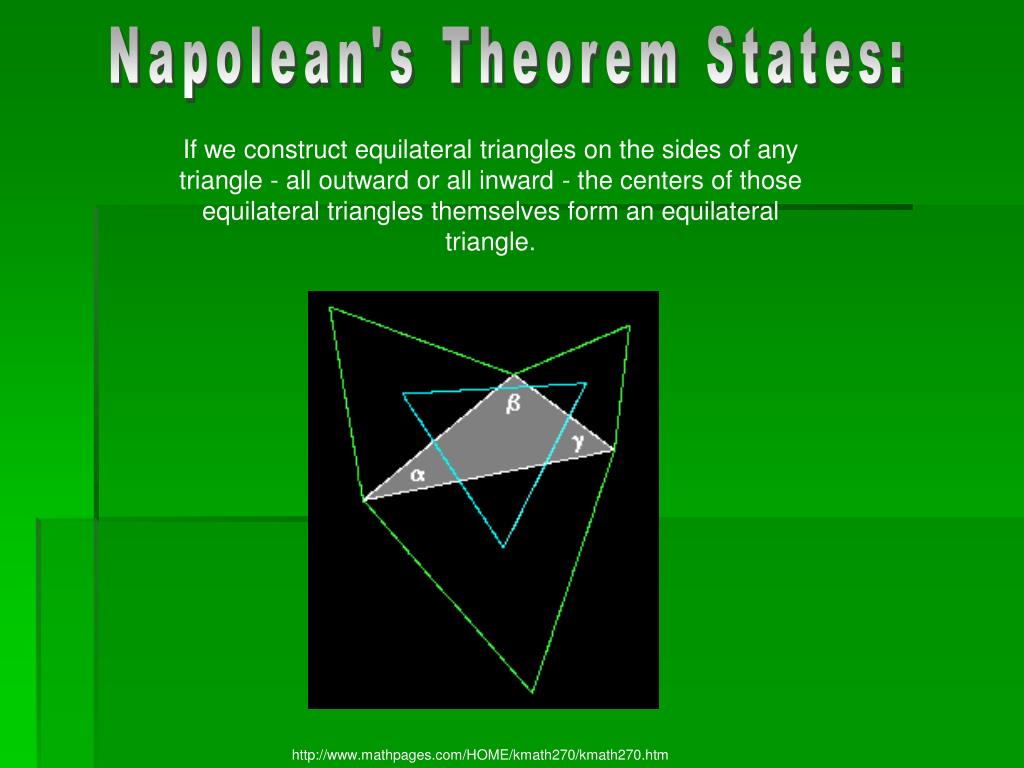

  3. Napolean's Theorem States: If we construct equilateral triangles on the sides of any triangle - all outward or all inward - the centers of those equilateral triangles themselves form an equilateral triangle. http://www.mathpages.com/HOME/kmath270/kmath270.htm

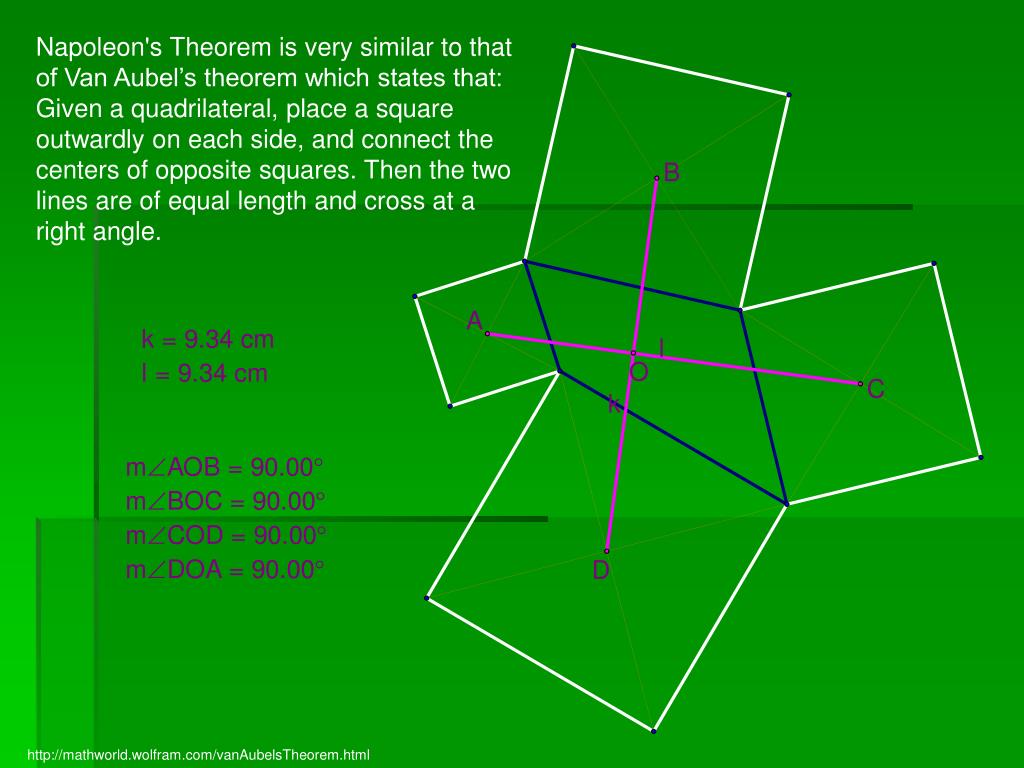

  4. Napoleon's Theorem is very similar to that of Van Aubel’s theorem which states that: Given a quadrilateral, place a square outwardly on each side, and connect the centers of opposite squares. Then the two lines are of equal length and cross at a right angle. http://mathworld.wolfram.com/vanAubelsTheorem.html

  5. Outer Napolean Triangle

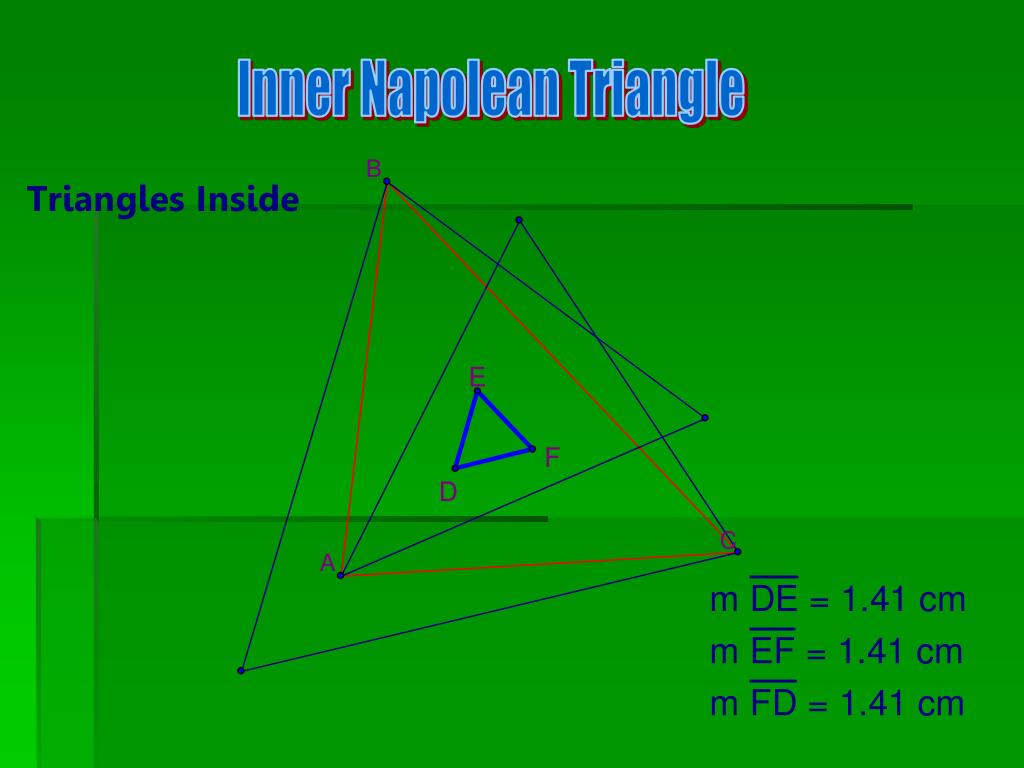

  6. Inner Napolean Triangle

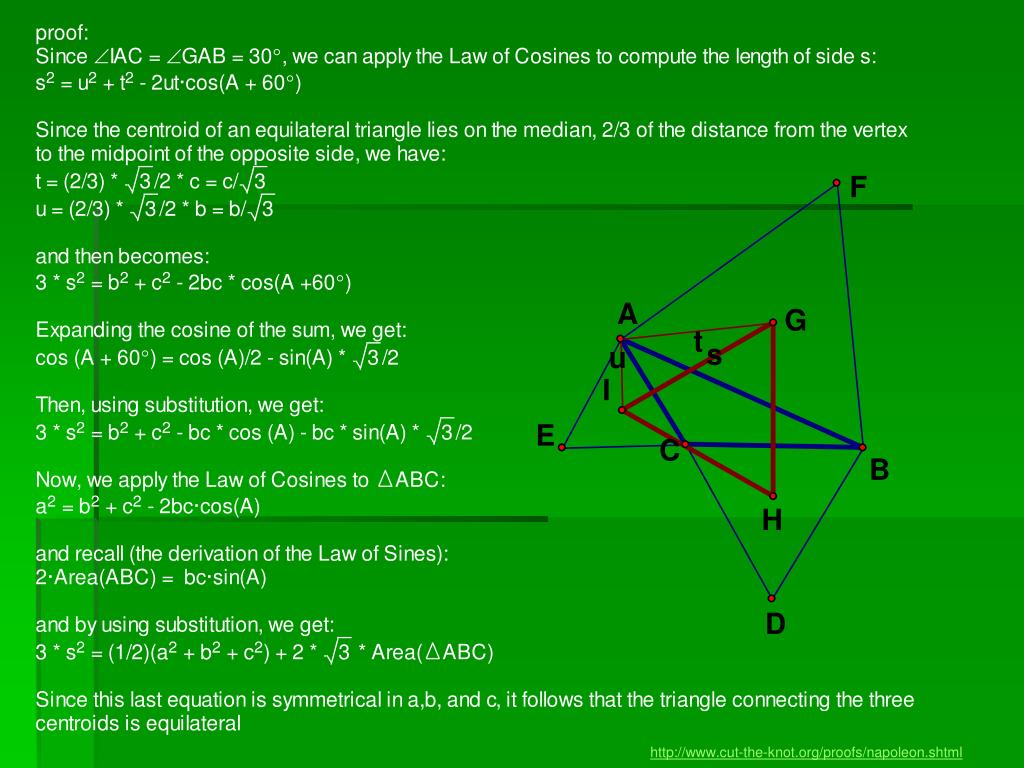

  7. http://www.cut-the-knot.org/proofs/napoleon.shtml

  8. History: http://www.mathpages.com/home/kmath270/kmath270.htm Van Aubel’s Theorem: http://mathworld.wolfram.com/vanAubelsTheorem.html Napoleon’s Theorem: http://www.mathpages.com/HOME/kmath270/kmath270.htm Proof of Napoleon’s Theorem: http://www.cut-the-knot.org/proofs/napoleon.shtml Internet Sources for P. Point
